Jaltest  |  SKU: MDC14

Jaltest (MDC14) | ETM Multipin Adapter Cable (Brake Pad Wear Sensor) | Commercial Vehicle

€68,95 incl.
€56,98 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

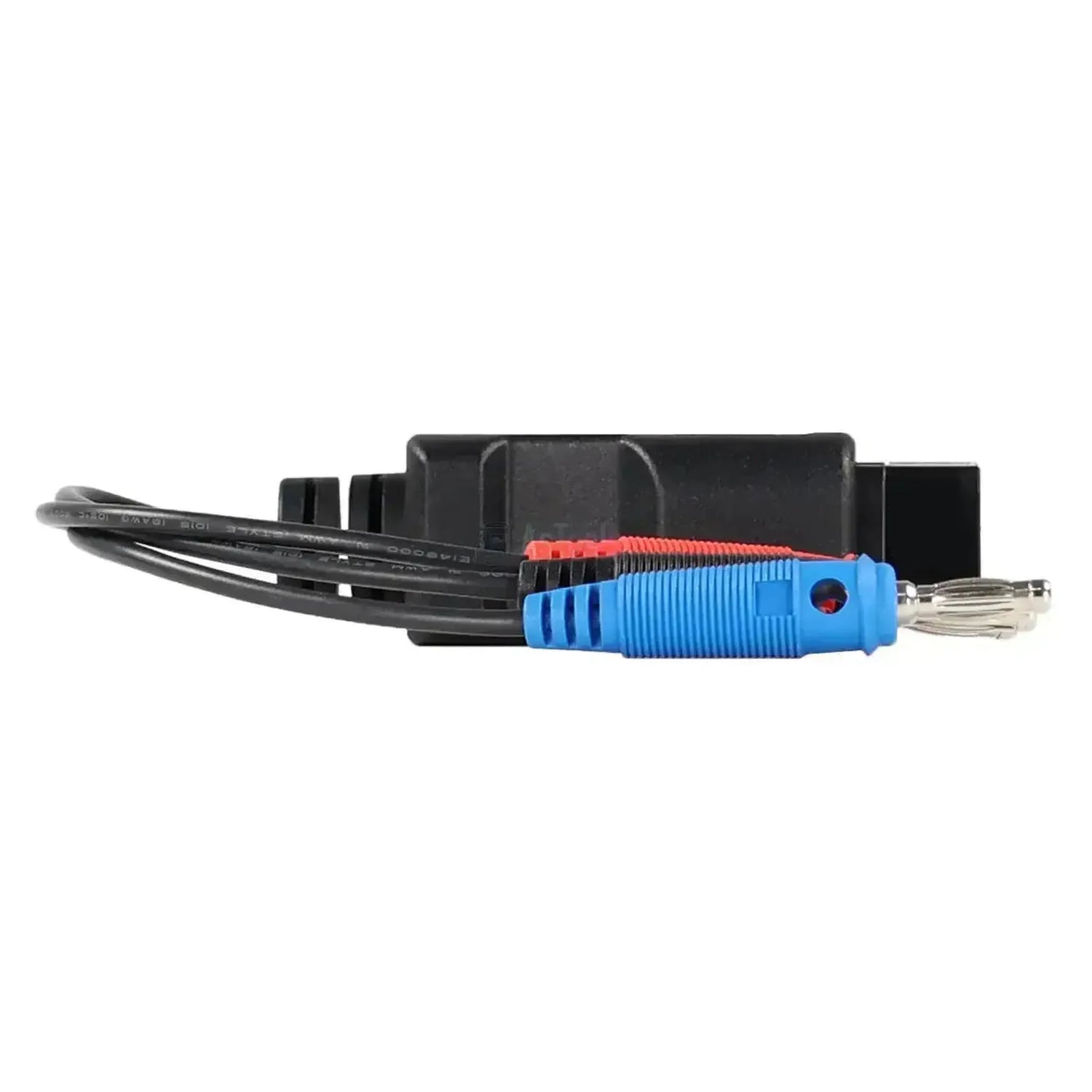

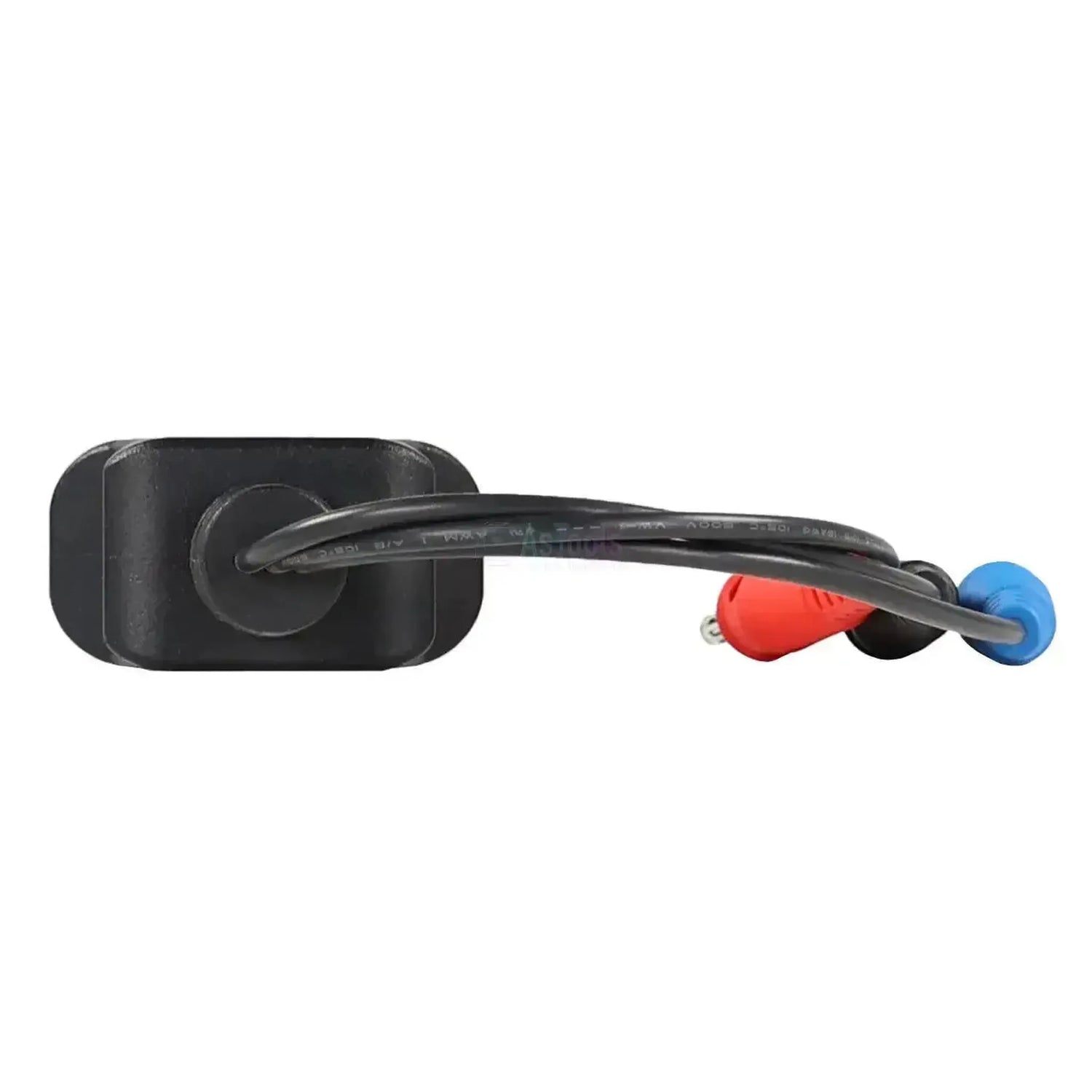

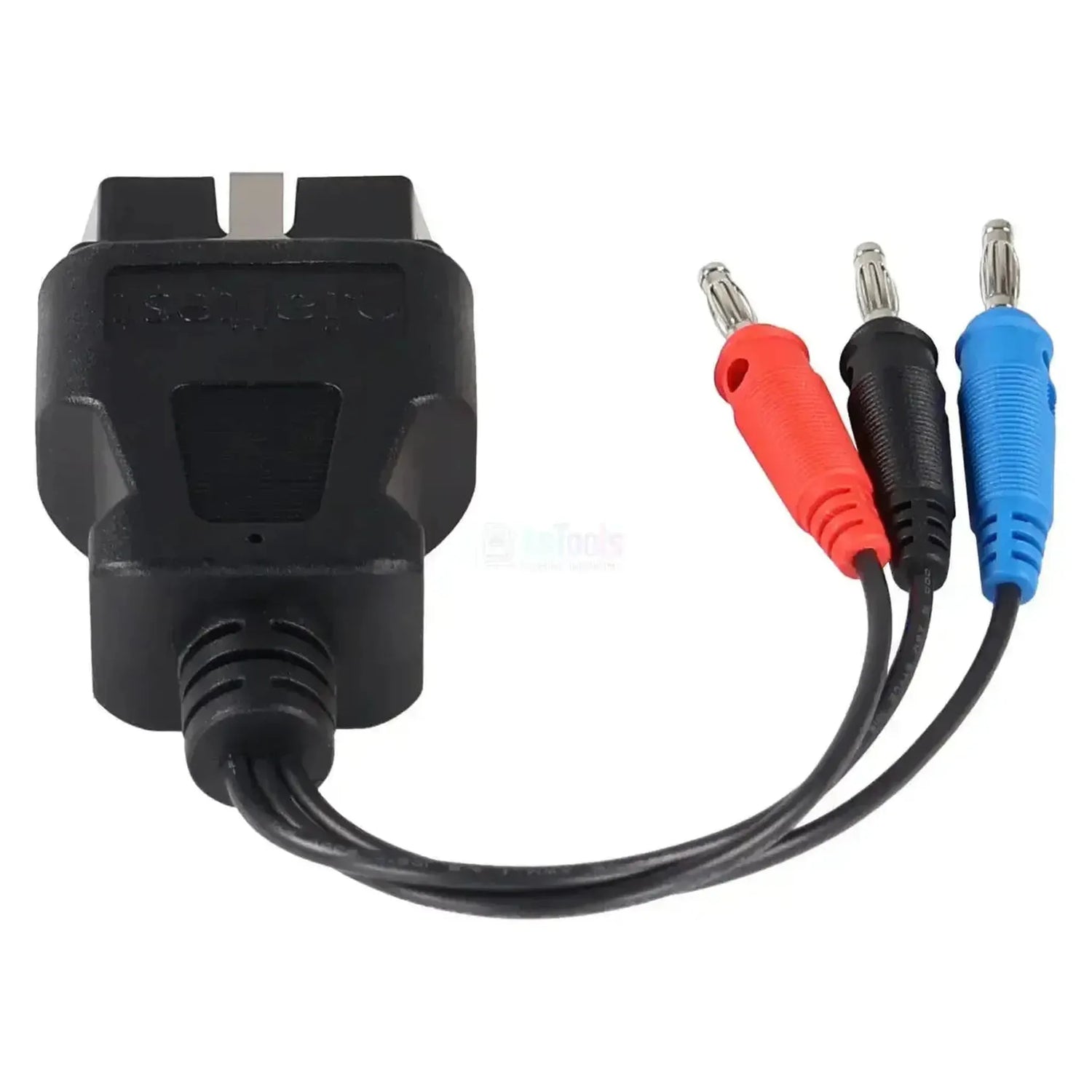

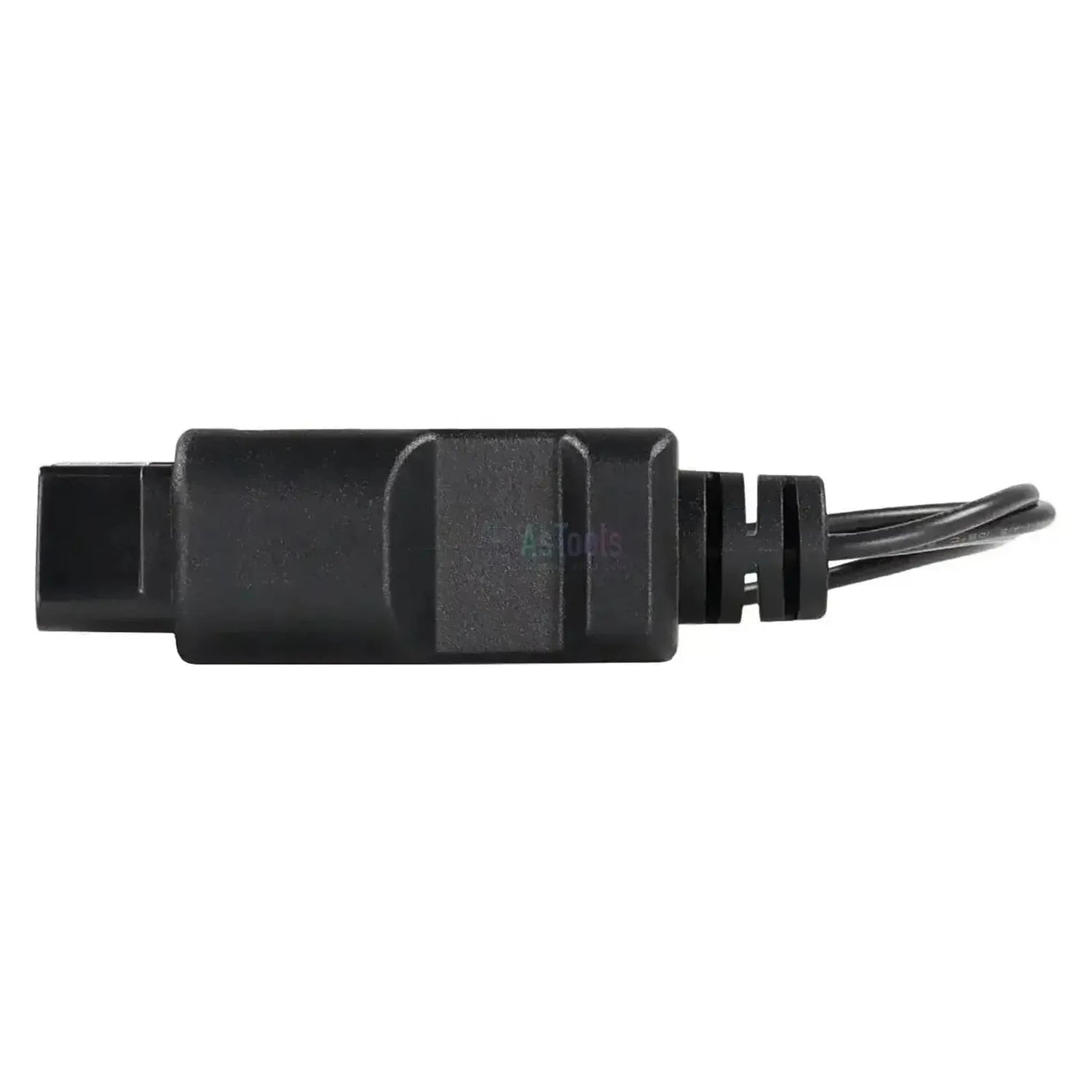

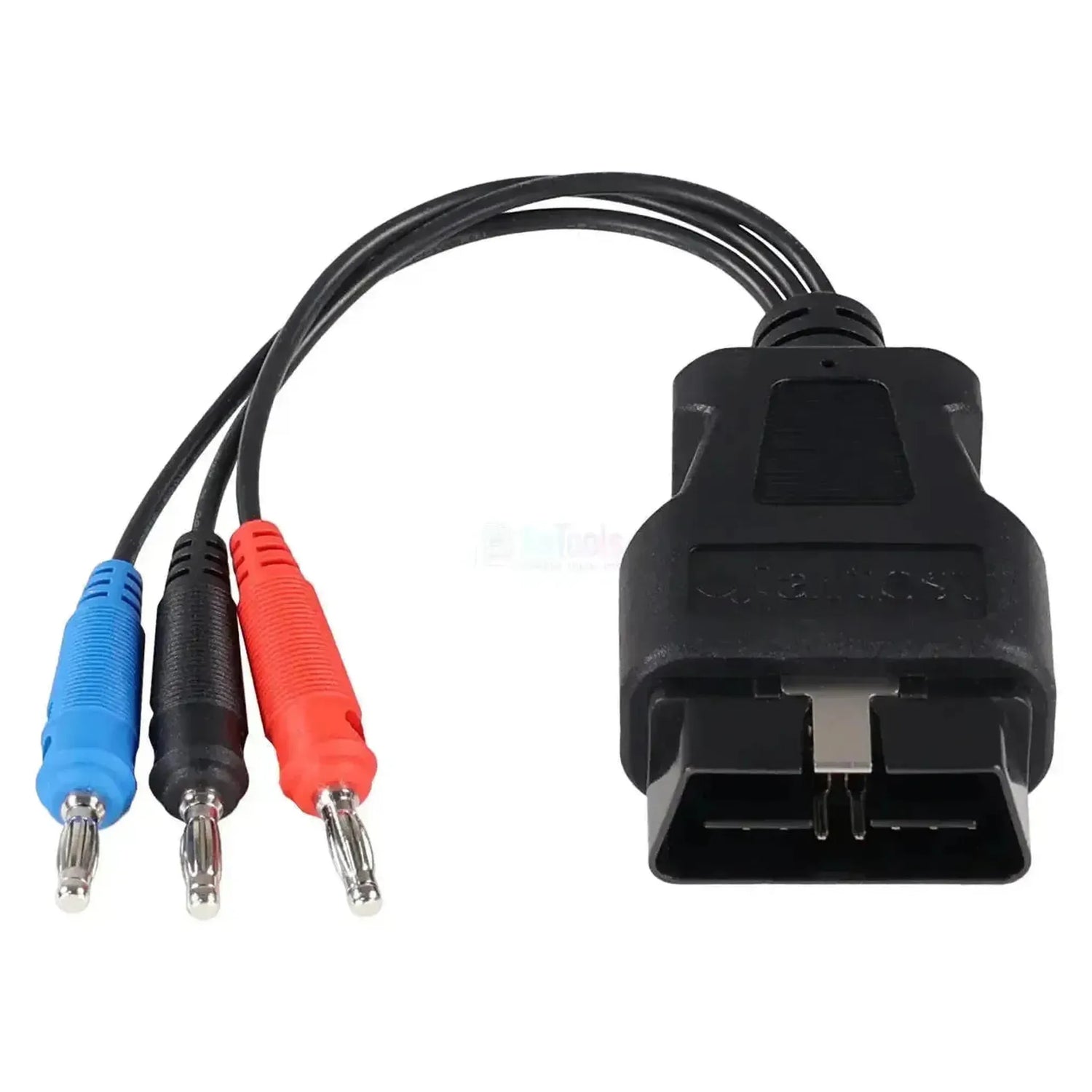

The Jaltest MDC14 is the ETM multipin cable for brake pad wear sensors. At one end is a 16-pin OBD2 connector in a black housing marked MDC14, for the Jaltest ETM. At the other end, three leads run to three separate test pins in blue, black and red.

With these pins you connect directly to the sensor connection, instead of to a fixed mating connector; that is what multipin means here. This is how you test the wear sensor on commercial vehicles with the ETM, separately from the control unit. The cable only works with the ETM on a Jaltest Link, with an ETM licence and a current CV or Modular software licence.

ADVANTAGES

✔Designed for brake pad wear sensors, so you can test the component directly with the test module.
✔With the three separate test pins you connect directly to the sensor connection, including where no fixed mating connector fits.
✔The ETM takes over the measurement, so you assess the sensor separately from the rest of the system.
✔Connect to the Jaltest Link via the ETM interface for V9 (70001007), or via the MDC100.9 adapter cable for an earlier ETM version.

POINTS TO NOTE

✕Count the pins before ordering: this cable has three, the MDC13 has two and is for the speed sensor. EBS modulators cannot be reached with this cable; for those, the MDC02 to MDC09 are required.
✕The MDC10 and MDC11 access the same wear sensor with a fixed round 3-pole connector. So first check how the sensor is connected on your vehicle.
✕Requires an ETM licence in addition to a current CV or Modular software licence; once that expires, the ETM no longer works until it is renewed.
✕The cable does not work independently: without the Jaltest ETM on a Jaltest Link you measure nothing, and the ETM does not run on Jaltest handhelds.

Applications and functionality

Via this cable the Jaltest ETM communicates directly with the wear sensor, without the control unit being involved. With the separate test pins you can also reach a sensor connection without a matching mating connector.

What this cable is used for

  • Wear sensors: Testing on commercial vehicles.
  • Separate test pins: Blue, black and red.
  • No mating connector: Probe the contacts directly.
  • Always with the ETM: On a Jaltest Link.

What you can do

  • Standalone testing: ETM replaces the control unit.
  • Identifying a fault: Sensor or wiring.
  • End of Line test: Confirm that it works.
  • Measure first: Do not replace unnecessarily.

How to use it

  1. Start the software: Open Jaltest with the ETM on the PC.
  2. Free the sensor: Disconnect the plug of the wear sensor.
  3. Place the pins: Position the three pins on the contacts.
  4. Connect the ETM: Plug the OBD2 end into the ETM.
  5. Testing: Select the sensor test in the ETM.

Compatible devices and applications

The component and the number of pins are decisive. The MDC14 has three test pins and is intended for brake pad wear sensors. It works with the Jaltest ETM on a Jaltest Link V8.1 or V9. Below it is shown which ETM cable belongs to which component.

Cables for the Jaltest ETM:

  • MDC02 to MDC09: EBS modulators from Knorr-Bremse and Wabco.
  • MDC12 and MDC13: Speed sensors.
  • MDC10, MDC11 and MDC14: Brake pad wear sensors.
  • MDC100.9: Adapter cable for an earlier ETM version.

What you need

  • Jaltest ETM: The test module for components. For the Jaltest Link V9 this is the ETM interface 70001007; for an earlier ETM version, use the MDC100.9 adapter cable.
  • ETM licence: The ETM does not start without this licence. The annual renewal has reference 29701.
  • Current Jaltest software licence: A CV licence or a Modular licence. Other modules cannot be combined with the ETM.
  • PC or laptop: The ETM does not work on Jaltest handheld devices.
💡
Good to know: Count the pins: the MDC14 has three, blue, black and red, for the brake pad wear sensor. The MDC13 has two, green and yellow, for the speed sensor. If the sensor has a fixed round 3-pole connector, the MDC10 and MDC11 fit. Also check the licence: the hardware and software of the ETM run in line with the expiry date of your Jaltest software licence. If that licence runs for more than a year, you only pay for the remaining period. Once the Jaltest licence expires, the ETM no longer works until it is renewed. Therefore, first check until when your licence runs before you order.

Package contents

  • 1x Jaltest (MDC14) | ETM Multipin Adapter Cable (Brake Wear Sensor) | Commercial Vehicle

Technical specifications

General

The manufacturer of the cable or set. This confirms that it is suitable for your Jaltest equipment.Brand
Jaltest (Cojali)
The type of item: a component test cable, an adapter, an interface cable or a complete set.Product type
Test cable
The version of the Jaltest Link with which the cable works. Please select the version you use in your workshop.Compatible with Jaltest Link
  • Jaltest Link V8.1
  • Jaltest Link V9
The braking system components that you can measure with this cable. This helps you choose the cable that suits the component you wish to test.Components to be tested
  • Brake pad wear sensors

Connections

The connector used to attach the cable to the Jaltest ETM or Link. It must match your device.Interface-side connection

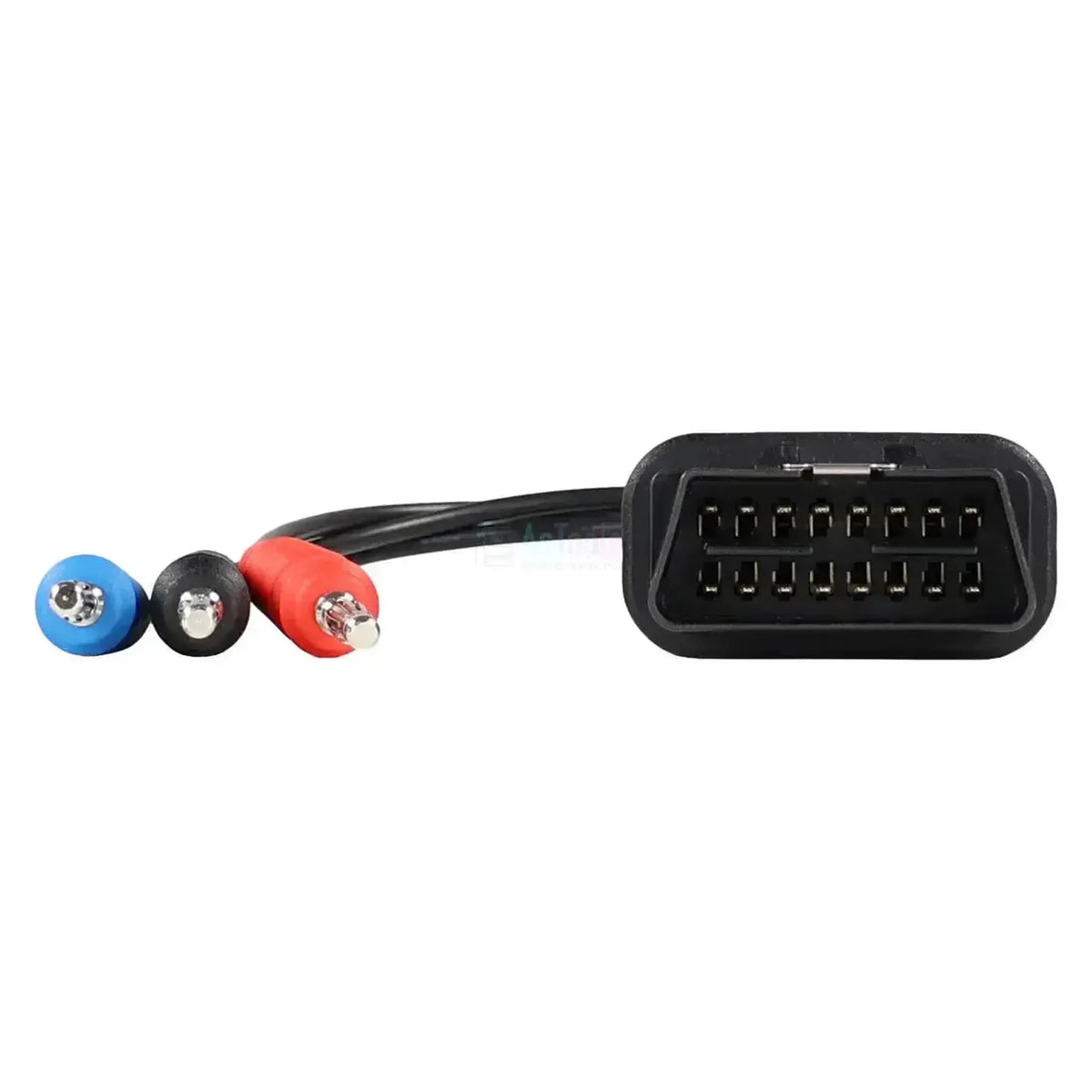

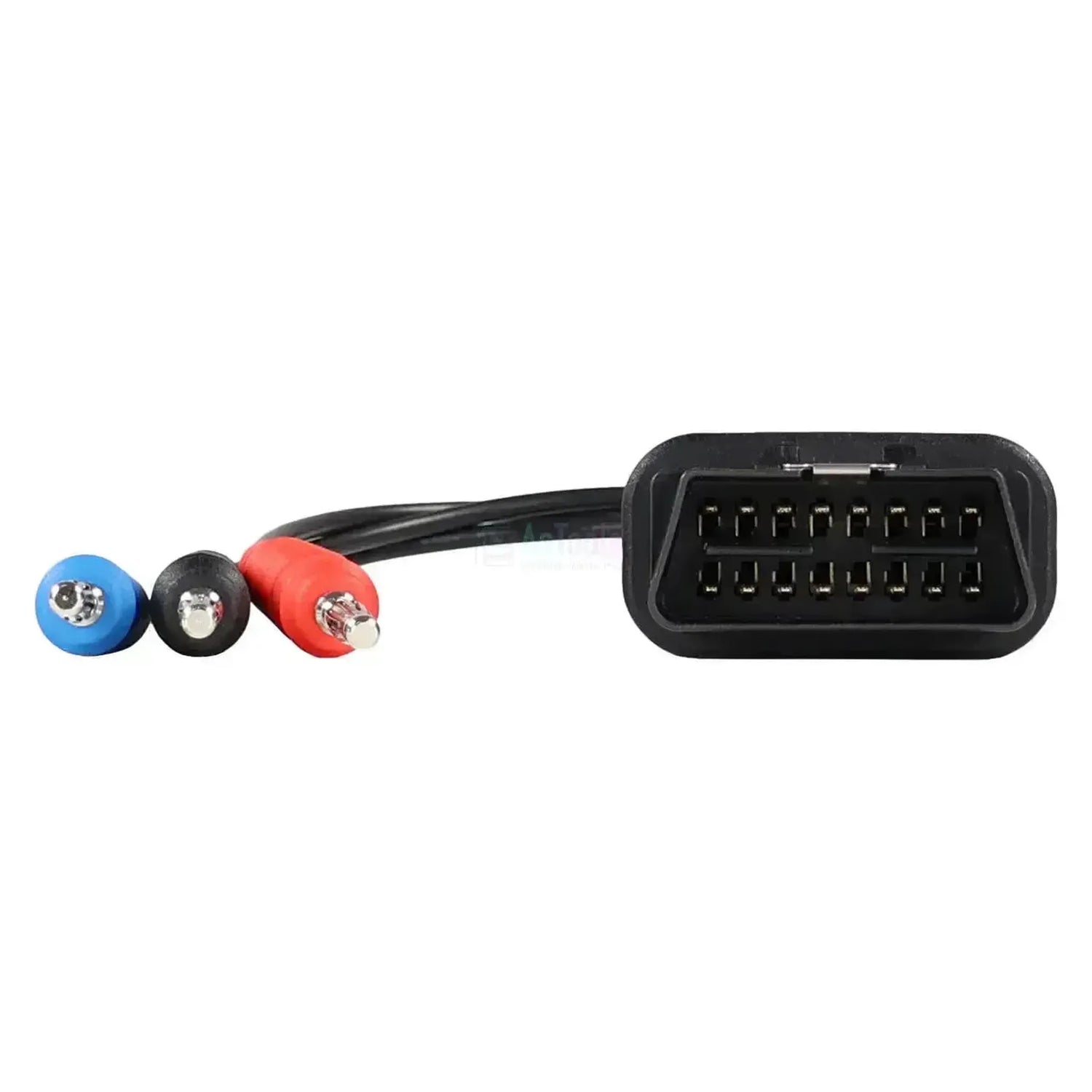

16-pin OBD2 connector in a black housing marked MDC14
The connector that attaches to the component or modulator. It determines which component you can connect the cable to.Component-side connection
3 separate test probes, blue, black and red

Test functions

A final check to confirm that the component works correctly, for example after a repair.End of Line test (EOL)

Licence

The Jaltest licence required to use the ETM with this cable. It will not work without the correct licence.Required software licence
  • CV
  • Modular
Whether this cable is already included in the ETM kit. If not, it can be purchased separately as an addition.Part of the ETM kit

Dimensions

The length of the cable. A longer cable allows more freedom to reach the component.Cable length
24.5 to 25.5 cm
Reference number
MDC14

Other specifications

Counterpart
MDC13, for speed sensors
Part of cable set
Multipin kit for the ETM (JTP98)
Required for use
Jaltest ETM, Jaltest Link, ETM licence and an active CV or Modular software licence
Not supported
Jaltest handhelds
Annual ETM renewal
29701
