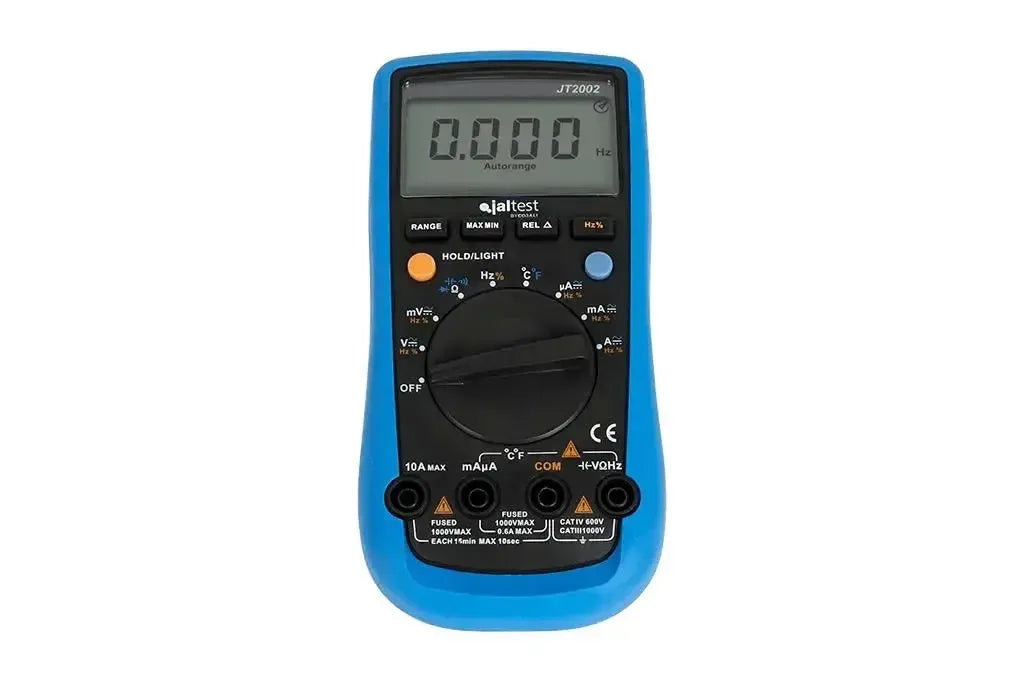

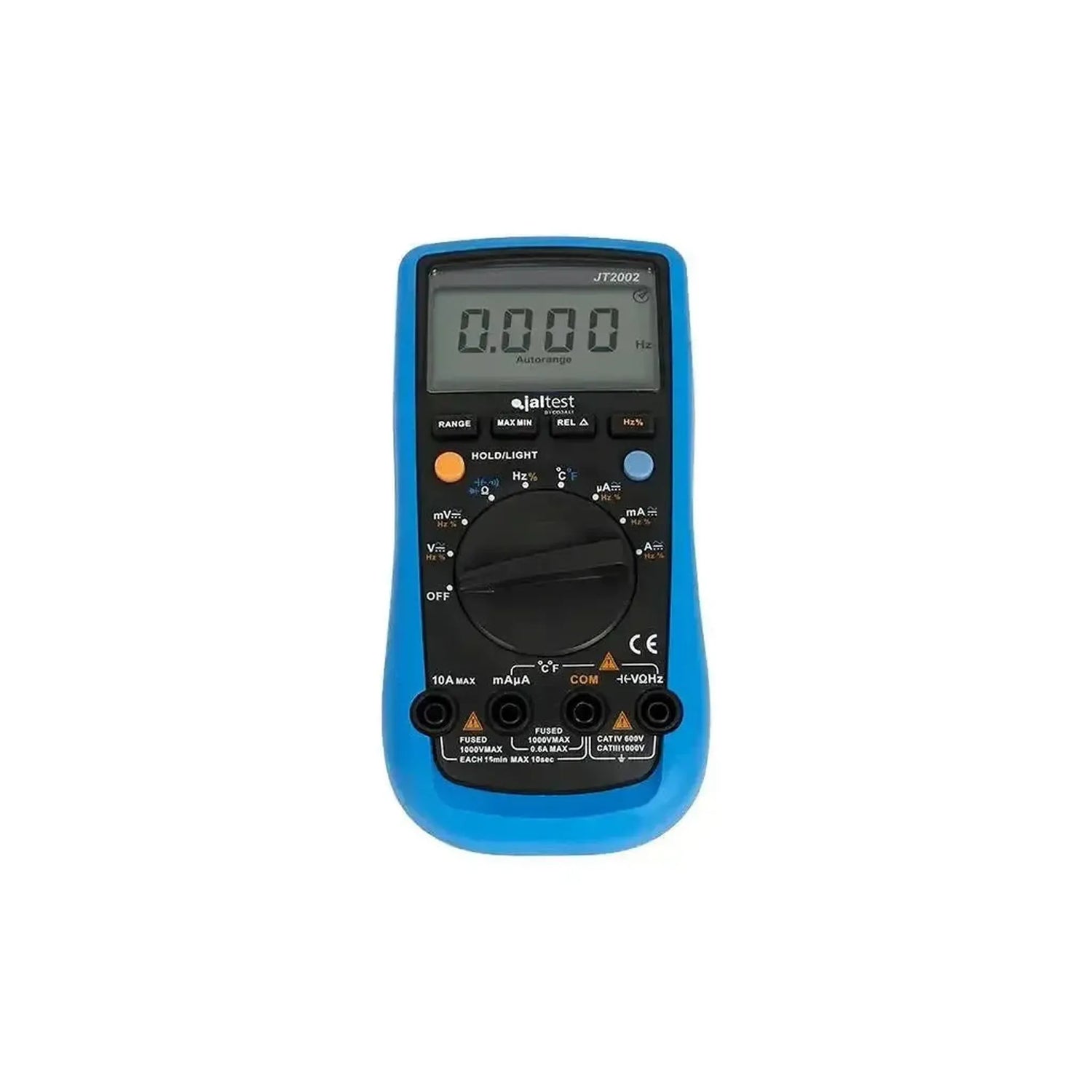

Jaltest JT2002 | Multimeter

The JT2002 from Jaltest is a digital autorange multimeter, designed for measuring a wide range of electrical quantities. The instrument can measure both AC/DC voltage and AC/DC current in various ranges, from microamperes to 10 amperes. Additionally, the meter is equipped to measure resistance, capacitance, frequency, and temperature. The measurements are displayed on an LCD screen with 6000 counts.

This multimeter features additional functionalities such as a diode and continuity test with an acoustic signal. The REL Δ function enables relative measurements, while the MIN/MAX function records the highest and lowest measured value. For use in low-light environments, the display is equipped with backlighting. The data hold function allows the user to freeze a measured value on the screen. The device complies with safety standards CAT III 1000V and CAT IV 600V.

Application and functionality:

The Jaltest JT2002 is a versatile measuring instrument for performing various electrical and electronic tests. The functions are accessible via the central rotary switch and additional push buttons.

• Voltage and current measurement: Measurement of AC and DC voltage and current in multiple, automatically selected ranges.
• Resistance and capacitance measurement: Determining the resistance of circuits and the capacitance of components.
• Frequency and duty cycle measurement: Analysis of the frequency and the on/off ratio of a signal.
• Temperature measurement: Measurement of temperature using a supplied K-type thermocouple.
• Continuity test: Checks the conduction of a circuit and provides an audible indication at low resistance (≤ 10Ω).
• Diode test: Measures the forward voltage of diodes.
• MIN/MAX recording: Records and displays the minimum and maximum measured values during a measurement session.
• Relative measurement (REL Δ): Sets a current measured value as zero point for measuring deviations.
• Data hold and backlight: Freezes the measured value on the display and illuminates the screen for better readability.

Measurement ranges and functions:

The multimeter offers the following measurement ranges for accurate diagnostics:

• DC voltage: 600mV to 1000V
• AC voltage: 60mV to 1000V
• DC current: 600µA to 10A
• AC current: 600µA to 10A
• Resistance: 600Ω to 60MΩ
• Capacity: 40nF to 4000µF
• Frequency: 10Hz to 10MHz
• Temperature: -40°C to 1000°C

Package Contents:

• 1x Jaltest JT2002 digital multimeter
• 1x Set of test leads
• 1x K-type thermocouple
• 1x 9V battery
• 1x Manual
