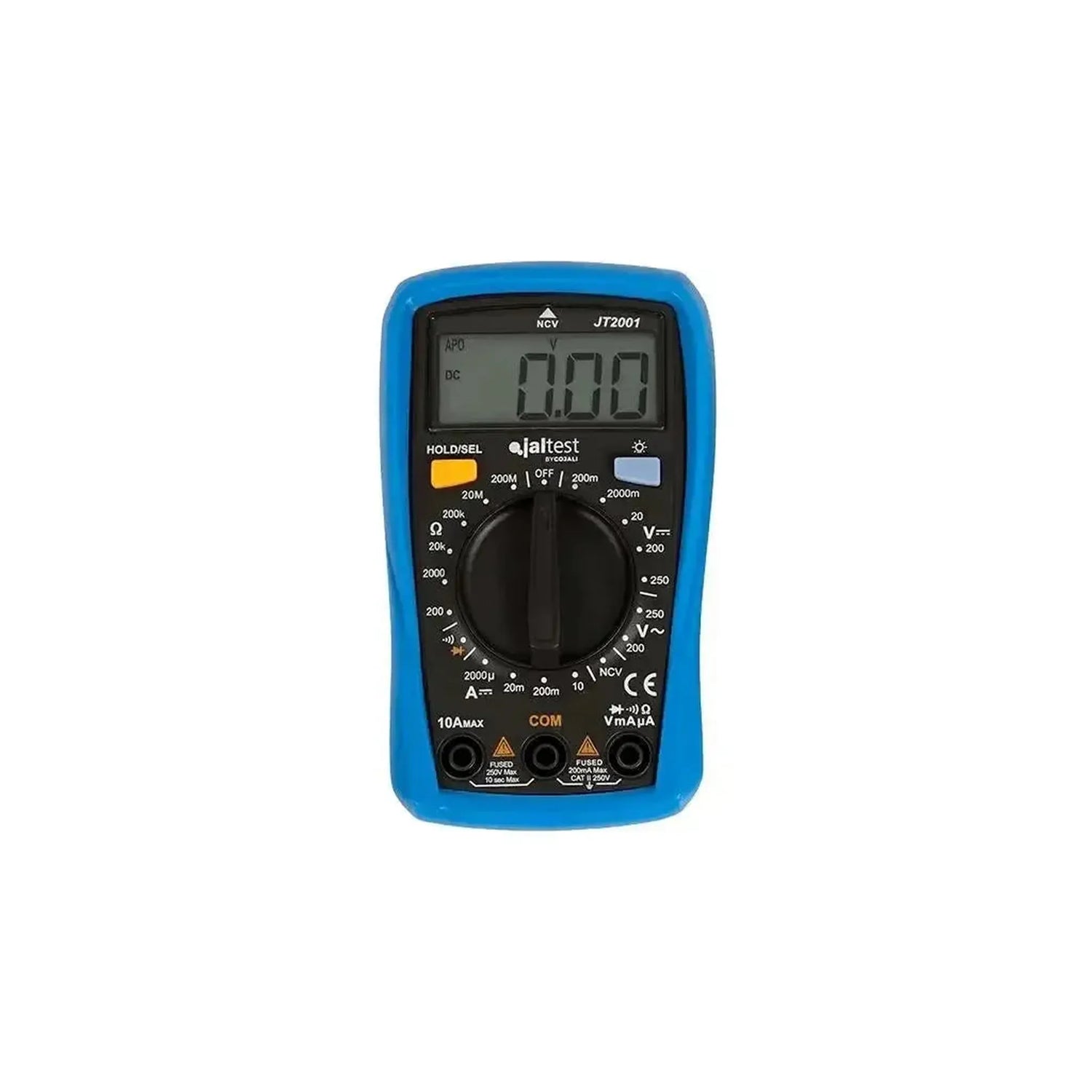

Jaltest JT2001 | Multimeter

The Jaltest JT2001 is a digital multimeter designed for performing various electrical measurements. This instrument is suitable for measuring direct voltage (DCV), alternating voltage (ACV), direct current (DCA), and resistance (Ω). The meter features a clearly readable 3 1/2 digit LCD display with a maximum reading of 1999. For extra safety, the device is equipped with a non-contact voltage detector (NCV) and complies with the CAT II 600V safety standard.

In addition to the basic measurements, the JT2001 multimeter offers extra functionalities such as a diode test and a continuity test with an acoustic buzzer. The data hold function allows a measured value to be fixed on the screen for later reading. For use in low-light environments, the display is equipped with backlighting. The multimeter automatically switches off after 10 minutes of inactivity to extend battery life and has a low battery indicator.

Application and functionality:

The JT2001 is a handy instrument for diagnosing and checking electrical circuits and components in various applications, including in the automotive sector.

• Voltage measurement (AC/DC): For checking the voltage of batteries, dynamos, sensors, and power circuits.
• Current measurement (DC): Measuring the current in direct current circuits, with a separate, fused input for measurements up to 10A.
• Resistance measurement: Suitable for measuring wiring, testing sensors, and checking the resistance of components.
• Continuity test: A quick check for breaks in cables or circuits, with a clear buzzer as a signal.
• Diode test: For checking the correct operation of diodes and other semiconductors.
• Non-contact voltage detection (NCV): Allows detection of the presence of alternating voltage in cables or sockets without physical contact.
• Data hold: Freezes the current measurement value on the screen, useful for measurements in hard-to-reach places.
• Display lighting: A switchable backlight for the display improves readability in dark working conditions.

Measurement ranges and functions:

The multimeter features manually adjustable measurement ranges for accurate measurement of various electrical quantities.

• Direct voltage (DCV): 200mV / 2V / 20V / 200V / 260V
• Alternating voltage (ACV): 2V / 20V / 200V / 250V
• Direct current (DCA): 2000µA / 20mA / 200mA / 10A
• Resistance (Ω): 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ
• Continuity: Acoustic signal for resistance below approximately 50 Ω
• Diode test: Displays the forward voltage of a diode

Package Contents:

• 1x Jaltest JT2001 digital multimeter
• 1x Set of test leads (red and black)
• 1x Protective rubber housing
• 1x Manual
