Jaltest  |  SKU: JDC632A

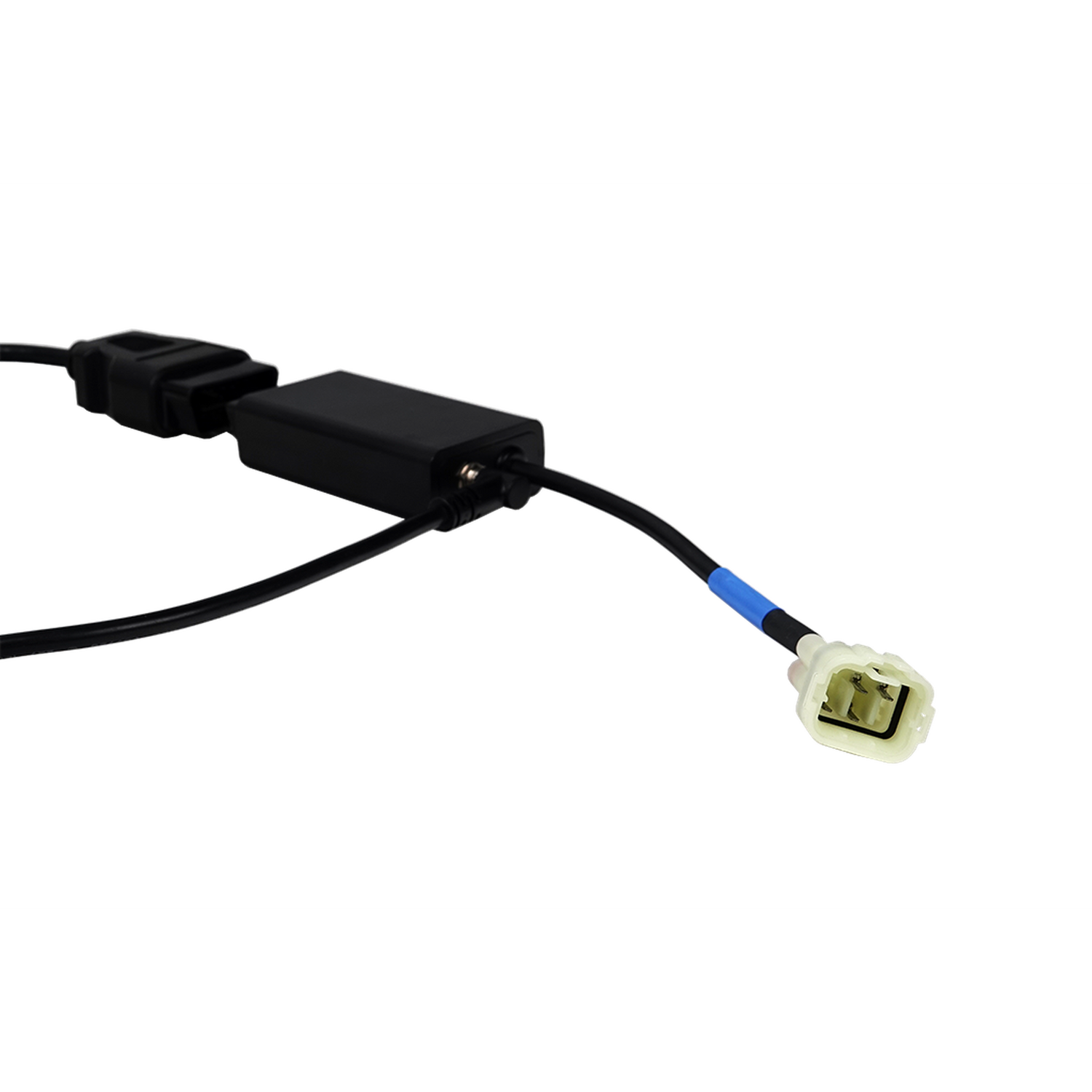

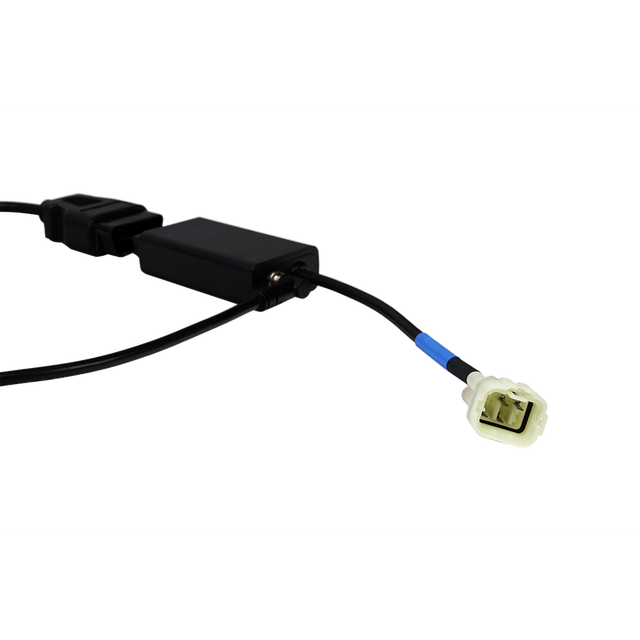

Jaltest (JDC632A) | Mercury/Tohatsu 6-pins OBD - 16-pins OBD2 Adapter Cable | Motorboat

€174,95 incl.
€144,59 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

The Jaltest JDC632A connects the 6-pin diagnostic connector of small Mercury and Tohatsu outboard motors to a standard 16-pin OBD2 interface. The 6-pin connector is located under the engine cover; on the interface side, the cable fits the 16-pin OBD2 cable of the Jaltest Link, without an additional SubD-26 extension cable.

Mercury and Tohatsu share the same engine control system in the 10-20 hp class. In the coverage, this is listed as ECM by Tohatsu under the Mercury models and as ECM under the Tohatsu model names, with the same function set. You can read fault codes, measured values and live data and carry out component tests. The cable is covered by Jaltest Marine.

PLUS POINTS

✔Specially designed for the 10-20 hp class of Mercury and Tohatsu, which share the same engine control unit.
✔Works with the standard 16-pin OBD2 cable of the Jaltest Link, so no additional SubD-26 extension cable is required.
✔In addition to fault codes and measured values, it also covers component tests and live data from the engine control system.
✔Covers two brands with one cable: the Mercury 15 and 20 FourStroke and the Tohatsu MFS models from the same class.

POINTS TO NOTE

✕Only the 10-20 hp models. For a Tohatsu from the 40-60 hp class, the JDC633A is the correct 6-pin cable.
✕Parameters, calibration and a maintenance reset are not covered for this engine control unit; you can read, measure and test.
✕For the 6-pin connector only; heavier Mercury and Tohatsu outboard motors have a different diagnostic connector.
✕This version ends in 16-pin OBD2. If you work from the SubD-26 port of the Link, the JDC632.9 is the correct cable.

Applications and functions

With this cable you make the connection between the Jaltest Link and the engine control unit of small Mercury and Tohatsu outboard motors. The connection runs from the 6-pin connector under the engine cover to the 16-pin OBD2 cable of the Link.

Control units you can access

  • ECM by Tohatsu: Engine control, Mercury models.
  • ECM: Same control, Tohatsu models.

What you can do

  • Fault codes: Read fault memory with descriptions.
  • Measured values: View current sensor values.
  • Components: Tests on the injection and ignition.
  • Live data: Monitor while the engine is running.

How to use it

  1. Open the cover: Locate the 6-pin connection under the engine cover.
  2. Connect: Insert the 6-pin plug of the JDC632A into it.
  3. Link connection: Connect the OBD2 end to the OBD2 cable of the Link.
  4. Ignition on: Switch the engine's ignition on.
  5. Read out: Select Mercury or Tohatsu and the model in Jaltest Marine.

Compatible vehicles and applications

The connector is decisive, not the model. The cable fits any Mercury or Tohatsu outboard motor from the 10-20 hp class with the 6-pin diagnostic connector. Jaltest Marine covers the models listed below.

Mercury:

  • 15 FourStroke: ECM by Tohatsu control unit.
  • 20 FourStroke: ECM by Tohatsu control unit.
  • 15 SeaPro: ECM by Tohatsu control unit.

Tohatsu:

  • MFS 15: ECM (Engine Control Module) control unit.
  • MFS 20: ECM (Engine Control Module) control unit.
  • MFS 9.9: ECM (Engine Control Module) control unit.
💡
Good to know: The engine side is the ivory-coloured 6-pin connector under the engine cover, with six contact positions in two rows. This version is recognised by the trapezoidal OBD2 connector, the black plastic housing halfway along the cable and the blue marking ring just before the 6-pin plug. If you work with the SubD-26 port of the Link, you need the JDC632.9.

Package contents

  • 1x Jaltest (JDC632A) | Mercury/Tohatsu 6-pin OBD - 16-pin OBD2 Adapter Cable | Motor Boat

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
Jaltest
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
Adapter cable
The types of vehicles or machinery on which the cable can be used. This shows quickly whether it suits the vehicles entering your workshop.Vehicle types
  • Boat
The number of vehicle brands the cable is suitable for. Many adapter cables only fit one brand with its own connector.Number of vehicle brands
2 brands

Suitable for

The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool
  • Jaltest
The Jaltest module required to use the cable. Without the correct licence, the cable will not work.Jaltest software module
  • Marine

Connections

The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector
6-pin OBD
The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
16-pin OBD2

Diagnostic functions

Shows the current sensor readings while the vehicle is running. Useful for tracing faults.View live data
Allows you to activate components yourself to test whether they are faulty. This saves time when fault finding.Component activation

Size and weight

Control units
ECM (Engine Control Module)
Reference number
JDC632A

Other specifications

Application
Mercury and Tohatsu outboard motors, 10-20 hp
Length
Not specified
