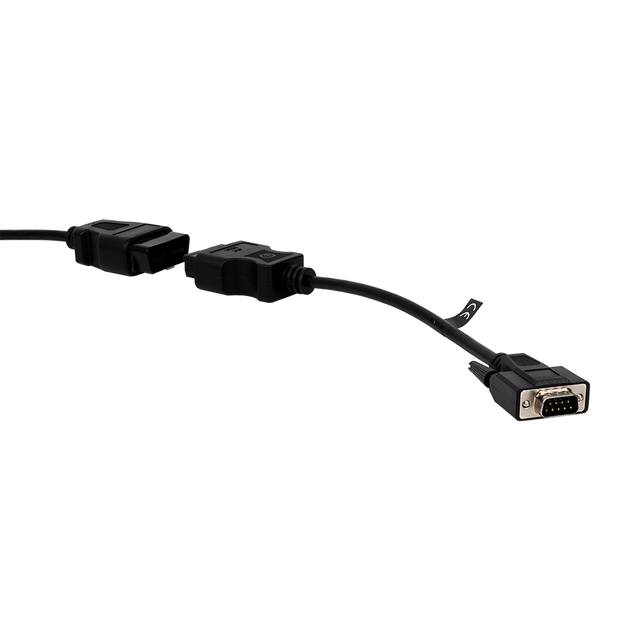

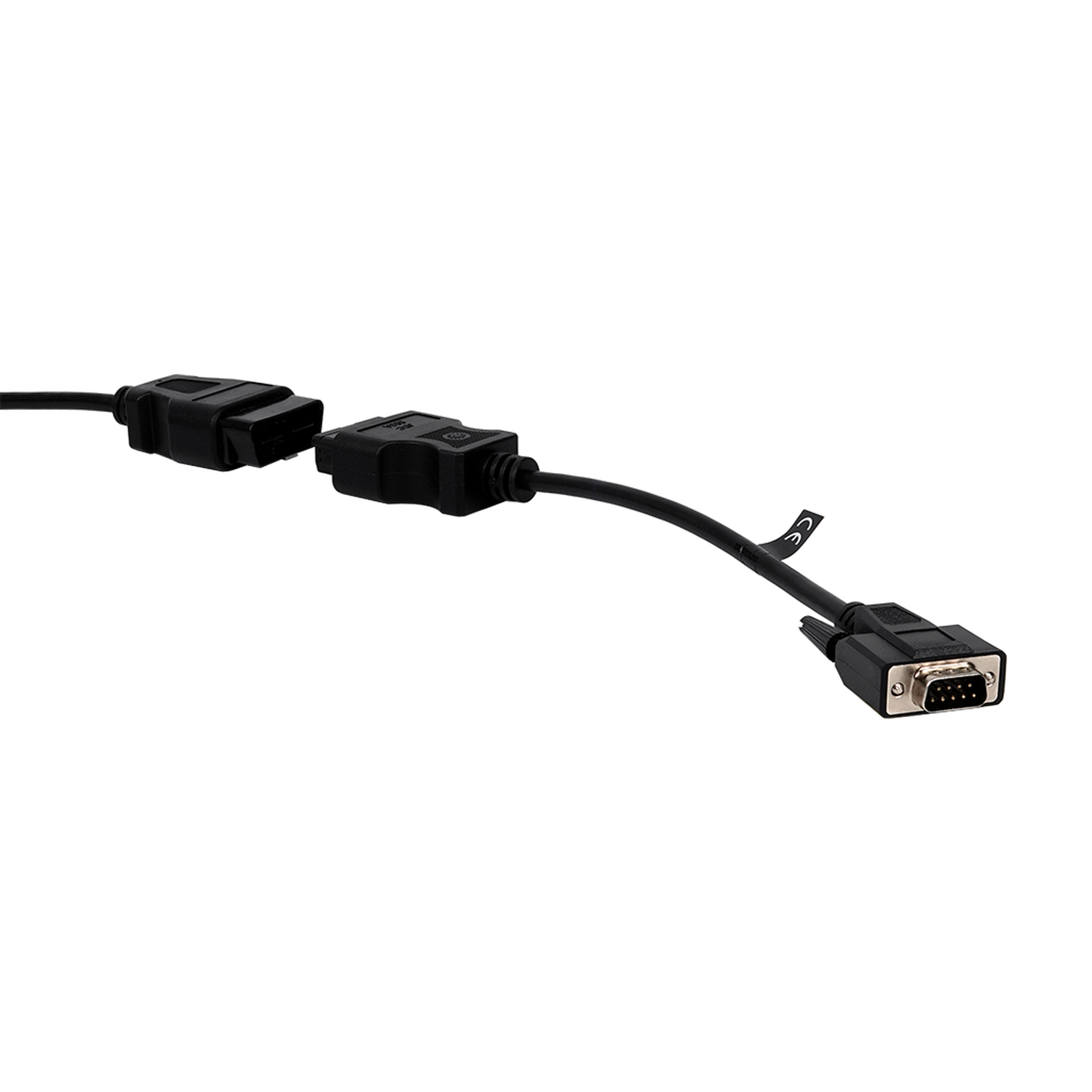

The Jaltest JDC553A is the diagnostic cable between the 9-pin SUB-D connector of Jungheinrich and the 16-pin OBD2 input of your Jaltest diagnostic cable. The cable measures 28 to 30 cm. On the machine end is a SUB-D plug with nine male pins in a nickel-plated D-shaped collar secured with two screw bolts; on the other end is a black moulded OBD2 housing.
Jungheinrich uses this plug on the electric EFG and warehouse series and on the DFG diesel and TFG LPG forklifts. Behind these are the machine computers MCM, MCM2 and DLC, the hydraulics control HCU, the power modules LMC and RMC, the DC instrument panel and, on the DFG/TFG versions, the engine controls E-CDIS, EDC 16 U31 and EDC 17 CP20 (CPYA). The cable is covered by Jaltest MHE.
ADVANTAGES
POINTS TO NOTE
Applications and functionality
Through this connection you access the truck's control units with the Jaltest software. Which systems are present varies by series and drive type: electric trucks work with the power modules, while the diesel and LPG versions additionally have an engine control.
Control units you can access
- MCM and MCM2: Central vehicle computer.
- DLC: Machine computer EFG series.
- HCU: Hydraulics of the lifting mechanism.
- LMC and RMC: Power modules for lifting and driving.
- DC: Instrument panel, maintenance.
- E-CDIS: Common rail, additional actions.
- EDC 16 U31 and EDC 17 CP20: Other diesel controls.
What you can do
- Fault codes: Reading and clearing per system.
- Measured values: In figures and graph.
- Maintenance: Intervals and service report.
- Additional actions: For the E-CDIS engine control.
How to use it
- Finding the connector: In the operator compartment or under the cover.
- Connecting: Secure the SUB-D with the two screw bolts.
- Linking: Connect the OBD2 side to the diagnostic cable.
- Ignition on: Switch on the truck.
- Reading out: Select Jungheinrich and the series.
Compatible vehicles and applications
The connector is decisive, not the model. This cable fits Jungheinrich forklifts and warehouse trucks with the 9-pin SUB-D connector. The series below are covered by Jaltest MHE; check on site which connector is fitted to your truck.
Jungheinrich:
- EFG series (EFG 110 to EFG S50): Electric forklift trucks, 2004 - 2024.
- DFG series (DFG 316 to DFG 690): Diesel forklift trucks, 1999 - 2025.
- TFG series (TFG 316 to TFG S50): LPG forklift trucks, 2007 - 2025.
- ETV / ETM series: Reach trucks, 1999 - 2024.
- ECE / ECC / ECD series: Walk-behind and ride-on pallet trucks, 1997 - 2024.
- EJE / EJC / EJD / EJR series: Electric pallet and stacker trucks, 1995 - 2024.
- ERE / ERD series: Ride-on pallet trucks, 1995 - 2024.
- ESE / ESD / ESC series: Stackers and order pickers, 2004 - 2026.
Package contents
- 1x Jaltest (JDC553A) | Jungheinrich 9-pin SUBD - 16-pin OBD2 Adapter Cable | Lifting & Hoisting Equipment
Technical specifications
General
- The manufacturer of the cable. Jaltest cables work with Jaltest diagnostic equipment.Brand
- Jaltest (Cojali)
- The type of cable. A diagnostic cable connects to the diagnostic socket, a measuring cable tests an individual component.Cable type
- Adapter cable
- The Jaltest software package the cable belongs to. A licence for that module is required to use the cable.Jaltest software module
- MHE internal transport
- The types of vehicles or machines the cable is intended for. This shows quickly whether it suits the vehicles entering your workshop.Vehicle types
- Lifting and hoisting equipment
Connections
- The version of the Jaltest Link diagnostic interface the cable fits. Not every cable works with every version.Compatible Jaltest Link
- Jaltest Link V8.1
- Jaltest Link V9
- The connector on the diagnostic device side. It must fit your interface or diagnostic cable.Interface-side connector
- 16-pin OBD2
- The connector on the vehicle, engine or machine side. It must fit the diagnostic socket or the component.Vehicle-side connector
- 9-pin SUB-D
- The length of the cable. A longer cable allows more room to work.Cable length
- 28 to 30 cm
Diagnostics
- Whether the current sensor values can be viewed while the vehicle is running. Useful for tracing a fault.View live data
- Yes
- Whether you can see when the next service is due. Useful for planning a service appointment properly.View service data
- Yes
Usage
- The Jaltest cable set that also contains this cable. If you already own that set, you may already have this cable.Part of cable set
- MHE cable set forklift trucks
- Reference number
- JDC553A
Other specifications
- Application
- Jungheinrich forklifts and warehouse trucks
- Control units
- MCM, MCM2 and DLC (machine computers), HCU (hydraulics), LMC and RMC (power modules), DC (instrument panel), E-CDIS, EDC 16 U31 and EDC 17 CP20 (CPYA) (engine)
- Interface
- Jaltest Link, version V8.1 or V9
- Part of cable set
- MHE cable set for forklift trucks (70002022)
- Required for use
- Jaltest Link with valid software licence
