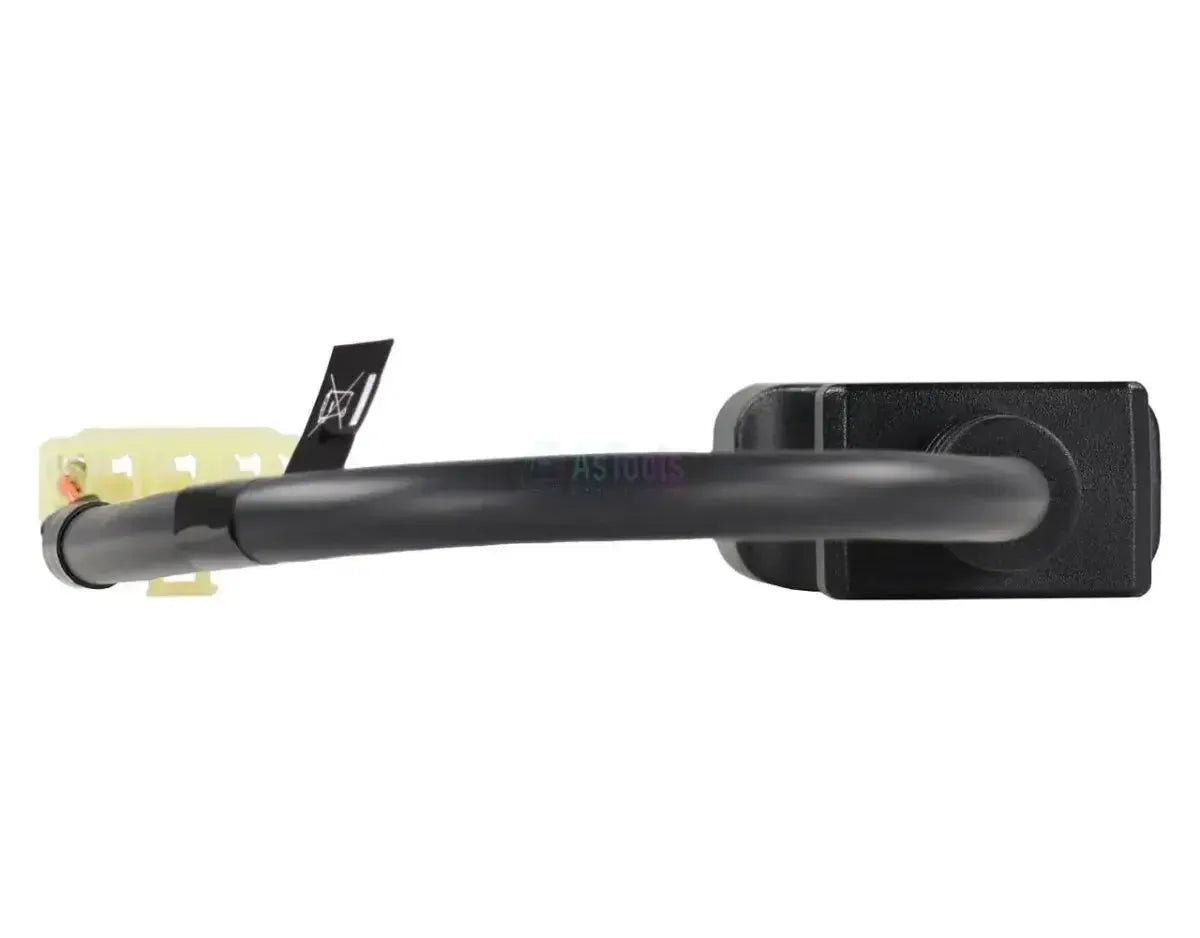

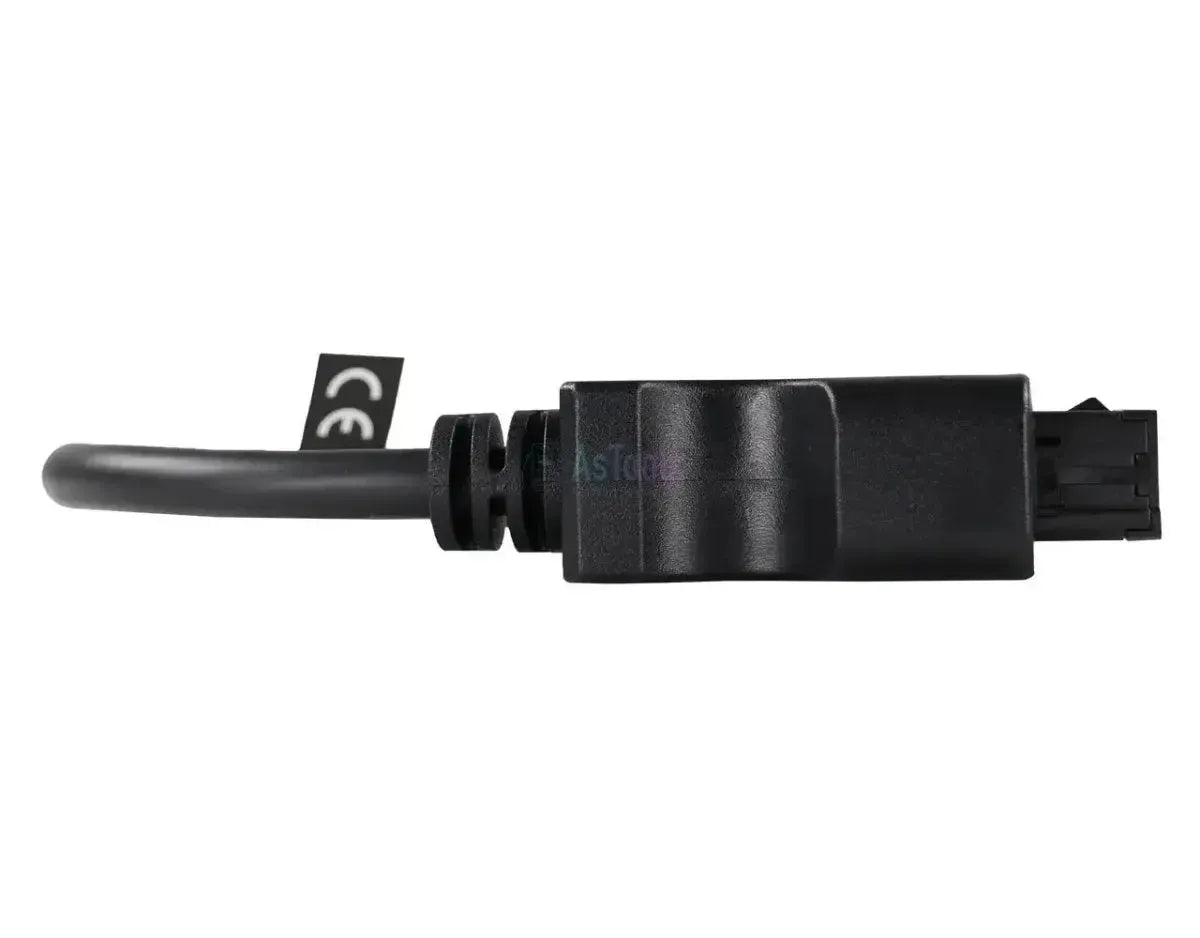

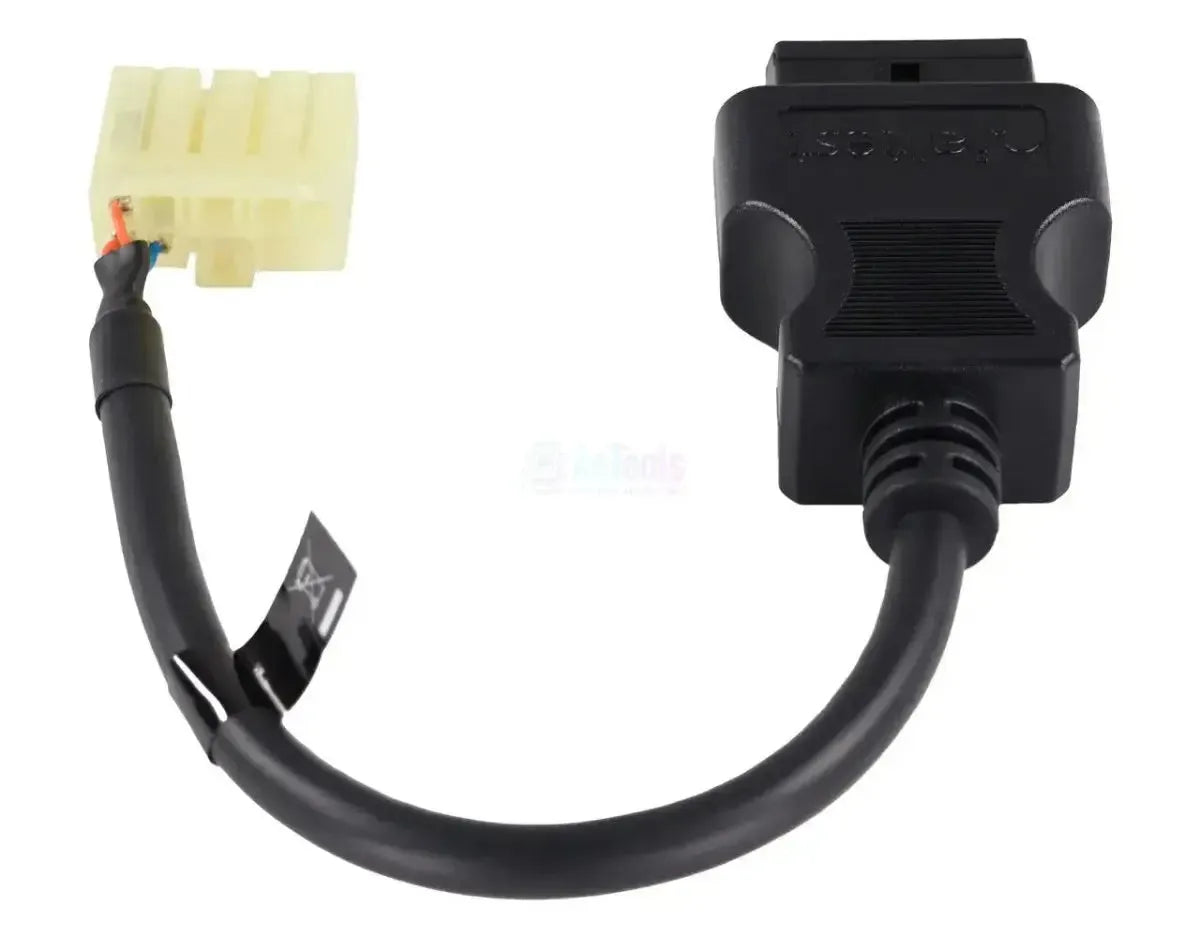

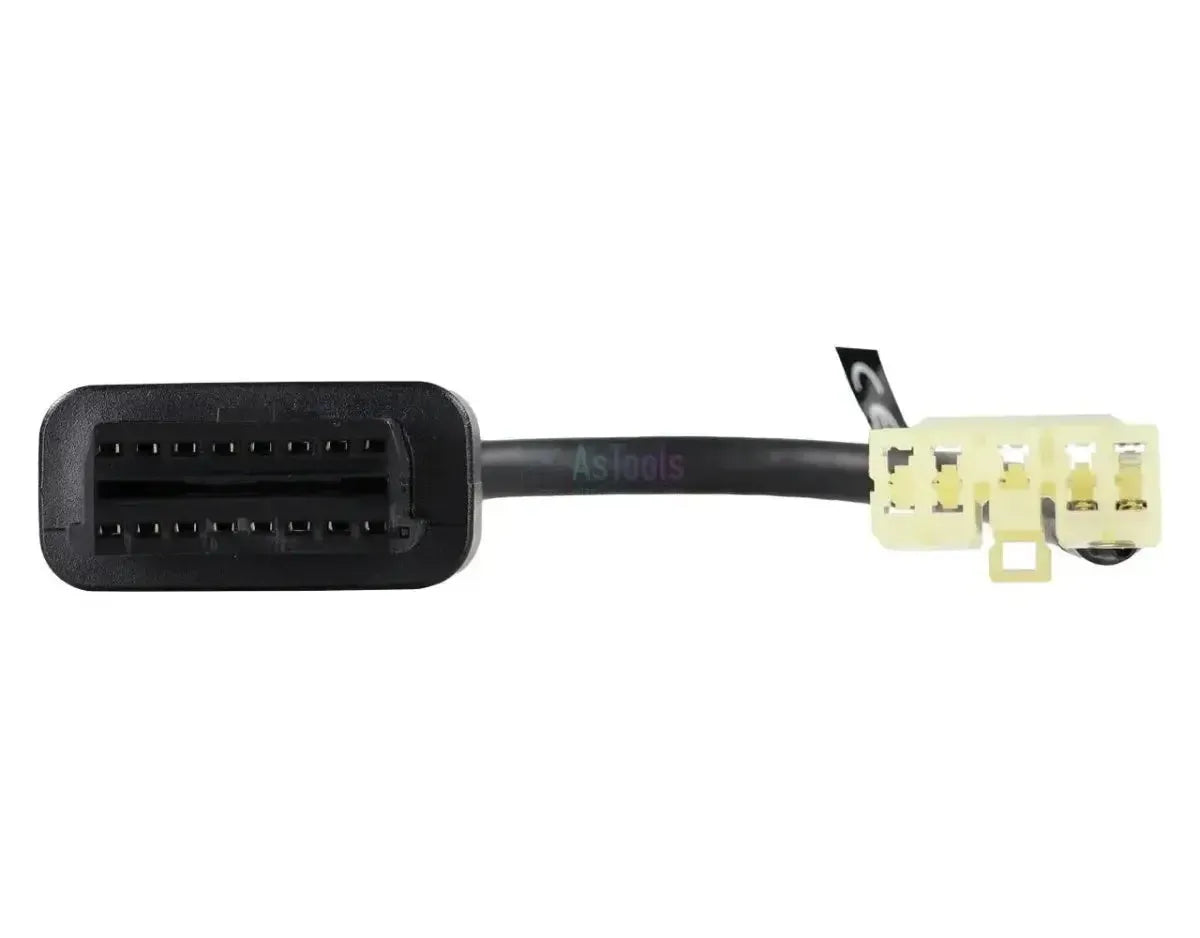

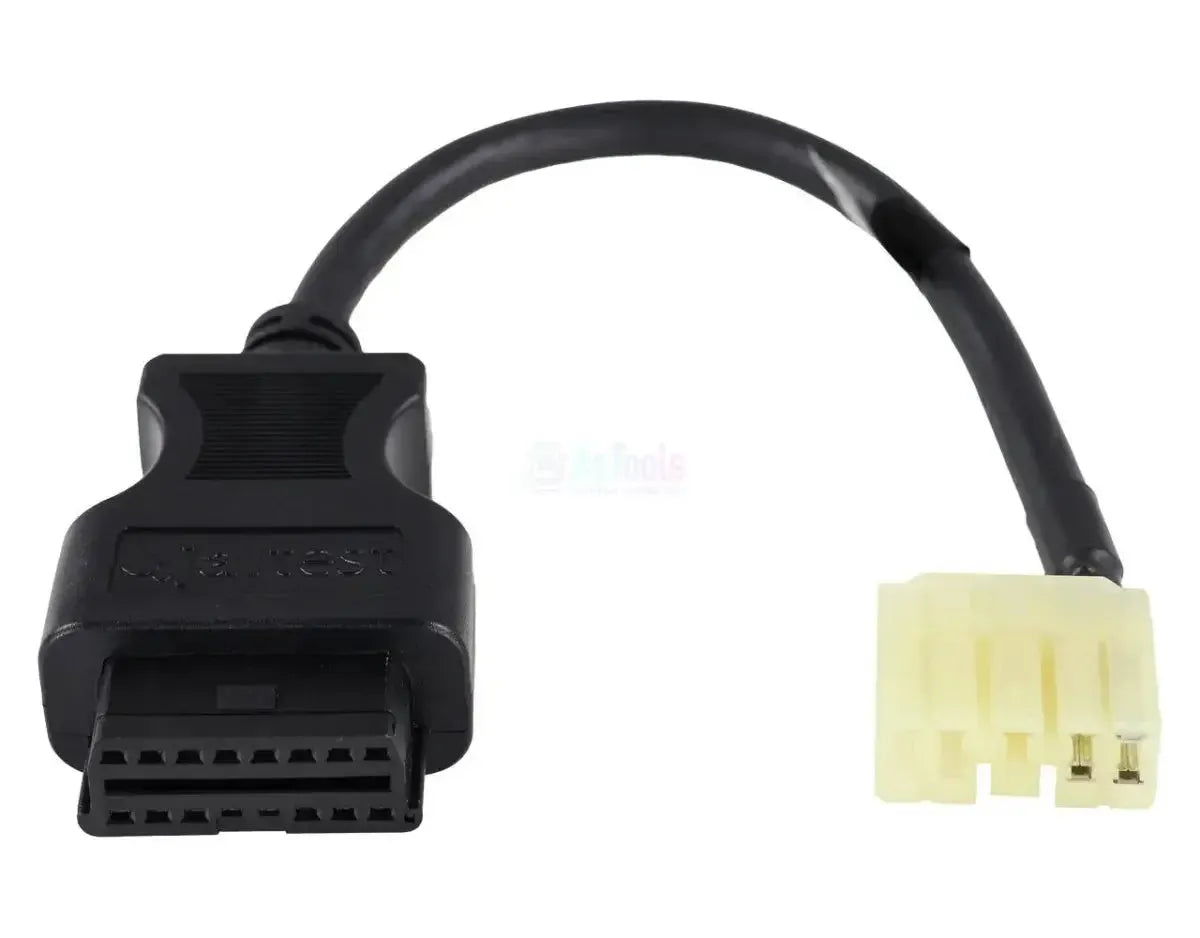

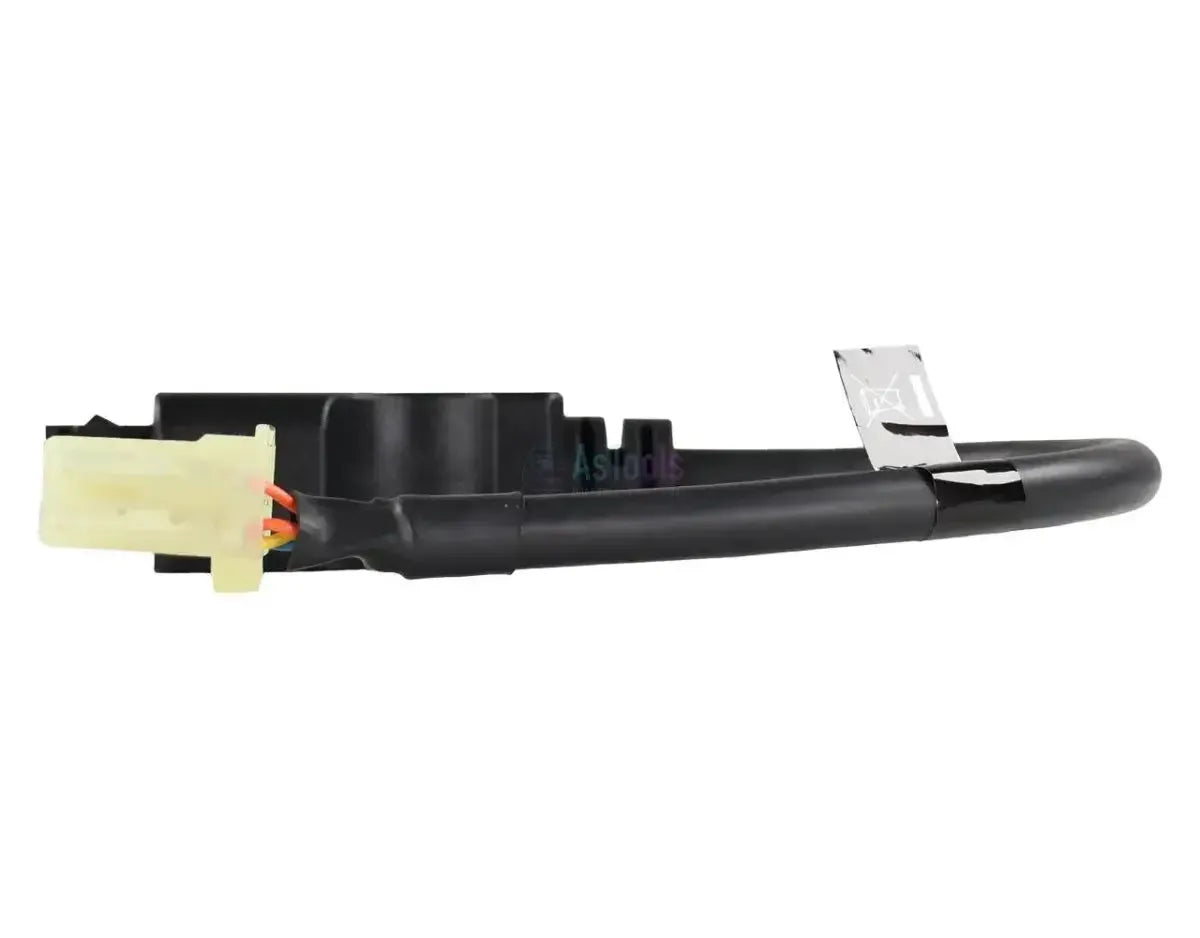

Jaltest (JDC534A) | CNH CE/FPT 9-pins OBD - 16-pins OBD2 Adapter Cable | Combustion Engine

The Jaltest JDC534A is a specialist adapter cable, essential for diagnosing FPT (Fiat Powertrain) engines used in CNH Construction Equipment (CE). This cable connects the round 9-pin Deutsch (J1939) diagnostic port of the machine to the 16-pin OBD2 connector of your Jaltest main cable. Although the 9-pin connector appears standard, this cable is specifically wired for the system architecture of CNH CE.

This adapter provides direct access to the FPT engine and associated aftertreatment systems. For technicians working on construction machines from Case Construction or New Holland Construction, this cable is indispensable for making accurate diagnoses and resolving complex emission-related faults. The cable is robustly built to withstand the harsh conditions on the construction site.

Application and functionality:

• Direct engine diagnosis: full access to the FPT engine ECU.
• Exhaust gas aftertreatment: diagnosis of DPF, SCR (AdBlue), and EGR, including forced regeneration.
• Read and clear fault codes: reading and deleting fault codes from engine and aftertreatment system.
• View live engine data: reading injection values, turbo pressure, NOx sensor values, soot filter load, and AdBlue parameters.
• Calibrations and system tests: performing injector coding, resetting system values, and other engine tests.

Suitable vehicles and applications:

Suitable for construction machines from CNH Group equipped with an FPT engine and 9-pin Deutsch diagnostic port.

• Primary application: Diagnosis of FPT engines in CNH Construction Equipment.
• Suitable brands:
  • Case Construction Equipment
  • New Holland Construction
• Machine types:
  • Excavators
  • Wheel loaders
  • Skid steers
  • Backhoe loaders
  • Bulldozers
• Connector requirement: round 9-pin Deutsch (J1939) CNH CE diagnostic port present.

Package Contents:

• 1x Jaltest (JDC534A) | CNH CE/FPT 9-pin OBD - 16-pin OBD2 adapter cable

Technical specifications:
