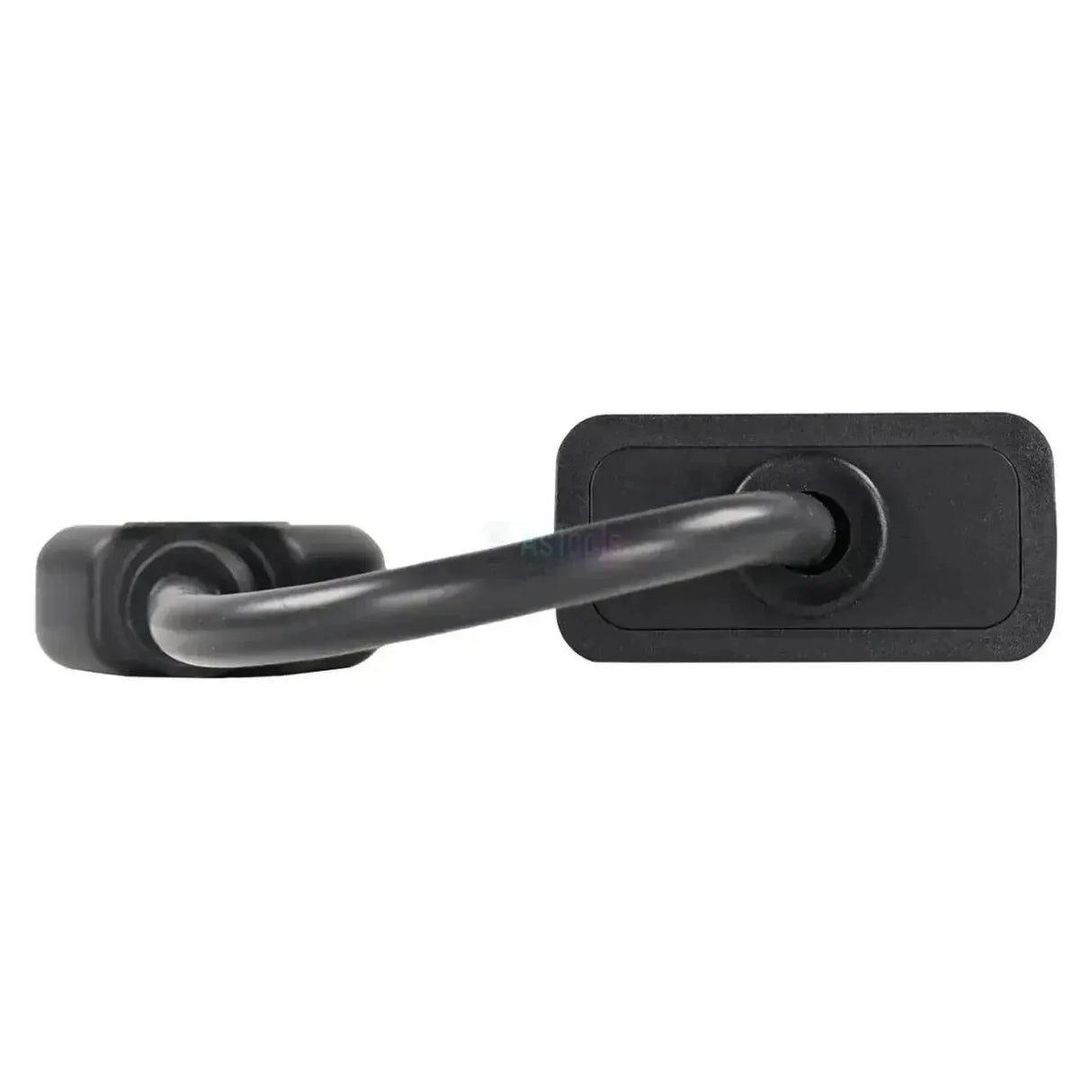

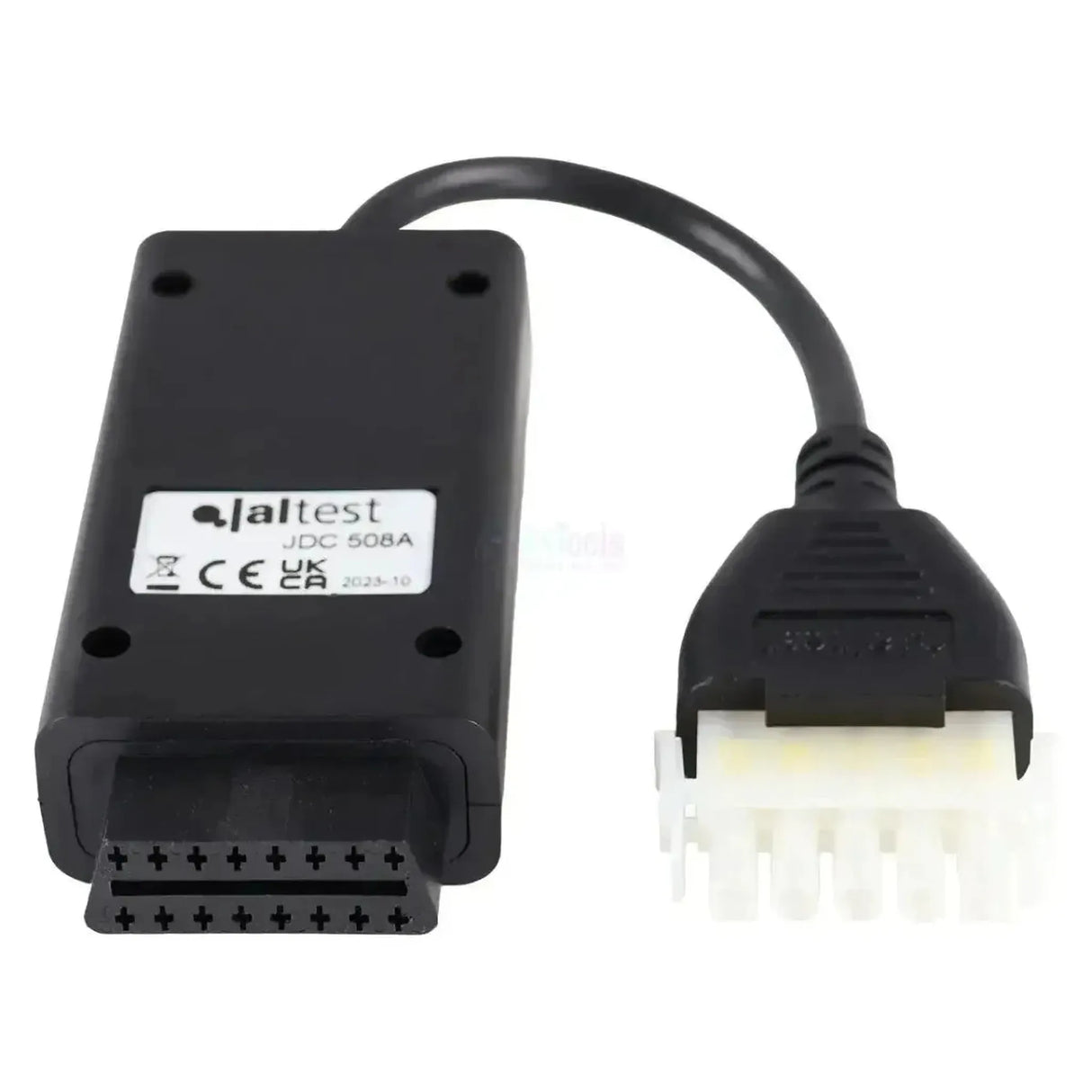

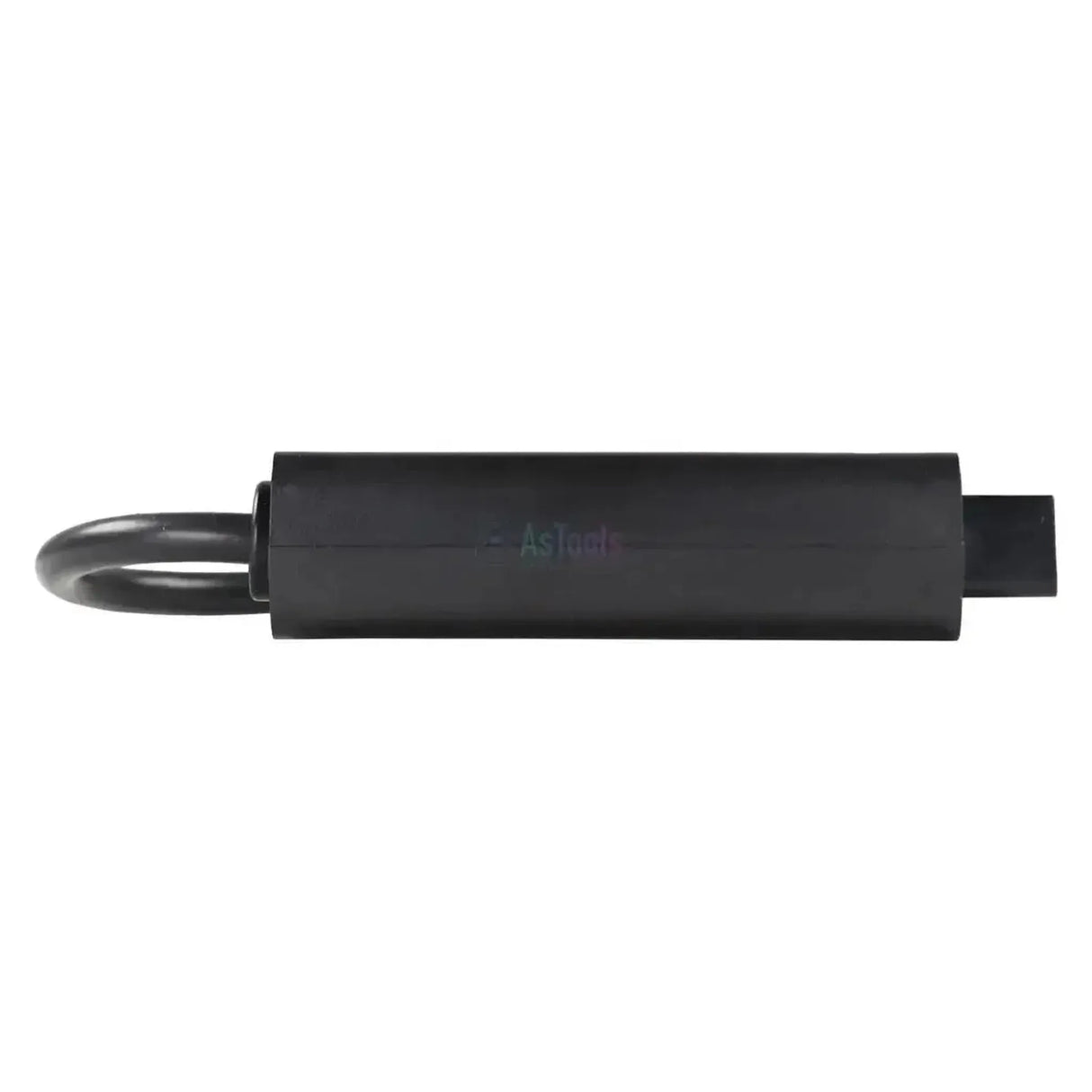

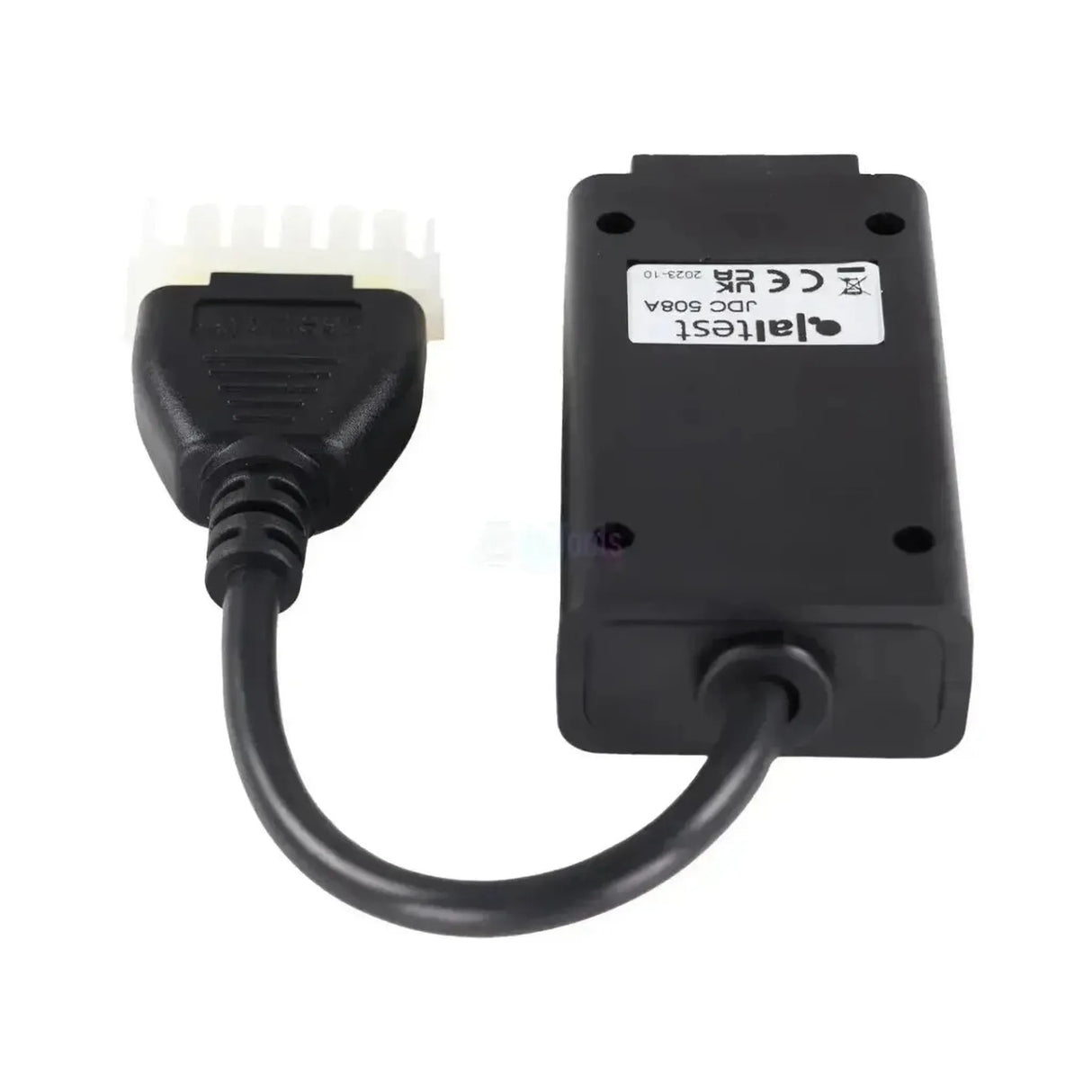

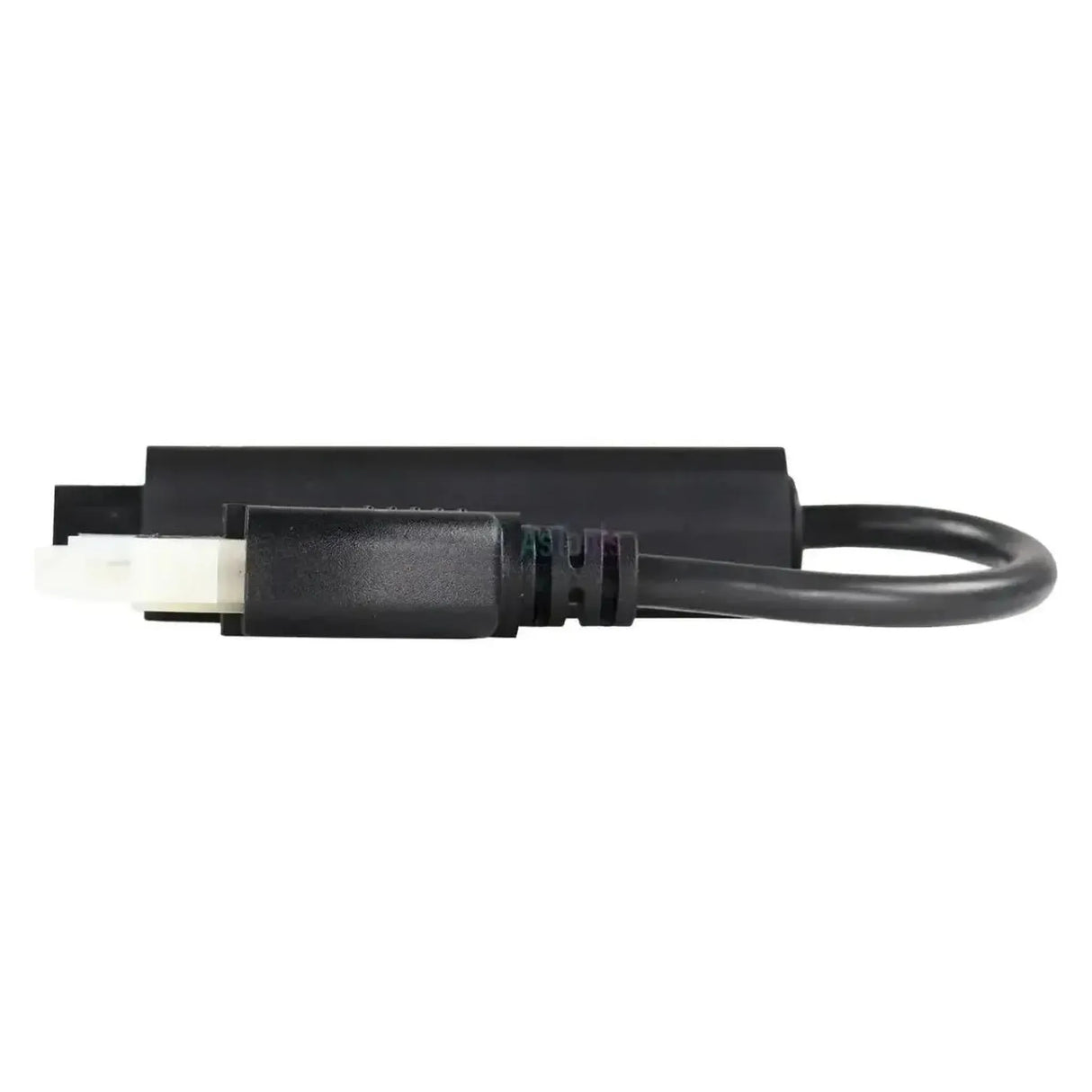

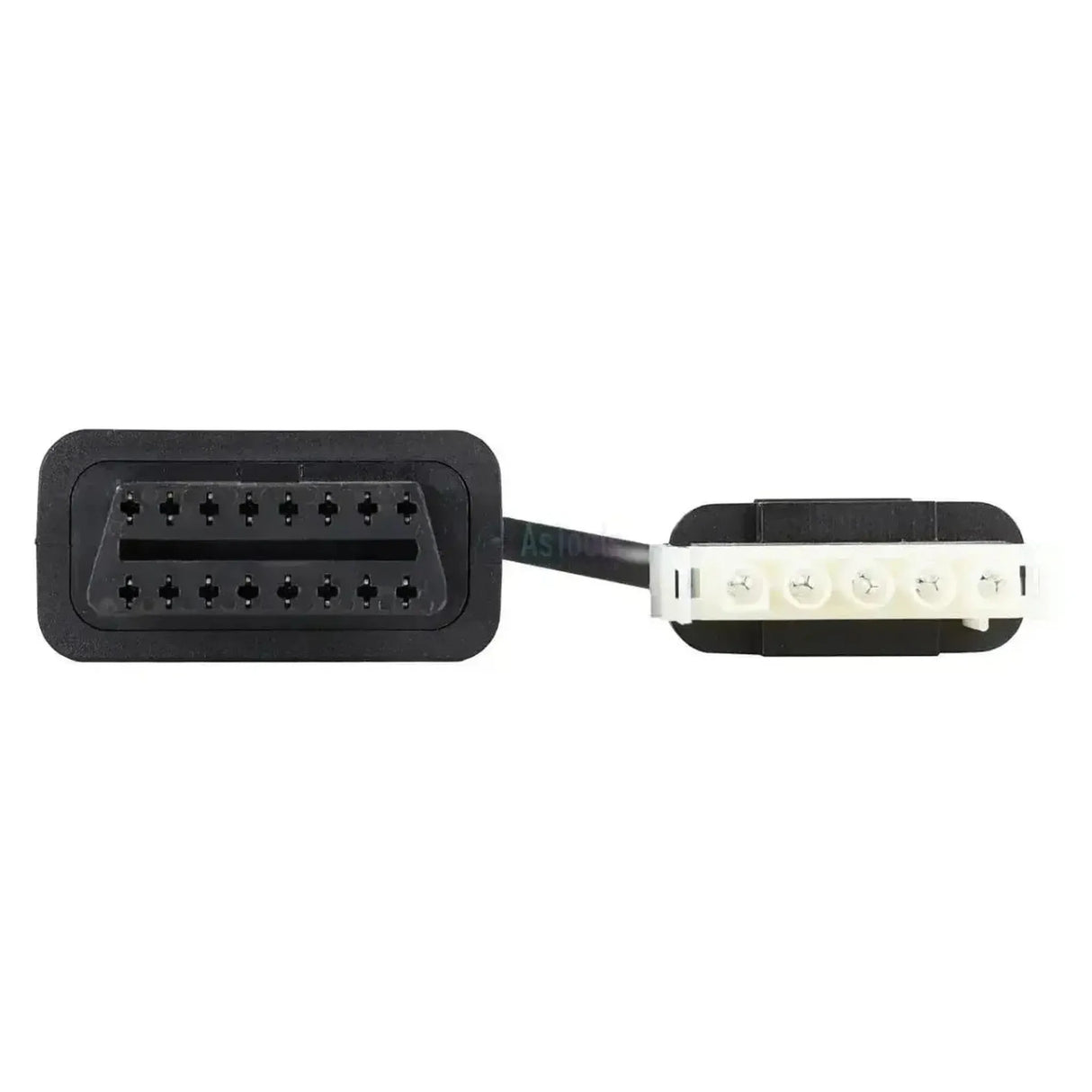

The Jaltest JDC508A is the adapter between the 5-pin diagnostic connector of the New Holland TN Series and the standard 16-pin OBD2-interface of the Jaltest Link. On the vehicle side, you'll find the 5-pin connector, which you connect to the diagnostic port in the cab; on the interface side, there's the 16-pin OBD2 inlet for your Jaltest diagnostic cable. Derived from the TN Case IH JX Series uses the same connection.
Behind this single connector are the three electronic control units of the TN and JX series: MA for the transmission, MB/EDC for the lifting mechanism and NA/4WD for the drivetrain. On these three units, Jaltest offers full functionality, including service intervals, diagnostic alerts, and additional actions; an engine control unit is not included, as these tractors have mechanically regulated engines. Agricultural vehicles are not subject to mandatory OBD requirements, which is why this connector remains in use alongside other proprietary connections. The cable falls under Jaltest AGV (agricultural vehicles).
KEY FEATURES
IMPORTANT NOTES
Applications and Features
Through this 5-pin connection, you can access the electronic control units of the TN and JX series using Jaltest software.
Control Units You Can Access
- Transmission MA (transmission electronic control unit): The gearbox control unit.
- Hydraulics MB/EDC (hitch control): Electronic control of the three-point hitch system.
- Drivetrain NA/4WD (common powertrain controller): Control of four-wheel drive and differential lock.
What You Can Do
- Read and clear fault codes: Access the control unit's fault memory, including descriptions of detected faults.
- View live data: Monitor current sensor values controlled by the unit, with the ability to set alarm thresholds.
- Check service intervals: Review scheduled maintenance and required work, with a report for workshop records.
- View diagnostic alerts: See active messages transmitted by the control unit.
- Perform additional functions: Run extra procedures that Jaltest offers for this control unit.
Compatible Vehicles and Applications
The connector type is what matters, not the model. This cable fits any New Holland or Case IH tractor with the 5-pin diagnostic connector. Jaltest AGV covers the series listed below; check which connector is installed in your cab.
New Holland / Case IH:
- New Holland TN55: (1999 - 2004)
- New Holland TN65: (1998 - 2003)
- New Holland TN70: (2000 - 2003)
- New Holland TN75: (1999 - 2003)
- New Holland TN-A Series (TN60A, TN70A, TN75A, TN85A, TN95A): (2004 - 2008)
- Case IH JX Series (JX55, JX65, JX75, JX85, JX95): (2002 - 2009)
Package contents
- 1x Jaltest (JDC508A) | New Holland 5-pin OBD - 16-pin OBD2 Adapter Cable | Agricultural Vehicle
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | JDC508A |
| Type | Adapter cable |
| Application | New Holland TN Series and Case IH JX Series |
| Vehicle-side connector | 5-pin OBD |
| Interface-side connector | 16-pin OBD2 |
| Control units | MA (transmission), MB/EDC (hydraulic system) and NA/4WD (drivetrain) |
| Category | Agricultural vehicle |
| Jaltest module | Jaltest AGV (agricultural vehicles) |
| Required to use | Jaltest Link with valid software license |
