Jaltest (JDC307A) | ZF Ecomat 9-pins OBD - 16-pins OBD2 Adapter Cab...

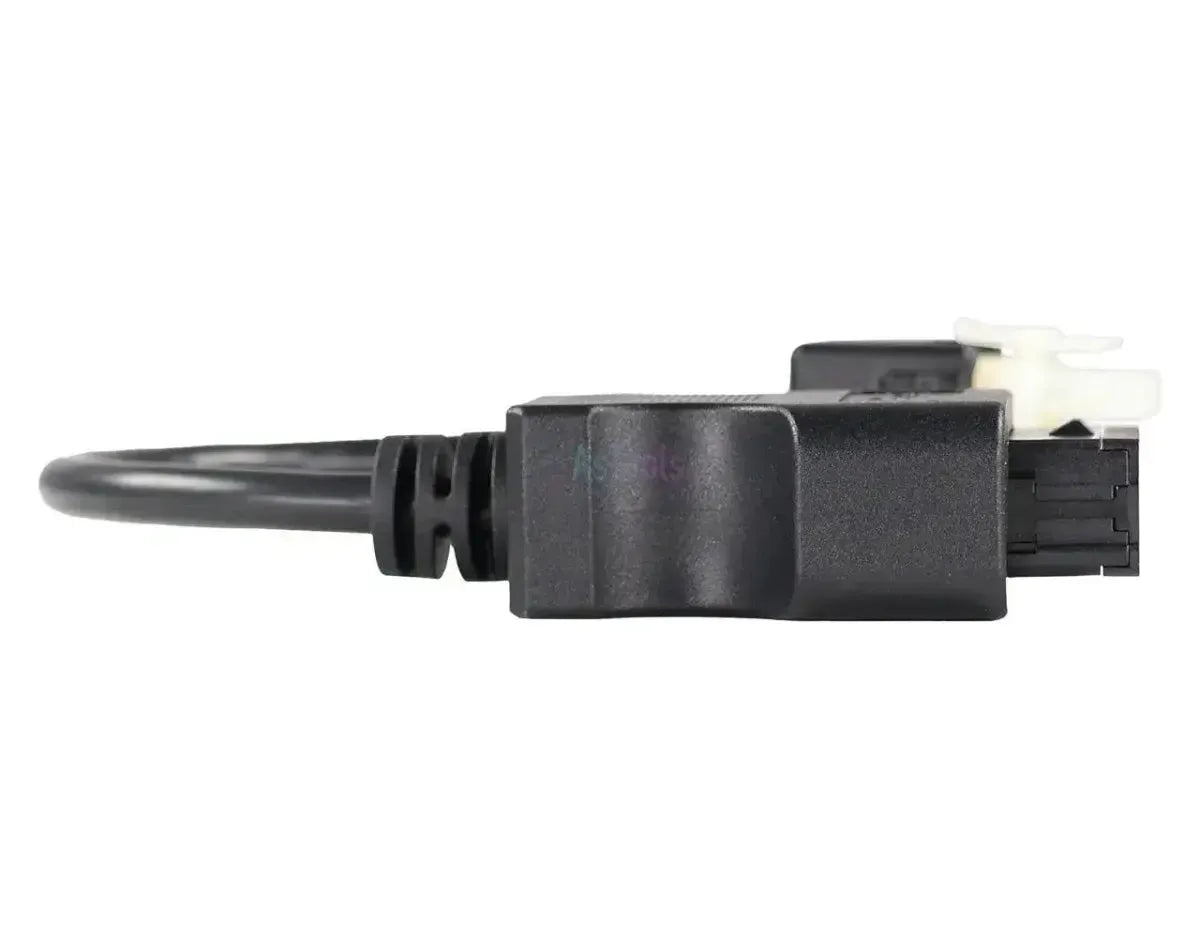

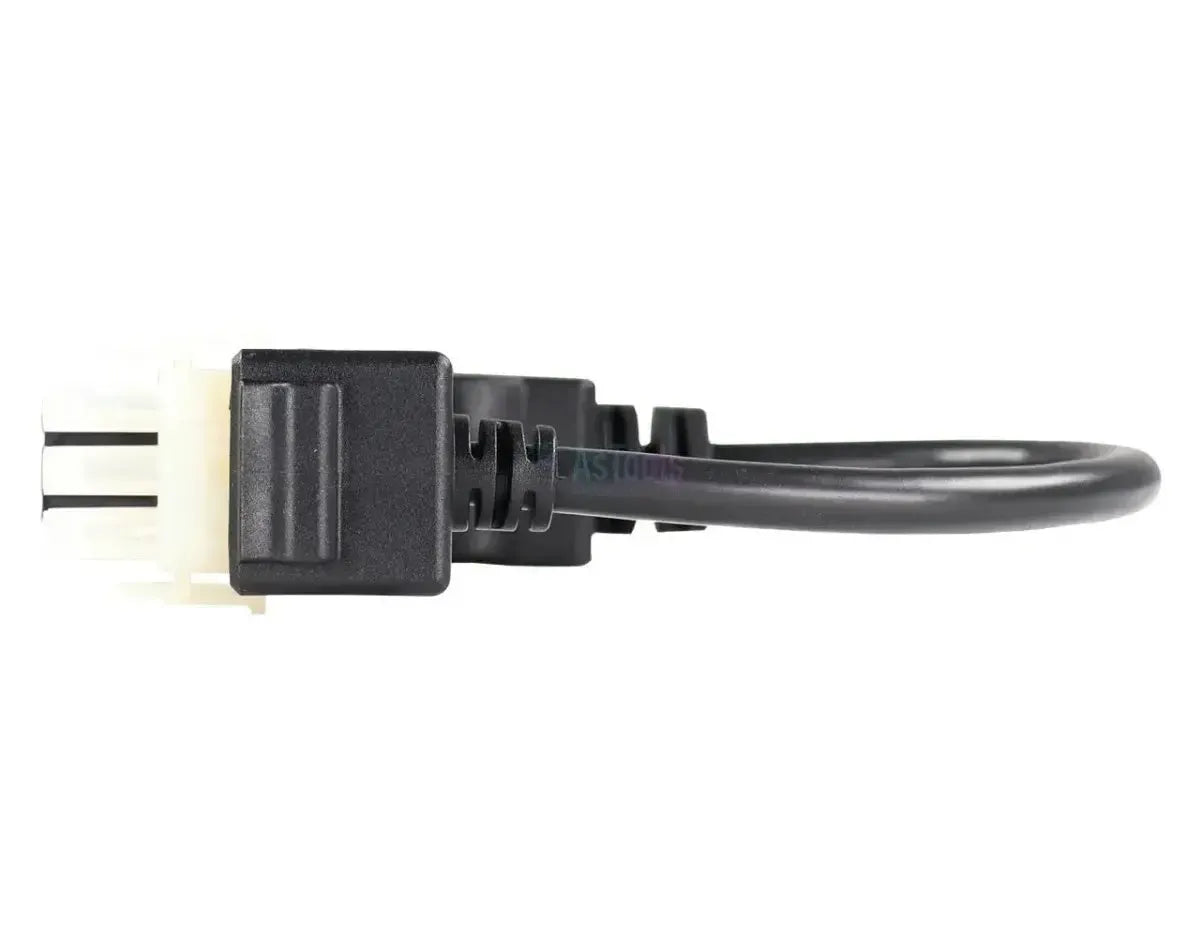

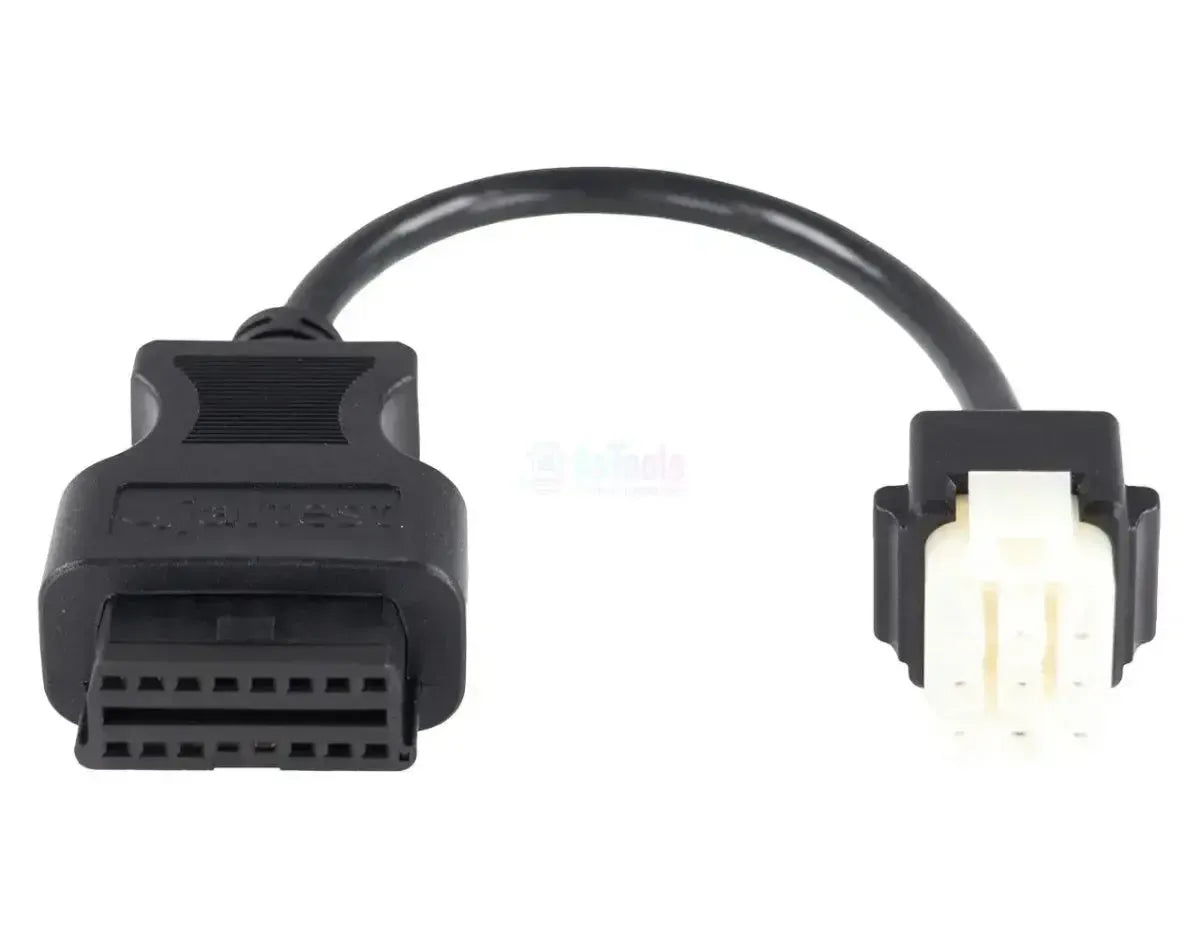

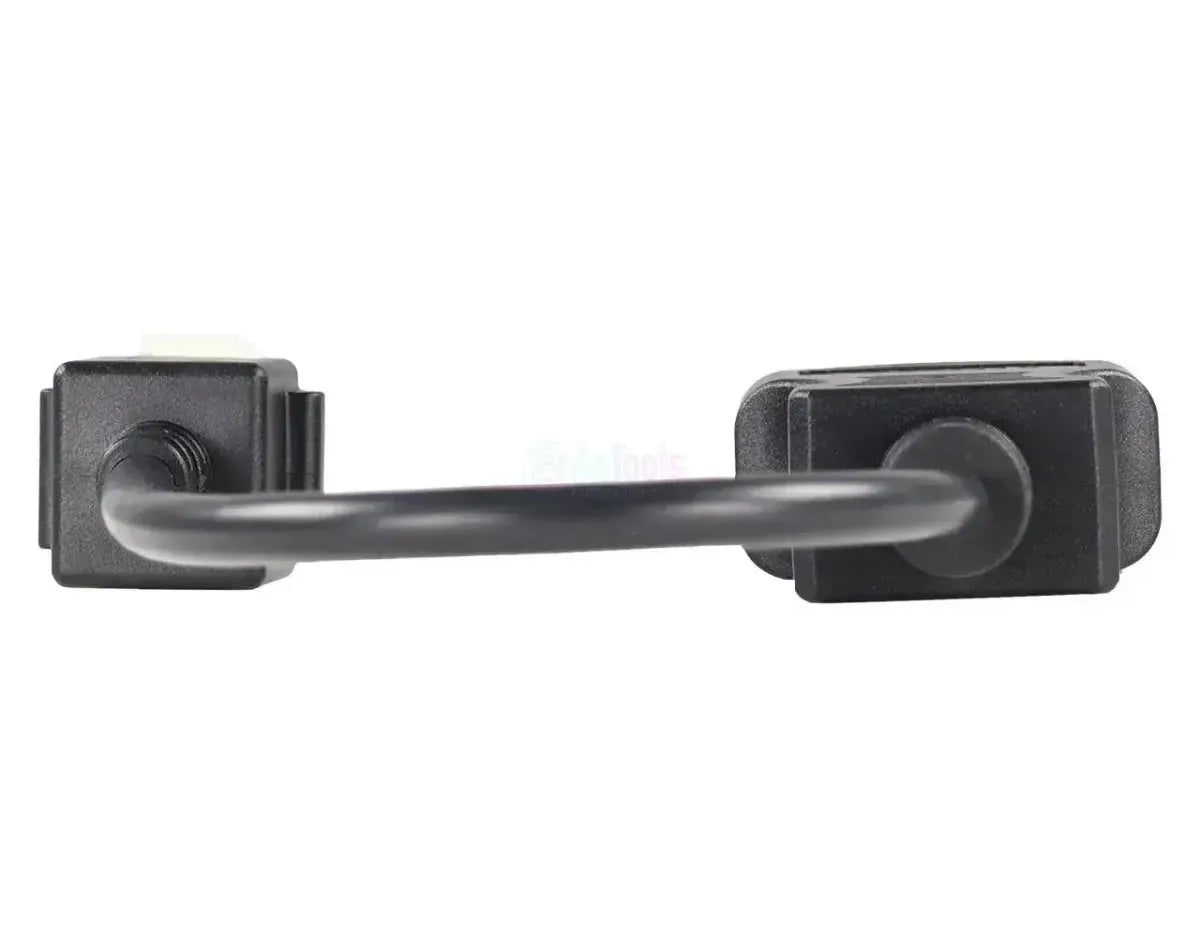

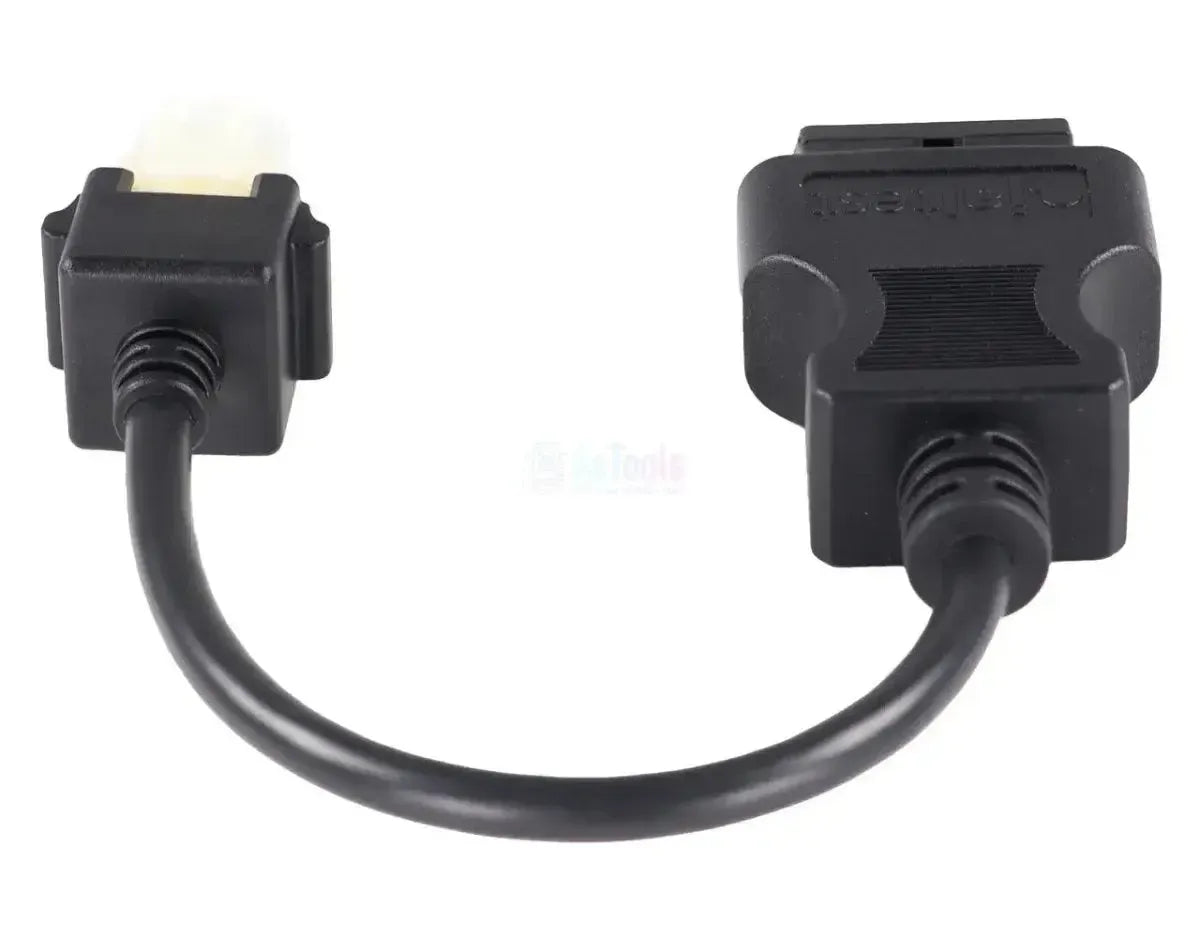

The Jaltest JDC307A is a specialist adapter cable, designed for diagnosing the widely used ZF Ecomat automatic transmission in buses. This cable is specifically intended for transmissions equipped with a round 9-pin diagnostic port. It forms the indispensable bridge between this port of the transmission ECU and the 16-pin OBD2 connector of your Jaltest system.
Multiple diagnostic cables exist for the ZF Ecomat series. The JDC307A is the correct choice for a 9-pin port, unlike the 3+6-pin port which requires the JDC303A. Direct access to the transmission ECU is essential for public transport maintenance, solving shifting issues, checking transmission status, and performing calibrations for smooth and efficient operation.
Application and functionality:
- Transmission diagnosis: full, direct access to the transmission control unit.
- Reading and clearing fault codes: reading and deleting transmission-specific fault codes.
- Viewing live data: reading oil temperature, oil pressure, input/output speeds, selected gear, and valve status.
- Calibrations and adjustments: performing calibrations such as relearning shift points.
- Component testing: controlling and checking individual shift valves (solenoids).
Suitable vehicles and applications:
This cable can be used on any bus equipped with a ZF Ecomat automatic transmission with a 9-pin port.
- Primary application: Diagnosis of ZF Ecomat transmissions.
- Vehicle type: City and regional buses.
-
Commonly used in:
- MAN
- Mercedes-Benz
- VDL
- Iveco Bus
- Solaris
- Connector requirement: round 9-pin transmission diagnostic port. Visual inspection recommended because some Ecomat systems use a 3+6-pin connector.
Package Contents:
- 1x Jaltest (JDC307A) | ZF Ecomat 9-pin OBD - 16-pin OBD2 Adapter Cable
Technical specifications:
| Specification | Description |
|---|---|
| Article number | JDC307A |
| Brand | Jaltest |

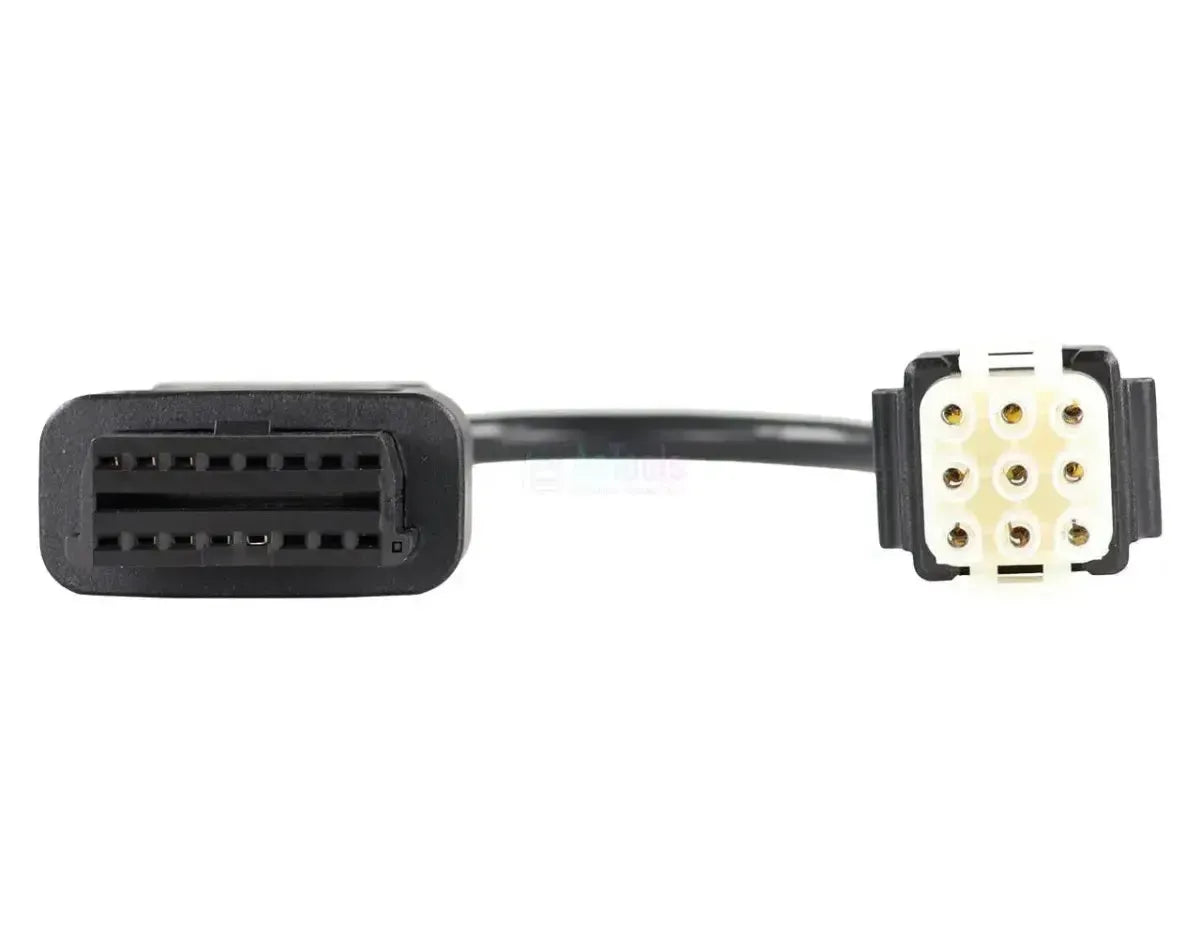

| Connector A (vehicle side) | 9-pin round ZF Ecomat-specific connector |
| Connector B (adapter side) | 16-pin OBD2 (J1962) connector (female) |
| Application | Diagnosis of automatic transmission systems |
| Suitable system | ZF Ecomat (9-pin port) |
