Jaltest (JDC302A) | Volvo ABS 9-pins OBD - 16-pins OBD2 adapter cable | Bus

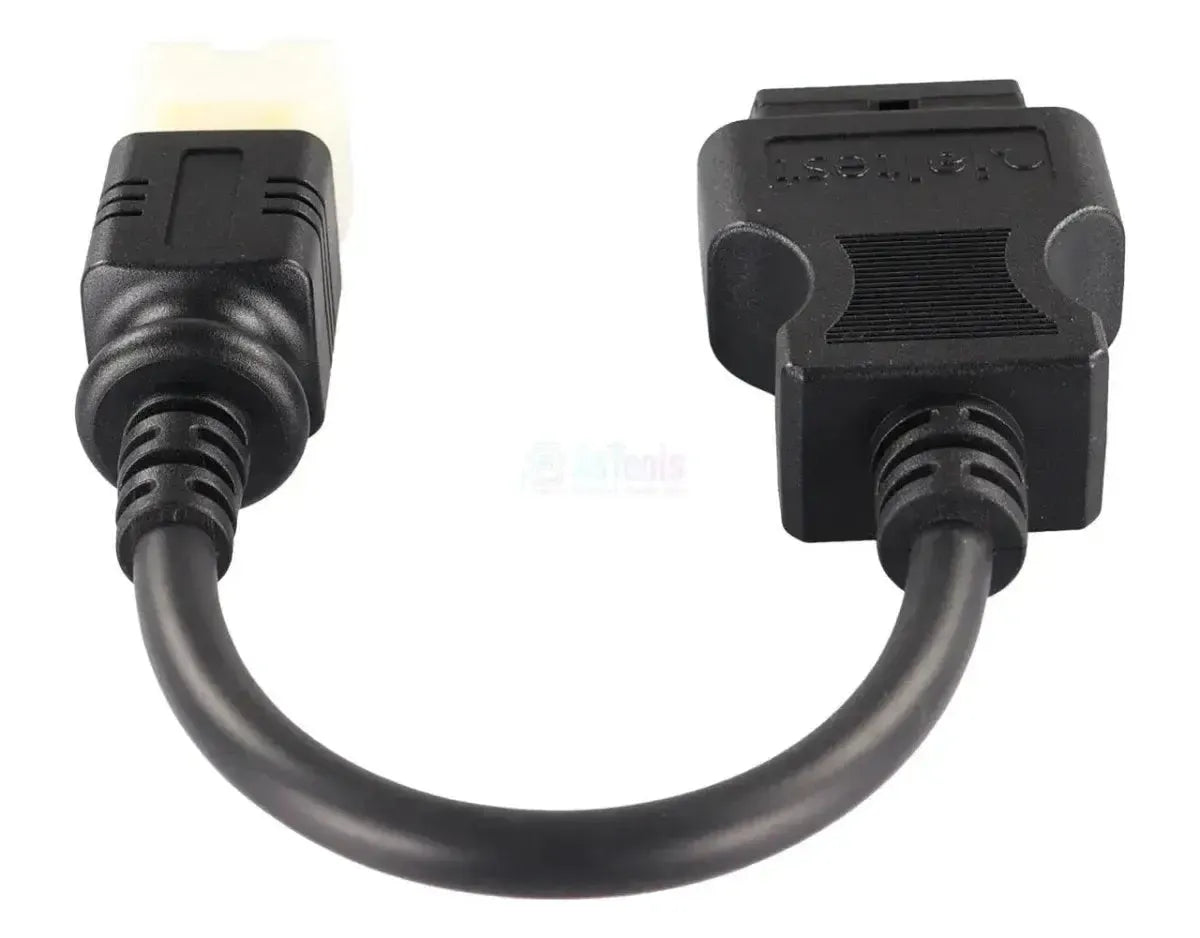

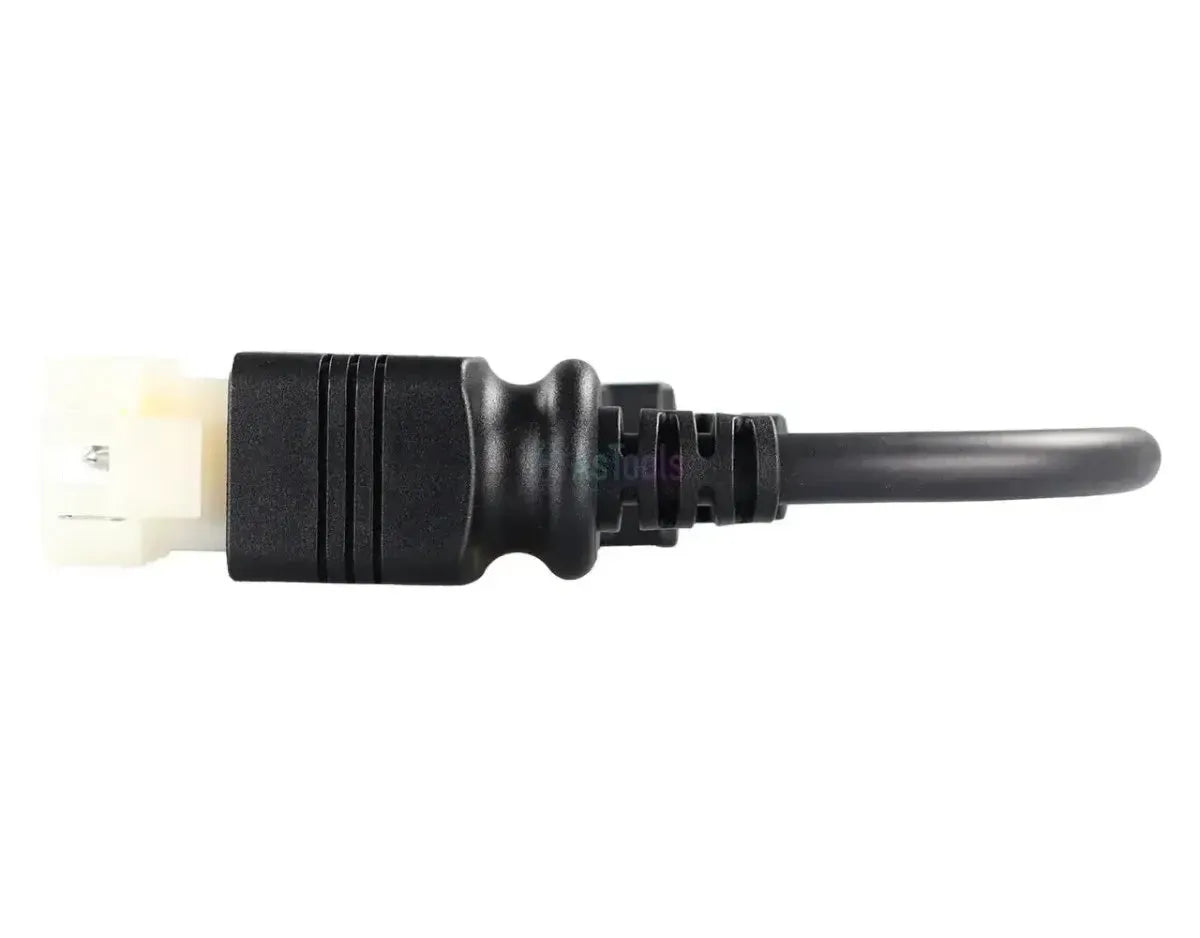

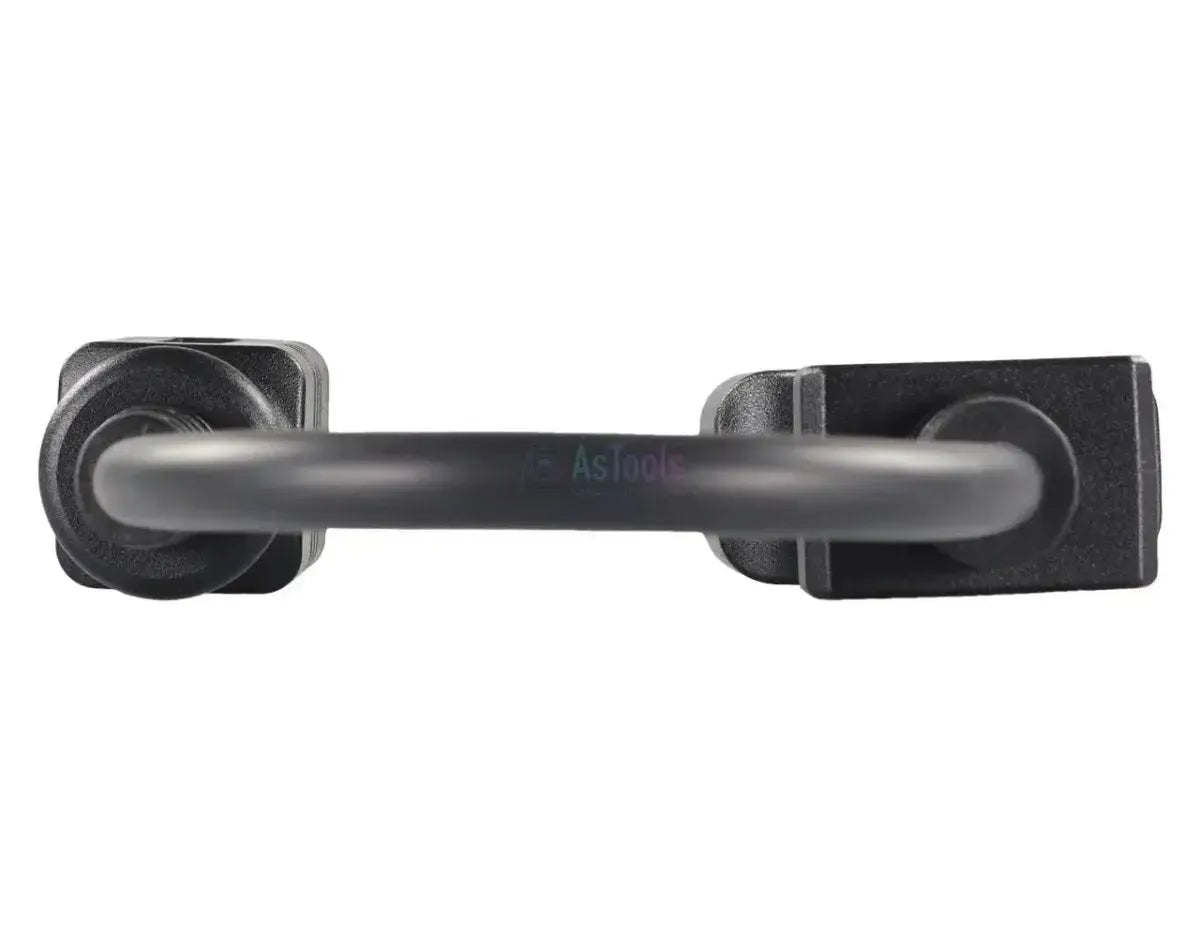

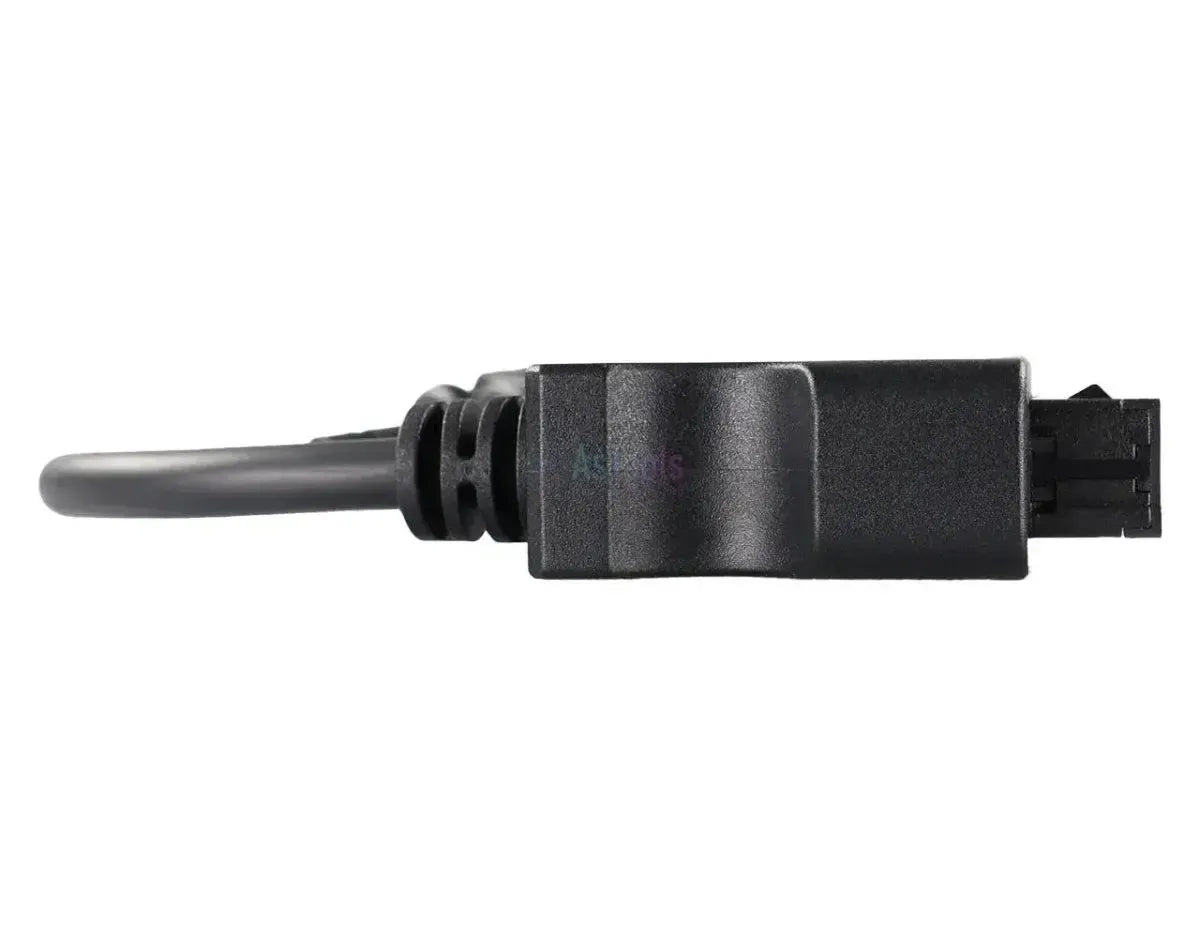

The Jaltest JDC302A is a specialist adapter cable, exclusively designed for diagnosing the ABS system on Volvo buses and coaches. This cable forms the indispensable link between the specific, round 9-pin diagnostic port of the Volvo ABS control unit and the 16-pin OBD2 connector of your Jaltest system.

It is an essential tool for workshops servicing the Volvo Bus fleet. For a safety-critical system like ABS, a reliable, direct connection is of great importance. This cable provides the specific pin configuration needed to accurately read fault codes, monitor live data from the wheel speed sensors, and test the modulator valves. These are functions sometimes not fully accessible via the general diagnostic port of the bus.

Application and functionality:

The main purpose of this cable is to enable a direct and reliable diagnosis of the Volvo ABS system on buses and coaches.

• Direct ABS diagnosis: full access to the ABS control unit (ECU).
• Read and clear fault codes: reading and deleting Volvo ABS-specific fault codes.
• View live data: reading wheel speeds, brake pedal switch status, and system voltage.
• Test components: testing ABS modulator valves per wheel to identify defective parts.
• Read system information: insight into configuration and hardware/software information of the ABS computer.

Suitable vehicles and applications:

To be used on various series of Volvo buses with a separate 9-pin port for the ABS system.

• Primary application: Diagnosis of the ABS system on Volvo buses and coaches.
• Vehicle type: Buses.
• Suitable brand: Volvo Bus.
• Specific examples: older generations of Volvo bus platforms such as B7R, B10, and B12.
• Connector requirement: round 9-pin ABS diagnostic port present.

Package Contents:

• 1x Jaltest (JDC302A) | Volvo ABS 9-pin OBD - 16-pin OBD2 adapter cable

Technical specifications:
