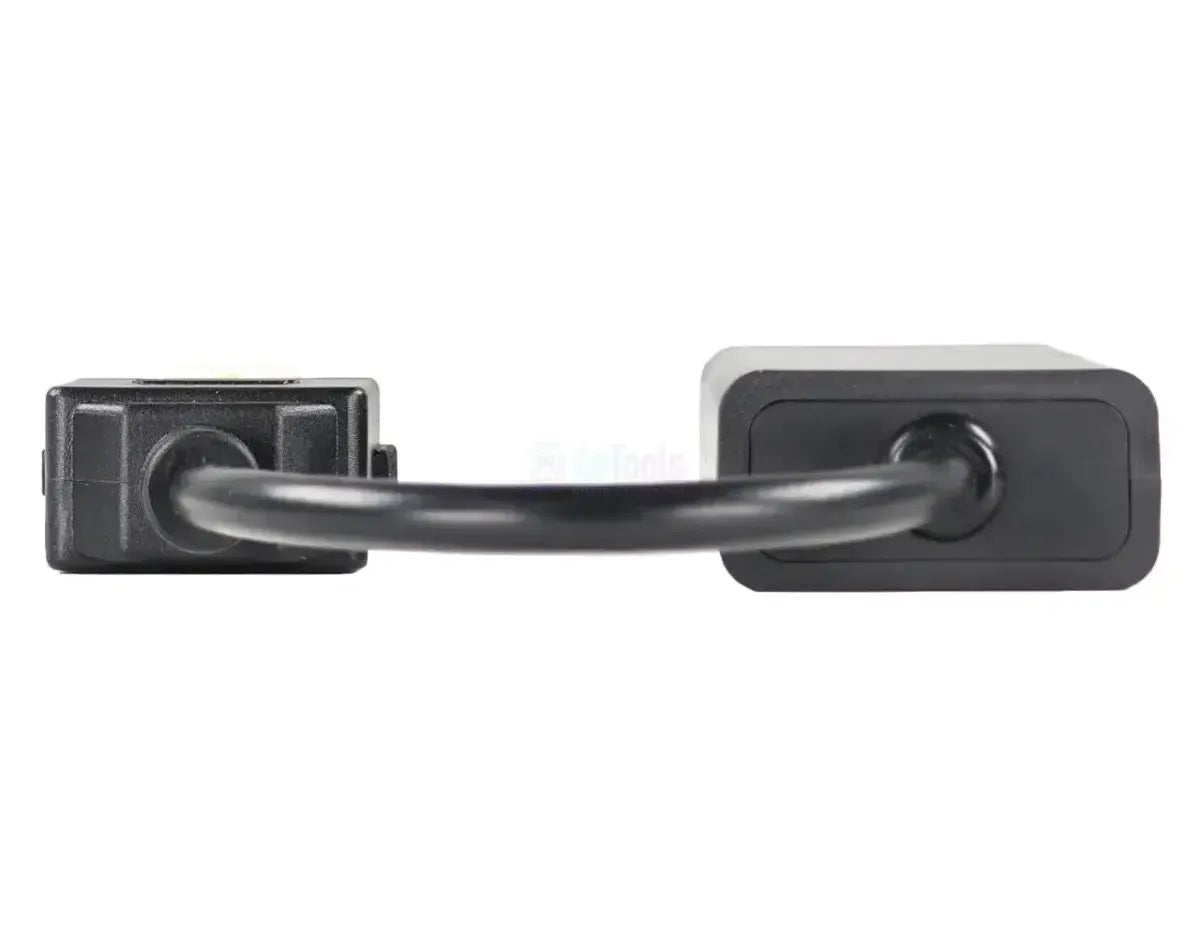

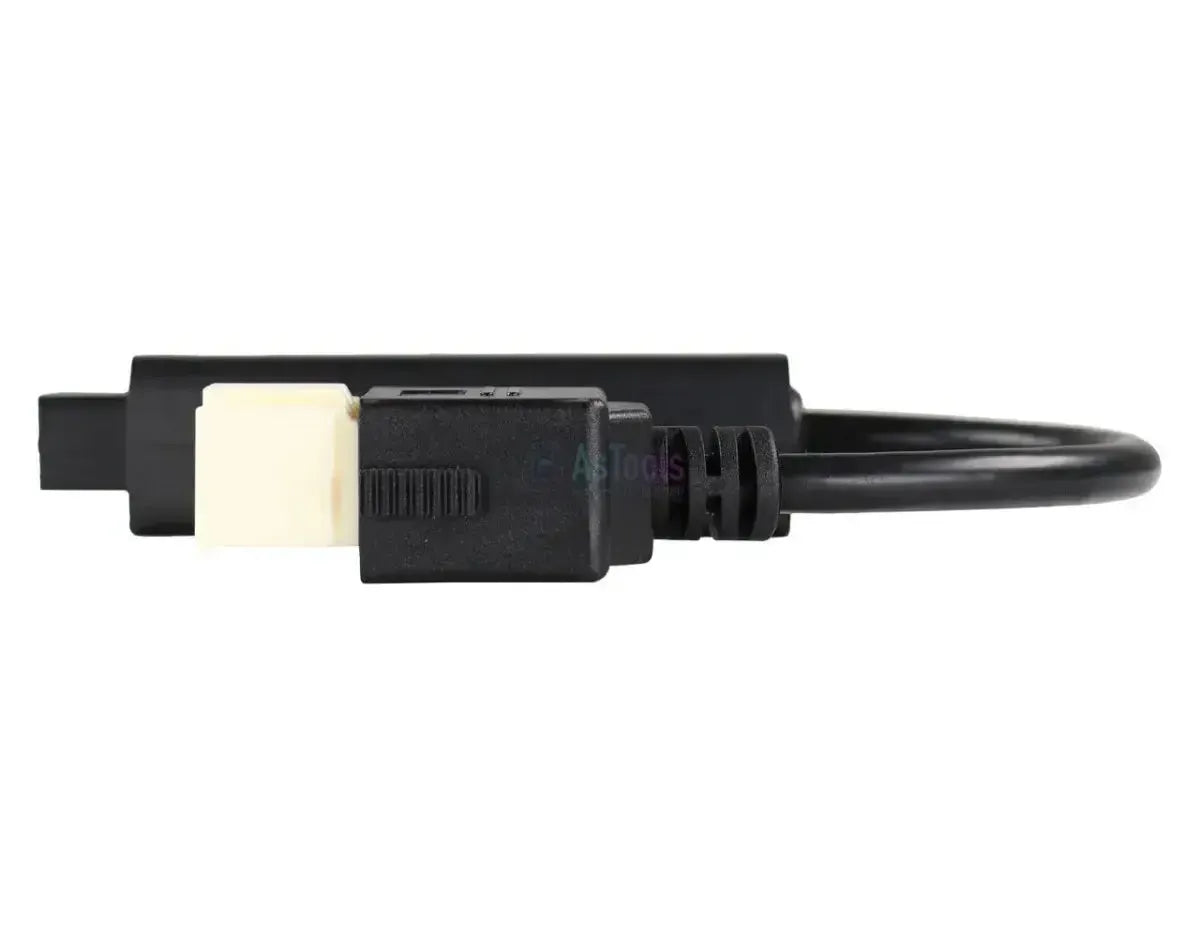

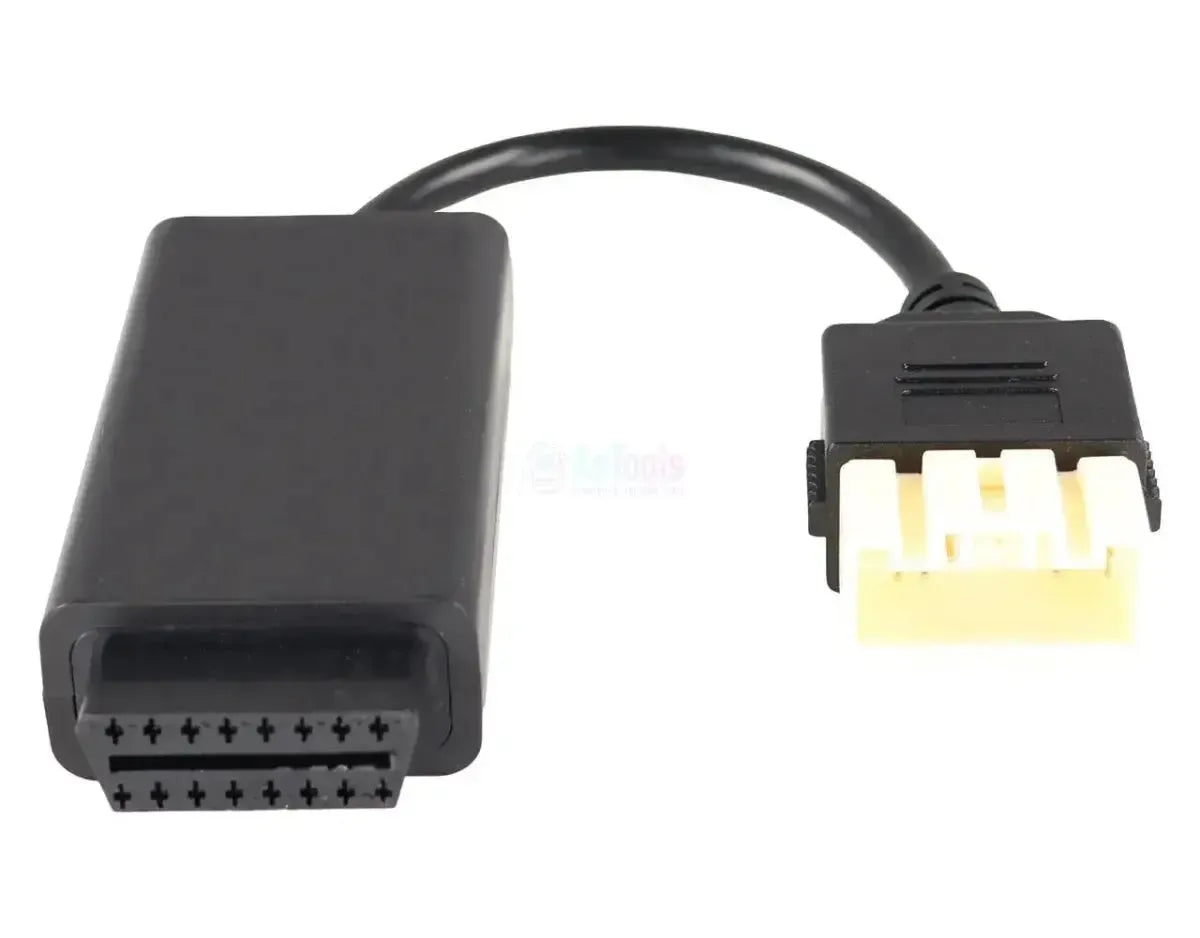

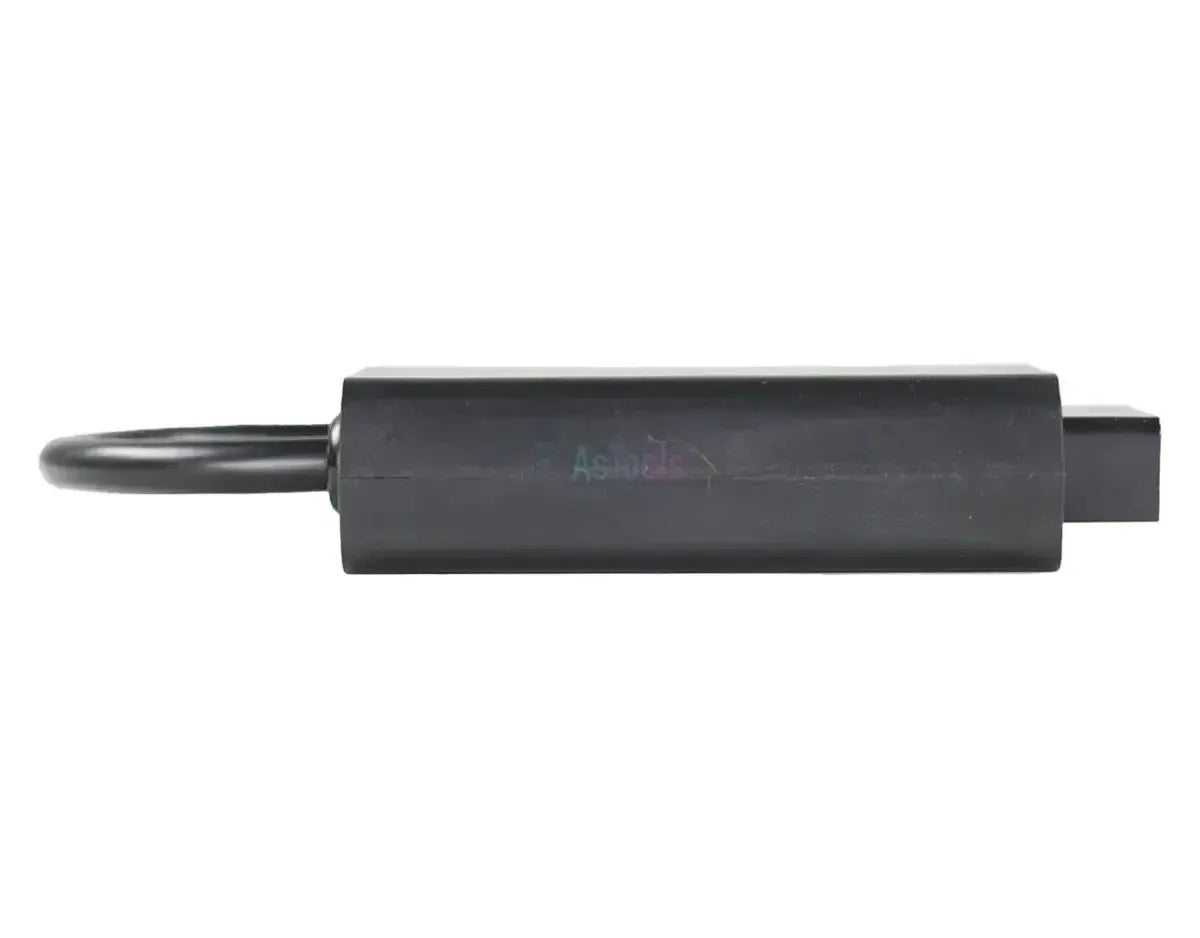

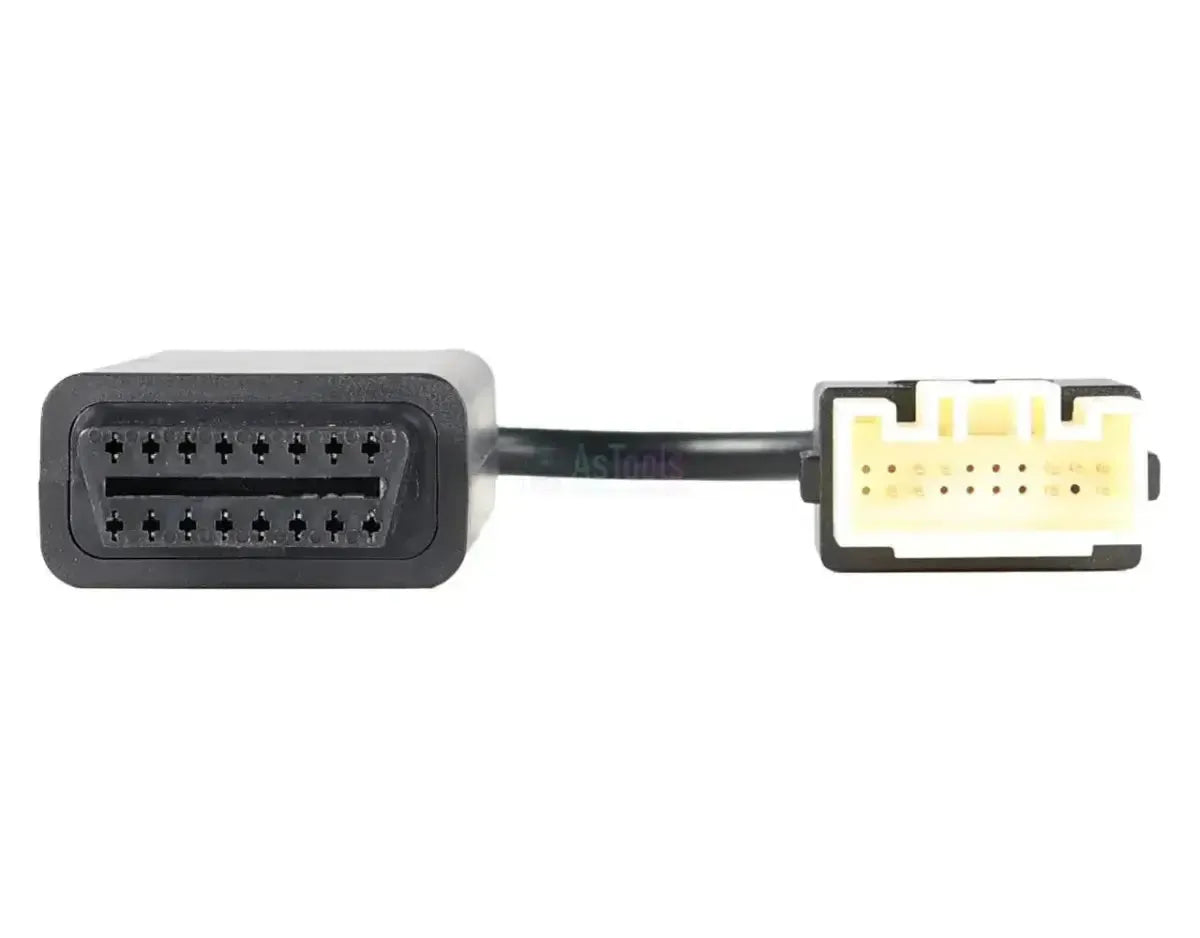

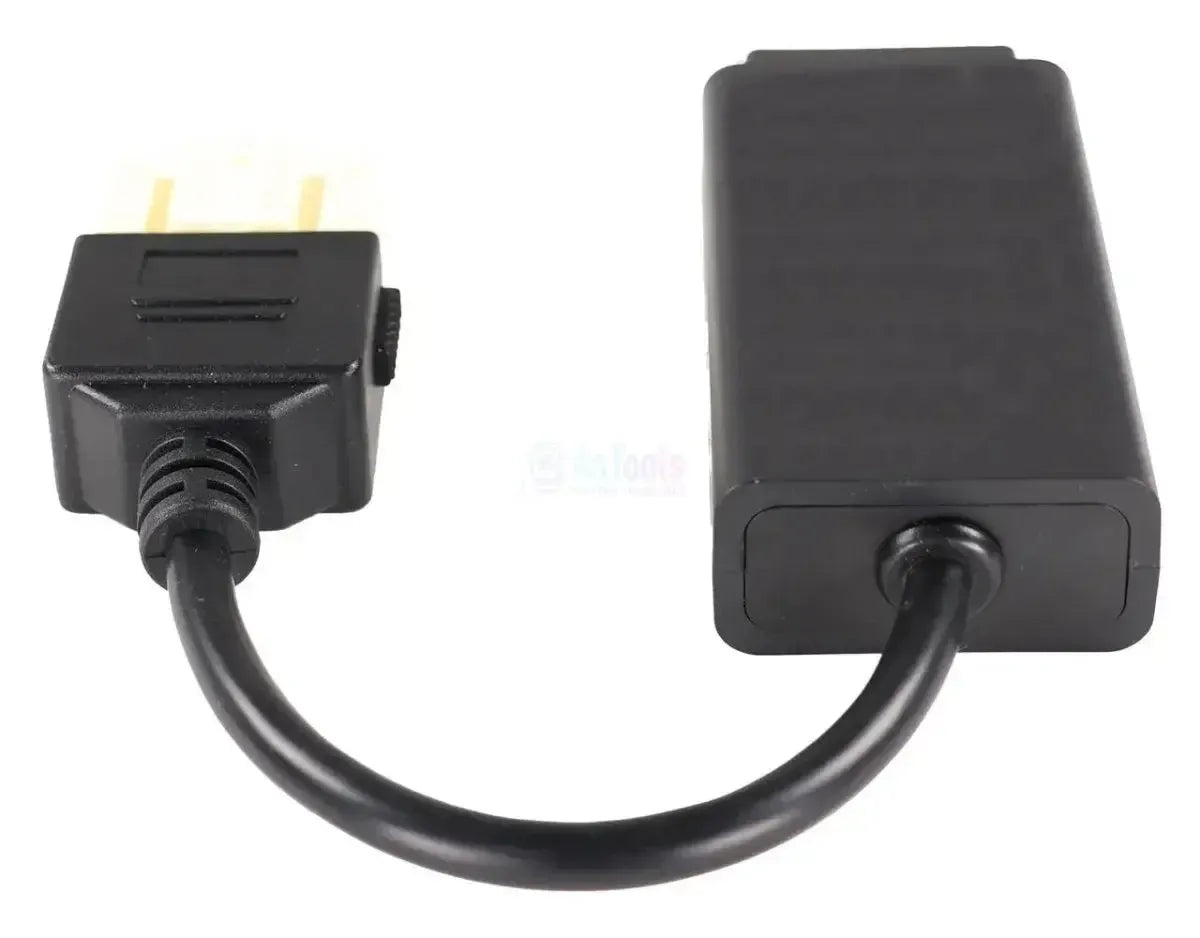

The Jaltest JDC219A connects the proprietary 20-pin diagnostic connector of Isuzu vehicles to the 16-pin OBD2 port on your Jaltest diagnostic cable. On the vehicle side, a wide black connector housing with a ribbed grip accommodates a cream-coloured pin holder featuring two rows of gold-plated pins; several positions within the pin field remain empty. On the interface side, the OBD2 connector sits in a flat rectangular housing rather than the conventional tapered connector head, and the cable measures 28 to 30 cm.
Once connected, the Jaltest software accesses the control units behind this connector: read and clear fault codes, view live data, and perform the tests, calibrations and maintenance procedures that the system permits. Which control units a vehicle carries varies by model, engine specification and year of manufacture; there is no fixed list applicable to every Isuzu. The cable is compatible with Jaltest Link V8.1 and V9 and falls under the Jaltest CV module.
KEY BENEFITS
IMPORTANT NOTES
Applications and functionality
Using this connection, you access the control units behind the Jaltest software via the 20-pin connector. What you find depends on model, engine type and year of manufacture: Isuzu builds coverage by engine code, not by model name. Coverage falls under the Jaltest CV module.
Control units you can access
- The control units behind the 20-pin connector: Which units are present varies by model, engine type and year of manufacture.
- Engine control and braking system on the 3-pin versions: Jaltest covers Electronic Diesel Control by engine code and ABS/ASR Hydraulic; for that connector, JDC218A is the correct cable.
What you can do
- Read and clear fault codes: Read the fault memory of the control unit, with descriptions of detected faults.
- View live data: Current values from the sensors connected to the control unit, displayed as figures and graphs.
- Activate components: Directly trigger components to determine whether the fault lies with the component itself or in the wiring.
- Configure parameters: Write configurations and settings to the control unit.
- Perform calibrations: For systems where Jaltest offers a calibration procedure, for example after replacing a component.
Compatible vehicles and applications
The connector type is what matters, not the model. This cable is for the 20-pin diagnostic connector of Isuzu: A wide black connector with a cream-coloured connector body and two rows of pins. Isuzu used this connection type before the standardised 16-pin OBD2-connector became mandatory for commercial vehicles at the Euro IV transition. Check which connector is fitted in your cab first.
Isuzu:
- Isuzu commercial vehicles with the 20-pin diagnostic connector: The wide black connector shell with cream-coloured body and two rows of pins.
- Production years up to the Euro IV transition: Type approval October 2005, all registrations from October 2006 onwards; after this date, the 16-pin OBD2 connector is fitted to the commercial vehicle.
- The 3-pin version is not included: For that, JDC218A is the correct cable.
Package contents
- 1x Jaltest (JDC219A) Isuzu 20-pin OBD1 - 16-pin OBD2 Adapter Cable | Commercial Vehicle
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | JDC219A |
| Type | Adapter cable |
| Application | Isuzu commercial vehicles with the 20-pin diagnostic connector |
| Length | 28 - 30 cm |
| Interface | Jaltest Link V8.1 and V9 |
| Vehicle-side connector | 20-pin OBD1 (black connector with cream-coloured holder, two rows of pins) |
| Interface connection side | 16-pin OBD2 |
| Segment | Commercial vehicle |
| Jaltest module | Jaltest CV (commercial vehicles) |
