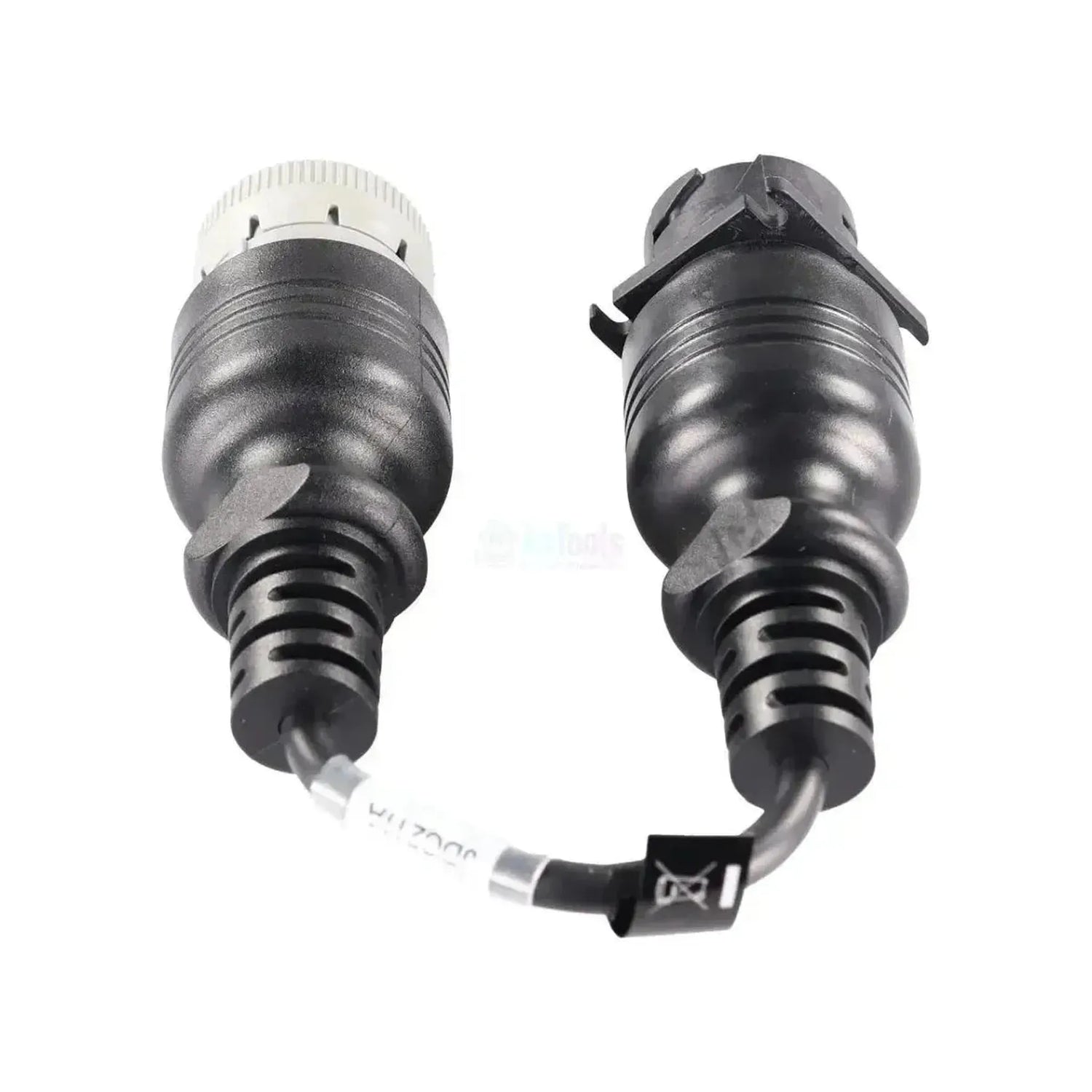

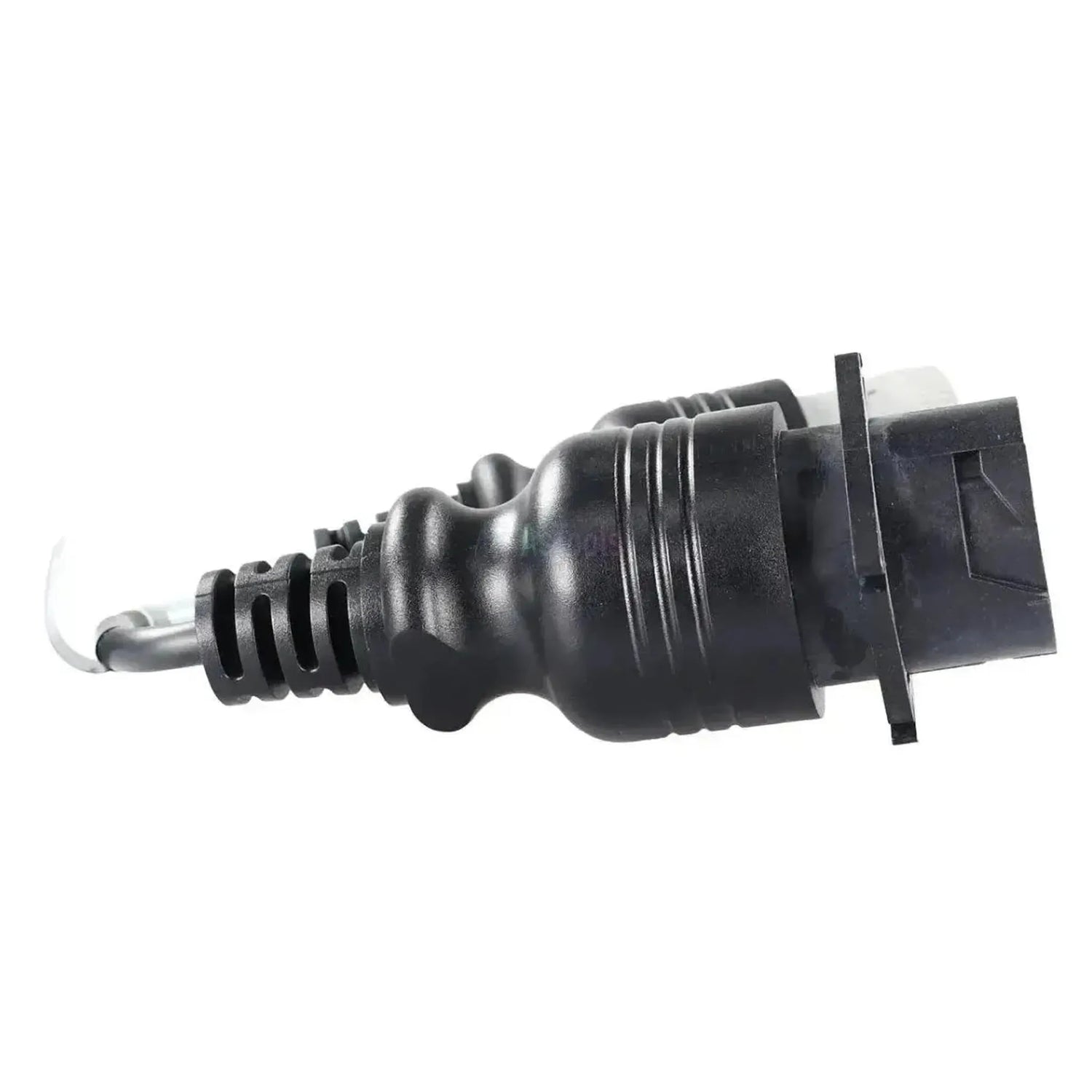

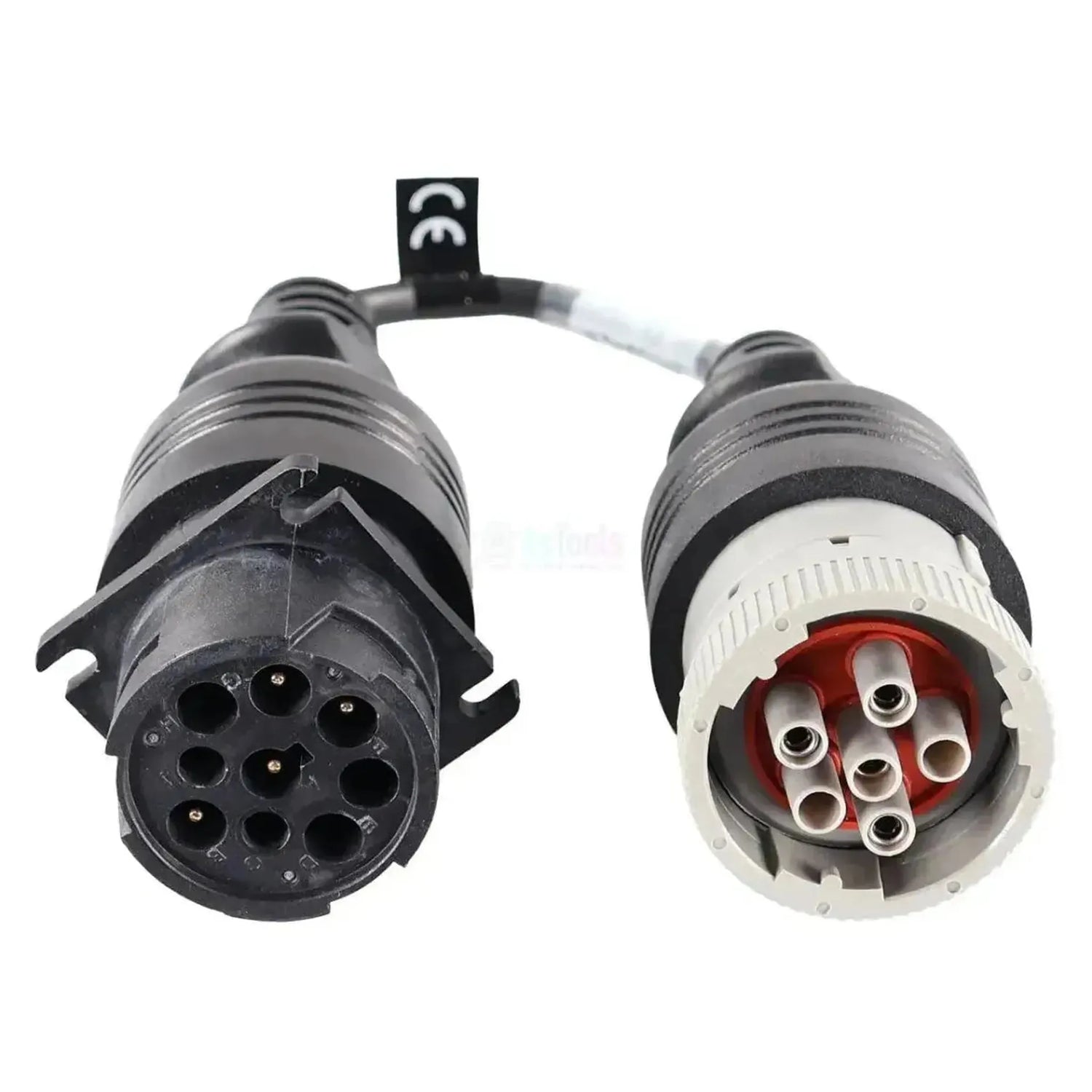

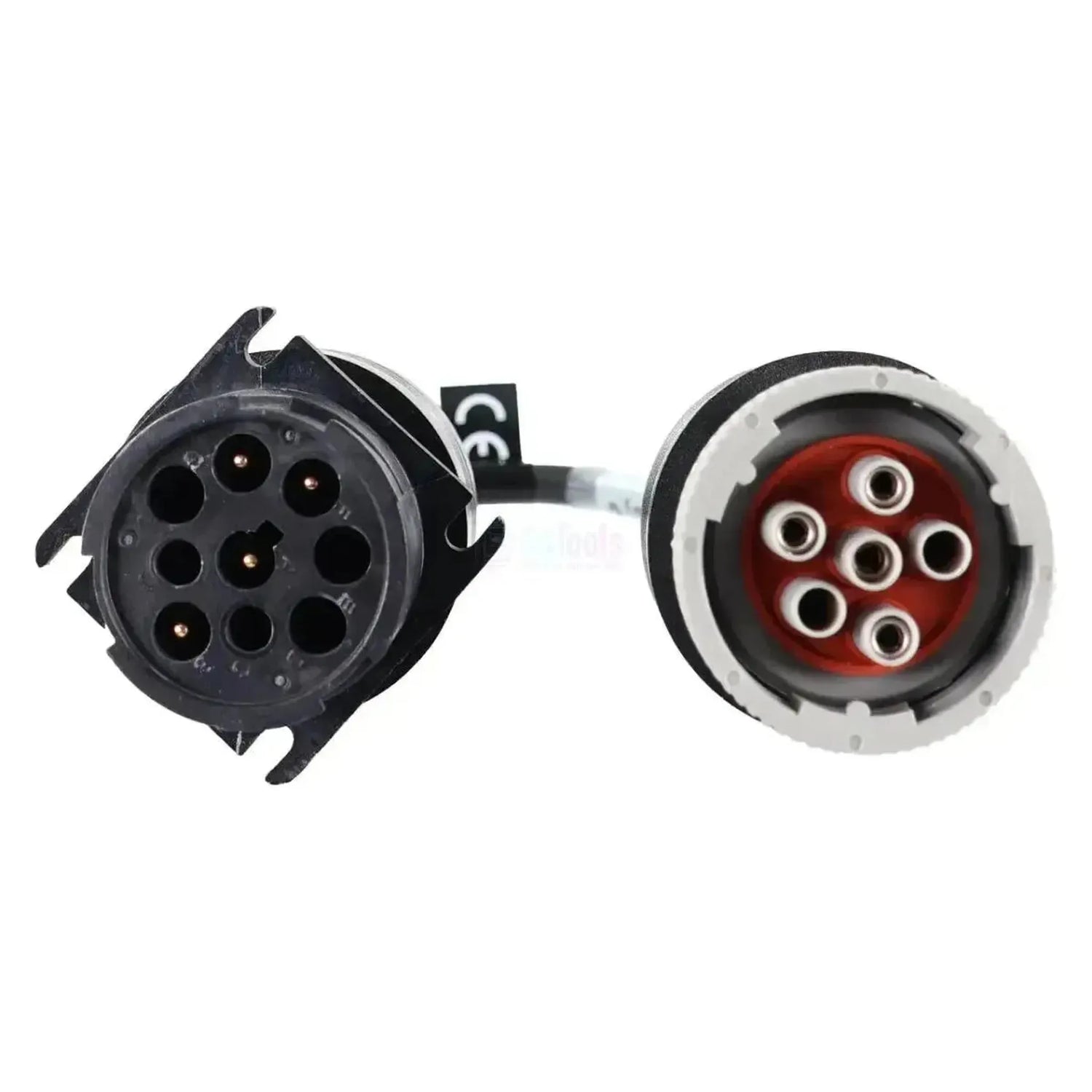

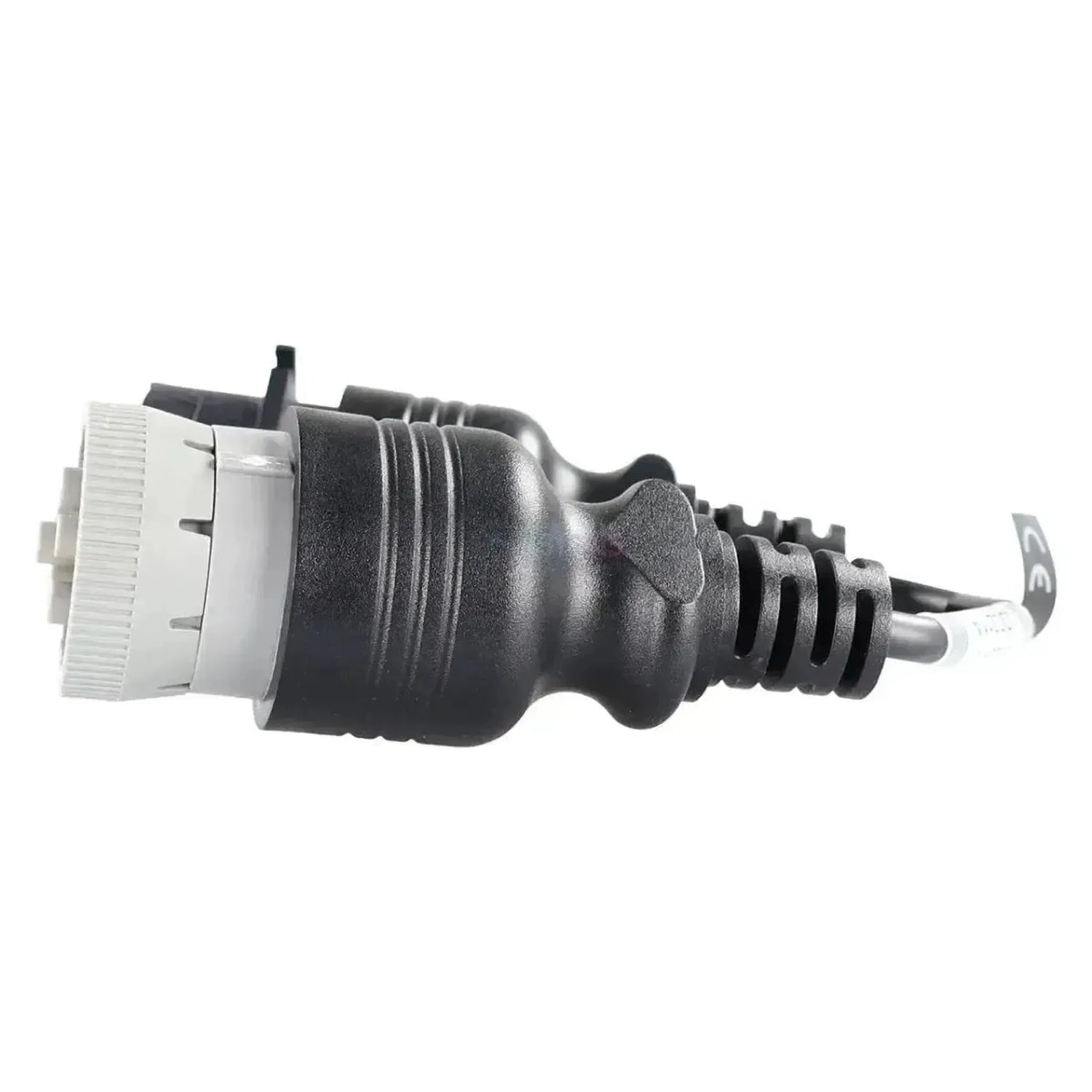

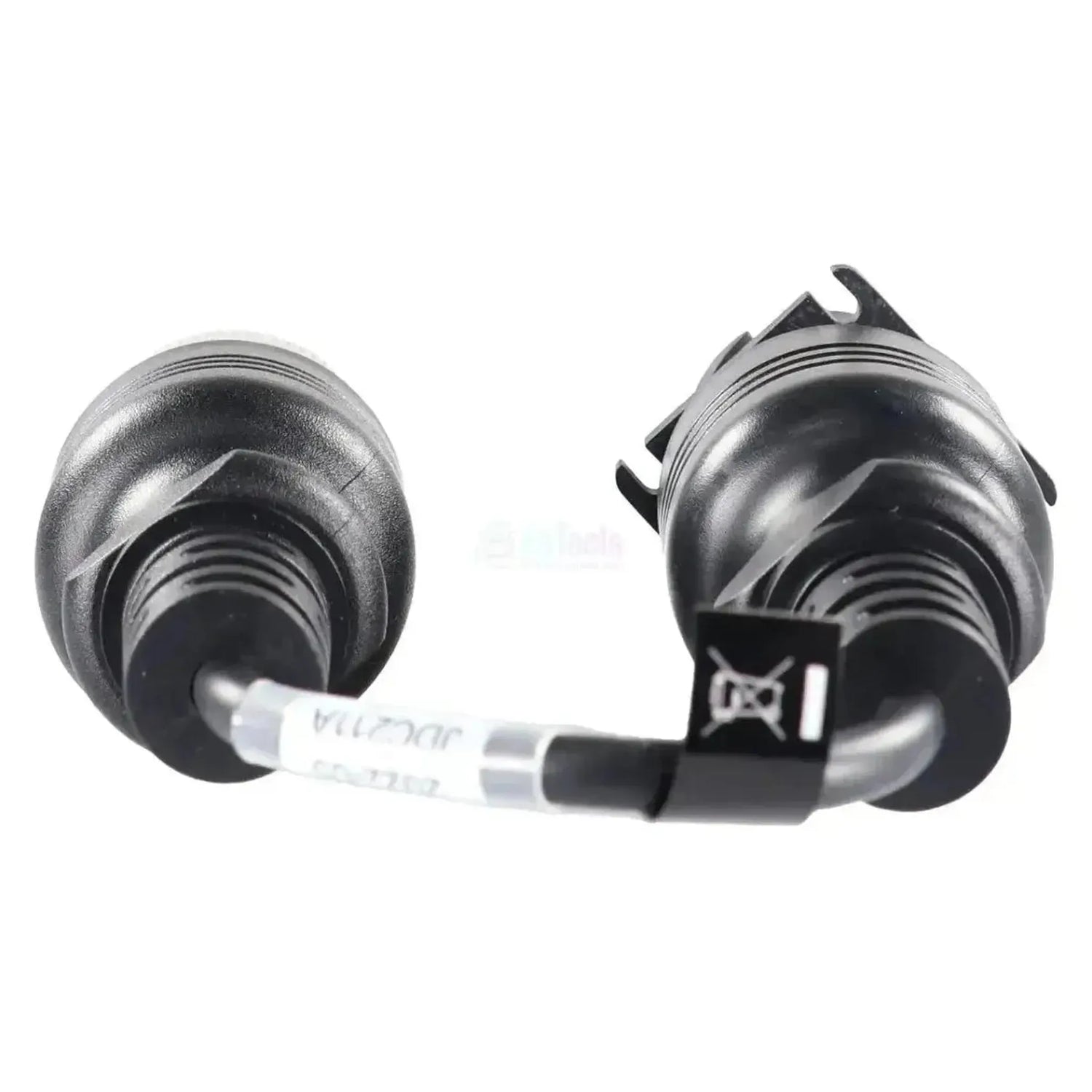

Jaltest (JDC211A) | German 6-pins – 9-pins J1939 Adapter Cable | Commercial and Work Vehicle

The Jaltest (JDC211A) is a diagnostic cable developed to connect a Jaltest diagnostic interface with the Deutsch 6-pin diagnostic port. This round connector is used on a wide range of commercial and work vehicles, including machines in the earthmoving, agricultural, and material handling sectors. The cable ensures a stable data connection with the vehicle's electronic control units (ECU).

This adapter cable is specifically designed to enable communication via the SAE J1939 and SAE J1708 protocols, depending on the vehicle's configuration. It allows technicians to perform diagnostic tasks such as reading and clearing fault codes, viewing live sensor data, and performing system calibrations. The cable functions as an adapter between the vehicle-specific 6-pin port and the universal input of the Jaltest V9 Link interface.

Application and functionality:

The JDC211A cable enables a direct and reliable connection for performing diagnostics on systems with a Deutsch 6-pin port.

• Diagnostic connection: Forms the physical link between the Jaltest diagnostic system and the vehicle's ECU for reading system information.
• Protocol support: Suitable for vehicles using the J1939 or J1708 communication protocols via the 6-pin connector.
• Adapter function: Acts as an adapter from the specific vehicle connection to the standard SUBD-26 connector of the Jaltest V9 Link interface.

Compatible vehicles and applications:

This diagnostic cable is designed for use with various commercial and work vehicles equipped with a Deutsch 6-pin diagnostic port. The cable is mainly used in the following sectors:

• Earthmoving machines (OHW): Compatible with machines from brands such as Caterpillar, Komatsu, and John Deere that use this connection.
• Material handling equipment (MHE): Suitable for diagnostics of forklifts and other internal transport equipment from brands like Hyster, Linde, and Toyota.
• Ground support equipment (GSE): Applicable to various airport vehicles and support equipment.
• Stationary engines: Used for reading industrial engines in generators and pumps from manufacturers such as Cummins, Deutz, and Perkins.
• Agricultural vehicles (AGV): Can be used with older tractors and agricultural machines equipped with the 6-pin connector.

Important: Before purchasing the product, always check your vehicle's connection. This may vary by model and year of manufacture.

Package Contents:

• 1x Jaltest (JDC211A) | Deutsch 6-pin – 9-pin J1939 Adapter Cable | Commercial and Work Vehicle

Technical specifications:
