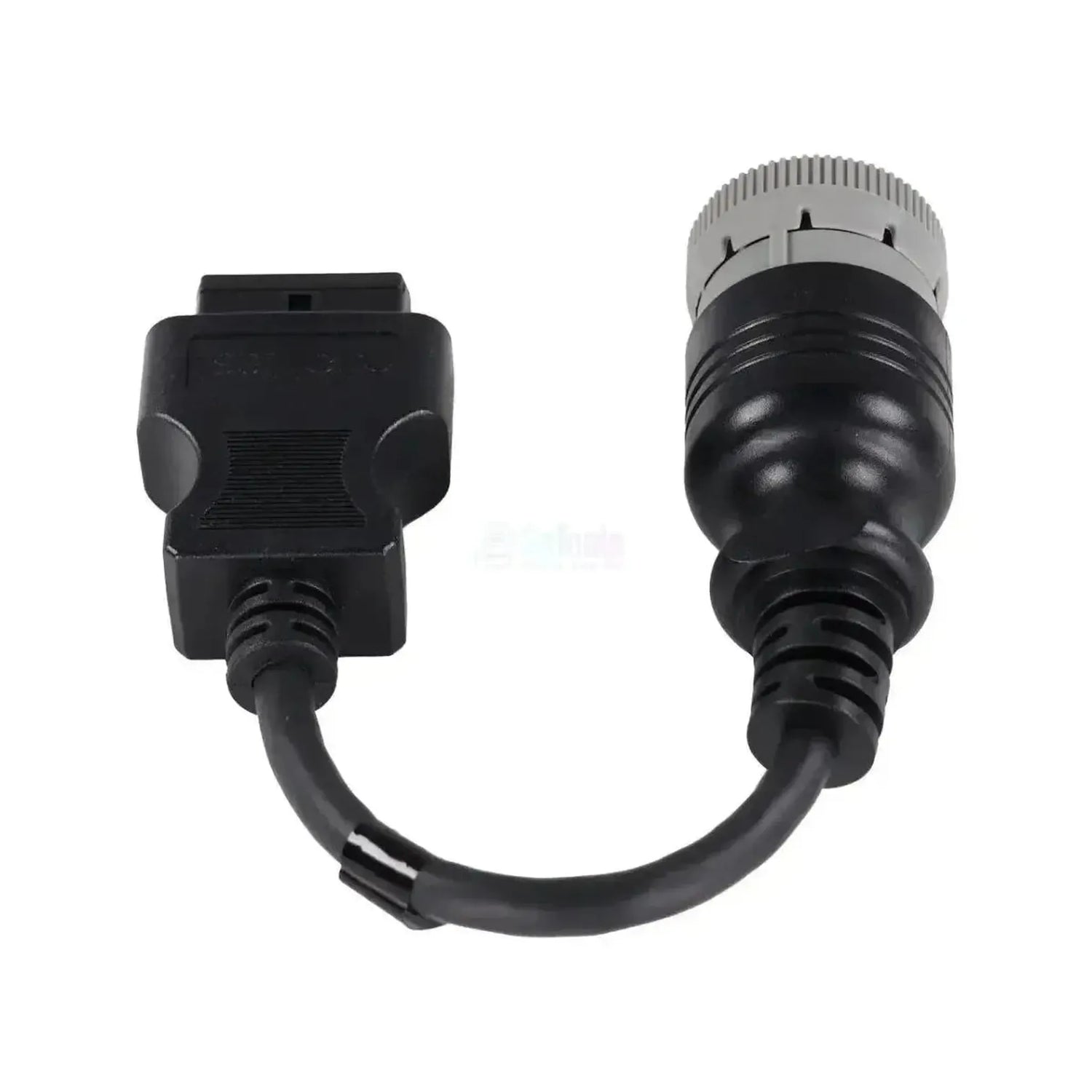

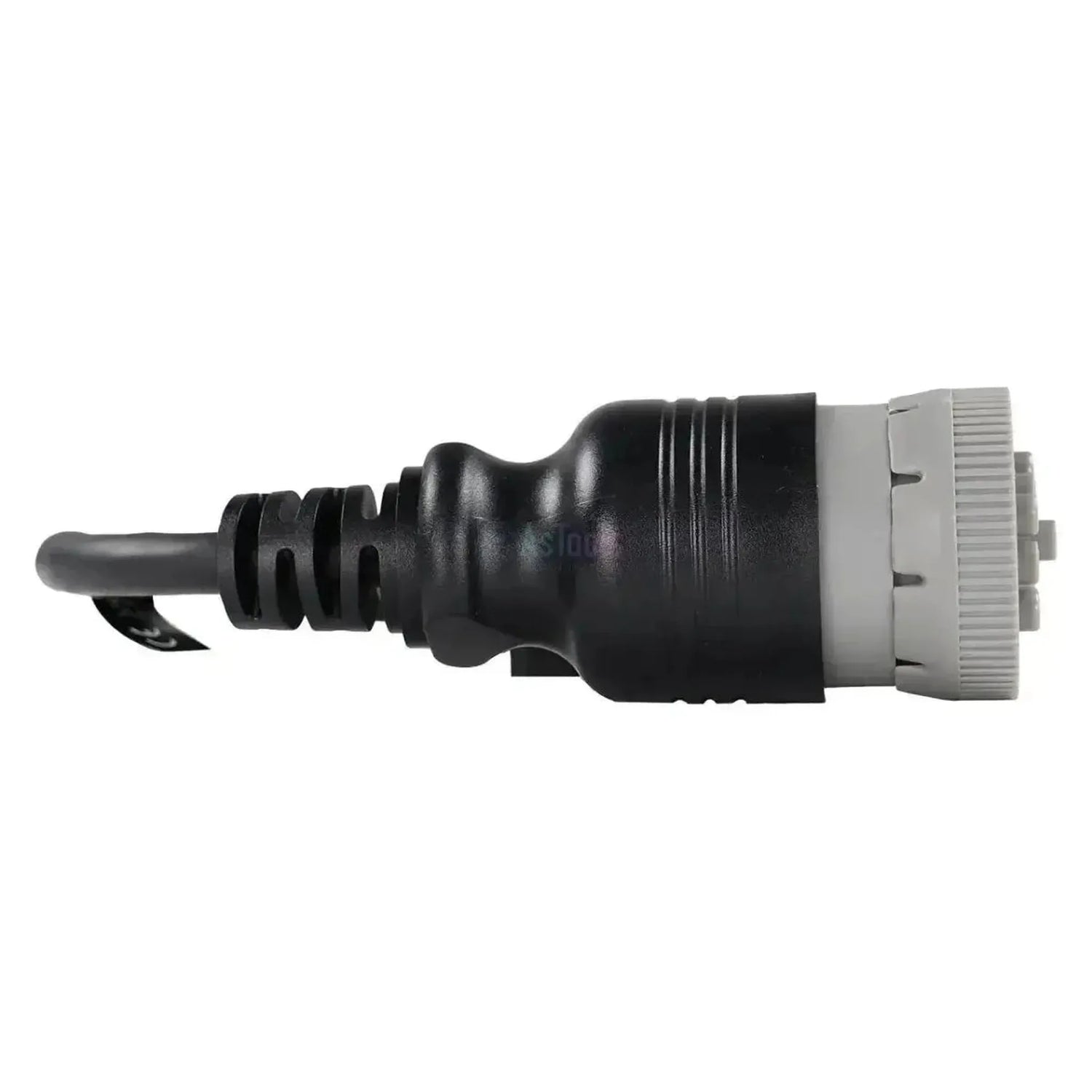

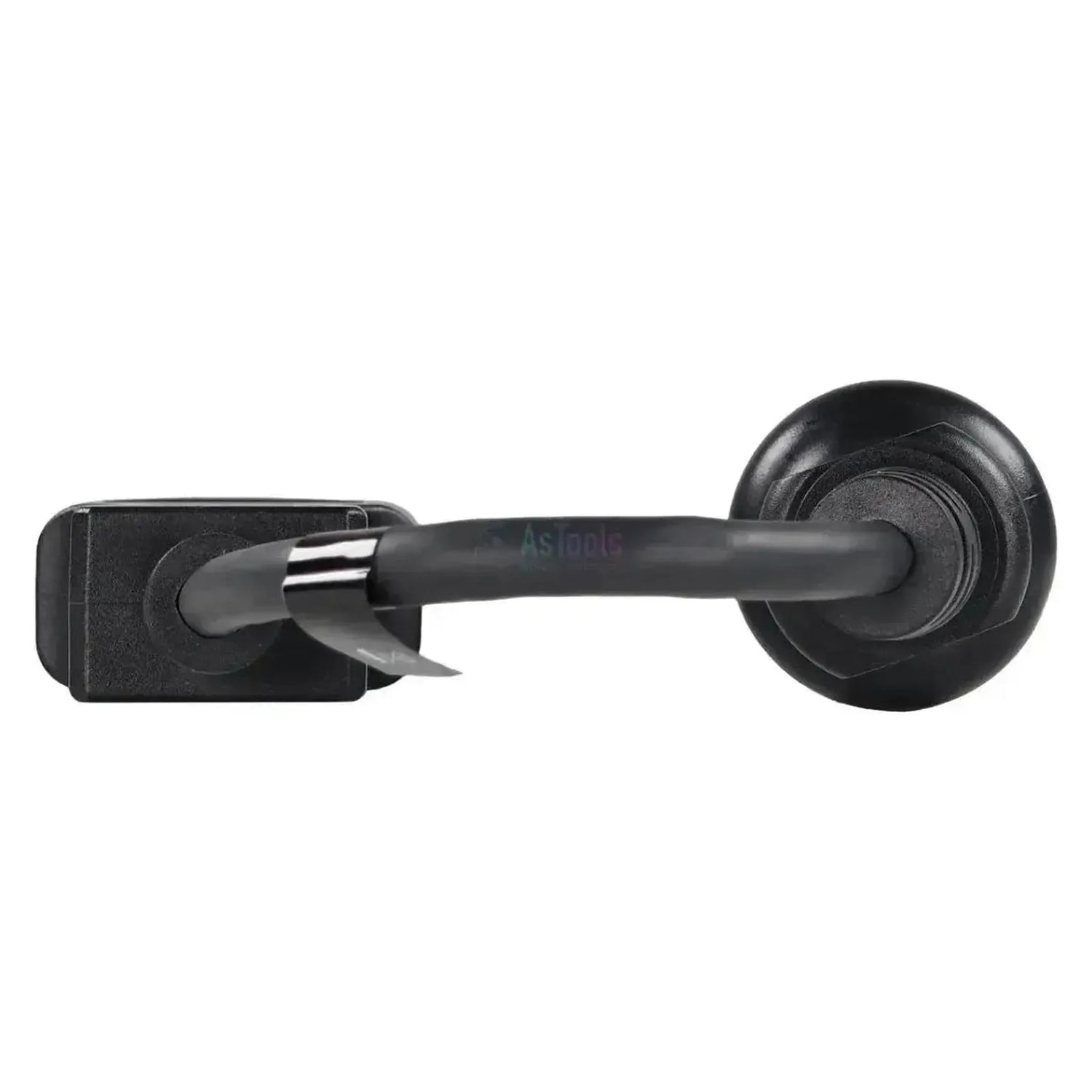

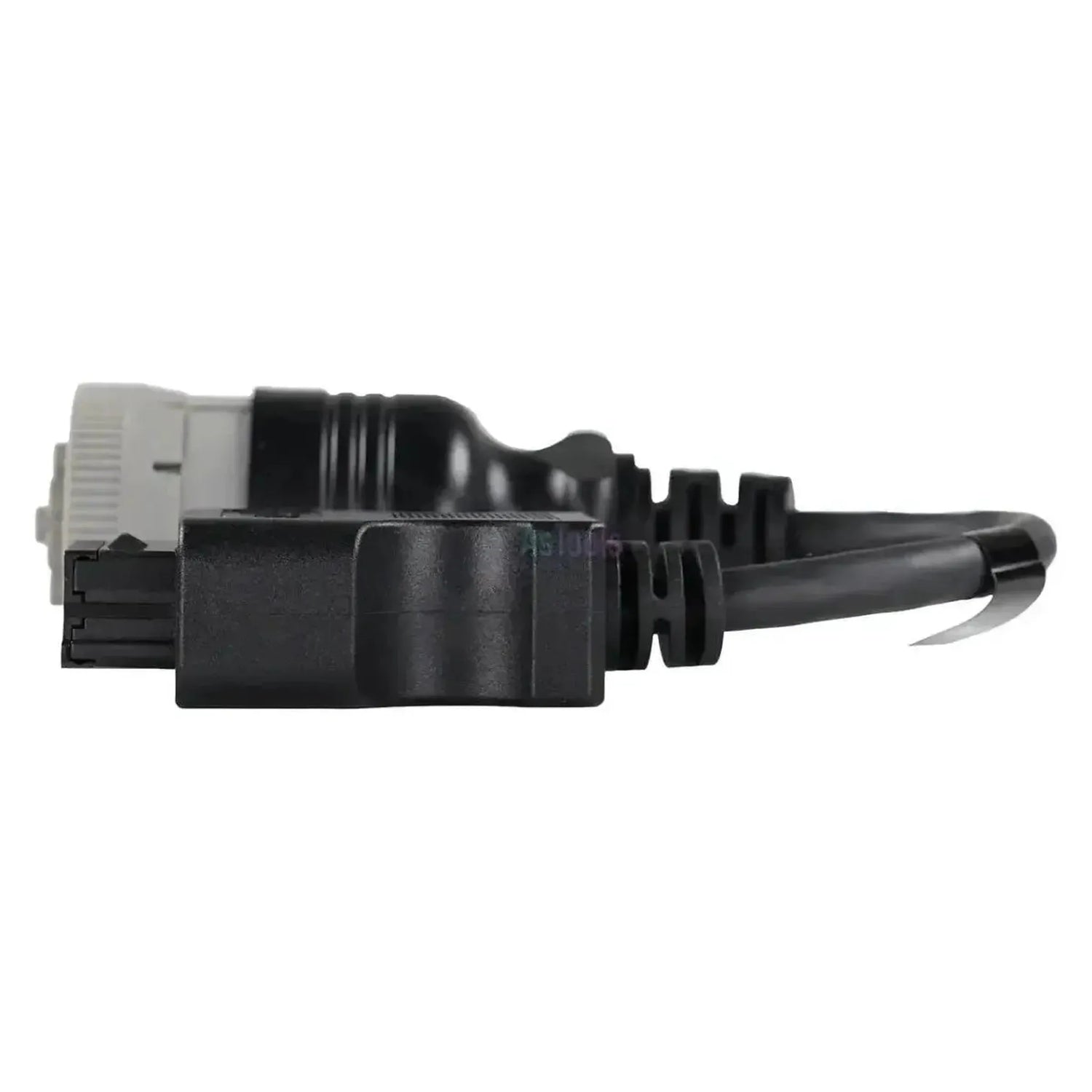

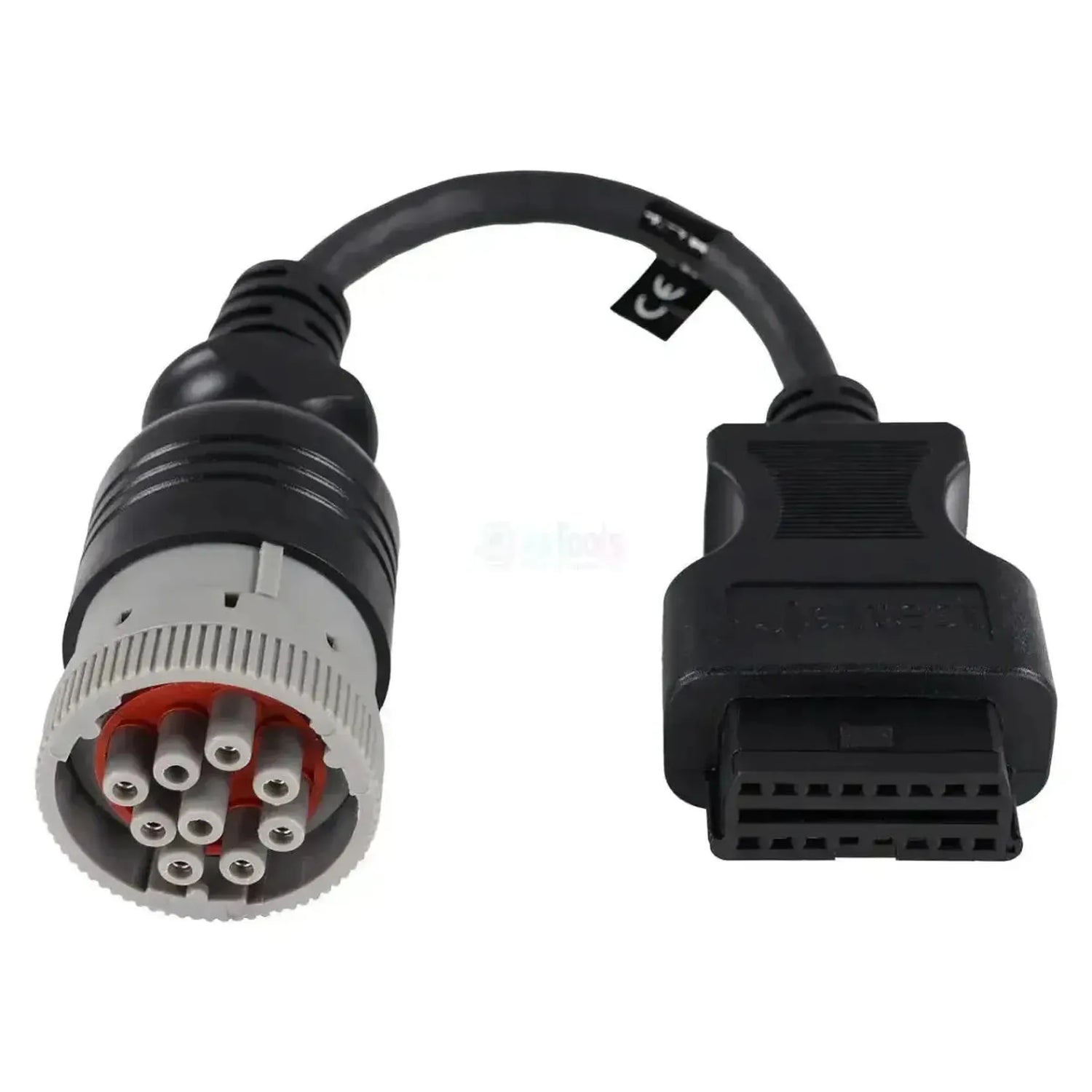

The Jaltest JDC505A is a diagnostic adapter cable designed to connect a diagnostic interface with a standard 16-pin OBD2 connector to the specific 9-pin diagnostic port of internal combustion engines. This cable is developed for use with engines from the brands Caterpillar and Perkins, which are widely used in industrial, marine, and off-highway applications.
The cable facilitates communication between the diagnostic device and the engine's electronic control unit (ECU). This enables diagnostic functions such as reading fault codes, viewing live data, and performing system tests. The 9-pin Deutsch connector on the vehicle side ensures stable and reliable data transfer, forming the basis for accurate diagnosis.
Application and functionality:
This cable is intended to connect a Jaltest diagnostic interface with Caterpillar and Perkins engines.
- Diagnostic connection: Enables a stable communication link between the engine’s 9-pin diagnostic port and a 16-pin OBD2 diagnostic interface.
- Protocol support: Supports communication protocols used via the 9-pin connector, such as J1939, for performing full diagnostics.
- Wide usability: Suitable for diagnostics in various sectors, including marine, ground support equipment, and material handling.
Compatible vehicles and applications:
This adapter cable is compatible with a wide range of machines and vessels equipped with Caterpillar and Perkins engines. The cable is not model-specific but is designed for engines used in the applications listed below.
Caterpillar:
- Industrial engines
- Marine engines (Inboard & Stationary)
- Earthmoving machines
- Power generators
Perkins:
- Industrial engines
- Agricultural machinery
- Construction machinery
- Marine engines
Important: Before purchasing the product, always check your vehicle’s connector. It may vary by model and year of manufacture.
Package Contents:
- 1x Jaltest (JDC505A) | CAT/Perkins 9-pin OBD - 16-pin OBD2 Adapter Cable | Internal combustion engine
Technical specifications:
| Product brand | Jaltest |
| Product model | JDC505A |

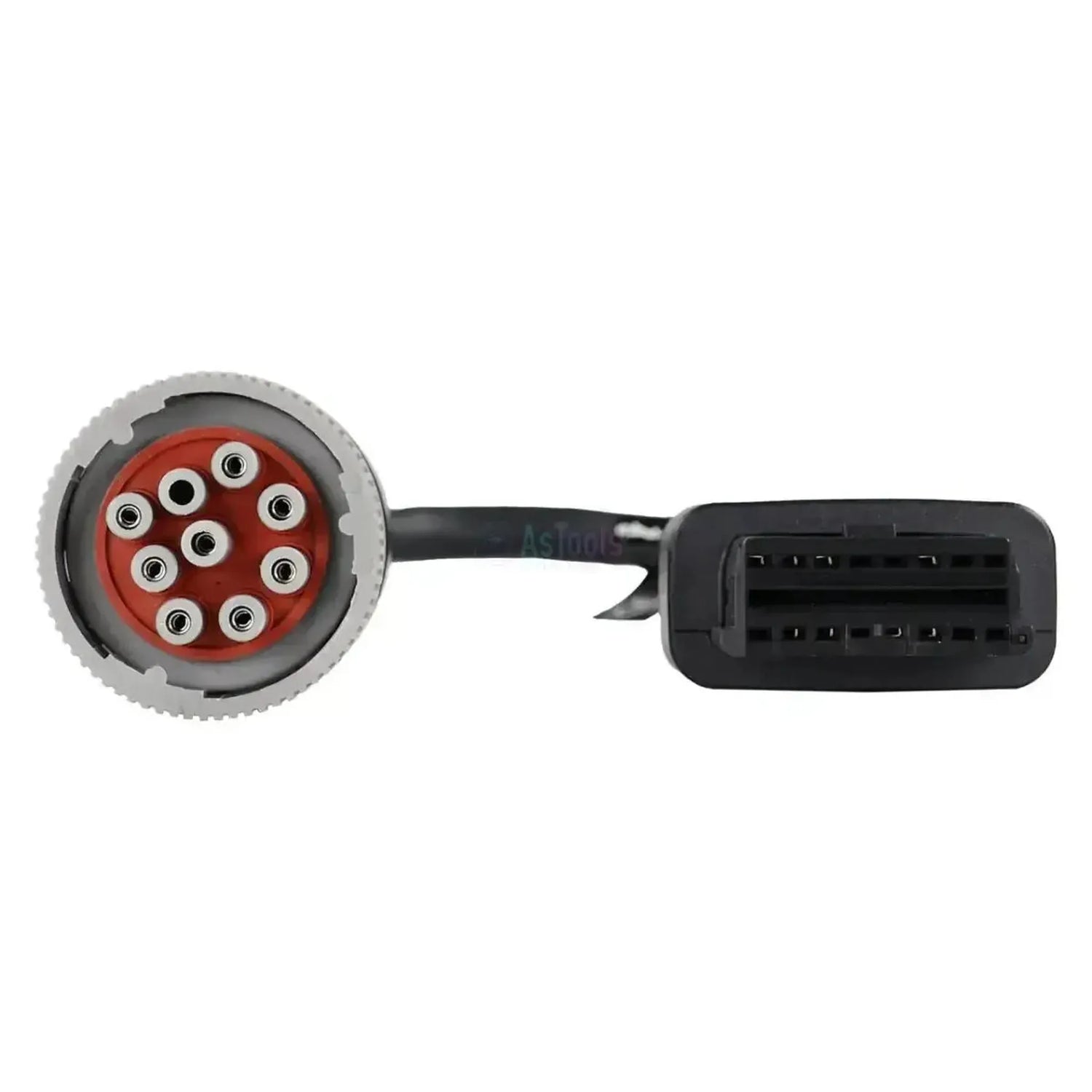

| Vehicle side connector | 9-pin Deutsch (CAT/Perkins) |
| Adapter side connector | 16-pin OBD2 (female) |
