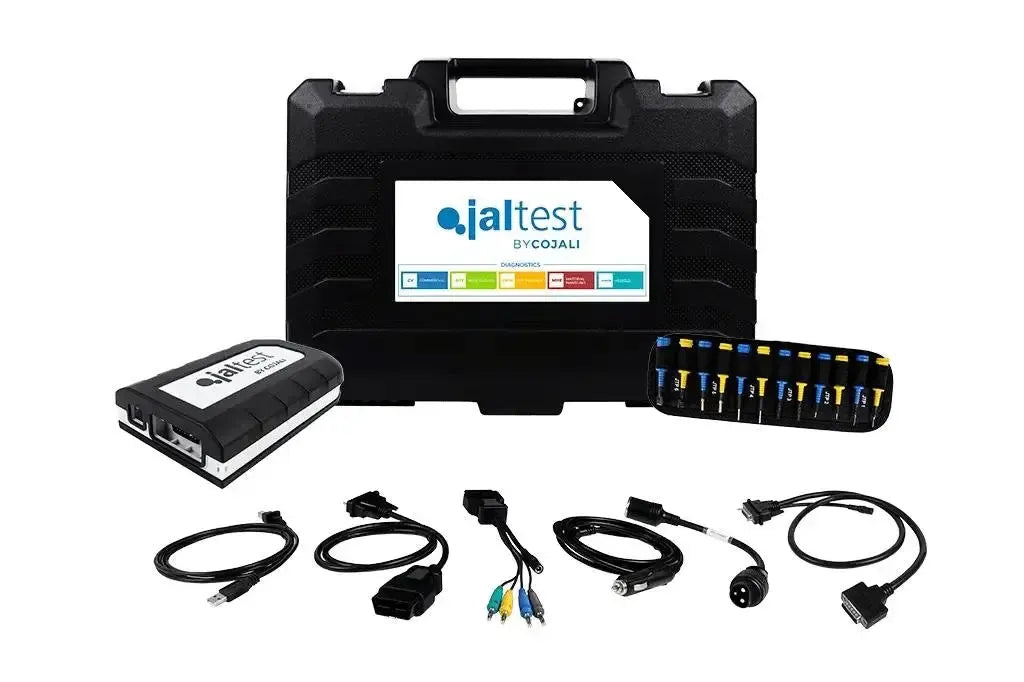

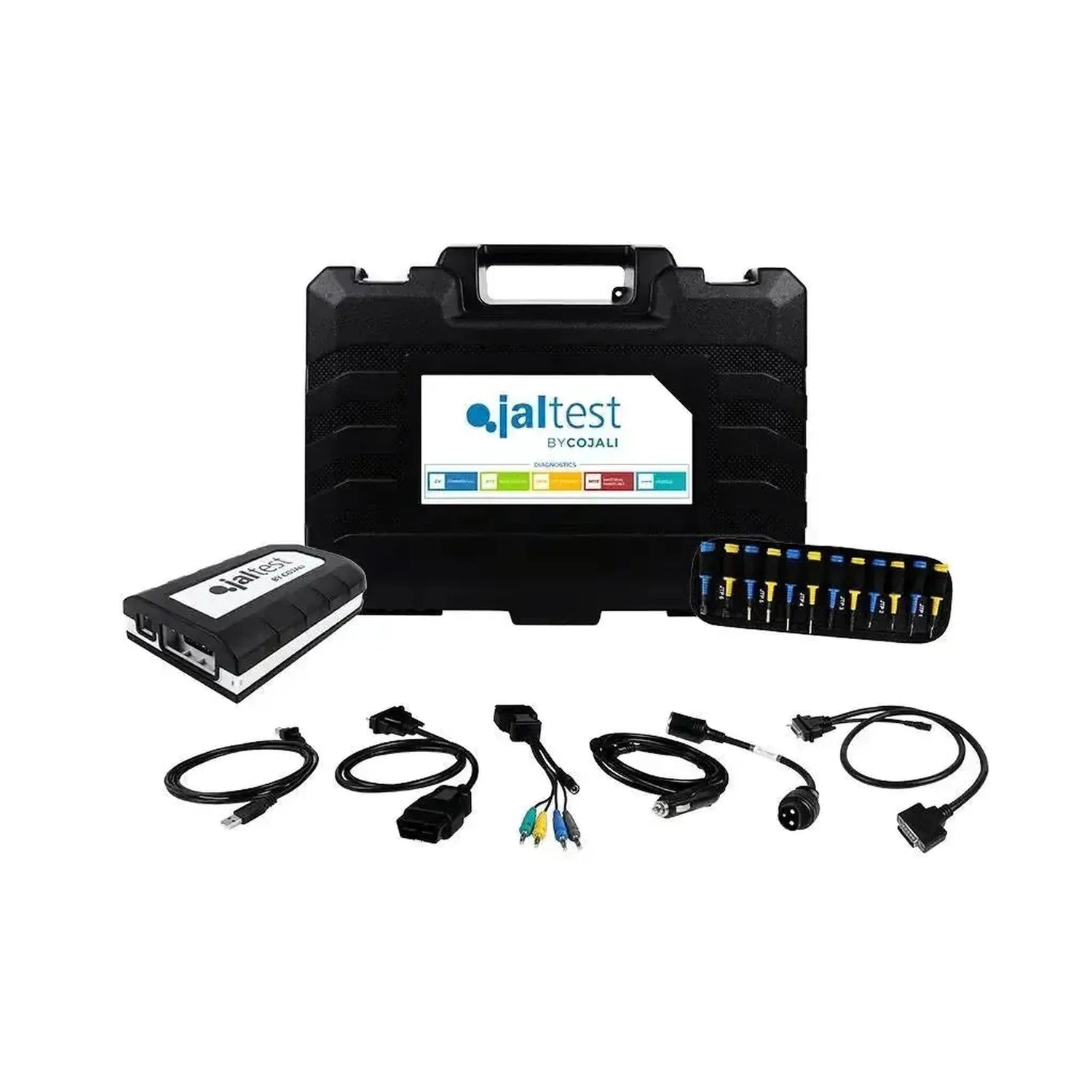

The Jaltest AGV Kit (70001060) is the hardware foundation for diagnostics on agricultural vehicles and machinery. Inside the case you'll find the Jaltest Link V9 (70001015), the Multipin Kit 70002002 for agriculture, the OBD2 cable JDC213.9, the connection cable JDC107.9B to the PC and the extension cable JDC100 measuring 100 cm. Everything is housed in the compact case 70003015 measuring 505 × 381 × 146 mm.
This version differs from its counterparts in one respect — the multipin kit 70002002 contains, alongside the standard power cables, the JDC30AM2, the auxiliary power cable with the three-pin round connector found on agricultural machinery. Otherwise, the hardware is identical to that of 70001052 for commercial vehicles and earthmoving, 70301001 for internal transport and 70001053 for marine vessels; the distinction between these four lies in the software module, not in the case.
KEY BENEFITS
IMPORTANT NOTES
Applications and functionality
\nThis kit establishes the connection between a Windows PC with Jaltest software and the control units of tractors, combine harvesters and implements. The Jaltest Link V9 translates the vehicle bus to the PC, whilst the cables determine where you connect in, on the 16-pin OBD2 port or via the multipins with a different connector. Below you'll find what's included in the case and how to use it.\n
What's included in the case
- Jaltest Link V9 (70001015):The diagnostic interface, with 26-pin DB26 to the cable and USB-C to the PC.
- Multipin Kit (70002002):Twenty multipins JTP01 through JTP10 in blue and yellow, the connection cable JTP101 and the power cables JDC10AM2, JDC20AM2 and JDC30AM2.
- JDC213.9: Adapter cable from 26-pin DB26 to 16-pin OBD2 connector.
- JDC107.9B: Connection cable from Jaltest Link V9 to the USB-C port on your computer.
- JDC100: Extension cable, 100 cm long, between the Jaltest Link V9 and the machine cable.
- Compact Hardcase (70003015): Flight case measuring 505 × 381 × 146 mm with space for this kit and approximately twelve cables.
What you can do with it
- Read and clear fault codes: On every control unit covered by the Jaltest AGV module.
- Monitor live data and parameters: With the engine running or during field operations.
- Actuate components: Trigger valves, relays and actuators directly.
- Access a non-standard connector: The multipin connector lets you reach connections where no off-the-shelf cable exists.
- Supply power to the implement: The three power cables feed the interface where the connector itself provides no voltage.
Compatible vehicles and applications
The software module determines compatibility, not the case itself. This hardware is configured for Jaltest AGV, the module for agricultural vehicles and machinery. Agriculture has never mandated a standardised OBD connection, so manufacturer-specific connectors remain in use even on new machines — which is why the multipin kit is so comprehensive.
Agricultural vehicles and machinery:
- Tractors: From compact tractor to heavy-duty tractor.
- Combine harvesters: Combines, forage harvesters and grape harvesters.
- Self-propelled implements: Including field sprayers.
- Trailed implements: Mounted and towed behind the tractor.
- ISOBUS equipment: Implements that communicate with the tractor via ISOBUS.
Package contents
- 1x Jaltest Link V9 interface (70001015)
- 1x Multipin Kit Jaltest AGV (70002002)
- 1x Jaltest (JDC213.9) | Link V9 26-pin DB26 – 16-pin OBD2 Adapter Cable | Interface
- 1x Jaltest (JDC107.9B) | Link V9 – USB-C Adapter Cable | Interface
- 1x Jaltest (JDC100) | Link V9 26-pin DB26 Extension Cable (100 cm) | Interface
- 1x Jaltest (70003015) | Compact Hardcase
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | 70001060 |
| Type | Hardware diagnostic kit for vehicles |
| Version | Compact case |
| Number of components | 6 |
| Contents | Jaltest Link V9 (70001015), Multipin Kit 70002002, JDC213.9, JDC107.9B, JDC100, case 70003015 |
| Interface | Jaltest Link V9, 26-pin DB26 to cable, USB-C to PC |
| Multipin kit | 70002002 — twenty multipins JTP01 through JTP10, JTP101, JDC10AM2, JDC20AM2, JDC30AM2 |
| Extension cable | JDC100, 100 cm |
| Application | Agricultural vehicles and machinery (AGV) |
| Category | Agricultural vehicle |
| Part of | The AGV diagnostic reader |
| Case dimensions | 505 × 381 × 146 mm |
