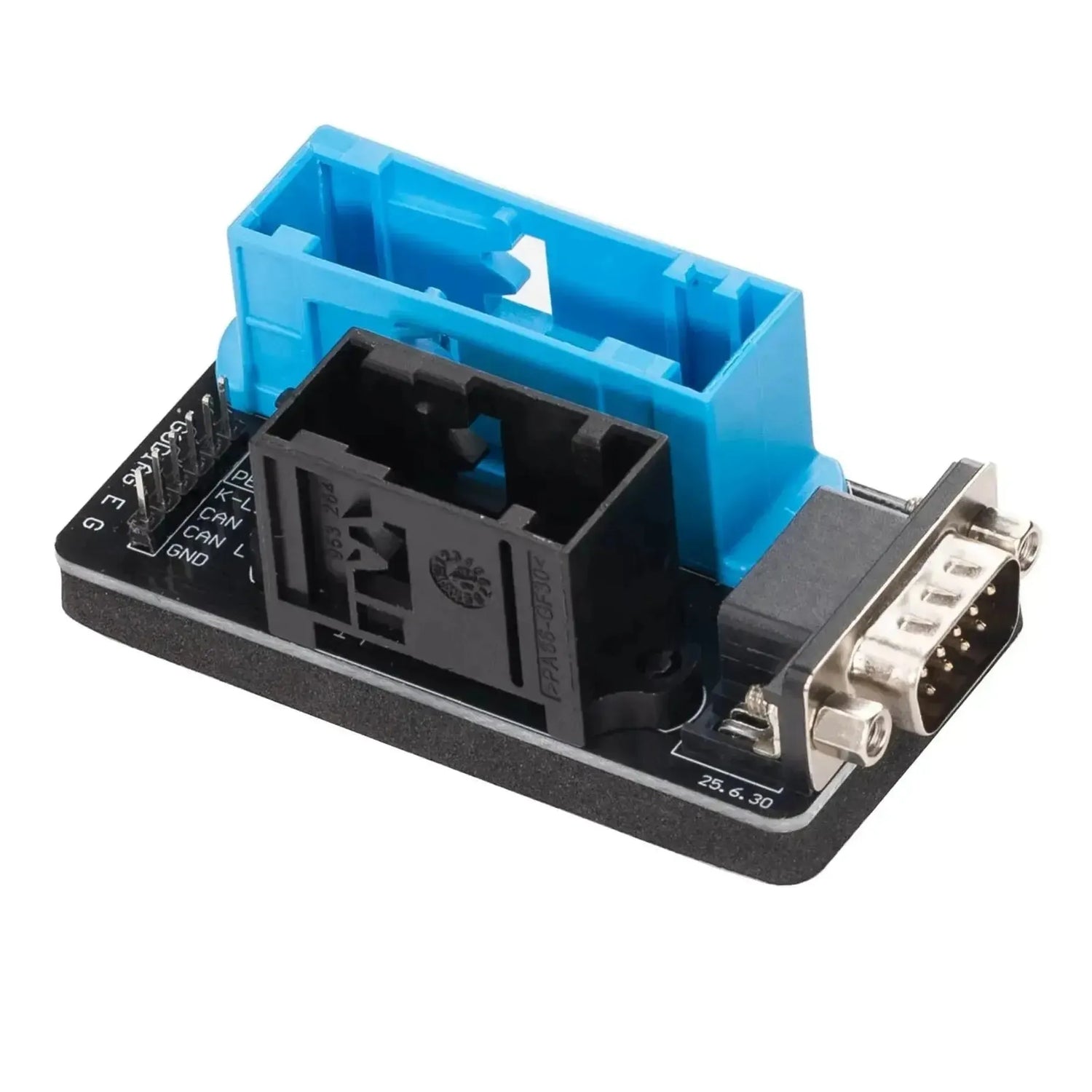

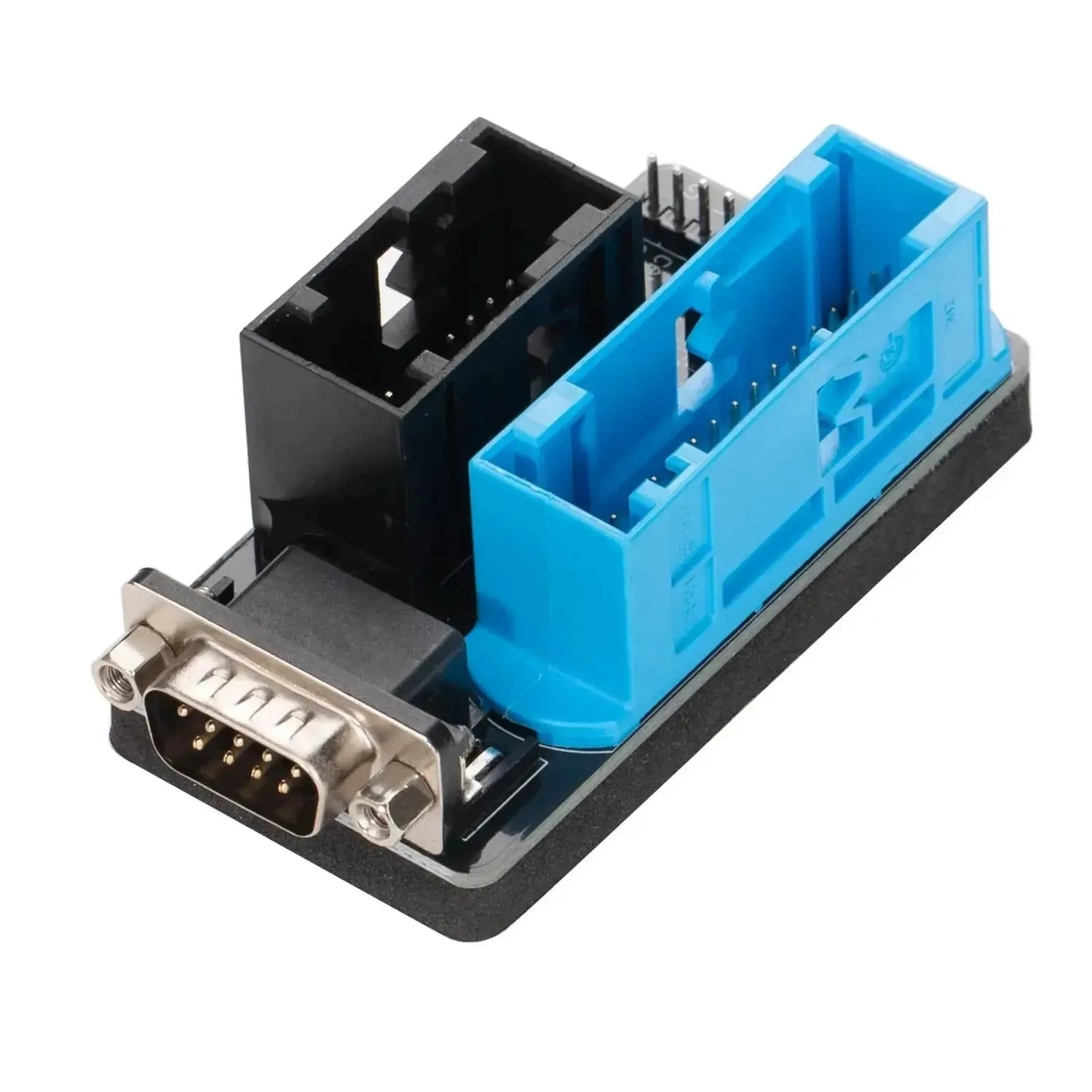

The GoDiag MQB Data Collector (ELV/TCM-DSG) is a specialized transmission Adapter designed for data collection and diagnostics on VAG vehicles. This interface board serves as an essential bridge for diagnostic technicians working with MQB platforms. The device is specifically developed to extract data from the Electronic Steering Lock (ELV) and to establish stable communication with Transmission Control Modules (TCM) of DSG transmissions. The circuit board features standardized connectors, including a DB9 port and specific VAG connector ports, enabling secure connections without the need to cut or solder the vehicle’s original wiring harness.
To function correctly, the Adapter is connected in a test setup outside the vehicle or directly via the instrument panel connector. In combination with a compatible test platform, such as the GoDiag GT115 or the GT107+ gearbox Adapter, the module creates a simulated environment for the ECU. This allows safe reading and writing of flash data to the transmission module or the ELV via CAN bus protocols. The accessible measurement pins for CAN High, CAN Low, K-Line, and power supply (VCC/IGN/GND) ensure the diagnostic tool can process a correct signal. This enables technicians to comfortably perform diagnostics, clone data, or make adjustments on a workbench, significantly increasing workshop efficiency.
ADVANTAGES
KEY POINTS
Applications and functionalities
This adapter is developed for specific diagnostic tasks and data manipulation on transmission and steering column modules within the MQB platform.
- ELV Data collection: Reads and collects security and operational data from the Electronic Steering Lock (ELV) module using the instrument panel connection.
- DSG TCM communication: Establishes a direct, stabilized communication link with the Transmission Control Module (TCM) of DSG gearboxes for diagnostic and programming purposes.
- Reading and writing flash memory: Facilitates flawless transfer of firmware and calibration data to the ECU or TCM when the board is connected to the correct diagnostic tablet and interface.
- Bench testing (Workbench Diagnosis): Allows modules to be disconnected from the car and read on a workbench, ensuring controlled power supply during critical programming actions.
Special features and capabilities
The module contains specific hardware features that make the testing and diagnostic process clearer for the technician.

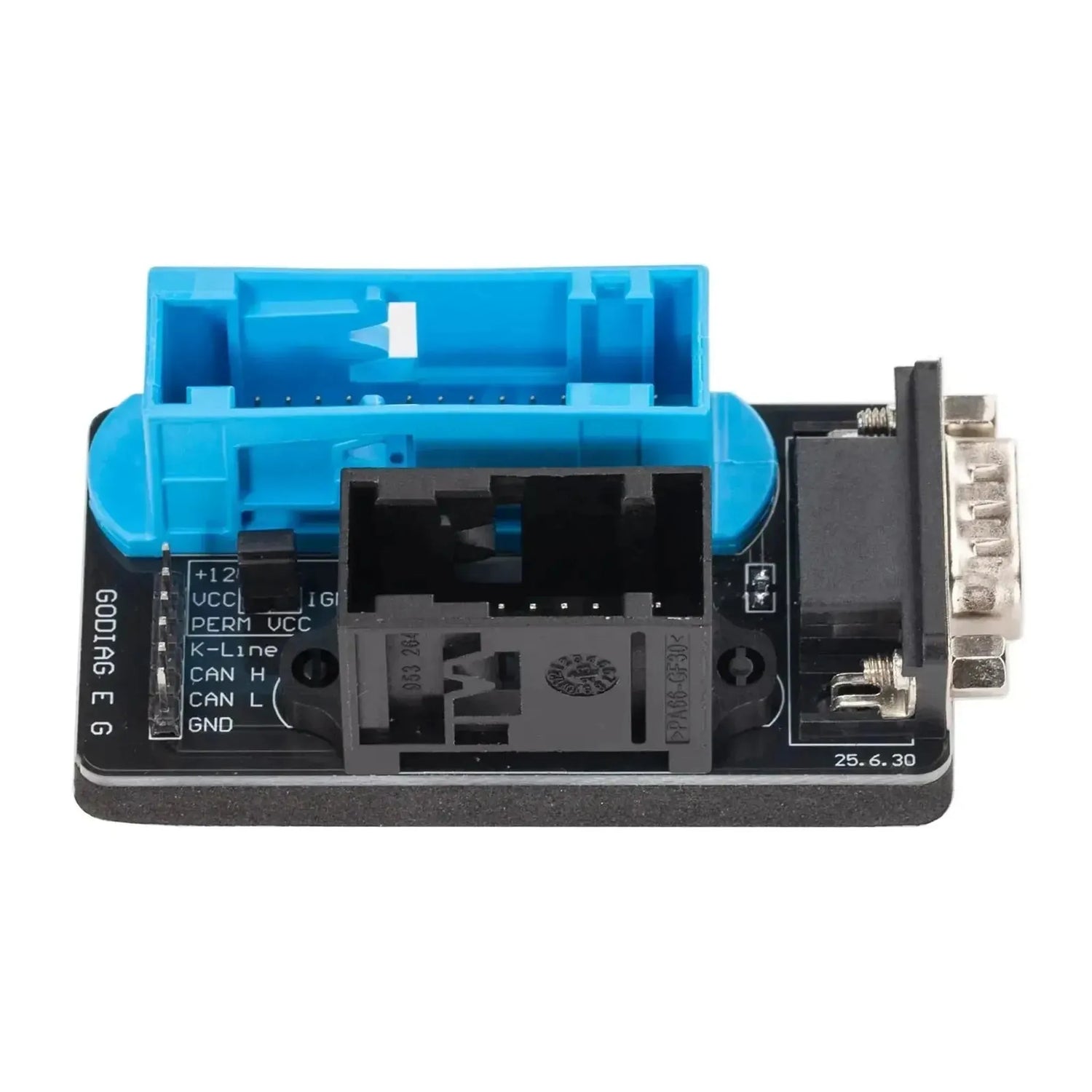

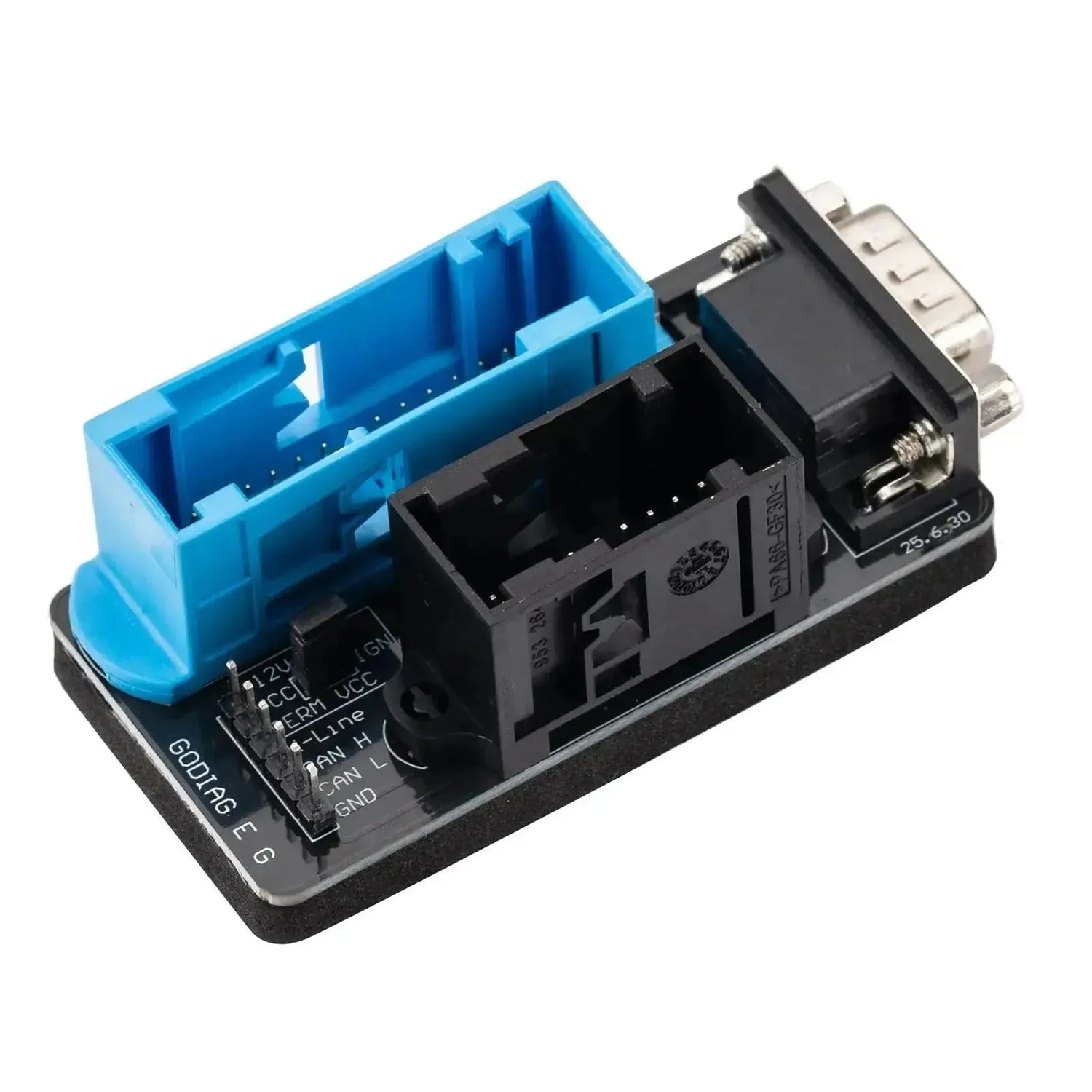

- Integrated communication pins: The circuit board is equipped with soldered branches for +12V, VCC, IGN, PERM VCC, K-Line, CAN H, CAN L, and GND. This allows the technician to measure signals directly with an oscilloscope or multimeter during programming.
- DB9 Serial interface: Uses a robust standard DB9 connector for interference-free and seamless integration with existing GoDiag cable sets and OBD2 jumpers.
Package Contents
- 1x GoDiag | MQB Data Collector (ELV/TCM-DSG) Transmission adapter | Accessories
Technical specifications
| Specification | Description |
|---|---|
| Product brand | GoDiag |
| Product model | MQB Data Collector |
| Part number (Manufacturer) | SF382-B |
| Supported platform | VAG MQB |
| Compatible modules | ELV (Electronic Steering Lock), TCM (DSG Transmission) |
| Connections | VAG Instrument panel plug (blue), DB9, Multi-pin test connector |
| Protocol support | CAN bus, K-Line |
| Onboard measurement pins | +12V, VCC, IGN, PERM VCC, K-Line, CAN H, CAN L, GND |
