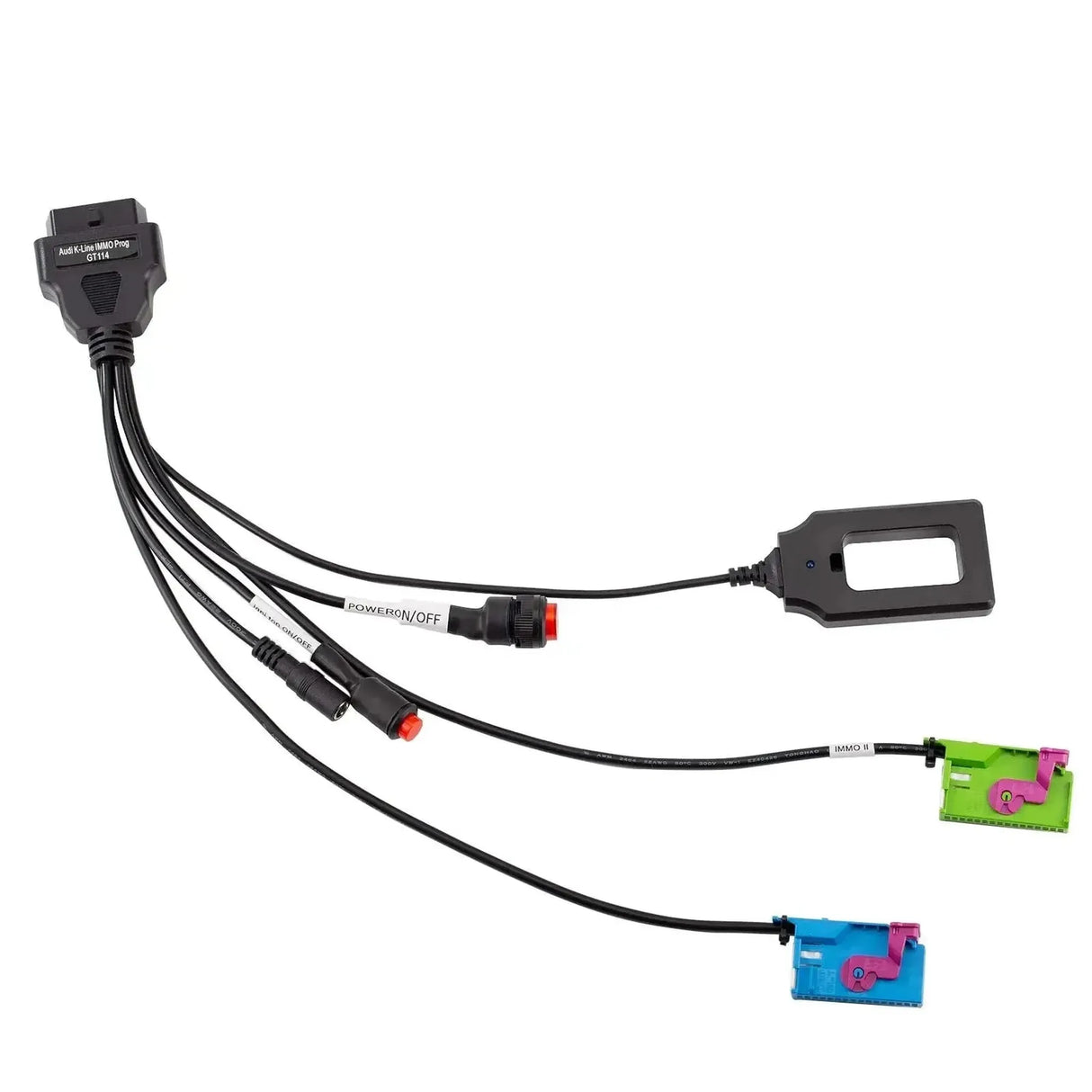

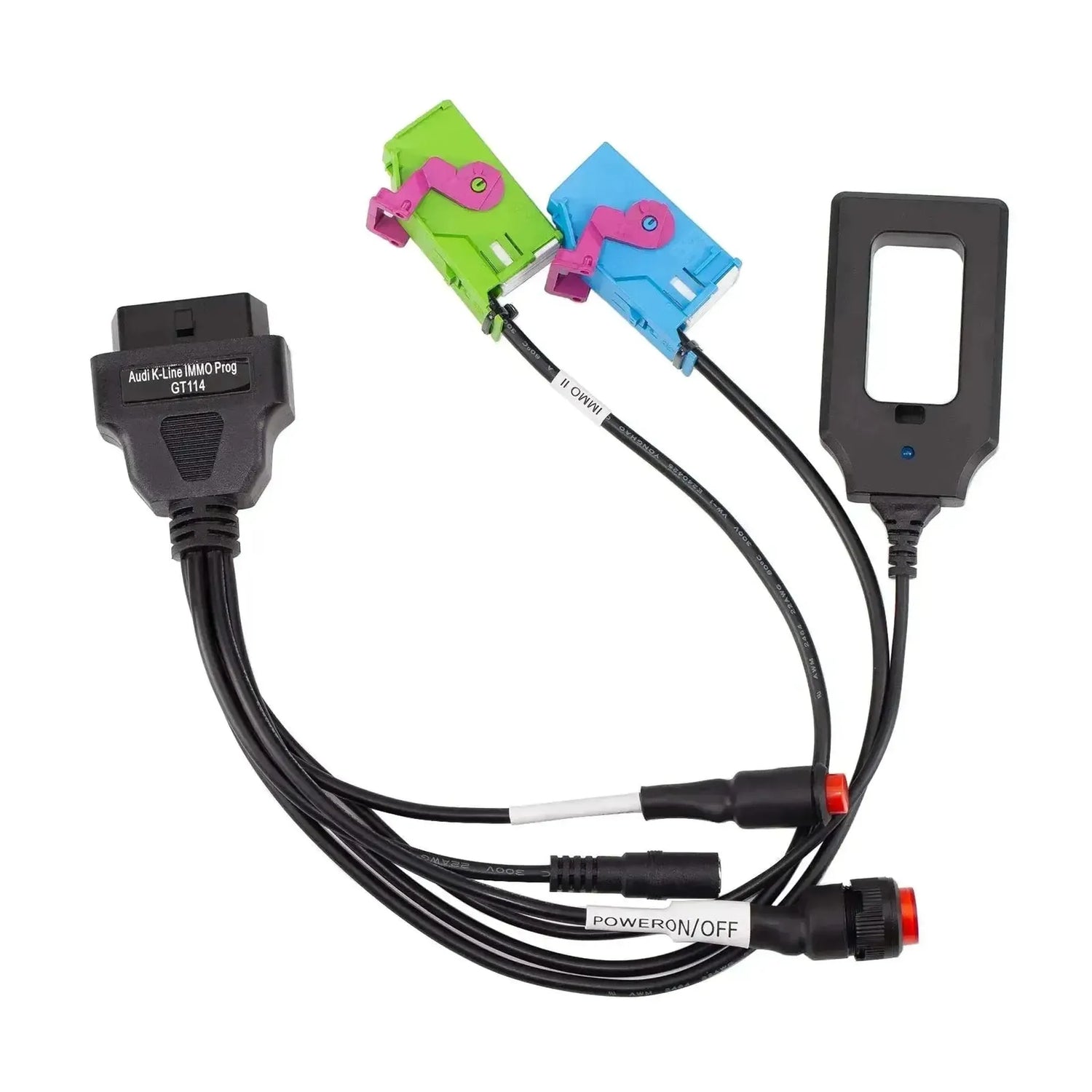

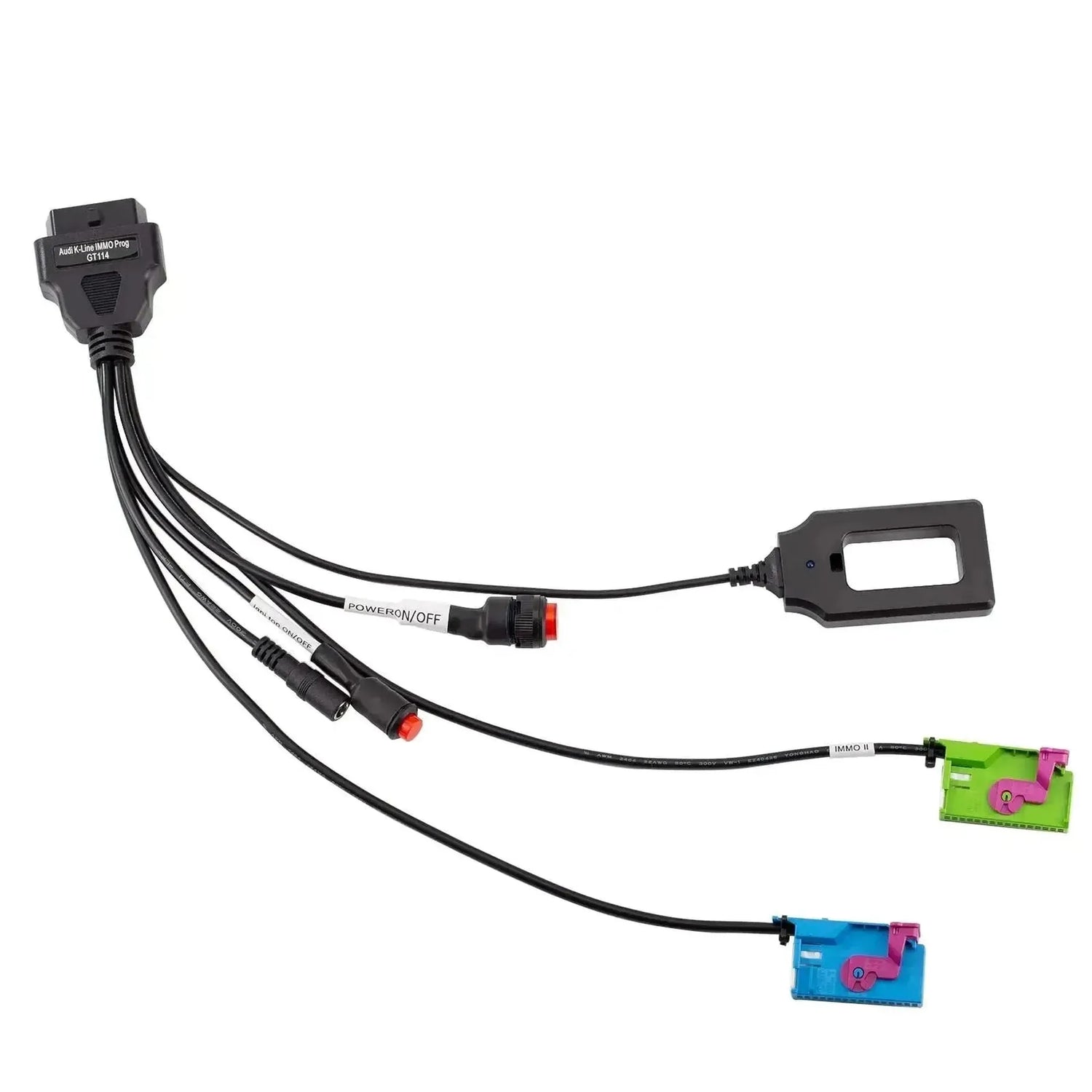

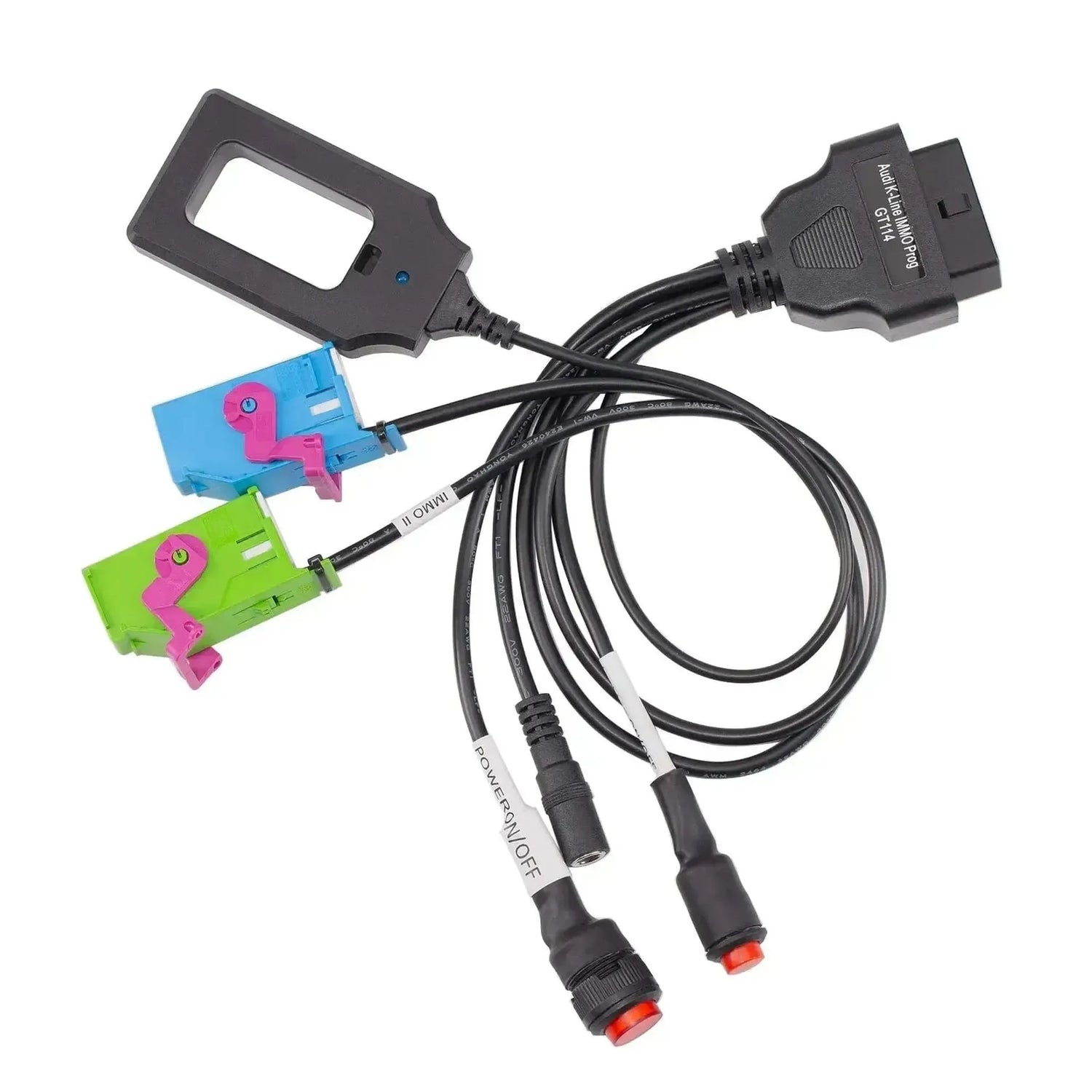

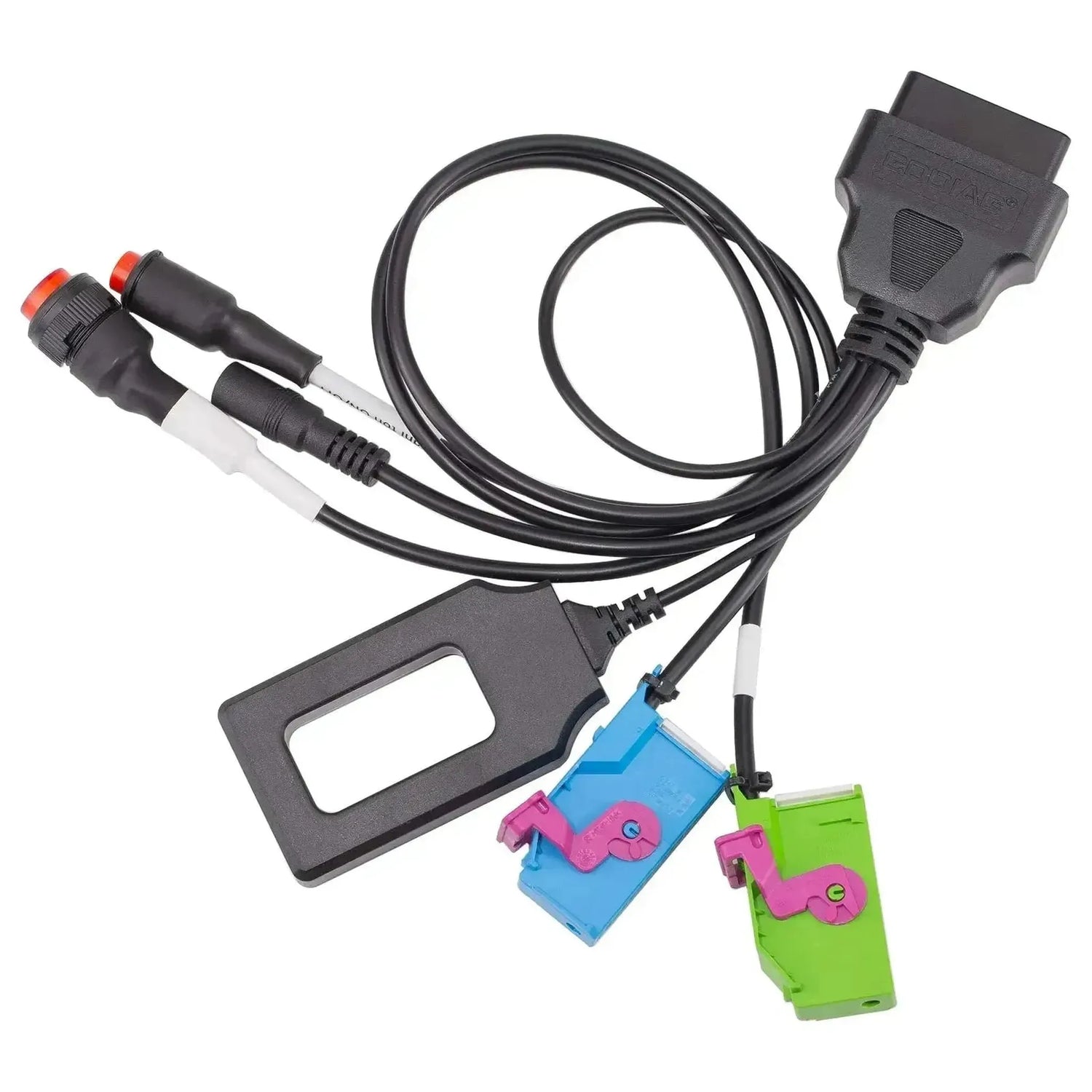

The GoDiag GT114 is a specialized test platform cable designed for performing IMMO key programming and dashboard diagnostics outside the vehicle. This test cable is specifically developed for the Audi A4 and A6 C5 (2000-2006) equipped with a 2nd or 3rd generation immobilizer. The system allows diagnostic technicians to establish a direct offline connection between the detached instrument cluster and standard OBD2 diagnostic equipment. This enables tasks such as reading and writing IMMO data, odometer corrections, and instrument cluster repairs to be efficiently performed on the workbench without the car physically being in the workshop.
The operation of this cable relies on the integration of vehicle-specific dashboard connectors and a built-in key induction adapter. Once the instrument cluster is connected via the green and blue plugs, the technician can use the independent power and ignition switches to simulate the power supply and ignition lock. The built-in induction loop features a LED indicator that detects the transponder chip signal, which is crucial for synchronizing a new Megamos ID48 key. By connecting the 16-pin OBD2 port with programming tools like VCDS, VVDI2, or Autel, communication via the K-Line protocols is established to extract the required PIN code and complete the full learning process.
ADVANTAGES
KEY POINTS
Applications and functionalities
The GoDiag GT114 offers targeted hardware solutions for work on the instrument cluster and immobilizer of specific VAG vehicles without needing the complete car.
- Offline dashboard diagnosis: Converts the original instrument cluster connector to a standard 16-pin OBD2 port, enabling bench diagnosis via the K-Line protocol.
- IMMO data reading and writing: Allows direct and stable communication with the dashboard’s EEPROM to extract the PIN code and other synchronization data.
- Key programming: Enables programming of new transponder keys to 2nd and 3rd generation immobilizer systems, essential in case of lost keys or dashboard replacement.
- Ignition simulation: Provides physical push switches to activate the primary power and ignition cycle, necessary for the startup sequence of the modules and diagnostic equipment.
Special features and capabilities
In addition to standard diagnostic functions, this cable set includes integrated hardware additions to make the testing and programming process more efficient and transparent.
- Transponder signal detection: The integrated induction loop features a status LED that visually confirms whether the placed transponder is successfully detected by the dashboard’s immobilizer.
- Instrument cluster synchronization: Allows the technician to directly test and verify communication between a new key chip and the IMMO module before the dashboard is installed in the vehicle.

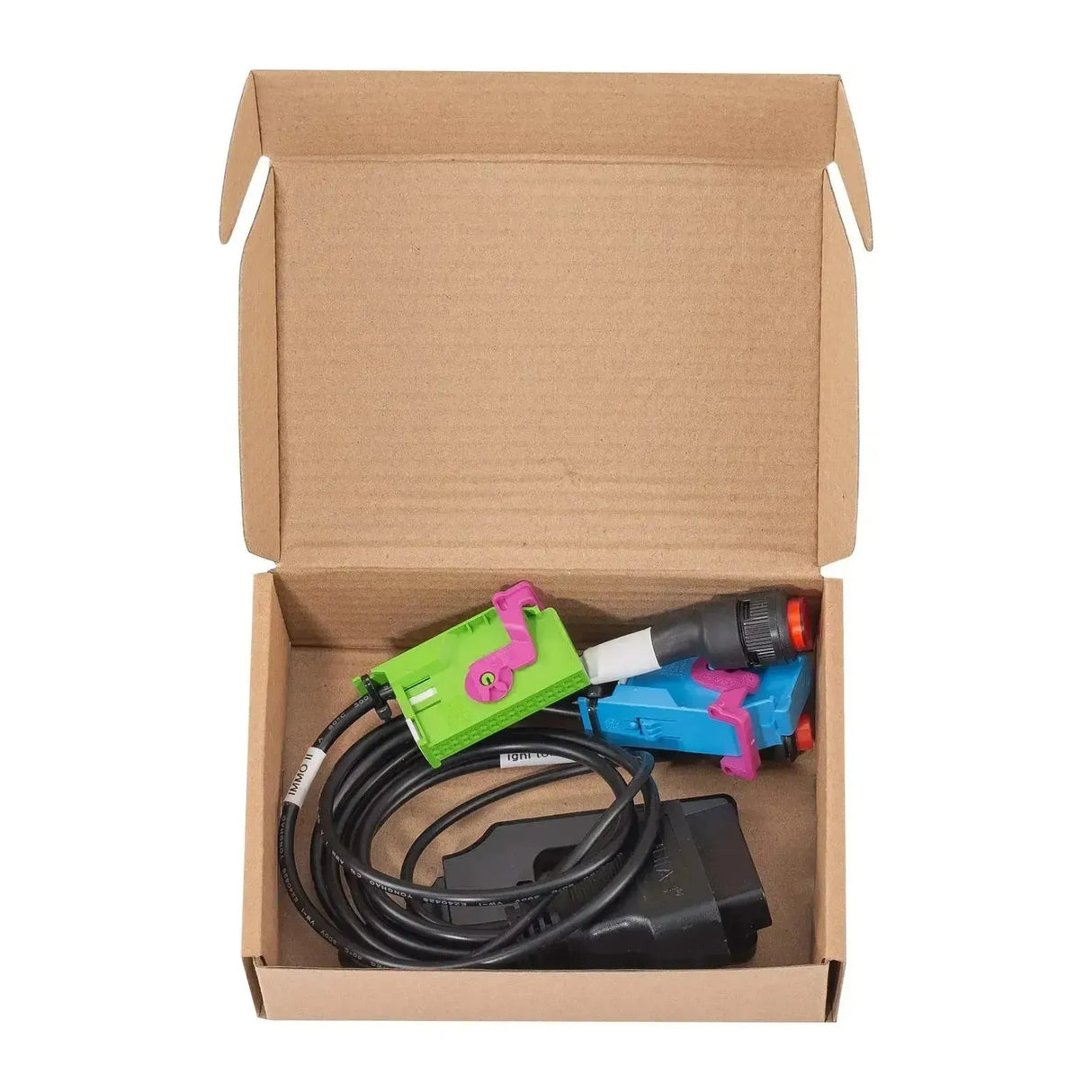

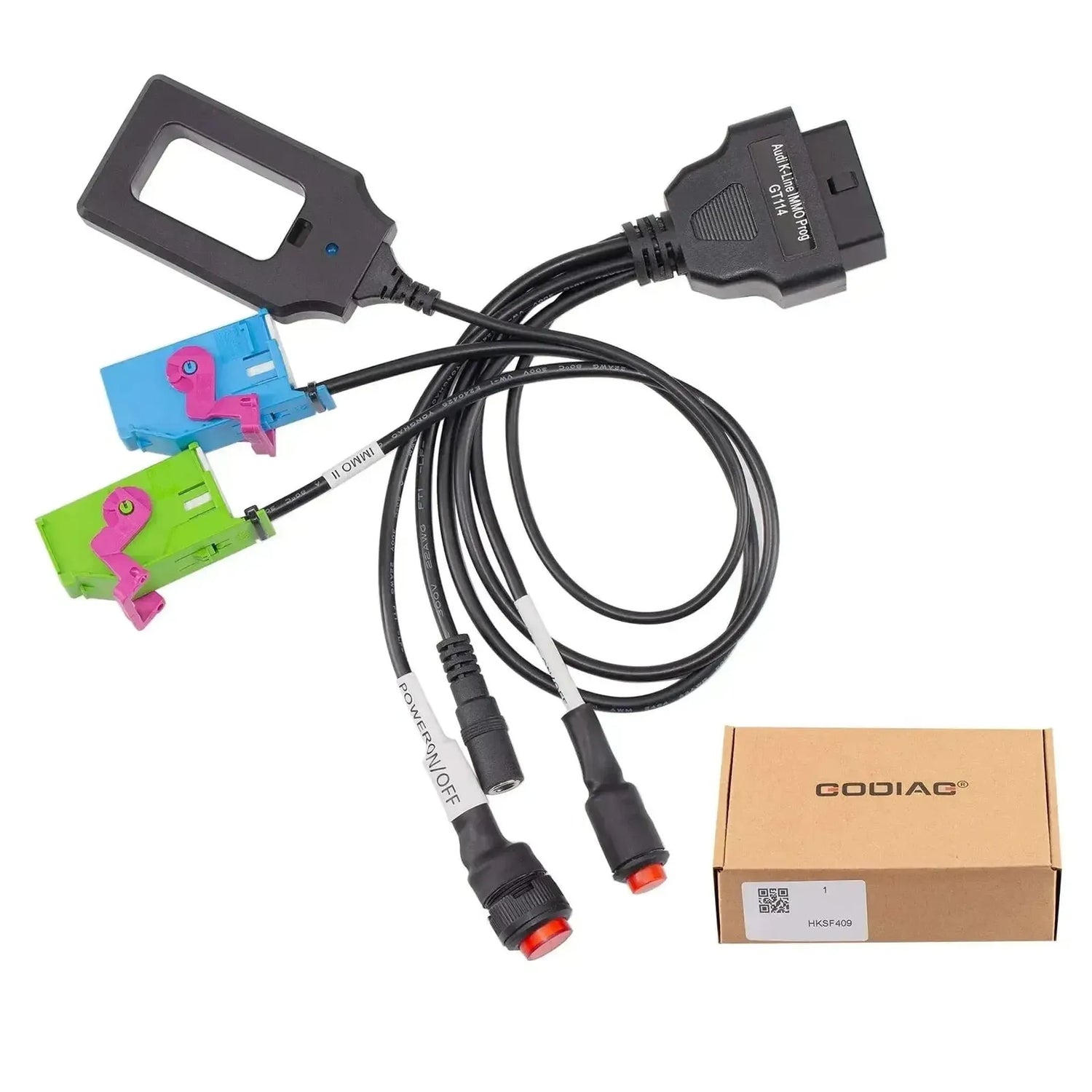

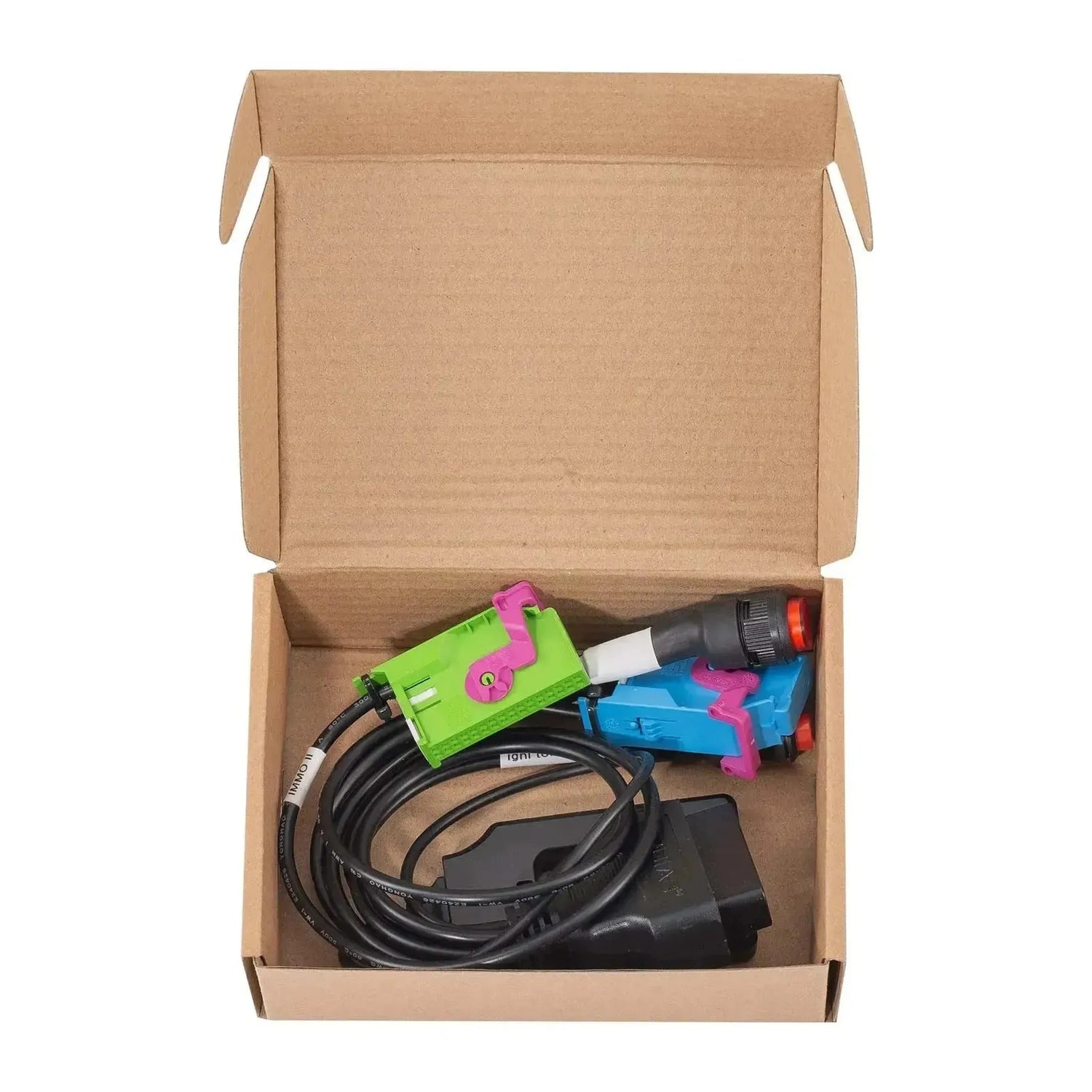

Package Contents
- 1x GoDiag GT114 Audi K-Line IMMO Test Platform Cable
- 1x Packaging box with product identification
Technical specifications
| Specification | Description |
|---|---|
| Product brand | GoDiag |
| Product model | GT114 |
| Vehicle compatibility | Audi A4 / A6 C5 (Model years 2000-2006) |
| Supported protocol | K-Line |
| IMMO Generation | 2nd & 3rd generation instrument clusters |
| Dashboard connection | Vehicle-specific VAG connectors (Blue and Green) |
| Diagnostic connector | 16-pin OBD2 (Female) |
| Hardware components | Power switch, ignition switch, induction ring with LED |
| Required transponder | Megamos ID48 |
