Glass BDM-Frame for ECU Programming | Accessories

3 reviews
€38,95 incl.
€32,19 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

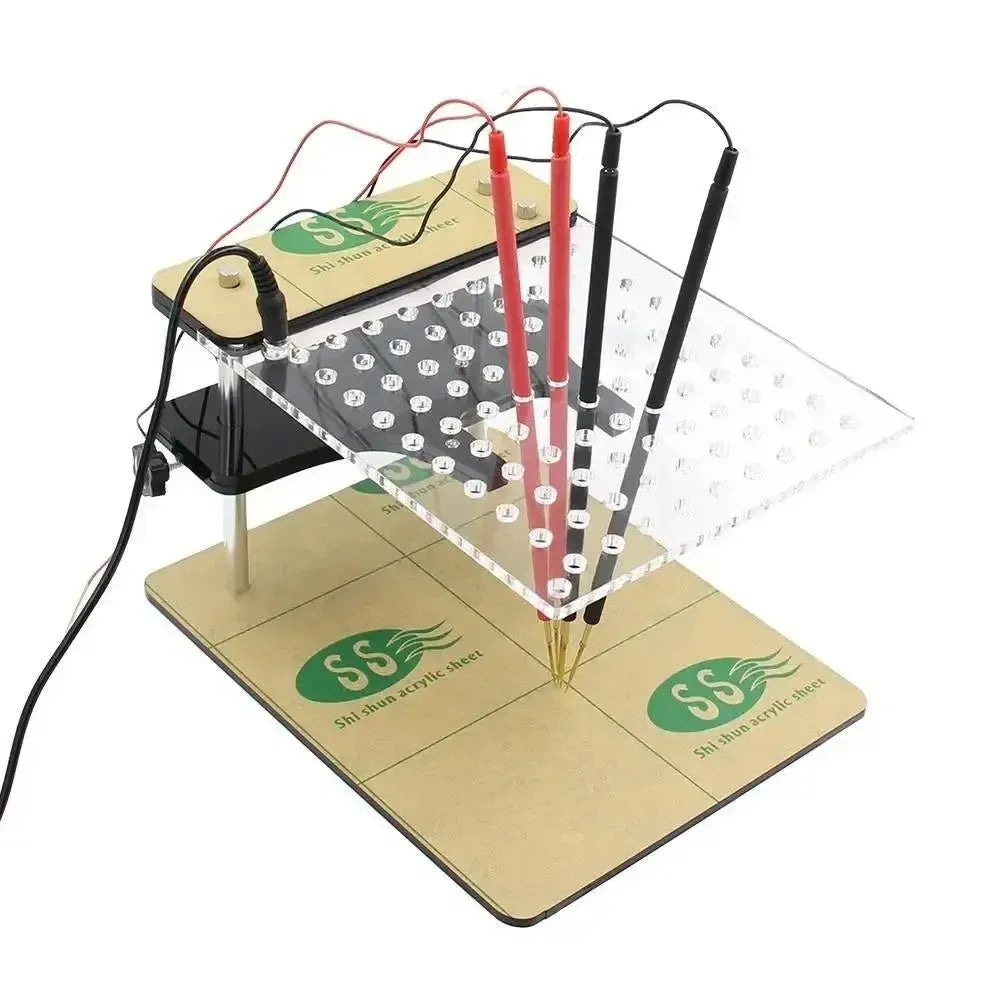

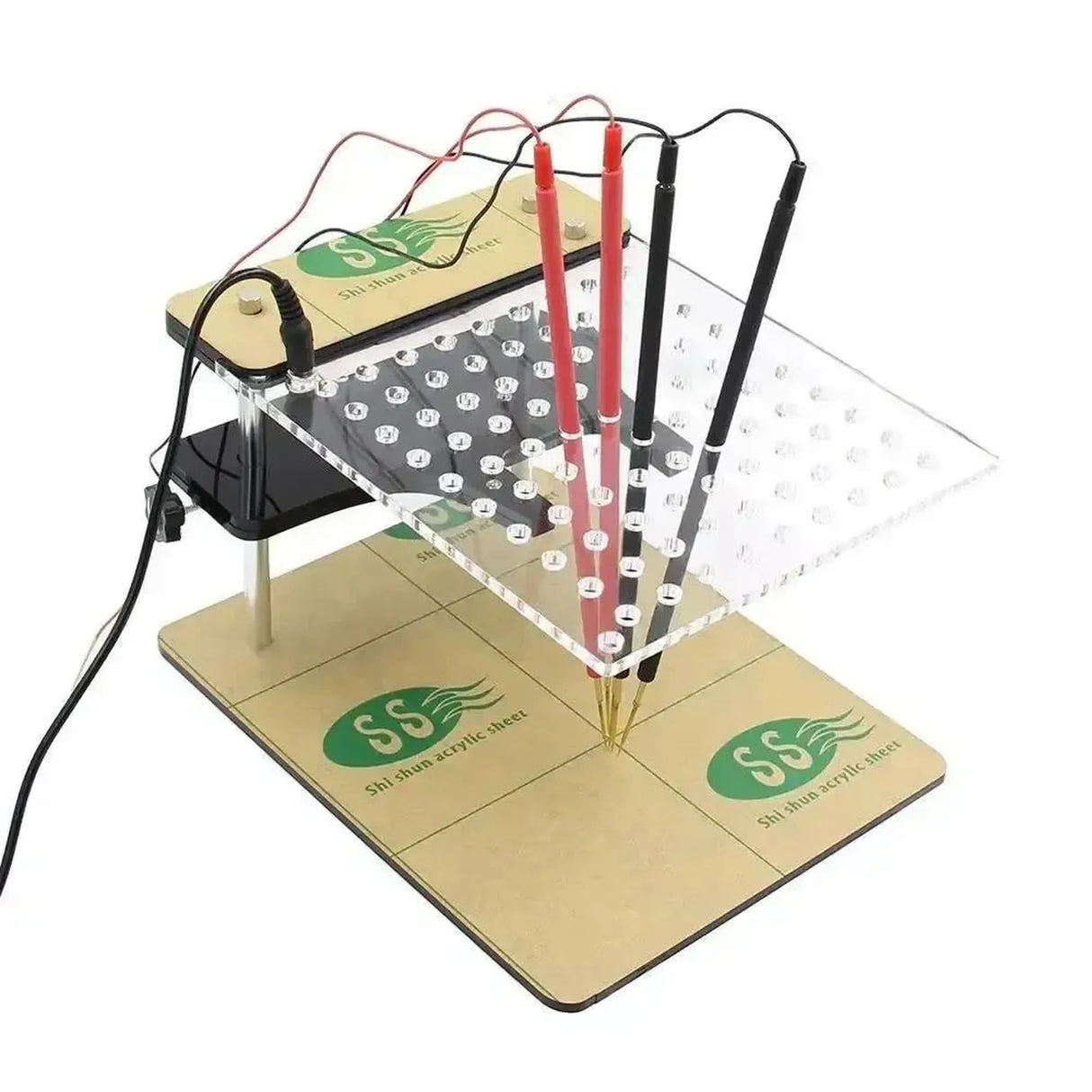

The glass BDM frame holds an opened engine control unit (ECU) and the programming probes firmly in place while reading and programming on the workbench. Via the BDM or JTAG connection on the circuit board, you read out the ECU without soldering. The ECU rests on the frame and the 4 adjustable probes press precisely onto the small contact points on the board.

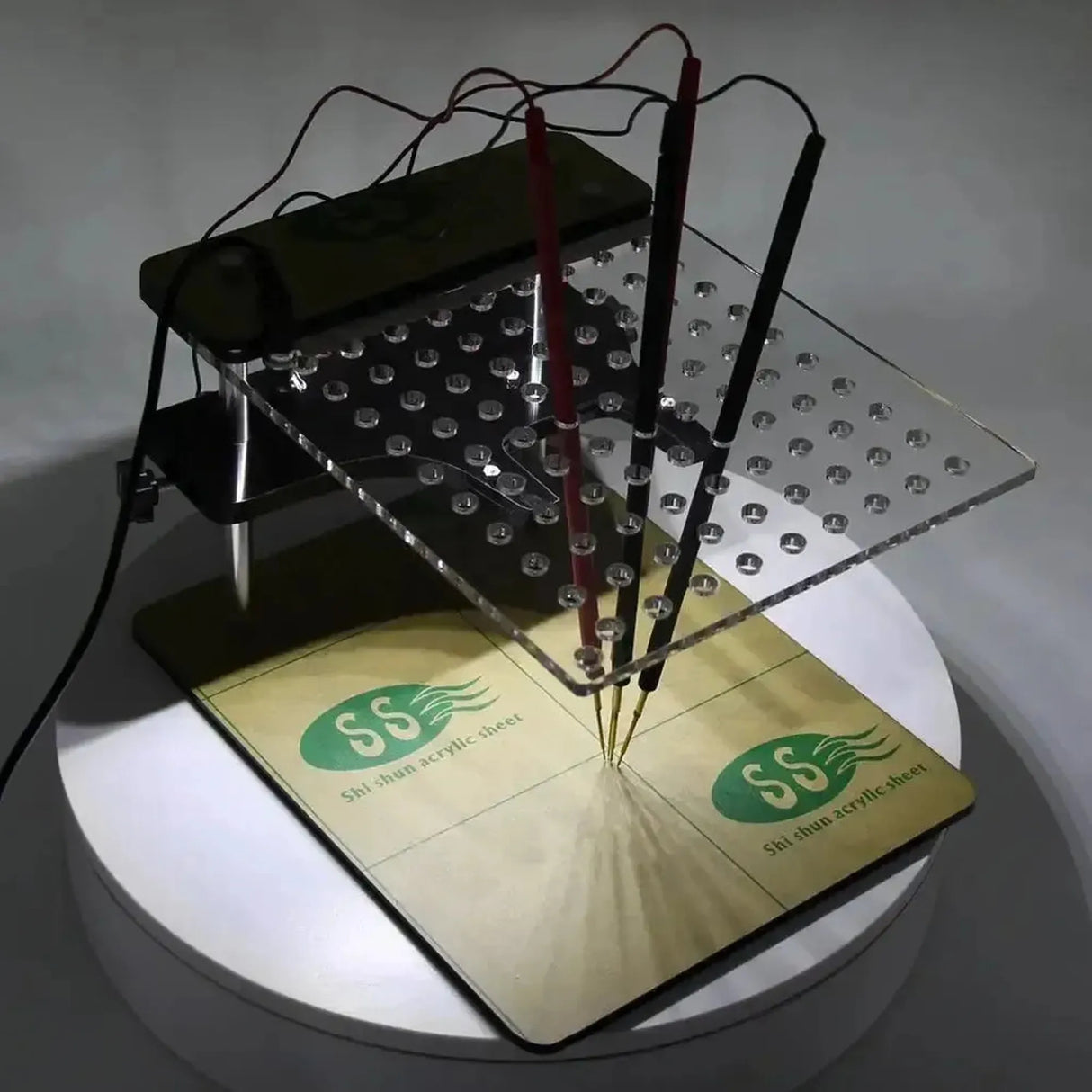

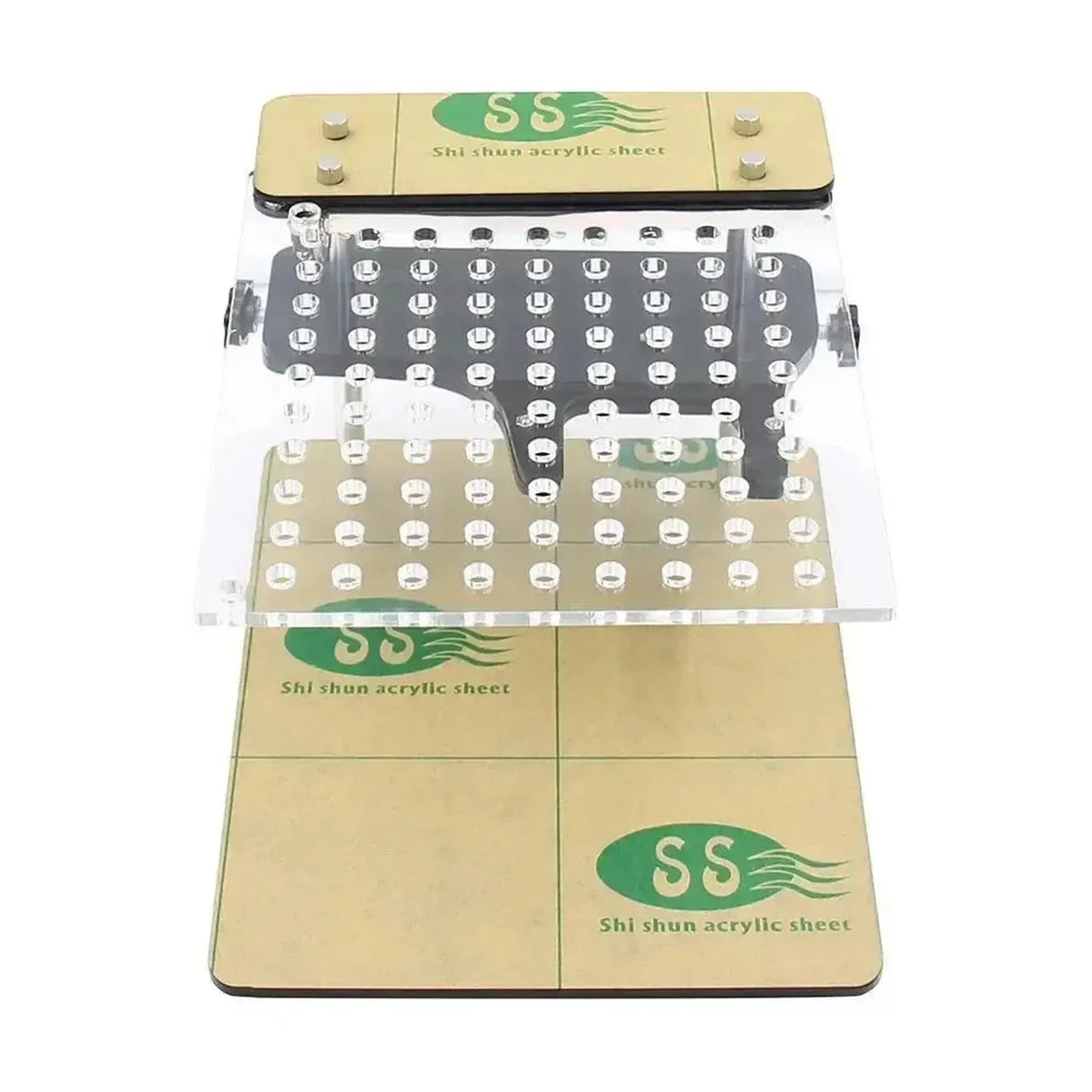

The transparent top plate with built-in LED lighting gives a clear view of the circuit board, so you can position the probes accurately. The frame works with common BDM programmers such as KESS, K-TAG, FGTech Galletto, BDM100 and CMD. The programmer itself is not included.

ADVANTAGES

✔Hands-free — The probes stay in place while you work with the programmer.
✔LED lighting — Good visibility of the small contact points on the board.
✔Adjustable probes — Four probes that you position on the correct points for each ECU.
✔No soldering — Contact is made via the probes, the board remains undamaged.

POINTS TO NOTE

✕Programmer not included — You need a KESS, K-TAG, FGTech or another BDM programmer yourself.
✕Pinout required per ECU — You need to know where the BDM points are located on the board.
✕Opening the ECU — The housing of the control unit must be opened to access the board.
✕Expertise required — An incorrectly placed probe can damage the board.

Applications and functions

The BDM frame is intended for chip tuners, ECU specialists and workshops that read out, programme or clone control units outside the vehicle.

Applications

  • Reading out an ECU: Making a backup of the software before changing anything.
  • Programming an ECU: Writing back modified or repaired software.
  • Cloning an ECU: Transferring data to a replacement control unit.
  • Data recovery: Reading out an ECU that no longer responds via the OBD connector.

Functionalities

  • Stable positioning: The ECU is held firmly, so the probes do not shift during reading or writing.
  • Four probes: Each with its own connection cable to the programmer.

How to use it

  1. Opening the ECU: Remove the board or open the housing of the control unit.
  2. Placing the ECU: Place the ECU on the frame with the BDM points facing upwards.
  3. Positioning the probes: Place the probes on the contact points according to the ECU pinout.
  4. Connecting the programmer: Connect the probe cables to the programmer and connect the power supply.
  5. Reading or writing: Start reading or programming in the programmer's software.

Special features and functions

What makes the frame practical for workbench use:

  • Built-in LED lighting: Operates on 12 V and illuminates the board from above.
  • Transparent top plate: You look through the plate at the contact points.
  • Universal: Suitable for common BDM programmers.
  • Separate cable per probe: Each probe has its own connection cable to the programmer.

Package contents

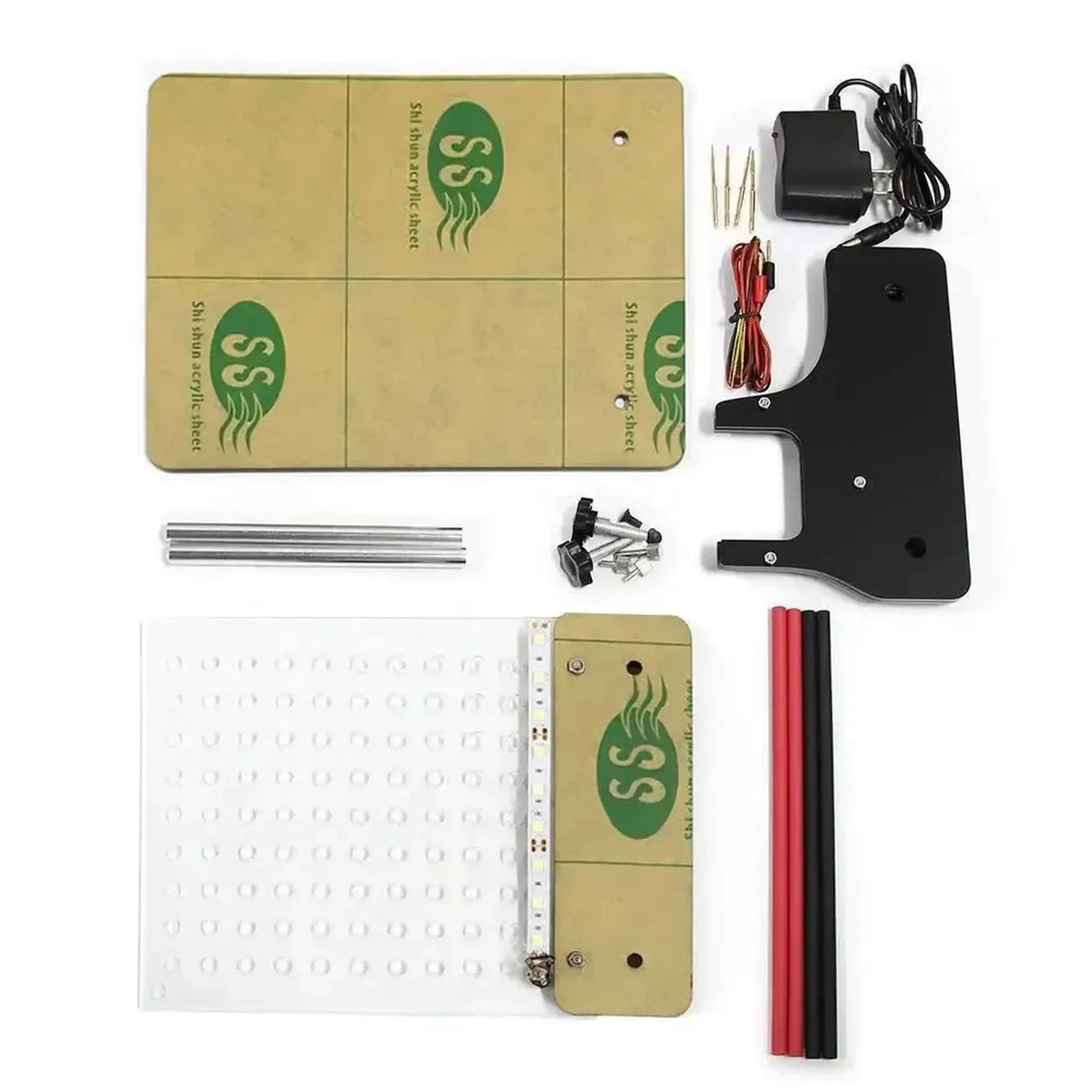

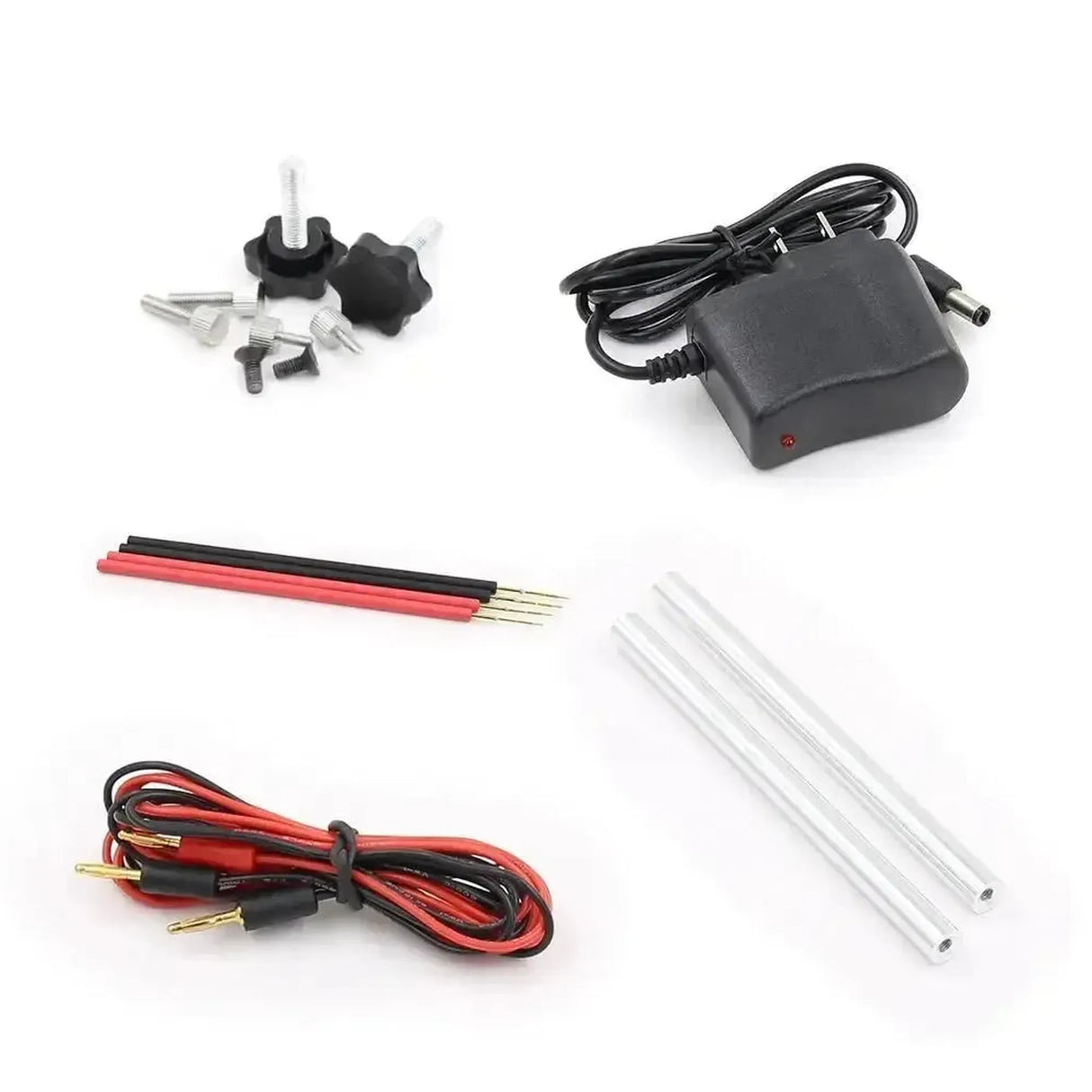

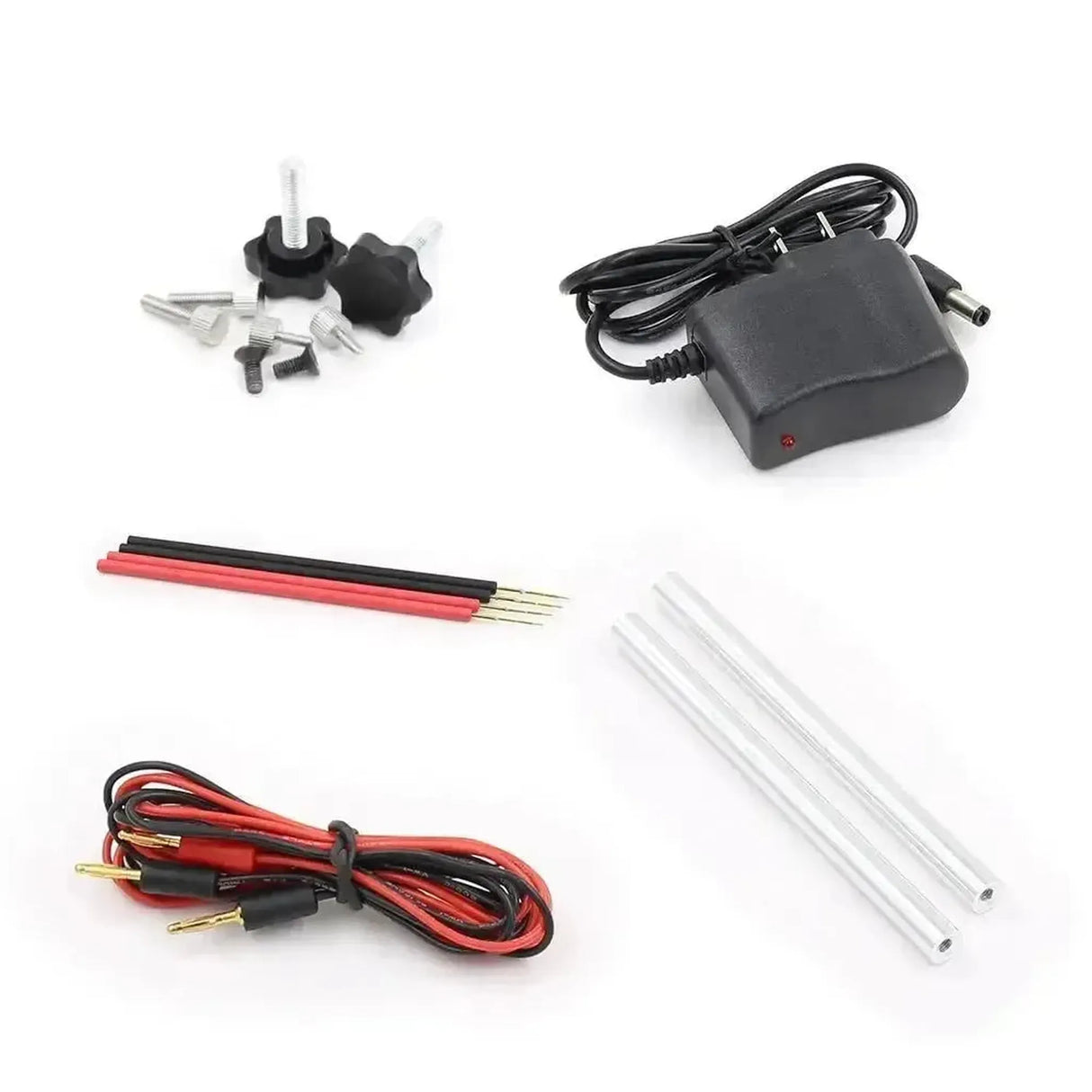

  • 1x BDM frame with LED lighting
  • 4x Programming probes
  • 4x Connection cables for the probes
💡
Good to know: Have the ECU pinout ready before you start and check each probe with a magnifier or the LED lighting. A probe placed one point beside the contact will cause read errors or may damage the board.

Technical specifications

General

The manufacturer or brand of the product.Brand
AsTools
Whether it is a complete BDM frame or a set of separate adapters. This shows what else you will need.Product type
BDM frame

Connection

The ways in which you can read the control unit on the workbench. More methods mean you can handle more types of ECU.Working methods
  • BDM
  • JTAG

Frame

Whether the frame has its own light. This makes the small contact points on the circuit board easier to see.Built-in lighting
The voltage at which the frame lighting operates.Lighting power supply
12 V
The material of the top of the frame. A transparent plate lets you see the ECU while you work.Top plate
Transparent acrylic

Other specifications

Lighting
Built-in LED
Probes
4, adjustable, each with its own cable
Suitable for
KESS, K-TAG, FGTech Galletto, BDM100, CMD and similar BDM programmers
Application
ECU reading, programming, cloning and data recovery
Weight
Approx. 0.8 kg
