Foxwell TS7000 TPMS Programmer

The Foxwell TS7000 is an advanced TPMS programmer and diagnostic device with extensive maintenance functionality. The device combines TPMS programming, fault code analysis, and more than 35 service functions in one powerful platform. It is suitable for both professional workshops and experienced mechanics who need in-depth vehicle diagnosis.

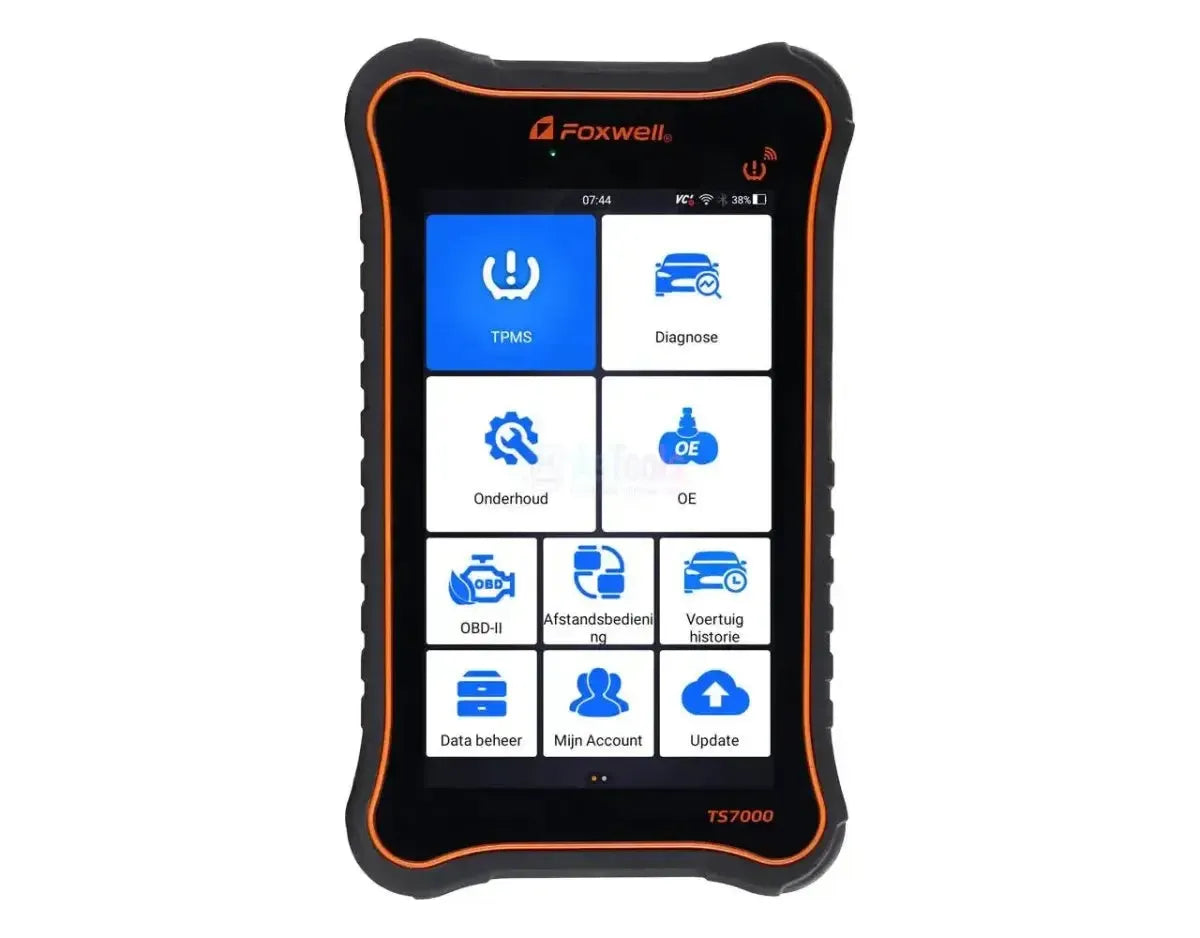

Thanks to the 5.5-inch HD touchscreen, Android control, a powerful quad-core processor, and 2 GB RAM, the TS7000 delivers fast performance. It supports wireless communication via Wi-Fi and Bluetooth and comes with a VCI module for OBD diagnosis. The broad vehicle coverage and regular software updates make this a future-proof investment.

Diagnostic functions:

• Full system readout: Reads fault codes from all electronic control modules in the vehicle, such as engine management, ABS, airbag (SRS), transmission, steering angle module, and more.

• Clearing fault codes: Removes stored or temporary fault codes from the ECU after repair or reset.

• Live data: Shows real-time sensor and module data in numeric and graph form, such as engine speed, air pressure, lambda sensors, etc.

• Freeze frame data: Displays frozen data from the moment a fault code was generated, useful for analyzing complex malfunctions.

• Reading ECU information: Reads the part number, software version, calibration number, and other details of the electronic control units.

• Advanced OBD2 functions: Supports all 10 OBD2 protocols, including I/M readiness, O2 sensor monitoring, EVAP test status, and more.

• Resetting and initializing systems: Diagnosis supports reinitialization of sensors, actuators, and modules during replacement or fault detection.

• Bi-directional control (actuator tests): On some vehicles, the TS7000 can perform active component tests such as controlling a fan, fuel pump, or EGR valve.

TPSM functions:

• Sensor activation: Activates and reads original and aftermarket TPMS sensors (315 MHz and 433 MHz), including data on pressure, temperature, and battery status.

• Sensor programming: Programs Foxwell T10 sensors via 4 methods: automatic creation, manual input, copying by reading, and copying via OBD.

• Sensor relearning: Supports automatic, stationary, and OBD relearning of TPMS sensors to the vehicle's ECU.

• Read and clear fault codes: Reads and clears fault codes from the TPMS system and, with extended diagnosis, also from other ECUs.

• Live data: Displays real-time sensor data such as ID, pressure, temperature, and battery status for analysis.

Maintenance functions:

• ABS pump bleeding: Performs pressure-controlled bleeding of the ABS system to remove air from brake lines after component replacement.

• Adaptive headlights initialization (AFS): Calibrates the angle and height settings of swiveling or automatic headlights after repair or replacement.

• Adaptive cruise control (ACC) initialization: Resets the radar system and ACC module after work on sensors or the front bumper.

• Airbag system (SRS) reset/crash data clearing: Removes stored crash data in the SRS system after airbag replacement or accidents.

• Battery management system (BMS) initialization: Registers a new battery in the ECU and resets charging parameters to prevent overcharging or undervoltage.

• Diesel particulate filter (DPF) regeneration: Starts forced regeneration to burn soot at high temperature and keep the filter clear.

• Electronic parking brake (EPB) reset: Opens the brake calipers for brake pad replacement and resets the system after maintenance.

• Throttle body (ETC) initialization: Calibrates the electronic throttle position to ensure correct air supply and idle speed.

• Injector coding/reset: Programs the injectors in the ECU for correct fuel injection and cylinder balance.

• Odometer reading and increase: Displays and increases the mileage if allowed, for example after replacing the instrument panel.

• Air suspension calibration: Resets the desired ride height on vehicles with electronic air suspension after replacement or malfunction.

• Oil/service interval reset: Resets the maintenance warning light and adjusts the remaining kilometers/time after service.

• Steering angle sensor (SAS) calibration: Calibrates the SAS for correct ESP/ABS operation after alignment or replacement of steering parts.

• Seat occupancy sensor initialization: Calibrates the sensor in the passenger seat so the airbag is correctly enabled or disabled.

• Immobilizer synchronization (IMMO): Registers a new key or restores communication between key and ECU.

• Turbocharger pressure regulator initialization (VGT): Sets the variable geometry or wastegate to the correct starting position after replacement.

• Exhaust gas recirculation (EGR) calibration: Calibrates the EGR valve for correct emission control and engine performance.

• Initialize transmission (CVT/TCU): Performs adaptive reset on CVT or TCU modules for smooth shifting and performance recovery.

• Reset stuck windows/panoramic roofs: Restores end positions of electric windows or roofs after power loss or replacement.

• Replacement detection AdBlue and particulate filter: Resets level measurements and fault codes when replacing AdBlue tank or SCR components.

Special functions:

• CarVIN (automatic vehicle identification): Automatically recognizes the vehicle via VIN for faster diagnosis and programming.

• Wi-Fi updates: Updates via Wi-Fi ensure vehicle protocols and sensor data are always up to date.

• Bluetooth-VCI communication: Wireless OBD diagnosis via included dongle.

• Multibrand support: Support for 99% of vehicles worldwide, including American, European and Asian brands.

• Quick access menu TPMS and Service: Intuitive split between TPMS tasks and maintenance functions.

Supported car brands:

• European brands: Abarth, Alfa Romeo, Alpina, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroën, Dacia, Ferrari, Fiat, FordEU, Iveco, Jaguar, Lamborghini, Lancia, Land Rover, MAN, Maserati, Maybach, McLaren, Mercedes-Benz, MINI, Opel, Pagani, Peugeot, Polestar, Porsche, Renault, Rolls Royce, Saab, Seat, Skoda, Smart, Volkswagen, Vauxhall, Volvo

• Asian brands: Acura, Aiways, BAIC, BJEV, Baojun, Bestune, BlueSG, Borgward, BYD, Brilliance, CMC, Changan, Chery, Cowin, DFPV, DFSK, DR Car, Daewoo, Denza, Exeed, Fengon, Fisker, Foton, Geely, Great Wall, Haima, Haval, Holden, Honda, HongQi, HSV, Huansu, Hyundai, INEOS, Infiniti, Isuzu, Jac, Jetour, JMC, Kawei, Kia, Karma, Lada, Landwind, Leading Ideal, Leap Motor, Lexus, Lifan, Lotus, Lynk & Co, Luxgen, Mahindra, Mazda, Maxus, MG, Mitsubishi, NETA, NIO, Nissan, Qoros, Rivian, Roewe, SGMW, Scion, Senova, Seres, SsangYong, Subaru, Suzuki, Tata, TJFAW, Toyota, Traum, Trumpchi, Weiwang, WeltMeister, Xpeng, Zotye

• American brands: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GMC, Hummer, Jeep, Lincoln, Tesla

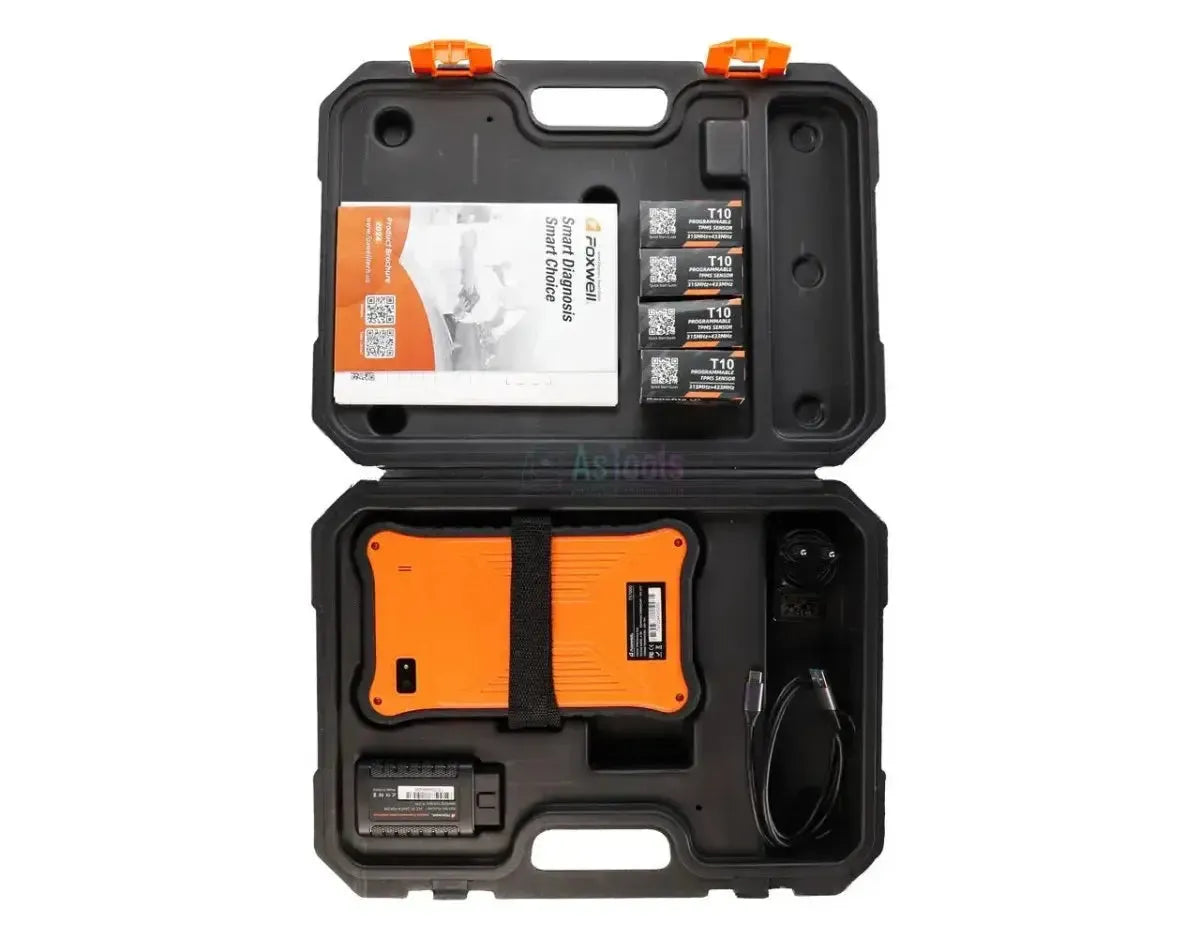

Package contents:

• Foxwell TS7000 TPMS programmer

• Foxwell FoxLink I Interface

• USB-A - USB-C adapter cable

• Charging plug

• Manual

• Storage case

• Foxwell T10 TPMS sensor Rubber (4 pieces)

Technical specification table
