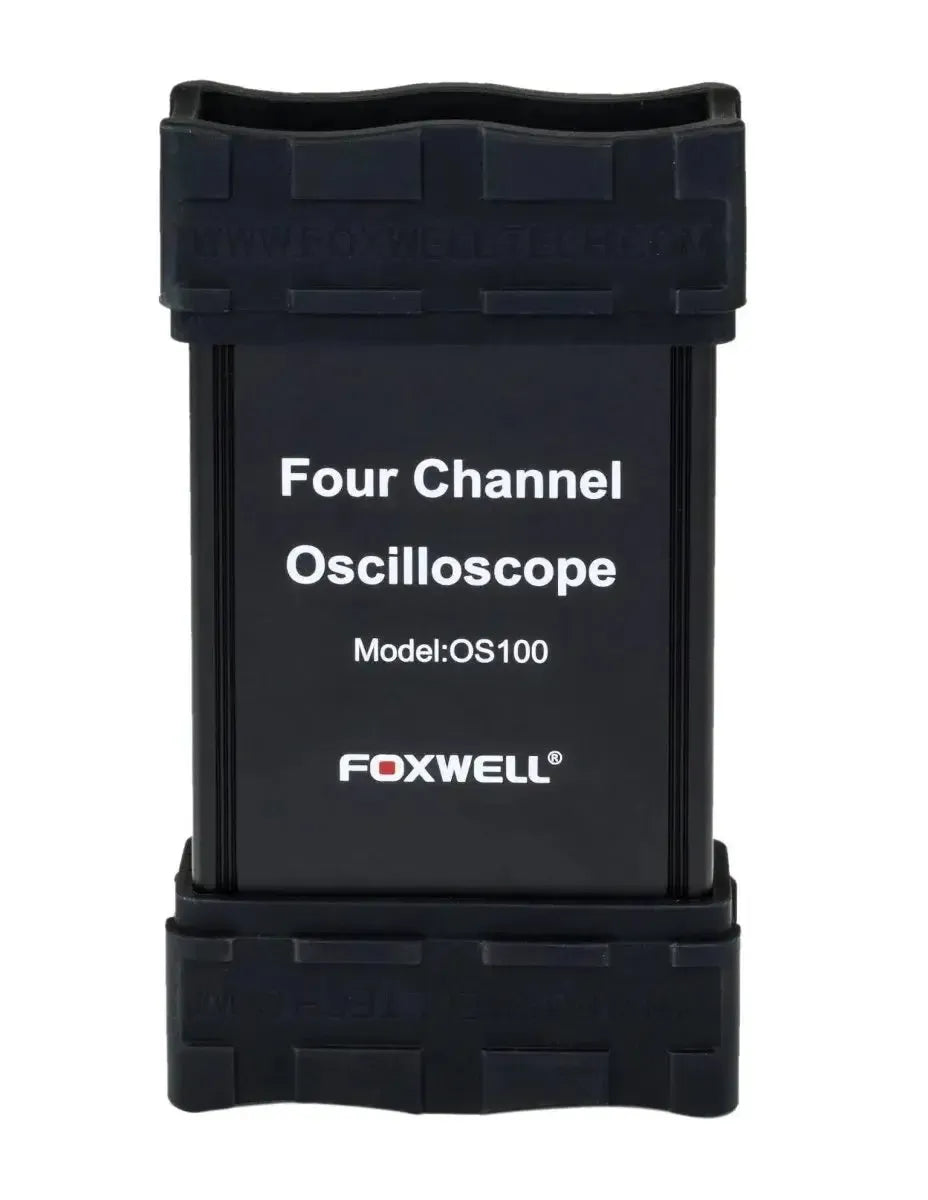

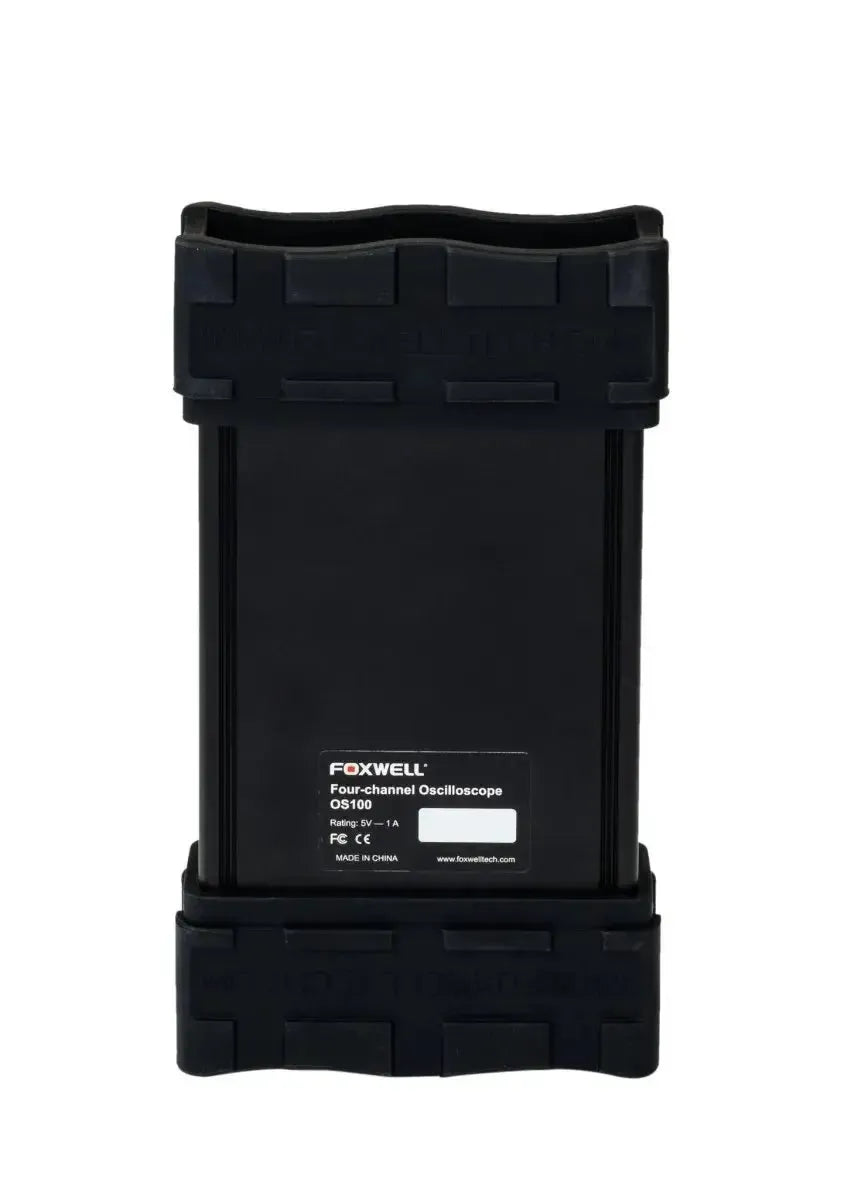

Foxwell OS100 Oscilloscope 4-Channel

The Foxwell OS100 is a 4-channel USB oscilloscope, specifically designed for automotive applications. With a bandwidth of 70 MHz and a real-time sampling rate of 1 GSa/s, this compact device offers the functionality of a full-sized bench oscilloscope in a portable format. Thanks to the robust aluminum housing, the OS100 is suitable for use in demanding work environments.

The OS100 supports more than 80 automatic measurement functions, including analyses of intake manifold vacuum, ignition systems, mass air flow sensors, camshaft and crankshaft sensors, lambda sensors, and CAN/LIN bus diagnostics. The oscilloscope is compatible with Windows 7, 8, and 10 and can be connected to a PC or Foxwell GT80 Plus/Mini via USB 2.0, without additional power supply.

Functions:

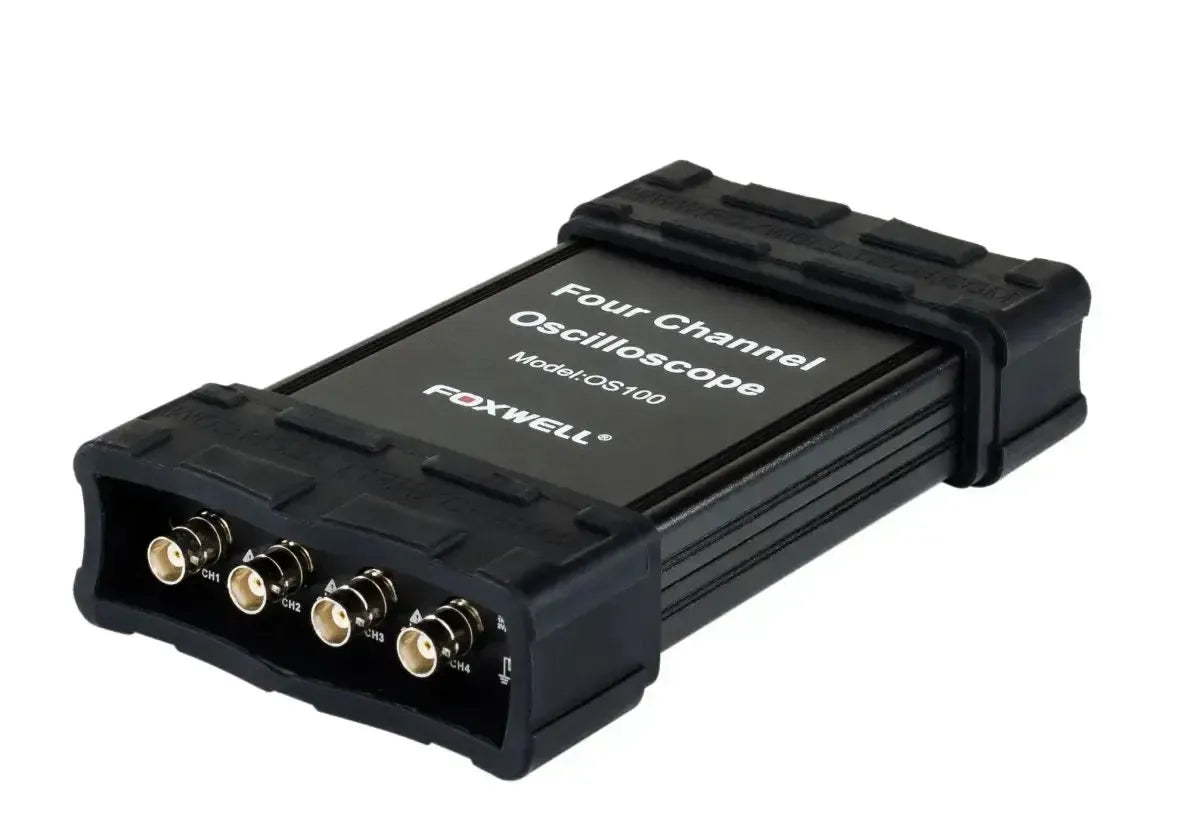

• Four isolated channels: For simultaneous measurements on multiple signals.

• Real-time sampling rate of 1 GSa/s: For accurate signal representation.

• 70 MHz bandwidth: Suitable for various automotive signals.

• 64 KB memory: For capturing complex waveforms.

• More than 80 automatic measurement functions: Including analyses of ignition, sensors, and bus communication.

• FFT spectrum analysis: For frequency domain analysis.

• Mathematical functions: Such as addition, subtraction, multiplication, and division of signals.

• Waveform recording and display: With capabilities for averaging, afterglow, and X-Y display.

• Data export: To Excel, BMP, or JPG format.

• Compatibility: With Windows 7, 8, and 10.

Special features:

• Plug-and-play via USB 2.0: No additional power supply needed.

• Compact and robust design: With an anodized aluminum housing.

• Support for multiple oscilloscopes: Multiple devices can be connected to one PC to expand the number of channels.

• Development libraries: Including DLLs and examples for LabVIEW, VB, VC, and QT.

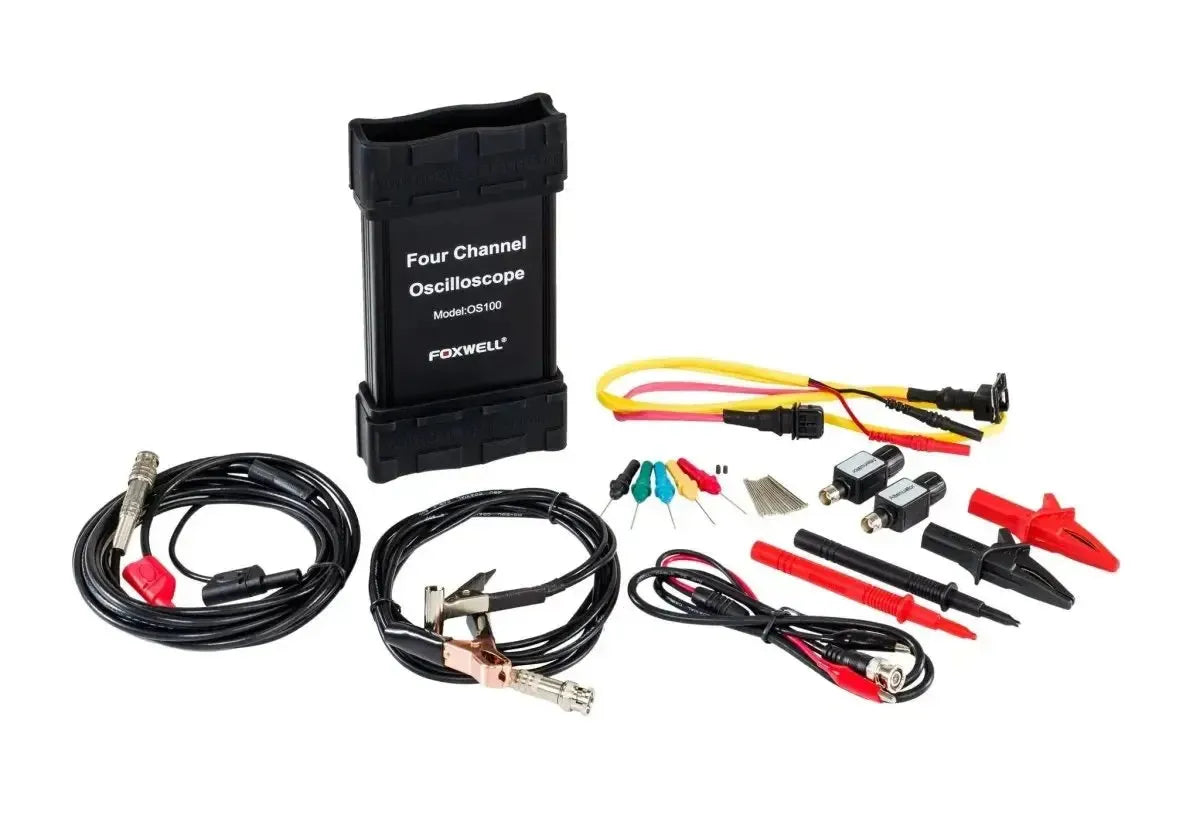

Package contents:

• Foxwell OS100 oscilloscope

• USB-A - USB-B Adapter Cable

• Storage case

• Test leads (4 pieces)

• Red Crocodile Clips (4 pieces)

• Black Crocodile Clips (4 pieces)

• High-pressure ignition probe (4 pieces)

• Acupuncture Probe Set (5 pieces)

• Multimeter test leads (2 pieces)

• Attenuators (2 pieces)

• Break-out lead

• Crocodile clip adapter cable (2 pieces)

• Extension cord with reel on plug (2 pieces)

• CD-ROM

Technical specifications
