Foxwell NT680 Plus Car Diagnostic Tool

The Foxwell NT680 Plus is a professional universal Diagnostic Tool that offers full system coverage for more than 70 vehicle brands. The device is designed for garages and experienced technicians who want to quickly and accurately read faults, clear fault codes, and consult extensive live data. Thanks to support for, among others, engine, ABS, airbags, transmission, steering, TPMS, and air conditioning, the NT680 Plus is widely applicable in daily practice.

The device features a 4.3-inch color touchscreen and operates with FoxScanner software for updates and data management via PC. The NT680 Plus supports automatic vehicle identification (AutoVIN), detailed fault code descriptions, and graphical display of live sensor values. Combined with various maintenance and reset functions, this scanner is highly suitable for efficient diagnosis, maintenance, and documentation in both professional workshops and technical service environments.

Diagnostic functions:

• Complete system diagnosis: Reads and clears fault codes in all electronic systems of the vehicle, including engine, transmission, ABS, airbags (SRS), steering, TPMS, HVAC, body, and comfort modules.
• Read ECU information: Displays system data such as part number, software version, and serial number of the registered electronic control units.
• Read fault codes: Reads stored, active, and permanent fault codes in all supported systems, including brand-specific fault codes.
• Clear fault codes: Removes fault codes after repairs have been performed so that warning lights on the dashboard turn off.
• Display live data: Shows real-time measured values from vehicle sensors in text and graph form. Suitable for monitoring, among others, engine speed, throttle position, wheel speed, and fuel pressure.
• View freeze frame data: Presents recorded vehicle conditions at the moment a fault code occurred, for targeted analysis of failure causes.
• Auto-scan: Performs an automatic scan of all available vehicle systems, with an overview of fault codes and module statuses.
• Detailed fault code descriptions: Provides technical explanations for fault codes including cause and system impact.
• Automatic vehicle recognition (AutoVIN): Recognizes the vehicle via the chassis number (VIN) for quick system selection without manual input.


Maintenance and service functions:

The Foxwell NT680 Plus offers a comprehensive range of service functions that assist technicians in performing advanced maintenance and reset procedures. These functions apply to a wide variety of vehicle systems and are designed to simplify and make maintenance tasks more efficient. The main functions are:

• Oil service reset: Resets the maintenance indicator after an oil change.
• Electronic parking brake reset (EPB): Puts the brake calipers in service mode for brake pad replacement and reactivates the parking brake.
• ABS bleeding: Removes air from the ABS system after brake repairs or brake fluid replacement.
• Steering angle sensor calibration (SAS): Calibrates the steering angle sensor after alignment or replacement, essential for correct ESP system operation.
• TPMS reset: Initializes the tire pressure monitoring system after tire or sensor replacement.
• DPF regeneration: Forces the regeneration cycle of the diesel particulate filter to remove soot buildup.
• Injector coding: Learns new injector codes for optimal fuel injection.
• Battery registration (BMS reset): Registers a new battery in the battery management system for correct charge status and energy management.
• Throttle body relearn: Recalibrates the throttle body after cleaning or replacement for proper air flow control.
• Transmission adaptation reset: Resets the learning values of the automatic transmission, which can help with shifting issues.
• Headlight adjustment: Adjusts the headlight position after replacement or vehicle height modification.
• Air suspension calibration: Calibrates the air suspension system for correct ride height and comfort settings.
• Seat memory calibration: Calibrates the memory positions of electrically adjustable seats.
• Fuel pump reset: Activates the fuel pump to bleed the system, for example after replacing the fuel filter.
• Air/Fuel ratio reset (A/F): Restores the adaptive values of the air/fuel ratio in engine management.
• Transmission learning: Performs a learning procedure for transmission components after replacement or maintenance.
• Immobilizer functions (IMMO): Supports certain vehicle brands in learning keys or resetting the immobilizer function.

Additional functions:

• Automatic vehicle identification (AutoVIN): Instantly recognizes the vehicle based on the chassis number (VIN) for quick system selection.
• Data recording and playback: Record live sensor values (PIDs) during tests or drives and replay them to analyze intermittent faults.
• Save data and review locally: Store fault codes, measured values, and test results in internal memory or on an SD card for later consultation.
• Multi-graph display: View multiple live parameters simultaneously in graph form for comparison and pattern recognition.
• Print data via PC: Export diagnostic reports to a computer and print them using the FoxScanner software.
• Track vehicle history: Save previously performed diagnostic reports per vehicle session, useful for follow-up with returning customers.
• Software updates via FoxScanner: Easily update the device with the latest vehicle coverage via Foxwell's PC software.

Supported car brands:

• European brands: Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroën, Dacia, DS, Ferrari, Fiat, FordEU, Iveco LD, Jaguar, Lamborghini, Lancia, Land Rover, MAN LD, Maserati, Maybach, Mercedes-Benz, MINI, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Samsung, Seat, Skoda, Smart, Sprinter, Vauxhall, Volkswagen, Volkswagen CV, Volvo
• Asian brands: Acura, Daewoo, Daihatsu, Fuso, GTR, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, Kia, Lexus, Maruti, Mazda, Mitsubishi, Nissan, Scion, SsangYong, Subaru, Suzuki, Toyota
• American brands: Chrysler, Dodge, Ford, GM, Jeep
• Chinese brands: BAIC Huansu, BAIC Motor, BAIC Senova, BAIC Weiwang, BJEV, Changan, DF Venucia, Emgrand, Englon, Geely, Gleagle, Great Wall, Guang Qimit, Maple

Package contents:

• Foxwell NT680 Plus Diagnostic Tool

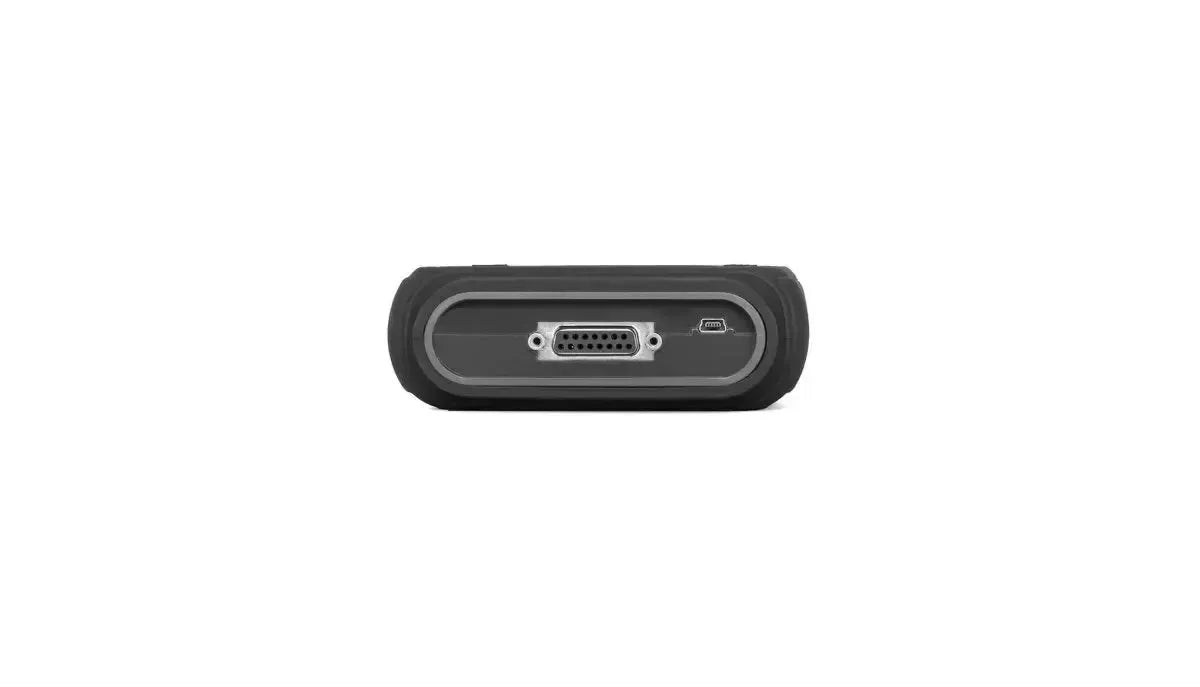

• Foxwell 15 Pins DB15 - 16 Pins OBD2 adapter cable
• USB-A - USB-C adapter cable
• Manual
• Storage case

License information:

When purchasing the Foxwell NT680 Plus, you receive a lifetime license for free software updates. After registration, the device remains fully functional for all supported vehicle models and features. There are no annual license fees or mandatory subscriptions applicable.

Updates can be easily performed via the FoxAssist software on a Windows PC. Connect the device to your computer, start FoxAssist, log in with your Foxwell ID, and follow the on-screen instructions to perform the updates.
