Foxwell I80 Max Car Diagnostic Tool

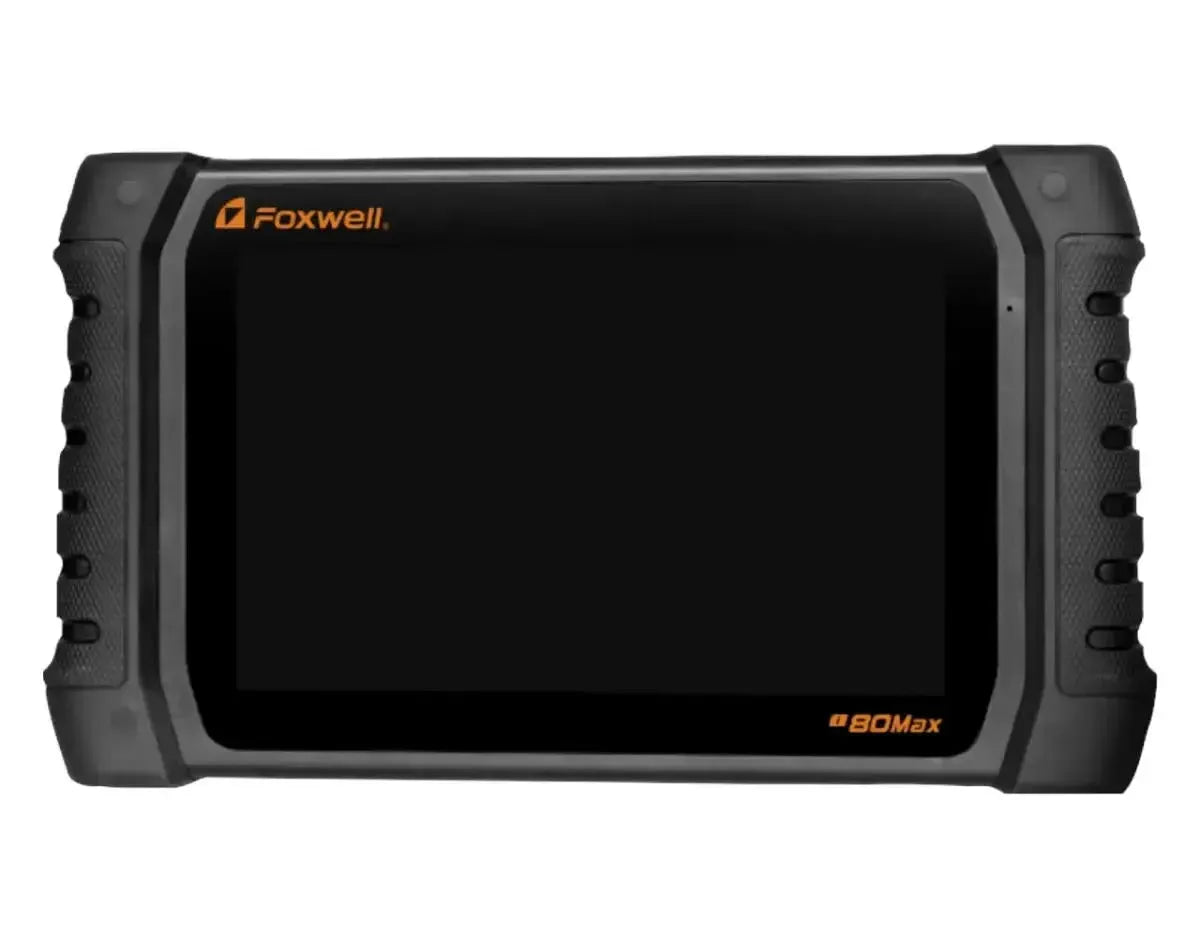

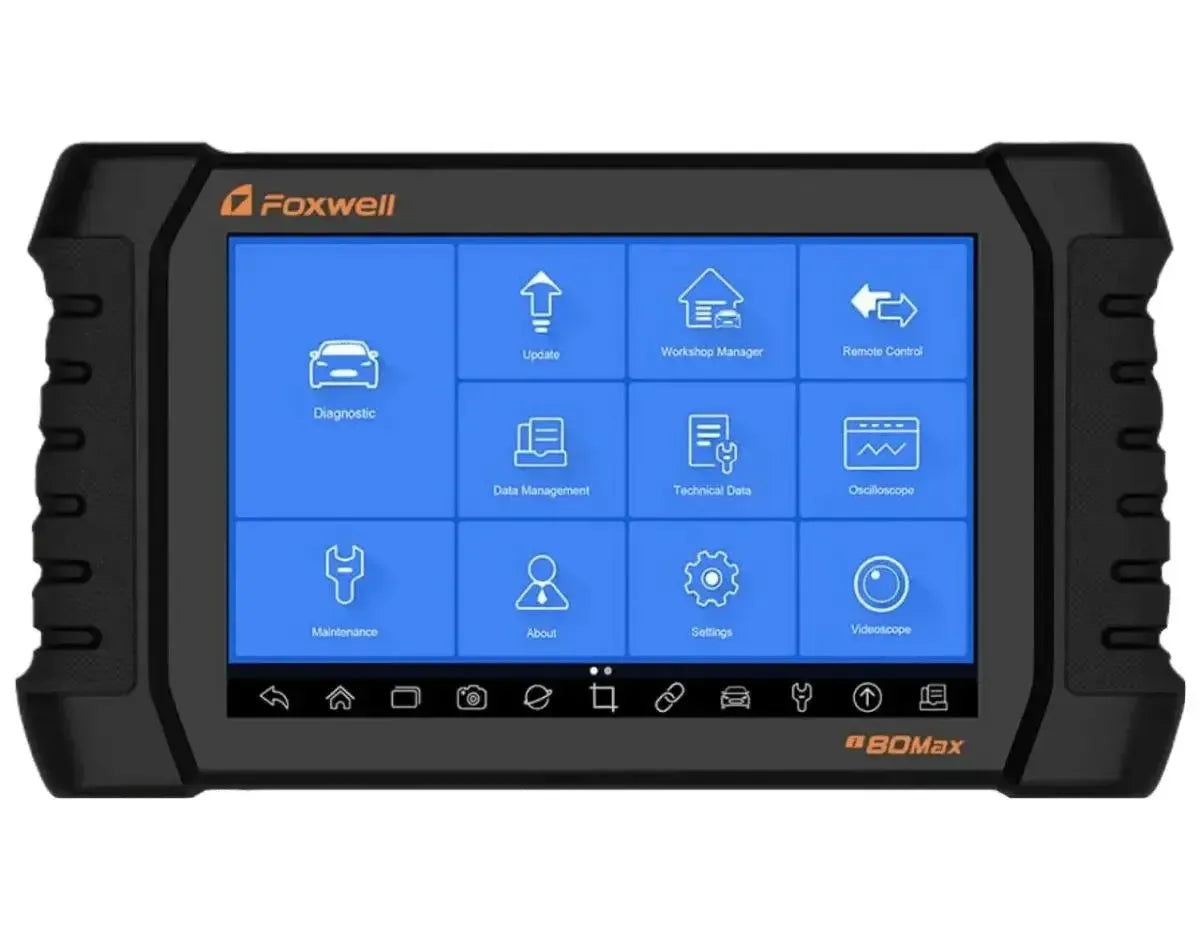

The Foxwell i80 Max is an advanced Diagnostic Tool, designed for professional workshops that require comprehensive vehicle diagnostics at OE level. With support for more than 90 vehicle brands, including the latest models and electric vehicles such as Tesla, this device offers in-depth system access for engine, transmission, ABS, airbags, TPMS, and more. The i80 Max is equipped with a 10.1-inch HD touchscreen, runs on Android 8.1, and features a powerful quad-core processor, enabling fast and accurate diagnoses.

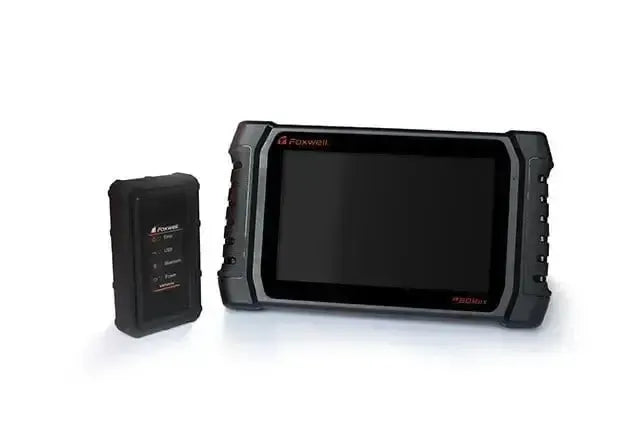

Thanks to the wireless VCI connection via Bluetooth and Wi-Fi, technicians can move freely around the vehicle during diagnostic work. The device supports functions such as AutoVIN recognition, bi-directional tests, ECU coding, and special maintenance functions like DPF regeneration and steering angle sensor (SAS) calibration. With an internal storage capacity of 64 GB, expandable via SD card, and a powerful 10,000 mAh battery, the i80 Max is designed for long-term use in demanding work environments.

Diagnostic functions:

The Foxwell i80 Max supports diagnosis for all electronic control units in the vehicle. With coverage of more than 90 brands, including electric vehicles, this device is suitable for universal use in professional workshops.

• ECU information: Reads software version, part number, calibration ID, and serial number per module.
• Read fault codes: Displays active, stored, and pending fault codes. Includes brand- and model-specific descriptions (DTCs).
• Clear fault codes: Removes fault codes after repair or maintenance; fault status becomes re-checkable.
• Live data: Shows real-time sensor data in table or graph form. Supports comparison of multiple parameters simultaneously.
• Freeze Frame data: Displays snapshots of critical system values at the moment a fault code was generated.
• Active tests: Directly activates components such as fans, relays, injectors, or EGR valves for functional checks.
• Bi-directional tests: Performs direct control of actuators and modules for in-depth OE-level diagnostics.
• Special functions: Supports brand-specific learning procedures such as DPF regeneration, SAS calibration, NOx sensor initialization, and airbag module adaptation.
• Programming / adjustments: Performs coding and software adjustments of vehicle options such as lighting, comfort modules, and mirror functions (if supported).
• Support for electric vehicles (EV): Reads EV-specific systems such as battery management and high-voltage drive.

Maintenance and service functions:

The Foxwell i80 Max features no less than 35 maintenance and service functions, making the device excellently suited for a wide range of vehicle repairs and maintenance. These functions assist technicians in efficiently performing common service tasks. Below is an overview of the most commonly used functions:

• Reset oil and service intervals: Allows you to reset service intervals and oil change reminders after maintenance.
• Electronic Parking Brake (EPB) reset: Enables the electronic parking brake to be opened and closed for brake system maintenance.
• Battery registration (BRT): Registers a new battery in the vehicle, essential for vehicles with advanced battery management systems.
• Diesel Particulate Filter (DPF) regeneration: Activates the regeneration of the DPF to prevent blockages and maintain performance.
• Throttle body adaptation: Calibrates the throttle body after cleaning or replacement for optimal engine performance.
• Steering Angle Sensor (SAS) calibration: Calibrates the steering angle sensor after alignment or replacement of steering components.
• Injector coding: Programs new or refurbished injectors for correct fuel injection.
• ABS system bleeding: Performs bleeding of the ABS system to remove air bubbles after brake system maintenance.
• TPMS reset: Resets and programs the tire pressure monitoring system after tire change or sensor replacement.
• AdBlue reset: Resets the AdBlue system after refilling or maintenance to prevent error messages.
• FRM reset (BMW/Mini): Repairs the footwell module (FRM) in case of malfunctions, common in BMW and Mini vehicles.
• Bleed fuel system: Performs bleeding of the fuel system after replacing fuel filters or working on the fuel system.
• Reset automatic transmission adaptation: Resets adaptive values of the automatic transmission for improved shift performance.
• Calibrate air suspension: Calibrates the air suspension system after component replacement or repair.
• Change tire size: Adjusts ECU settings when changing tire size for accurate speed and distance measurements.

Programming and coding functions:

• ECU coding (brand dependent): Adjust parameters within electronic control units to activate or deactivate functions such as start/stop, lighting, wipers, or comfort options.
• Control unit configuration: Configure newly installed modules (such as ABS, steering angle sensor, airbag module) so they communicate correctly within the vehicle's CAN network.
• Reset adaptation values: Reinitialize learning values of systems such as transmission, throttle position, EGR, or fuel injection after replacement or software updates.
• Key programming (brand dependent): Program new keys or synchronize existing keys with the vehicle system when replacing ECU or start components.
• Component coding: Code specific components such as injectors, EGR valves, turbo actuators, or transmissions according to factory specifications.
• Configure retrofits: Perform software adjustments when adding new features such as trailer hitch modules, LED lighting, parking sensors, or camera systems.
• Online coding (if supported): For certain vehicle brands, the i80 Max supports online access to brand servers for official ECU adjustments.

Cloud and reporting features:

• Cloud reporting: Diagnostic reports can be automatically saved in Foxwell's cloud environment, making them accessible anytime and from any device.
• Direct report sharing: Share pre-scan and post-scan reports via email, QR code, or link with customers or colleagues without using an external PC.
• Synchronize vehicle history: Thanks to cloud storage, multiple Diagnostic Tools within the same workshop can access a vehicle's maintenance history.
• PDF export to cloud or local: Generate professional PDF reports and save them locally or online for administration and customer communication.
• Real-time upload and synchronization: Reports, fault codes, and measurements are automatically synchronized with the cloud account as soon as Wi-Fi is available.
• Remote management: Workshop managers can view and monitor vehicle scans remotely via the linked online user account.

Additional features:

• Automatic vehicle identification (AutoVIN): Automatically recognizes the vehicle via the chassis number (VIN), eliminating manual selection.
• Data recording and playback: Record live sensor values (PIDs) during test drives and play them back later to analyze intermittent faults.
• Save data and review locally: Diagnostic data, fault codes, and test results can be stored in internal memory or on an SD card.
• Multi-graph display: View multiple live parameters simultaneously in graph form for insight into sensor relationships.
• Graph merging: Combine multiple PID signals into one graph for advanced pattern recognition.
• Keep vehicle history: Diagnostic data from previous vehicle sessions is automatically saved for later analysis or comparison.
• Print data via PC or wirelessly: Diagnostic reports can be exported and printed locally or shared via email.
• Quick access to frequently used functions: Create custom shortcuts for common service or diagnostic procedures.

Optional expansions and modules:

• Videoscope (VS300): For visual inspection of hard-to-reach places inside the vehicle.
• Oscilloscope (OS200): For measuring and analyzing electrical signals and components.

Supported car brands:

• European brands: Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroën, Dacia, DS, Ferrari, Fiat, FordEU, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, Mercedes-Benz, MINI, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, Volkswagen, Volkswagen CV, Volvo
• Asian brands: Acura, Daewoo, Daihatsu, Fuso, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Samsung, Scion, SsangYong, Subaru, Suzuki, Toyota
• American brands: Chevrolet, Chrysler, Dodge, Ford, GM, Jeep, Tesla
• Chinese brands: Baojun, BAIC Huansu, BAIC Motor, BAIC Senova, BAIC Weiwang, Bestune, BJEV, Brilliance, BYD, Changan, Changan Suzuki, Chery, CoWIN, DFFG, DFXK, Dorcen, EXEED, FAW Car, Foton, GAC Motor, Geely, Gonow, Great Wall, Guang Qimit, Hafei, Haima, Hawtai, Hongqi, JAC, Jiangling, JIQING, Jetour, Karry, Landwind, Lifan, New Baojun, Qoros, Rely, Riich, Roewe, SAIC Maxus, SAIC MG, TJFAW, Venucia, Wuling, Zotye, Zhongxing

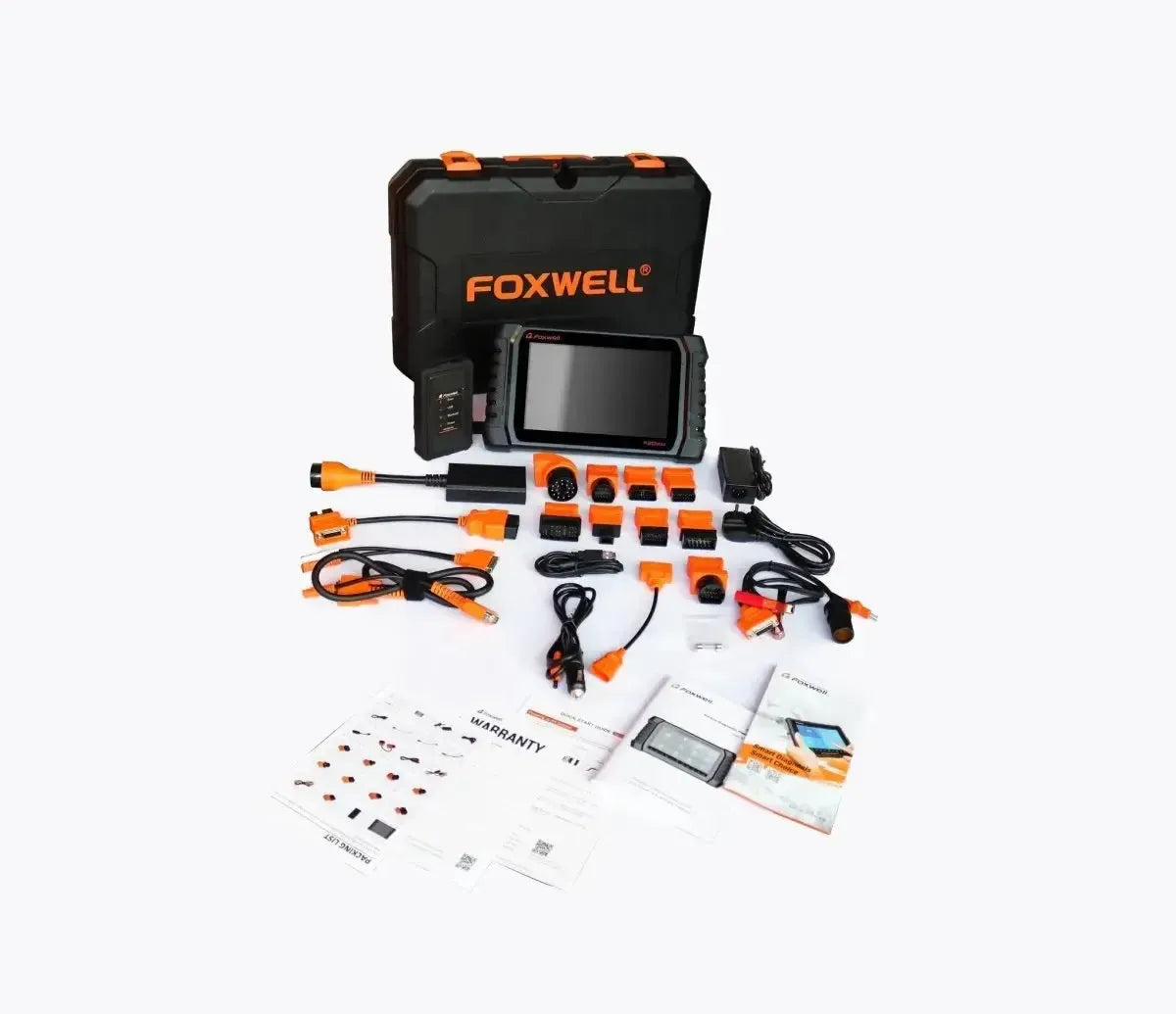

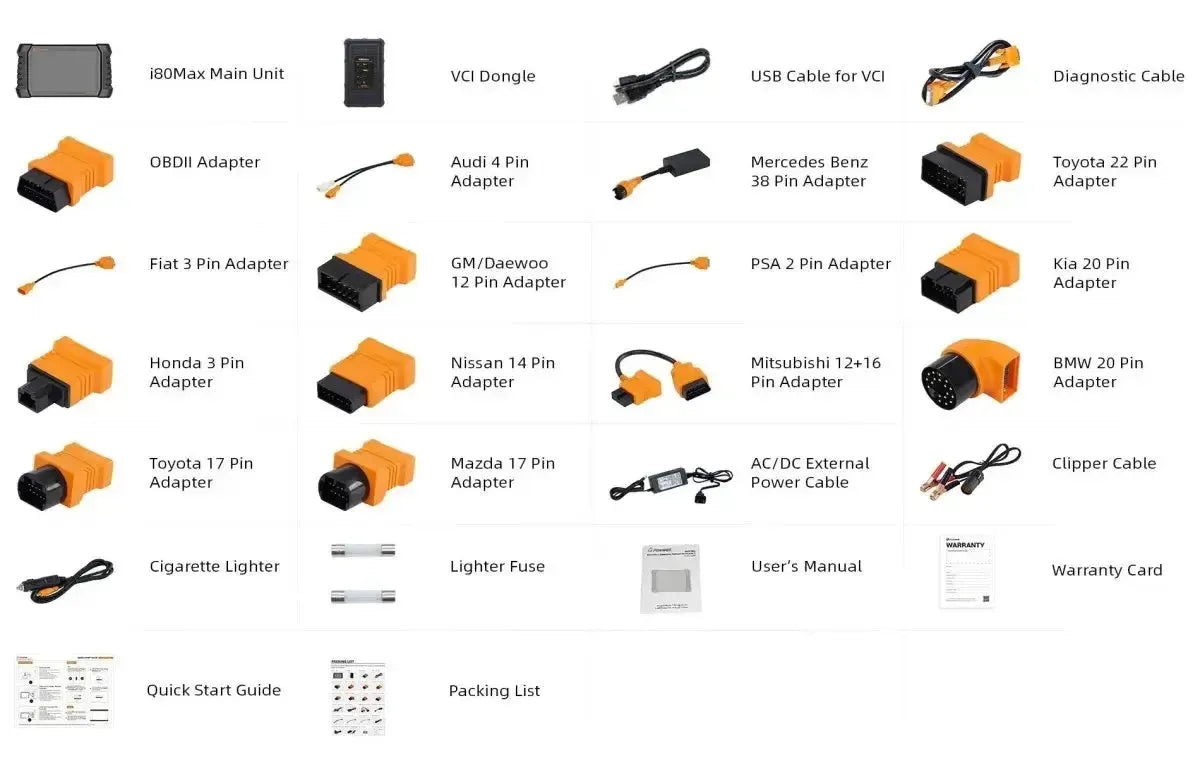

Package Contents:

• Foxwell I80 Max Diagnostic Tool
• Foxwell VCI Dongle
• Foxwell 15 Pins DB15 Extension Cable
• Foxwell 15 Pins DB15 - 16 Pins OBD2 Adapter
• USB-A - Mini USB-B Conversion Cable
• Power Adapter
• Manual
• Storage Case
• Foxwell Battery Clamp Power Cable
• Foxwell Cigarette Lighter Power Cable
• Foxwell Honda 3 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell GM/Daewoo 12 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell Nissan 14 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell Mazda 17 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell Toyota 17 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell Kia 20 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell BMW 20 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell Toyota 22 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell PSA 2 Pins OBD1 - 15 Pins DB15 Adapter Cable
• Foxwell Fiat 3 Pins OBD1 - 15 Pins DB15 Adapter Cable
• Foxwell Audi/Seat/Skoda/Volkswagen 2+2 Pins OBD1 - 15 Pins DB15 Adapter Cable
• Foxwell Mitsubishi 12+16 Pins OBD1 - 15 Pins DB15 Adapter Cable
• Foxwell Mercedes-Benz 38 Pins OBD1 - 15 Pins DB15 Adapter Cable

License Information:

• Including 3 years of updates: A update license for 36 months is included with purchase.

After the third year, the license can be renewed for an annual fee. The device remains fully functional for already supported models, even without license renewal. However, new software updates can no longer be installed, and some online features may be limited or no longer supported.
