Foxwell I75TS Car Diagnostic Tool

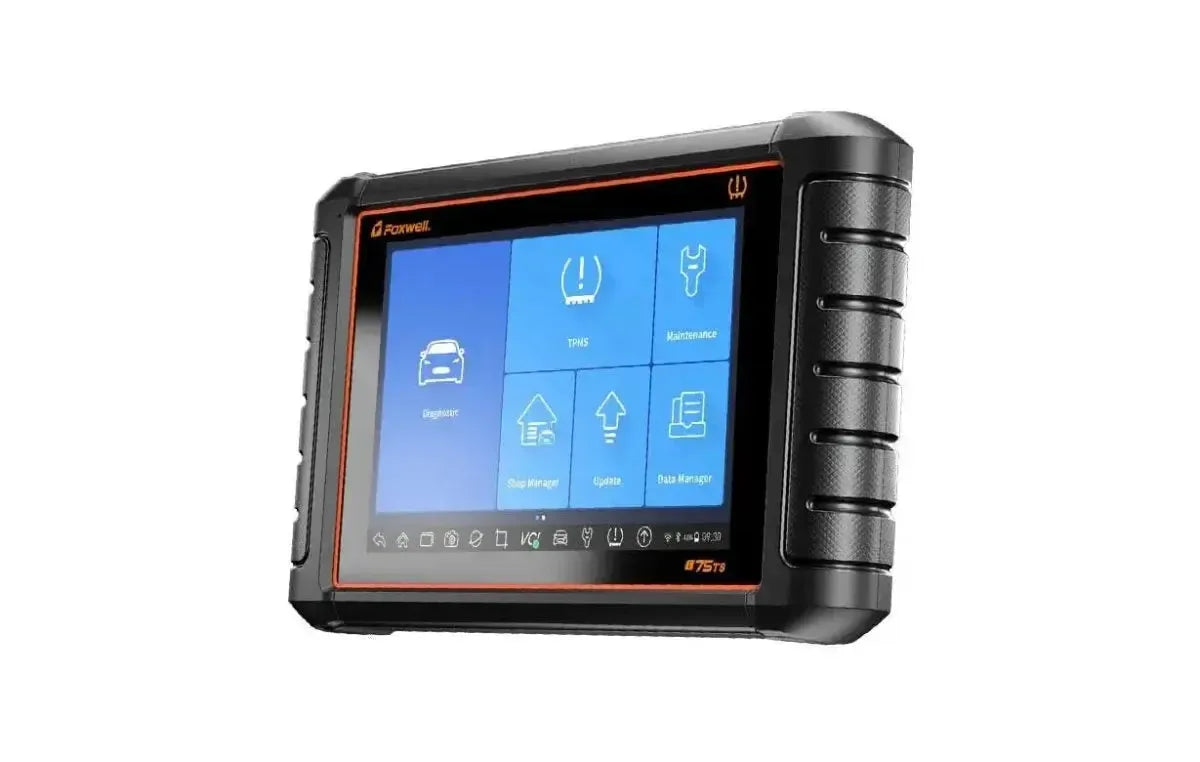

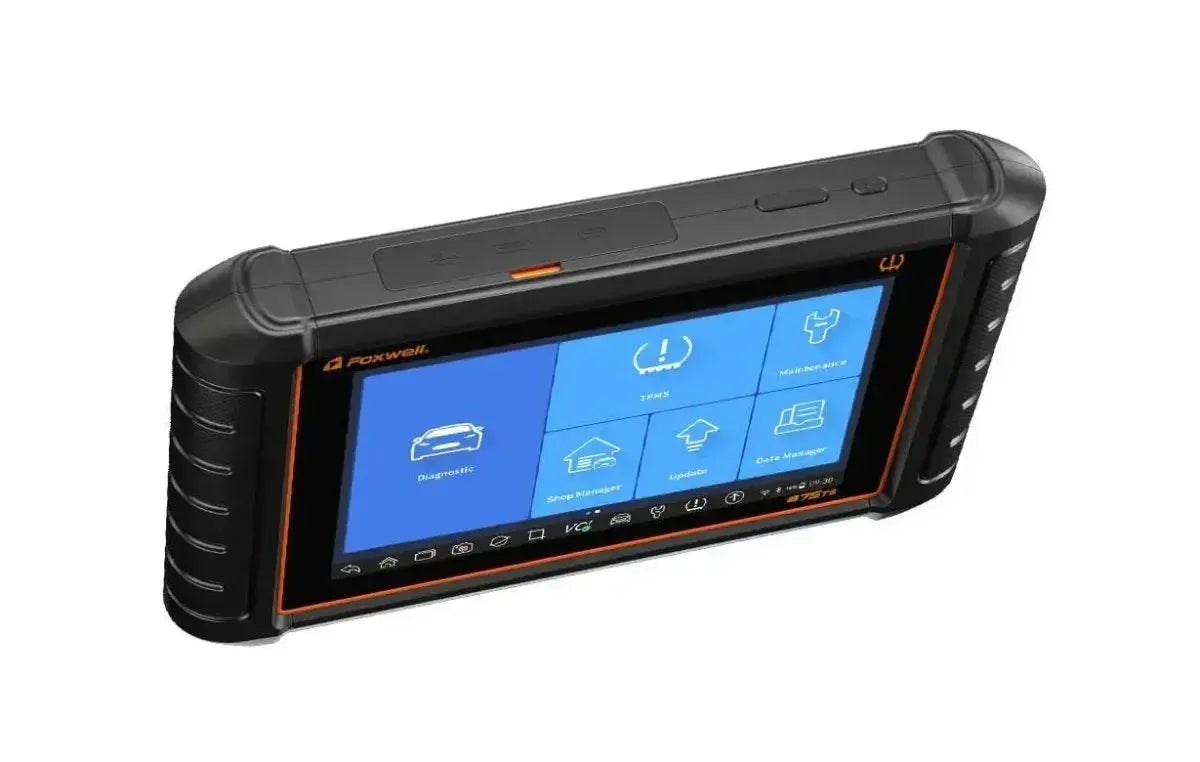

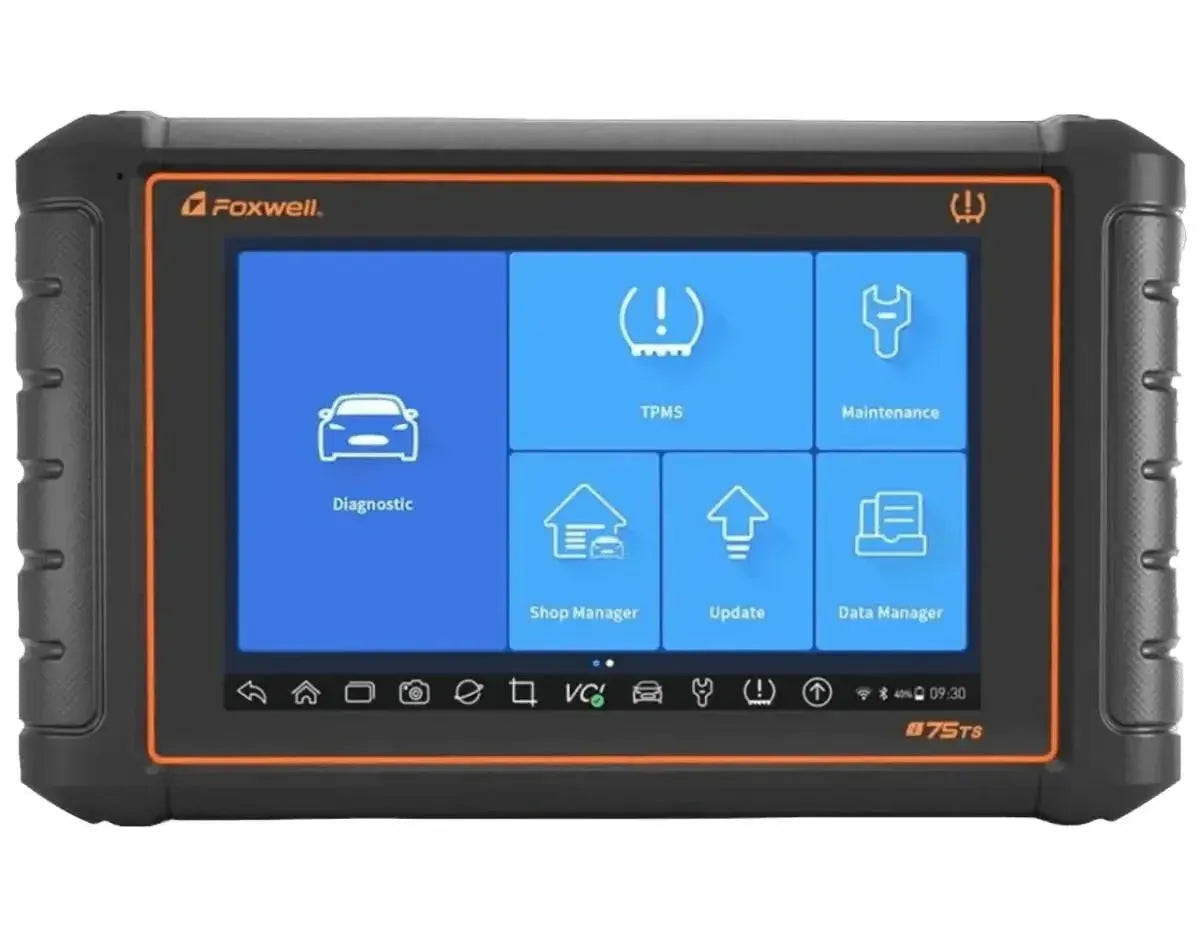

The Foxwell i75TS is an all-in-one professional Diagnostic Tool that combines advanced vehicle diagnosis with full TPMS functionality. The device features a large 10-inch touchscreen, powerful hardware, and a user-friendly interface, enabling quick and accurate troubleshooting and service work. Thanks to automatic vehicle identification (Car VIN) and support for a wide range of brands, this device is highly suitable for universal garage use.

What makes the i75TS special is the integrated TPMS programming module that allows sensors to be read, programmed, cloned, and activated without additional equipment. Combined with extensive maintenance functions, bidirectional control, and ECU coding capabilities, this device is ideal for technicians looking for one powerful platform for diagnosis, service, and TPMS maintenance.

Diagnostic functions:

• Full system scan: Performs an automatic scan of all available control units, such as engine, ABS, airbag, transmission, steering, climate control, lighting, and comfort systems.
• Read and clear fault codes: Reads and clears stored, active, and temporary fault codes (DTCs) from any system. Supports both generic and manufacturer-specific codes.
• Read live data: Displays real-time sensor data in table and graph form. This allows detailed analysis of component values such as lambda signals, air volume, temperature, and speed.
• Freeze Frame data: Provides a snapshot of the conditions at the moment a fault code was generated, including parameters such as engine speed, load, and coolant temperature.
• Perform actuator tests: Activates individual components such as valves, relays, or fans to directly test their operation without dismantling parts.
• Read ECU information: Retrieves data such as software version, calibration ID, part number, and serial number of each control unit.
• Automatic vehicle recognition (Car VIN): Recognizes the vehicle based on the chassis number (VIN) and automatically selects the correct model for a quick start of the diagnosis.
• Quick scan with fault status report: Instantly shows which systems contain fault codes, with color indication and shortcuts to the relevant modules. Useful for workshop reporting.
• Display adaptation values and learned data: Provides insight into learned values of systems such as transmission, throttle body, or DPF, with the option to reset in case of malfunction or replacement.
• Component status check: Real-time monitoring of critical system statuses such as DPF fill level, regeneration status, battery voltage, or sensor calibrations.

Maintenance and service functions:

The Foxwell I75TS supports more than 35 maintenance functions, enabling technicians to quickly and efficiently perform common service tasks. Function availability depends on the brand, model, and year of the Car.

• Oil and service reminder reset: Clear the maintenance indicator after an oil change or inspection.
• Electronic parking brake (EPB) service: Electronically unlock brake calipers for brake pad replacement and recalibrate the system.
• Steering angle sensor (SAS) calibration: Reset the zero point of the steering angle sensor after alignment or replacement.
• Battery registration (BMS): Register a new battery in the charging system for correct charging strategy.
• Diesel particulate filter regeneration (DPF): Start forced regeneration of the particulate filter in case of clogging or error messages.
• Injector coding: Program new injector codes into the ECU for correct fuel injection.
• Throttle body adjustment: Relearn the base position for a stable idle speed.
• Transmission adaptation reset: Clear learned values of the gearbox after maintenance or software updates.
• NOx sensor reset: Reinitialize the system after replacing the NOx sensor.
• AdBlue (SCR) reset: Reset the Selective Catalytic Reduction system after refilling or maintenance.
• Coolant bleeding: Activate the system to remove air bubbles from the cooling system.
• Air conditioning (A/C) reinitialization: Calibrate valves and motors after replacing climate control components.
• EGR adaptation: Recalibrate the EGR system after cleaning or replacement.
• Air suspension calibration: Calibrate height sensors on vehicles with electronic suspension.
• Headlight adjustment: Readjust the electronic headlight unit after replacement.
• Calibrate window control: Restore automatic operation of electric windows.
• Reset sun visor/sunroof: Calibrate the panoramic roof after maintenance or malfunction.
• Reset fuel pump: Restore control after replacement or malfunction.
• Activate/deactivate transport mode: Enable or disable factory settings during Car delivery.

TPMS functions:

The I75TS features full TPMS functionality, allowing complete diagnosis, programming, and service of TPMS sensors.

• TPMS system diagnosis: Reads fault codes and status from the TPMS system.
• TPMS reset: Removes fault messages after maintenance on the tire pressure monitoring system.
• TPMS sensor activation: Activates passive and active sensors for reading ID and pressure.
• TPMS sensor programming: Programs universal (aftermarket) sensors with correct vehicle data.
• TPMS sensor relearn: Learns new or programmed sensor IDs to the vehicle ECU (idle, automatic, or via OBD).

Programming and coding functions:

• Module coding (ECU coding): Adjust settings in electronic modules such as lighting, mirrors, or comfort systems (only if supported).

• Retrofit support: Activate additional functions such as fog lights or parking sensors after installing corresponding hardware (brand dependent).

Cloud and reporting functions:

• Generate diagnostic report: Automatically create a summary of all system scans, fault codes, and vehicle status.
• PDF export: Save reports as PDF files and optionally send them via email to the customer or workshop administration.
• Save vehicle history: Store previous diagnoses and fault codes per Car, useful for follow-up or returning customers.
• Online backup via Foxwell account: Synchronize data to the cloud for secure storage and quick access from other devices.
• Software updates via WiFi: Perform wireless updates of vehicle coverage, system software, and diagnostic libraries without a PC.

Additional features:

• Multi-brand support in one scan: The I75TS can scan multiple brands simultaneously on vehicles with shared platforms (e.g., VAG group), speeding up diagnosis on universal systems.
• Pre-scan and post-scan function: Automatically record the fault code status before and after repair. Both scans are combined in one report, ideal for customer communication or damage handling.
• Automatic software recognition per module: The tool reads the software version and hardware ID of each ECU, which helps with updates and coding.
• Component identification with context info: Some ECUs display additional technical descriptions of components, including test conditions, operating principles, or placement information.
• Internal fault code library with explanations: The tool contains an extensive database with descriptions of fault codes, including tips for common causes (brand- and system-dependent).
• Smart vehicle memory: Automatically recognizes previously diagnosed vehicles and suggests reusing previous settings.

Supported Car brands:

• European brands: Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroën, Dacia, DS, Ferrari, Fiat, FordEU, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, Mercedes-Benz, MINI, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, Volkswagen, Volkswagen CV, Volvo
• Asian brands: Acura, Daewoo, Daihatsu, Fuso, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Samsung, Scion, SsangYong, Subaru, Suzuki, Toyota
• American brands: Chevrolet, Chrysler, Dodge, Ford, GM, Jeep, Tesla
• Chinese brands: Baojun, BAIC Huansu, BAIC Motor, BAIC Senova, BAIC Weiwang, Bestune, BJEV, Brilliance, BYD, Changan, Changan Suzuki, Chery, CoWIN, DFFG, DFXK, Dorcen, EXEED, FAW Car, Foton, GAC Motor, Geely, Gonow, Great Wall, Guang Qimit, Hafei, Haima, Hawtai, Hongqi, JAC, Jiangling, JIQING, Jetour, Karry, Landwind, Lifan, New Baojun, Qoros, Rely, Riich, Roewe, SAIC Maxus, SAIC MG, TJFAW, Venucia, Wuling, Zotye, Zhongxing

Packaging contents:

• Foxwell I75TS Diagnostic Tool
• Foxwell VCI Dongle
• Foxwell 15 Pins DB15 Extension Cable
• Foxwell 15 Pins DB15 - 16 Pins OBD2 Adapter
• USB-A - Mini USB-B Adapter Cable
• USB-A - USB-C Adapter Cable
• Charging Plug
• Manual
• Storage Case
• Foxwell Battery Clamps Power Cable
• Foxwell Cigarette Lighter Power Cable
• Foxwell Honda 3 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell GM/Daewoo 12 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell Nissan 14 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell Mazda 17 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell Toyota 17 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell Kia 20 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell BMW 20 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell Toyota 22 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell PSA 2 Pins OBD1 - 15 Pins DB15 Adapter Cable
• Foxwell Fiat 3 Pins OBD1 - 15 Pins DB15 Adapter Cable
• Foxwell Audi/Seat/Skoda/Volkswagen 2+2 Pins OBD1 - 15 Pins DB15 Adapter Cable
• Foxwell Mitsubishi 12+16 Pins OBD1 - 15 Pins DB15 adapter cable
• Foxwell Mercedes-Benz 38 Pins OBD1 - 15 Pins DB15 adapter cable

License information:

• Including 3 years of updates: A update license for 36 months is included with purchase.

After the third year, the license can be renewed for an annual fee. The Diagnostic Tool remains fully functional for already supported models, even without license renewal. However, new software updates can no longer be installed, and some online features may be limited or no longer supported.
