Foxwell I70 Pro Car Diagnostic Tool

The Foxwell i70 Pro is an advanced professional Diagnostic Tool designed for intensive use in workshops and garages. Thanks to its powerful Android platform, intuitive touchscreen interface, and wireless connectivity, this device offers a fast and efficient way to read, clear fault codes, and analyze live data. The device supports extensive system diagnostics on passenger cars and light commercial vehicles from a wide range of car brands.

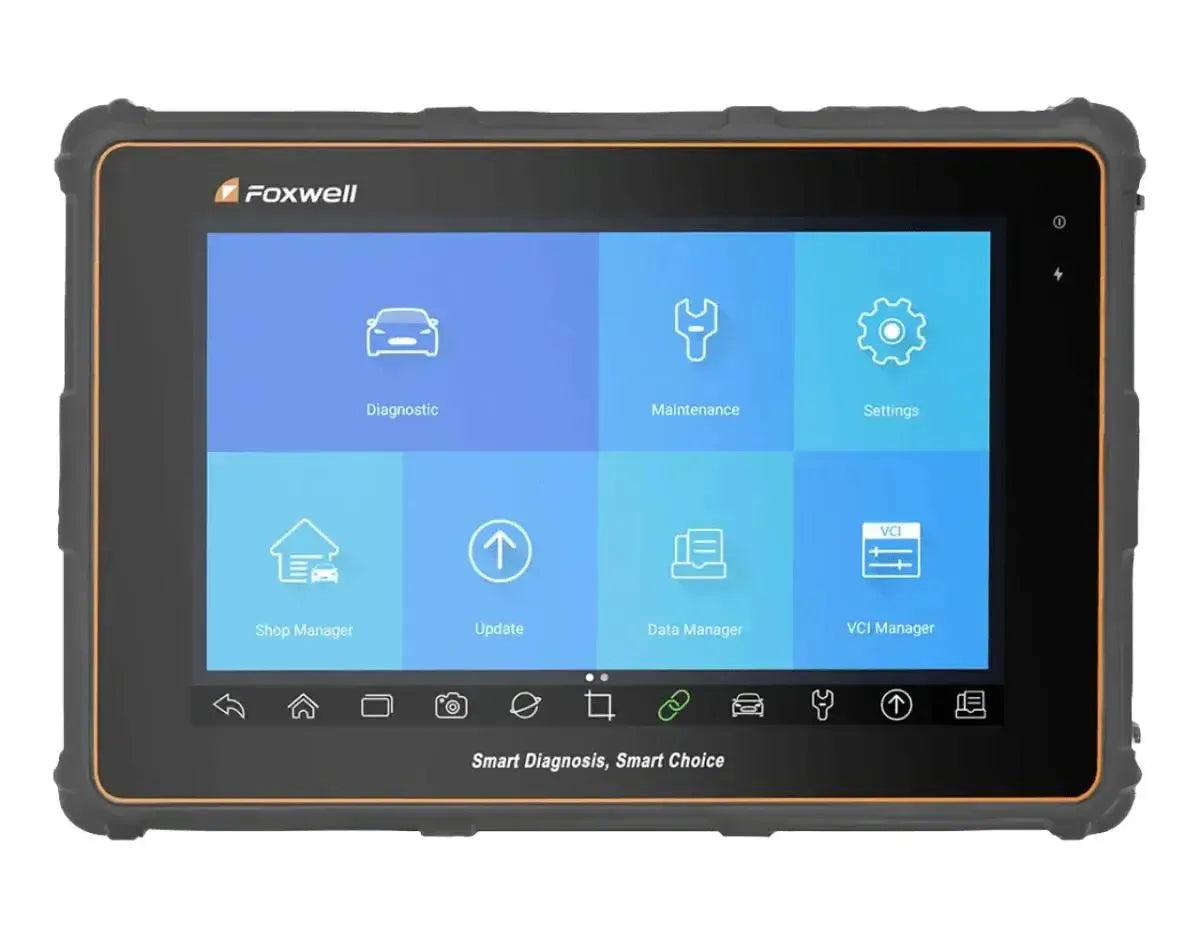

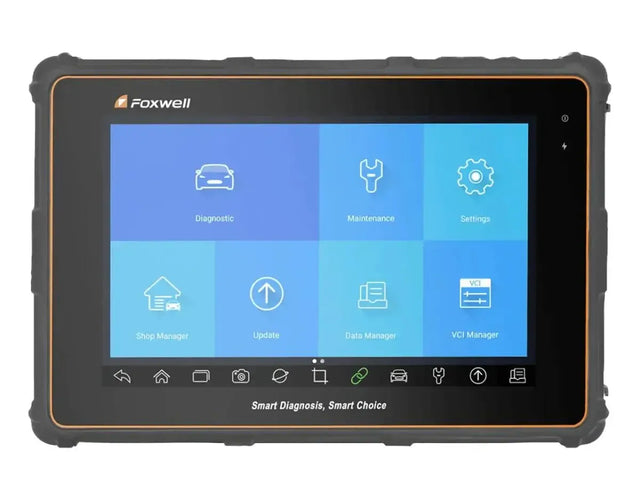

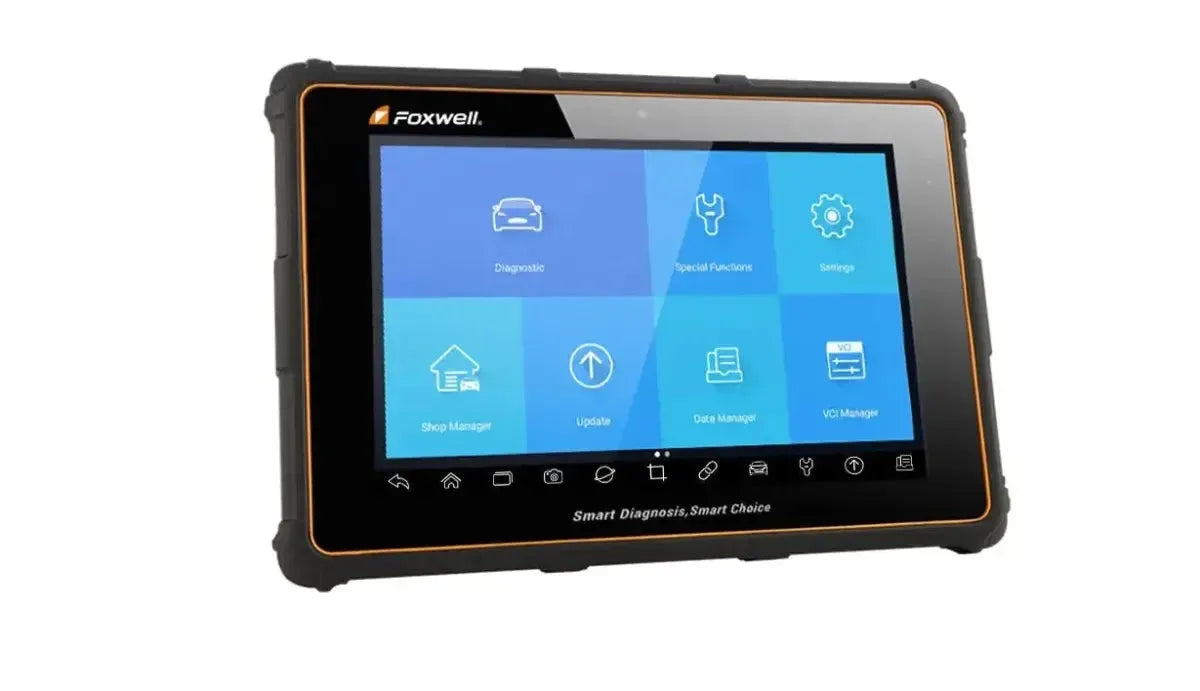

The i70 Pro features a robust housing, a bright 7-inch capacitive screen, and automatic vehicle identification (Car VIN), significantly speeding up the daily diagnostic process. Thanks to regular software updates and extensive service capabilities, the device is not only suitable for fault detection but also for adjustments, resets, and coding within numerous electronic systems. An ideal tool for the modern automotive technician seeking a versatile platform.

Diagnostic functions:

• Complete system diagnosis: The Foxwell i70 Pro scans all electronic control units present in a vehicle, including engine, transmission, ABS, airbag, steering, comfort systems, and more. This gives you a complete picture of the vehicle status.
• Read and clear fault codes: Reads stored and current fault codes and removes them after repair. Supports both generic OBD-II codes and manufacturer-specific codes.
• Live data reading: Displays real-time data from sensors, actuators, and control units in graph or table form. This allows you to closely monitor behavior and performance.
• Freeze Frame data: Displays snapshots of critical system values at the moment a fault code was generated. This supports targeted fault analysis.
• Actuator tests: Directly controls individual components (such as EGR valve, cooling fan, injectors) to test their operation without disassembly.
• Read system information: Reads vehicle and ECU data such as VIN, calibration ID, software version, and ECU serial number, useful for identification and updates.
• Automatic vehicle recognition (Car VIN): Recognizes the vehicle directly via the VIN number, speeding up input and preventing errors.

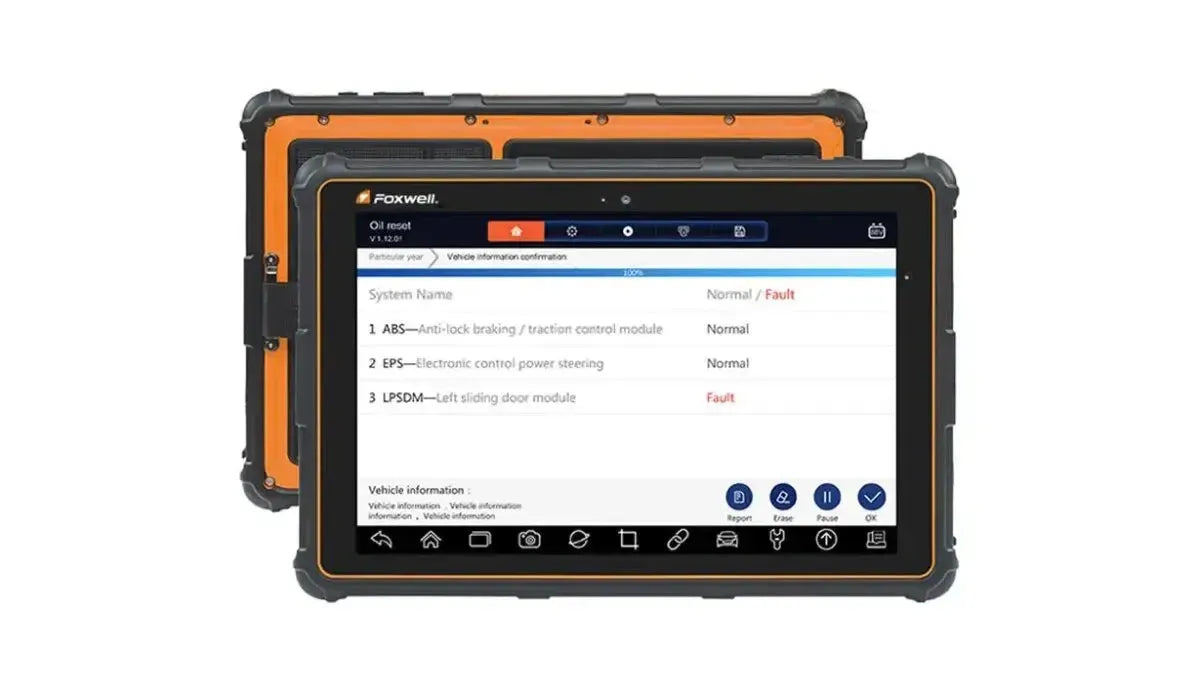

• Quick scan function: Performs an automatic scan of all modules and generates an overview report with fault codes and system status.

Maintenance and service functions:

The Foxwell I70 Pro supports more than 35 maintenance and service functions, depending on the vehicle make and model. These functions are developed to provide efficient support during workshop maintenance tasks. The most common functions are:

• Oil service reset: Resets the maintenance interval after an oil change.
• Electronic parking brake reset (EPB): Puts the brake calipers in service mode and reactivates them after maintenance.
• ABS bleeding: Removes air from the ABS brake system after component or brake fluid replacement.
• Steering angle sensor calibration (SAS): Calibrates the steering angle sensor for correct operation of stability and steering systems.
• TPMS reset: Resets and initializes the tire pressure monitoring system.
• DPF regeneration: Forces regeneration of the diesel particulate filter in case of soot buildup.
• Injector coding: Learns new injector codes into the engine management system.
• Battery registration (BMS reset): Registers a new battery for correct charge status and energy management.
• Throttle body learning: Calibrates the position of the throttle body after cleaning or replacement.
• Transmission adaptation reset: Resets learned values of the automatic transmission.
• Headlight adjustment: Adjusts the height of the headlights after modification or replacement.
• Air suspension calibration: Calibrates the air suspension system for correct ride height.
• Seat memory calibration: Restores the memory settings of electrically adjustable seats.
• Fuel pump reset: Activates the fuel pump to bleed the fuel system.
• Air/fuel ratio reset (A/F reset): Reset of the adaptive values of the air/fuel ratio.
• Learn transmission: Learning of transmission components after replacement or adjustment.
• Bleed coolant: Activates components to remove air from the cooling system.
• NOx sensor reset: Reset after replacement of the NOx sensor.
• AdBlue (SCR) reset: Reinitialization of the AdBlue system after maintenance.
• Calibrate windows: Calibration of electrically operated windows.
• Reset sunroof: Restores sunroof functions after malfunction or replacement.
• Activate/deactivate transport mode: Switches transport mode on or off, for example during delivery of vehicles.

Programming and coding functions:

• ECU coding: Provides access to modify codable options in modules such as lighting, comfort systems, transmission, or door modules — depending on vehicle brand and model.
• Retrofit support (on some models): On selected vehicles, new functions can be activated after hardware installation (such as fog lights or parking sensors) via software coding.

Cloud and reporting functions:

• Export diagnostic report: After a complete vehicle system scan, the Foxwell i70 Pro can automatically generate a clear report with all found fault codes, module information, and system status. This report is suitable for customer communication or workshop documentation.
• Save or share PDF reporting: The generated diagnostic reports can be saved locally as PDFs or shared via email, so customers or colleagues quickly gain insight into the vehicle status.
• Vehicle history storage: Provides storage of vehicle scan data and customer information in the internal memory structure. This allows previous diagnoses to be easily retrieved for comparison or follow-up work.
• Online cloud backup (if configured): When using a Foxwell account, an automatic backup of user data and vehicle history can be performed to the cloud, which is useful for multiple users or for recovery after device reset.
• Software and data synchronization via WiFi: The i70 Pro supports wireless connection for diagnostic updates, vehicle coverage, and system files, so the device is always up-to-date without a PC.

Additional features:

• Advanced vehicle quick searches: The Foxwell i70 Pro supports manual vehicle selection by brand, model, year, and engine code. This is especially useful for vehicles that do not support automatic VIN recognition.
• Multitasking interface: Thanks to the Android platform, simultaneous use of multiple functions is possible, such as viewing live data while looking up fault codes.
• System overview with quick scan status: Shows at a glance which systems contain fault codes after a Car scan, with color coding and direct access to each module.
• Screenshots and file management: Users can quickly capture screenshots of fault codes, live data, or graphs, which are automatically saved in an organized file management system.
• Store vehicle history locally: The tool automatically records the diagnostic history per vehicle, including previous fault codes, system scans, and report data, so you can easily refer back during follow-up visits.

Optional expansions and modules:

• Videoscope (VS300): For visual inspection of hard-to-reach places inside the vehicle, such as combustion chambers, EGR channels, or wiring behind dashboards.
• Oscilloscope (OS200): For measuring and analyzing electrical signals and component behavior such as sensors, actuators, and CAN signals.

Supported Car brands:

• European brands: Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroën, Dacia, DS, Ferrari, Fiat, FordEU, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, Mercedes-Benz, MINI, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, Volkswagen, Volkswagen CV, Volvo
• Asian brands: Acura, Daewoo, Daihatsu, Fuso, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Samsung, Scion, SsangYong, Subaru, Suzuki, Toyota
• American brands: Chevrolet, Chrysler, Dodge, Ford, GM, Jeep, Tesla
• Chinese brands: Baojun, BAIC Huansu, BAIC Motor, BAIC Senova, BAIC Weiwang, Bestune, BJEV, Brilliance, BYD, Changan, Changan Suzuki, Chery, CoWIN, DFFG, DFXK, Dorcen, EXEED, FAW Car, Foton, GAC Motor, Geely, Gonow, Great Wall, Guang Qimit, Hafei, Haima, Hawtai, Hongqi, JAC, Jiangling, JIQING, Jetour, Karry, Landwind, Lifan, New Baojun, Qoros, Rely, Riich, Roewe, SAIC Maxus, SAIC MG, TJFAW, Venucia, Wuling, Zotye, Zhongxing

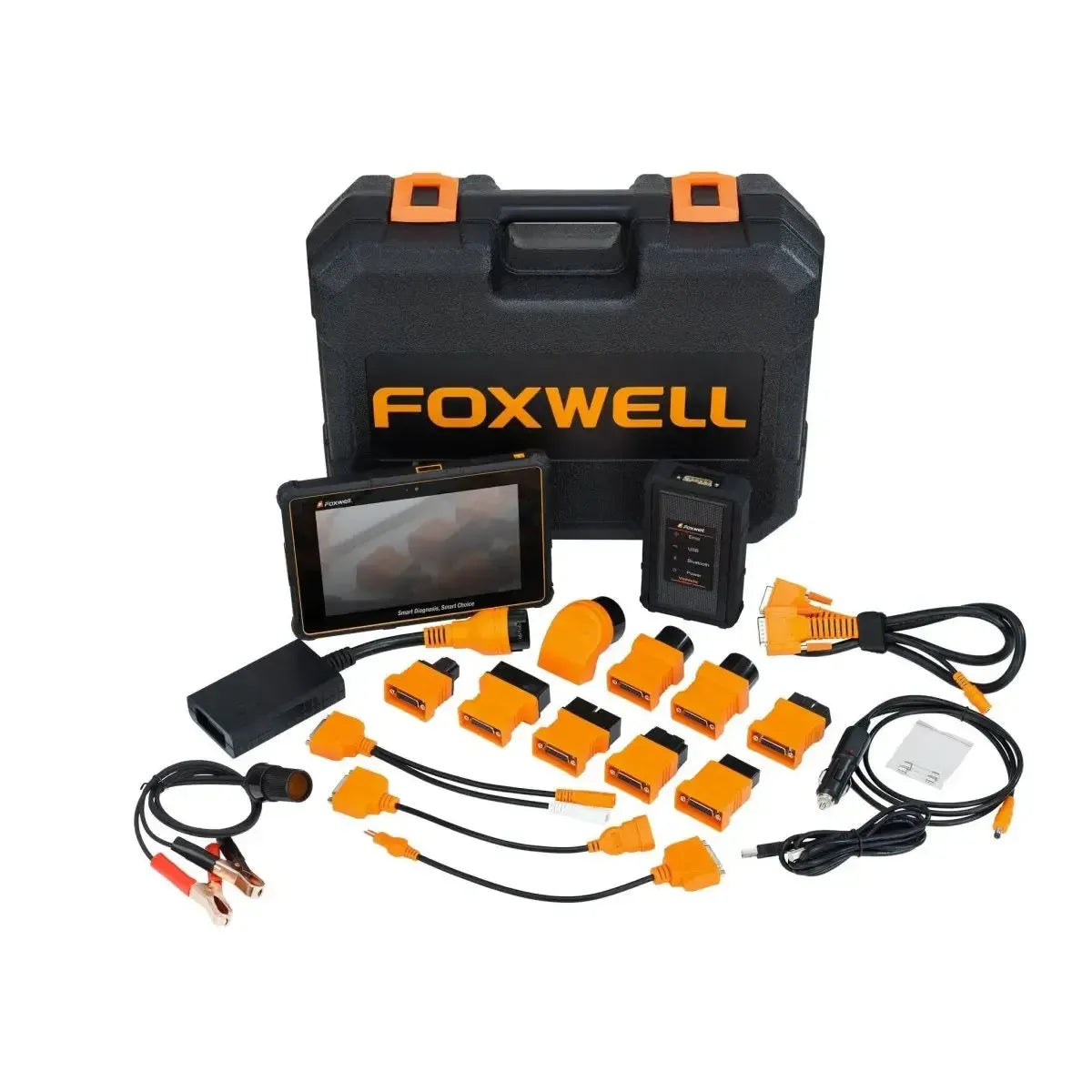

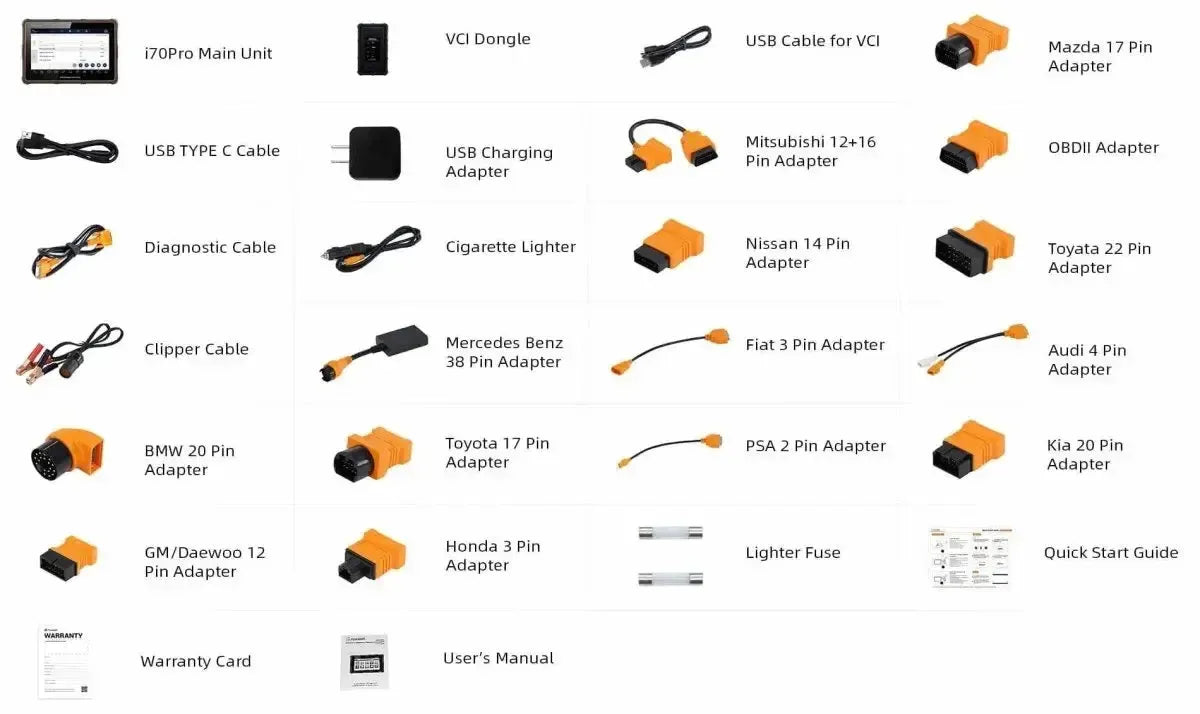

Package Contents:

• Foxwell I70 Pro Diagnostic Tool

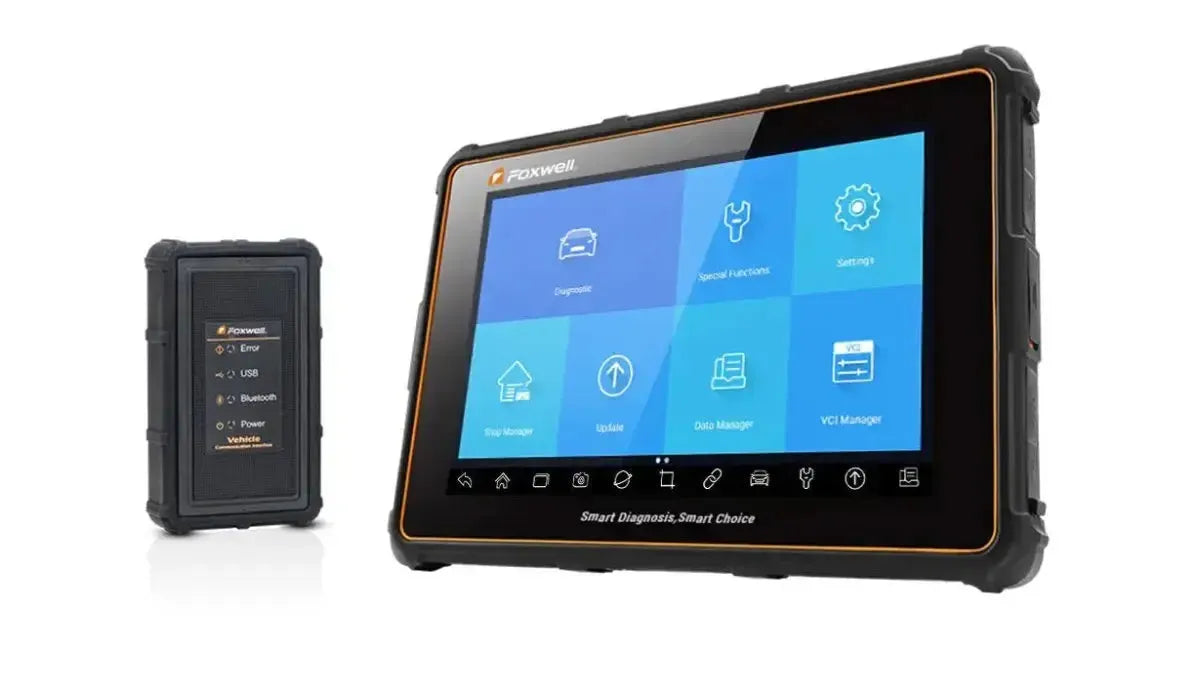

• Foxwell VCI Dongle
• Foxwell 15 Pins DB15 Extension Cable
• Foxwell 15 Pins DB15 - 16 Pins OBD2 Adapter
• USB-A - Mini USB-B Adapter Cable
• USB-A - USB-C Adapter Cable
• Power Adapter
• Manual
• Storage Case
• Foxwell Battery Clamps Power Cable
• Foxwell Cigarette Lighter Power Cable
• Foxwell Honda 3 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell GM/Daewoo 12 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell Nissan 14 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell Mazda 17 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell Toyota 17 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell Kia 20 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell BMW 20 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell Toyota 22 Pins OBD1 - 15 Pins DB15 Adapter
• Foxwell PSA 2 Pins OBD1 - 15 Pins DB15 Adapter Cable
• Foxwell Fiat 3 Pins OBD1 - 15 Pins DB15 Adapter Cable
• Foxwell Audi/Seat/Skoda/Volkswagen 2+2 Pins OBD1 - 15 Pins DB15 Adapter Cable
• Foxwell Mitsubishi 12+16 Pins OBD1 - 15 Pins DB15 Adapter Cable
• Foxwell Mercedes-Benz 38 Pins OBD1 - 15 Pins DB15 Adapter Cable

License information:

• Including 3 years of updates: A update license for 36 months is included with purchase.

After the third year, the license can be renewed for an annual fee. The device remains fully functional for already supported models, even without license renewal. However, new software updates can no longer be installed, and some online features may be limited or no longer supported.

Technical specifications
