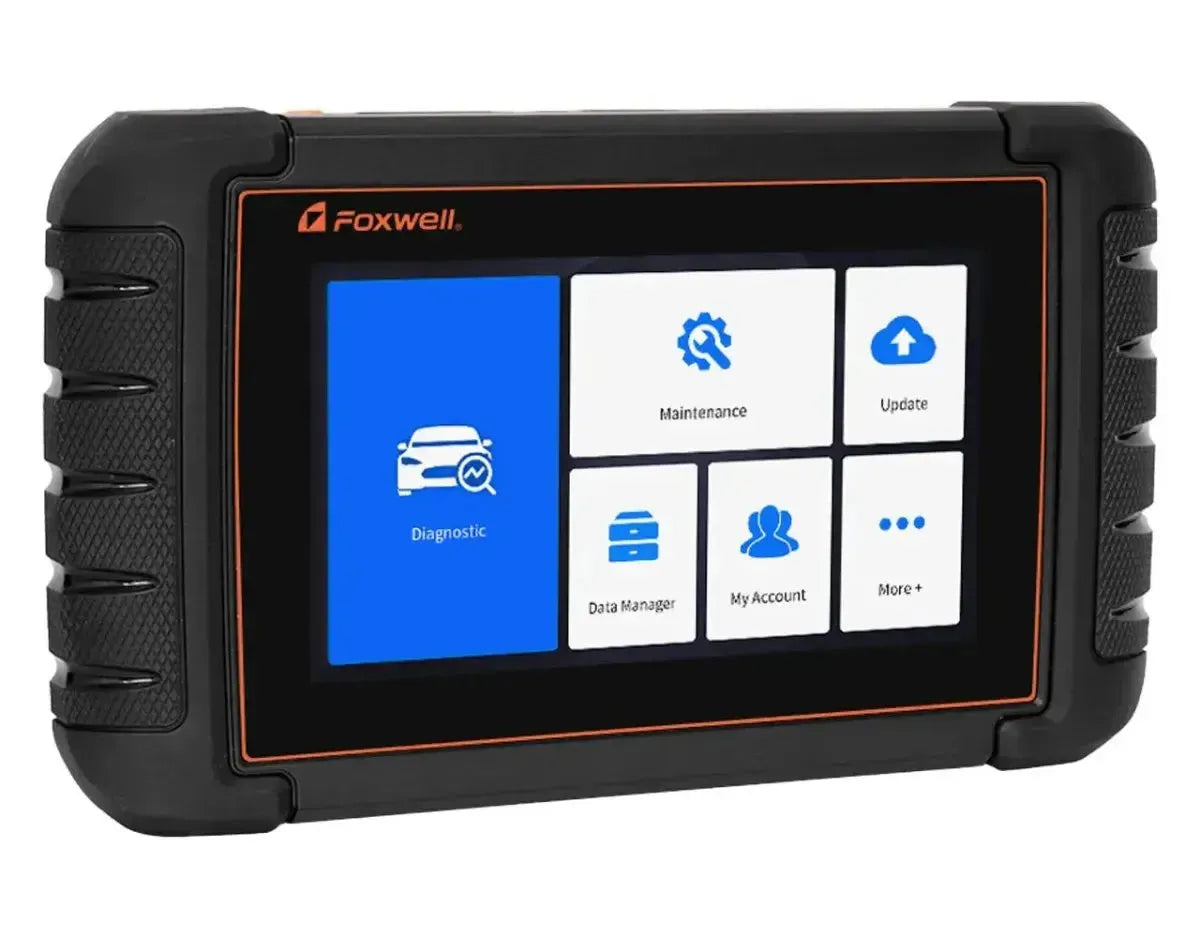

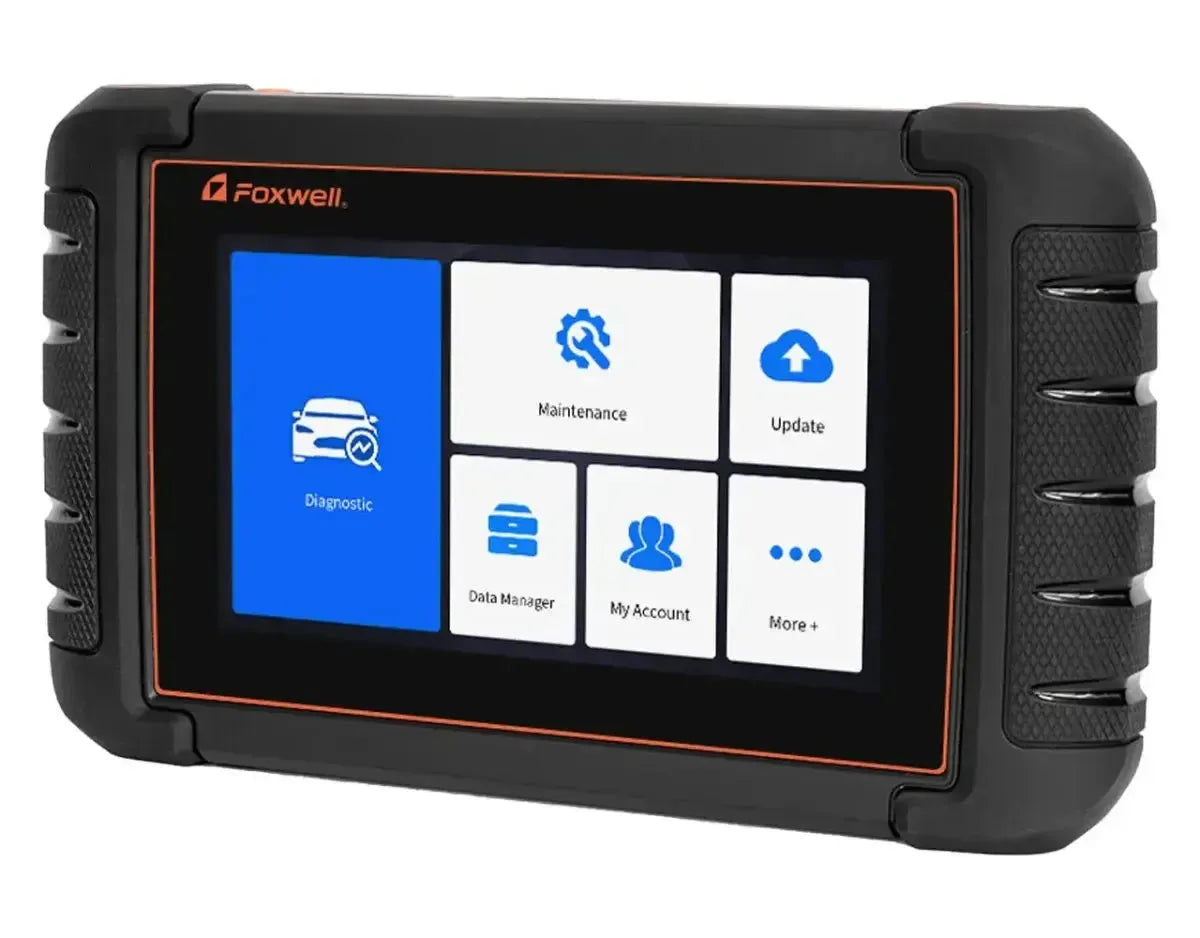

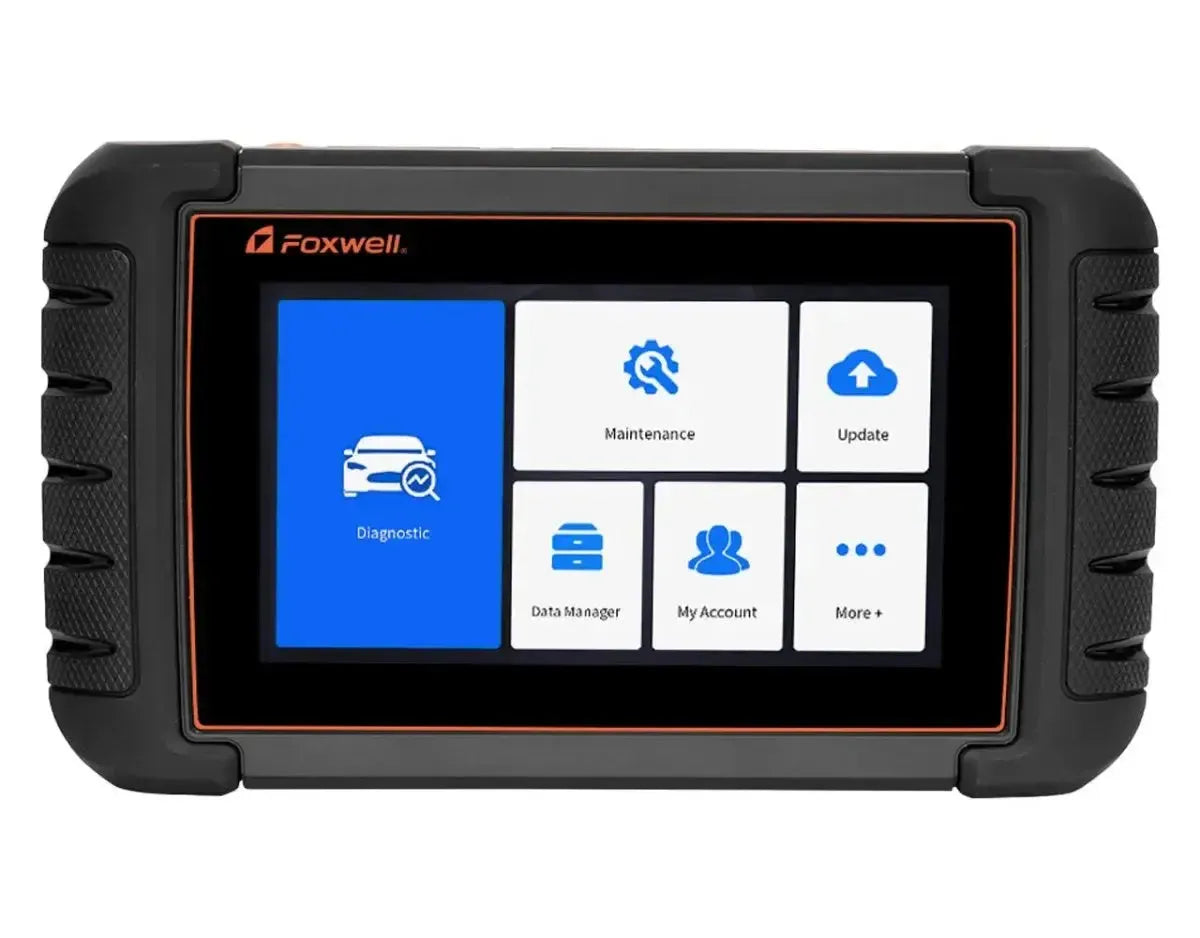

Foxwell I70 II Car Diagnostic Tool

The Foxwell i70 II is a professional Diagnostic Tool that offers extensive support for more than 70 Car brands worldwide. With its Android 9.0 operating system, 7-inch touchscreen, and powerful quad-core processor, this device is designed for both professional workshops and demanding DIYers. It supports full system diagnostics, including engine, transmission, ABS, airbags, climate control, and more. Additionally, it offers 36 advanced service functions, such as diesel particulate filter regeneration, electronic parking brake control, oil and service interval resets, steering angle sensor calibration, and battery registration.

The i70 II features automatic vehicle identification via VIN scanning, live data monitoring with graphical displays, and the ability to generate detailed diagnostic and service reports. Thanks to the robust housing and user-friendly interface, the device is ideal for daily use in various work environments. Additionally, it comes with a license for 3 years of free software updates, ensuring users always have the latest features and vehicle support.

Diagnostic functions:

The Foxwell I70 II is an advanced Diagnostic Tool that provides full support for all electronic vehicle systems. The functions are suitable for use in professional workshops and offer quick fault analysis with extensive coverage.

• Complete vehicle scan: Automatically scans all present electronic modules, including engine, ABS, airbag, transmission, steering, body, HVAC, and comfort systems.
• Read and clear fault codes: Reads and clears active, stored, and temporary fault codes in any ECU. Supports brand- and model-specific codes.
• Live data display: Shows real-time sensor values in graph and table form. Supports comparison of multiple parameters for accurate diagnosis.
• Freeze Frame data: Displays snapshots of vehicle parameters at the moment a fault code was stored, such as engine speed, temperature, and load.
• Actuator tests: Tests the operation of components such as cooling fans, injectors, EGR valves, and fuel pumps by manually controlling them.
• Read ECU information: Retrieves part numbers, software versions, and calibration data from every electronic module.
• Automatic vehicle recognition (Car VIN): Automatically detects the vehicle via the chassis number for a quick diagnostic start.
• Reset adaptation values: Provides access to learning values of various systems such as throttle bodies, transmissions, and DPFs, with the option to reset.

Maintenance and service functions:

The Foxwell i70 II supports more than 35 maintenance and service functions, enabling extensive maintenance procedures to be performed efficiently and professionally. The availability of specific functions depends on vehicle brand, model, and year. The list below provides an overview of the most commonly used functions:

• Service interval reset: Resets the maintenance interval after an oil change or inspection, so the onboard computer displays correct maintenance messages.
• Electronic parking brake (EPB): Puts the parking brake in service mode for brake pad replacement or brake maintenance.
• Battery registration (BMS): Registers a new battery in vehicles with battery management system for correct charging control.
• ABS brake bleeding: Activates the ABS module to remove air from the hydraulic brake system during bleeding.
• Diesel particulate filter regeneration (DPF): Initiates a forced regeneration of the particulate filter to clear blockages.
• EGR system reset: Performs a reset of the exhaust gas recirculation system after cleaning or replacement.
• Injector coding: Codes new or refurbished fuel injectors for optimal fuel injection.
• Throttle body calibration: Calibrates the electronic throttle body for stable idle and throttle response.
• Turbo adjustment: Restores turbo pressure control after replacement or maintenance of the turbo.
• Transmission adaptation (automatic/CVT): Calibrates automatic or CVT transmission systems after maintenance or software update.
• Steering angle sensor calibration (SAS): Calibrates the steering angle sensor after alignment or replacement of steering components.
• Adaptive headlights (AFS): Recalibrates swiveling or automatic lighting for correct operation.
• AdBlue system reset: Resets the AdBlue system after refilling or repair of emission-related components.
• Crankshaft position sensor learning: Performs a learning procedure for the crankshaft sensor after replacement of ECU, flywheel, or sensor.

Cloud and reporting features:

• Cloud reporting: Diagnostic reports can be automatically saved in the Foxwell cloud and are accessible via any linked device.
• Direct report sharing: Easily send diagnostic reports via email, QR code, or link – without the need for a PC.
• Synchronize vehicle history: Share maintenance and fault code history of vehicles between different Foxwell devices within the workshop.
• Export PDF report: Export complete diagnostic reports as PDF files and save them locally or in the cloud for customer management or archiving.
• Real-time cloud synchronization: Reports and data are automatically uploaded when a WiFi connection is active.
• Remote management: Workshop managers can view diagnostics and reports remotely via the online Foxwell portal.

Additional features:

• Pre-scan and post-scan reporting: Record fault statuses before and after work to support quality control or insurance processes.
• Advanced graph display: Combine and compare multiple live parameters in one graph for in-depth analysis.
• VIN recognition and vehicle suggestion: Automatically recognizes the vehicle type and loads matching diagnostic selection.
• Smart vehicle recognition: The device stores previous vehicles and automatically loads previous settings and reports on repeat visits.
• Set maintenance schedules: Create custom service lists based on mileage or time (if supported).
• Fault code descriptions with explanations: Provides each fault code with a clear description and possible cause, depending on brand and module.
• Visual module display: Displays system statuses in color codes (green/yellow/red) for quick interpretation of the vehicle status.
• Screenshot and storage management: Save fault codes, graphs, or system statuses as images and manage them via the built-in file manager.

Supported Car brands:

• European brands: Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroën, Dacia, DS, Ferrari, Fiat, FordEU, Iveco LD, Jaguar, Lancia, Lamborghini, Land Rover, Maserati, Maybach, MAN LD, Mercedes-Benz, Mercedes-Benz LD, MINI, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Vauxhall, Volkswagen, Volkswagen CV, Volvo
• Asian brands: Acura, Daewoo, Daihatsu, Fuso, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Samsung, Scion, SsangYong, Subaru, Suzuki, Tata, Toyota
• American brands: Chrysler, Dodge, Ford, GM, Jeep, Tesla
• Chinese brands: BAIC Huansu, BAIC Motor, BAIC Senova, BAIC Weiwang, BJEV, BYD, Baojun, Bestune, Brilliance, Changan, Changan Suzuki, Chery, CoWIN, DFFG, DFPV, DFXK, Dorcen, EXEED, FAW Car, Foton, GAC Motor, Geely, Gonow, Great Wall, Guang Qimit, Hafei, Haima, Hawtai, Hongqi, JAC, JIQING, Jetour, Jiangling, Karry, Landwind, Lifan, New Baojun, Qoros, Rely, Riich, Roewe, SAIC MG, SAIC Maxus, TJFAW, Venucia, Wuling, Zotye, Zhongxing

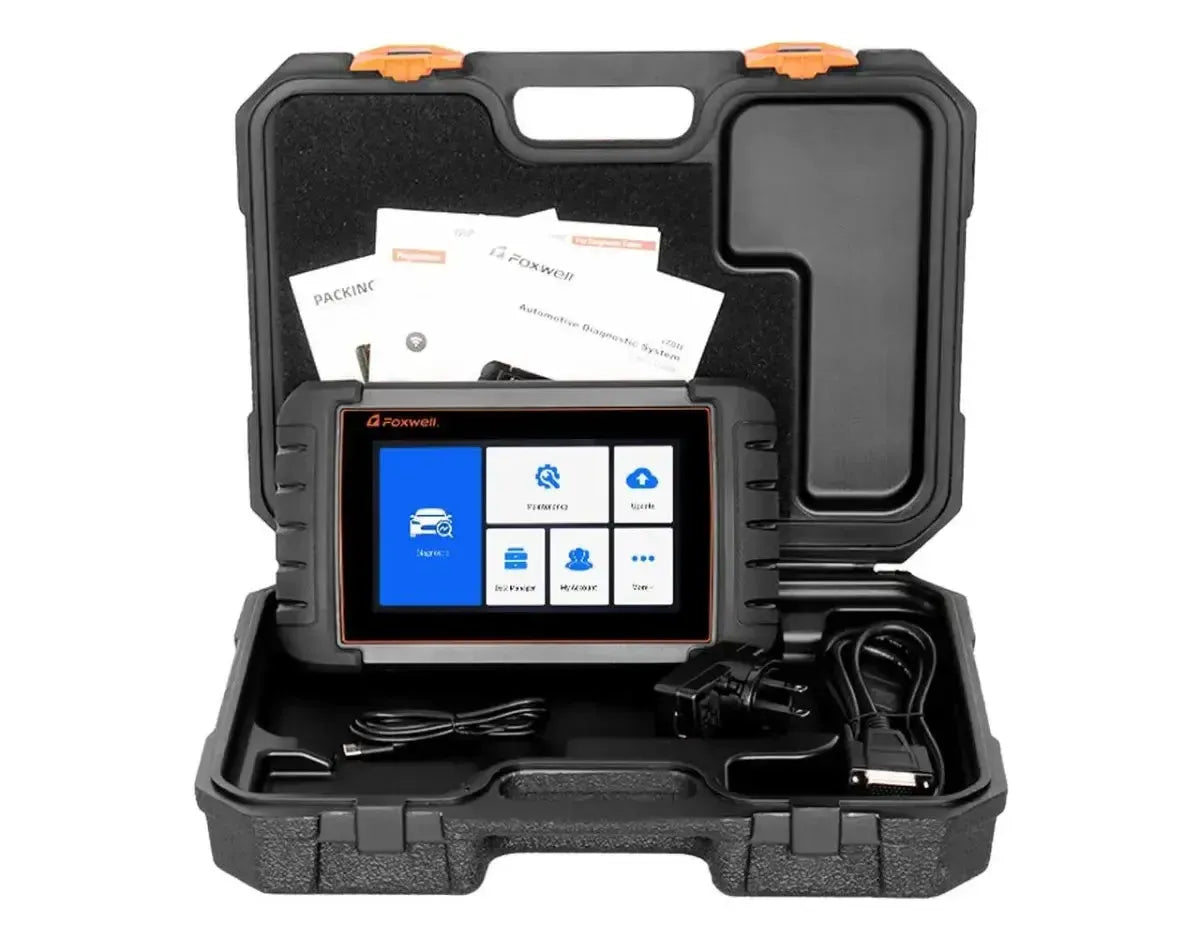

Package contents:

• Foxwell I70 II Diagnostic Tool
• Foxwell 15 Pins DB15 - 16 Pins OBD2 adapter cable
• USB-A - USB-C adapter cable
• Charging plug
• Manual
• Storage case

License information:

• Including 3 years of updates: A update license for 36 months is included with purchase.

After the third year, the license can be renewed for an annual fee. The device remains fully functional for already supported models, even without license renewal. However, new software updates can no longer be installed, and some online features may be limited or no longer supported.

Technical specifications
