CarLabImmo | FCA 12+8-pins SGW - 16-pins OBD2 Adapter Cable | Passe...

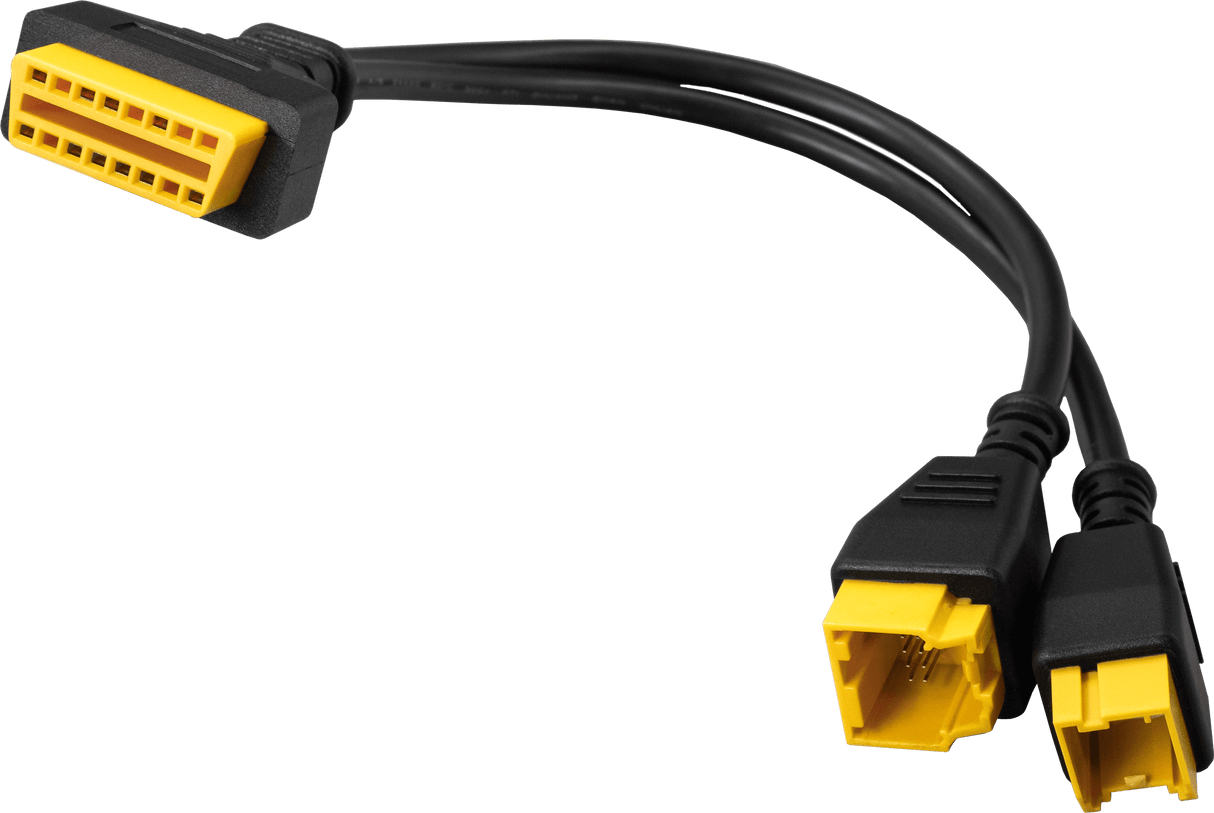

The CarLabImmo FCA 12+8-pin SGW Adapter cable is a diagnostic Adapter developed to bypass the Security Gateway Module (SGW). This module is present in recent vehicles from the Fiat Chrysler Automobiles (FCA) group. The cable creates a direct connection between a standard 16-pin OBD2 diagnostic tool and the internal vehicle networks by connecting to the 12-pin and 8-pin connectors of the vehicle.
The SGW module functions as a firewall that restricts access for aftermarket diagnostic equipment to most vehicle systems. The use of this Adapter cable is necessary to perform complete diagnostic operations. This includes performing bidirectional controls, actuator tests, making adjustments, and clearing fault codes in all present modules, which is not possible without this bypass.
Application and functionality:
This Adapter is designed to give diagnostic equipment full access to the electronic system of vehicles equipped with an SGW module.
- SGW bypass: Bypasses the Security Gateway Module, allowing unlimited communication with all vehicle modules.
- Complete system diagnosis: Enables reading and clearing of fault codes (DTCs) for all systems, including engine, transmission, ABS, airbag, and body control module (BCM).
- Bidirectional control: Supports performing actuator tests, system calibrations, and special functions blocked by the SGW.
- Programming and coding: Provides access to advanced functions such as key programming and module configuration adjustments, depending on the diagnostic tester used.
- Wide compatibility: Works with most advanced diagnostic testers from brands supporting FCA diagnostics.
Package Contents:
- 1x CarLabImmo FCA 12+8-pin SGW to 16-pin OBD2 Adapter cable
Technical specifications:
| Brand | CarLabImmo |
| Model | FCA 12+8-pin SGW Adapter cable |
| Connection 1 | 12-pin connector + 8-pin connector (vehicle side) |
| Connection 2 | 16-pin OBD2 female connector (diagnostic tool side) |
| Application | Bypass of Security Gateway Module (SGW) |
| Compatible brands | Alfa Romeo, Chrysler, Dodge, Fiat, Jeep, Lancia, Maserati, Ram |
