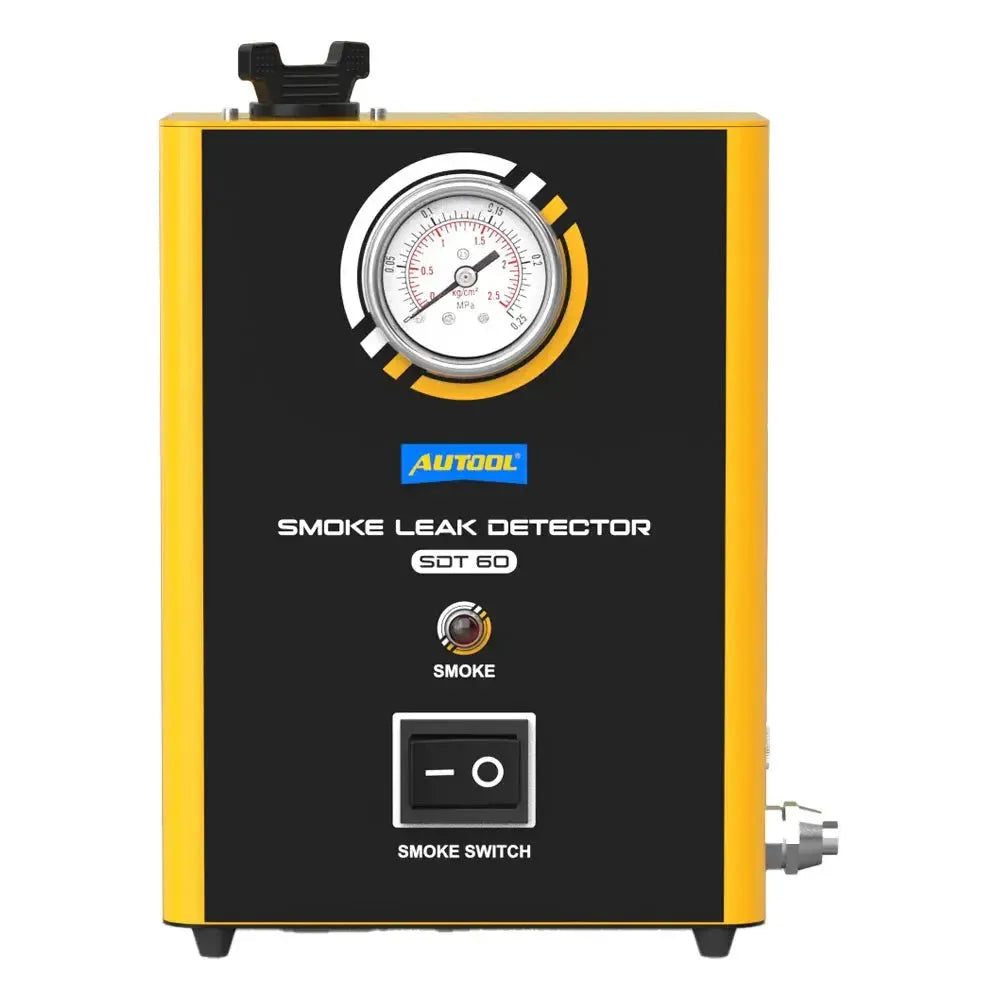

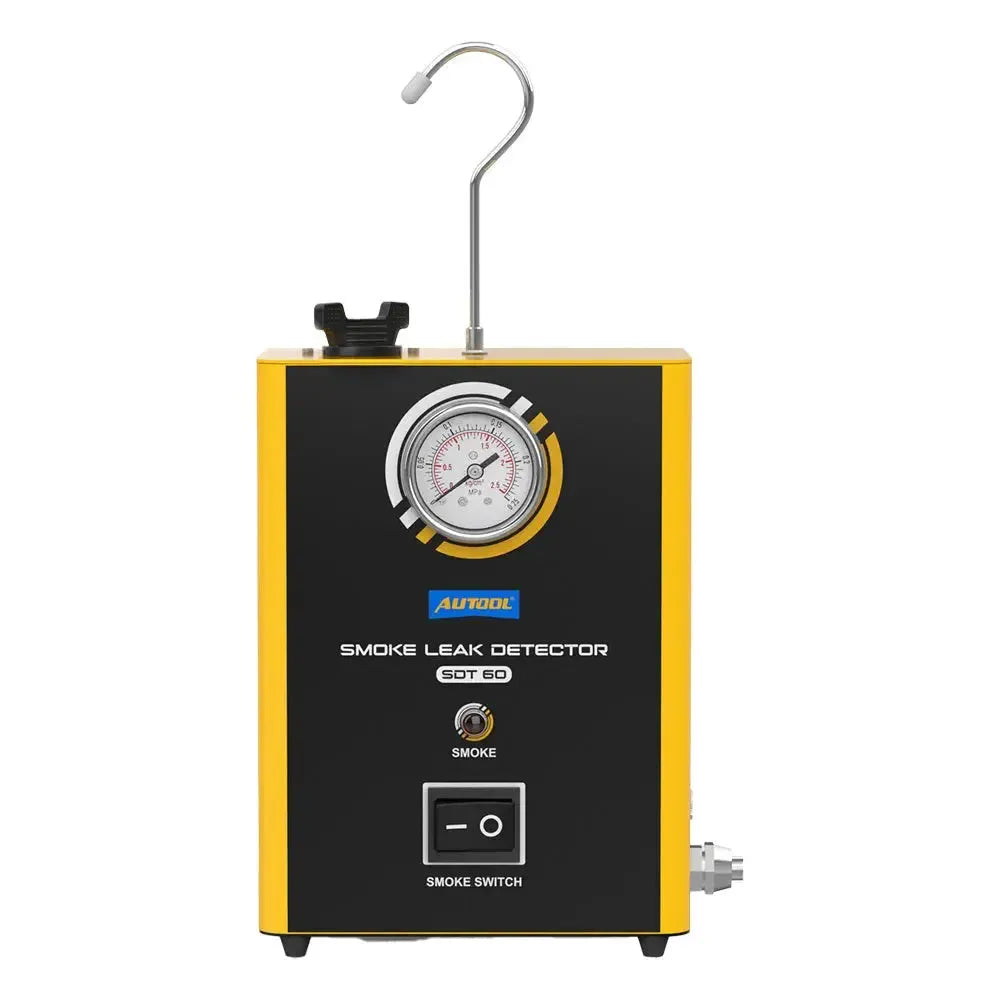

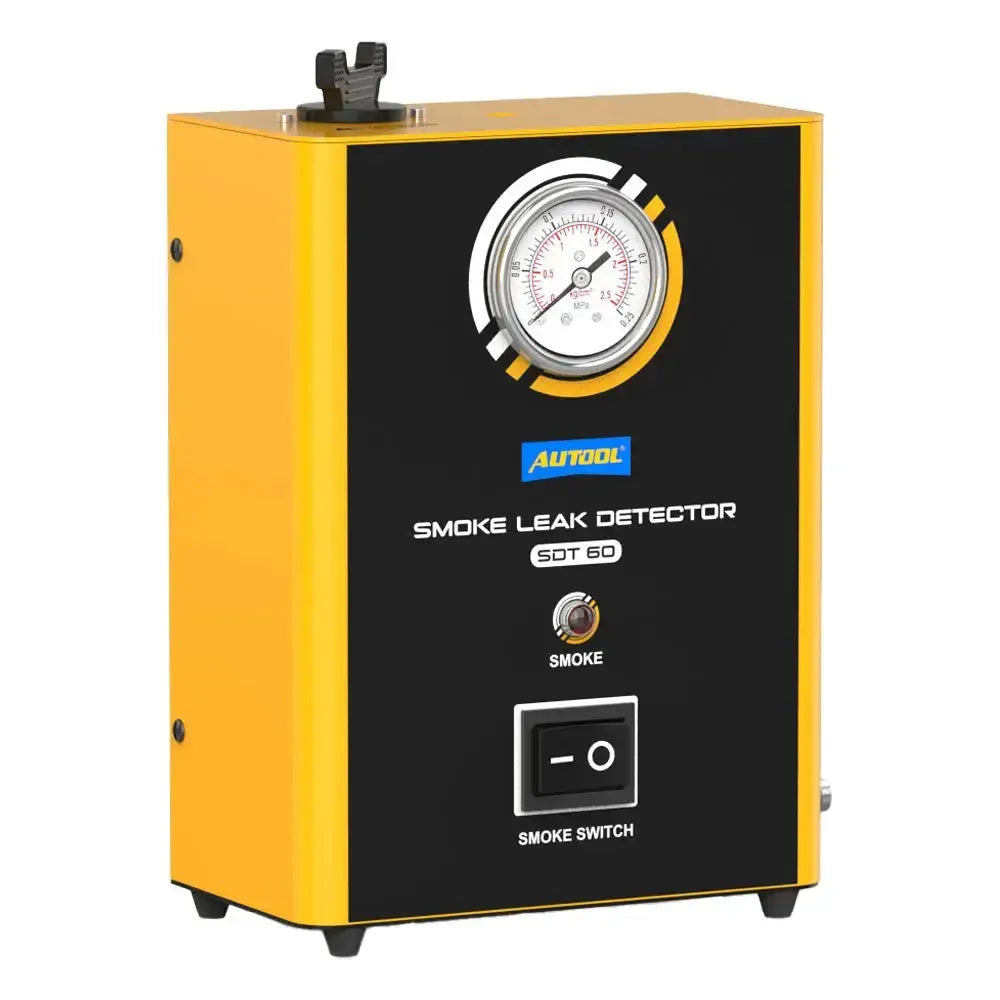

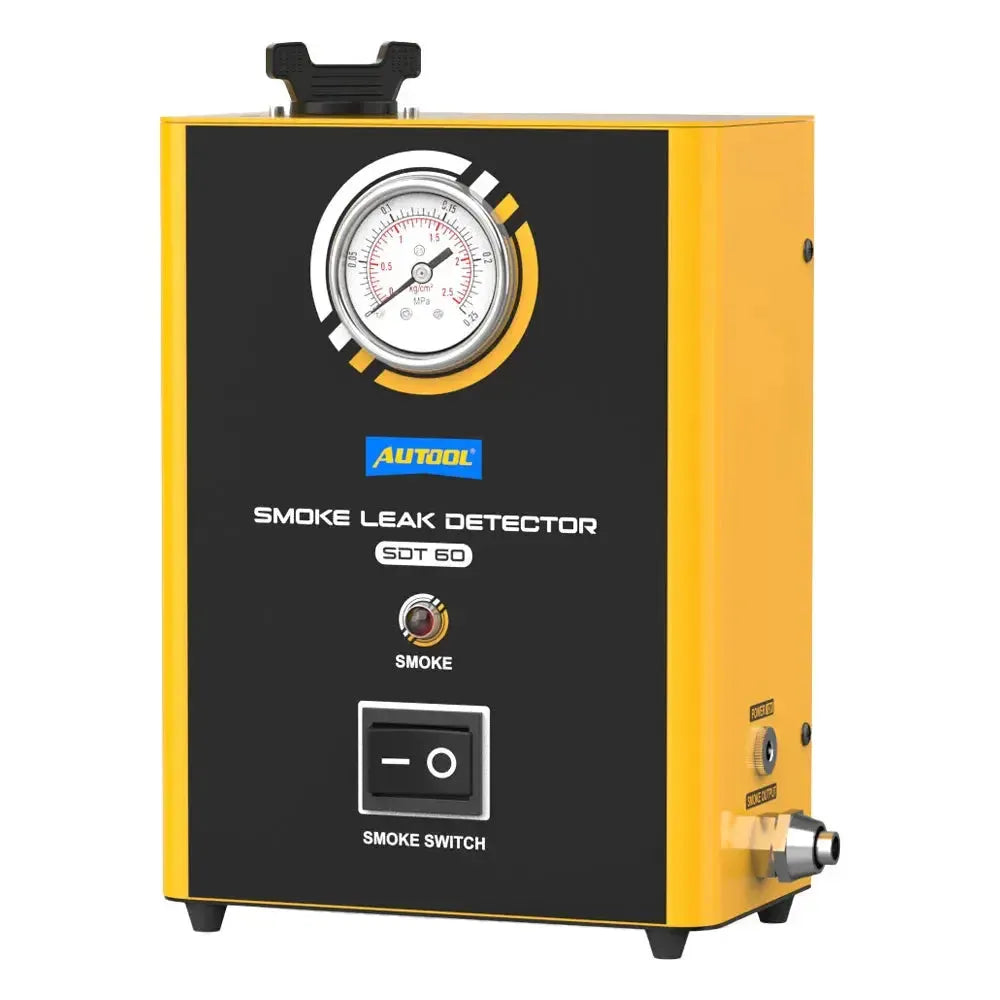

Autool SDT60 | Smoke Tester

The Autool SDT60 is a Smoke Tester designed for detecting leaks in various piping systems of vehicles. This device operates on a 12V DC vehicle battery and features a built-in air pump, eliminating the need for an external air source. The smoke tester generates smoke through low oxygen combustion and directs it into the system to be tested. An integrated pressure gauge displays the pressure in the system, which helps determine the presence and extent of a leak.

The Smoke Tester is equipped with safety mechanisms, including an overheating protection that shuts off the device at temperatures above 75°C and a frost protection that activates below -20°C. Thanks to its compact size and a weight of 1.6 kg, the SDT60 is portable. The device produces smoke quickly after switching on, reducing diagnostic time. The included accessories, such as a set of universal adapters, make it suitable for testing various components.

Application and functionality:

The Autool SDT60 is used for locating leaks in closed systems of cars, engines, and other vehicles.

• Built-in air pump: The device operates completely independently without the need to connect an external compressed air source.

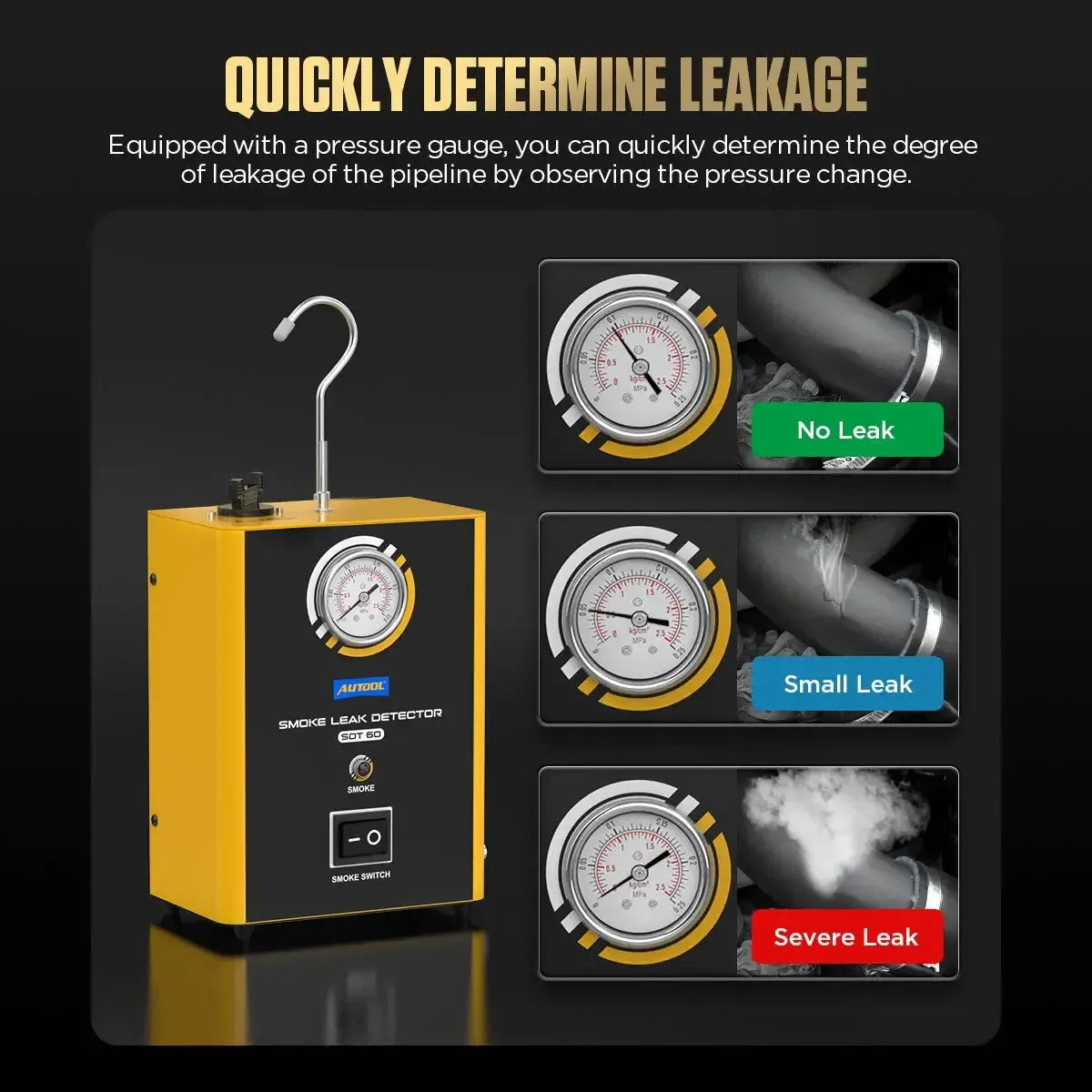

• Pressure gauge: This allows reading the pressure in the system to determine if there is a leak and to estimate its severity.
• Wide applicability: Suitable for testing various systems, such as the intake system, exhaust system, crankcase, intercooler, fuel tank, coolant reservoir, and other pipes.
• Protection: The system automatically shuts off to protect against overheating (>75°C) and is protected against frost damage (<-20°C).
• Fast smoke production: Produces dense smoke within a short time for efficient and quick leak diagnosis.

Package Contents:

• 1x Autool SDT60 Smoke Tester
• 1x Power cord with battery clamps
• 1x Smoke hose
• 1x Hanging hook
• 1x Set of universal rubber stoppers
• 1x Funnel
• 1x Squeeze bottle for test oil
• 1x Manual

Technical specifications:
