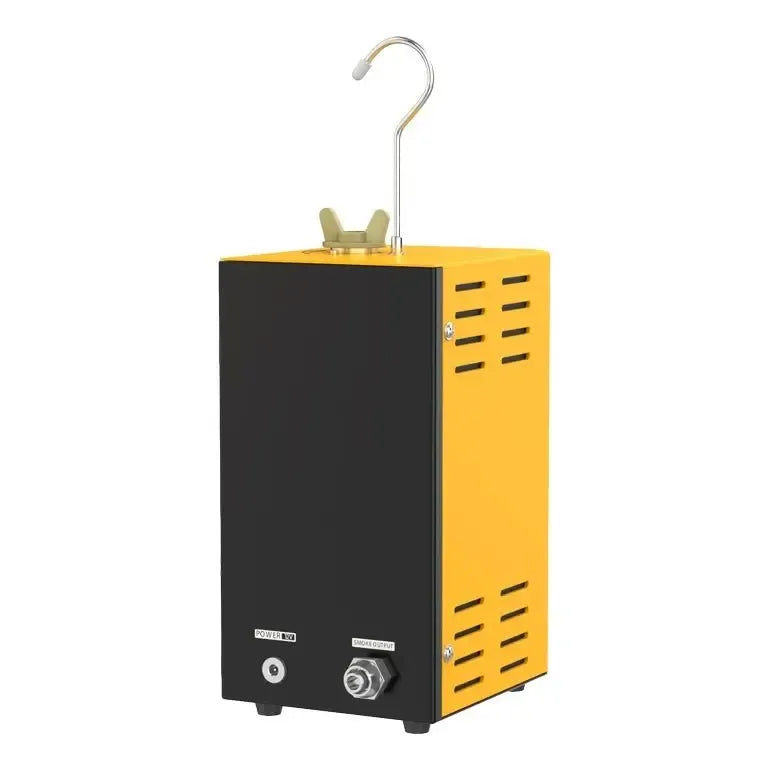

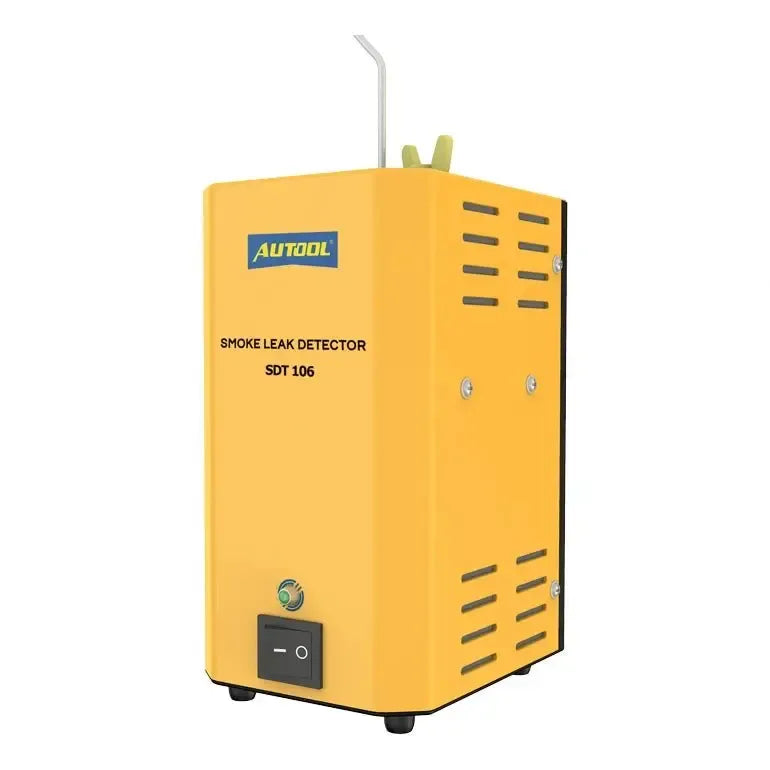

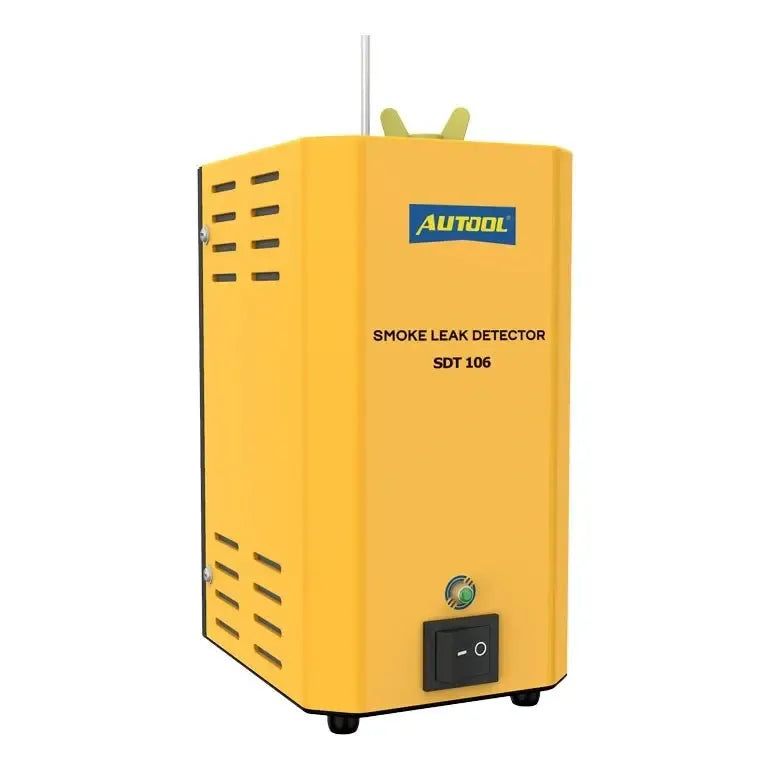

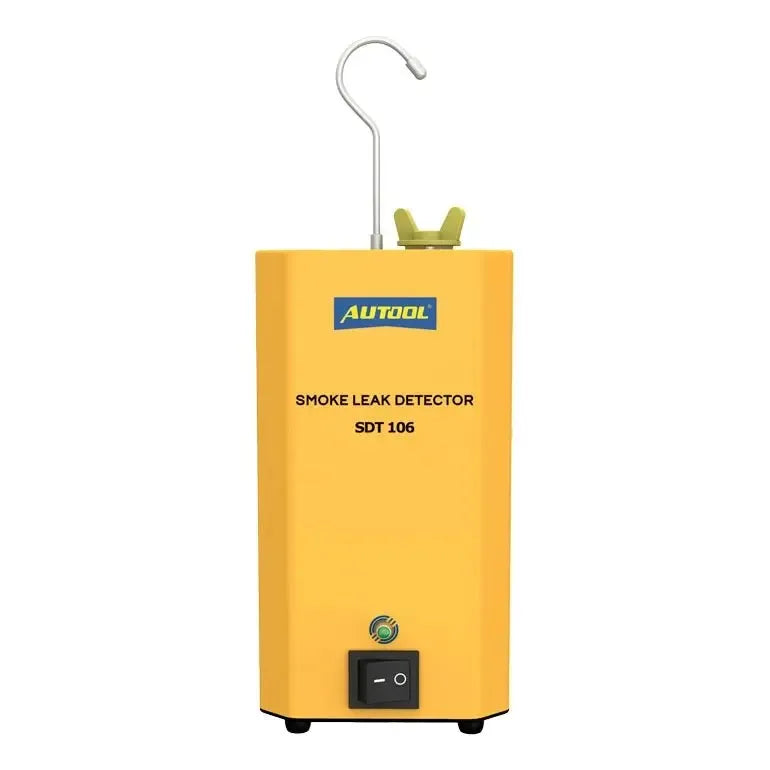

Autool SDT106 Smoke Tester

The Autool SDT106 is a compact and affordable Smoke Tester designed to detect leaks in vehicle systems such as the intake system, exhaust system, crankcase ventilation, and EVAP. Thanks to its simple operation and fast warm-up time, this model is especially suitable for universal use in smaller workshops or for mobile diagnostics. The SDT106 operates on a standard 12V vehicle voltage and produces visible smoke based on mineral oil or baby oil.

With a smoke output of approximately 6 liters per minute and an operating pressure of 0.2–0.4 bar, this Smoke Tester is powerful enough for standard diagnostic tasks without risk of damage to components. The integrated air pump and temperature protection ensure safe operation without an external air compressor.

Features:

• Intake system test: Trace air leaks in intake manifolds, turbo hoses, and throttle bodies.

• EVAP system check: Supports diagnosis of fuel vapor systems for leaks.

• Crankcase ventilation system test: Detect blockages or vacuum leaks.

• Exhaust system inspection: Locate exhaust leaks with visual smoke detection.

• Fast warm-up time: Ready for use in about 30 seconds.

• Internal air supply: No external compressor needed.

• 12V power supply: Connection via vehicle battery with battery clamps.

• Smoke Tester output via silicone hose: Flexible and heat-resistant connection for various applications.


Special features:

• Temperature protection: Automatic shutdown on overheating prevents damage.

• Compact design: Lightweight and easy to move, ideal for mobile use.

• Visual smoke detection: Clear smoke to quickly identify micro leaks.

• Oil level protection: Warns when smoke fluid level is too low.

• Basic switch operation: Easy on and off with one button.


Package contents:

• Autool SDT106 Smoke Tester

• Battery clamp power cable

• EVAP adapter

• Cone seal

• Hanging hook

• Plastic sealing caps

• Rubber sealing caps

• Rubber hose

• Valve removal tool

• Filling bottle

• Filling funnel

• Manual

Technical specifications
