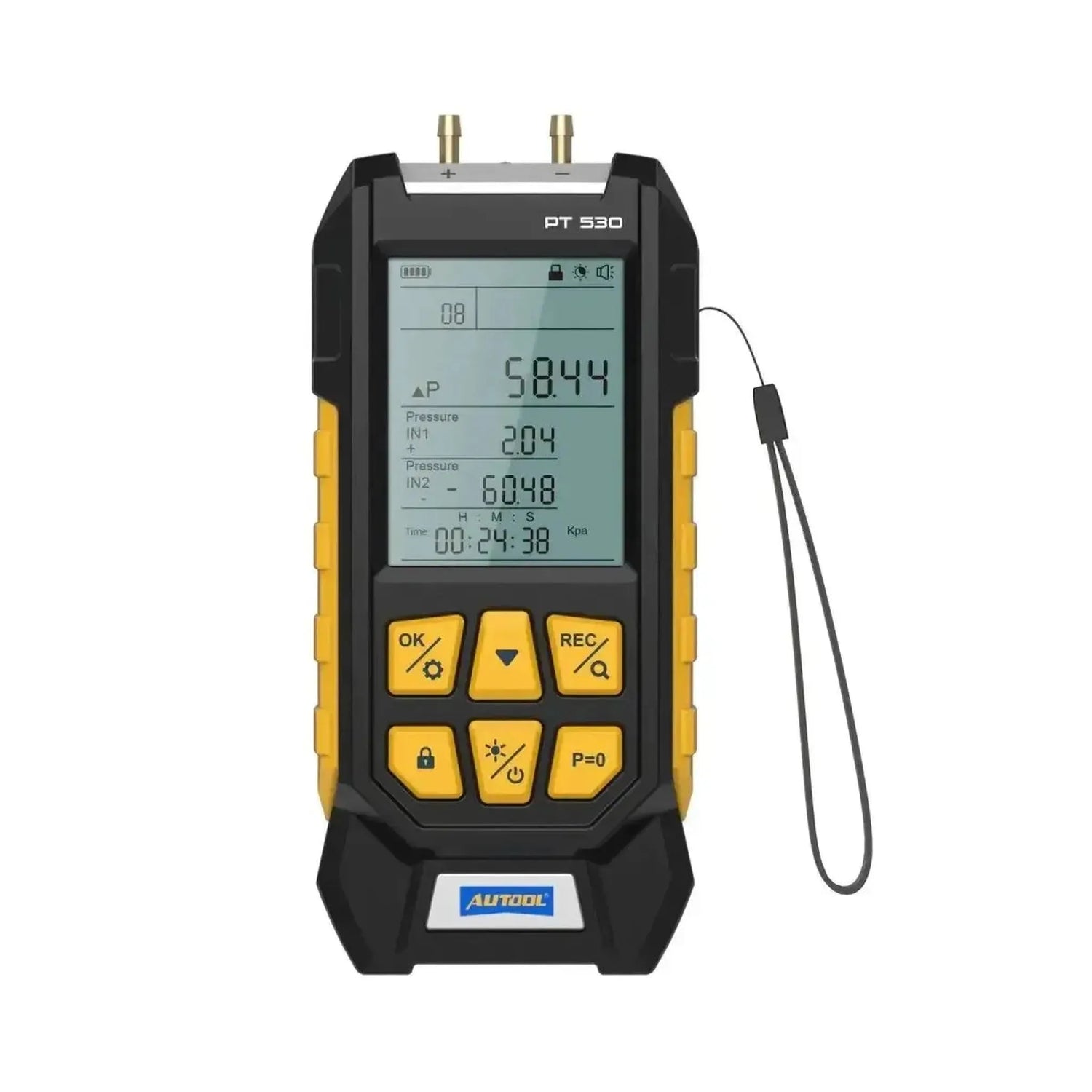

The Autool PT530 is a digital air pressure tester, also called a manometer, designed for measuring both positive and negative pressure. The device features two ports, enabling the measurement of differential pressure. The tester has a measurement range of -100 to 300 kPa and an accuracy of ±0.25%FS. The measurements are displayed on a large LCD screen with backlighting.

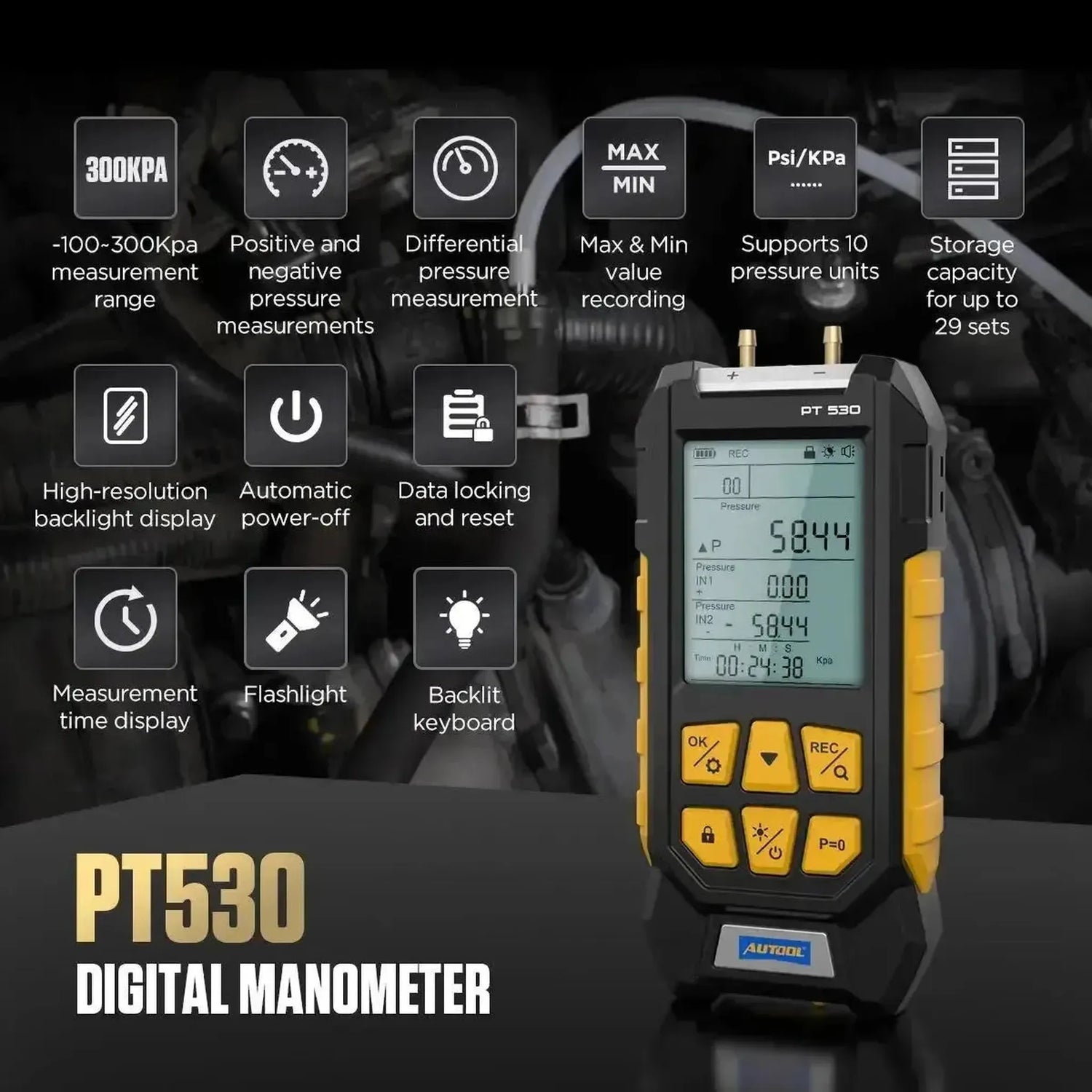

This manometer supports measurements in ten different units, including kPa, psi, and mbar. Features such as data hold, recording maximum and minimum values, and data storage for up to 29 datasets are integrated. For extra convenience, the PT530 is equipped with a built-in flashlight, a magnetic back for hands-free operation, illuminated keys, and an automatic shut-off function after 10 minutes of inactivity.
Application and functionality:

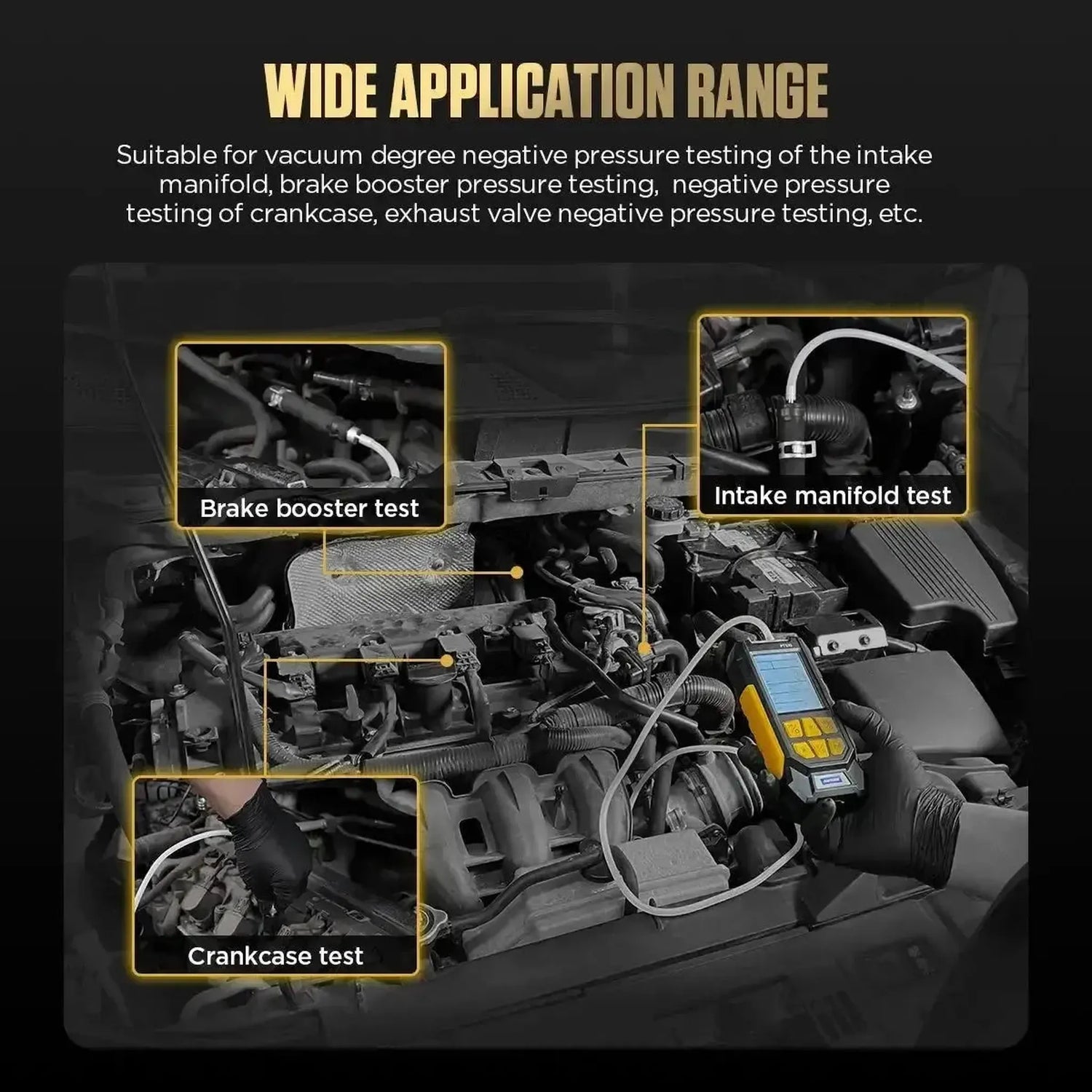

The Autool PT530 is used for diagnosing pressure systems in vehicles and other applications. The included adapters make it suitable for various pipe diameters.
- Pressure measurement: Measures positive, negative, and differential pressure via the dual ports.

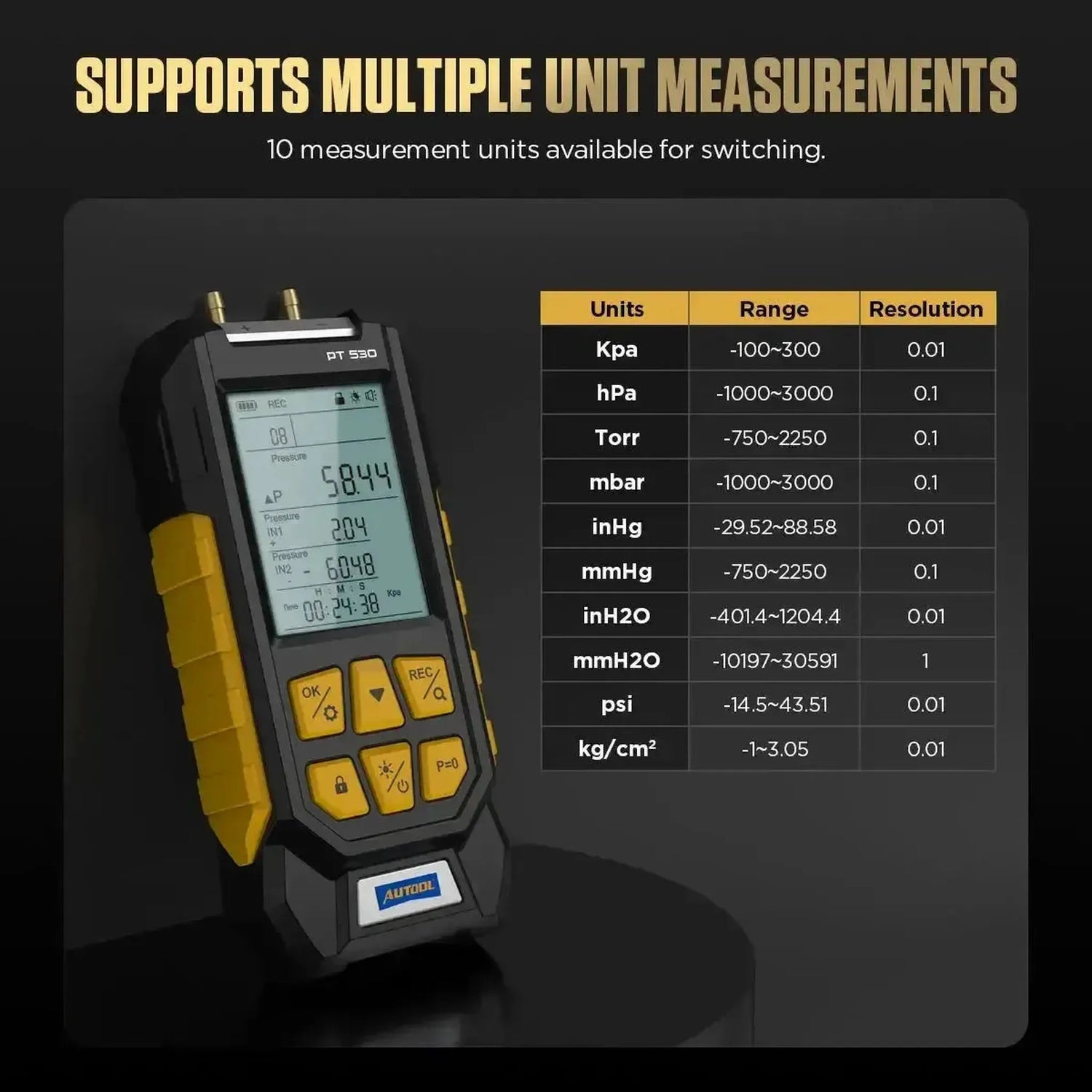

- Multiple units: Switching between 10 measurement units is possible: Kpa, hPa, Torr, mbar, inHg, mmHg, inH2O, mmH2O, psi, and kg/cm².
- Data storage: Stores up to 29 measurement results for later analysis.
- Max/Min recording: Records the highest and lowest measured pressure value during a session.
- Data Hold and zeroing: The current measurement value can be locked on the screen and the device can be calibrated to zero.

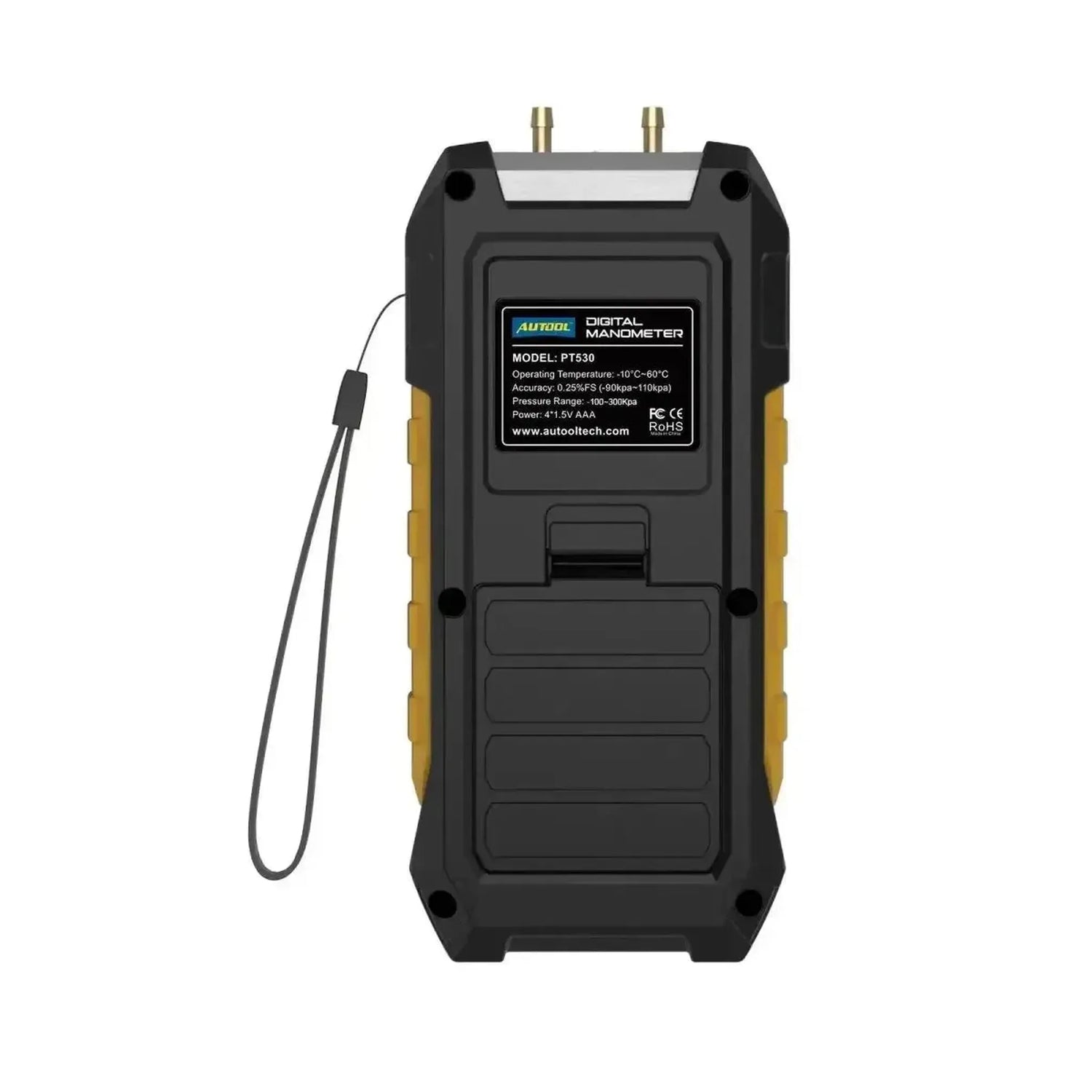

- Magnetic back: Can be attached to metal surfaces for stable, hands-free measurements.
- Built-in flashlight: Provides illumination when working in dark spaces.
- Automatic shut-off: The device turns off automatically to save battery.

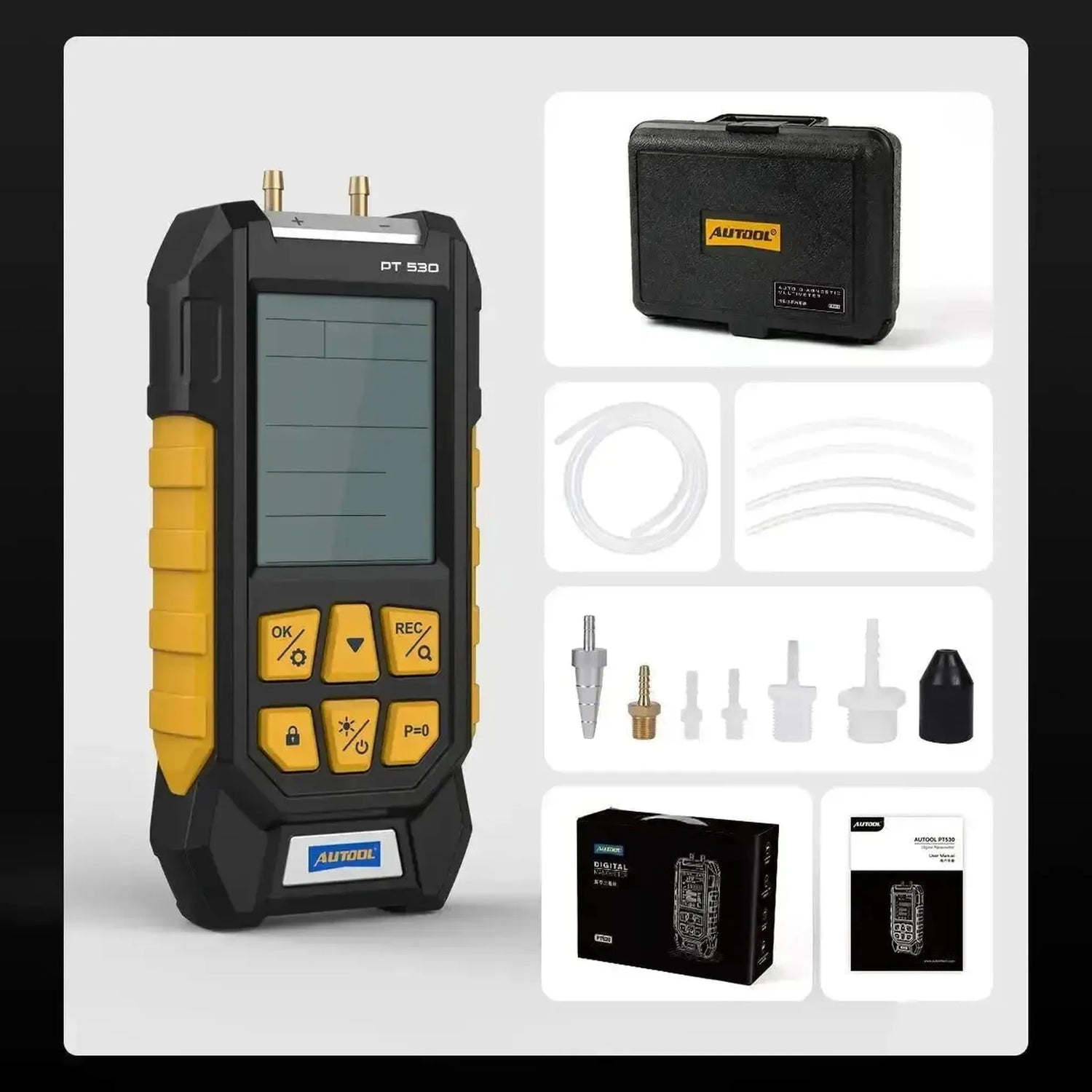

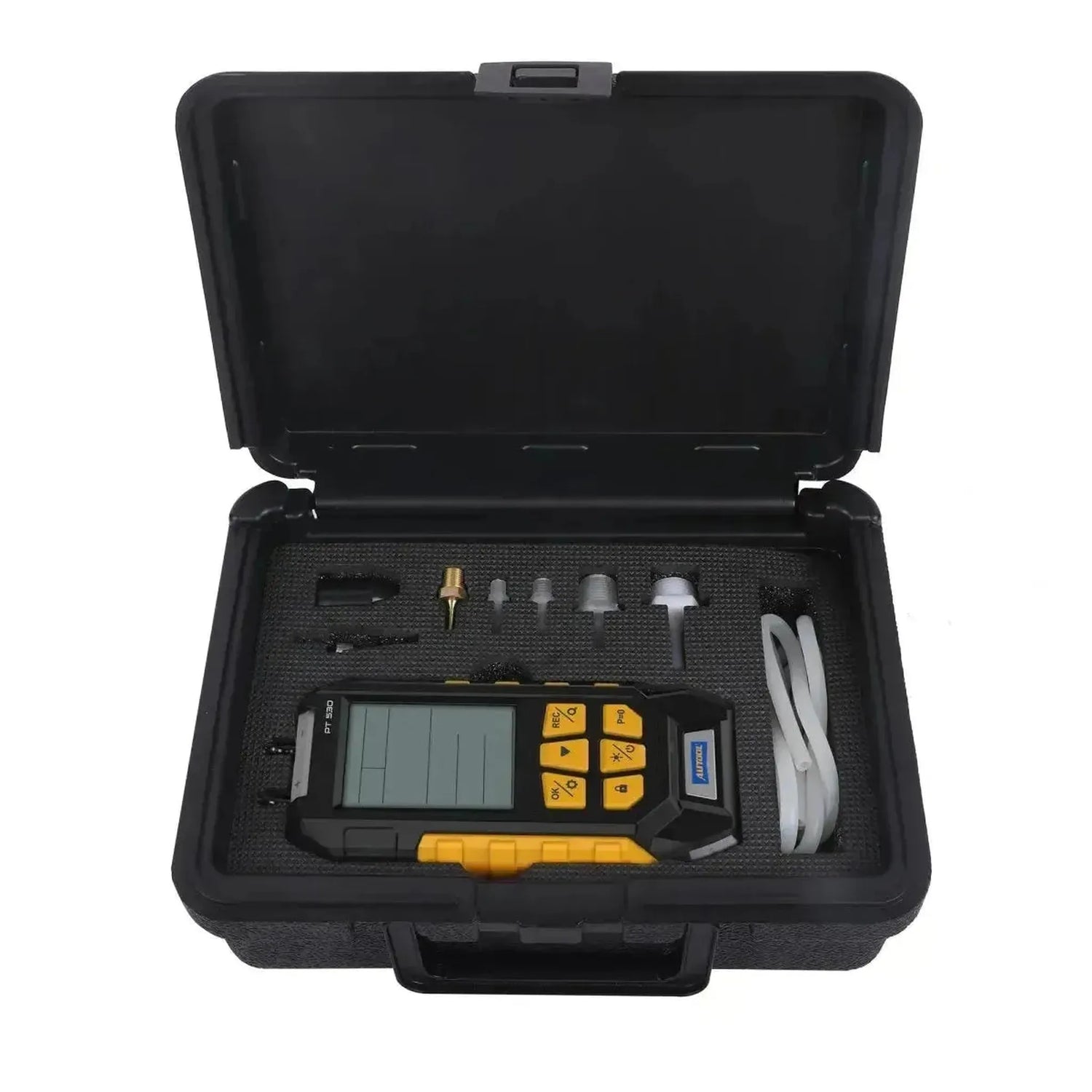

Package Contents:
- 1x Autool PT530 digital air pressure tester
- 1x Hose

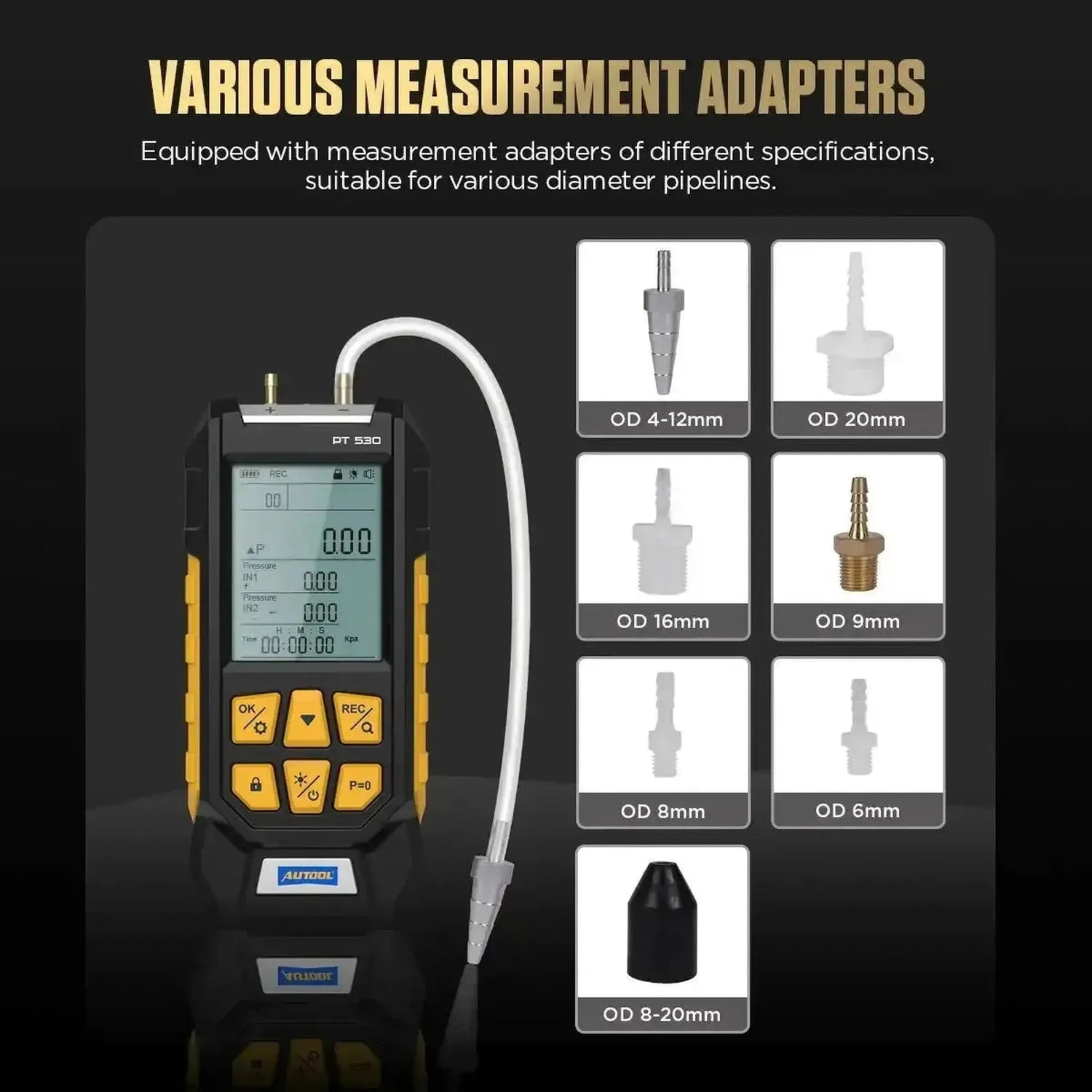

- 1x Adapter (OD 4-12 mm)
- 1x Adapter (OD 20 mm)
- 1x Adapter (OD 16 mm)
- 1x Adapter (OD 9 mm)
- 1x Adapter (OD 8 mm)
- 1x Adapter (OD 6 mm)
- 1x Adapter (OD 8-20 mm)
- 1x Manual

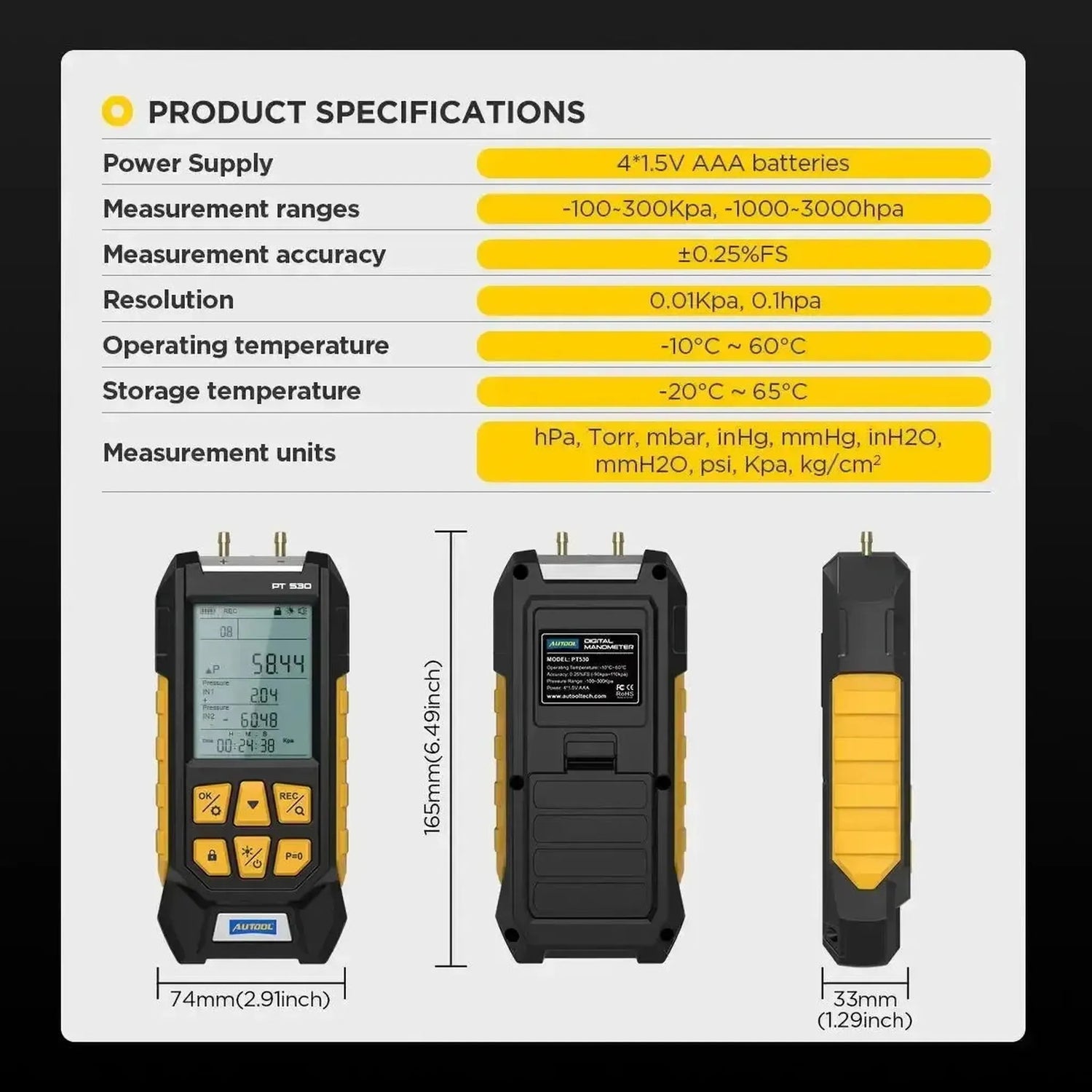

Technical specifications:
| Specification | Description |
|---|---|
| Brand | Autool |
| Model | PT530 |

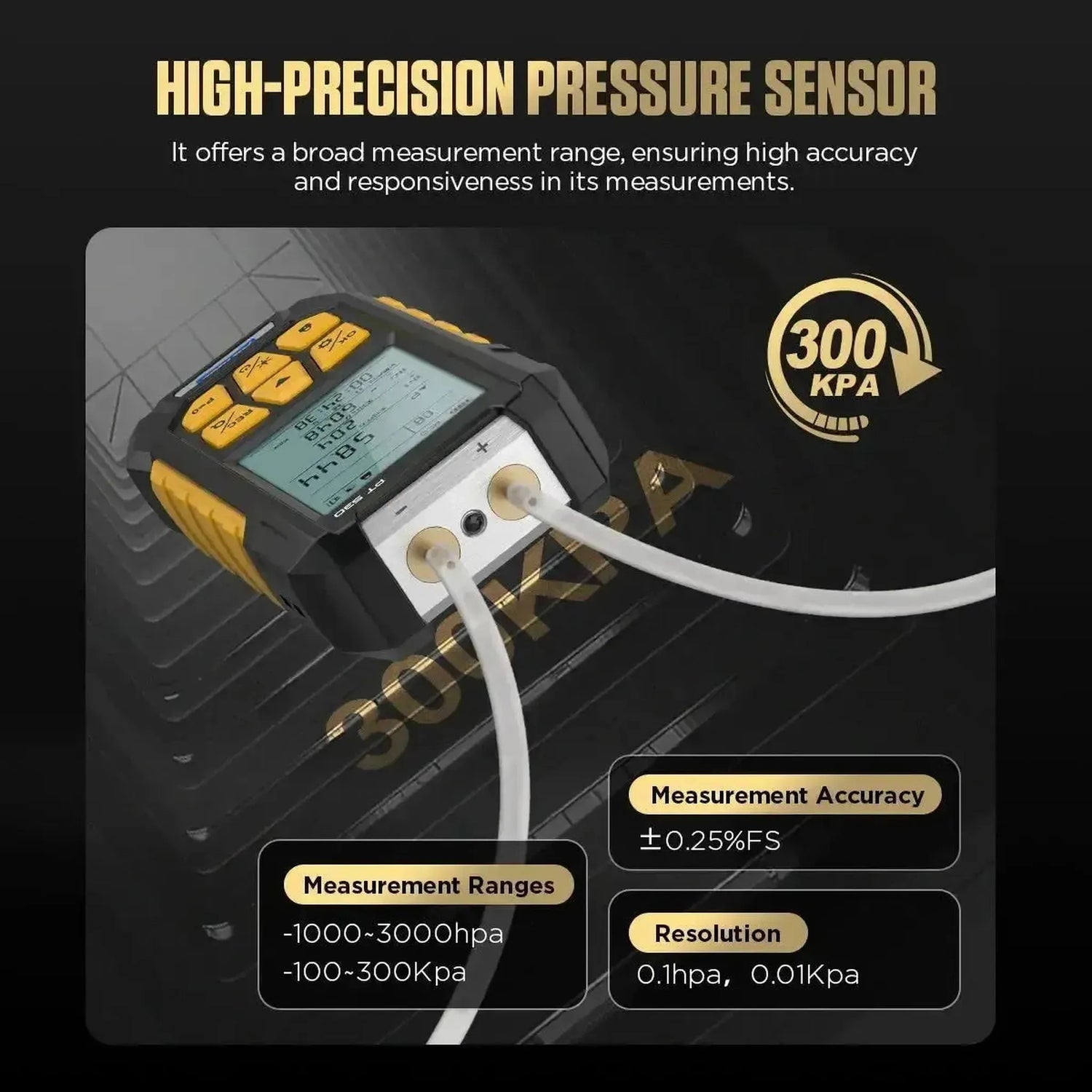

| Measurement range | -100 to 300 kPa / -1000 to 3000 hPa |
| Accuracy | ±0.25%FS |
| Resolution | 0.1 kPa / 1 hPa |
| Measurement units | Kpa, hPa, Torr, mbar, inHg, mmHg, inH2O, mmH2O, psi, kg/cm² |
| Data storage | 29 datasets |
| Power supply | 4x 1.5V AAA batteries (not included) |
| Operating temperature | -10 °C to 60 °C |
| Storage temperature | -20 °C to 65 °C |
| Dimensions | 165 x 74 x 33 mm |
