Discover similar products: Air Conditioning Gauges and Accessories, Autool
Autool  |  SKU: LM120+

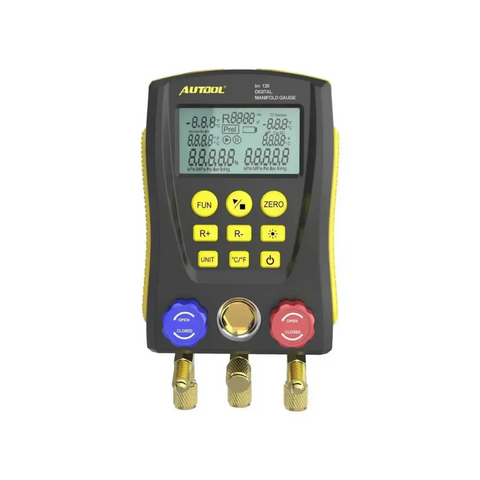

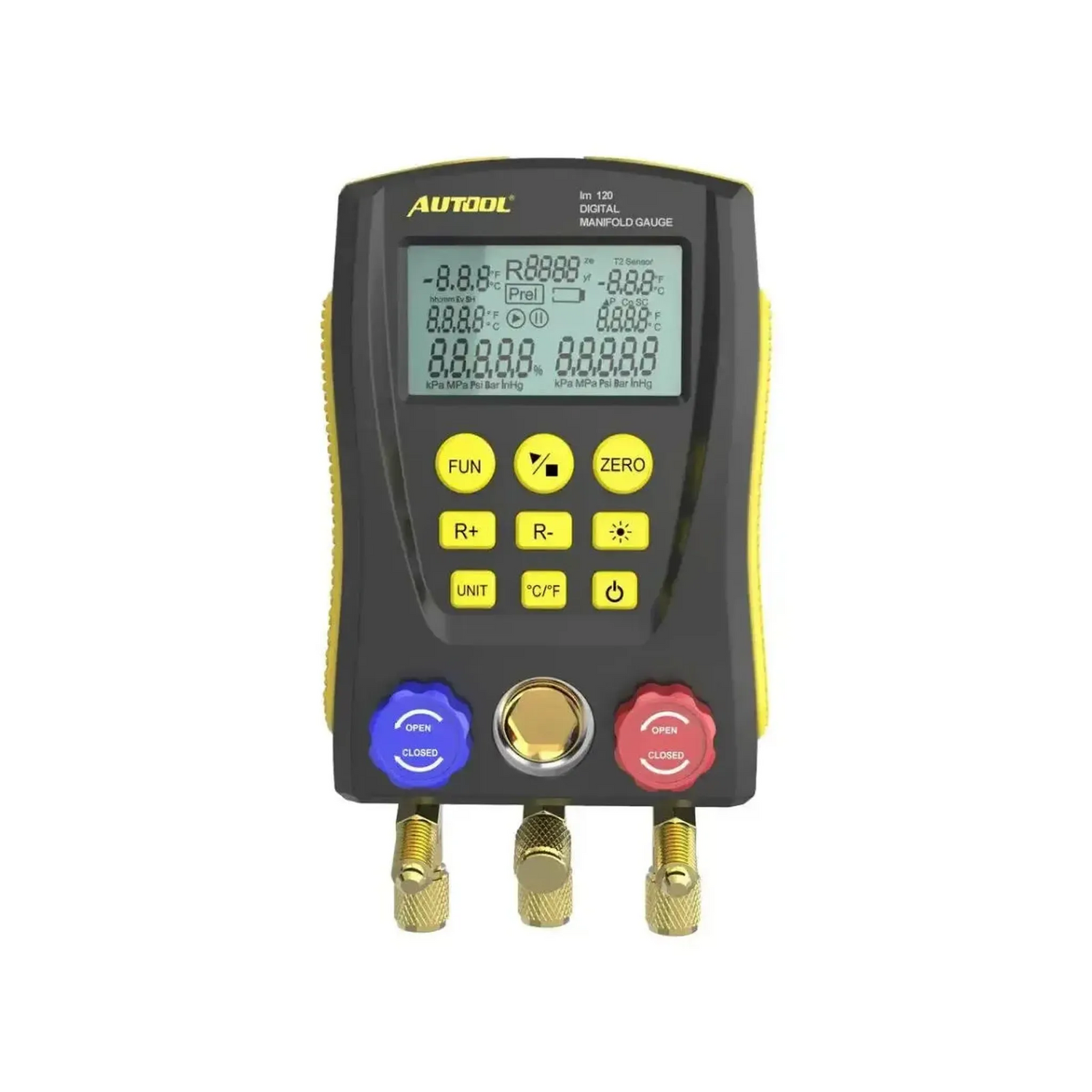

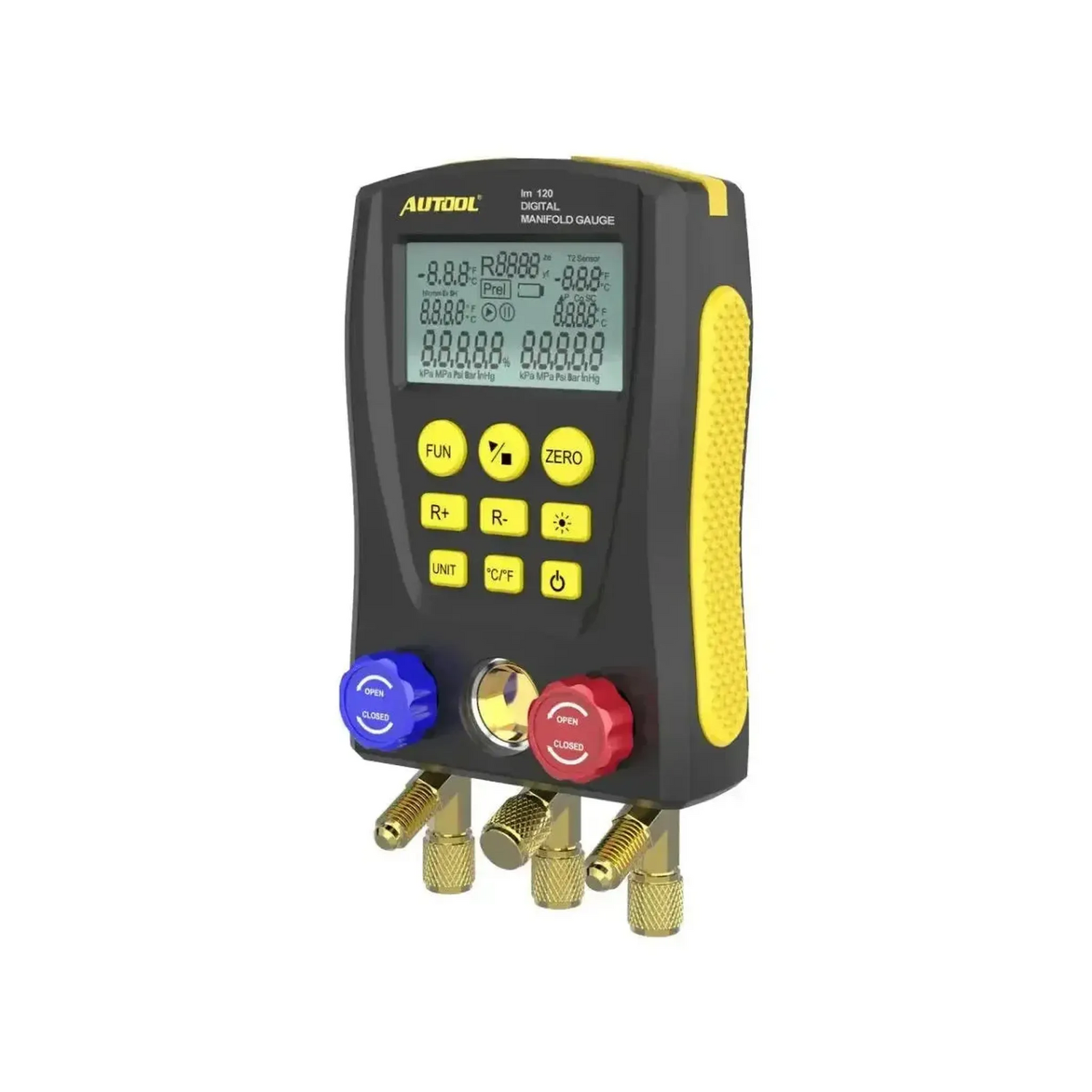

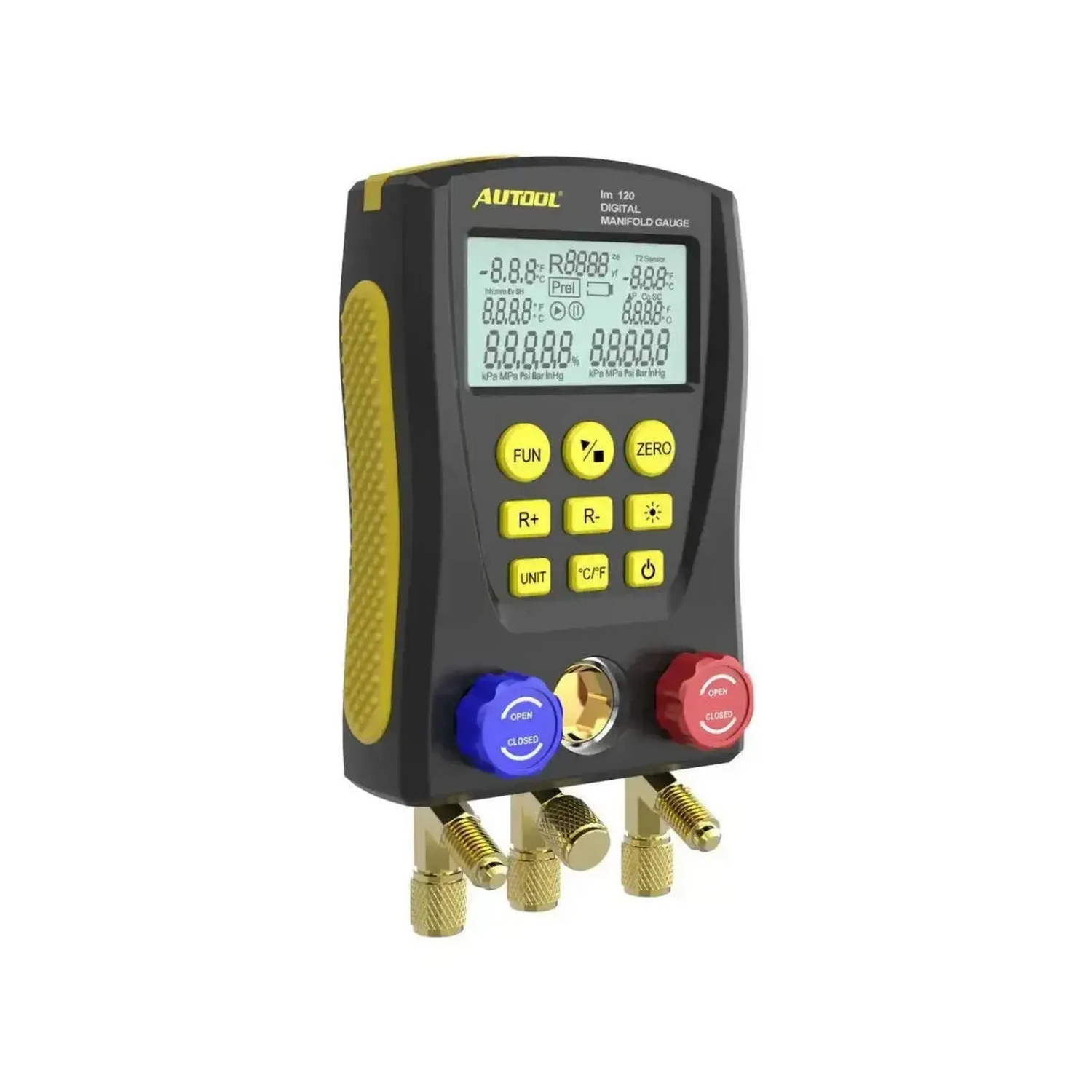

Autool LM120+ | AC Manifold Gauge

1 review
€172,95 incl.
€142,93 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

The Autool LM120+ is the complete set of the LM120 digital air conditioning manifold gauge. According to Autool, this version supports a three-colour hose set and two temperature clamps. It measures the low- and high-pressure sides simultaneously from 0 to 6000 kPa with ±0.5% accuracy, and vacuum to −101 kPa.

The database of 89 refrigerants, including R134a, looks up the evaporation and condensation temperature. With the clamps on T1 and T2, it calculates superheat and subcooling. It also features a pressure leak test with timer, a sight glass for refrigerant flow, and a fold-out hook for hanging it up.

HIGHLIGHTS

✔Complete set — With hose set in blue, yellow and red.
✔Superheat and subcooling — With temperature clamps on T1 and T2.
✔89 refrigerants — Saturation temperatures directly on the screen.
✔Sight glass and hook — See refrigerant flow and work hands-free.

CONSIDERATIONS

✕Vehicle couplings — Check that the couplings fit the service ports.
✕F-gas certificate required — Work on refrigerant may only be carried out with the appropriate qualification.
✕R1234yf not listed separately — The list states "R1234"; check your refrigerant in the menu.
✕Batteries not included — Purchase four AA batteries separately.

Applications and functions

The LM120+ is intended for air conditioning specialists, car workshops and refrigeration technicians who want a complete set for measuring, evacuating and charging air conditioning systems.

Measuring functions

  • Dual pressure: Low- and high-pressure sides simultaneously, 0 to 6000 kPa.
  • Vacuum: −101 to 0 kPa, with vacuum percentage.
  • Evaporation and condensation: Saturation temperature at the measured pressure, per refrigerant.
  • Superheat and subcooling: With the temperature clamps on T1 and T2.
  • Pressure leak test: Pressure difference over a set time, with timer.

What you use it for

  • Poor cooling: Superheat and subcooling indicate too little or too much refrigerant.
  • Charging: Top up refrigerant with visibility of pressure and flow.
  • Leak detection: Pressure leak test over a fixed time.

How to use it

  1. Fitting batteries: Four AA batteries.
  2. Zeroing: Set the pressures to zero with the connections open.
  3. Selecting refrigerant: Select the refrigerant of the system.
  4. Connecting: Blue hose to the low-pressure side, red to the high-pressure side, yellow to the bottle or vacuum pump.
  5. Measuring: Read pressures and saturation temperatures, or start the vacuum or leak test.

Special features and capabilities

What the LM120+ offers beyond the LM120:

  • Hose set: Blue, yellow and red, max. working pressure 600 psi (41 bar).
  • Temperature clamps: For superheat and subcooling.
  • Sight glass: See refrigerant flow during charging.

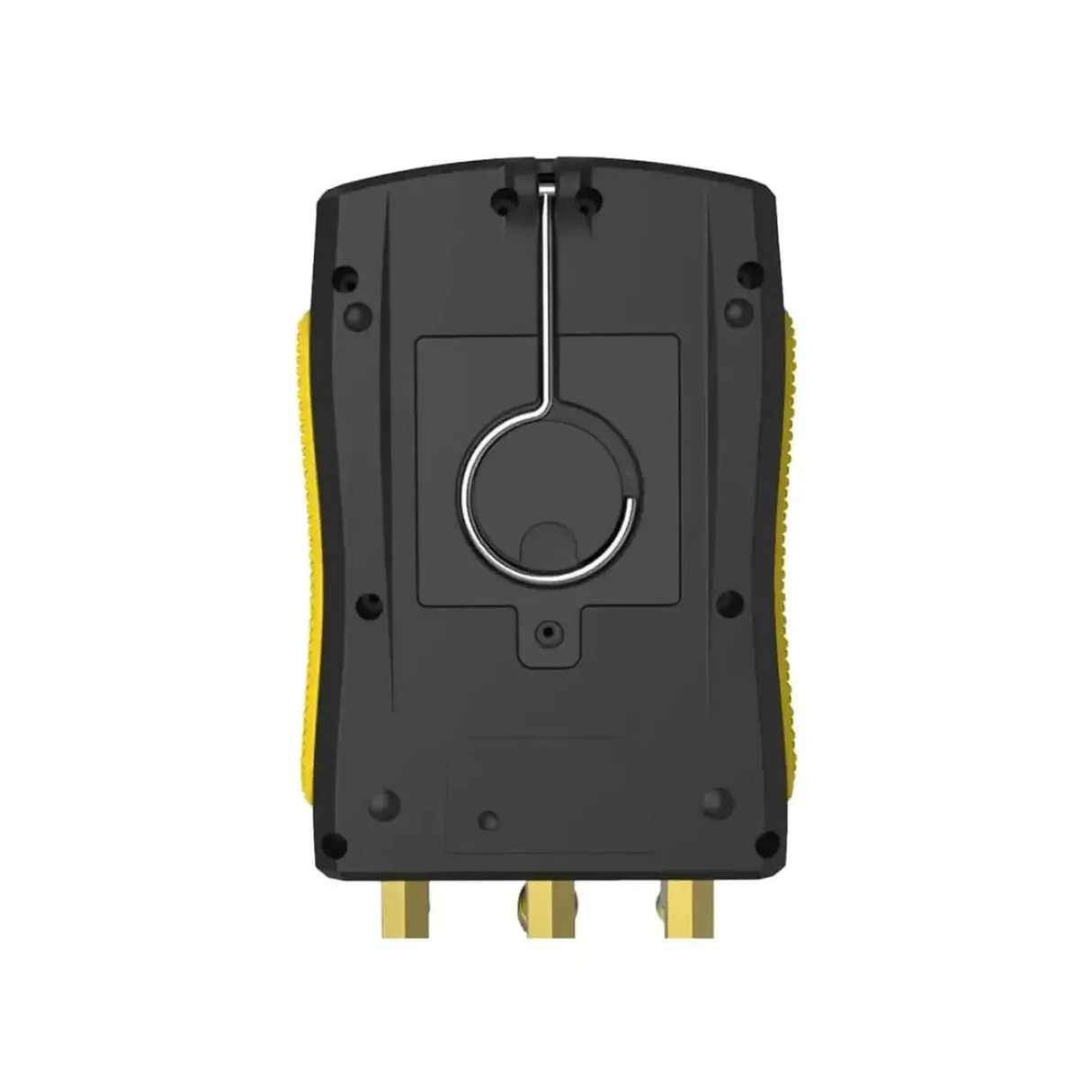

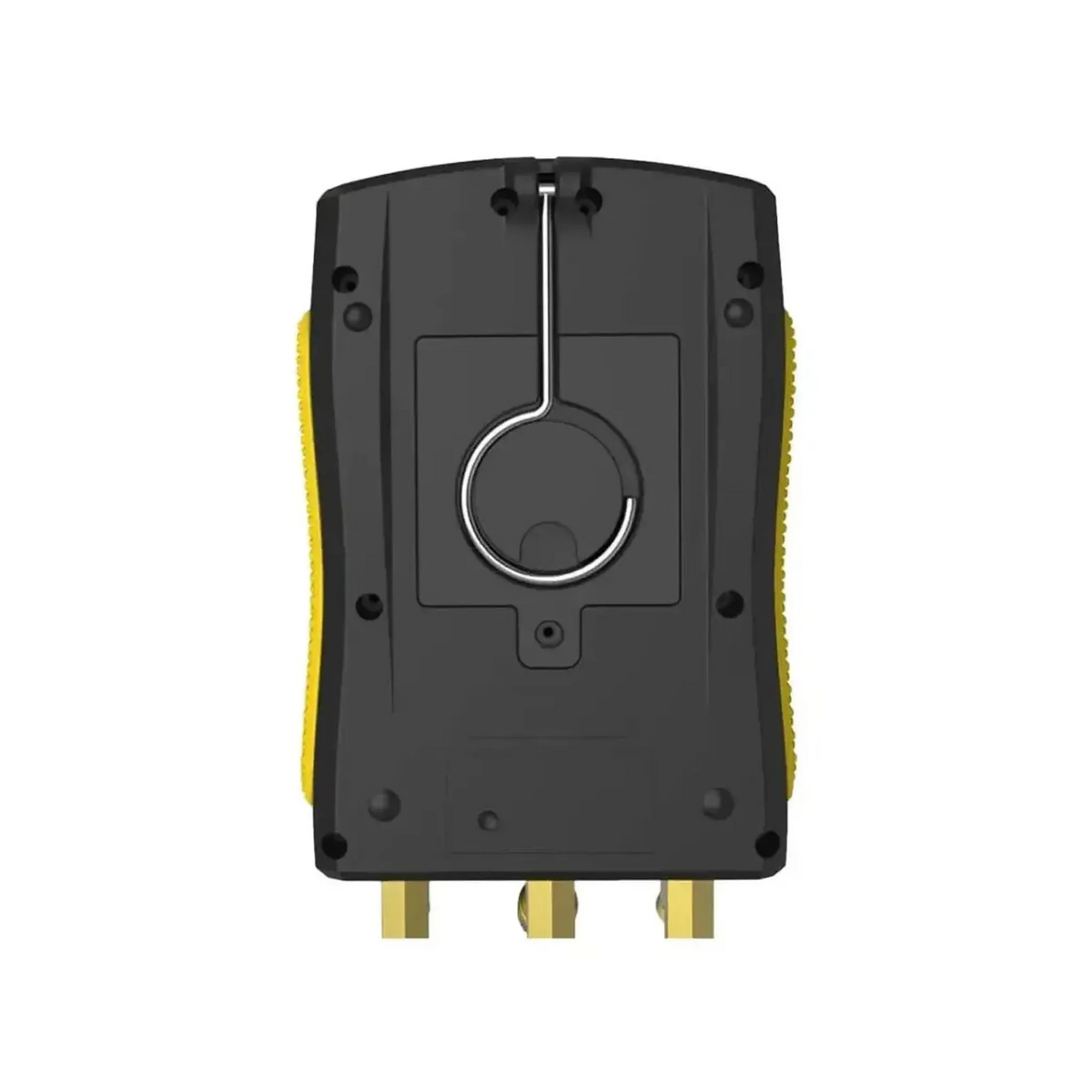

  • Fold-out hook: For hanging from the bonnet.

Package contents

  • 1x Autool LM120+
  • 3x Test hoses (blue, yellow, red)
  • 2x Temperature clamps
  • 1x Storage case
  • 1x User manual
💡
Good to know: Only measure superheat once the system has been running steadily for a few minutes. A high superheat reading usually indicates too little refrigerant; a low subcooling reading does too. Both high or both low together points more towards a problem with the expansion valve.

Technical specifications

General

The manufacturer of the product. Useful if you wish to use parts or accessories from the same brand.Brand
Autool
Whether it is a complete manifold gauge or an accessory such as hoses or temperature clamps.Product type
Digital A/C manifold gauge
How many pieces you receive, for example the number of hoses or clamps.Quantity in set
3 pieces
The size of the hose connections. It must match your hoses, vacuum pump and refrigerant cylinder.Connection size
1/4 inch

Pressure measurement

The pressures between which the gauge can measure. A wider range is required for high-pressure systems such as R744.Pressure range
0 to 6000 kPa, resolution 1 kPa
How far the measured pressure may deviate from the actual pressure. The smaller the deviation, the more reliable the reading.Pressure accuracy
±0.5% FS + 5 digits
How deep a vacuum the gauge can measure. Important for checking that an air conditioning system has been properly evacuated.Vacuum range
-101 to 0 kPa
The highest pressure the gauge can withstand without being damaged.Overload limit
10,000 kPa (100 bar)

Temperature

The temperatures between which the clamps can measure.Temperature range
−40 to 150 °C (−40 to 302 °F)
How far the measured temperature may deviate. Important for calculating superheat and subcooling correctly.Temperature accuracy
±0.5 °C + 2 digits

Functions

The gauge measures the low-pressure and high-pressure sides simultaneously, so you can see how the system performs at a glance.Low and high pressure simultaneously
The gauge measures the pressure difference over a set time using a timer. This helps you find leaks in the system.Pressure leak test
The gauge calculates the temperature at which the refrigerant evaporates and condenses.Evaporating and condensing temperature
The gauge calculates superheat and subcooling. This shows whether a system has been charged correctly.Superheat and subcooling
You can set the reading to zero before you start, so that the values are accurate.Zero point setting

Display and power

The display is backlit, so you can read it clearly even in a dark engine bay.Backlit display

Dimensions and warranty

The size of the device. Useful for checking whether it fits in your toolbox.Dimensions
170 x 110 x 50 mm
The weight of the device. A lighter device is easier to hang and carry.Weight
950 g
How long the manufacturer will repair or replace the device if it fails.Warranty on device
3 years device, 1 year accessories
Pressure units
kPa, MPa, bar, inHg, psi
Temperature units
°C, °F

Other specifications

Refrigerants
89, including R134a, R744, R410A, R32 and R290
Temperature inputs
T1 and T2 for clamps
Hoses
3 pieces, max. working pressure 600 psi (41 bar), burst pressure 3000 psi
Display
LCD with backlight
Power supply
4 × 1.5 V AA (not included)
