Autool DM301 | Multimeter

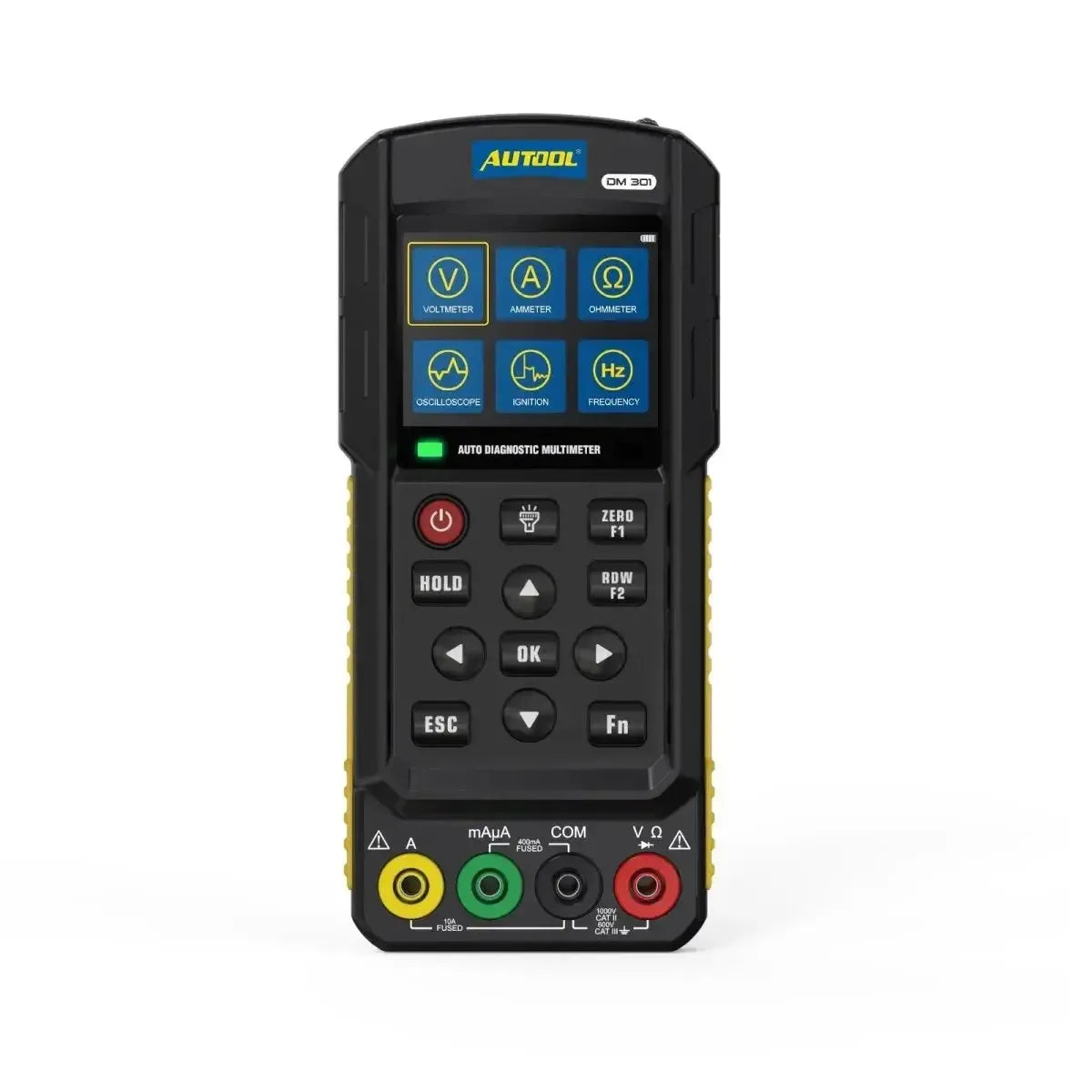

The Autool DM301 is a diagnostic multimeter designed for measuring various electrical parameters in vehicle systems. This device combines the functions of a standard multimeter, such as measuring DC/AC voltage, current, and resistance, with more advanced diagnostic capabilities. The measurement values are displayed on a 2.8 inch color screen with adjustable brightness.

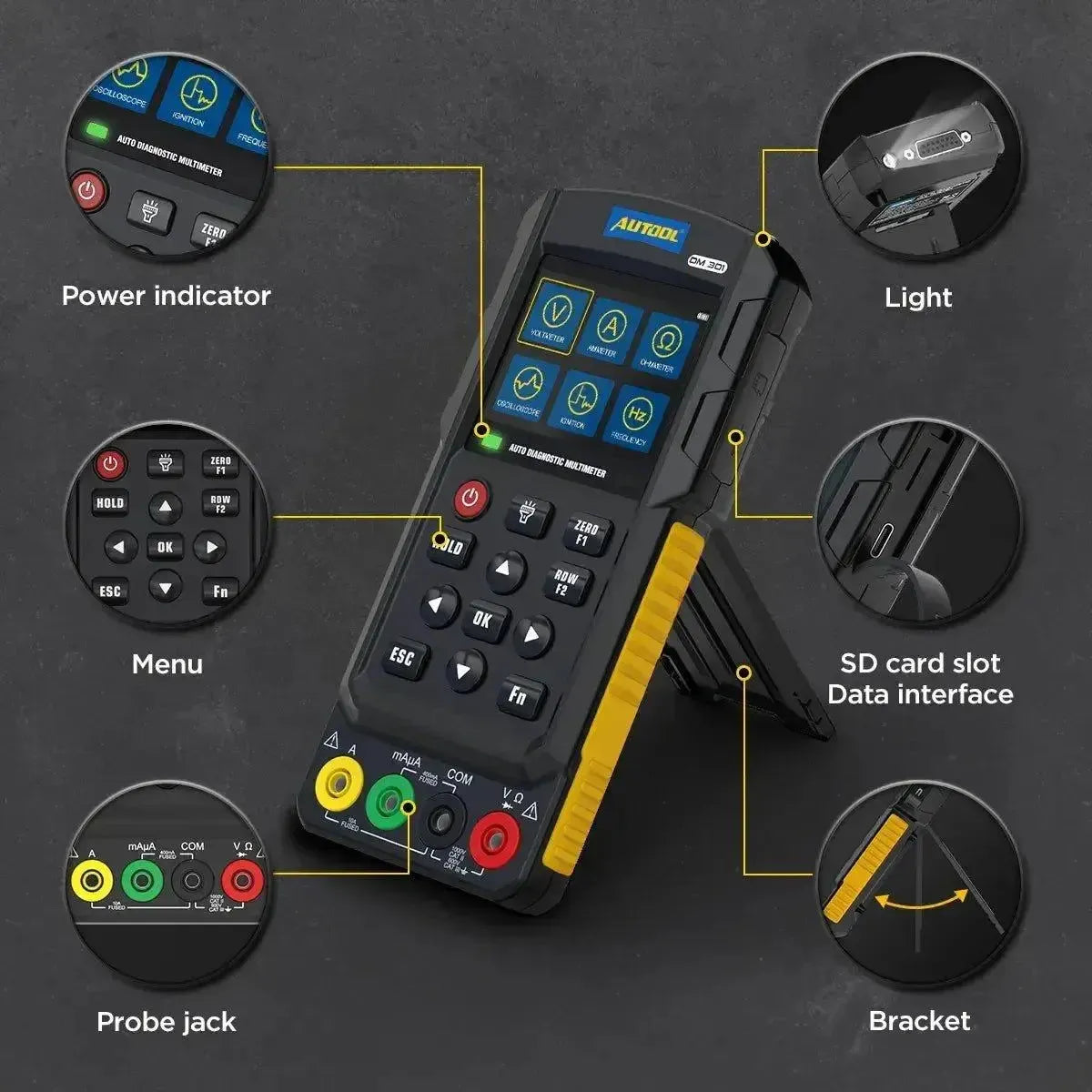

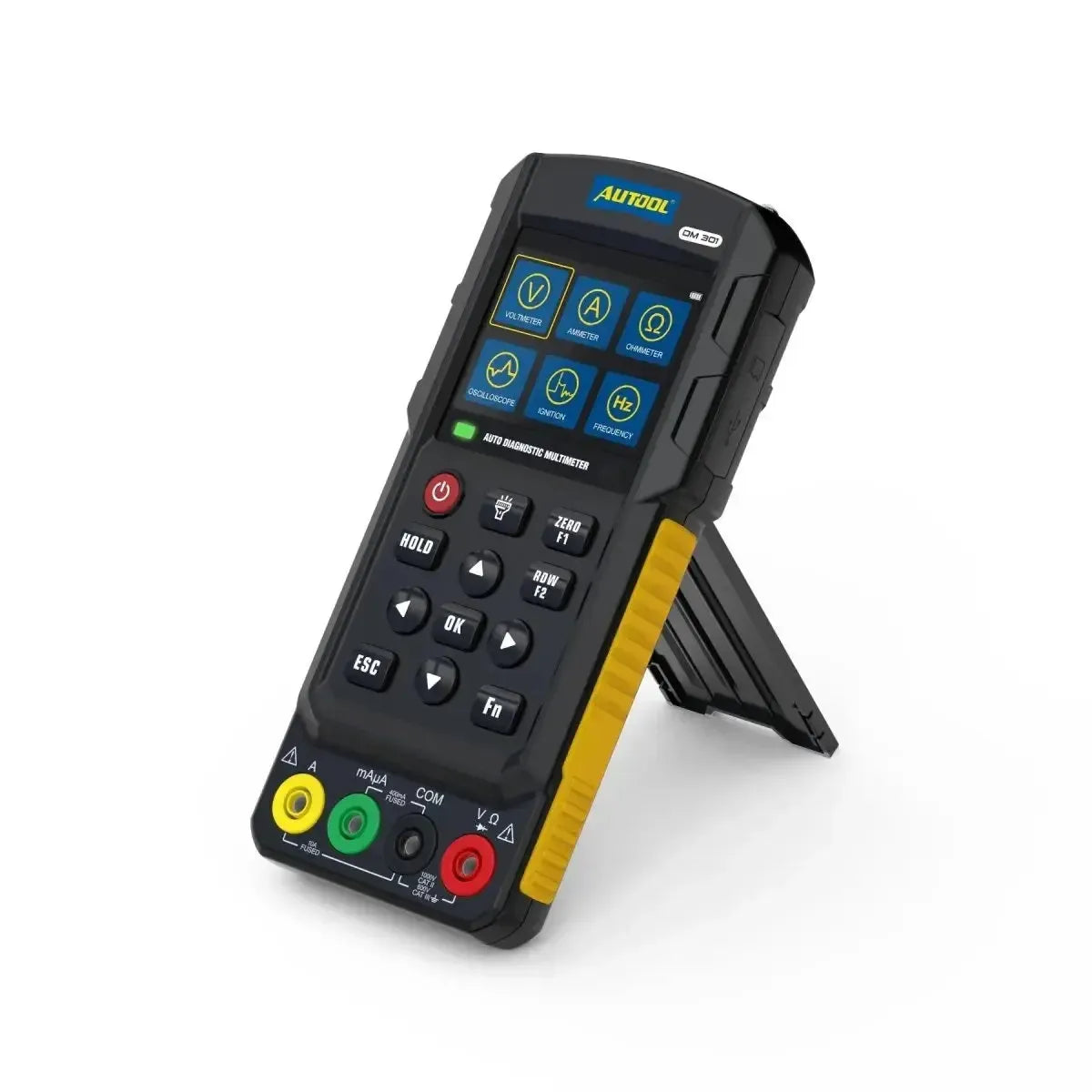

In addition to the basic measurements, the DM301 features an integrated single-channel oscilloscope and a function for testing ignition pulse signals. The device is equipped with an SD card slot for data storage, a built-in LED lamp for work in dark conditions, and a fold-out stand for hands-free use. The functions and settings are accessible via an intuitive menu and physical buttons.
Application and functionality:

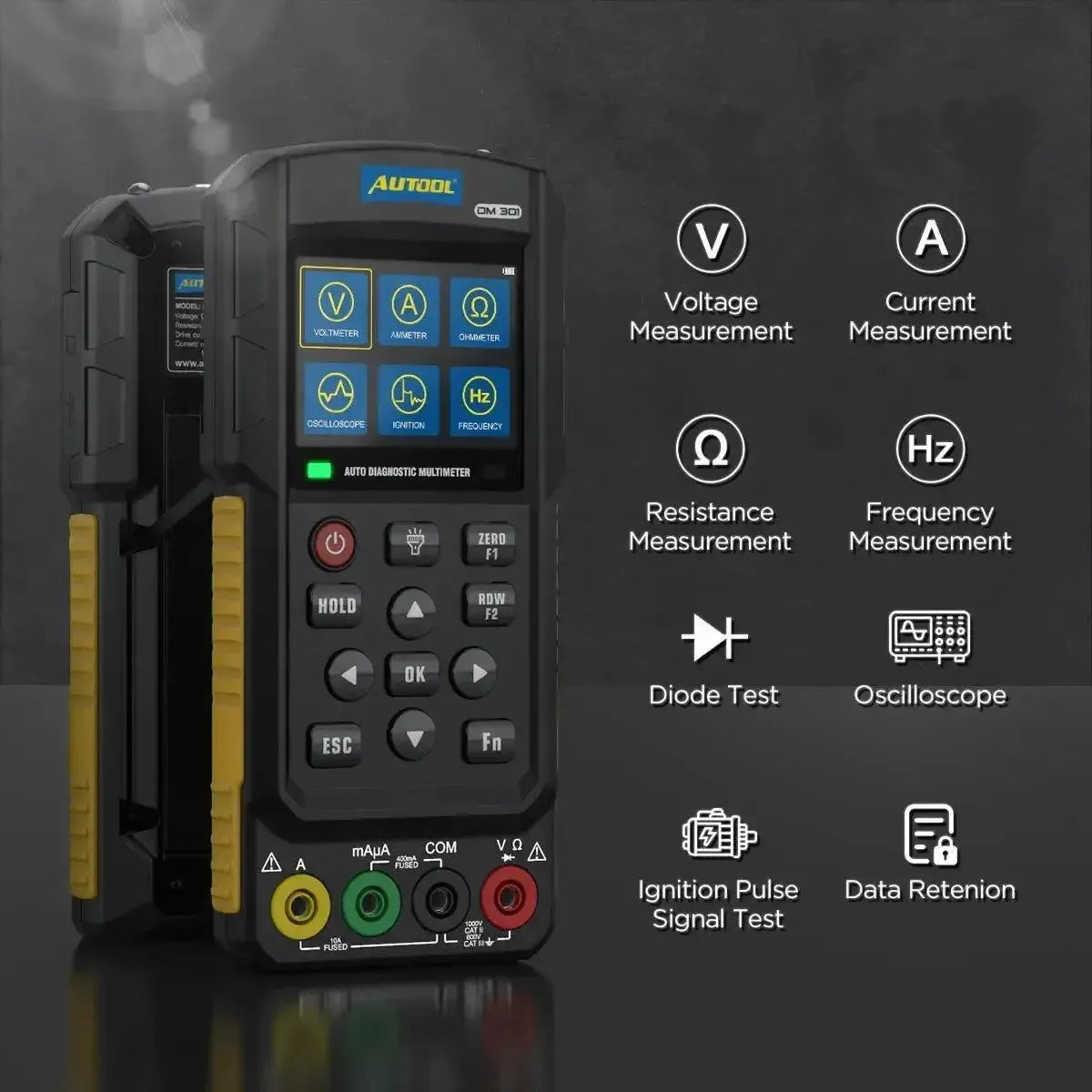

The DM301 is developed for performing electrical diagnostics and measurements on vehicles. The combination of multimeter and oscilloscope functions makes it possible to analyze both static and dynamic signals.

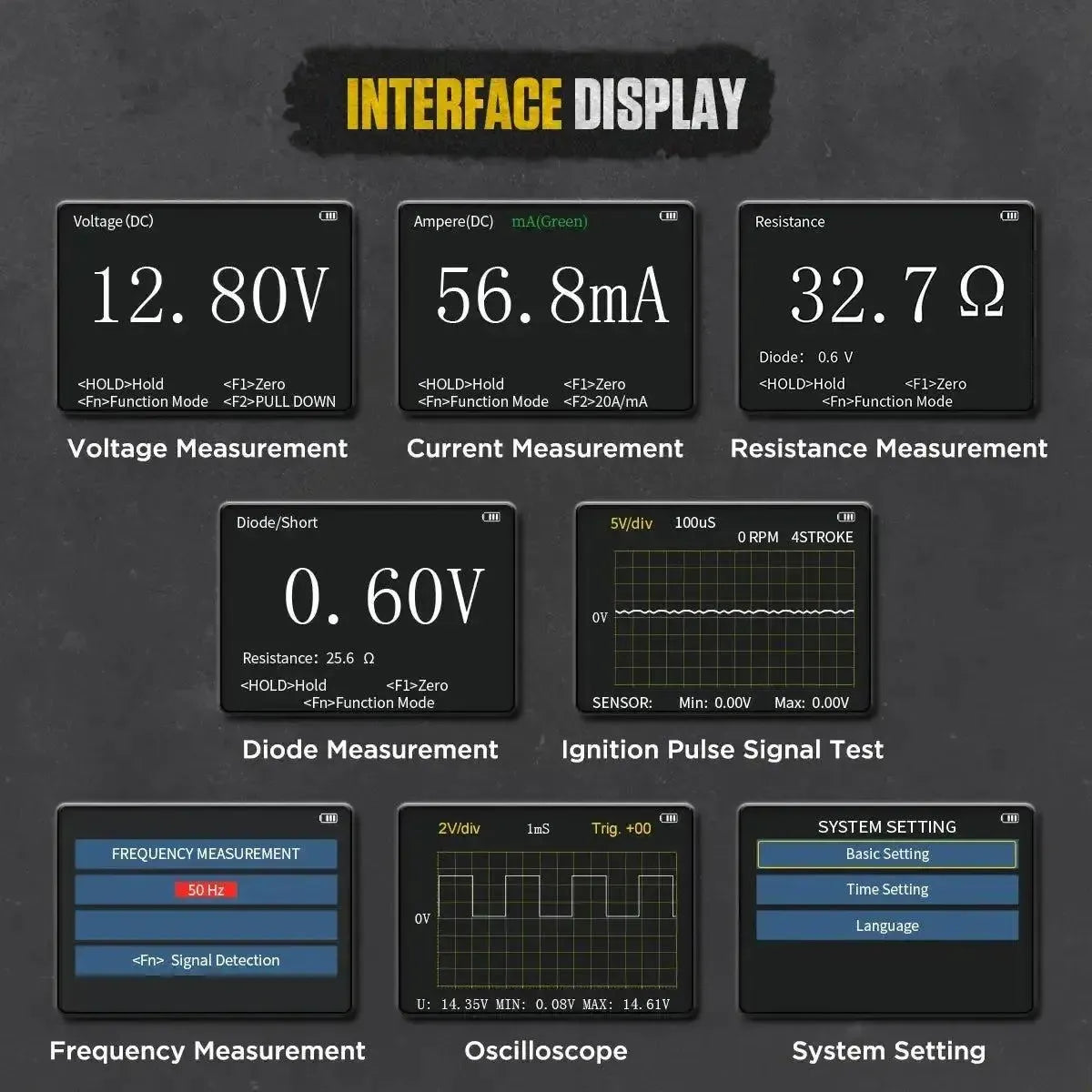

- Diagnostic multimeter: For performing standard electrical measurements such as voltage, current, resistance, frequency, and diode testing.
- Oscilloscope: The single-channel oscilloscope function allows visual display and analysis of electrical signals such as those from sensors (e.g., crankshaft and camshaft sensors).
- Ignition pulse test: A specific mode for checking and diagnosing signals in a vehicle's ignition system.
- Data storage: Measurement data and waveforms can be saved on an SD card (not included) for later analysis.
- Ease of use: Equipped with a 2.8 inch color display, a fold-out stand, data-hold function, and a built-in LED lamp.
Measurement ranges and functions:
The instrument offers a wide range of measurement functions essential for automotive diagnostics.
- DC voltage: Measurement range from 0 to 1000 V.
- AC voltage: Measurement range from 0 to 700 V.
- Current: Two measurement ranges, 0 - 200 mA and 0 - 20 A.
- Resistance: Measurement range from 0 to 1 MΩ.
- Frequency: Measurement range from 1 Hz to 1 MHz.
- Diode test: Function for testing the forward voltage of diodes.
- Continuity test: For checking the continuity in circuits.

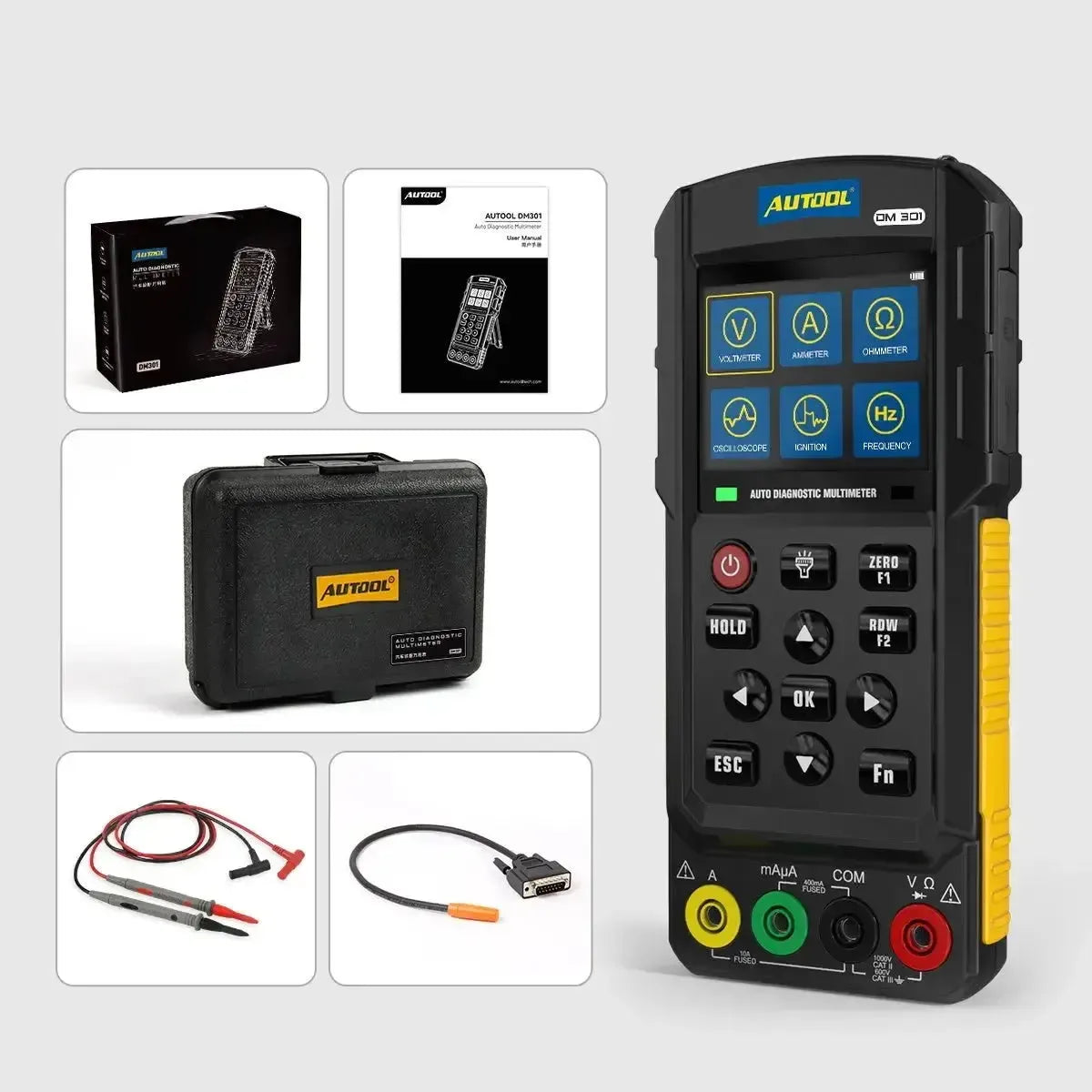

Package Contents:
- 1x Autool DM301 multimeter
- 1x Set of test cables
- 1x Ignition pulse signal cable
- 1x Manual
- 1x Storage case
Technical specifications:
| Specification | Description |
|---|---|
| Product brand | Autool |
| Product model | DM301 |
| Display | 2.8 inch color screen |
| DC Voltage Measurement Range | 0 - 1000 V |
| AC Voltage Measurement Range | 0 - 700 V |
| Current Measurement Range | 0 - 20 A / 0 - 200 mA |
| Resistance Measurement Range | 0 - 1 MΩ |
| Frequency Measurement Range | 1 Hz - 1 MHz |
| Oscilloscope Bandwidth | 500 kHz |
| Data Storage | SD card slot |
| Safety Classification | CAT III 600V |
| Operating Temperature | 0 °C to 40 °C |
| Dimensions | 190 x 85 x 33 mm |
