Autool  |  SKU: AS505

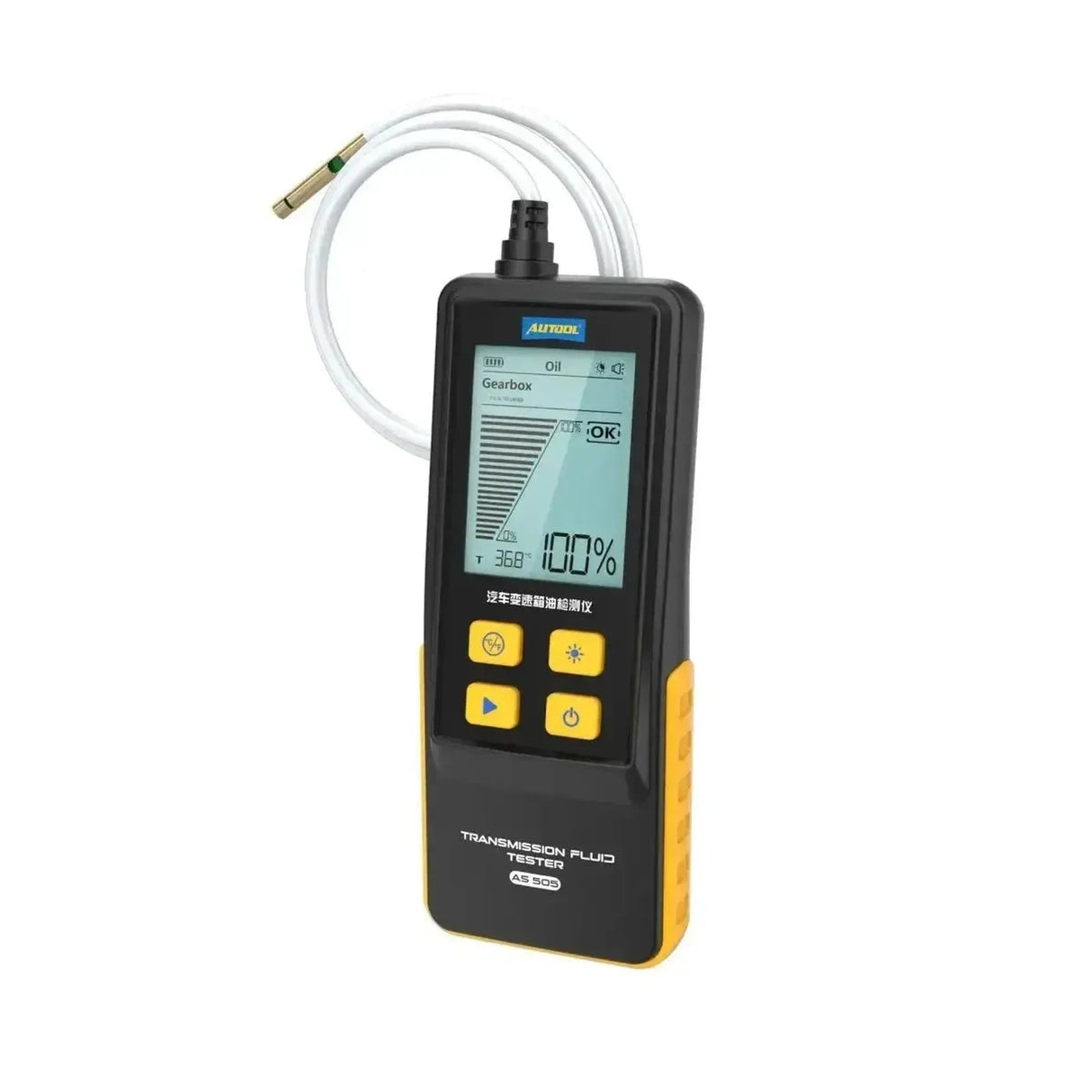

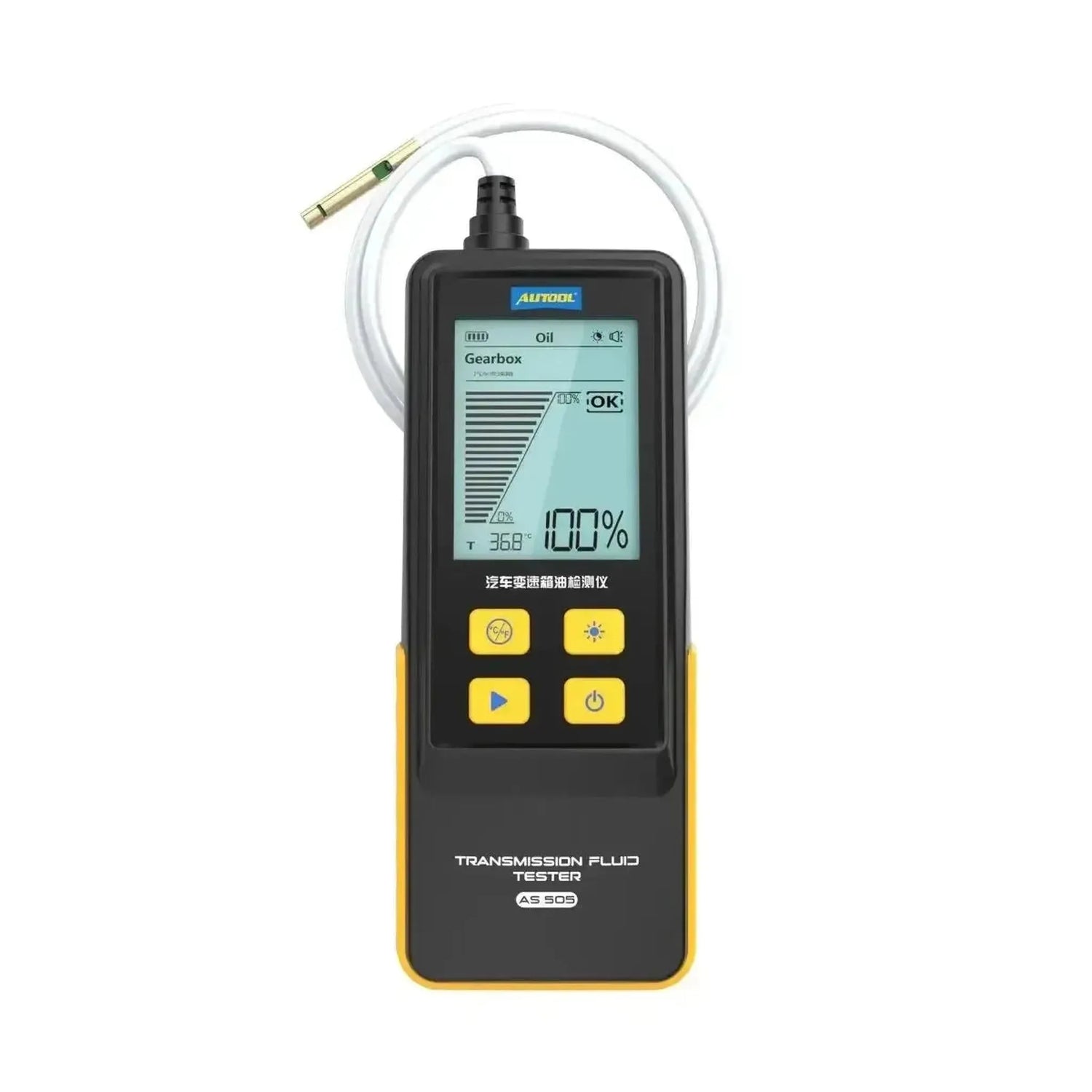

Autool AS505 | Transmission Fluid Tester

€34,95 incl.
€28,88 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

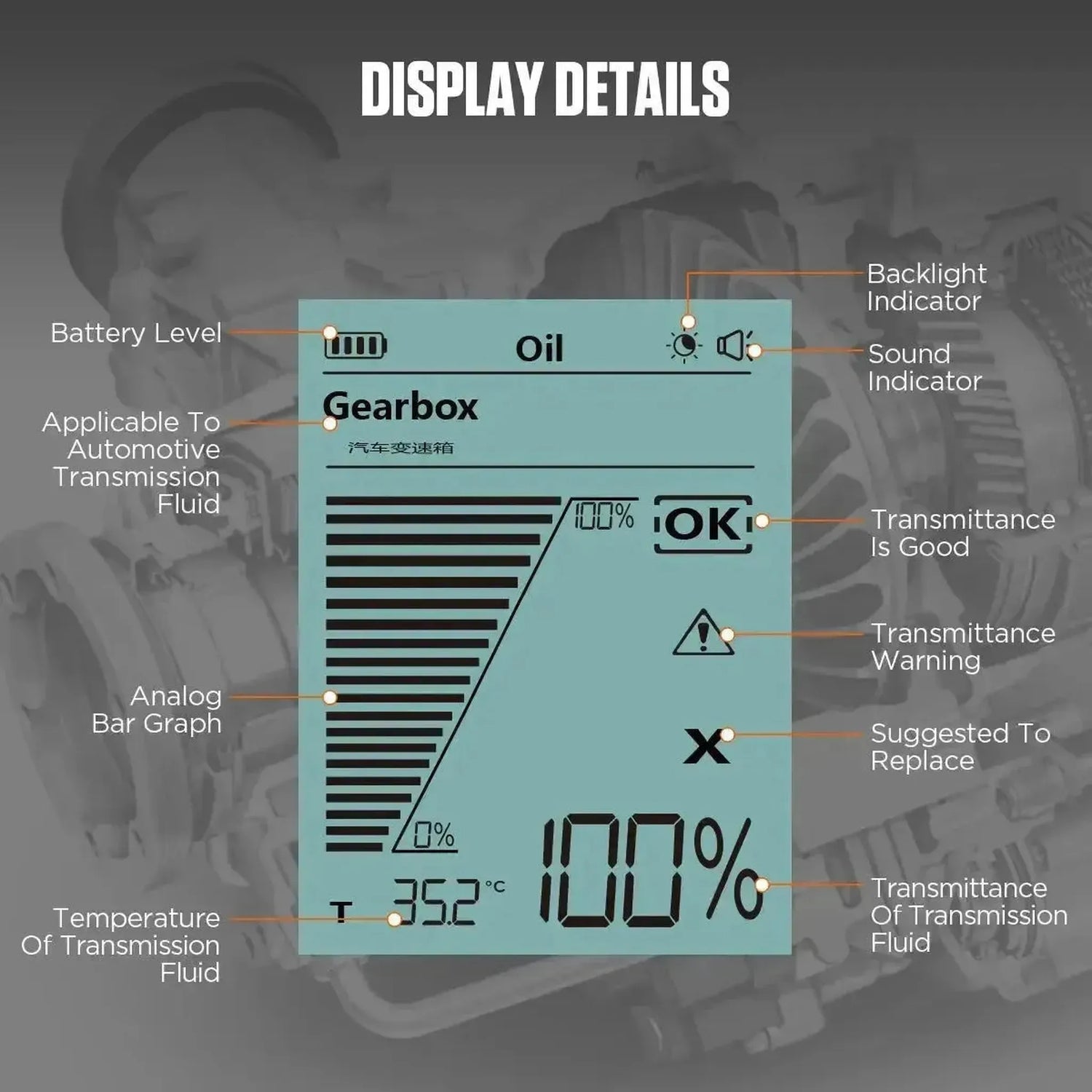

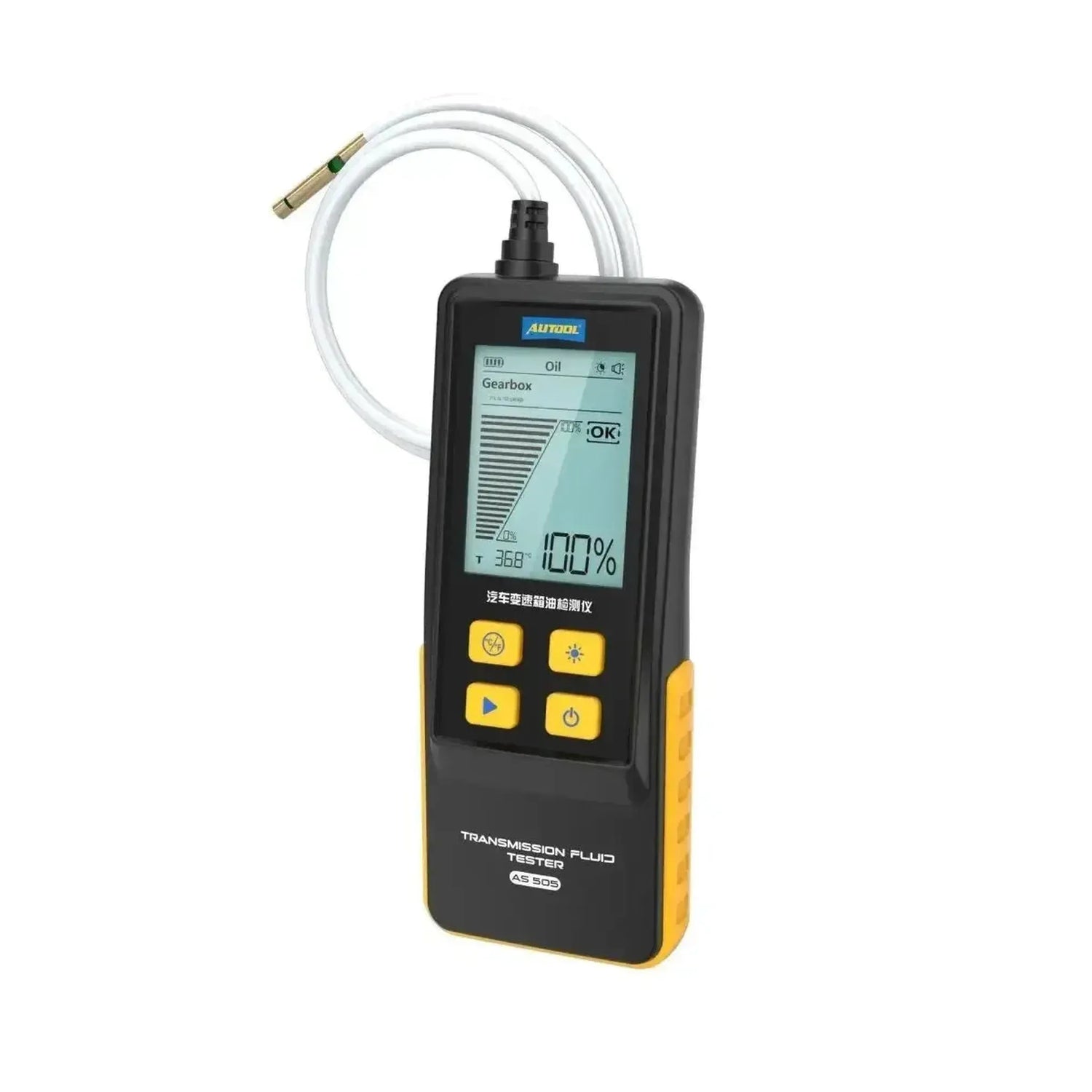

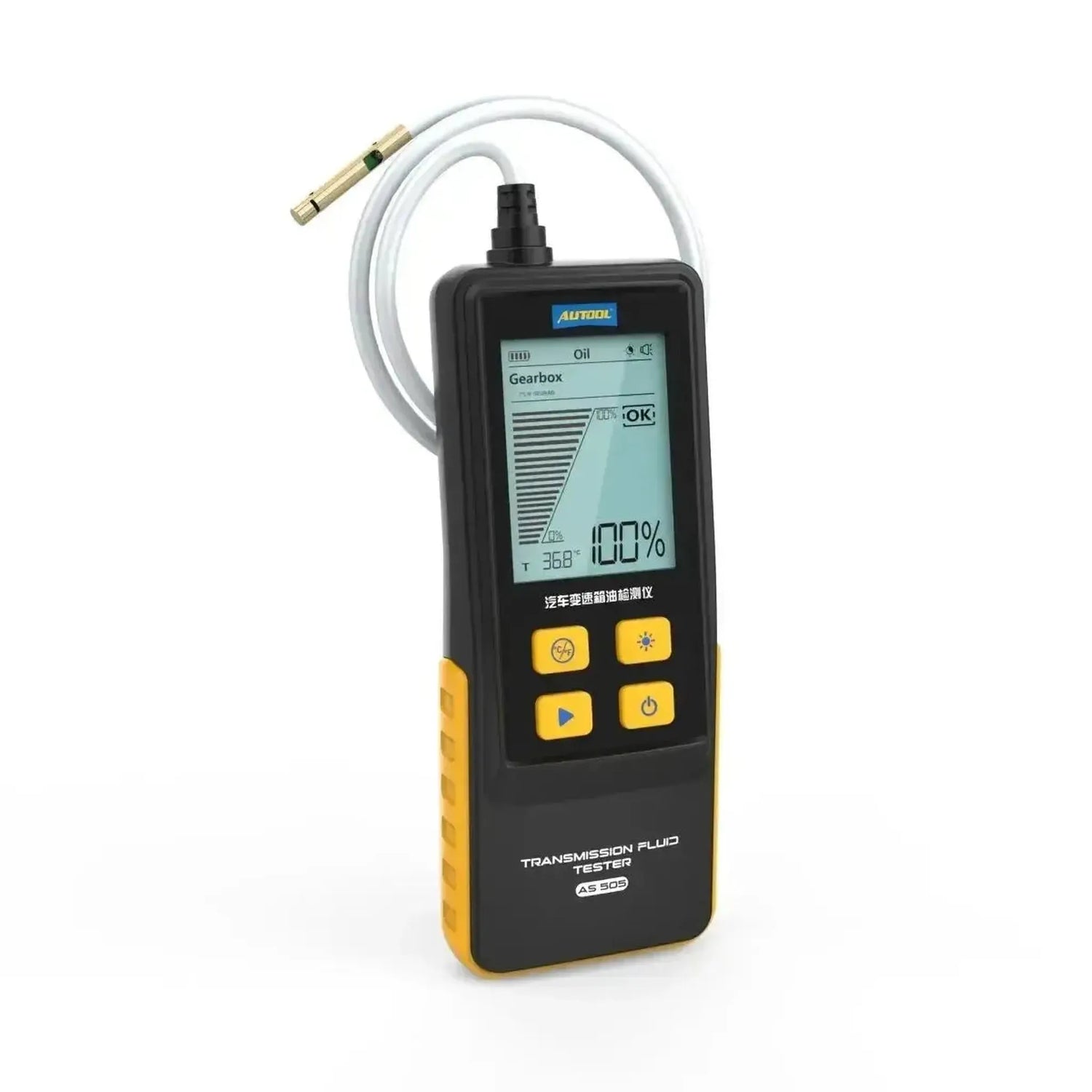

The Autool AS505 is a transmission fluid tester that allows technicians to assess the condition of automatic transmission fluid (ATF) without draining the oil. The device measures the quality of the transmission fluid and the oil temperature via a flexible probe inserted through the transmission dipstick opening. The LCD screen with backlight displays the measurements directly in percentage and temperature, with the option to choose between display in °C or °F.

During a measurement, the sensor in the probe head records the dielectric properties of the oil and compares them with the reference value of fresh ATF. The device then shows the degree of oil aging, allowing the technician to determine if a transmission oil change is necessary. Operation is via four push buttons: on/off, start measurement, screen backlight, and unit switch. The flexible probe hose enables measurement on hard-to-reach transmissions.

ADVANTAGES

✔ Assessment of ATF condition without draining, measurement is done through the dipstick opening.
✔ Flexible probe hose also reaches transmissions with limited accessibility in the engine compartment.
✔ Direct reading of oil quality and temperature on one screen simplifies maintenance decisions.
✔ Switchable between °C and °F for use in different markets and workshops.

HIGHLIGHTS

✕ Measurement requires access via a dipstick opening; transmissions without a dipstick cannot be checked in this way.
✕ The device provides an indication of oil condition and does not replace laboratory analysis for in-depth examination.

Applications and functionalities

The Autool AS505 supports the following measurement functions for transmission fluid:

  • Measure oil quality: Determines the quality percentage of the ATF compared to fresh oil, indicating whether an oil change is necessary.

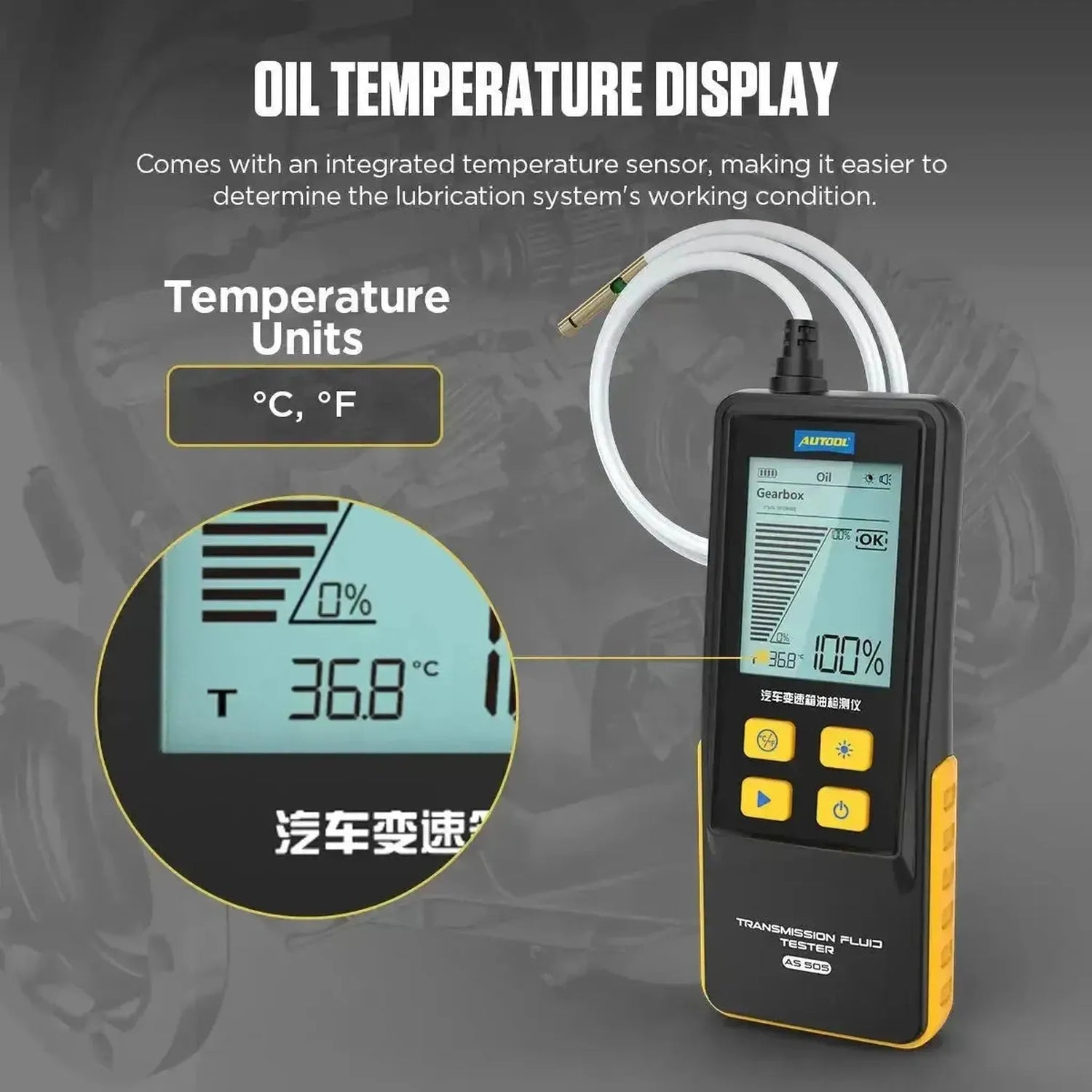

  • Measure oil temperature: Shows the current temperature of the transmission fluid, allowing measurements to be taken under representative operating conditions.
  • Switch unit: Switches the temperature display between °C and °F to match the standard used.
  • Screen lighting: Activates the backlight of the LCD screen for readability in dark engine compartments or pits.

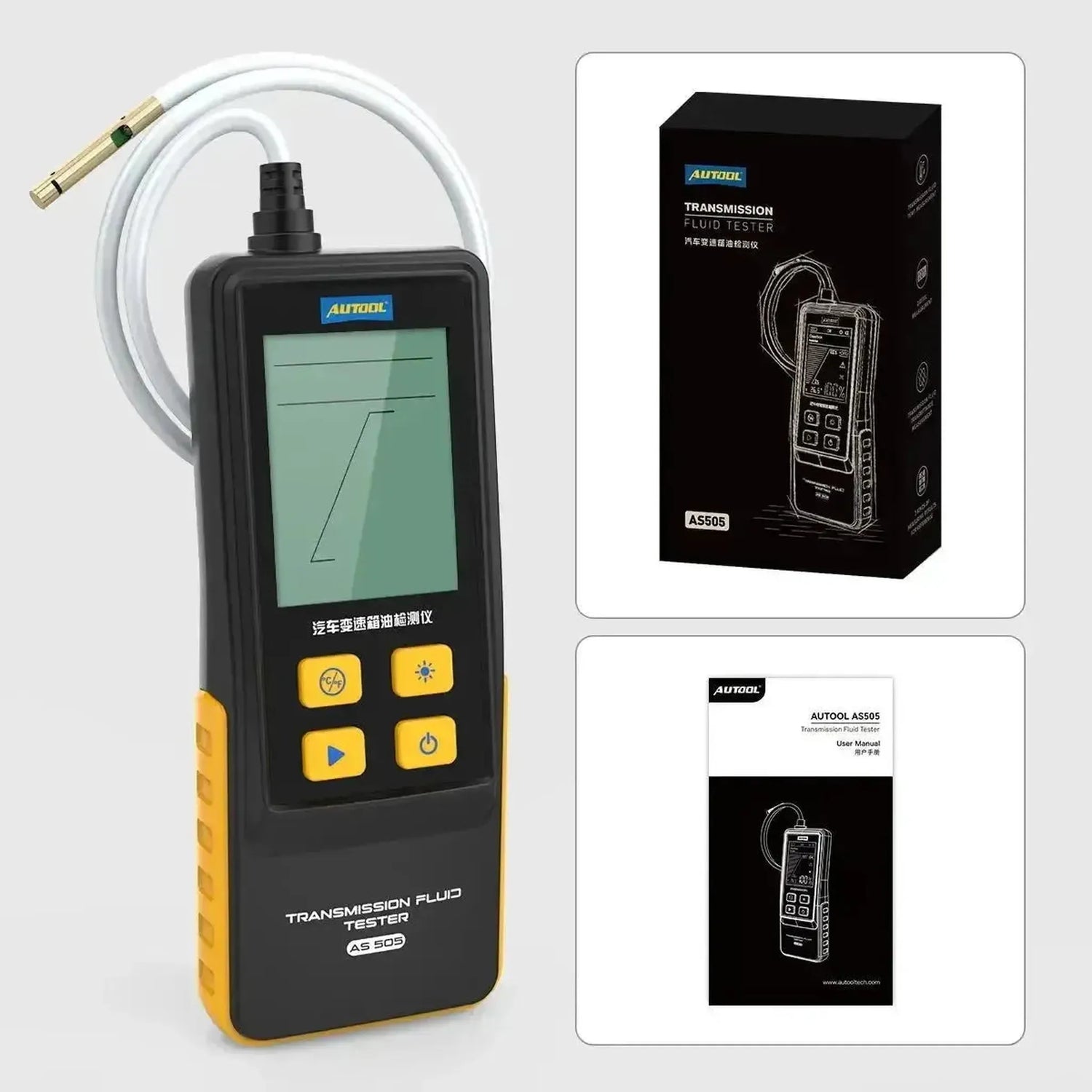

Package Contents

  • 1x Autool AS505 | Transmission fluid tester
  • 1x Measuring probe with flexible hose
  • 1x Manual
💡

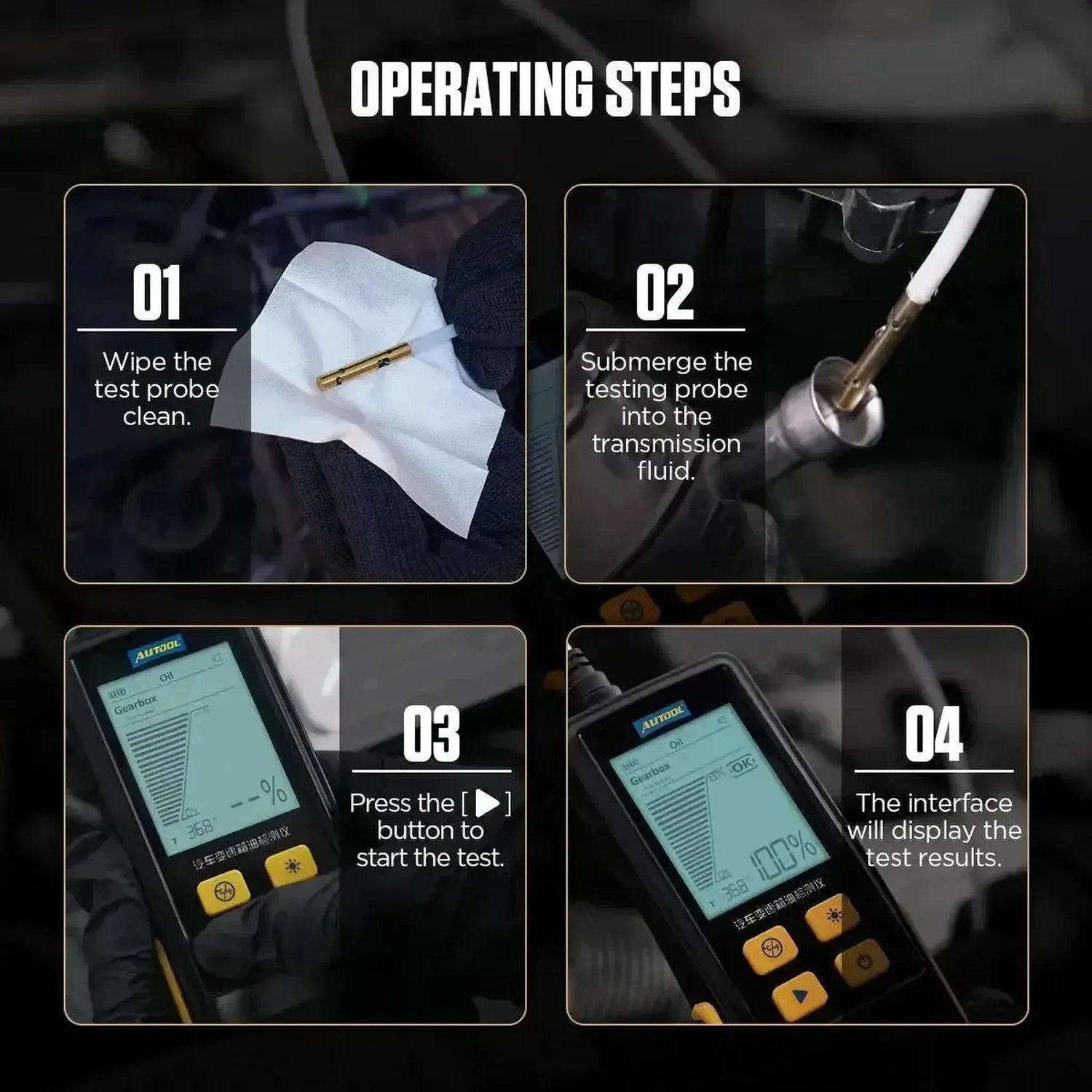

Good to know: Perform the measurement with the transmission at operating temperature and the engine idling. This allows the oil to circulate and the sensor to provide a value that represents the actual condition of the ATF during use.

Technical specifications

Specification Description
Product brand Autool
Product model AS505
Product type Transmission fluid tester
Measurement function Oil quality and oil temperature
Display LCD screen with backlight
Temperature unit °C / °F switchable
Operation Four push buttons
Probe Flexible probe for dipstick opening
