Autel Toyota 8A Blade AKL Kit | Accessories
The Autel Toyota 8A Blade AKL Kit is a set of specialized cables designed to perform key programming procedures in an "All Keys Lost" (AKL) situation. This kit is specifically developed for Toyota, Lexus, and Scion vehicles equipped with a 8A transponder system for non-smartkeys. The primary purpose of the kit is to program a new key without the need to disassemble or replace the immobilizer module.
For proper operation, this cable kit must be combined with specific Autel equipment. This includes an Autel MaxiIM key programming tablet such as the IM508(S) or IM608 (PRO/II), the APB112 Smart Key Emulator, and a G-BOX2 or G-BOX3. The combination of these components enables the collection and use of the necessary data to generate a working transponder key.
Application and functionality:
The kit facilitates a faster and less invasive procedure for adding new keys when all original keys have been lost.
- AKL procedure for 8A keys: Enables programming of new non-smartkeys for compatible Toyota, Lexus, and Scion models in an "All Keys Lost" scenario.
- No disassembly required: The cables are designed to connect directly to the vehicle system, eliminating the need to remove the immobilizer or other electronic modules from the dashboard.
- System integration: Works in combination with the software of Autel MaxiIM tablets and the hardware of the APB112 emulator and the G-BOX. This combination simulates a master key to activate the vehicle's programming mode.

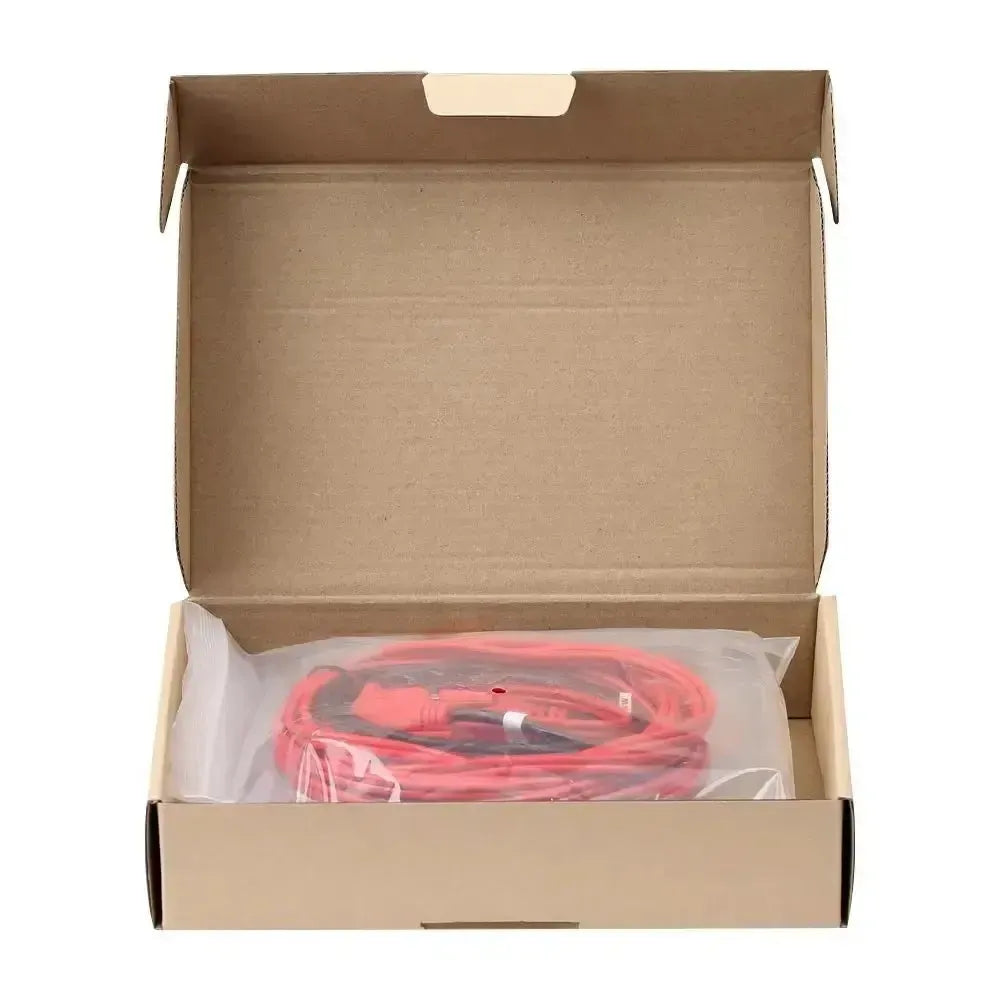

Package Contents:

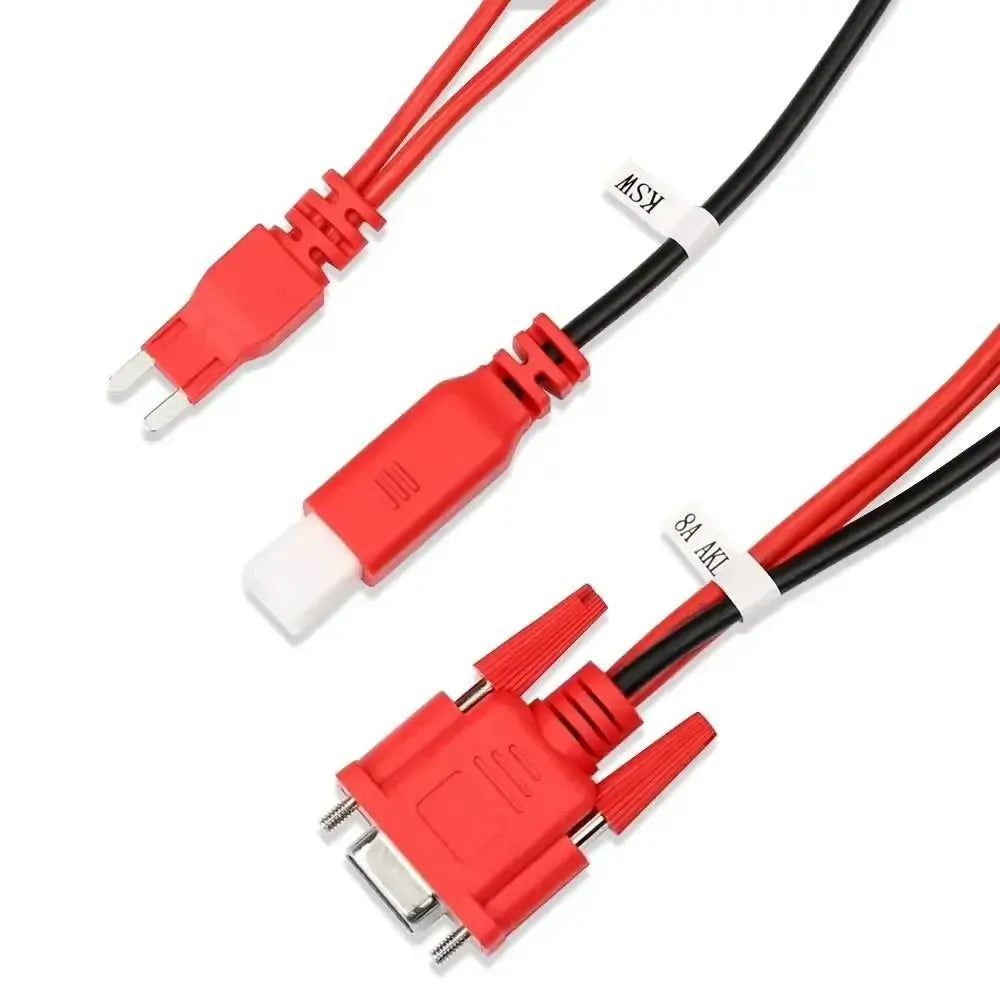

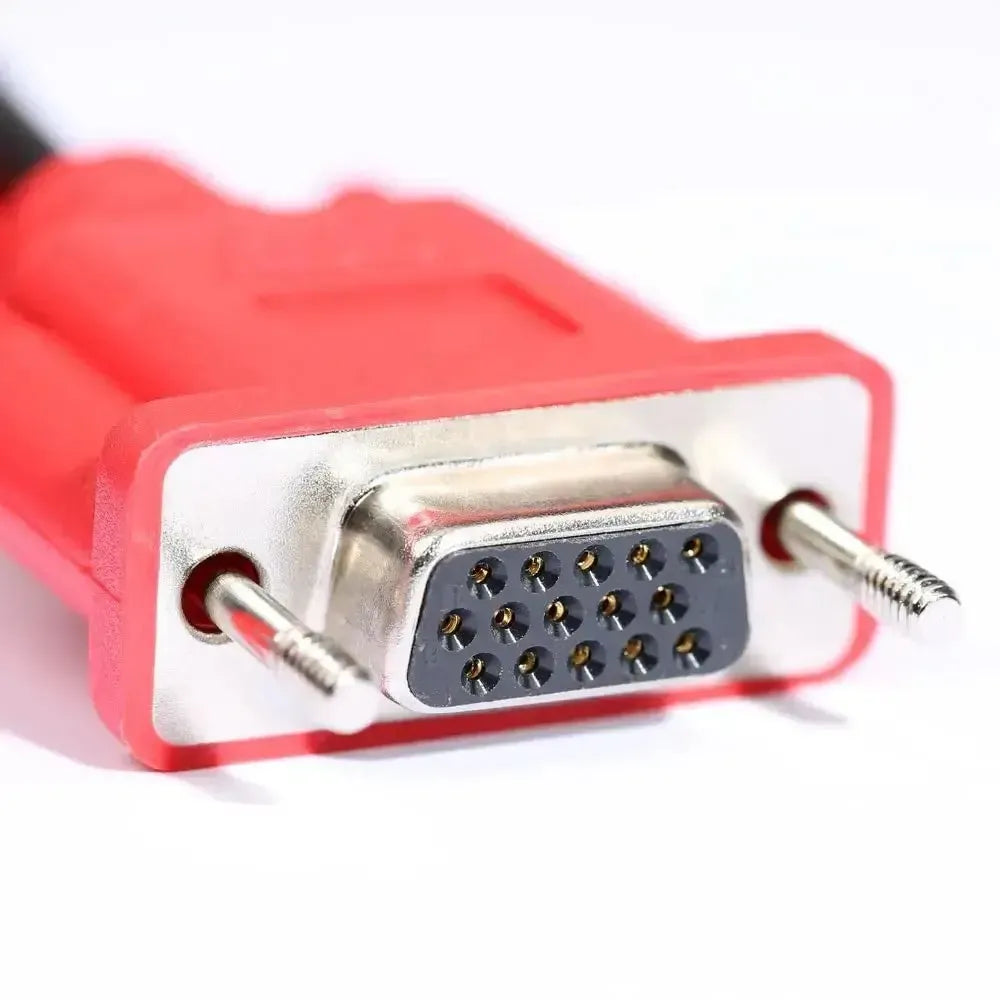

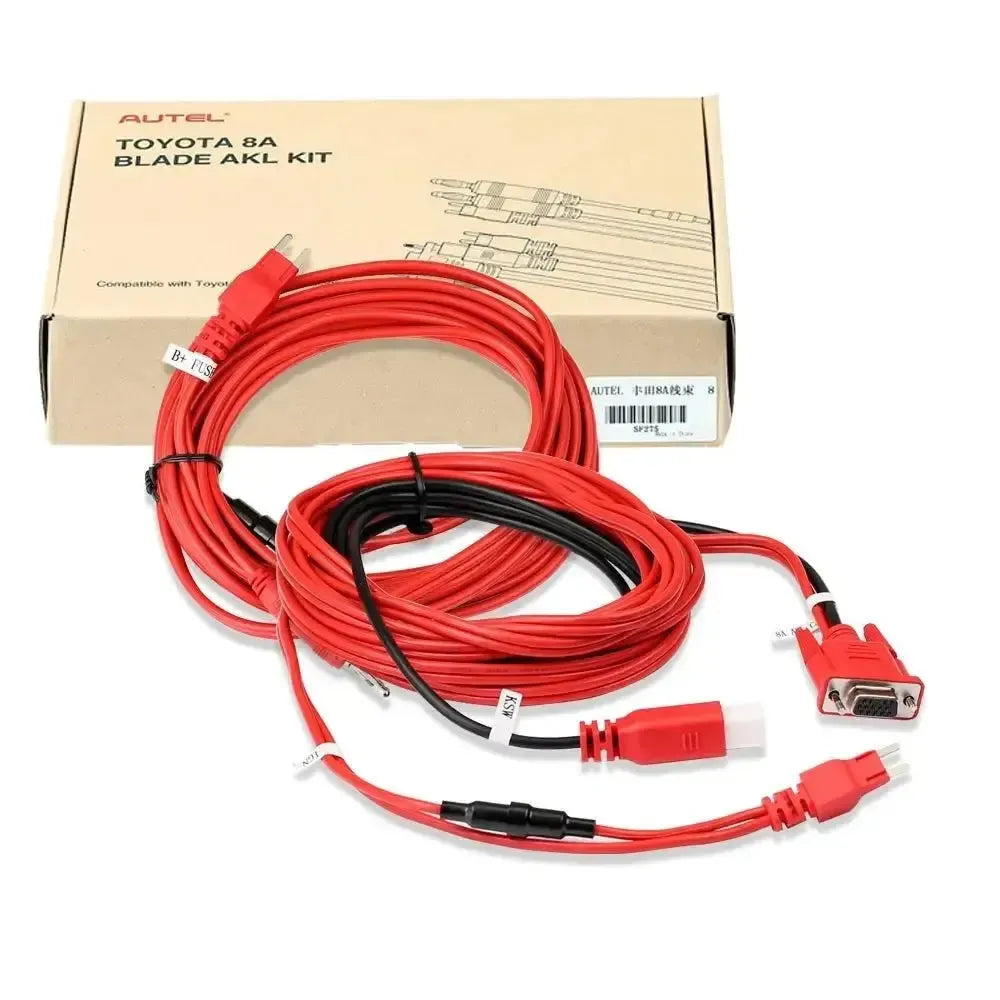

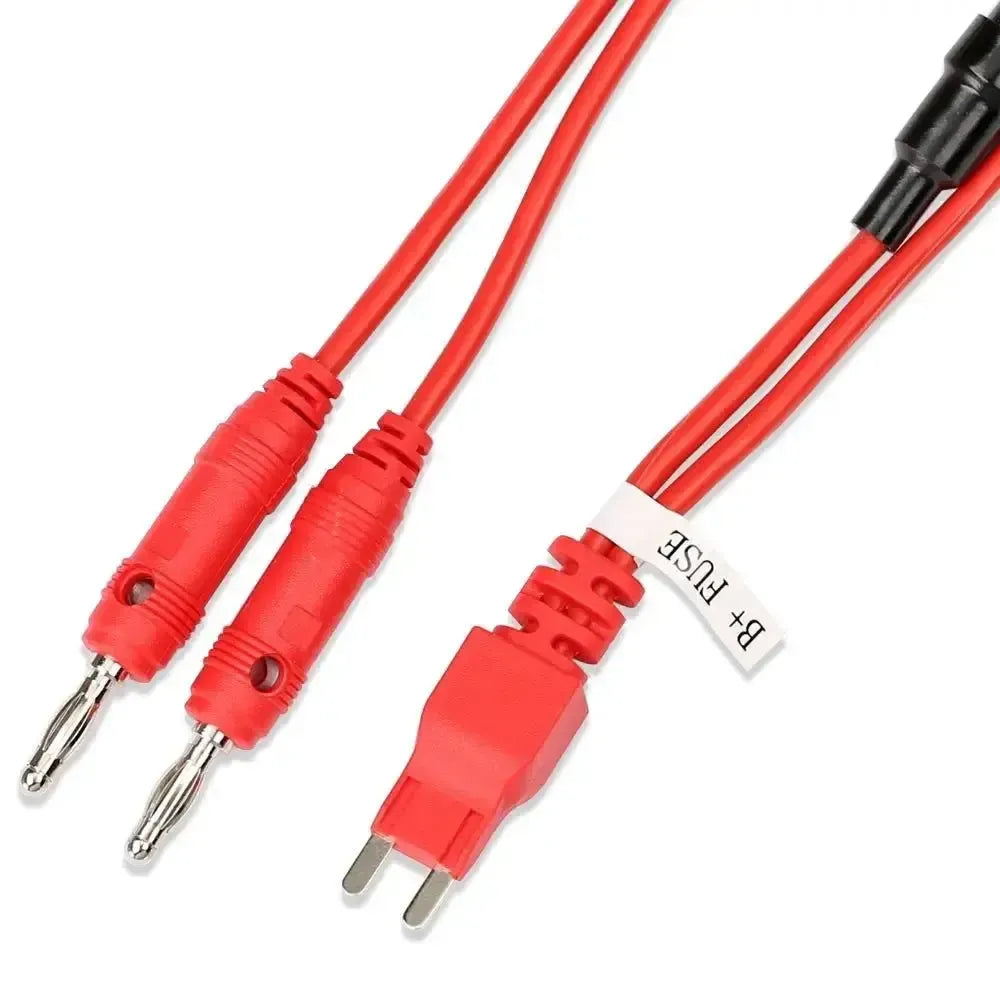

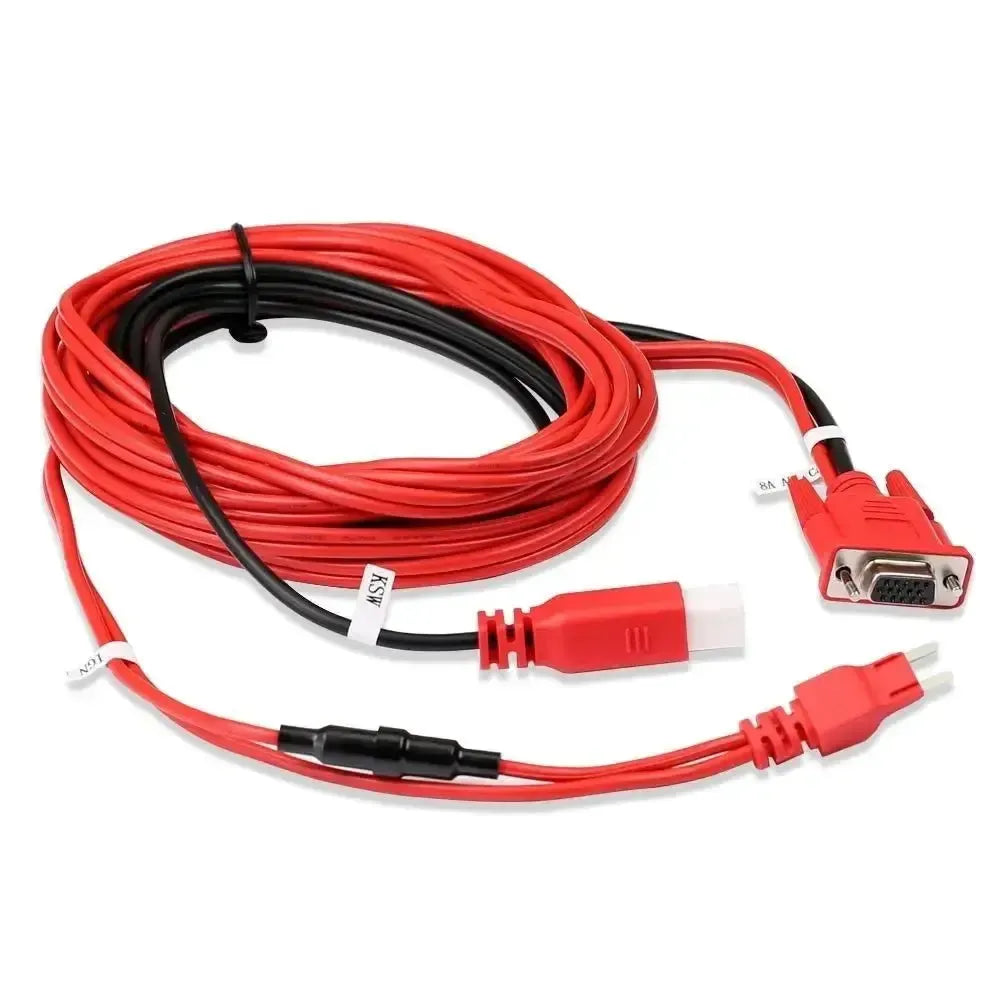

- 1x Autel Toyota 8A Blade cable set (including main cable and connectors)
Technical specifications:
| Specification | Description |
|---|---|
| Brand | Autel |
| Model | Toyota 8A Blade AKL Kit |
| Item number | MK7522 |
| Application | Key programming (All Keys Lost) |
| Key type | 8A blade (non-smartkey) |
| Compatible brands | Lexus, Scion, Toyota |
| Required equipment | Autel MaxiIM IM508(S)/IM608/IM608 Pro/IM608 II, APB112, G-BOX2/G-BOX3 |
