Autel MSOAK Oscilloscope Kit | Accessories

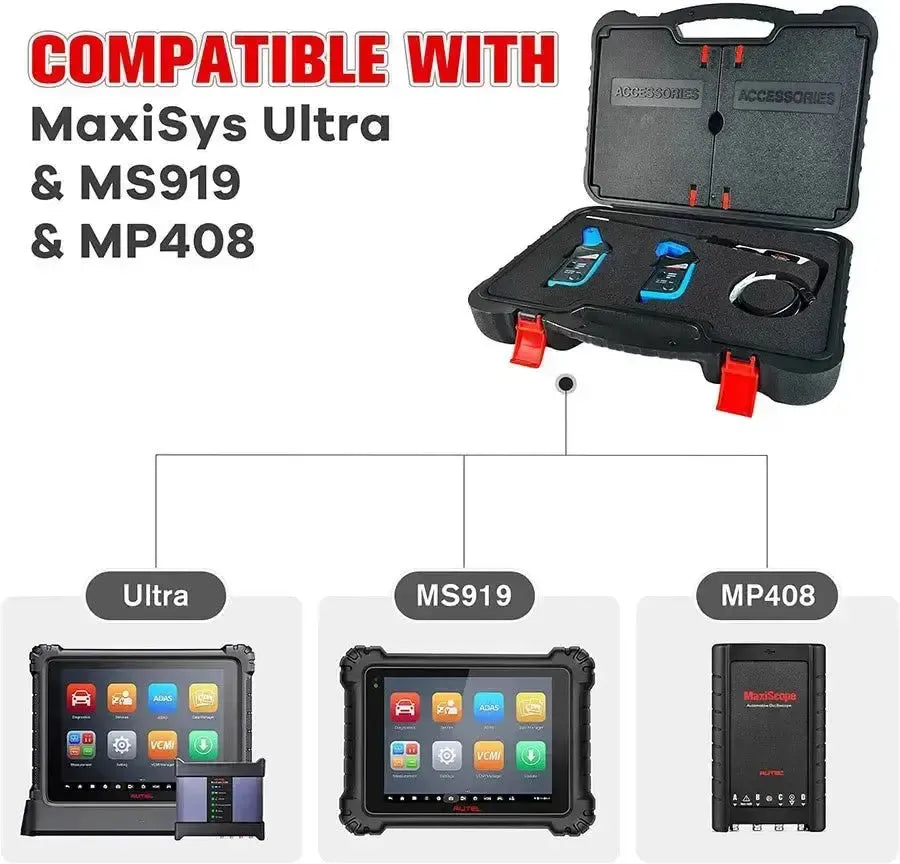

The Autel MaxiSys MSOAK is an accessory kit designed to expand the functionality of the Autel MaxiScope MP408 oscilloscope. This kit offers a range of probes and clamps for performing various measurements on vehicle systems. The MSOAK is compatible with the MaxiSys Ultra and MS919 diagnostic systems in combination with the MP408 module.
With the components in this set, technicians can perform detailed analyses of both low and high current circuits, and of the secondary ignition system. The kit includes, among other things, two different current clamps for measuring AC/DC currents without interrupting the circuit and a Coil-on-Plug (COP) probe for testing modern ignition systems. All parts are supplied in a robust carrying case.
Functionality of the components:
The accessories in the MSOAK kit offer the following measurement capabilities:

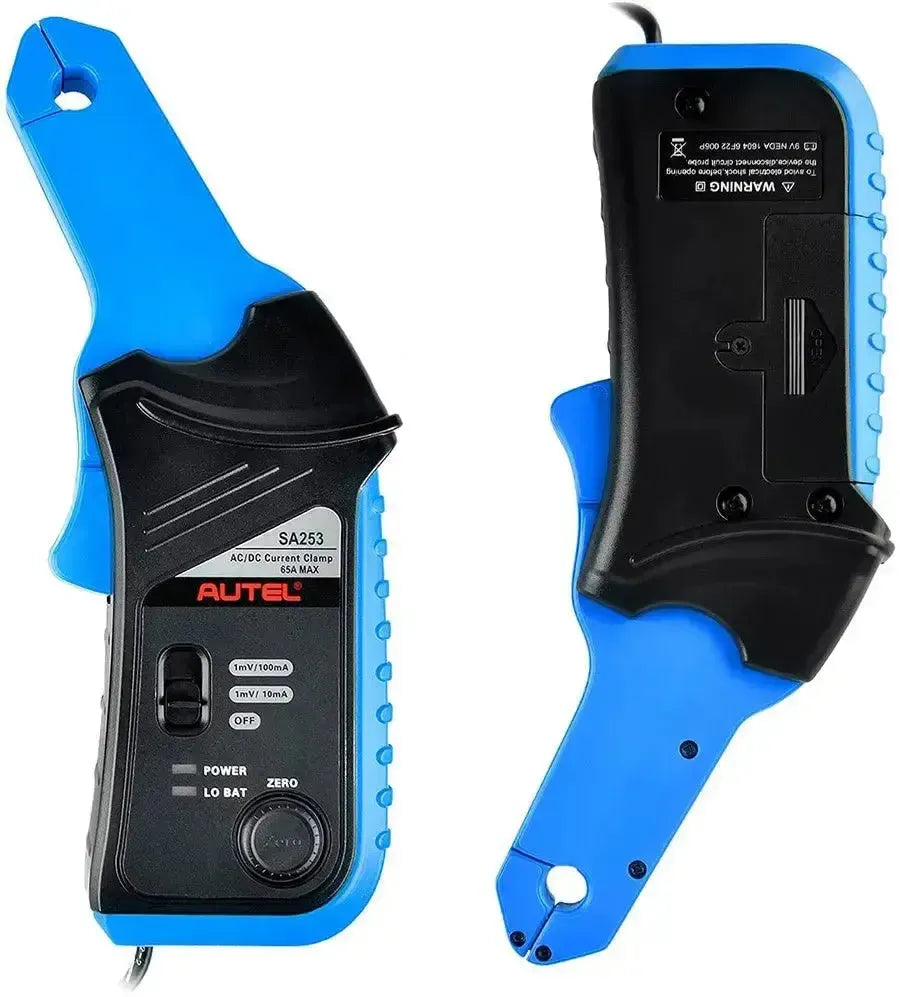

- 65A AC/DC current clamp: For measuring lower currents in circuits such as injectors, fuel pumps, and control units.

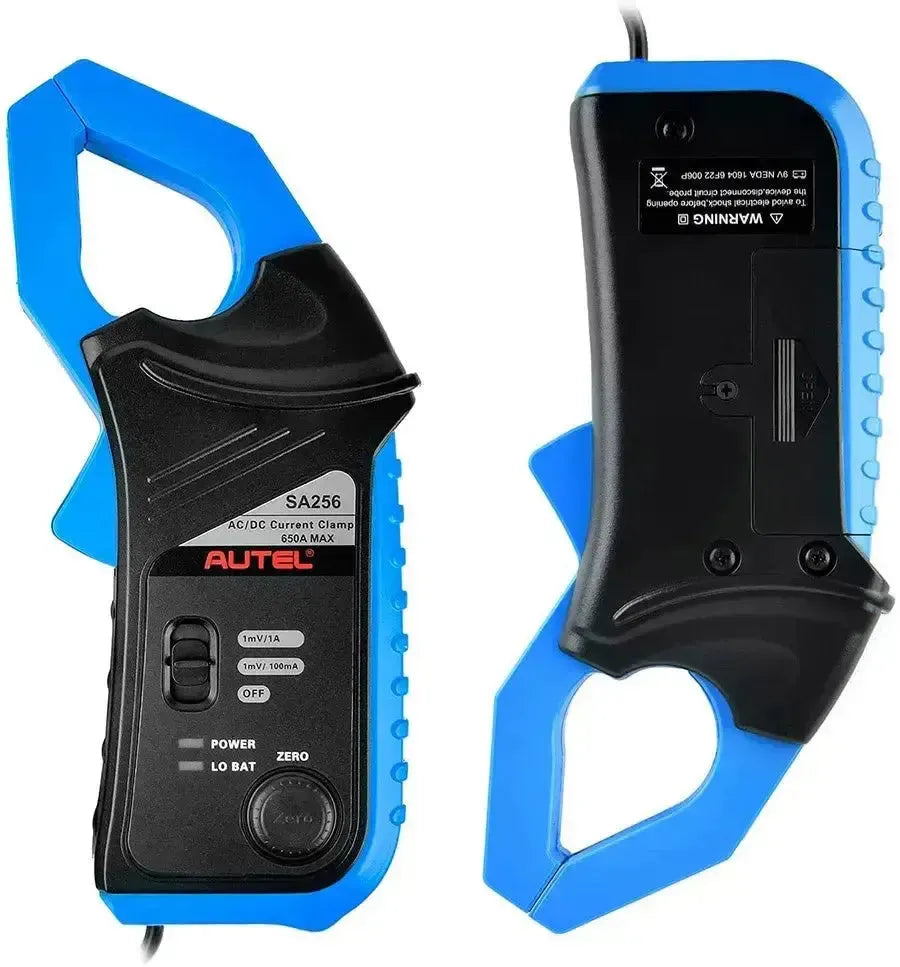

- 650A AC/DC current clamp: Suitable for measuring high currents, for example from the starter motor and the alternator charging current.

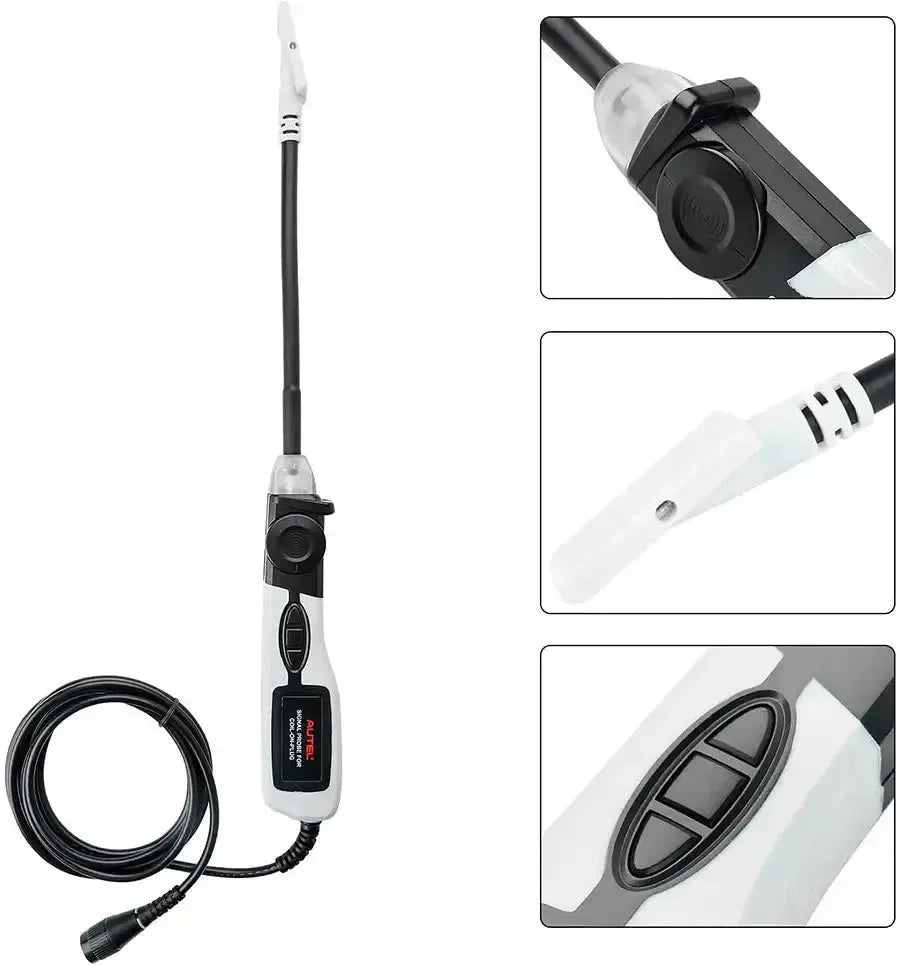

- Coil-on-Plug (COP) probe: Enables analysis of the voltage and burn time of the secondary ignition circuit in vehicles with coil-on-plug systems.
- HT extension cables: For safely connecting and measuring high-voltage components of the ignition system.
- Battery clamps: For a stable and reliable connection to the vehicle battery for power or reference measurements.

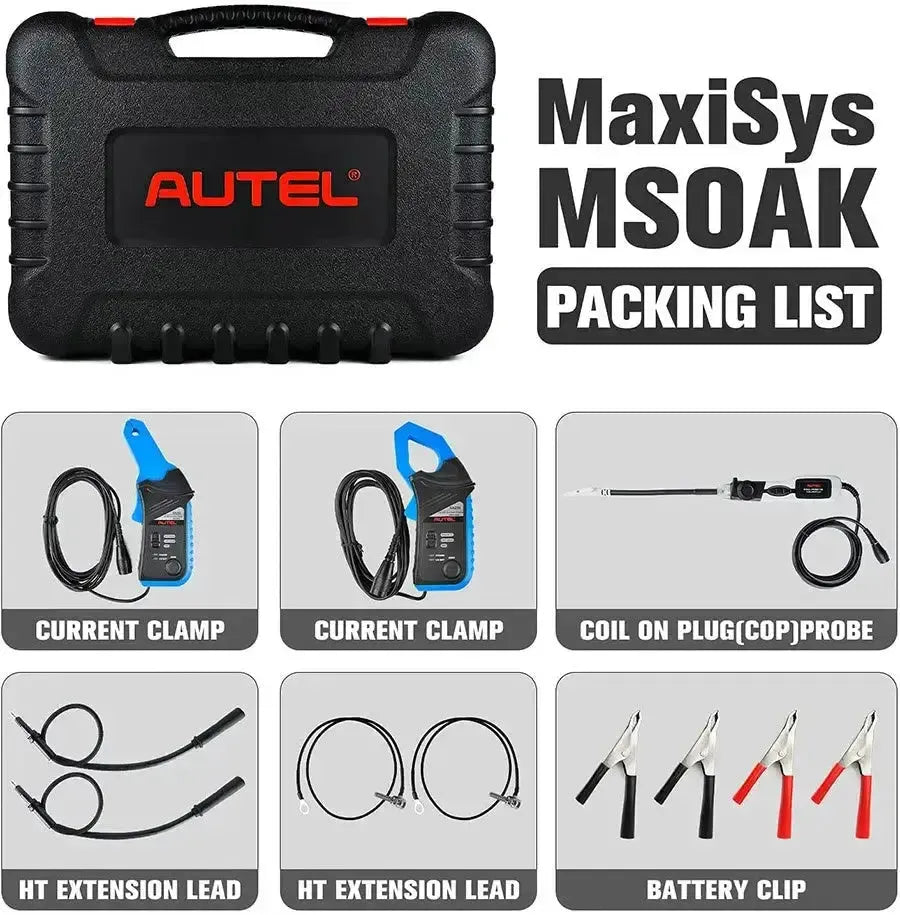

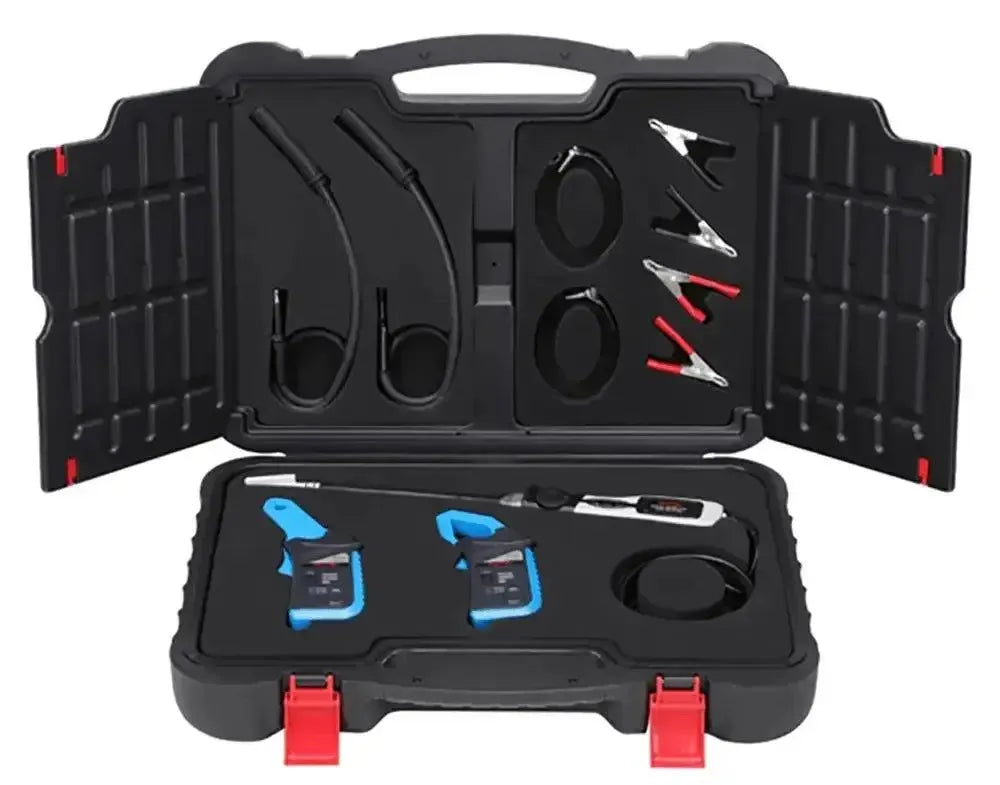

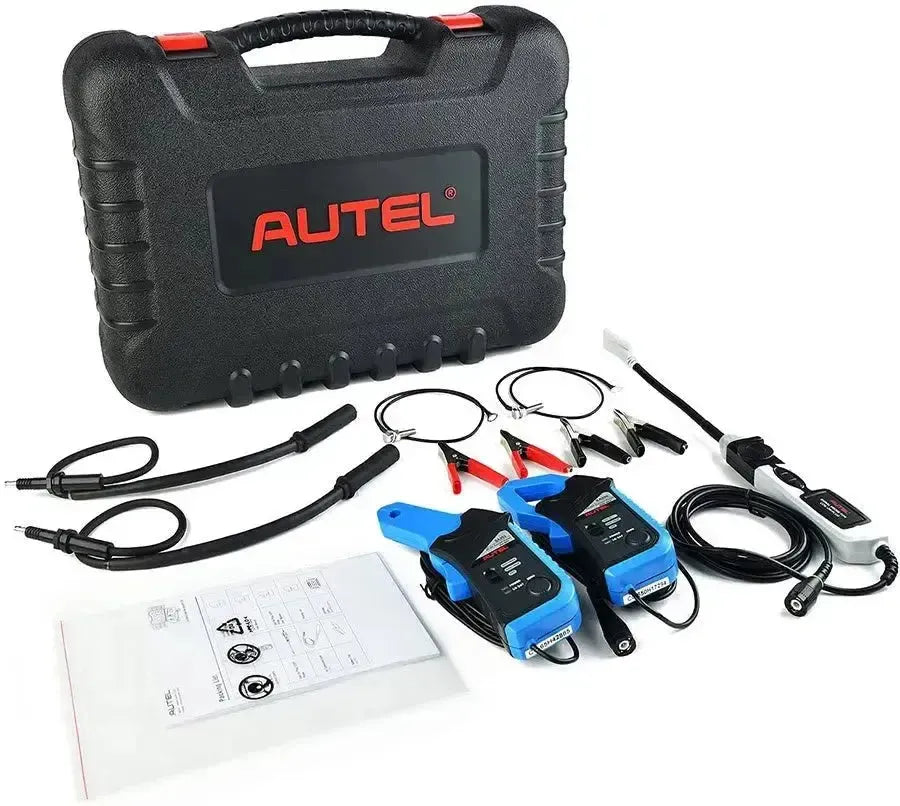

Package Contents:
- 1x 65A AC/DC current clamp
- 1x 650A AC/DC current clamp
- 1x Coil-on-Plug (COP) probe
- 2x HT extension cable
- 2x Battery clamp
- 1x Carrying case
Technical specifications:
| Specification | Description |
|---|---|
| Brand | Autel |
| Model | MaxiSys MSOAK |
| Type | Oscilloscope accessory kit |
| Compatibility | Autel MaxiScope MP408, MaxiSys Ultra, MaxiSys MS919 |
| Measuring range 65A current clamp | 20 mA to 65 A DC/AC |
| Measuring range 650A current clamp | 100 mA to 650 A DC/AC |
