Autel | SKU: MaxiVCI V100 / 3.38

Autel MaxiVCI V100 | Interface

Name: Autel MaxiVCI V100 | Interface
Brand: Autel
SKU: MaxiVCI V100 / 3.38
Price: 259.95 EUR
Availability: InStock

€259,95 incl.

€214,83 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

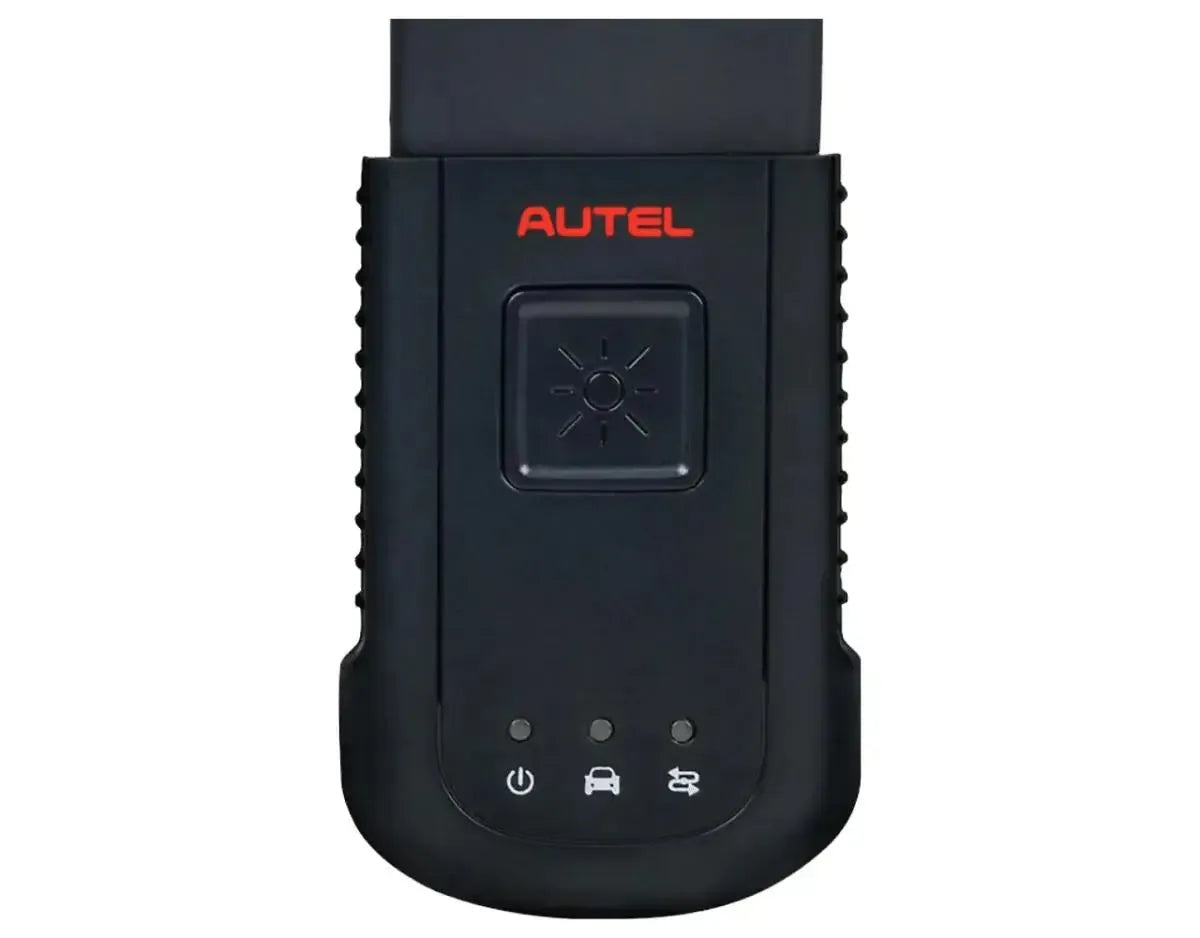

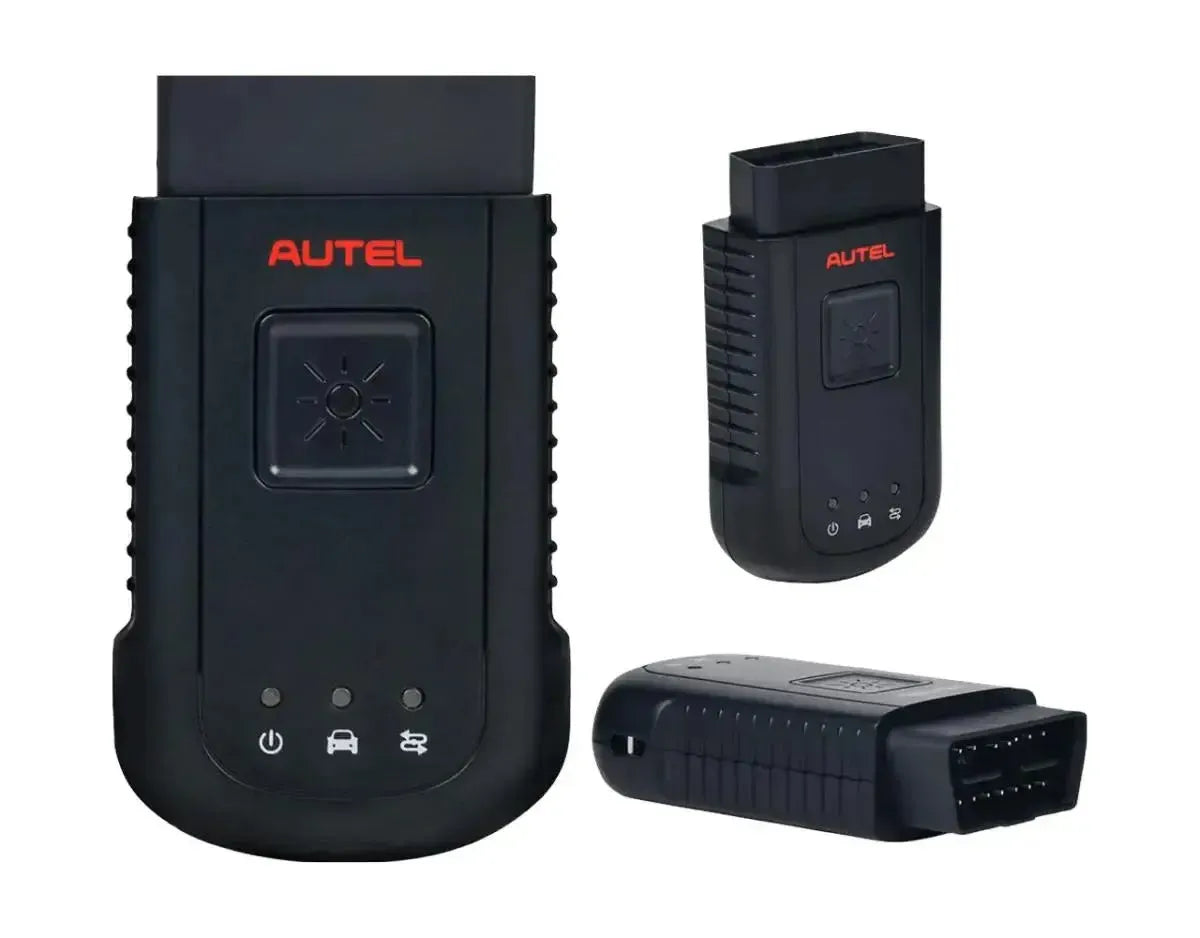

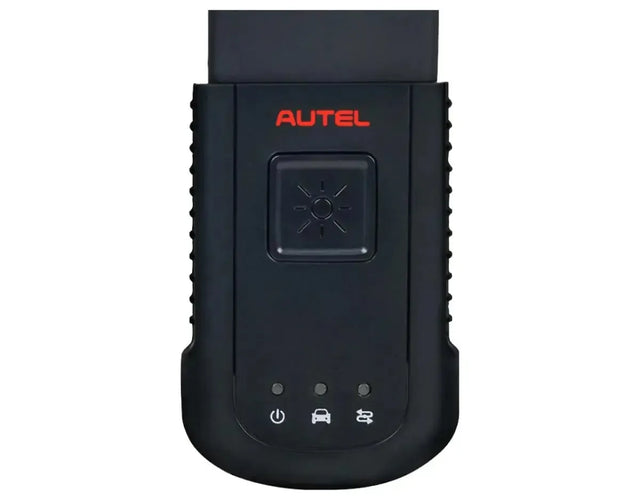

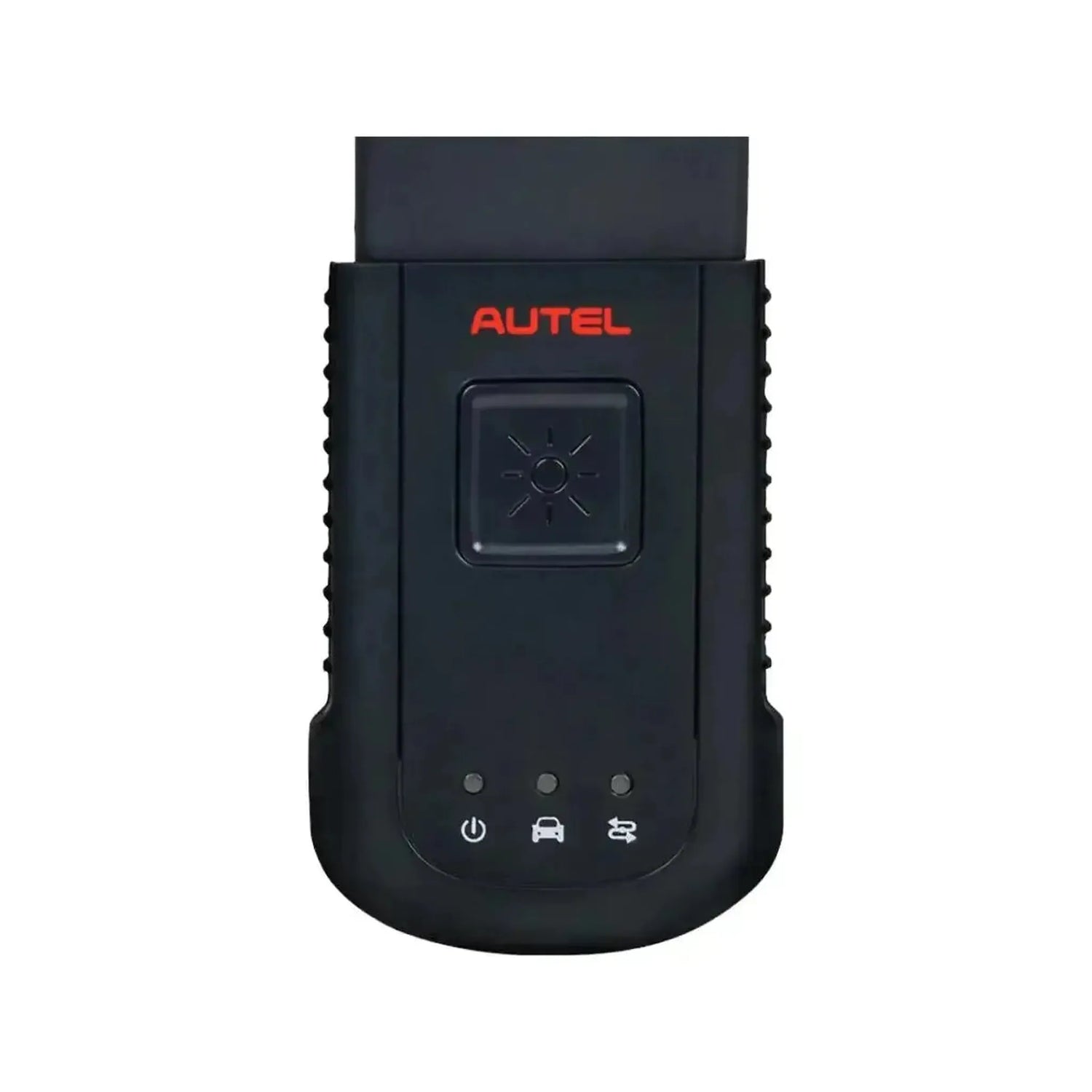

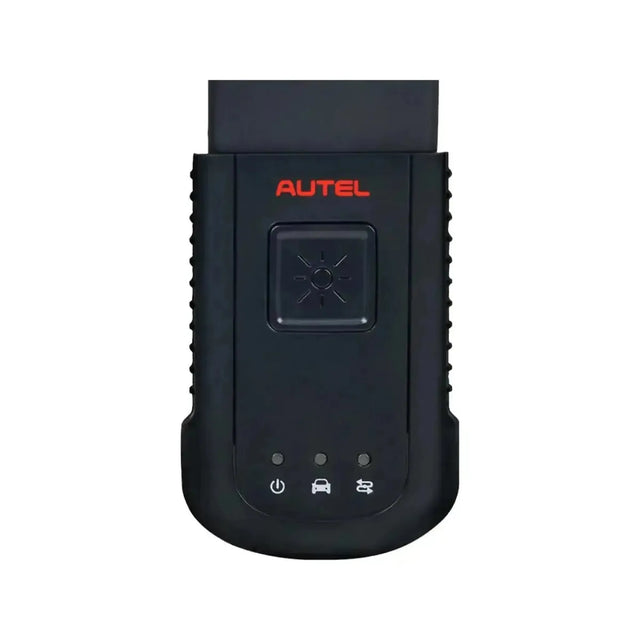

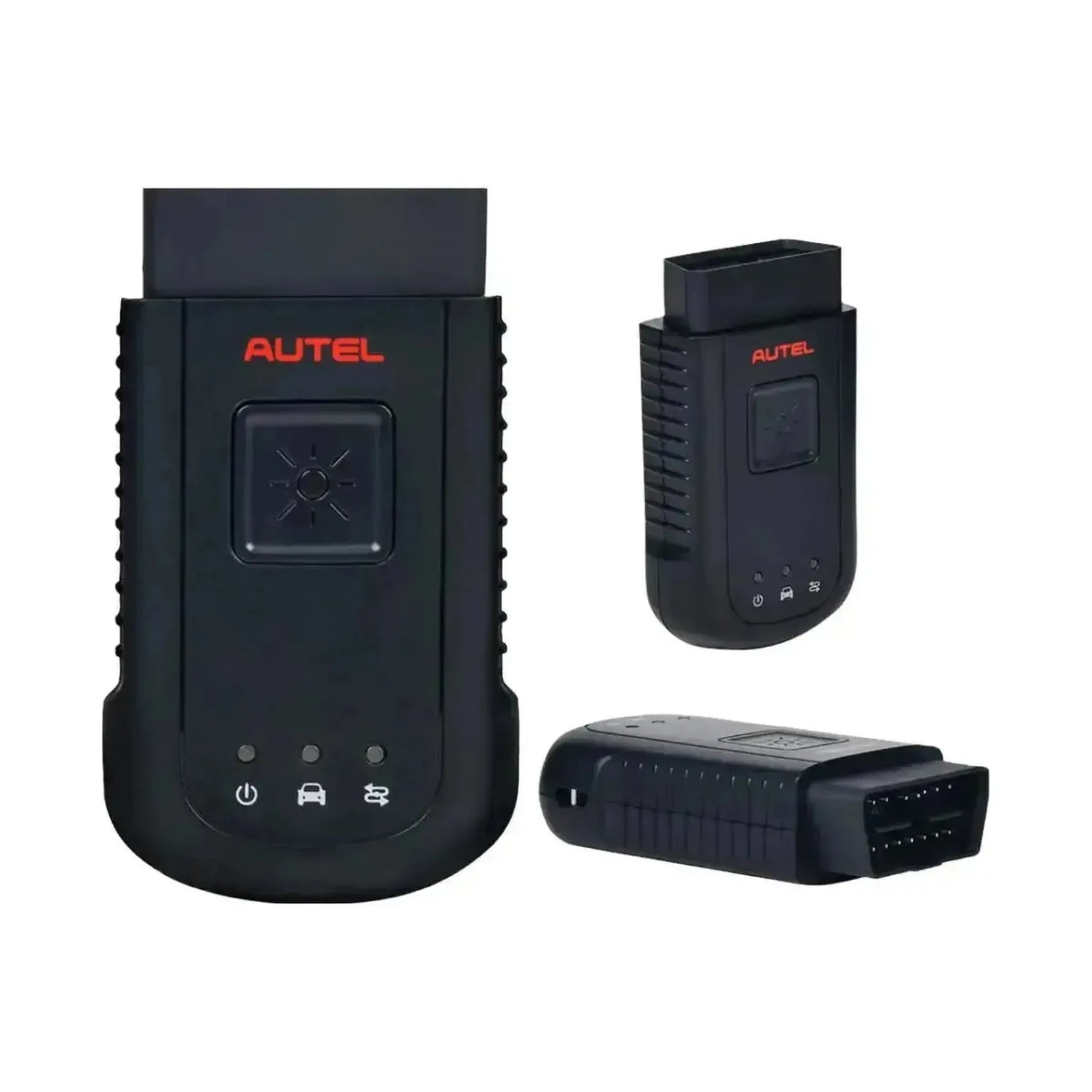

The Autel MaxiVCI V100 is a compact wireless diagnostic interface that acts as a communication bridge between the vehicle and the Autel tablet. The interface connects to the OBD2 port (J1962) and transmits vehicle data wirelessly to the diagnostic platform. The plastic housing with ribbed sides provides grip when connecting and disconnecting, while three LED indicators display the status of power, vehicle communication, and data transmission.

During a diagnostic session, the V100 pairs with the Autel tablet and establishes communication with the vehicle's ECUs. The built-in work light on the front lights up the OBD2 connection point under the dashboard, making it easier to connect in poorly lit footwells. The interface supports common OBD2 protocols including CAN, allowing fault code reading, live data viewing, and bidirectional tests wirelessly from the workshop.

ADVANTAGES

✔ Built-in work light illuminates the OBD2 port when connecting under the dashboard.

✔ Three LED status indicators immediately show whether power, vehicle connection, and data transmission are active.

✔ Wireless operation provides freedom of movement around the vehicle during measurements and test drives.

✔ Compact form factor with direct OBD2 connector without a loose cable.

KEY POINTS

✕ The V100 works exclusively with specific Autel tablets; check compatibility with your diagnostic platform beforehand.

✕ An Autel tablet is not included and is required to operate the interface.

Applications and functionalities

The MaxiVCI V100 supports the following diagnostic operations in combination with an Autel tablet:

Read and clear fault codes: Communicates with ECUs to request and remove DTCs from all supported systems.
Display live data: Sends current sensor values from the vehicle to the tablet for real-time analysis during idle or a test drive.
Bidirectional tests: Sends commands to actuators and components to specifically check their operation.
OBD2 protocol communication: Processes common OBD2 protocols including CAN for broad vehicle coverage.
Work light function: Illuminates the OBD2 connection via the integrated LED button on the front of the interface.

Package Contents

1x Autel MaxiVCI V100 | Interface

💡

Good to know: Before first use, check via the Autel diagnostic app if the V100 firmware is up to date; current firmware prevents connection issues and ensures new vehicle protocols are correctly recognized.

Technical specifications

Specification	Description
Product brand	Autel
Product model	MaxiVCI V100
Type	Wireless diagnostic interface (VCI)
Vehicle connection	OBD2 (J1962)
Communication	Wireless with Autel tablet
Supported protocols	OBD2, including CAN
Status indicators	3x LED (power, vehicle, data transmission)
Additional feature	Integrated work light
