Autel MaxiSys MS906 Pro-TS Car Diagnostic Tool

The Autel MaxiSys MS906 Pro-TS is an advanced, professional 2-in-1 car Diagnostic Tool, developed for workshops that want to combine both extensive vehicle diagnostics and full TPMS service in one powerful system. The device combines the extensive OE-level diagnostic and coding functions of the MS906 Pro with a fully integrated TPMS module, including a built-in antenna. This allows technicians to read, activate, program (Autel MX sensors), and learn tire sensors – without extra modules or accessories.

The system runs on a powerful Qualcomm 660 octa-core processor, supports the Android 10 operating system, and features a bright and compact 8-inch HD touchscreen. Communication with vehicles is wireless via the included MaxiVCI V200, which supports the latest protocols such as CAN-FD and DoIP. This makes the device compatible with the newest vehicle models. The system comes standard with two years of free software updates, including TPMS database and brand support. After this period, the device continues to operate on the last installed software version; for new updates and access to online features, an annual license is required.

---

Diagnostic functions:

The Autel MS906 Pro-TS offers diagnosis at OE level for more than 80 vehicle brands. The system has access to all electronic control units and is designed for in-depth fault analysis and precise vehicle inspection.

• Complete system scan (AutoScan): Automatically scans all present modules for fault codes (DTCs) and generates a complete vehicle status overview.
• Bi-directional control (active tests): Manually sends commands to ECUs to operate components such as injectors, pumps or relays and check their operation without disassembly.
• Live data: Displays real-time data from sensors and actuators in text form, graphs or as analog meters. Data can be recorded and played back for later analysis.
• Read and clear fault codes: Reads generic and manufacturer-specific fault codes and displays associated descriptions. After repair, the codes can be easily cleared.
• AutoVIN & ScanVIN: Automatically recognizes vehicles via the electronic identification (VIN) or via camera scan with the integrated 8MP camera.
• Support for 10 OBDII modes: Provides full support for EOBD/OBDII diagnosis, including advanced Mode 6 for deeper emission test data and monitor diagnosis.

---

TPMS functions:

The "TS" version of the Autel MS906 Pro-TS is fully equipped for professional TPMS management, making a separate TPMS programming device unnecessary. Thanks to the built-in antenna, the system offers full coverage for diagnosis, programming and relearning of TPMS sensors.

• Complete TPMS diagnosis: Reads the full status of the TPMS system, including sensor ID, tire pressure, temperature and Battery status. Supports activation of 99% of all OEM sensors.
• Programming Autel MX-Sensors: Supports programming of Autel MX-Sensors (315/433 MHz) for replacement or cloning of original sensors via various programming methods.
• Extensive relearn procedures: Contains a comprehensive database with vehicle-specific instructions for pairing sensors via OBD, automatic recognition or stationary learn procedures.
• TPMS retrofit: Unique feature allowing vehicles without factory-installed TPMS system to be equipped with a fully functional TPMS, as available on higher trims of the same model.

---

Maintenance and service functions:

One of the strongest points of the Autel MS906 Pro-TS is the extensive maintenance and service menu with more than 36 commonly used functions. These quickly accessible 'one-touch' functions save time and increase efficiency in the workshop during routine maintenance tasks.

• Oil reset (Service): Resets the oil service interval after maintenance or engine oil replacement.
• Electronic parking brake (EPB): Opens and closes the brake calipers for brake pad replacement and performs calibration.
• Initialize Battery Management System (BMS): Registers a new Battery in the vehicle management system.
• Initialize steering angle sensor (SAS): Calibrates the steering angle sensor after alignment or replacement.
• Initialize diesel particulate filter (DPF): Performs forced regeneration of the soot filter and resets the DPF parameters.
• Bleed ABS pump (ABS): Removes air from the ABS braking system after maintenance or component replacement.
• Initialize injectors: Codes new injectors and correctly writes the IMA codes into the ECU.
• Initialize throttle body (ETC): Relearns the throttle after replacement or cleaning.
• Initialize air suspension: Calibrates the air suspension after replacement of air springs or sensors.
• Initialize transmission (CVT): Resets and relearns the adaptive values of the automatic transmission.
• Initialize adaptive headlights (AFS): Performs basic adjustment of headlights after replacement or height adjustment.
• Initialize door window/panoramic window: Initializes electric windows, doors, or sunroofs for correct operation.

---

Programming and coding functions:

The Autel MS906 Pro-TS offers extensive ECU coding capabilities, but is not intended for full ECU programming (flashing). The available functions are suitable for adjusting, activating, or deactivating vehicle functions in a safe and controlled manner.

• Advanced ECU coding: Changes software parameters within ECUs to activate, deactivate or reconfigure functions after parts replacement.
• Online coding: Supports brand-specific online coding for among others Volkswagen, Audi and Nissan, where coding data is retrieved directly from the factory server.
• Offline coding: Provides support for offline coding for vehicles including BMW (E- and F-chassis), without a direct internet connection.
• Personalization: Enables activation of hidden functions (such as cornering lights or ambient lighting) or deactivation of unwanted functions (such as start/stop systems).

---

Cloud and reporting features:

The Autel MS906 Pro-TS integrates modern cloud-based services that streamline workflow and elevate communication with customers to a professional level.

• Cloud Report Management: Automatically saves pre-scan and post-scan reports in the Autel Cloud, making them easy to find and archive.
• Easy sharing: Reports can be shared directly via QR code, email or SMS, enabling fast and transparent communication with customers or insurers.
• Remote Expert: A (future) service that allows a remote expert to be engaged via the cloud for support with complex diagnostics or remote programming tasks.

---

Special communication protocols:

The included MaxiVCI V200 makes the system fully future-proof thanks to support for the latest vehicle protocols, essential for modern vehicle electronics.

• CAN FD (Controller Area Network – Flexible Data-Rate): Required for communication with many new vehicles, especially from General Motors from model year 2020. This protocol enables higher data speeds than traditional CAN networks.
• DoIP (Diagnostics over Internet Protocol): Uses an Ethernet connection for ultra-fast vehicle diagnostics. This protocol is necessary for newer models of, among others, BMW, Jaguar, and Land Rover.

---

Optional expansions and modules:

The Autel MaxiSys MS906 Pro-TS is modularly expandable and compatible with various professional accessories from Autel. This significantly increases the functionality of the Diagnostic Tool for specific diagnostic and inspection applications.

• ADAS calibration: Fully compatible with Autel’s ADAS calibration frames. This allows driver assistance systems such as Lane Departure Warning, Adaptive Cruise Control, and forward-facing cameras to be accurately calibrated. Requires separate ADAS software license and associated hardware.
• Battery analysis (BT506): Supports direct connection with the Autel MaxiBAS BT506, a professional battery tester for comprehensive analysis of starting, charging, and battery circuits. The results are clearly displayed on the screen of the MS906 Pro-TS.
• Videoscope (MV105/MV108): Compatible with the Autel MaxiVideo MV105 and MV108 inspection cameras. Ideal for visual inspection of hard-to-reach parts such as cylinder heads, turbos, or dashboard constructions.

---

Supported car brands:

• European brands: Abarth, Alfa Romeo, Audi, Aston Martin, Bentley, BMW, Bugatti, Citroën, DS, Dacia, Ferrari, Fiat, FordEU, Iveco LD, Jaguar, Lancia, Lamborghini, Land Rover, Maserati, MAN LD, Maybach, Mercedes-Benz, Mercedes-Benz LD, MINI, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Vauxhall, Volkswagen, Volkswagen CV, Volkswagen LT3, Volvo
• Asian brands: Acura, Daewoo, Daihatsu, Fuso, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Samsung, Scion, SsangYong, Subaru, Suzuki, Tata, Toyota
• American brands: Chevrolet, Chrysler, Dodge, Ford, GM, Jeep
• Chinese brands: BAIC Motor, BAIC Senova, Borgward, Brilliance, BYD, Chery, DFSK, DFFG, Emgrand, Foton, Geely, Great Wall, JAC, LDV, Lifan, Maxus, SAIC MG, Zotye

---

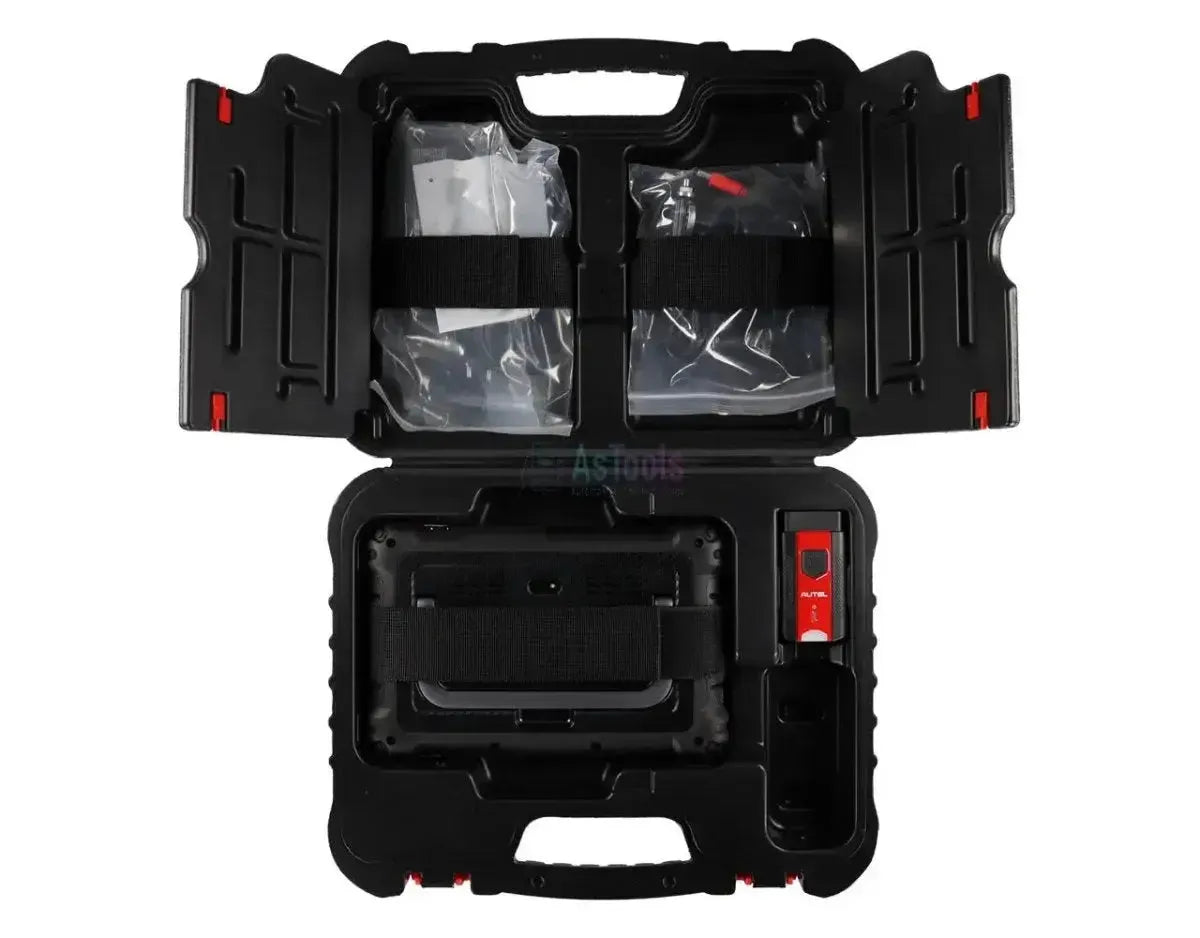

Package contents:

• Autel MaxiSys MS906 Pro-TS Diagnostic Tool
• Autel MaxiVCI V200 Interface
• Autel USB-A - USB-C Extension Cable
• USB-A - RJ45 Network Extension Cable
• Power adapter
• Manual

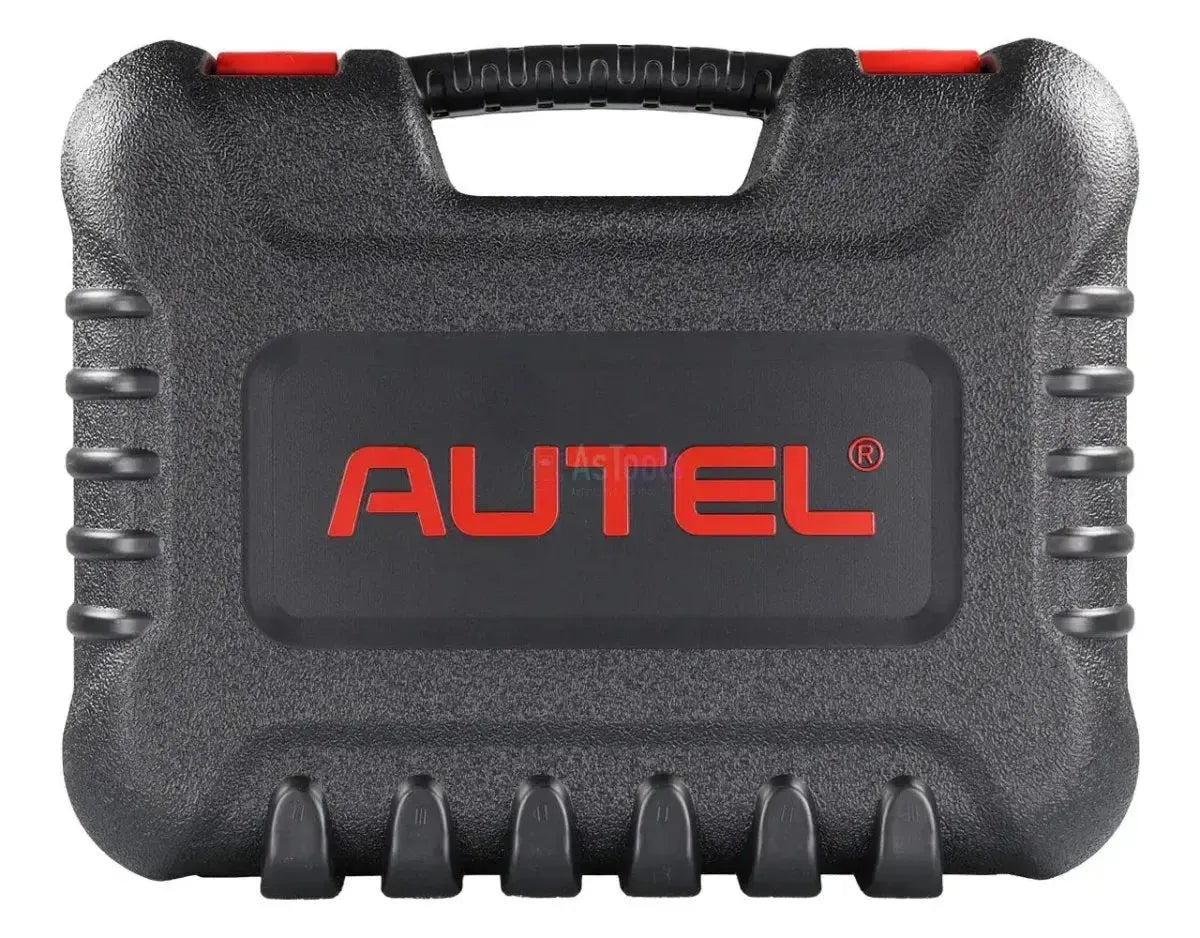

• Storage case
• Cleaning cloth
• Autel Cigarette Lighter Extension Cable

---

License information:

• Includes 2 years of updates: A 24-month update license is included with purchase.

After the first year, the license can be renewed for an annual fee. The device remains fully functional for already supported models, even without license renewal. However, new software updates can no longer be installed, and some online features may be limited or no longer supported.

---
