Autel MaxiSys MS906 Pro Car Diagnostic Tool

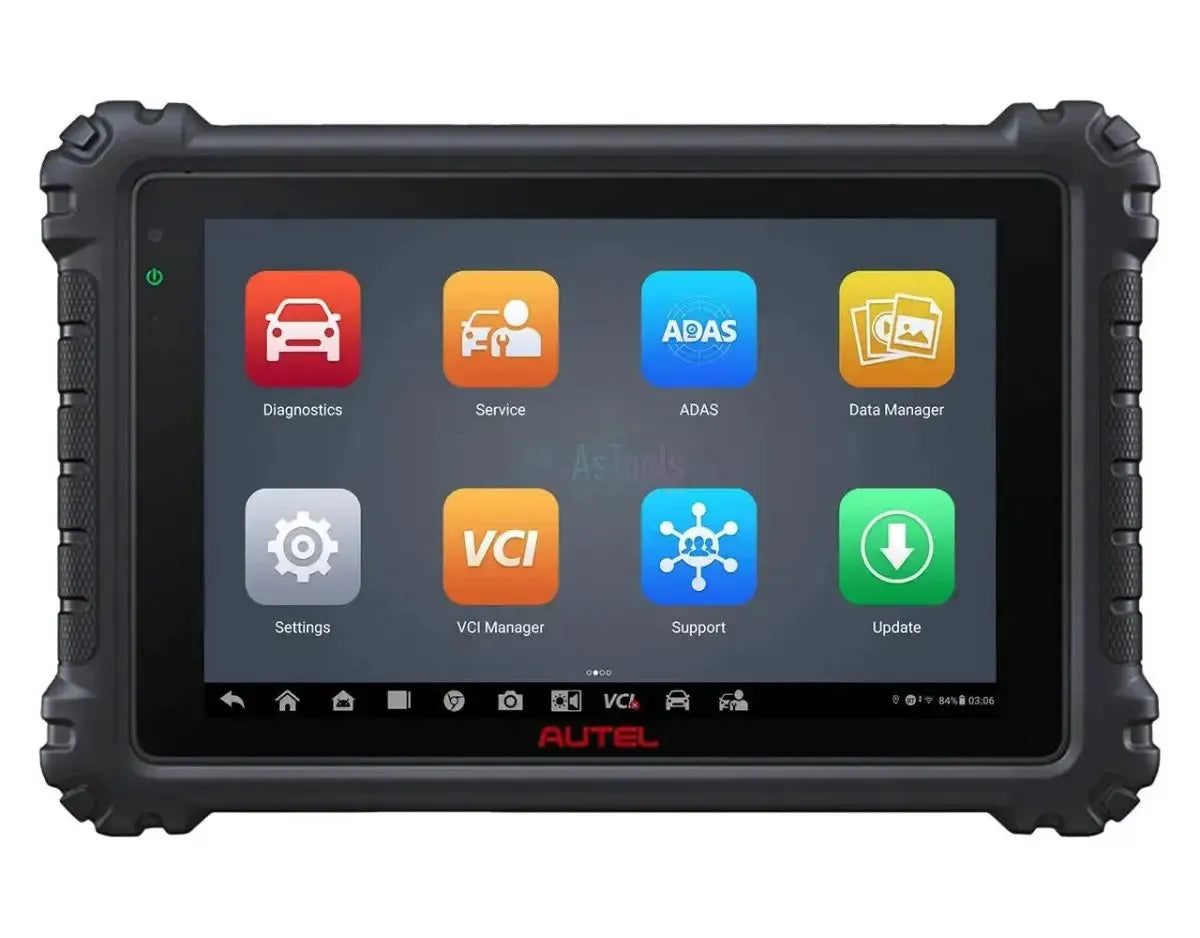

The Autel MaxiSys MS906 Pro is a powerful, professional Diagnostic Tool at OE level, designed for workshops demanding maximum performance and functionality in vehicle diagnostics and coding. The device is the direct counterpart to the MS906 Pro-TS, but without integrated TPMS hardware, making it ideal for technicians primarily focused on engine, system, and network analysis. The MS906 Pro is built around a fast 8-inch HD touchscreen tablet, equipped with a Qualcomm 660 octa-core processor and Android 10, ensuring quick load times, smooth navigation, and stable performance – even with complex vehicles and heavy software modules.

Wireless communication with the vehicle is carried out via the supplied MaxiVCI V200, which supports modern protocols such as CAN-FD and DoIP, ensuring compatibility with the latest vehicle models. The device comes standard with two years of free software updates, giving users access to the most current vehicle coverage, features, and improvements. After this period, the system continues to operate on the last installed version, but a annual license is required for access to new updates and online functionality.

Diagnostic functions:

The Autel MaxiSys MS906 Pro offers comprehensive OE-level diagnostic capabilities for more than 80 vehicle brands. The Diagnostic Tool is designed for fast fault analysis, direct system access, and professional reporting.

• Full system diagnosis (OE-Level): Provides in-depth access to all electronic control units, including engine, transmission, ABS, airbag (SRS), comfort systems, ADAS, and more. Reads fault codes, provides technical descriptions, and clears faults quickly and accurately.
• Active tests (bidirectional control): Sends direct commands to actuators, relays, and components such as the fuel pump, fans, door locks, or EGR valves, to verify system operation without disassembly.
• AutoVIN / ScanVIN: Automatically recognizes the vehicle via the VIN number, or scans the VIN directly with the 16 MP camera on the front. This quickly and accurately identifies the vehicle for automatic system selection.
• Live datastream: Displays real-time data from modules and sensors in text view, digital graphs, or as a analog gauge. This allows trends or anomalies to be quickly detected and recorded.
• Pre- and post-scan reports: Generates professional reports of the vehicle condition before and after repair, including fault codes, module status, and workshop summary. The reports are suitable for customers, insurers, and documentation.

Maintenance and service functions:

The Autel MaxiSys MS906 Pro supports more than 40 maintenance and reset functions, allowing essential systems to be reinitialized, calibrated, or adjusted after replacement or maintenance. These functions are indispensable for efficient workshop diagnostics and service tasks.

• Oil service reset (Service): Resets the maintenance interval and turns off the service light after oil change.
• Electronic parking brake (EPB): Releases, applies, and initializes the electronic handbrake during brake service.
• Battery management system (BMS): Registers a new Battery and restores the vehicle's charging strategy.
• Steering angle sensor (SAS): Calibrates the steering angle sensor after alignment or replacement of steering components.
• Diesel particulate filter (DPF): Starts forced regeneration of the soot filter and clears related fault codes.
• ABS pump bleeding (ABS): Activates the ABS system to remove air from the hydraulic brake circuits.
• TPMS reset: Detects and learns new tire pressure sensors after replacement.
• Throttle body (ETC): Initializes the electronic throttle after cleaning or replacement.
• Injector coding: Programs identification codes of new injectors for optimal injection.
• Transmission adaptation (CVT/AT): Resets learned values for smooth shifting after transmission service.
• Crankshaft sensor learning (TEC): Recalibrates the crankshaft sensor position after replacement.
• AdBlue system reset: Resets the urea injection system after refilling or maintenance.
• Air suspension calibration: Calibrates the ride height and level control on vehicles with air suspension.
• Headlight adjustment (AFS): Initialization of adaptive or steering headlights.
• Windows and roof initialization: Restores automatic functions of electric windows and panoramic roofs.
• Start/stop settings: Activates or deactivates the automatic start/stop system.
• Seat occupancy sensor (SRS): Calibrates passenger detection for correct airbag deployment.
• Transport mode: Activates or deactivates the vehicle transport mode for delivery or storage.
• Change system language: Adjusts the language settings on the instrument panel.
• Air/fuel ratio reset (A/F): Restores adaptive engine parameters for air and fuel control.

Programming and coding functions:

The Autel MaxiSys MS906 Pro supports a wide range of OE-level coding options, allowing vehicle modules to be customized, configured, and optimized after replacement or for user comfort. However, full ECU programming (flashing) is not supported on this model.

• Advanced ECU coding: Offers the ability to recode electronic modules after replacement, modification, or retrofit. This allows, for example, activation of hidden functions such as start/stop disable, welcome lighting, or cornering lights activation.
• Online coding: Supports direct communication with the factory servers to perform online coding, including for Volkswagen, Audi, and Nissan. This is especially applicable for vehicles where component protection or brand servers are required for correct configuration.
• Offline coding: Provides extensive offline coding functions for brands such as BMW (supporting both E- and F-series), requiring no internet connection or factory server for standard adjustments.

Cloud and reporting features:

The Autel MaxiSys MS906 Pro offers powerful cloud and reporting features for efficient management of vehicle information and direct support both inside and outside the workshop.

• Autel Cloud Report Management: Pre-scan and post-scan reports are automatically saved in the Autel Cloud, allowing users easy access to a complete archive of performed diagnostics. Reports are linked to vehicle and customer information and can be consulted or shared again at any time.
• Easy sharing: Diagnostic reports can be shared directly from the tablet via QR code, email or SMS. This enables quick communication with customers or colleagues, without the intervention of external devices or software.
• Remote Expert (future service): In future updates, the system will support Autel Remote Expert – a cloud-based service that allows technicians to get help from certified experts for complex diagnostics, programming or coding. Remote support takes place remotely, directly via the device.

Additional features and special capabilities:

The Autel MaxiSys MS906 Pro is designed to meet the demands of modern vehicles and regulations. The device offers support for advanced communication protocols, secure vehicle access and legally required data reporting.

• Support for CAN-FD & DoIP: Thanks to the MaxiVCI V200, the MS906 Pro supports the latest communication protocols such as CAN-FD and DoIP. This makes the system fully compatible with modern vehicle platforms from, among others, GM, Ford, BMW, Volvo and Land Rover.
• FCA AutoAuth access: Provides authorized access to the Secure Gateway (SGW) of vehicles from Fiat, Chrysler, Alfa Romeo and Jeep. This allows diagnostics and service tasks to be performed without restrictions. A valid AutoAuth account is required for use.
• OBFCM / APK2 suitability: Supports reading On-Board Fuel Consumption Monitoring (OBFCM) data. This feature is required for APK2 inspections and makes it possible to correctly record and report the fuel and/or energy consumption of vehicles according to the requirements of, among others, the RDW.

Optional expansions and modules:

The Autel MaxiSys MS906 Pro is compatible with various expansion modules, which can extend the functionality of the Diagnostic Tool for specialized applications in diagnosis, inspection, and Battery analysis.

• ADAS calibration: Fully compatible with Autel’s ADAS calibration frames. This allows driver assistance systems such as Lane Departure Warning, Adaptive Cruise Control, and front cameras to be accurately calibrated after replacement or realignment. Requires additional hardware and ADAS software license.
• Battery analysis (BT506): Supports connection with the Autel MaxiBAS BT506 Battery tester, which enables extensive tests on the Battery, the starting circuit, and the charging system. Measures among others voltage, internal resistance, and remaining capacity.
• Videoscope (MV105/MV108): Compatible with the Autel MaxiVideo MV105 and MV108 inspection cameras. This allows visually inspecting hard-to-reach parts, such as cylinder heads or EGR channels, without disassembly.

Supported car brands:

• European brands: Abarth, Alfa Romeo, Audi, Aston Martin, Bentley, BMW, Bugatti, Citroën, DS, Dacia, Ferrari, Fiat, FordEU, Iveco LD, Jaguar, Lancia, Lamborghini, Land Rover, Maserati, MAN LD, Maybach, Mercedes-Benz, Mercedes-Benz LD, MINI, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Vauxhall, Volkswagen, Volkswagen CV, Volkswagen LT3, Volvo
• Asian brands: Acura, Daewoo, Daihatsu, Fuso, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Samsung, Scion, SsangYong, Subaru, Suzuki, Tata, Toyota
• American brands: Chevrolet, Chrysler, Dodge, Ford, GM, Jeep
• Chinese brands: BAIC Motor, BAIC Senova, Borgward, Brilliance, BYD, Chery, DFSK, DFFG, Emgrand, Foton, Geely, Great Wall, JAC, LDV, Lifan, Maxus, SAIC MG, Zotye

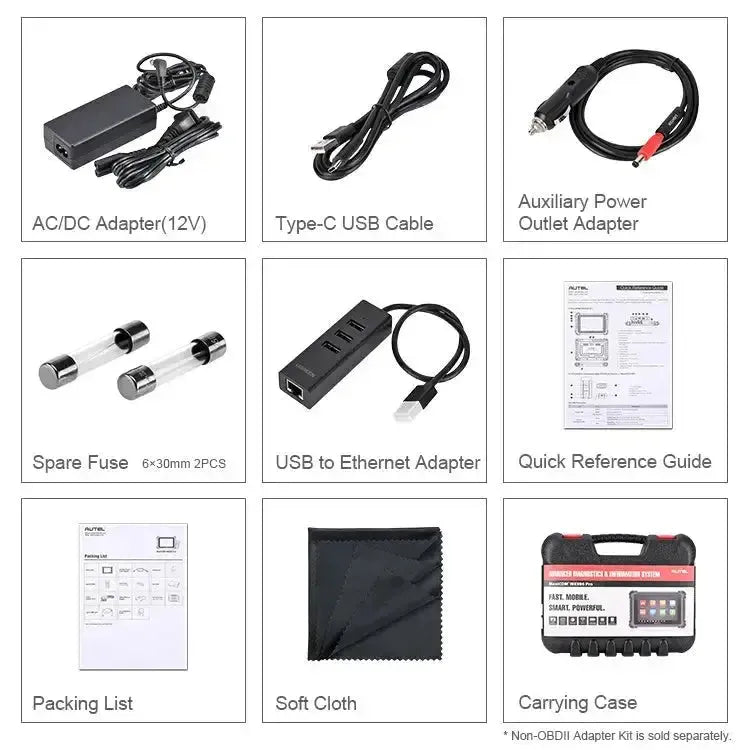

Package contents:

• Autel MaxiSys MS906 Pro Diagnostic Tool
• Autel MaxiVCI V200 Interface
• Autel USB-A - USB-C Extension Cable
• USB-A - RJ45 Network Extension Cable
• Power adapter
• Manual

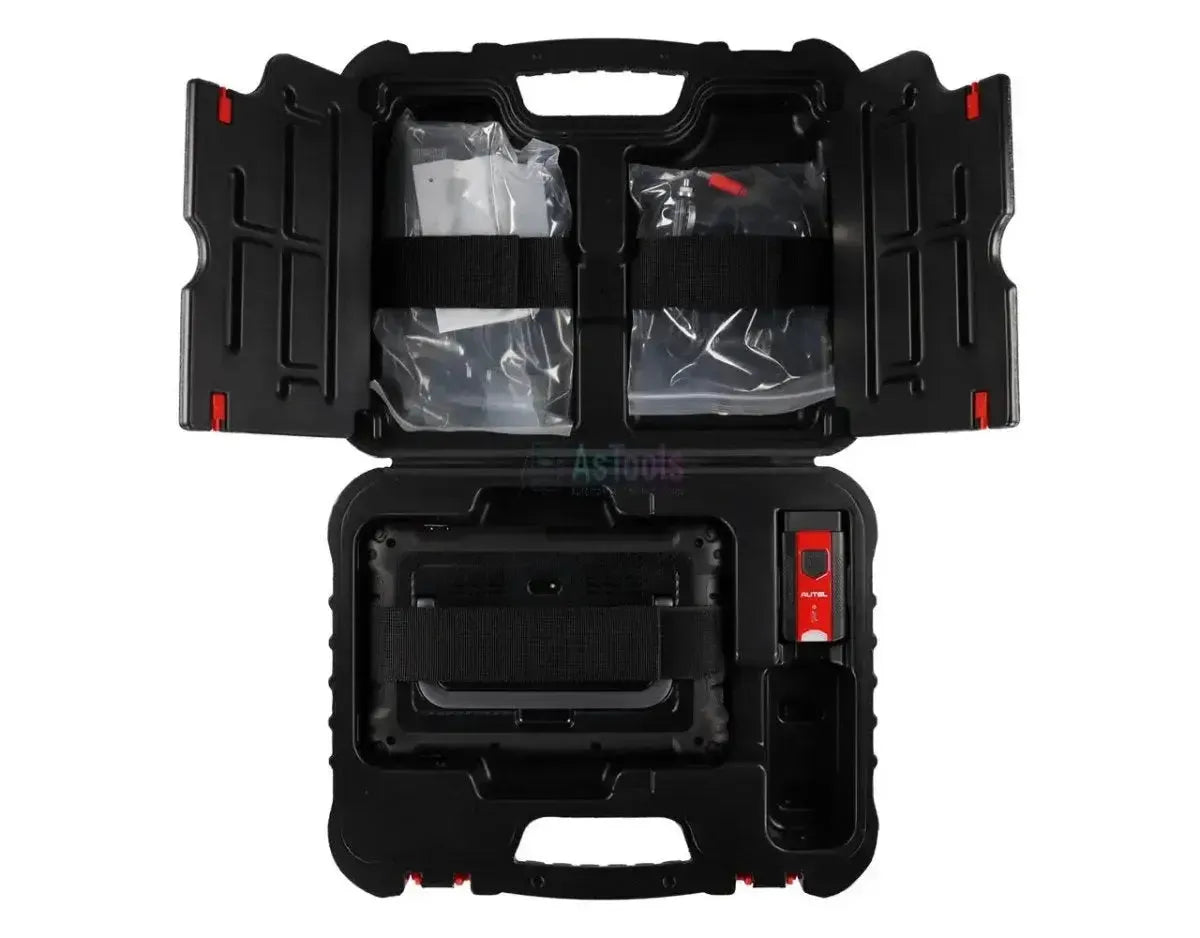

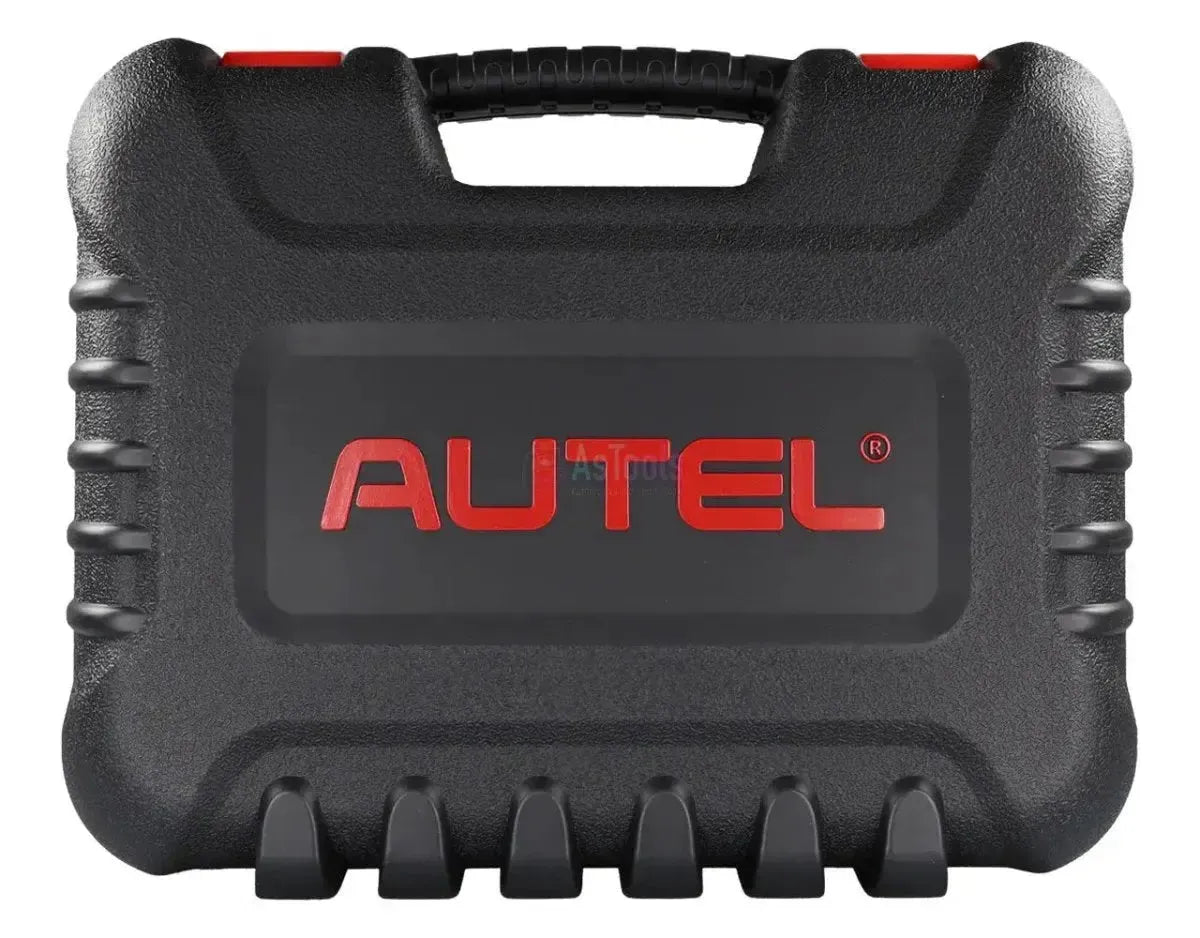

• Storage case
• Cleaning cloth
• Autel Cigarette Lighter Extension Cable

License information:

• Includes 2 years of updates: A 24-month update license is included with purchase.

After the first year, the license can be renewed for an annual fee. The device remains fully functional for already supported models, even without license renewal. However, new software updates can no longer be installed, and some online features may be limited or no longer supported.
