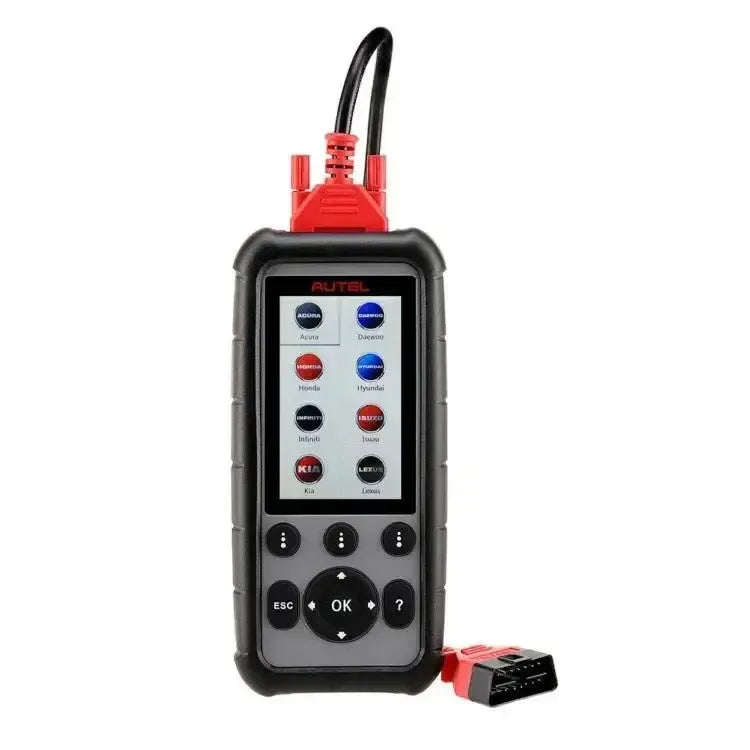

Autel MaxiDiag MD806 Pro Car Diagnostic Tool

The Autel MaxiDiag MD806 Pro is an advanced, wired Diagnostic Tool designed for full system diagnosis on a wide range of vehicle brands. This device is ideal for both the serious DIYer and the professional workshop looking for a powerful and versatile solution for fault diagnosis and maintenance.

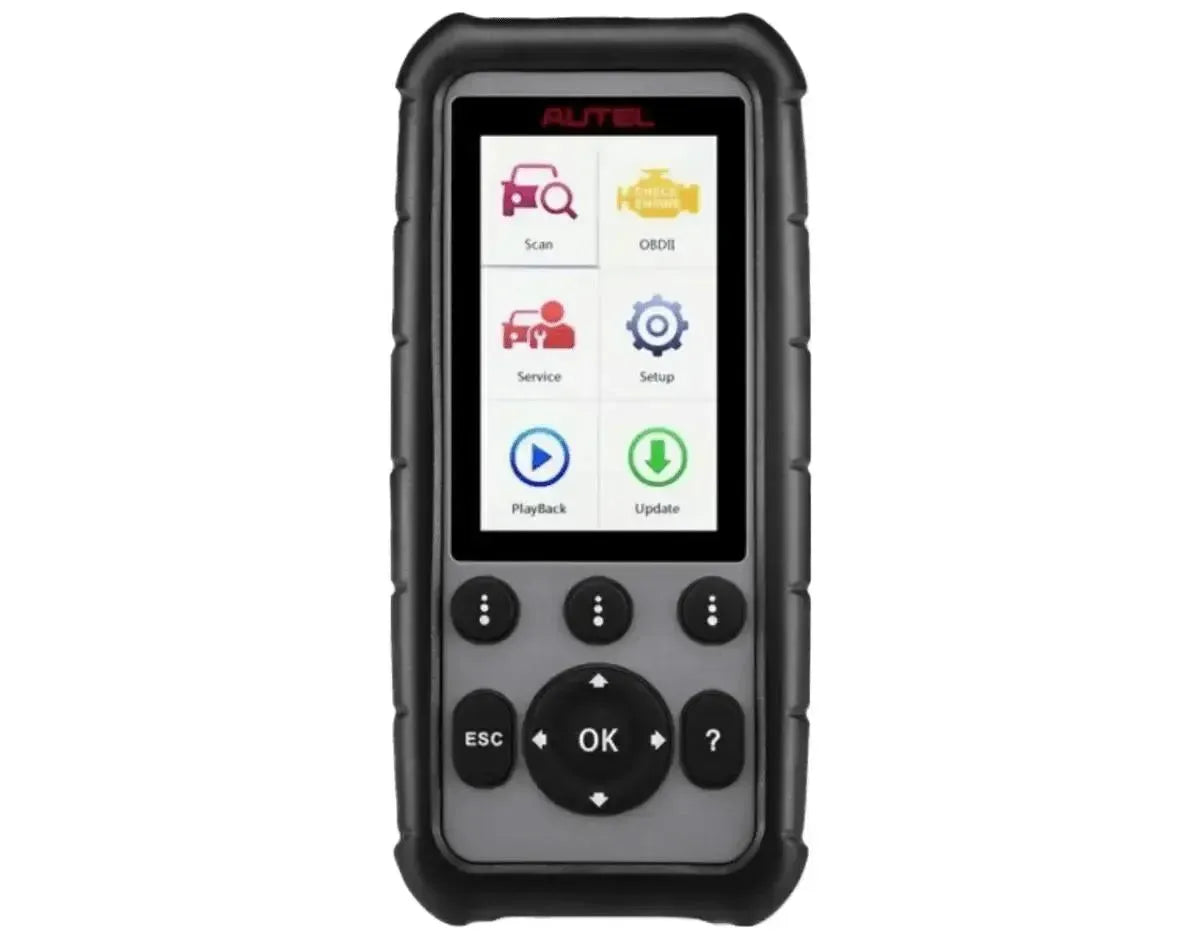

The MD806 Pro offers diagnosis on all electronic control units in the vehicle and is equipped with seven commonly used service functions. The device features a 4-inch color screen and a robust housing with rubber shock protection, making it suitable for intensive workshop maintenance. Thanks to the lifetime free software updates, the system remains up-to-date and provides a durable, cost-effective solution for daily diagnostic needs.

Diagnostic functions:

The Autel MaxiDiag MD806 Pro offers extensive diagnostic capabilities for all available vehicle systems and supports full OBD2 functionality:

• Complete system diagnosis: reads and clears fault codes (DTCs) from all electronic control units, including engine, transmission, ABS, airbag (SRS), climate control, instrument panel, parking sensors, and more. Live data is also displayed per module.
• Full OBD2 functionality: supports all 10 OBD2 test modes, including emission readiness (I/M Readiness), O2 sensor tests, Mode 6 (on-board monitoring), and reading vehicle information (VIN).
• Live data: displays real-time data from various sensors, both in numerical and graphical form, for targeted fault analysis and performance monitoring.
• AutoVIN technology: automatically identifies the vehicle based on the chassis number (VIN), enabling a quick and accurate start of the diagnosis.

Maintenance and service functions:

The Autel MD806 Pro supports seven common maintenance procedures, which are essential for regular vehicle maintenance and after parts replacement:

• Oil service reset: restores the oil and maintenance interval after a service has been performed.
• Electronic parking brake (EPB): activates the service mode of the brake system for safe replacement of brake pads and reactivates the system after maintenance is completed.
• Steering angle sensor calibration (SAS): calibrates the steering angle sensor after alignment work or replacement of steering components.
• Diesel particulate filter service (DPF): supports various DPF functions, including performing a forced regeneration to remove accumulated soot.
• Battery registration (BMS): registers a new battery in the battery management system so that the charging strategy is correctly adjusted.
• Throttle body learning: performs a recalibration of the electronic throttle for stable idle speed and correct response.
• Adaptive front lighting system (AFS) adjustment: recalibrates the automatic headlight adjustment after replacement or maintenance of the lighting system.

Additional functions:

The Autel MD806 Pro offers additional functions that support the diagnostic process and are suitable for documentation and later analysis:

• Printable reports: diagnostic data can be saved and printed via a computer, for example for customer communication or workshop administration.
• Data recording and playback: live data streams can be recorded and played back later for accurate comparison and fault analysis.

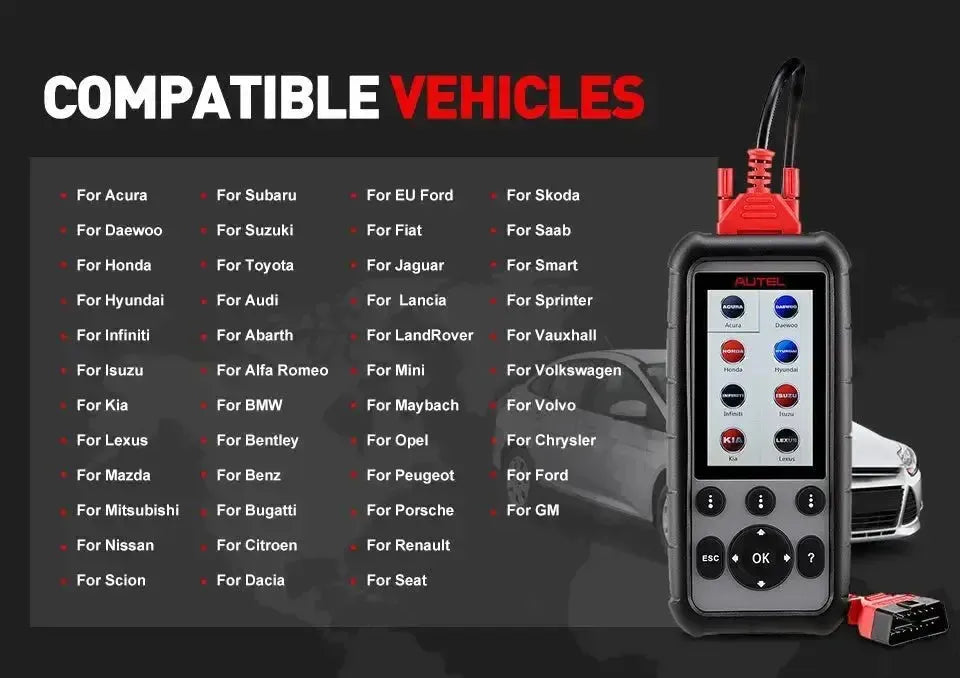

Supported car brands:

• European brands: Abarth, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Citroën, Dacia, Fiat, FordEU, Jaguar, Lancia, Land Rover, Maybach, Mercedes-Benz, Mercedes-Benz LD, MINI, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda, Smart, Vauxhall, Volkswagen, Volvo
• Asian brands: Acura, Daewoo, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Scion, Subaru, Suzuki, Toyota
• American brands: Chrysler, Ford, GM

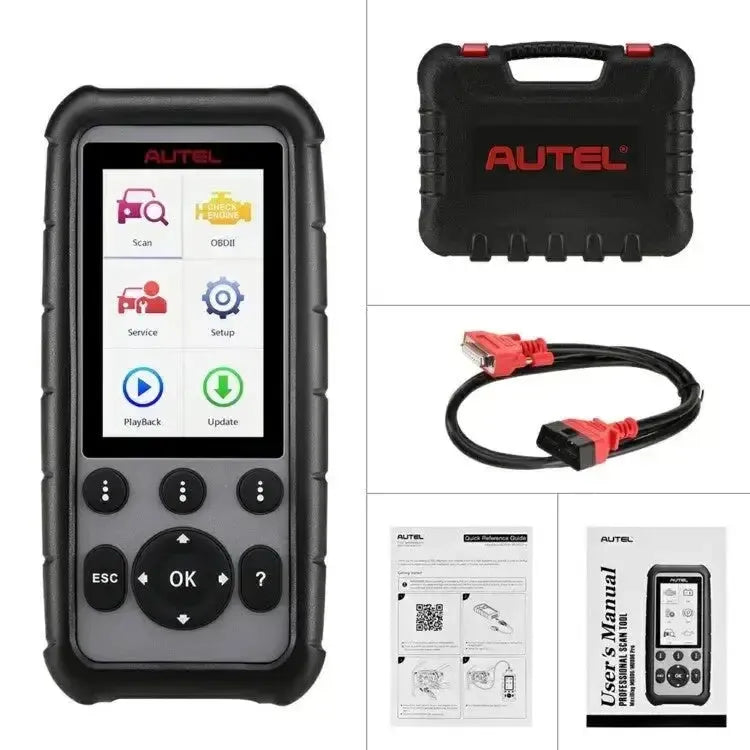

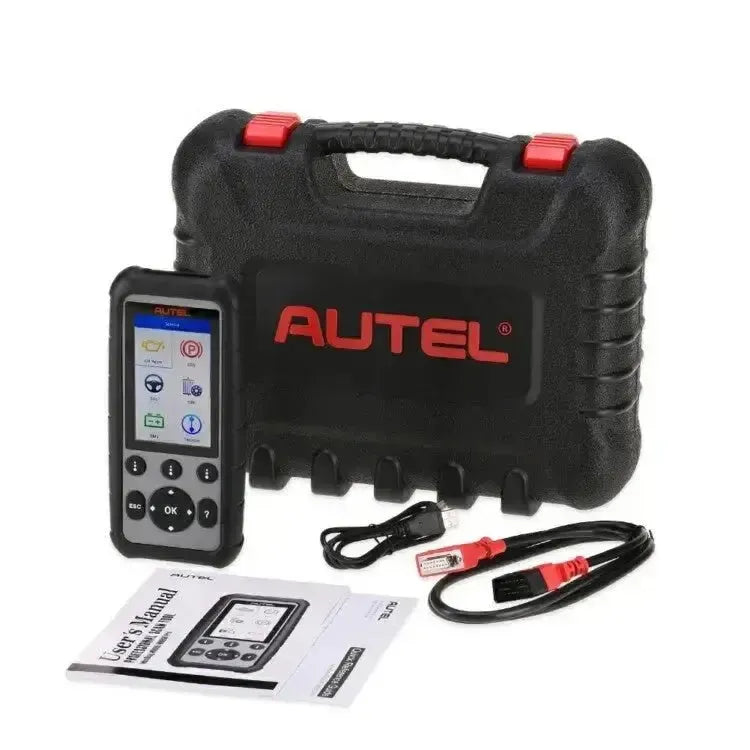

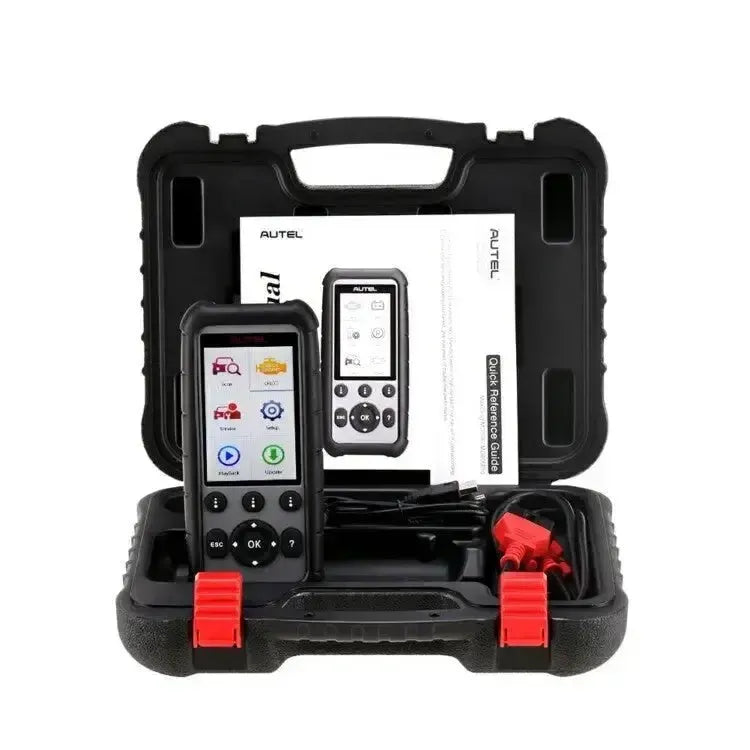

Package contents:

• Autel MaxiDiag MD806 Pro Diagnostic Tool
• Autel 15 Pins DB15 - 16 Pins OBD2 adapter cable
• USB-A - Mini USB-B adapter cable
• Micro SD card (16GB)
• Manual
• Storage case

License information:

• Software updates: comes with lifetime free software updates.

Technical specifications
