Autel MaxiDas DS900-BT Car Diagnostic Tool

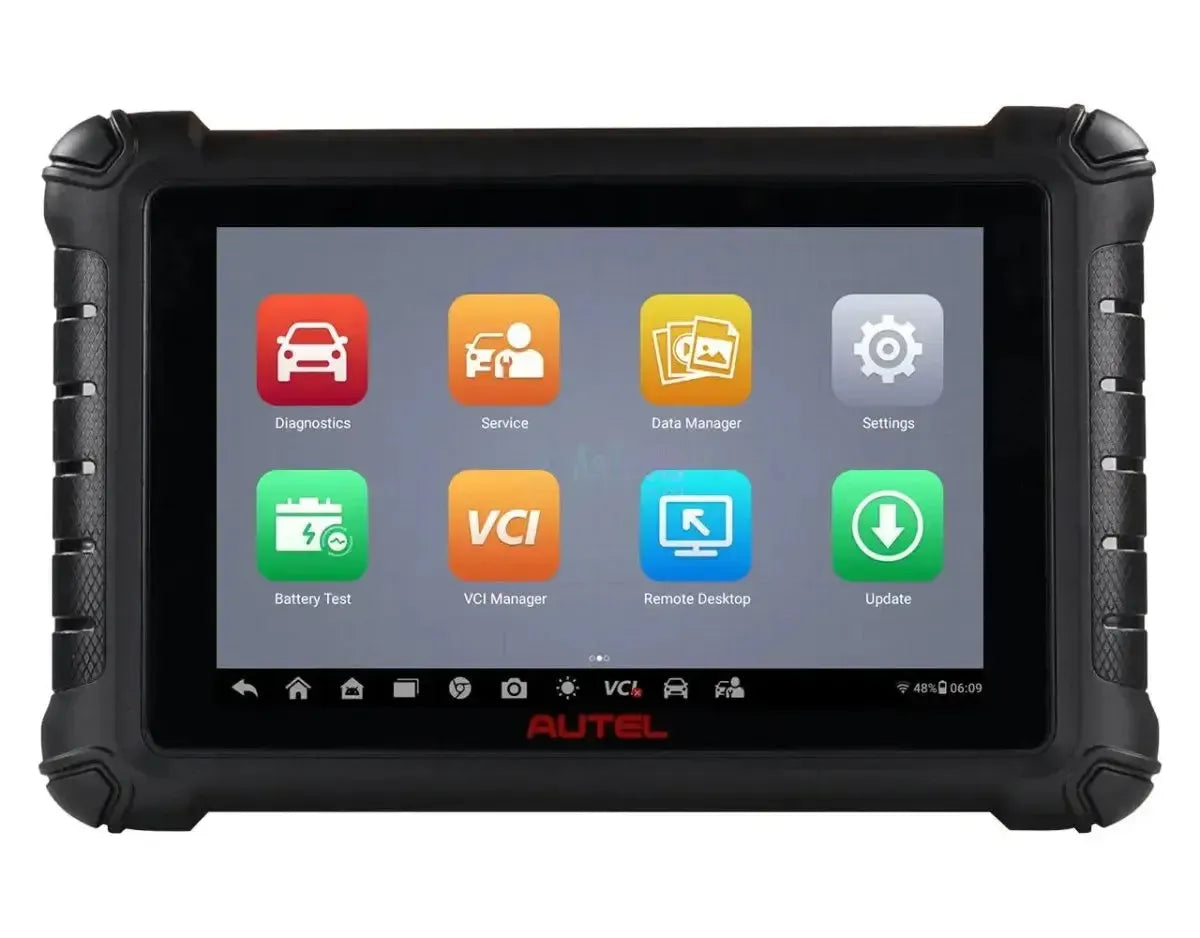

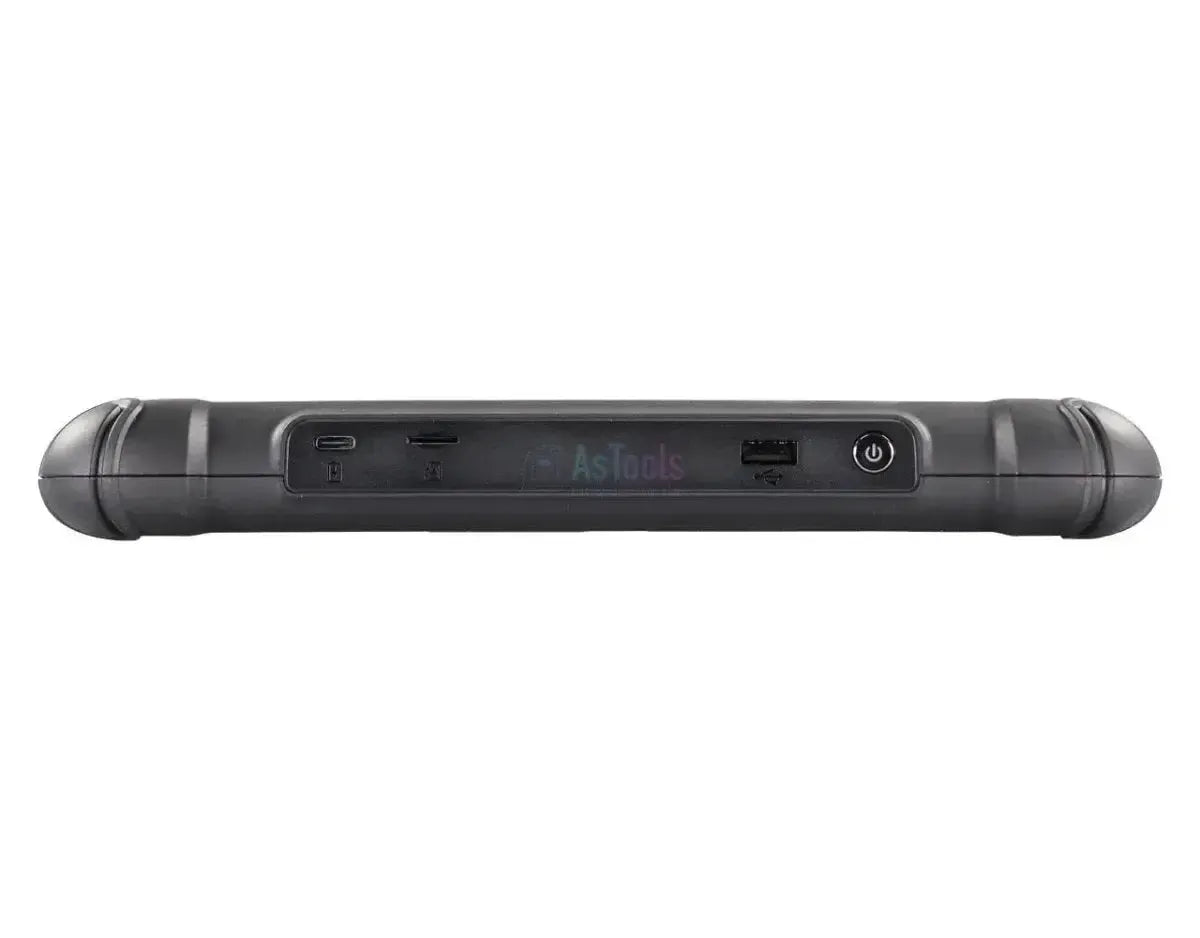

The Autel MaxiDas DS900-BT Diagnostic Tool is equipped with an 8-inch LCD capacitive touchscreen and runs on the Android 11 operating system. The device features a quad-core processor with a clock speed of 1.8 GHz, 4 GB RAM, 64 GB internal storage, and an 8-megapixel camera. Connectivity options include Wi-Fi, Bluetooth, and USB Type-C. Supported communication protocols are DoIP and CAN FD. The built-in 7700 mAh lithium-polymer battery ensures long-lasting use.

Diagnostic functions include reading and clearing fault codes for all available systems, displaying live data in textual, graphical, and analog form, and support for AutoVIN technology for automatic vehicle identification. Additionally, service functions are supported such as service interval reset, relearning of parking brake pads after replacement, forced regeneration, injector adjustment, battery registration and reset, and steering angle sensor (SAS) reset.

Diagnostic functions:

The Autel MaxiDas DS900-BT Diagnostic Tool offers comprehensive diagnostic capabilities for vehicles, including reading and clearing fault codes, displaying live data, and performing active tests.

• ECU information: Provides detailed information about the vehicle's electronic control units.
• Read fault codes: Reads fault codes from all available systems of the vehicle.
• Clear fault codes: Clears fault codes in all available systems of the vehicle.
• Live data: Displays live data in text, graph, and analog form for easy data analysis.
• Active tests: Performs active tests to check the operation of specific components.
• ECU coding: Performs coding on the vehicle's electronic control units.
• Guided functions: Provides step-by-step guidance for specific vehicle functions.
• Pre- and post-scan: Supports performing scans before and after repairs for a complete diagnosis.

Maintenance and service functions:

The Autel MaxiDas DS900-BT supports more than 42 maintenance and service functions, allowing comprehensive maintenance procedures to be performed efficiently and professionally. The availability of specific functions depends on vehicle make, model, and year. The list below provides an overview of the most commonly used functions:

• ABS pump bleeding (ABS): Enables removal of air from the ABS system after replacement or repair.
• Battery management system initialization (BMS): Registers and initializes a new battery to ensure the charging system functions correctly.
• Diesel particulate filter initialization (DPF): Performs a forced regeneration to burn off the soot filter.
• Electronic parking brake (EPB): Puts the brakes into service mode for maintenance or replacement of brake pads.
• Injector initialization: Programs or recalibrates injectors after replacement or maintenance.
• Maintenance interval reset (Service): Resets the service message after maintenance is performed.
• Steering angle sensor initialization (SAS): Calibrates the steering angle sensor after alignment or replacement of steering components.

Programming and coding functions:

The Autel MaxiDas DS900-BT supports programming and coding functions for configuring electronic modules, performing software adjustments, and activating additional vehicle functions. Available functions depend on the vehicle's make, model, and year.

• Activate hidden functions: Allows users to unlock and activate pre-installed, non-activated vehicle functions.
• Retrofit programming: Supports integration and programming of aftermarket components or systems into the existing vehicle network.

Special communication protocols:

The Autel MaxiDas DS900-BT supports the following special communication protocols for fast and advanced vehicle communication:

• DoIP protocol (Diagnostics over Internet Protocol): Enables diagnostics via IP networks, allowing faster and more efficient communication with modern vehicles.
• CAN FD protocol (Flexible Data-Rate): Provides a flexible data transfer rate for Controller Area Network, enabling higher bandwidth and better performance.

Cloud and reporting functions:

The Autel MaxiDas DS900-BT supports various cloud and reporting functions that allow diagnostic reports, user history, and vehicle data to be efficiently stored, shared, and analyzed. The availability of functions depends on the device type and software version.

• Shop manager: Manage vehicle history and create personalized diagnostic reports by entering workshop and customer information.
• Data manager: Manage images, screenshots, diagnostic reports, data logs, and other files for efficient data organization.
• Support function: Create and share data logs with Autel when a function does not work properly, for quick troubleshooting.
• Cloud-based report management: View, save, print, and share reports via mobile phones, tablets, and computer browsers.
• Wireless data printing: Prints via PC or Wi-Fi printer by connecting the tablet to the same network as the printer.

Extra functions:

The Autel MaxiDas DS900-BT features integrated extra functions that contribute to an efficient and intuitive user experience.

• AutoVIN technology: Automatically identifies the vehicle's make, model, and year for a quick and accurate diagnosis.
• Pre- and post-scan function: Allows you to perform a full vehicle scan before and after repairs, ensuring that completed work is well documented.
• Workshop management application: Manages data files, customer information, and vehicle data, ensuring organized and efficient workshop administration.
• Data management: Manages internal applications and offers options to view and manage data, contributing to a streamlined workflow.
• TeamViewer support: Provides remote assistance and troubleshooting capabilities via TeamViewer, ensuring fast and efficient support for technical questions.

Supported car brands:

• European brands: Abarth, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Citroën, DS, Dacia, Fiat, FordEU, Jaguar, Lancia, Lamborghini, Land Rover, Maserati, MAN LD, Maybach, Mercedes-Benz, Mercedes-Benz LD, MINI, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda, Smart, Vauxhall, Volkswagen, Volkswagen CV, Volkswagen LT3, Volvo
• Asian brands: Acura, Daewoo, Daihatsu, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Samsung, Scion, SsangYong, Subaru, Suzuki, Tata, Toyota
• American brands: Chevrolet, Chrysler, Dodge, Ford, GM, Jeep
• Chinese brands: BAIC Motor, BAIC Senova, Borgward, Brilliance, BYD, Chery, DFSK, DFFG, Emgrand, Foton, Geely, Great Wall, JAC, LDV, Lifan, Maxus, SAIC MG, Zotye

Package contents:

• Autel MaxiDas DS900-BT Diagnostic Tool
• Autel MaxiVCI V150 Interface
• USB-A - USB-C Adapter Cable
• Charging Plug
• Manual

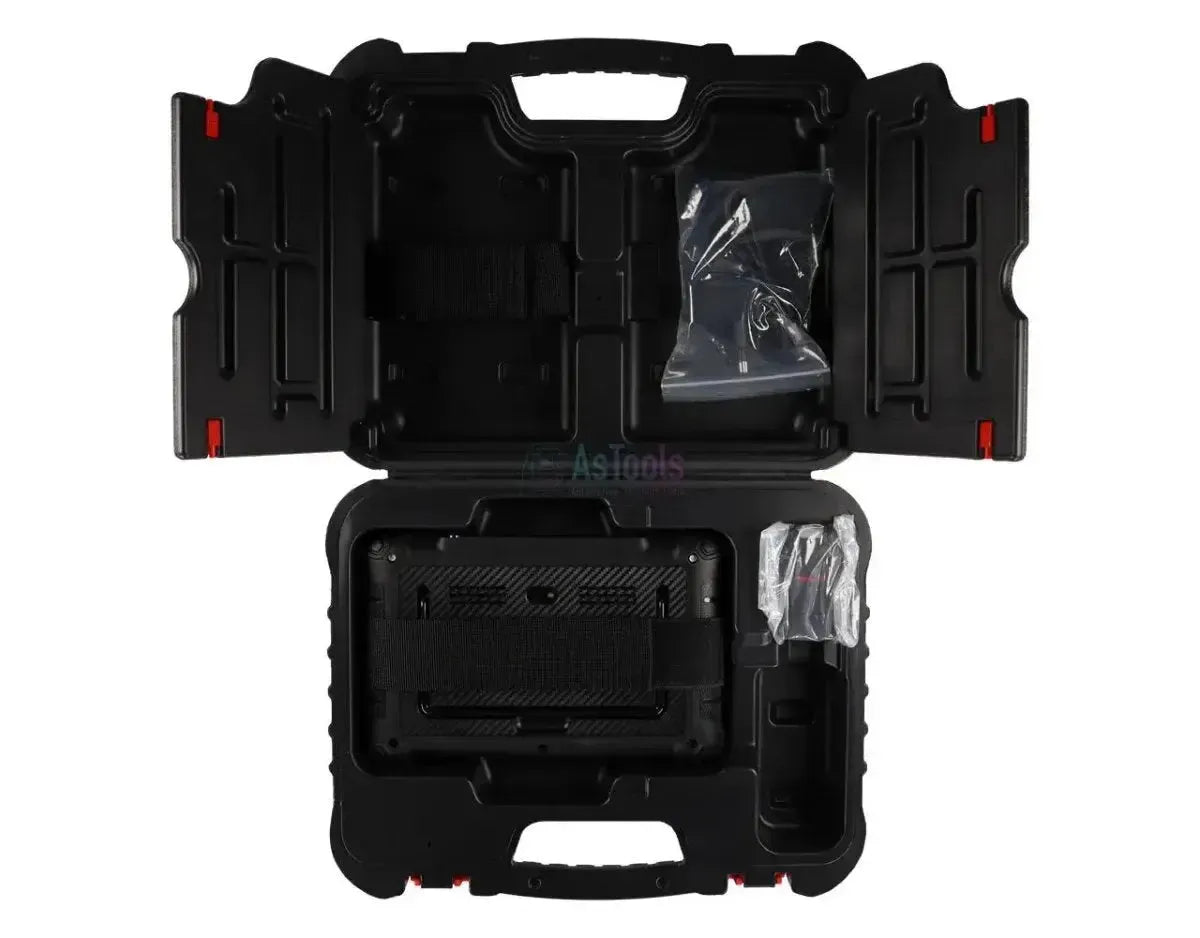

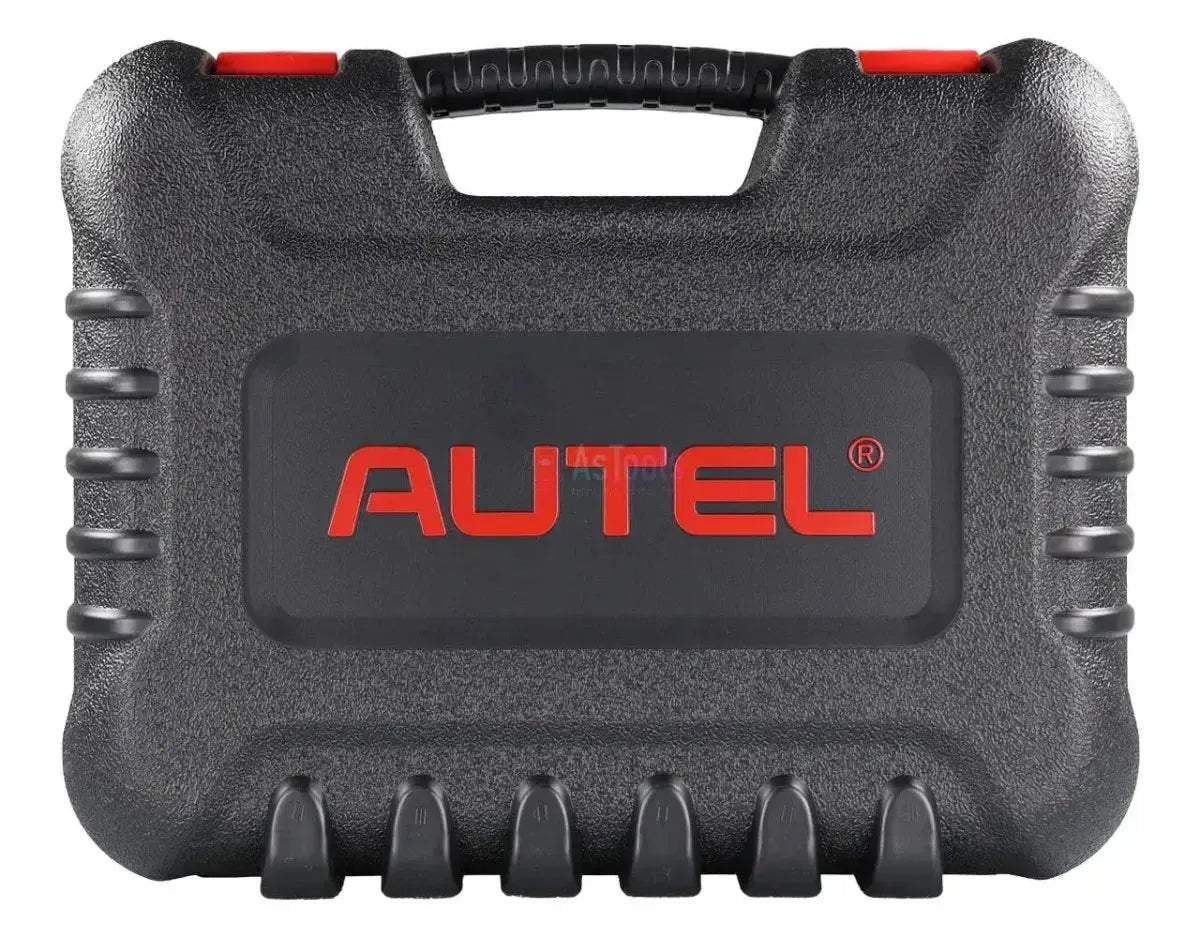

• Storage Case
