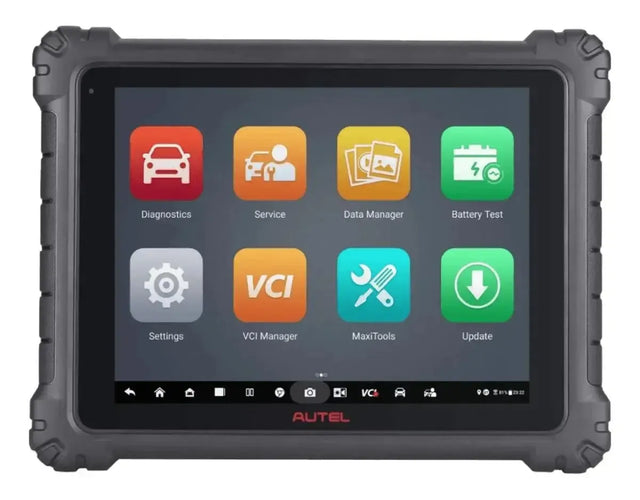

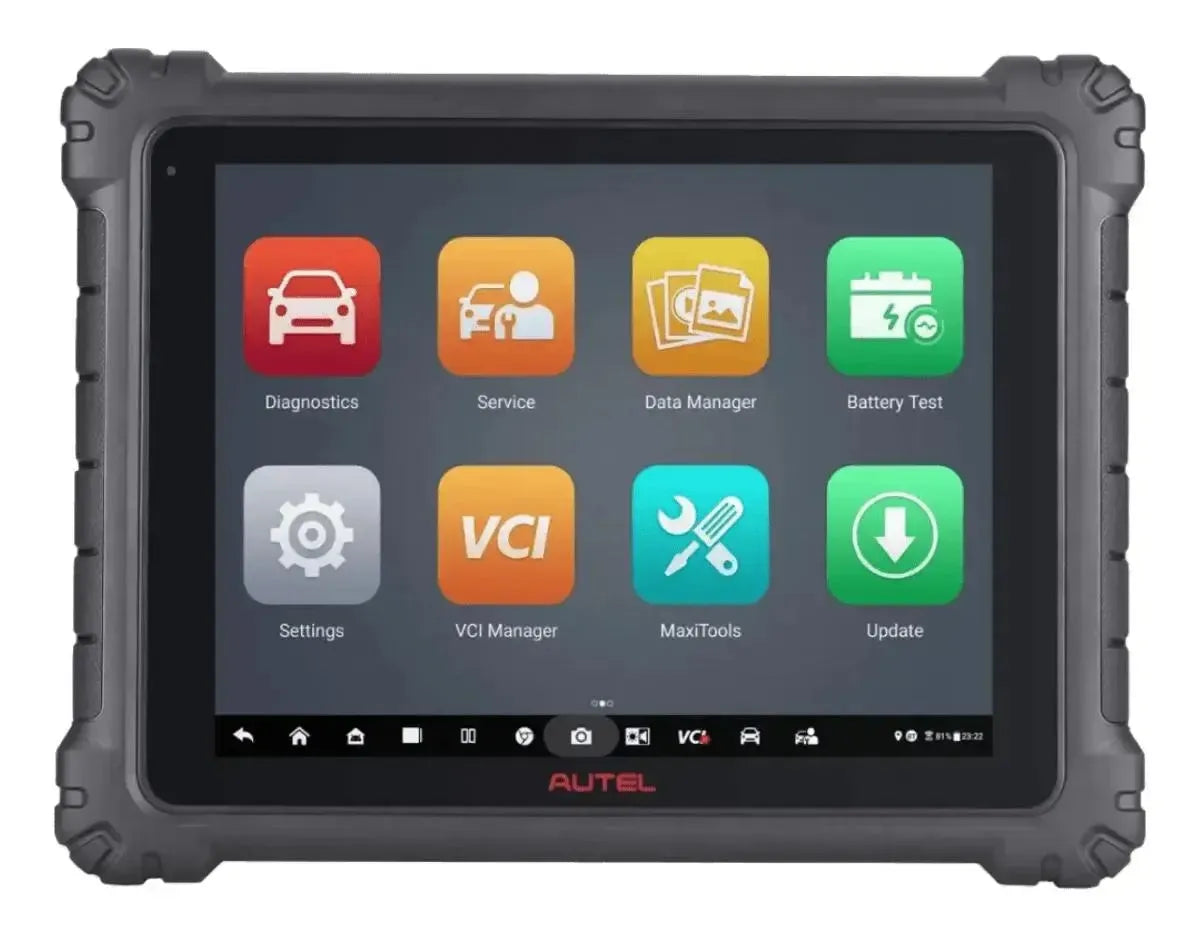

Autel MaxiCom Ultra Lite Car Diagnostic Tool

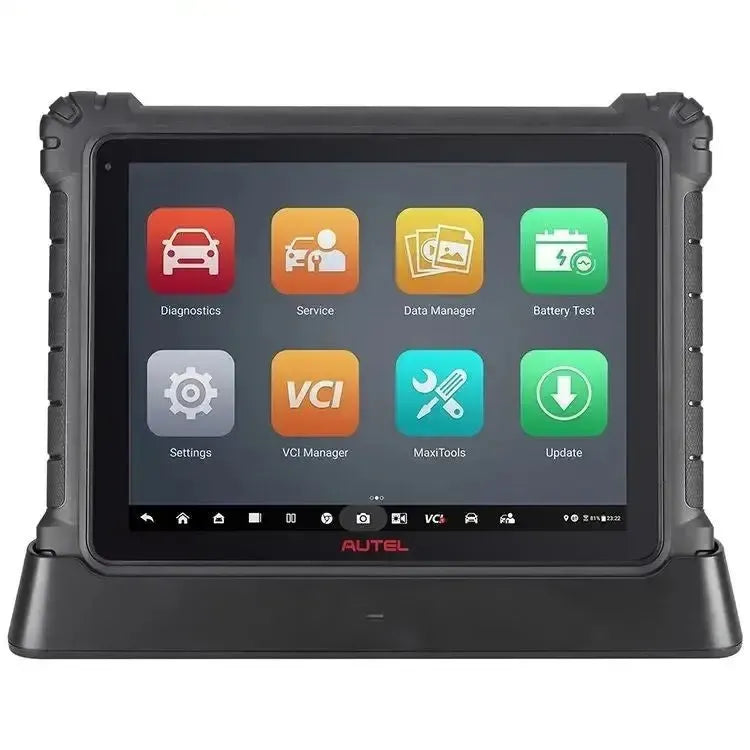

The Autel MaxiCOM Ultra Lite is a powerful and future-oriented Diagnostic Tool, developed for professional workshops that require maximum performance, flexibility, and modern vehicle coverage. The system runs on a robust 12.7-inch TFT touchscreen Android tablet, powered by a octa-core Samsung Exynos processor, 4 GB RAM and 256 GB storage. Thanks to the included MaxiFlash VCI the Ultra Lite supports wireless communication via Bluetooth, DoIP, CAN FD and industry standards such as J2534, D-PDU and RP1210.

The Ultra Lite offers in-depth OE-level diagnosis, including ECU coding, online programming for brands such as BMW and Mercedes, and an interactive Topology Mapping 2.0 interface that visually displays the structure of all vehicle modules. With more than 36 maintenance and service functions, support for AutoAuth (FCA Secure Gateway), pre- and post-scan reporting, live data analysis, and cloud-based report management, this Diagnostic Tool is ideal for modern vehicles and complex diagnostics. The device combines diagnostic depth with high speed of use and broad compatibility – a complete solution for the professional workshop.

---

Diagnostic functions:

The Autel MaxiCOM Ultra Lite offers in-depth OE-level system diagnosis for more than 80 vehicle brands, including premium and EV manufacturers such as Tesla, McLaren, and Bentley. The device supports all common and modern diagnostic protocols, including CAN FD and DoIP, and provides fast, modular communication via the MaxiFlash VCI200.

• Complete system diagnosis: Scans all present modules, including engine, transmission, ABS, airbags (SRS), BMS, comfort systems, HVAC, ADAS and more. Reads and clears fault codes (DTCs) with corresponding descriptions.
• Active tests (bi-directional control): Allows the user to manually control components (such as fans, valves, pumps, and lighting) to directly test their operation.
• Live data stream & Live Data Fusion: Visualizes real-time sensor data in text, graph, or analog format. Multiple data streams can be recorded, rewound, and compared.
• AutoVIN & AutoScan: Automatically recognizes the vehicle via the VIN number and performs a full system scan.

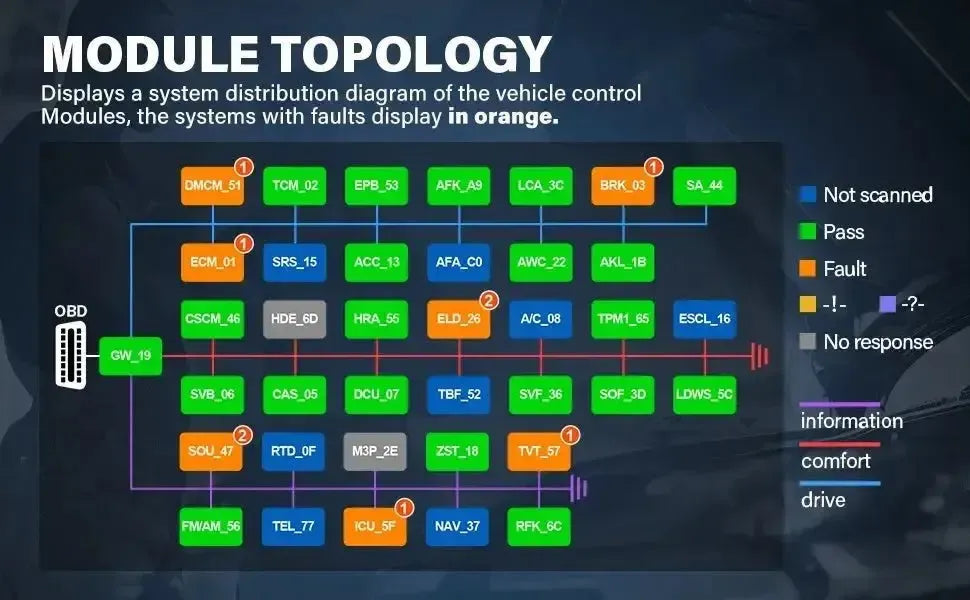

• Topology Mapping 2.0: Displays all electronic modules of the vehicle and their intercommunication at a glance via an interactive network diagram.
• Pre- and post-scan reports: Generates professional reports of the vehicle status before and after maintenance or repair, useful for customer files and insurance documentation.
• Diagnostic history & intelligent memory: Stores previous vehicles and diagnostic sessions for quick reuse without rescanning.

---

Maintenance and service functions:

The Autel Ultra Lite supports more than 36 maintenance and service functions, suitable for daily workshop use. All functions are directly accessible via the service menu and are displayed vehicle-specific.

• Oil reset (Service): Resets the maintenance interval and oil change indicator after service.
• Electronic parking brake (EPB): Opens and closes the brake calipers for brake maintenance and performs automatic calibration.
• Battery management system initialization (BMS): Registers a new Battery and resets the charging system.
• Steering angle sensor initialization (SAS): Calibrates the steering angle sensor after alignment or replacement of steering components.
• Diesel particulate filter initialization (DPF): Starts forced regeneration and resets stored soot filter data.
• ABS pump bleeding (ABS): Removes air from the hydraulic brake system via automated ABS activation.
• Injector initialization: Codes new injectors and correctly writes IMA codes into the ECU.
• Throttle body initialization (ETC): Relearns the throttle position after replacement or cleaning.
• Air suspension initialization: Calibrates the ride height and valves of the air suspension system.
• Transmission initialization (CVT): Resets and relearns adaptive transmission settings.
• Adaptive headlights initialization (AFS): Performs basic settings for headlights after replacement or adjustment.
• Door window/panoramic window initialization: Initializes electric windows, sunroofs or doors for correct operation.
• Start/stop initialization: Reactivates or deactivates the start-stop system where supported.
• AdBlue system initialization: Resets urea and emission dosing after service or refill.
• Seat occupancy sensor initialization (SRS): Calibrates passenger seat sensors for airbag detection.
• Crash data reset (SRS): Removes stored crash data after replacement of airbag modules.
• HV system reset (hybrid/EV): Maintenance functions for high-voltage components in electric vehicles (if supported).
• Transport mode initialization: Disables factory or transport mode upon delivery of new vehicles.
• Tire pressure monitoring system initialization (TPMS): Detects and initializes sensors after reset (no programming).
• Exhaust gas recirculation initialization (EGR): Restores the operation of the EGR system after cleaning or replacement.

---

Programming and coding functions:

The Autel Ultra Lite supports a wide range of advanced programming and coding functions, including online ECU programming for selected brands. Thanks to the included MaxiFlash VCI interface, all modern protocols such as J2534, D-PDU, RP1210, DoIP and CAN FD are fully integrated.

• ECU programming (online & offline): Supports online reprogramming for e.g. BMW and Mercedes-Benz, and offline programming for brands such as Ford, Mazda, Jaguar, Vauxhall/Opel and more.
• ECU coding: Changes parameters in control units to activate new components, adjust functions or make hidden options available.
• Offline coding (VAG/BMW/Mercedes): Supports vehicles from among others Volkswagen, Audi, Seat, Skoda, BMW and Mercedes for configuration and adjustment without internet connection.
• Personalization of vehicle settings: Activates or deactivates functions such as start/stop, lighting, automatic locking, welcome lighting, comfort closing, etc.
• Teach-in functions & learning: Performs learning procedures for components such as injectors, keys, transmissions or steering angle sensors after replacement.
• Topology Mapping 2.0: Integrates directly with the coding environment so you can see at a glance which ECU is being adjusted and how it is connected to other modules.

---

Cloud and reporting features:

The Ultra Lite supports extensive cloud integration and professional reporting tools, enabling technicians to quickly and efficiently document and share diagnostics.

• Pre- and post-scan reports: Generates detailed reports of the vehicle status before and after repair, useful for customer communication and insurance purposes.
• Autel Cloud Report Management: Automatically saves reports in the Autel Cloud, so they remain accessible from other devices for evaluation or archiving.
• Data Manager: Manages customer and vehicle data, fault codes, test results, live data recordings and screenshots in one central place.
• Wi-Fi export & report sharing: Send reports directly via e-mail, Wi-Fi or USB to customers, colleagues or a connected printer/PC.
• Remote Expert: Supports remote assistance via Autel's own cloud platform, allowing external technicians to access the device for live support.
• OTA updates & vehicle coverage: Software updates are fully wireless via Wi-Fi, with automatic notification of new vehicle support or features.

---

Extra features:

The Ultra Lite is equipped with various additional features that increase ease of use and optimize workshop workflow.

• TSB integration (Technical Service Bulletins): Displays relevant factory maintenance documents directly linked to fault codes and vehicle brand.
• Repair assistance: Guides the technician step-by-step with fault-oriented repair instructions based on live diagnostic results.
• Multitasking interface: Supports simultaneous use of multiple functions, such as live data and topology display.

---

Special communication protocols:

The Ultra Lite supports all common and modern vehicle protocols, including advanced data networks required for diagnosis of newer vehicles.

• CAN FD (Flexible Data Rate): Supports faster communication via CAN FD, necessary for many new models from e.g. GM, Ford and Hyundai/Kia.
• DoIP (Diagnostics over Internet Protocol): Ethernet-based protocol for fast communication with modern vehicles from brands such as BMW, Jaguar, Land Rover, Volvo and others.
• J2534 (Pass-Thru): Supports reprogramming and access to OE servers for brands using J2534, including Toyota, Honda, Volkswagen and more.
• D-PDU & RP1210: Full support for vehicles and heavy-duty systems requiring these communication protocols.

---

Optional expansions and modules:

The Ultra Lite is compatible with various expansion modules, making the system flexibly deployable for specialized tasks such as battery testing, visual inspection, and ADAS calibration.

• Digital inspection camera (MV105/MV108): For visual inspection of hard-to-reach vehicle parts, such as combustion chambers or wiring behind dashboards.
• Battery Tester (MaxiBAS BT506): Provides accurate measurements of state of charge, starting capacity, and charging system analysis, fully integrated with the Ultra Lite.
• Oscilloscope (MaxiScope MP408): For advanced signal analysis of sensors, actuators, CAN lines, and other electronic components.
• OBD-I adapter set: For vehicles before 1996 using older diagnostic protocols.
• Secure Gateway access (AutoAuth): Supports access to secured vehicles from Fiat Chrysler Automobiles (FCA) via a AutoAuth account or a 12+8 FCA adapter.

---

Supported car brands:

• European brands: Abarth, Alfa Romeo, Audi, Aston Martin, Bentley, BMW, Bugatti, Citroën, DS, Dacia, Ferrari, Fiat, FordEU, Iveco LD, Jaguar, Lancia, Lamborghini, Land Rover, Maserati, MAN LD, Maybach, Mercedes-Benz, Mercedes-Benz LD, MINI, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Vauxhall, Volkswagen, Volkswagen CV, Volkswagen LT3, Volvo
• Asian brands: Acura, Daewoo, Daihatsu, Fuso, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Samsung, Scion, SsangYong, Subaru, Suzuki, Tata, Toyota
• American brands: Chevrolet, Chrysler, Dodge, Ford, GM, Jeep
• Chinese brands: BAIC Motor, BAIC Senova, Borgward, Brilliance, BYD, Chery, DFSK, DFFG, Emgrand, Foton, Geely, Great Wall, JAC, LDV, Lifan, Maxus, SAIC MG, Zotye

---

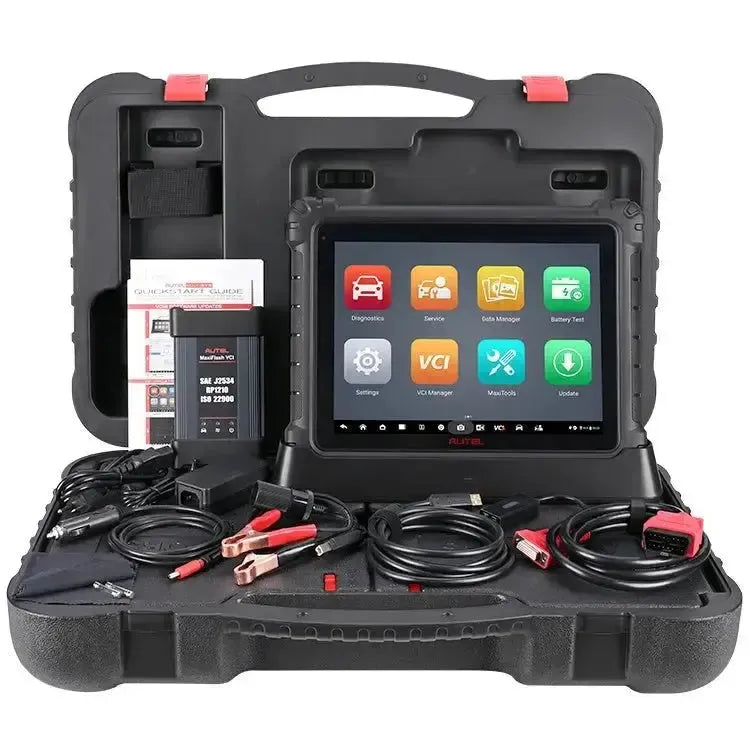

Package contents:

• Autel MaxiCom Ultra Diagnostic Tool

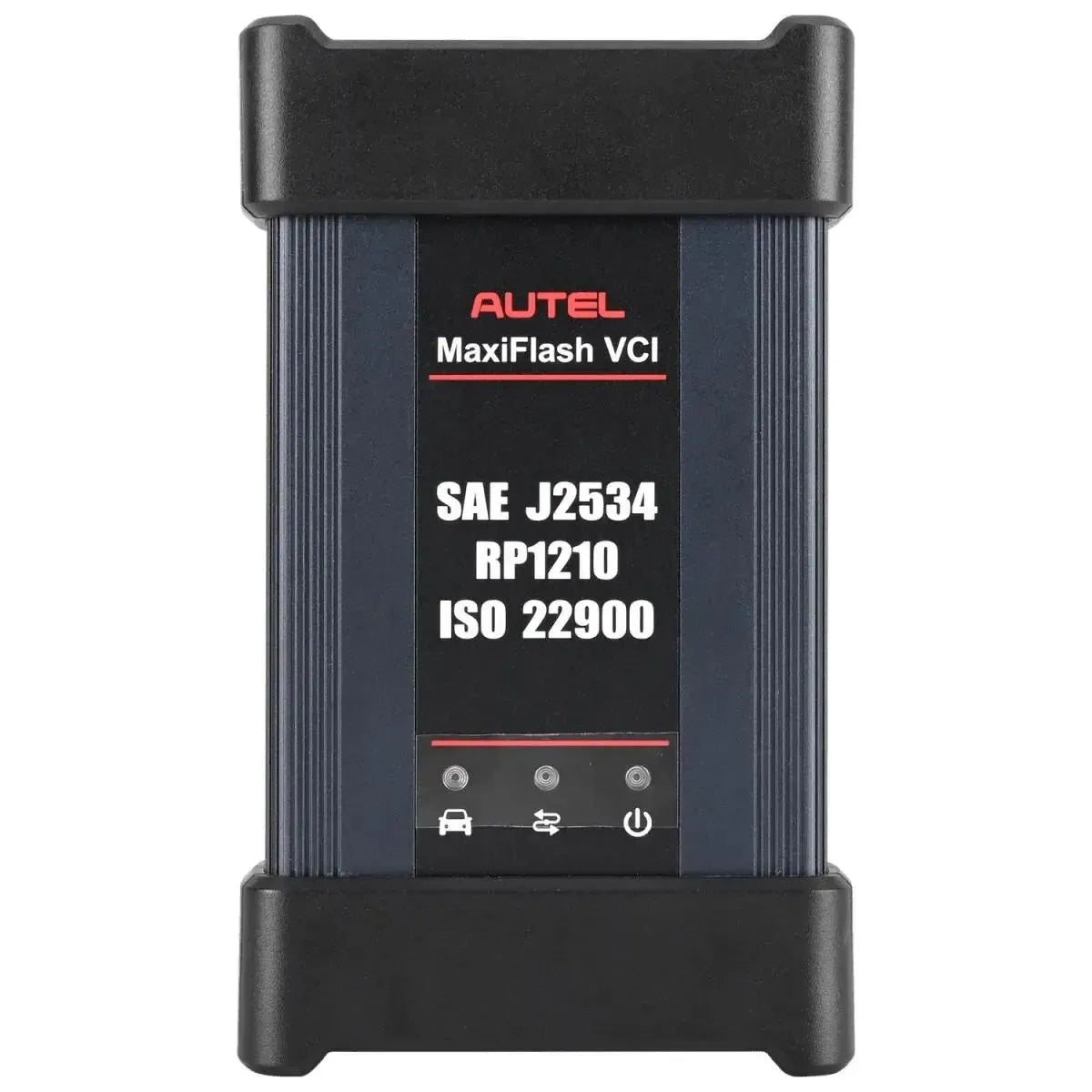

• Autel MaxiFlash VCI Interface
• Autel 26 Pins DB26 - 16 Pins OBD2 Adapter Cable
• USB-A - USB-B Adapter Cable
• USB-A - Mini USB-B Adapter Cable
• USB-A - RJ45 Network Adapter Cable
• RJ45 Network Cable
• Power adapter
• Manual
• Storage Case
• Cleaning Cloth
• Autel Docking Station
• Autel Battery Clamp Power Cable
• Autel Cigarette Lighter Power Cable
• Autel RJ45 Network - 16 Pins OBD2 Adapter Cable

---

License Information:

• Including 1 year of updates: A update license for 12 months is included with purchase.

After the first year, the license can be renewed for an annual fee. The device remains fully functional with the latest installed software version, even without an active license. However, new software updates, vehicle coverage, and certain cloud-based features (such as Remote Expert) are only available as long as the license is active.

---
