Autel MaxiCom MK906 Pro-TS Car Diagnostic Tool

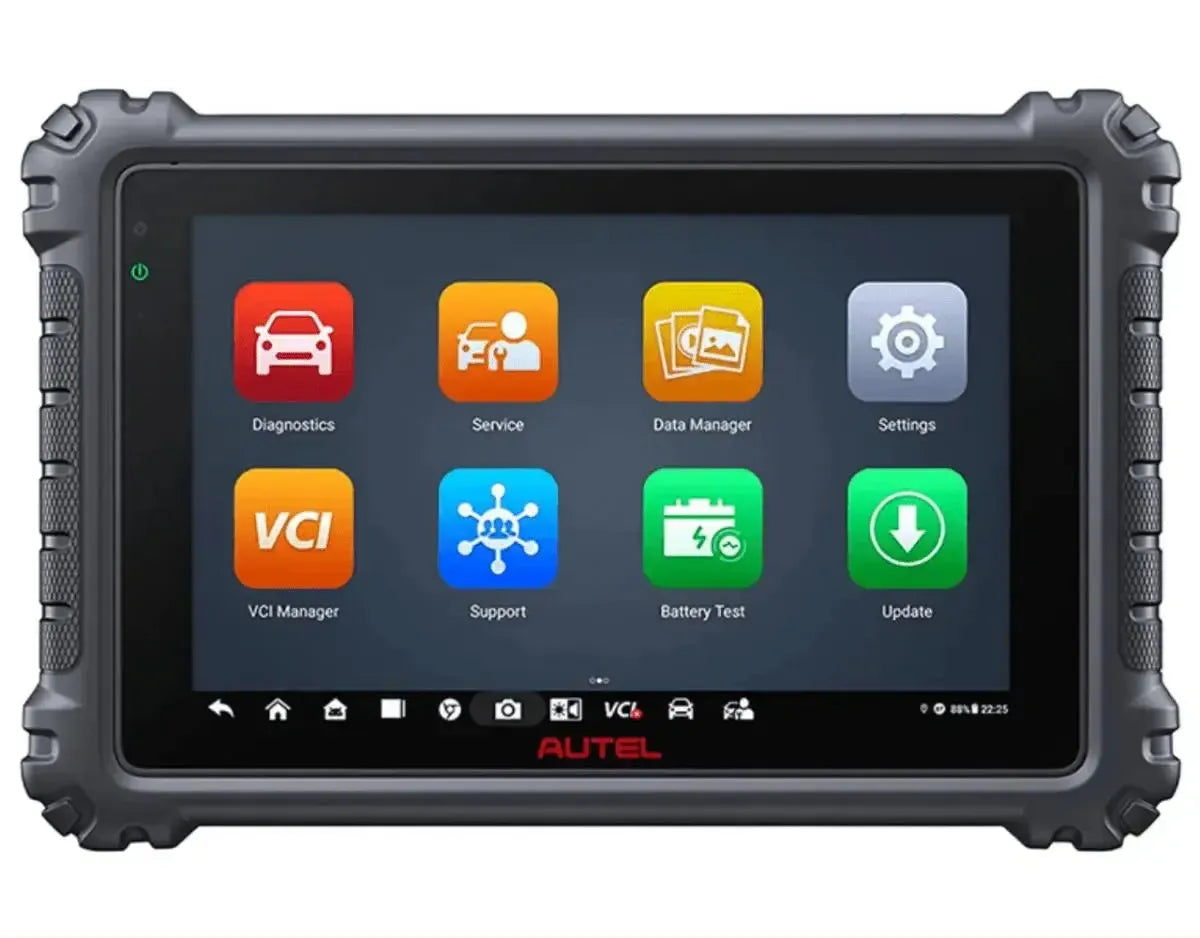

The Autel MaxiCOM MK906 Pro‑TS is a powerful, 8-inch wireless Android diagnostic tablet specially designed for workshops that require full OE-level system diagnosis, integrated TPMS functionality and ECU coding/adaptation. The device runs on Android 10, is powered by a Qualcomm 660 octa-core processor, and features 4 GB RAM, 128 GB storage, a robust 11,600 mAh Battery and dual 16 MP cameras. The included MaxiVCI V200 supports communication via CAN FD, DoIP, J2534 and other modern protocols, making it ready for current vehicles.

The MK906 Pro-TS combines all-in-one diagnosis and TPMS management, with more than 36 maintenance functions, linked ECU coding, bi-directional active tests, and an integrated TPMS antenna with access to 99% of sensors, MX-Sensor programming, sensor copying, and retrofits. With AutoVIN/AutoScan, pre- and post-scan reporting, Cloud report management, and FCA AutoAuth access, the platform offers a future-proof solution for professional workshops.

---

Diagnostic functions:

The Autel MK906 Pro-TS offers extensive OE-level diagnostic functionality for more than 80 vehicle brands worldwide. The system combines speed, vehicle coverage, and modern communication protocols for accurate fault analysis and system control.

• Full system diagnosis: Reads and clears fault codes (DTCs) in all vehicle modules, such as engine, transmission, ABS, airbags (SRS), steering, body, climate control, etc.
• Active tests (bi-directional control): Allows the user to control components such as pumps, relays, headlights or fans to directly test their operation.
• Live data stream: Displays real-time sensor data in text, graph, and analog format, with recording and analysis features. Supports simultaneous display of multiple data streams.
• AutoVIN & AutoScan: Automatically identifies the vehicle via the chassis number (VIN) and immediately performs a full system scan.
• Pre- and post-scan reports: Generates reports of vehicle status before and after maintenance, suitable for customers, insurance, or internal workshop use.
• OBDII modes 1 through 10: Supports all standardized OBD2 test modes, including Mode 6 for in-depth emission diagnostics.
• Modern protocol support: Full compatibility with vehicles using CAN FD and DoIP, for faster data processing and communication with new vehicle platforms.

---

TPMS functions:

The MK906 Pro-TS features a fully integrated TPMS module with built-in antenna, making all tire pressure-related functions directly accessible — without a separate TPMS programmer. This makes the device ideal for both sensor maintenance and retrofit installations.

• TPMS health check: Performs a full scan of the TPMS system, including status of all sensors, tire pressure, temperature, sensor ID, and battery status.
• Activating TPMS sensors: Activates original OEM and aftermarket TPMS sensors from virtually all common vehicle brands.
• Programming Autel MX-Sensors: Programs Autel MX-Sensors (315/433 MHz) via manual input, automatic detection, cloning via activation, or OBD recognition.
• OBD learning procedures: Learns new sensor IDs via the OBD2 port, without needing to drive the vehicle or manually activate the system.
• Manual relearning: Guides the learning process via on-screen instructions for vehicles where OBD learning is not available.
• TPMS retrofit: Supports adding a fully functional TPMS system to vehicles delivered from the factory without direct TPMS, if supported.
• Read and copy sensor ID: Reads original sensor information and copies it directly to a new MX-Sensor to prevent relearning.
• System diagnosis and troubleshooting: Detects and locates faults within the TPMS circuit, including communication issues or incorrect sensor configurations.

---

Maintenance and service functions:

The Autel MK908 Pro II supports more than 36 maintenance and service functions, designed for efficient execution of routine workshop maintenance. The functions are vehicle-specific and directly accessible via the service menu.

• Oil reset (Service): Resets the oil change and maintenance interval after periodic service.
• Electronic parking brake (EPB): Opens and closes the brake calipers for brake maintenance and performs automatic calibration.
• Battery management system initialization (BMS): Registers a new Battery in the vehicle management system.
• Steering angle sensor initialization (SAS): Calibrates the steering angle sensor after alignment or replacement.
• Diesel particulate filter initialization (DPF): Performs forced regeneration and clears stored soot filter data.
• ABS pump bleeding (ABS): Activates the ABS system to remove air from the hydraulic brake circuit.
• Injector initialization: Encodes new injectors (IMA codes) into the ECU for correct fuel dosing.
• Throttle body initialization (ETC): Recalibrates the throttle position after cleaning or actuator replacement.
• Air suspension initialization: Calibrates the air suspension system after component replacement or ride height adjustment.
• Transmission initialization (CVT): Resets and relearns the adaptive parameters of the automatic transmission.
• Adaptive headlights initialization (AFS): Performs basic adjustment of headlights after replacement or reprogramming.
• Door window/panoramic window initialization: Initializes electric windows, sunroofs, and doors for correct operation.
• AdBlue system initialization: Resets the urea and emission dosing system after refilling or maintenance.
• Seat occupancy sensor initialization (SRS): Calibrates the passenger sensor for correct airbag detection.
• Start/stop initialization: Activates or deactivates the start-stop system if supported.
• Crash data reset (SRS): Deletes stored crash information after replacement of airbag modules.
• TPMS system initialization: Relearns tire pressure sensors and initializes TPMS parameters.
• Transport mode initialization: Deactivates transport settings upon delivery of new vehicles.
• EGR system initialization: Restores the operation of the exhaust gas recirculation system after cleaning or replacement.

---

Programming and coding functions:

The MK906 Pro-TS supports advanced ECU coding and module adjustments, allowing you to configure, reset, or personalize vehicle systems after replacement or upgrade. Full ECU reprogramming (flashing) is not available, but the device does offer in-depth coding and learning functions at OE level.

• ECU coding: Changes software parameters in electronic control units to activate new components or adapt to the vehicle-specific configuration.
• Offline coding: Supports coding without internet connection for brands such as BMW, Mercedes-Benz, Volkswagen, Audi, and other selected brands.
• Component matching: Performs coupling and adjustments between new modules and existing ECUs, for example when replacing steering angle sensors, throttle bodies, injectors, or headlight modules.
• Adaptations & resets: Adjusts system parameters within transmission, brake system, steering, and other subsystems after maintenance or overhaul.
• Personalization of vehicle settings: Activates or deactivates functions such as automatic locking, daytime running lights, start/stop, comfort closing, welcome lighting, etc.
• Vehicle brand-specific coding: Supports guided functions for e.g. VAG, BMW, and Hyundai/Kia, including long coding, short coding, and service functions.

---

Cloud and reporting features:

The MK906 Pro-TS supports professional documentation and cloud functionality for an efficient workshop workflow and better customer communication.

• Pre- and post-scan reports: Creates structured reports of the vehicle status before and after maintenance or repair, suitable for customer files or insurance documentation.
• Data Manager: Manages fault codes, vehicle data, test results, customer information, screenshots, and live data within an organized system.
• Wi-Fi report sharing: Send reports directly via Wi-Fi, e-mail or USB to customers or export them to an external PC or printer.
• Autel Cloud Report Management: Automatically saves reports in the Autel Cloud, so they can be accessed on other devices or at other times.
• Remote Expert (optional): Supports remote assistance via Autel's platform, allowing an expert to view remotely or assist directly.
• OTA updates via Wi-Fi: Software and vehicle coverage updates are performed wirelessly, without the need for a PC

---

Extra features:

The MK906 Pro-TS offers convenient extra features that make diagnostics more efficient and increase ease of use:

• VAG guided functions: Step-by-step, guided procedures specially developed for complex maintenance and repair tasks on vehicles from Volkswagen, Audi, Škoda and Seat.
• Fast vehicle identification: Supports multiple methods for quick vehicle identification, such as scanning the chassis number (VIN), the license plate, or automatic vehicle detection (AutoVIN).

---

Special communication protocols:

The MK906 Pro-TS supports both traditional and modern communication protocols, making the device suitable for diagnostics on virtually all vehicles, from older models to the latest generation.

• CAN FD (Flexible Data Rate): Enables communication with new vehicle models from among others GM, Ford, Hyundai, Kia and other brands, with higher transfer speeds than standard CAN.
• DoIP (Diagnostics over Internet Protocol): Uses Ethernet-based communication for faster data transfer, required for recent models from brands such as BMW, Jaguar, Land Rover and Volvo.

---

Optional expansions and modules:

The MK906 Pro-TS can be further expanded with various optional accessories and modules, enhancing functionality for specialized applications.

• Digital inspection camera (MV105/MV108): Suitable for visual inspection in hard-to-reach places, such as engine compartments or dashboard compartments.
• Battery Tester (MaxiBAS BT506): For professional analysis of battery, starting, and charging systems, integrated into the diagnostic tablet.
• Oscilloscope (MaxiScope MP408): 4-channel oscilloscope for in-depth electrical signal analysis of sensors, actuators, and communication circuits.
• Secure Gateway access (AutoAuth): For access to secured vehicles from Fiat Chrysler Automobiles (FCA), using a AutoAuth account or 12+8 FCA adapter cable.
• OBD-I adapter set: For connection to older vehicles (pre-OBDII) with specific vehicle connectors.

---

Supported car brands:

• European brands: Abarth, Alfa Romeo, Audi, Aston Martin, Bentley, BMW, Bugatti, Citroën, DS, Dacia, Ferrari, Fiat, FordEU, Iveco LD, Jaguar, Lancia, Lamborghini, Land Rover, Maserati, MAN LD, Maybach, Mercedes-Benz, Mercedes-Benz LD, MINI, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Vauxhall, Volkswagen, Volkswagen CV, Volkswagen LT3, Volvo
• Asian brands: Acura, Daewoo, Daihatsu, Fuso, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Samsung, Scion, SsangYong, Subaru, Suzuki, Tata, Toyota
• American brands: Chevrolet, Chrysler, Dodge, Ford, GM, Jeep
• Chinese brands: BAIC Motor, BAIC Senova, Borgward, Brilliance, BYD, Chery, DFSK, DFFG, Emgrand, Foton, Geely, Great Wall, JAC, LDV, Lifan, Maxus, SAIC MG, Zotye

---

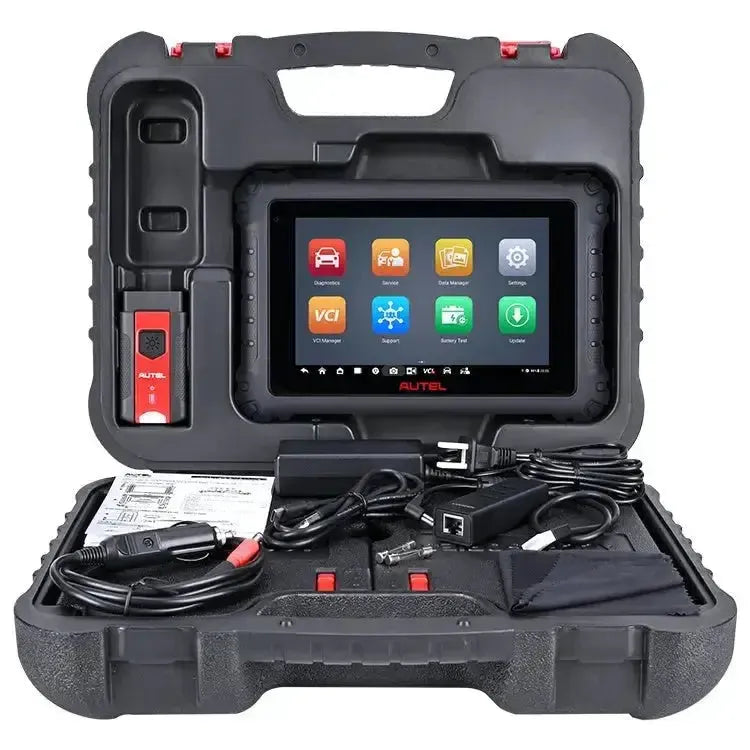

Package Contents:

• Autel MaxiCom MK906 Pro-TS Diagnostic Tool

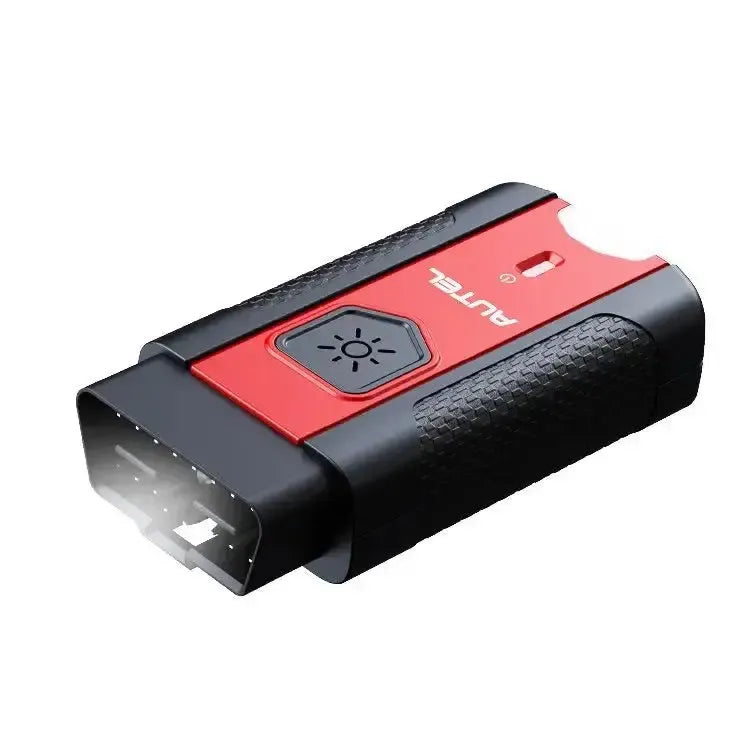

• Autel MaxiVCI V200 Interface
• Autel USB-A - USB-C Extension Cable
• USB-A - RJ45 Network Extension Cable
• Power Adapter
• Manual
• Storage Case
• Cleaning Cloth
• Autel Cigarette Lighter Extension Cable

---

License Information:

• Including 1 year of updates: An update license for 12 months is included with purchase.

After the first year, the license can be renewed for an annual fee. The device remains fully functional with the last installed software version, even without an active license. However, new software updates, extended vehicle coverage, and access to certain cloud-based features are only available with a valid update license.

---

Technical Specifications
