Autel EV Diagnostics Upgrade Kit

The Autel EV Diagnostics Upgrade Kit is an advanced expansion set specially designed for performing in-depth diagnostics on electric vehicles (EVs). This kit enables technicians to conduct comprehensive analyses on high-voltage systems, including battery packs, electric motors, and related components. By integrating with compatible Autel MaxiSys tablets, such as the Ultra, MS919, and MS909, this kit offers a comprehensive solution for EV diagnostics.

The kit includes the EVDiag Box and a range of adapters and breakout cables that are compatible with various EV models, including BMW, Tesla, and Volkswagen. With features such as analyzing the state of charge (SOC) and overall health (SOH) of battery packs, this kit enables technicians to make accurate diagnoses and maintenance decisions.

Features:

• High-voltage diagnostics: Perform comprehensive tests on EV battery packs, electric motors, and related components.

• Battery status analysis: Assess the state of charge (SOC) and overall health (SOH) of battery packs for accurate diagnostics.

• Compatibility with multiple brands: Supports a wide range of EV models from manufacturers such as BMW, Tesla, Volkswagen, Nissan, Hyundai, and more.

• Integration with Autel MaxiSys tablets: Seamless collaboration with compatible Autel tablets for a comprehensive diagnostic experience.

• Safe operation: Equipped with clear instructions and safety guidelines for working with high-voltage systems.

Special features:

• Off-car battery diagnostics: Ability to test battery packs outside the vehicle, which is useful in case of communication issues with the vehicle.

• Detailed system diagrams: Provides comprehensive block diagrams of high-voltage systems for a better understanding of the system structure.

• Live data monitoring: View real-time data such as voltage, current, and temperature of battery packs and other components.

• Software updates: Regular updates ensure compatibility with new vehicle models and improved diagnostic functions.

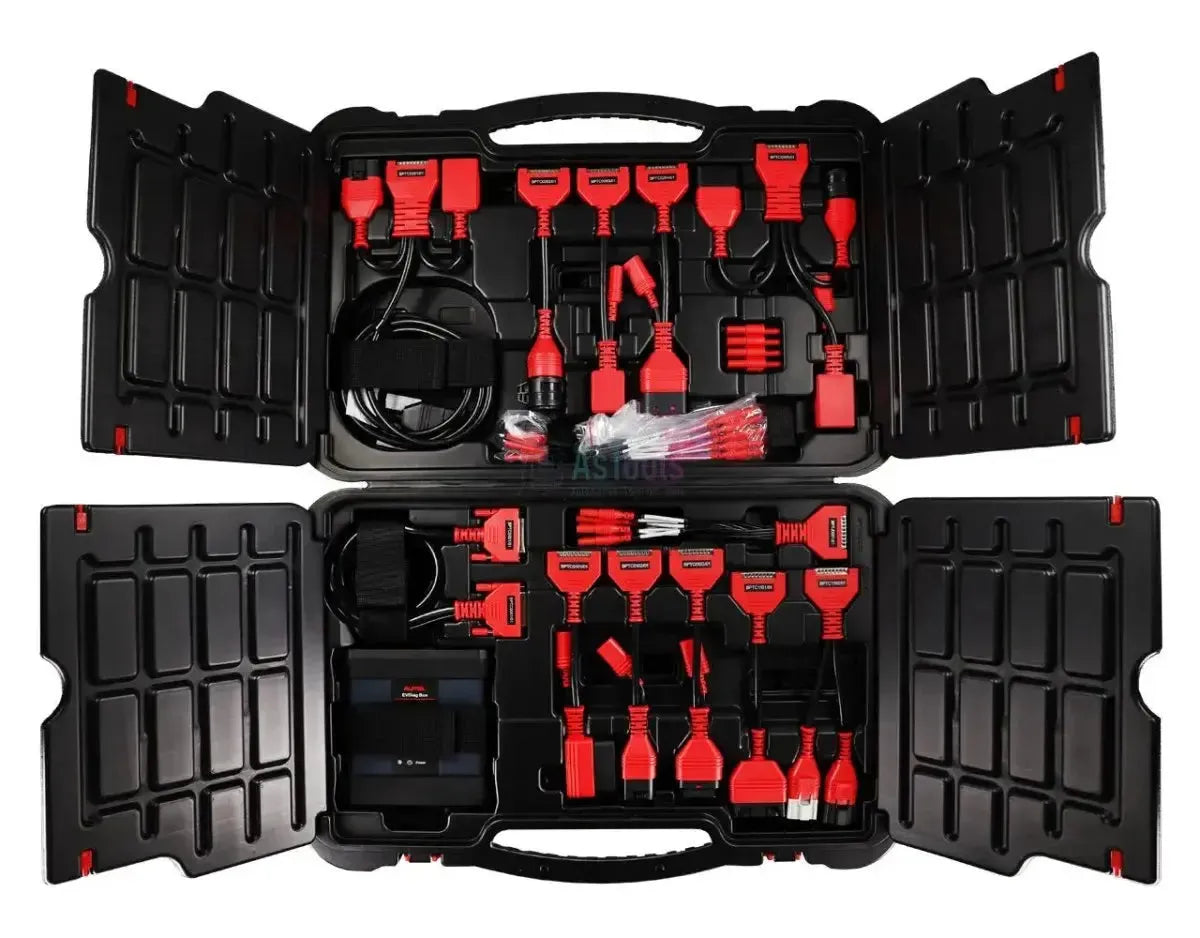

Package contents:

• Autel EVDiag Box Interface

• Autel Breakout Lead 1 (6 pieces)

• Autel Breakout Lead 2 (6 pieces)

• Autel Breakout Lead 3 (6 pieces)

• Autel Breakout Lead 4 (6 pieces)

• Autel Breakout Lead Extension Cable (3 pieces)

• Autel Double Banana Plug (4 pieces)

• Autel BPTC0001/01 Adapter Cable

• Autel BPTC0101/01 Adapter Cable

• Autel BPTC0102/01 Adapter Cable

• Autel BPTC0103/01 Adapter cable

• Autel BPTC0201/01 Adapter cable

• Autel BPTC0202/01 Adapter cable

• Autel BPTC0203/01 Adapter cable

• Autel BPTC0204/01 Adapter cable

• Autel BPTC0205/01 Adapter cable

• Autel BPTC1101/01 Adapter cable

• Autel BPTC1102/01 Adapter cable

• Autel BPTJ0001/01 Adapter cable

• Manual

• Storage case

Technical specifications
