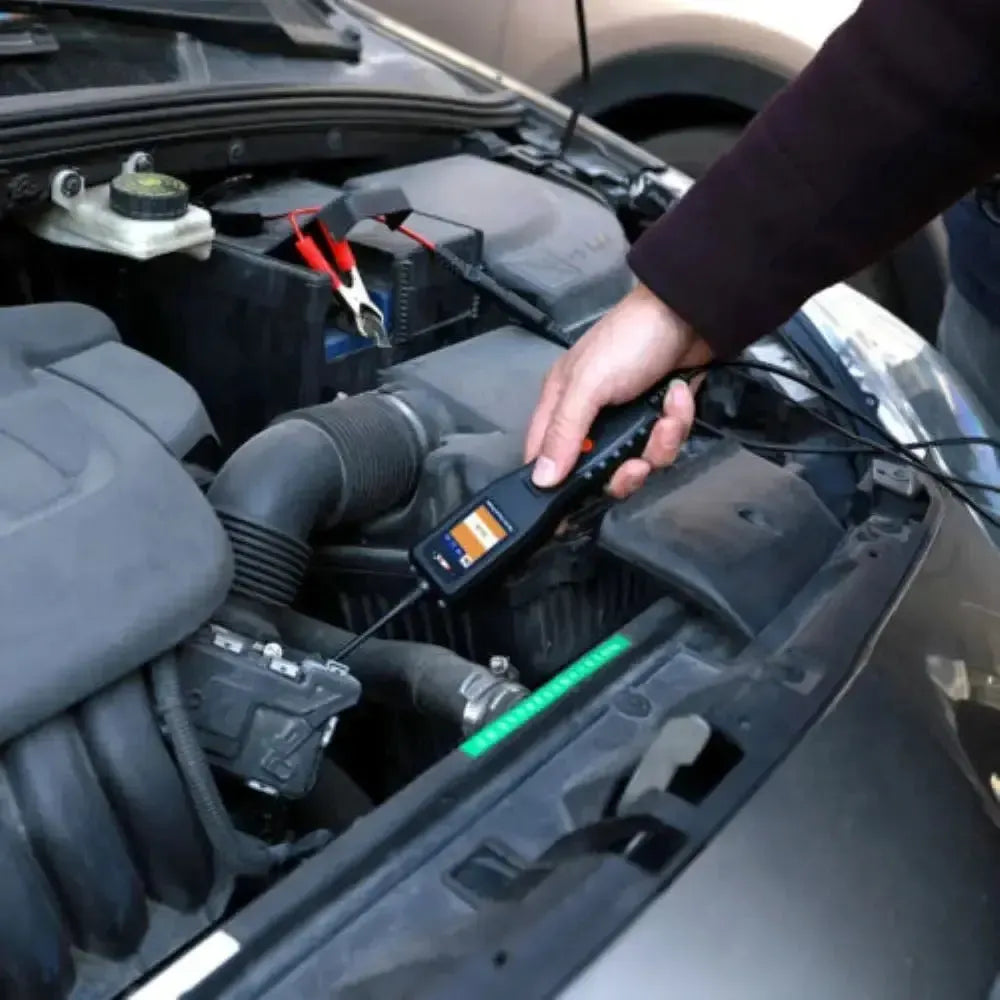

The Ancel PB100 is a versatile and user-friendly circuit tester, designed for diagnosing electrical systems in vehicles with a voltage range of 12V to 24V. The device combines the functionalities of a multimeter, component activation tool, and an adjustable power supply in one compact design. With a TFT color display and a cable length of 6 meters, the PB100 offers both ease of use and flexibility for various applications in cars, trucks, motorcycles, and other vehicles.

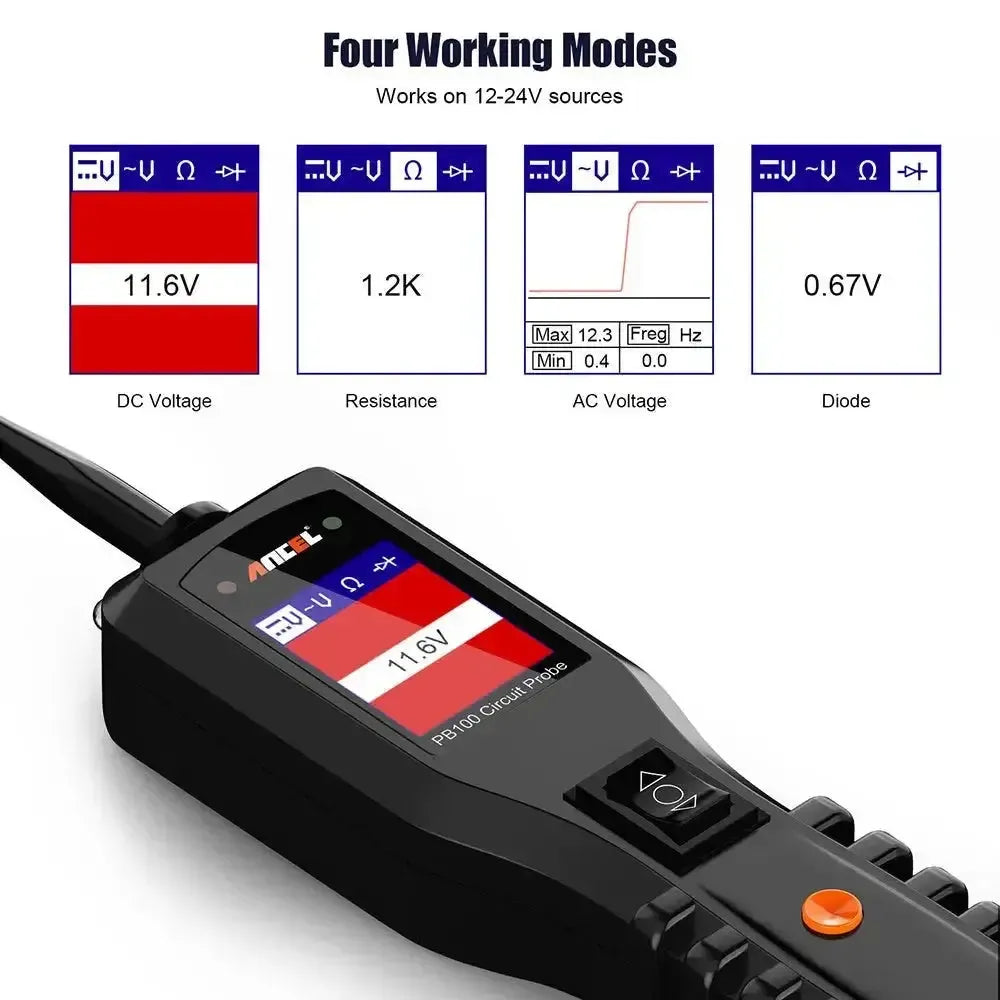

Thanks to the smart detection mode, the PB100 automatically identifies voltage and resistance signals and displays them clearly on the screen. The integrated LED indicators immediately show the polarity of the tested circuit, contributing to efficient and accurate diagnosis.
Features:
-

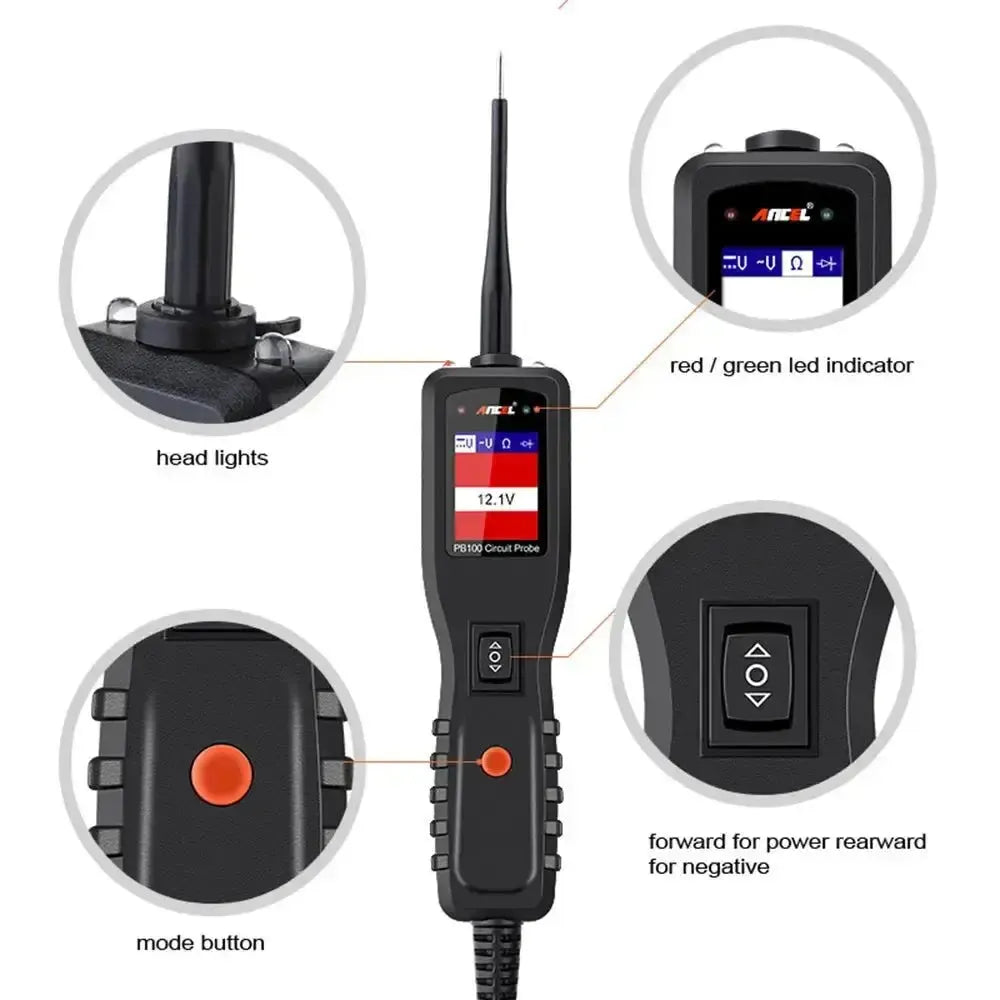

Smart detection mode: Automatic identification of voltage, resistance, and polarity, with clear display on the screen and LED indicators.
-
Multimeter function: Measurements of DC voltage (0–65V), resistance (0–100 kΩ), suitable for various electrical tests.
-
Component activation: Allows for the direct activation of electrical components at the push of a button, without additional wiring.
-
Continuity test: Detects open and closed circuits using an acoustic signal and LED indicators.
-
Diode test: Checks the operation of diodes by measuring the voltage drop.
Special features:
-
TFT color display: 160x128 dpi screen for clear and distinct display of measurement data.
-
Built-in LED lighting: For optimal visibility when working in dark or poorly lit environments.
-
Overload protection: Protects the device from overload; in case of overload, the fuse automatically switches off to prevent damage.
-
Long cable: With a cable length of 6 meters, the PB100 provides sufficient range for various applications in vehicles.

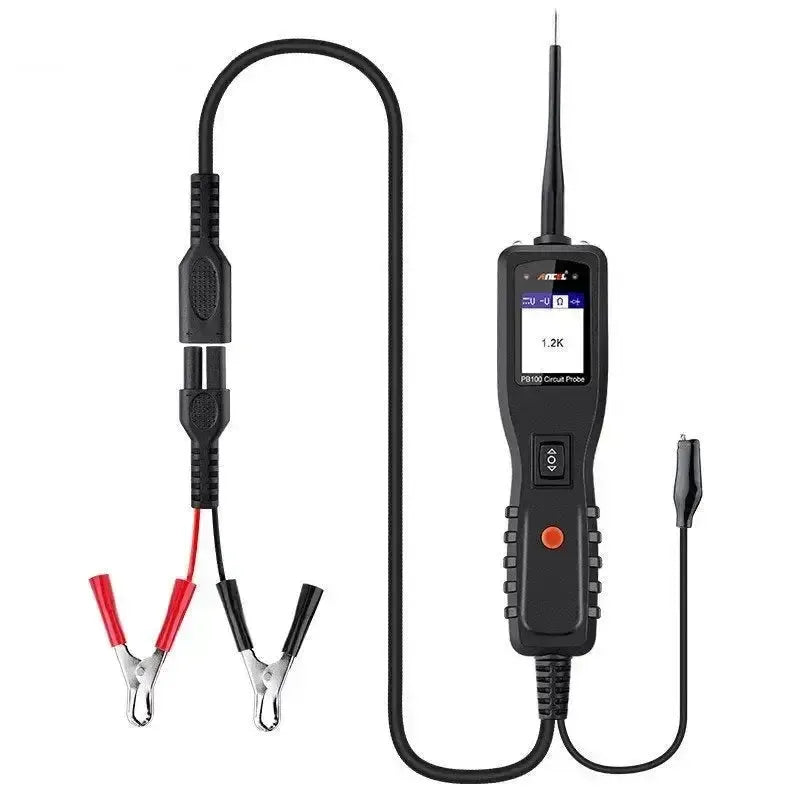

Package contents:
-
Ancel PB100 Circuit Tester
-
Battery clamp Adapter cable (Power)
-
Cigarette lighter adapter cable (Power)
-
Extension cable (6 m)
-
Probe Tip
-
Manual
-
Carrying case
Technical specifications
|
Specification |
Value |
|---|---|
|
Voltage range (DC) |
0–65V |
|
Resistance range |
0–100 kΩ |
|
Display |
TFT color display (160x128 dpi) |
|
Cable length |
6 meters |
|
Operating temperature |
0°C to 60°C |
|
Storage temperature |
-40°C to 70°C |
|
Power supply |
12V or 24V via vehicle battery |
|
Fuse |
Automatic internal fuse |
