Ancel MT700 | Diagnostic Tool | Motorcycle

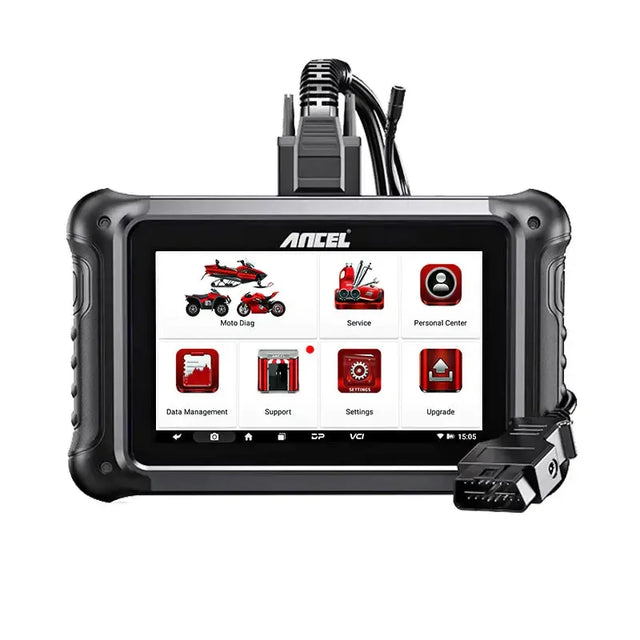

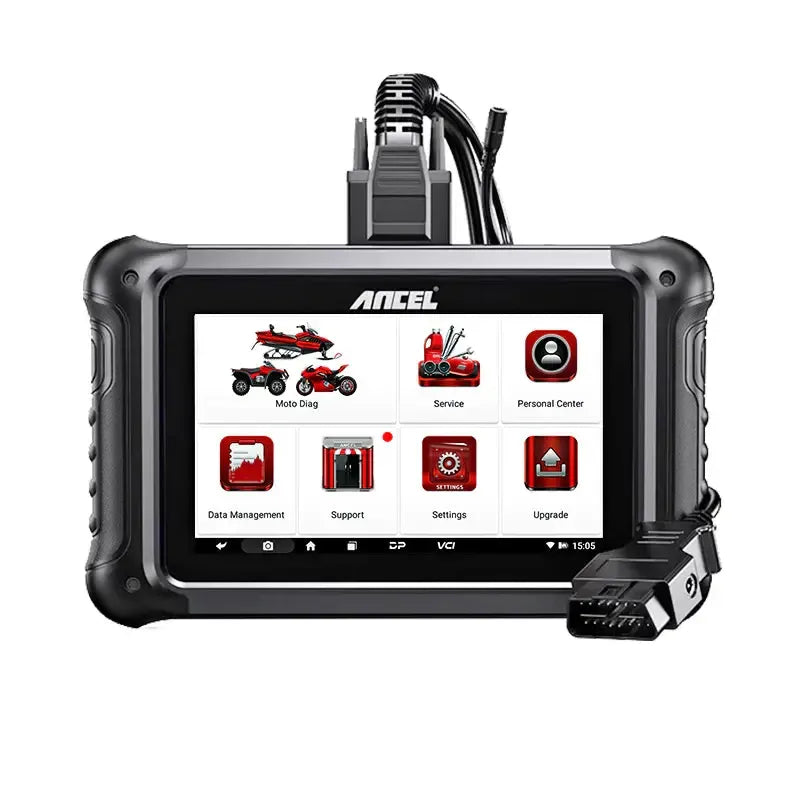

The Ancel MT700 is a reader specifically designed for motorcycle diagnosis. The device runs on an Android 5.1.1 operating system and features a 7-inch touchscreen. The MT700 supports full system diagnosis for more than 16 motorcycle brands and comes with a license for 1 year free updates.
This reader offers extensive diagnostic functions, including reading and clearing fault codes, displaying live data, and performing more than 15 service and maintenance functions. The set comes with a wide selection of adapter cables for various motorcycle brands. Features such as Auto-VIN for automatic vehicle identification and remote support via TeamViewer are integrated.
Diagnostic functions:
The Ancel MT700 performs a full system diagnosis by scanning all electronic control units present in the motorcycle.
- Read and clear fault codes (DTC): Reads and clears fault codes from all available systems such as engine, ABS, transmission, and TPMS.
- Freeze frame data: Shows a snapshot of vehicle data at the moment an emission-related fault occurred.
- Live data: Displays real-time data from sensors and modules, such as engine speed, coolant temperature, and battery voltage.
- Request vehicle information: Displays specific vehicle information, including the vehicle identification number (VIN).
Service and maintenance functions:
Supports more than 15 special functions for performing service and maintenance tasks on motorcycles. Available functions may vary by brand, model, and year.
Engine and drivetrain:
- Throttle body learning: Calibrates the throttle position sensor and resets the base values after cleaning or replacing the throttle body.
- Reset air-fuel ratio (A/F): Restores the adaptive values of the air-fuel ratio to factory settings.
- CO adjustment: Allows adjustment of the carbon monoxide level in the exhaust gas for optimal engine operation.
- Reset transmission adaptation values: Resets the learning values of the automatic transmission to the default settings.
Maintenance and service:
- Service light reset: Resets the service light and maintenance intervals after performing maintenance.
- ECU settings: Performs a reset of the engine control unit (ECU) to clear stored adaptive data.
Brakes:
- ABS brake system bleeding: Activates the ABS pump to automatically bleed the brake system after repairs.
Electronics and systems:
- Key programming: Adds new keys to the system or programs replacement keys for the immobilizer.
- Tire Pressure Monitoring System (TPMS) reset: Resets the TPMS after sensor replacement or adjustments to tire pressure.
Special features and capabilities:
The Ancel MT700 has additional functionalities that support diagnosis and maintenance.
Cloud and reporting functions:
- Remote support: Provides the possibility for remote technical support via the integrated TeamViewer software.
Other special features:
- Automatic VIN scan: Automatically identifies the motorcycle based on the vehicle identification number (VIN) for a quick start of the diagnosis.
Supported vehicle brands:
The Ancel MT700 is a diagnostic tool specially developed for motorcycles. The device supports a wide range of motorcycle brands from different regions.
- European: Aprilia, Benelli, BMW, Ducati, KTM, Piaggio, Royal Enfield, Triumph, Vespa
- Asian: Aeon, Hartford, Hero, Honda, Kawasaki, Kymco, PGO, Suzuki, SYM, Yamaha
- American: Harley-Davidson, Indian, Victory
Package Contents:
- 1x Ancel MT700 tablet
- 1x 12V 2A charger
- 1x M001A main cable
- 1x M002 Battery clamp cable
- 1x M005 universal extension cable
- 1x M006 adapter cable
- 1x M018A adapter cable
- 1x M022 adapter cable
- 1x M034 adapter cable
- 1x M037 adapter cable
- 1x M040 adapter cable
- 1x M042 adapter cable
- 1x M043 adapter cable
- 1x N012A adapter cable
- 1x N015A adapter cable
- 1x N019 adapter cable
- 1x N041 adapter cable
- 1x Manual
- 1x Quick Start Guide
License information:
- Including 1 year updates: A 12-month update license is included with purchase.
After the license expires, the device will continue to operate on the last installed software version. Online features and the ability to install new software updates will be disabled until the license is renewed.
Technical specifications:
| Specification | Description |
|---|---|
| Product brand | Ancel |
| Product model | MT700 |
| Operating system | Android 5.1.1 |
| Screen size | 7.0 inch |
| Screen resolution | 1024x600 |
| Processor | RK3128 Quad-Core, ARM Cortex A7@1.2Ghz |
| Storage | Support for 32 GB Micro SD card |
| Connectivity | Wi-Fi |
| Battery | 3700 mAh |
