Ancel DS600 Car Diagnostic Tool

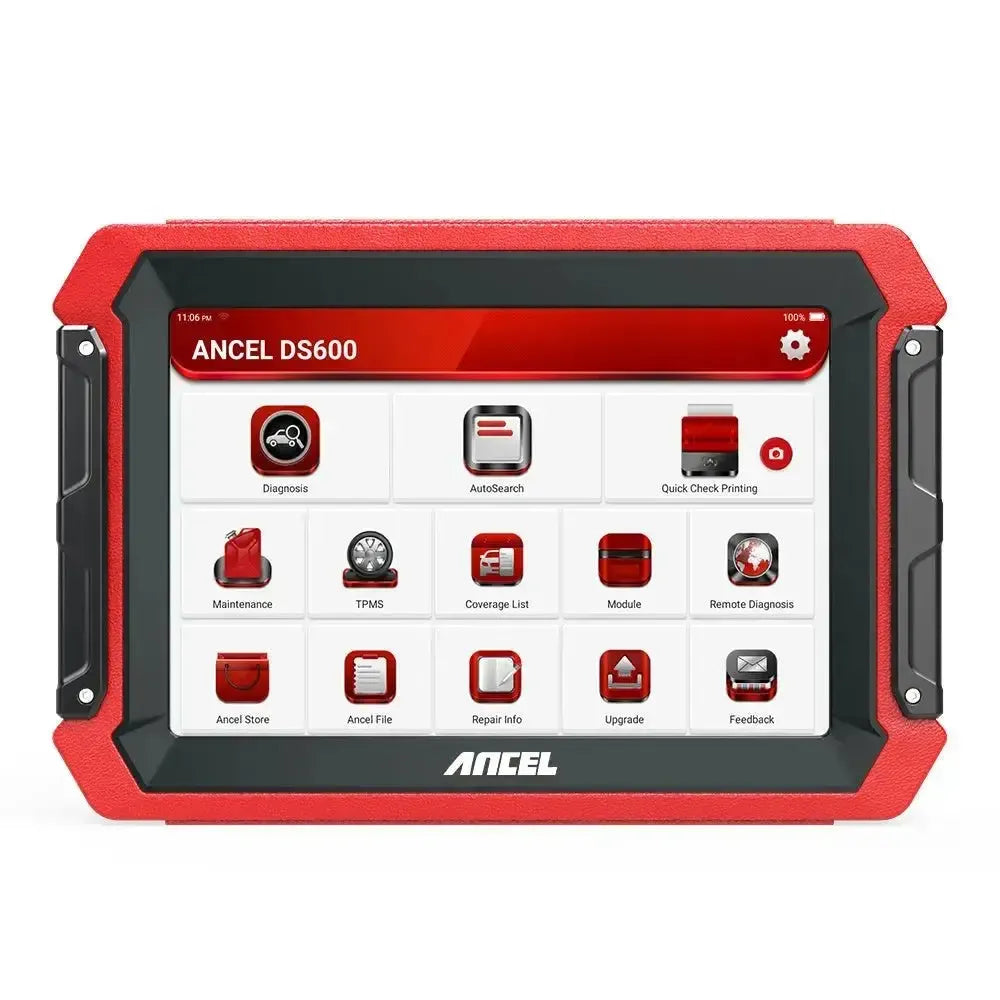

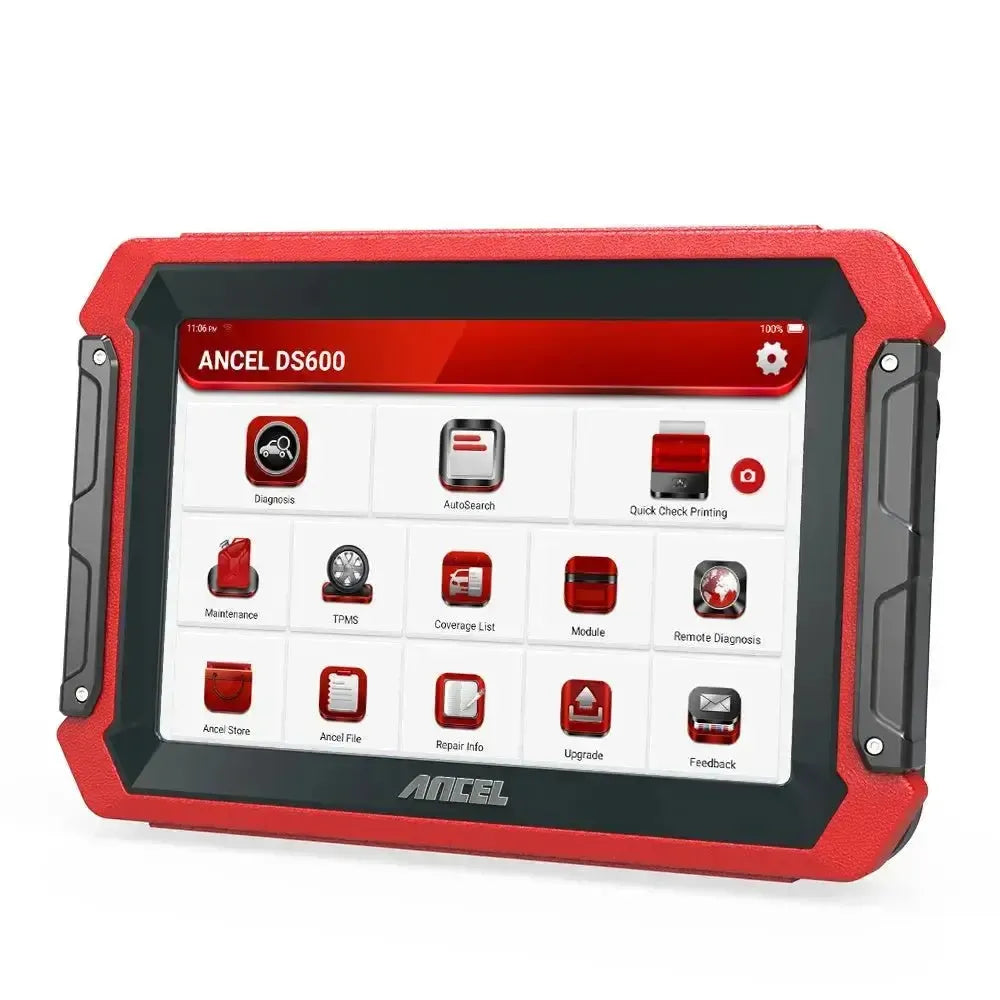

The Ancel DS600 is an advanced and wireless auto Diagnostic Tool, developed for the modern workshop and professional technicians working on a wide range of vehicles. The system is built around a robust 8-inch touchscreen tablet, equipped with the stable and fast Android 10 operating system. The DS600 offers full system diagnosis at OE level, bidirectional control of components, and an extensive range of maintenance and reset functions, combined with support for coding capabilities, making the device suitable for both diagnostic and configuration tasks.

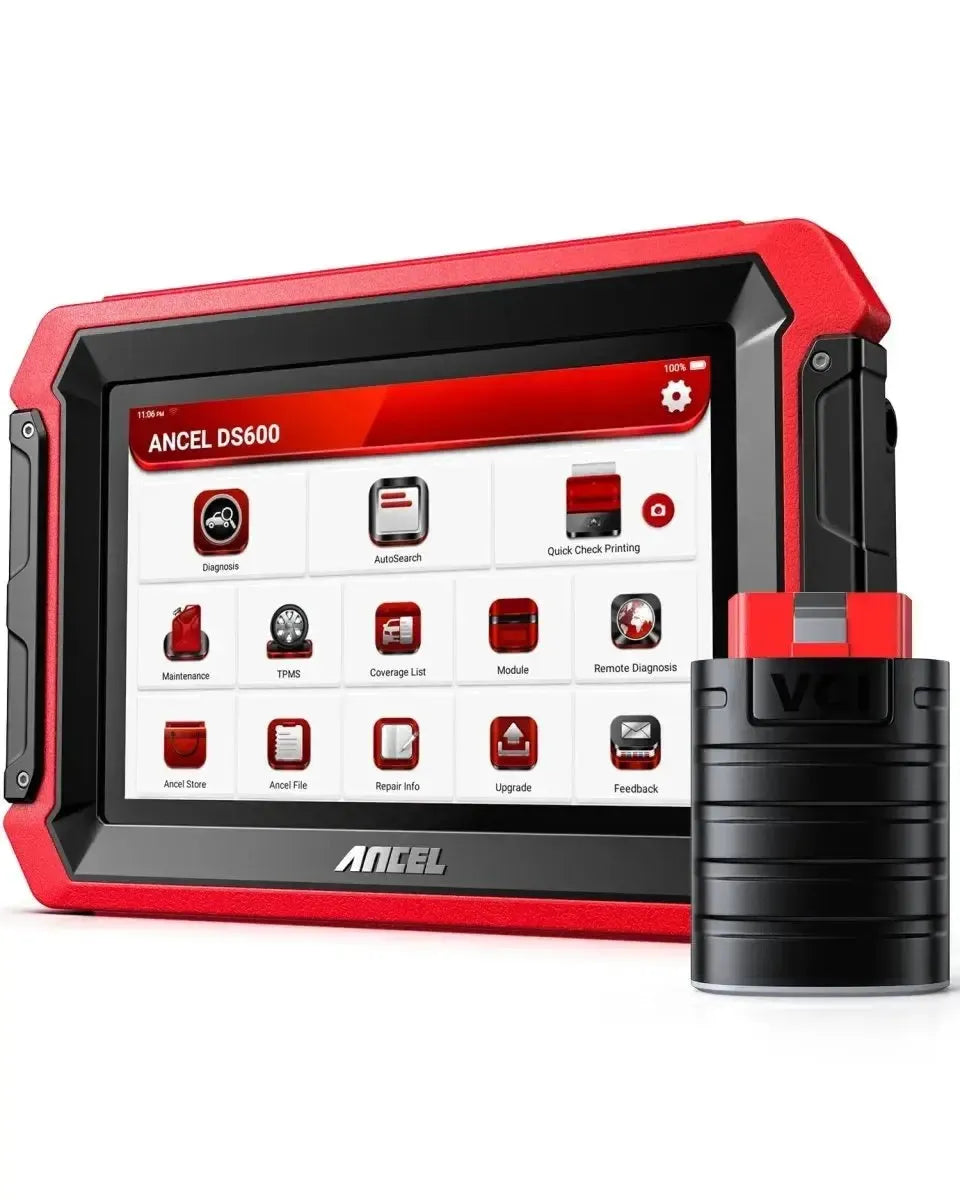

Communication with the vehicle is wireless via the included Bluetooth 5.0 VCI dongle, giving users maximum freedom of movement during work. The system comes standard with two years of free software updates, allowing users to benefit from the latest features and continuously expanding vehicle coverage. After this period, the device continues to function fully with the last installed software version; for new updates and online features, an annual license is required.

Diagnostic functions:

The Ancel DS600 offers extensive diagnostic functionality at OE level and is designed for full access to vehicle systems, real-time data analysis, and targeted troubleshooting.

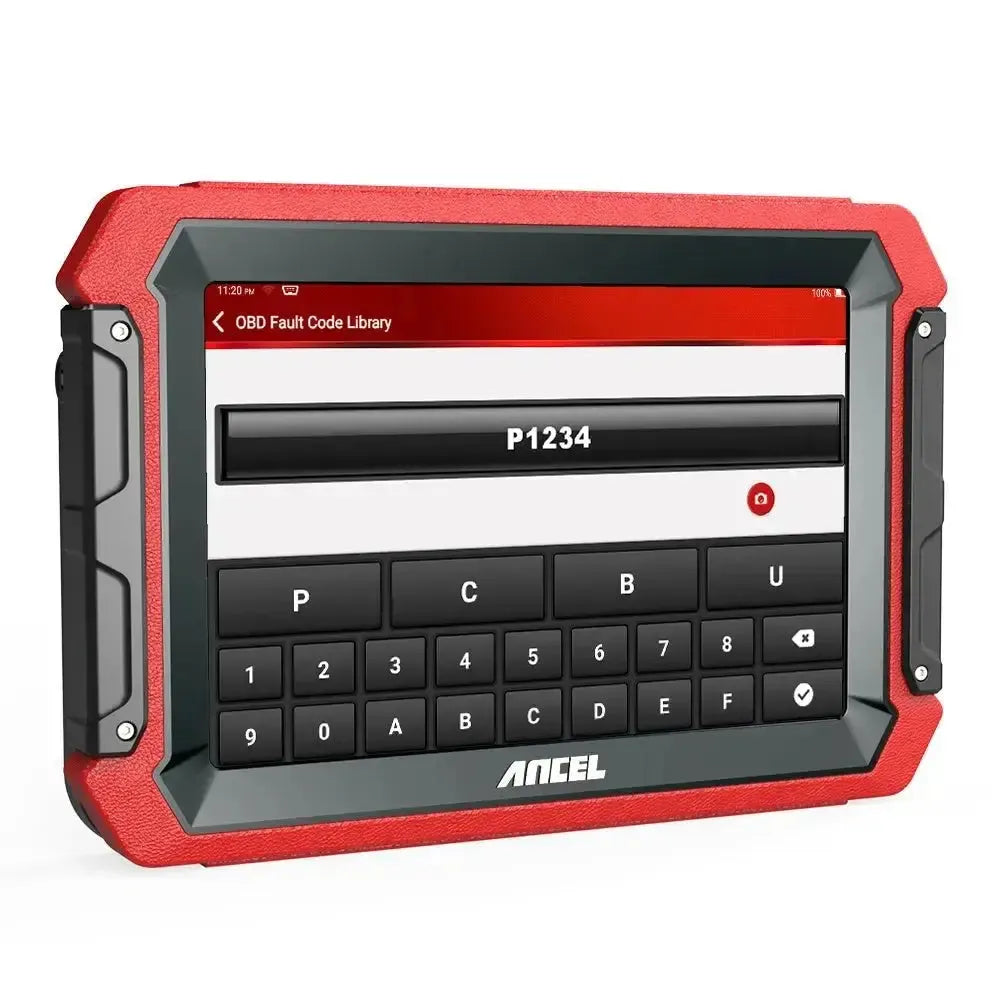

• Complete system diagnosis (OE-level): Reads and clears fault codes in all electronic systems, including engine, transmission, ABS, airbag (SRS), body control module (BCM), air conditioning, instrument panel, and more.
• Active tests (bidirectional control): Sends commands to actuators, relays, and components to verify their operation without disassembly. Examples include controlling the fuel pump, testing the air conditioning clutch, opening electric windows, or activating windshield wipers.

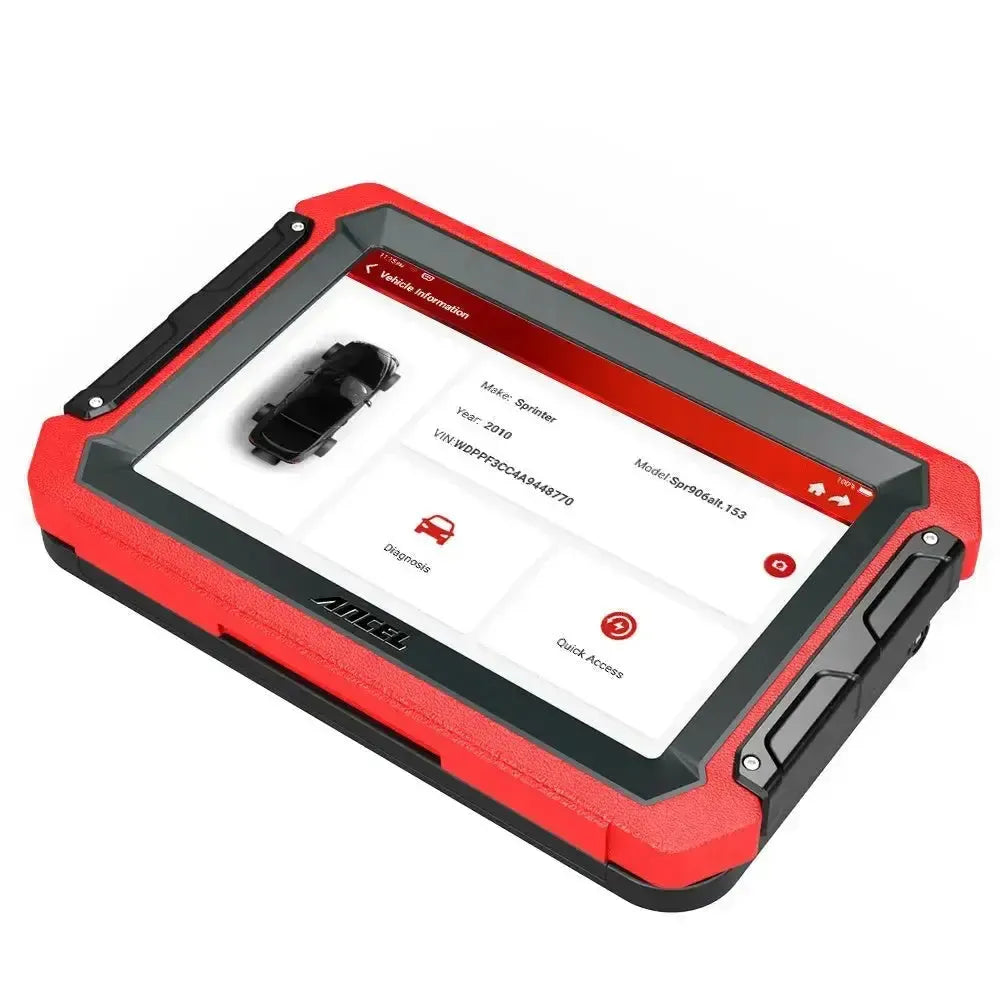

• AutoVIN technology: Automatically recognizes the vehicle based on the chassis number (VIN) for quick, brand-specific vehicle selection and error-free diagnostic start.
• Live datastream: Displays real-time data from all sensors and modules, shown in text format, as a graph, or as analog gauges. The data can be recorded for later analysis or comparison during active tests.

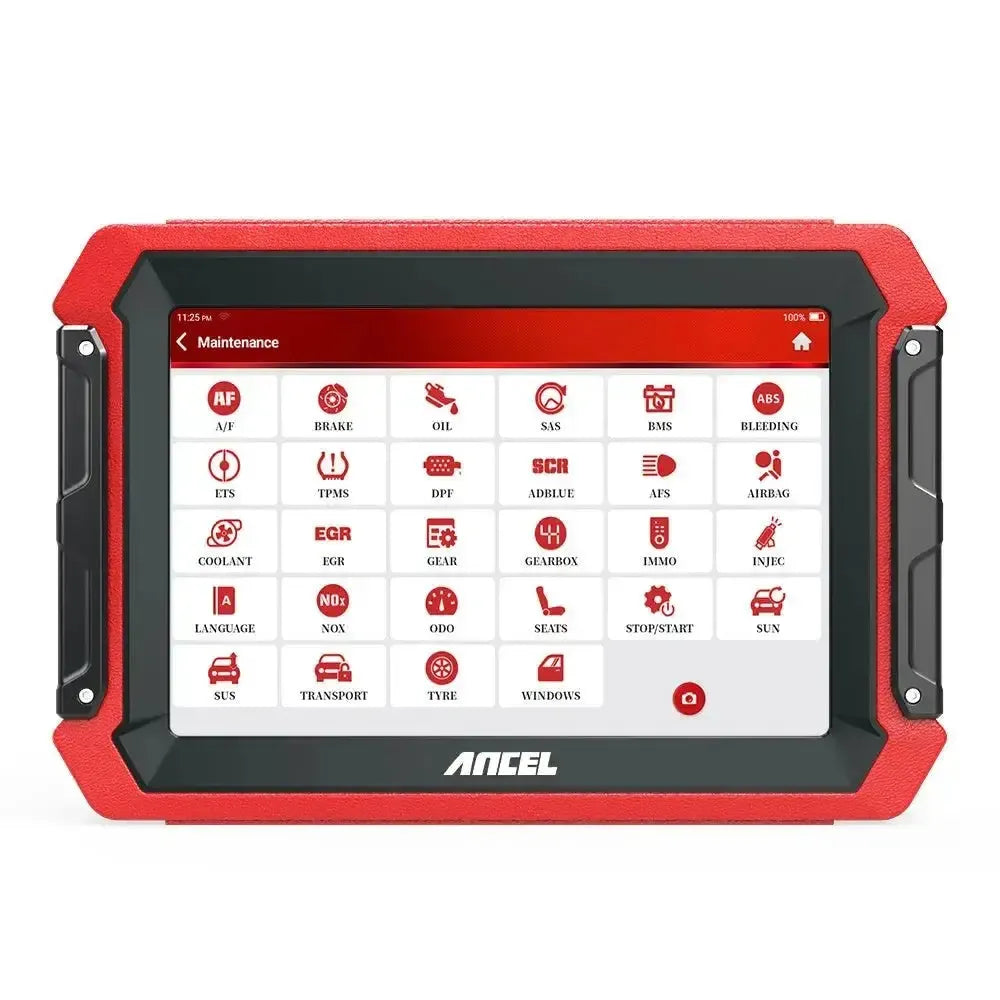

Maintenance and service functions:

The Ancel DS600 supports more than 34 maintenance and service functions, enabling common maintenance tasks and system adjustments to be performed efficiently and safely. These functions are essential for daily work in universal workshops.

• Oil service reset (Service): Resets the maintenance interval and service message after oil change.
• Electronic parking brake (EPB): Releases and initializes the electronic handbrake during brake repairs or replacement.
• Battery management system (BMS): Registers a new Battery in the system for correct charging and voltage regulation.
• Steering angle sensor (SAS): Calibrates the steering angle sensor after alignment or replacement of steering components.
• Diesel particulate filter (DPF): Starts forced regeneration and resets values after filter maintenance.
• ABS pump bleeding: Removes air from the ABS system after brake fluid or component replacement.
• TPMS reset: Performs learning procedures for tire pressure sensors or resets the warning system.
• Throttle body learning (ETC): Calibration of the throttle position after cleaning or replacement.
• Injector initialization: Programs new injector IDs for precise fuel control.
• Transmission adaptation: Resets learned values of automatic transmissions to optimize shifting.
• Crankshaft position sensor learning: Relearns the position of the crankshaft sensor after replacement.
• AdBlue reset: Resets level measurements and error codes after refilling or maintenance of the SCR system.
• Air suspension calibration: Resets ride height on vehicles with adaptive air suspension.
• Headlamp adjustment (AFS): Calibration of adaptive or steering headlamps after replacement or repair.
• Initialize windows and roof: Restores automatic functions of electrically operated windows and sunroofs.
• Start/stop system: Adjustment of settings or activation/deactivation of automatic start/stop functionality.
• Seat occupancy sensor (SRS): Calibration of passenger detection for correct airbag operation.
• Activate/deactivate transport mode: Preparing the vehicle for delivery or storage.

Programming and coding functions:

The Ancel DS600 supports advanced OE-level coding capabilities, allowing vehicle modules to be customized, configured, or relearned after replacement or system adjustment.

• Advanced ECU coding: Enables electronic control units (ECUs) to be recoded, new components to be matched or learned, and vehicle functions to be modified. Think of disabling the start/stop system, adjusting coming-home lighting, configuring new ABS or airbag modules, or adjusting comfort settings.

Additional features and special capabilities:

The Ancel DS600 is more than a standard Diagnostic Tool. Thanks to smart support features and broad vehicle compatibility, the system is suitable for daily use in universal workshops.

• FCA AutoAuth access: Provides authorized access to the Secure Gateway (SGW) of modern vehicles from Fiat, Chrysler, Alfa Romeo, and Jeep. Allows full execution of maintenance and diagnostic functions. An active AutoAuth account is required.
• Diagnostic feedback feature: Enables sending diagnostic reports or fault code data directly to the Ancel technical support team with one click. Ideal for assistance with complex or unknown fault codes.
• Extensive vehicle coverage: Supports diagnosis on more than 10,000 vehicle models worldwide, including passenger cars, light commercial vehicles, and hybrid vehicles from European, Asian, and American brands.

Optional expansions and modules:

The Ancel DS600 can be expanded with various accessories, further enhancing the functionality of the Diagnostic Tool. These expansions make the system suitable for additional vehicle inspection and diagnosis.

• Battery analysis: Supports connection to an external battery tester for reading battery status, voltage, capacity, and starting power. Ideal for quick checking of the charging system.
• Videoscope: Compatible with an inspection camera for visual inspection in hard-to-reach parts of the vehicle, such as cylinder heads, EGR channels, or behind dashboard panels.
• Thermal imaging camera: Can be expanded with a thermal camera for detecting heat differences in electrical systems, fuses, relays, or air conditioning components.
• Oscilloscope: Supports connection to a digital scope box, allowing detailed electronic signals from sensors and actuators to be measured and analyzed.
• Work light: Can be connected to a modular work lamp, for better visibility during diagnosis and physical inspection under the hood or under the vehicle.

Supported car brands:

• European brands: Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroën, Dacia, DR, Ferrari, Fiat, FordEU, GAZ, Iveco, IZH, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, Mercedes-Benz, MINI, Opel, PAZ, Peugeot, Porsche, Renault, Rolls-Royce, Rover, Saab, Seat, SeAZ, Skoda, Smart, Sprinter, UAZ, Vauxhall, VAZ, Volvo, Volkswagen, Volkswagen CV, ZAZ
• Asian brands: Acura, Daewoo, Daihatsu, GTR, Holden, Honda, Hyundai, IKCO, Infiniti, Isuzu, Kia, Lexus, Luxgen, Mahindra, Maruti, Mazda, Mitsubishi, MVM, Nissan, Perodua, Proton, SAIPA, Samsung, SsangYong, Subaru, Suzuki, Tata, Toyota, United Pakistan
• American brands: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GM, Jeep, Lincoln
• Chinese brands: BAIC, BJEC, Brilliance, BYD, Changan, Changhe, Chery, DFSK, FAW, Foton, Geely, Gonow, GWM, Hafei, Haima, JAC, JAC Refine, Jinlong, JMC, Joylong, Lifan, Maxus, MG, Polarsun, Qoros, Senova, Senoua, Soueast, SGM, SGMW, Shineray, Spark, Trumpchi, Weiwang, Xinkai, Zotye, Zhongxing

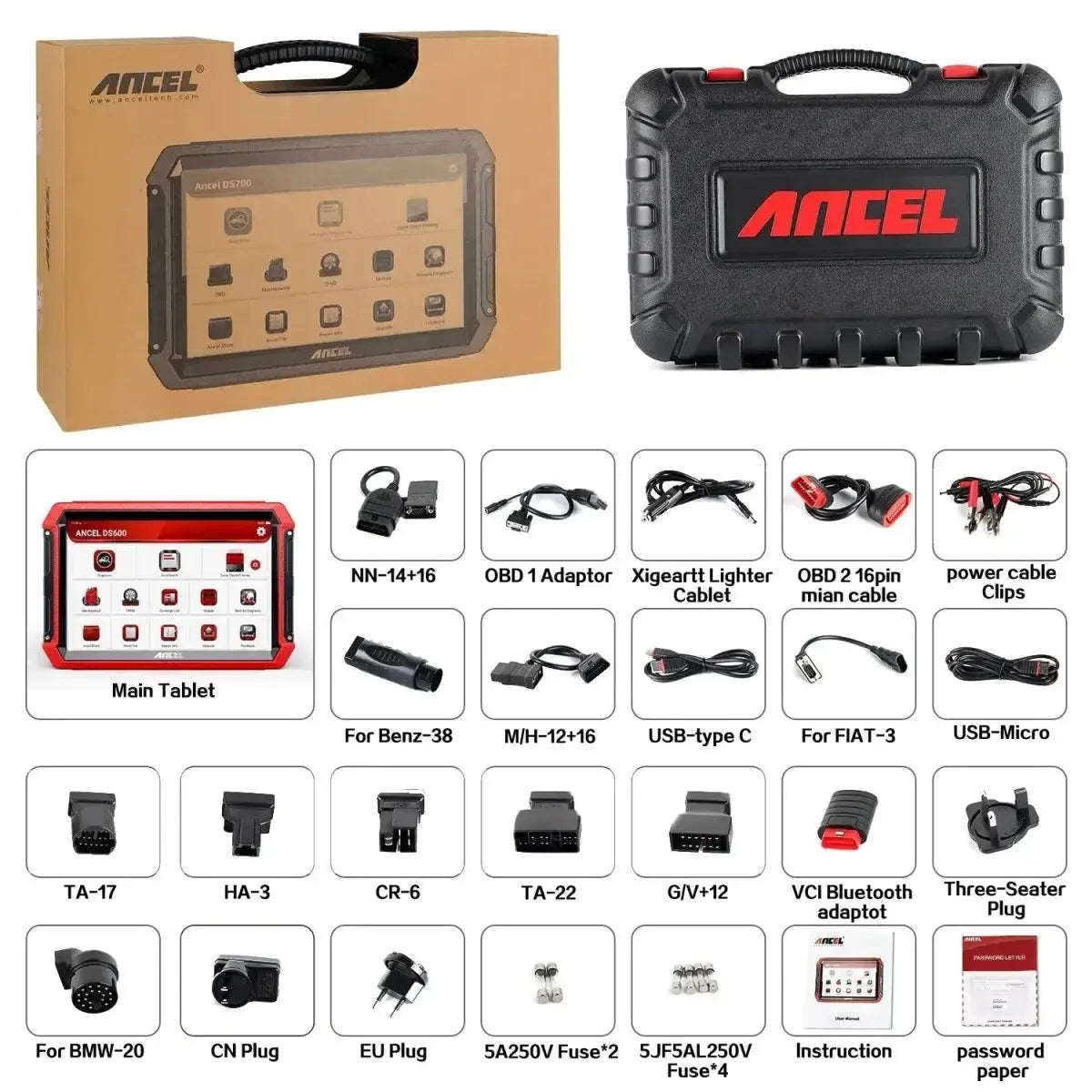

Package contents:

• Ancel DS600 Diagnostic Tool
• Ancel Interface
• Ancel 16 Pins OBD2 Extension cable
• USB-A - USB-C Adapter cable
• Charging plug
• Manual
• Storage Case
• Ancel Battery Clamps Power Cable
• Ancel Cigarette Lighter Power Cable
• Ancel 15 Pins DB15 - 16 Pins OBD2 Adapter Cable
• Ancel Honda 3 Pins OBD1 - 15 Pins DB15 Adapter
• Ancel Chrysler 6 Pins OBD1 - 15 Pins DB15 Adapter
• Ancel GM/VAZ 12 Pins OBD1 - 15 Pins DB15 Adapter
• Ancel Toyota 17 Pins OBD1 - 15 Pins DB15 Adapter
• Ancel BMW 20 Pins OBD1 - 15 Pins DB15 Adapter
• Ancel Toyota 22 Pins OBD1 - 15 Pins DB15 Adapter
• Ancel Mercedes-Benz 38 Pins OBD1 - 15 Pins DB15 Adapter
• Ancel Fiat 3 Pins OBD1 - 15 Pins DB15 Adapter Cable
• Ancel Mitsubishi/Hyundai 12+16 Pins OBD1 - 15 Pins DB15 Adapter Cable
• Ancel Nissan 14+16 Pins OBD1 - 15 Pins DB15 Adapter Cable

License information:

• Including 2 years of updates: A 24-month update license is included with the purchase.

After the first year, the license can be renewed for an annual fee. The device remains fully functional for already supported models, even without license renewal. However, new software updates can no longer be installed, and some online features may be limited or no longer supported.

Technical specifications
