AsTools  |  SKU: A0152 / 1.15

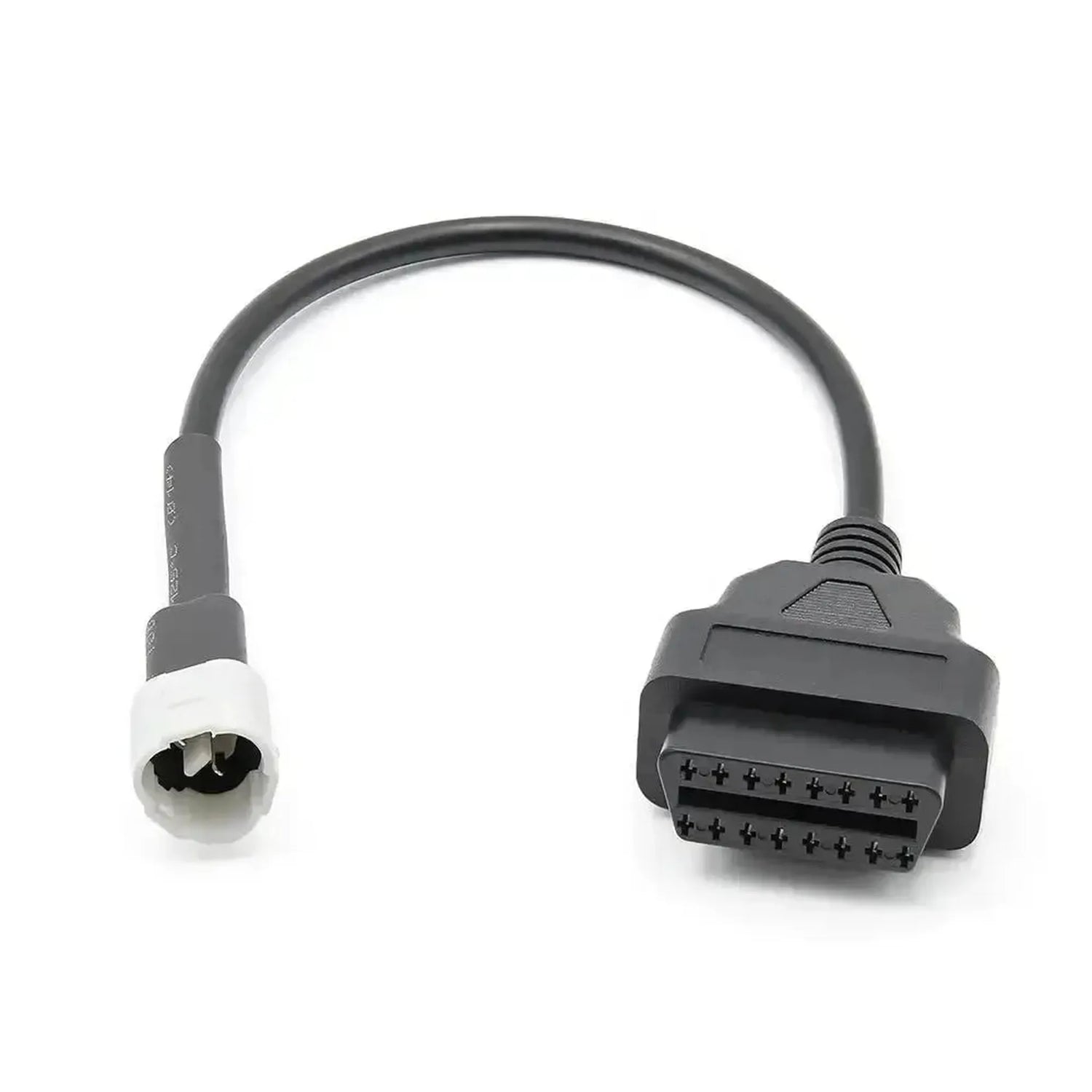

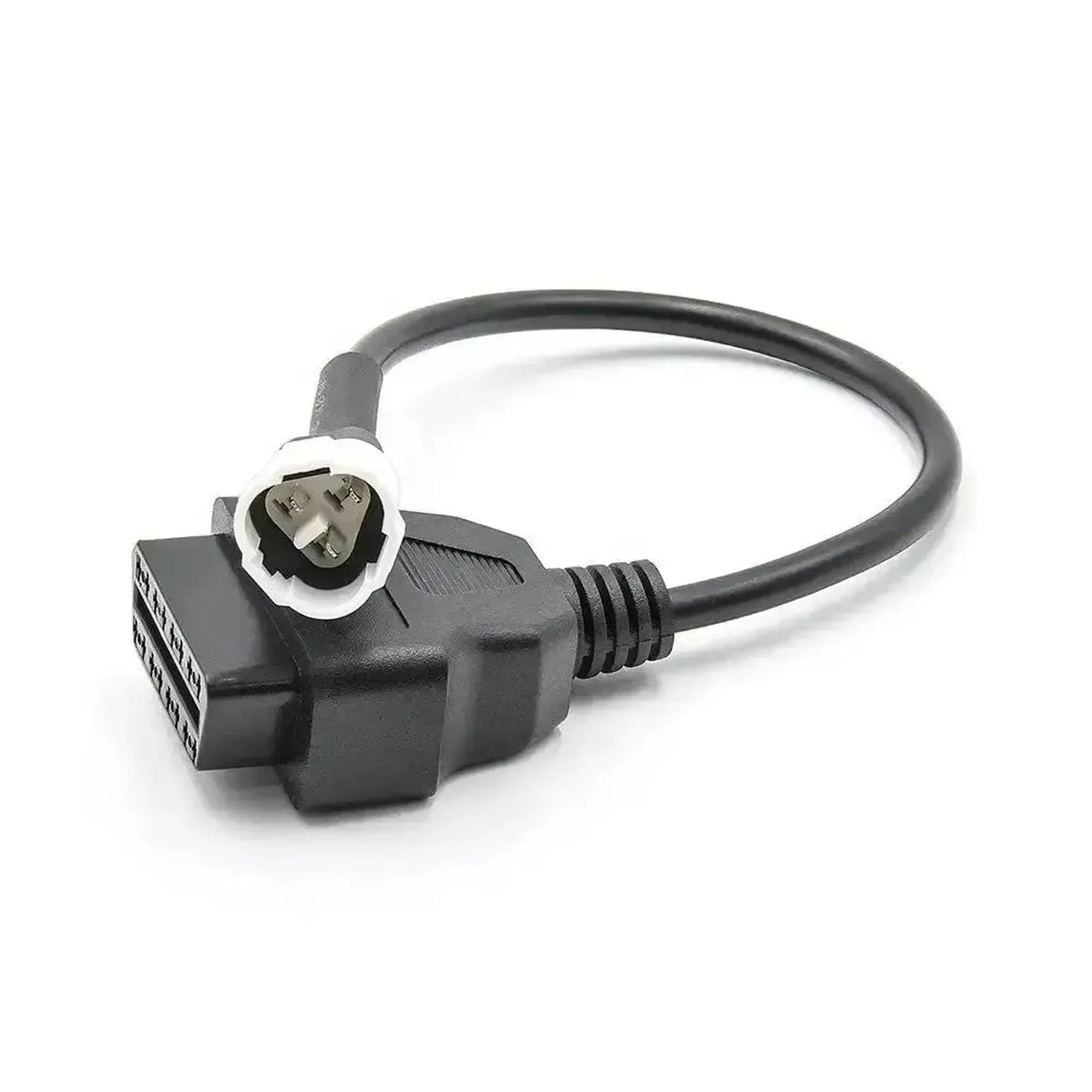

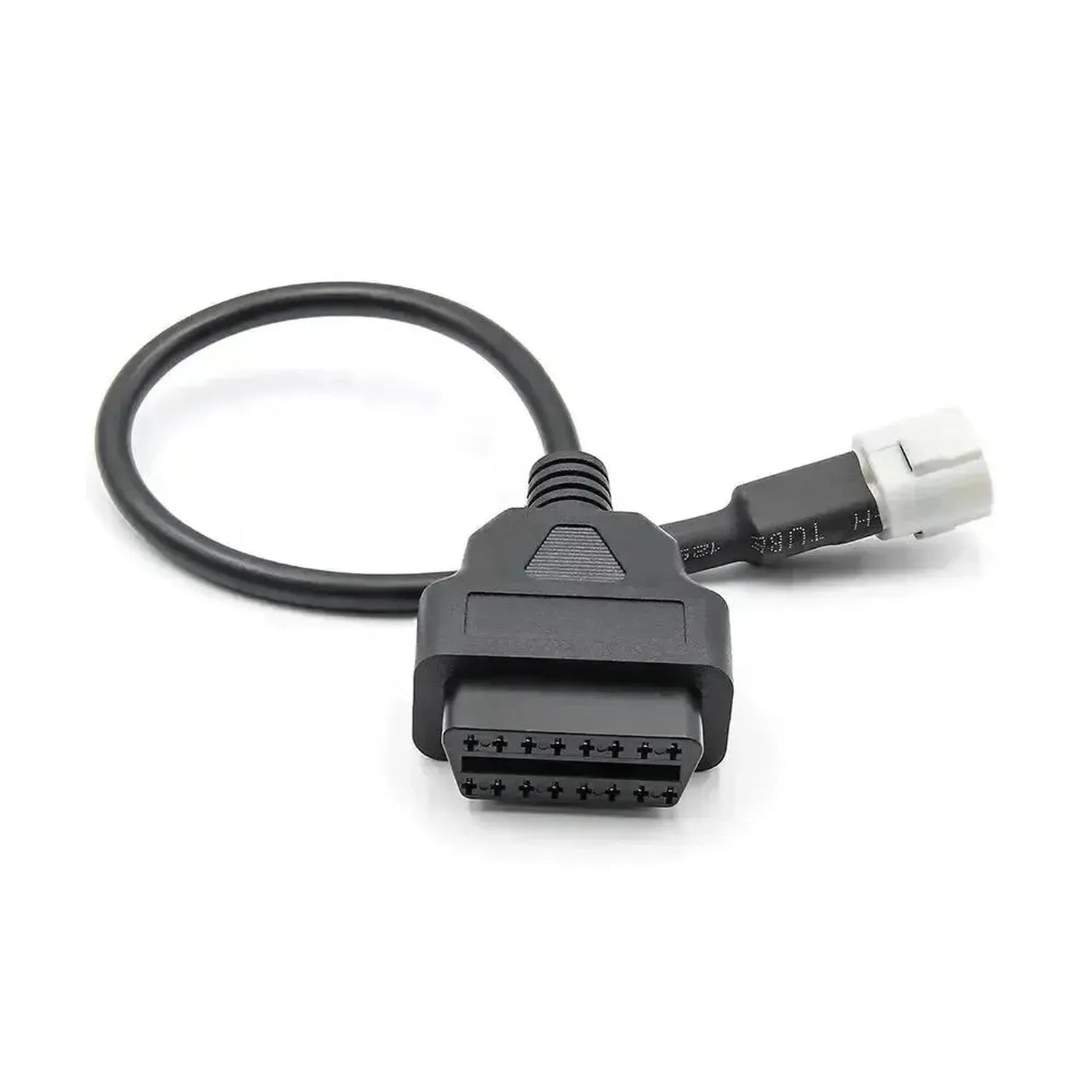

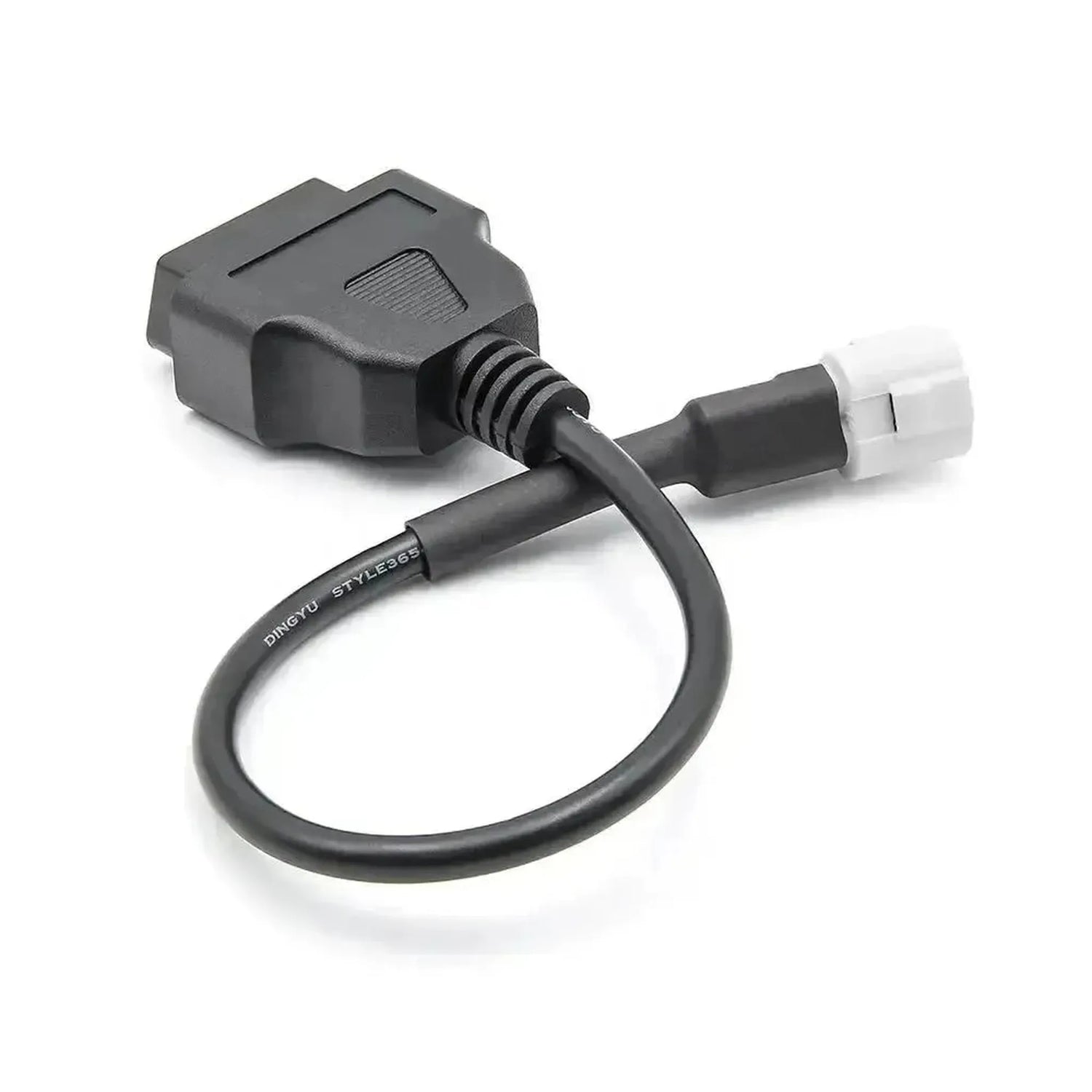

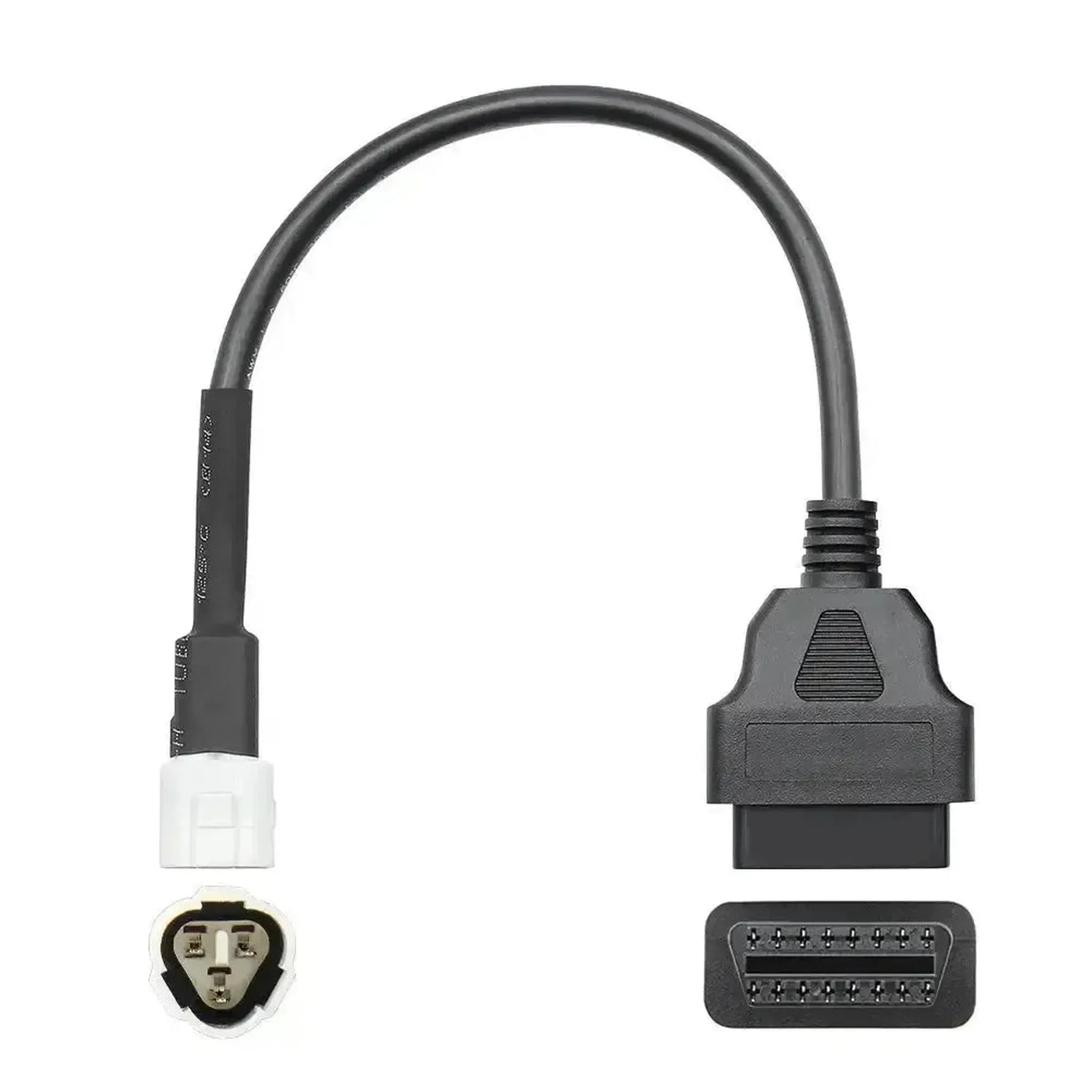

Yamaha 3-pins OBD – 16-pins OBD2 Adapter Cable | Motorcycle

€9,95 incl.
€8,22 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

The Yamaha 3-pin to 16-pin adapter cable is specifically developed to connect older Yamaha motorcycles with a 3-pin diagnostic connection to a standard OBD2 interface. This Adapter forms the physical connection between the brand-specific connector on the motorcycle and universal or brand-specific diagnostic equipment equipped with a 16-pin OBD2 plug.

This cable facilitates signal transmission from the ECU to the reading device by correctly converting the pin assignment. The system supports communication via protocols such as K-Line, allowing fault code reading and viewing of sensor values when used in combination with compatible diagnostic software and hardware.

ADVANTAGES

✔ Suitable for Yamaha motorcycles with the specific 3-pin white connector.
✔ Enables the use of existing 16-pin OBD2 scanners on older models.
✔ Robust construction with molded connectors for reliable signal transmission.

ATTENTION POINTS

✕ Not suitable for newer Yamaha models with 4-pin or 6-pin Euro 4/5 connectors.
✕ The connected diagnostic equipment must support the specific Yamaha protocol.

Applications and functionalities

This adapter cable acts as an interface between the motorcycle and the diagnostic device. The available functionalities depend on the scanner and software used.

  • Read fault codes: Accessing the ECU to view stored fault codes (DTCs).
  • Clear fault codes: Ability to reset the fault memory after repair.
  • Live data display: Viewing sensor values in real time such as RPM, temperature, and throttle position.
  • ECU identification: Retrieving software versions and hardware information from the control unit.

Compatible vehicles and applications

This adapter cable is suitable for various Yamaha models equipped with the 3-pin white diagnostic connector. These are generally models produced before the introduction of the Euro 4 standard (around 2016/2017).

Yamaha:

  • FJR 1300: (Older generations with 3-pin port)
  • FZ-Series (FZ1, FZ6, FZ8): (Models with 3-pin port)
  • MT-Series (MT-01, MT-03, MT-07, MT-09): (Generations before 2016)
  • T-MAX: (Generations 2008 - 2016)
  • X-MAX: (Older models)
  • XT 660 (R/X/Z): (Models with injection)
  • YZF-R1: (Approx. 2002 - 2015)
  • YZF-R6: (Approx. 2003 - 2016)
💡
Good to know: The 3-pin diagnostic port on Yamaha motorcycles is often located under the seat, near the battery, or behind a side panel at the front. Always visually check if your motorcycle has the white 3-pin connector.

Package Contents

  • 1x Yamaha 3-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle
