Toyota 17-pins OBD1 – 16-pins OBD2 Adapter Cable | Passenger Car

Name: Toyota 17-pins OBD1 – 16-pins OBD2 Adapter Cable | Passenger Car
Brand: AsTools
SKU: A0027 / 2.10
Price: 9.95 EUR
Availability: InStock

€9,95 incl.

€8,22 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

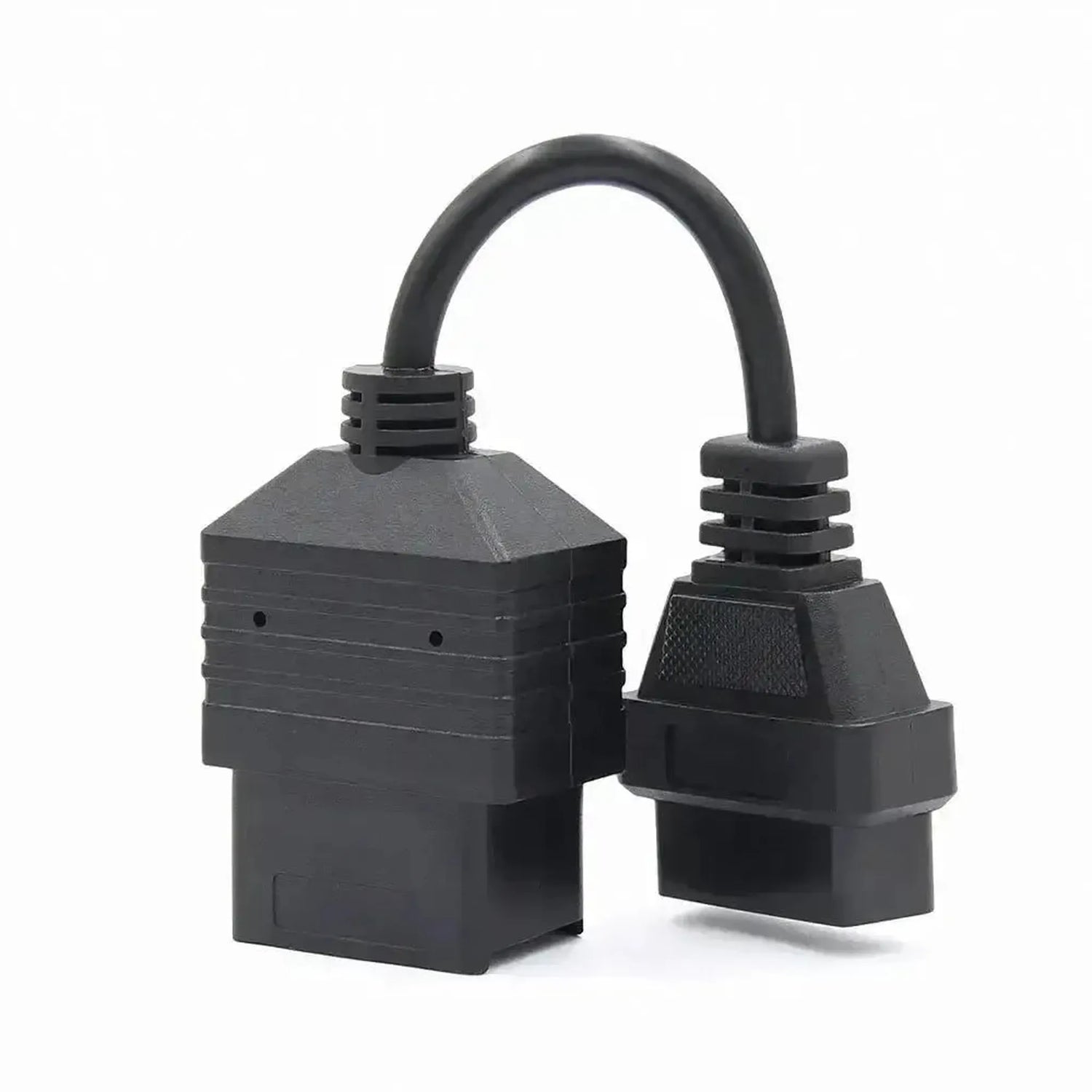

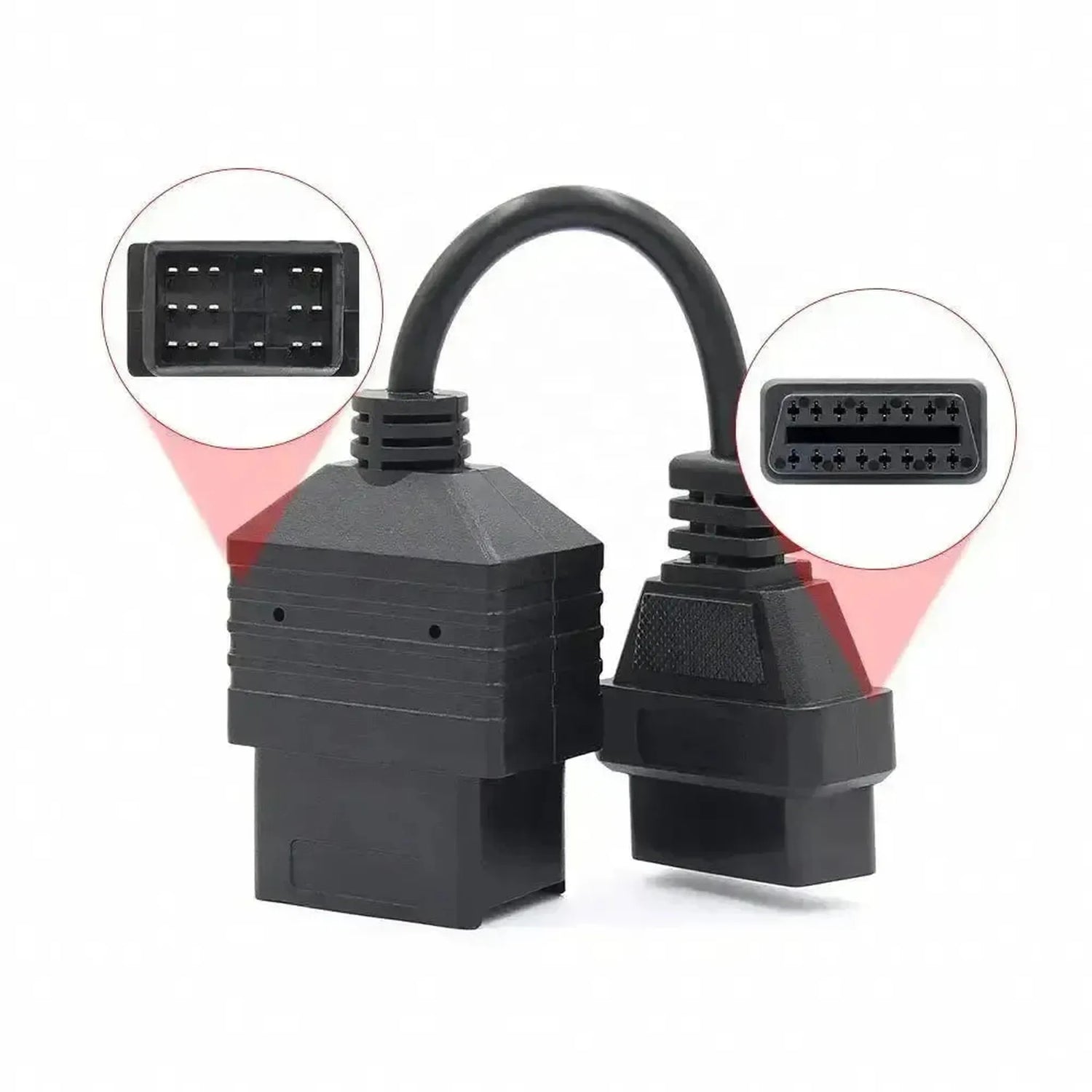

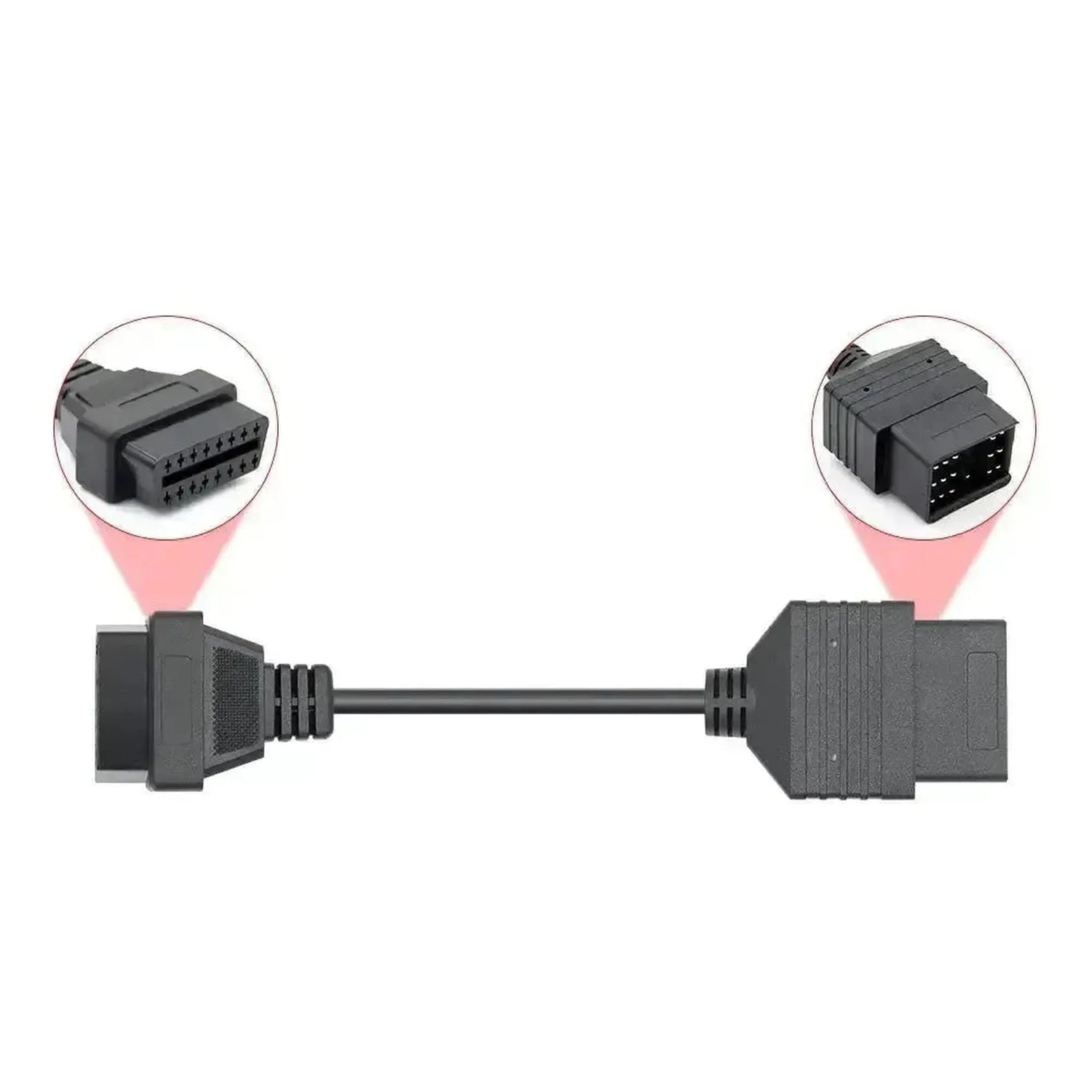

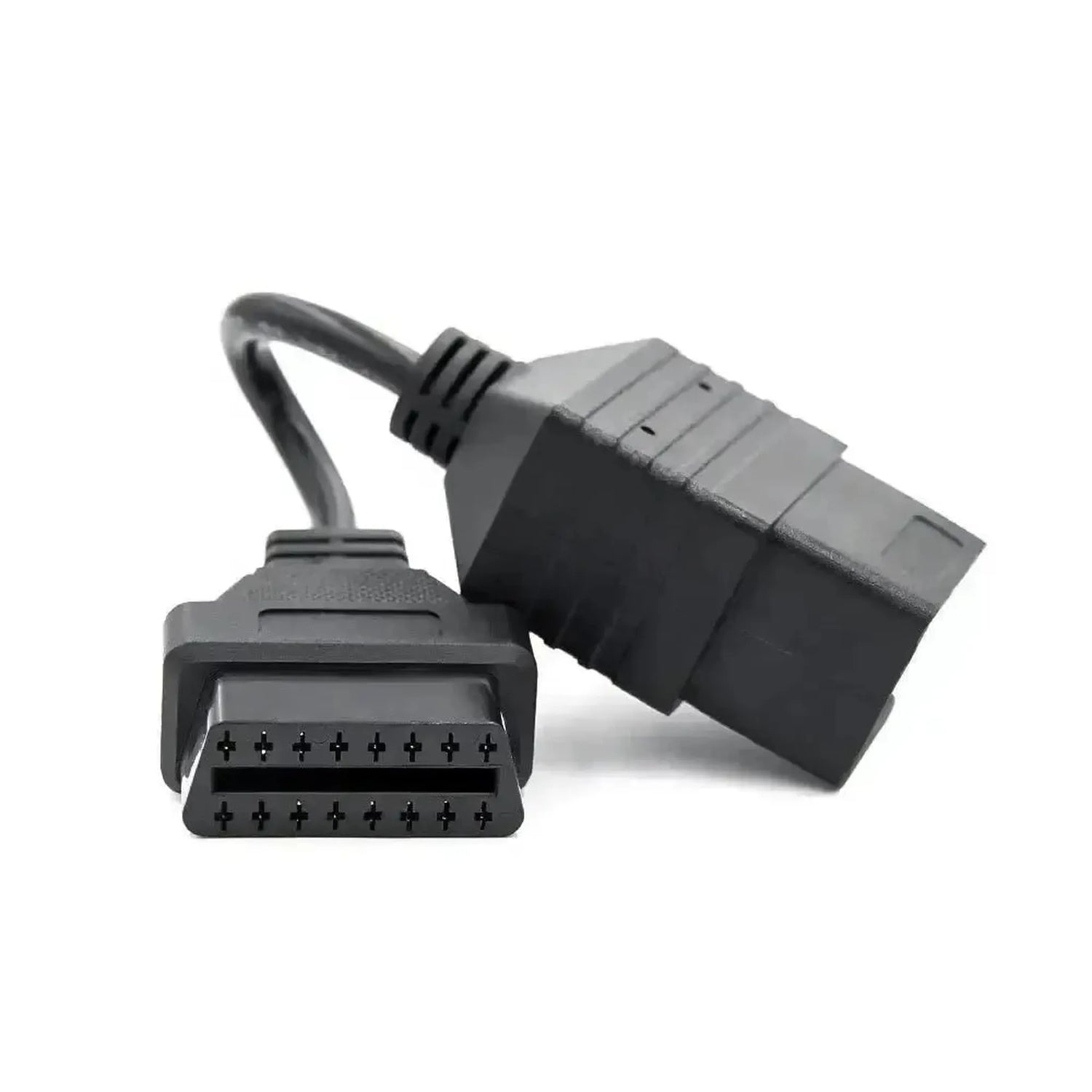

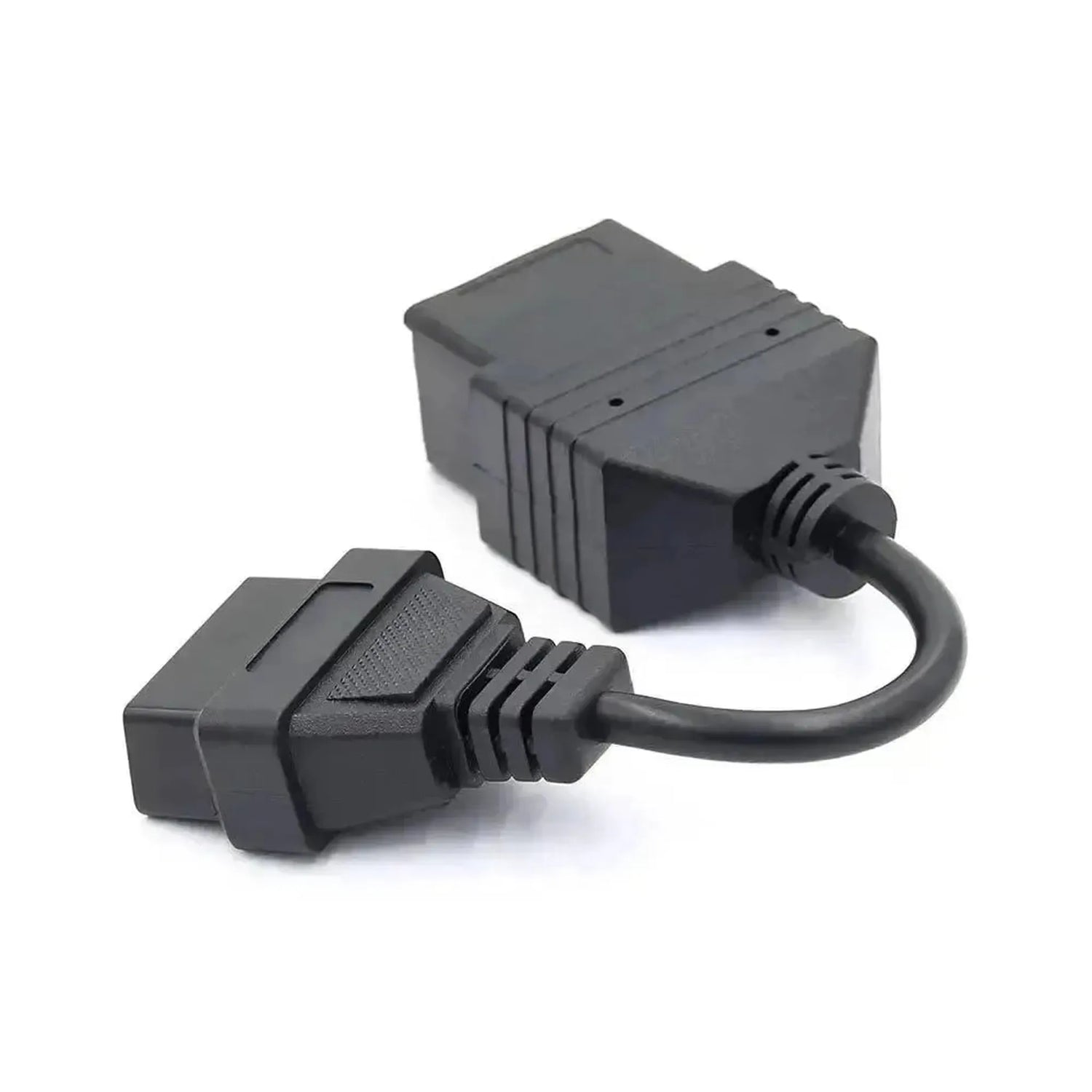

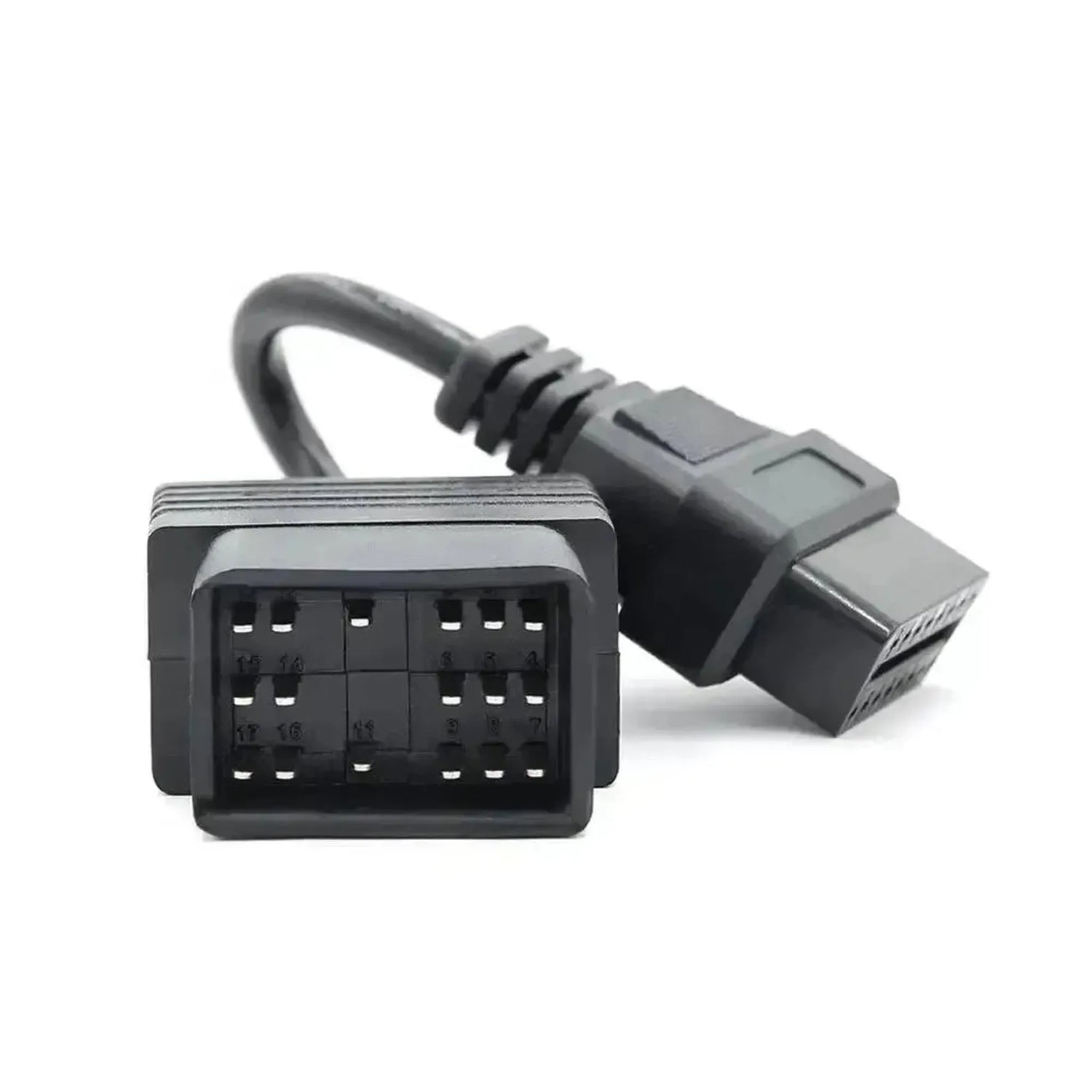

The Toyota 17-pin OBD1 to 16-pin OBD2 adapter cable is specifically designed to connect older Toyota models to modern diagnostic equipment. This adapter cable features a rectangular 17-pin connector on the vehicle side, which plugs directly into the specific diagnostic port used in Toyota passenger cars produced before the standardization of OBD2.

The adapter provides a physical conversion of the pin layout, correctly linking the communication lines of the older vehicle electronics to the universal J1962 connector. This enables stable signal transmission between the vehicle's ECU and a compatible OBD2 scanner, provided it can handle the older Toyota-specific protocols in software.

ADVANTAGES

✔ Enables connection to the rectangular 17-pin diagnostic port.

✔ Converts the connection to a standard 16-pin OBD2 female interface.

✔ Equipped with sturdy connectors for durable workshop use.

IMPORTANT NOTES

✕ Acts as a pin converter and does not contain an electronic protocol converter.

✕ The connected diagnostic tester must support software for older Toyota OBD1 systems.

✕ Not suitable for vehicles with the round 22-pin connector.

Applications and functionalities

This adapter cable is intended to provide physical access to the onboard computer of older vehicles. Actual functionality depends on the diagnostic equipment used.

Reading fault codes: Accessing the ECU to retrieve stored error codes.
Pin conversion: Physical conversion from 17-pin Toyota-specific to 16-pin ISO standard.
Diagnostic connection: Establishing communication between vehicle and scanner.

Compatible vehicles and applications

This adapter is suitable for Toyota models produced during the transition period from OBD1 to OBD2, typically between 1990 and 2001, and equipped with the rectangular 17-pin diagnostic port.

Toyota:

4Runner: (1990 - 1995)
Camry: (1990 - 2000)
Carina E: (1992 - 1997)
Celica: (1990 - 1999)
Corolla: (1990 - 2001)
HiAce: (1990 - 2000)
Hilux: (1990 - 2001)
Land Cruiser: (1990 - 1998)
MR2: (1990 - 1999)
Paseo: (1991 - 1999)
Previa: (1990 - 2000)
RAV4: (1994 - 2000)
Starlet: (1990 - 1999)
Supra: (1990 - 1998)
Yaris: (1999 - 2000 - early models)

💡

Good to know: The 17-pin diagnostic port on these Toyota models is often located under the hood in a small rectangular box labeled 'DIAGNOSIS', or in some cases inside the cabin near the dashboard.

Package Contents

1x Toyota 17-pin OBD1 – 16-pin OBD2 Adapter Cable | Passenger Car
