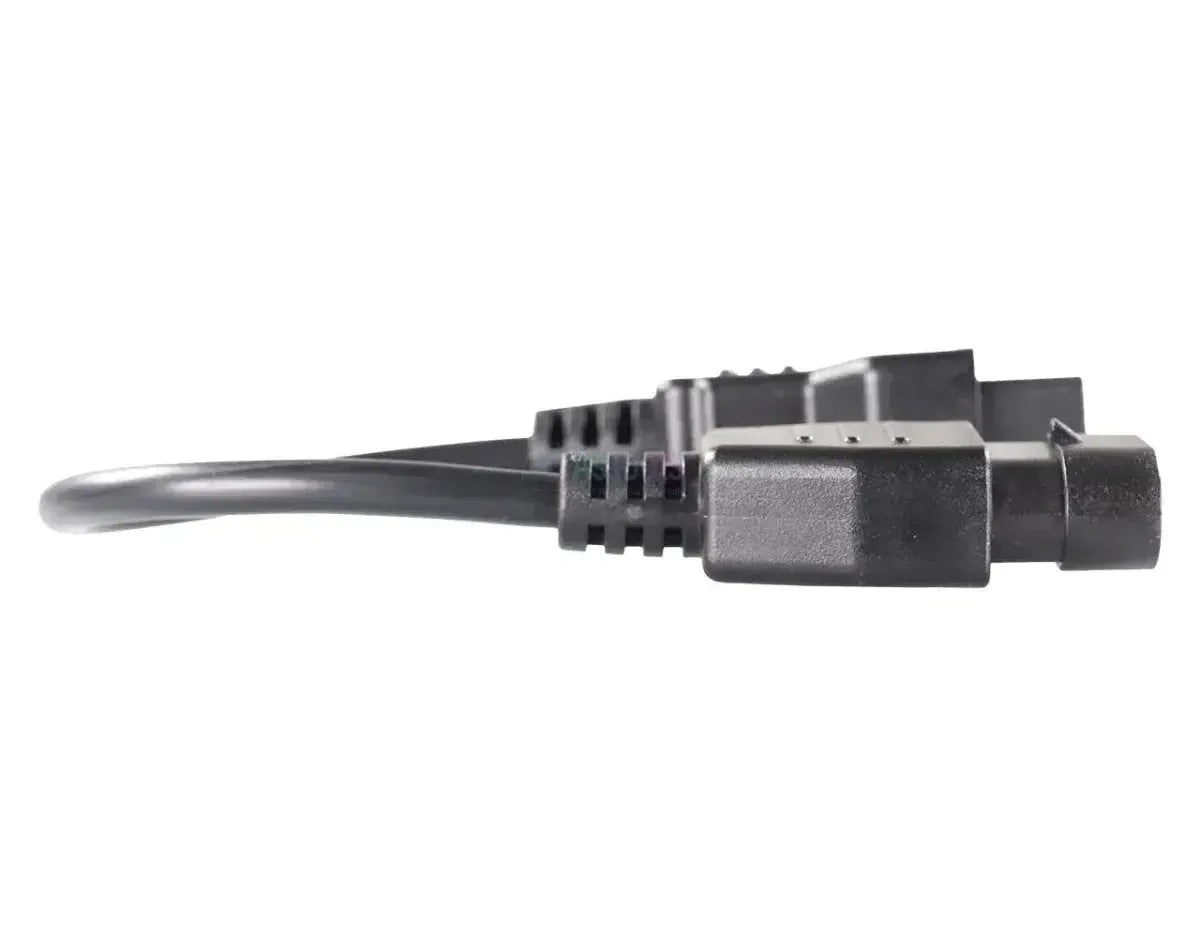

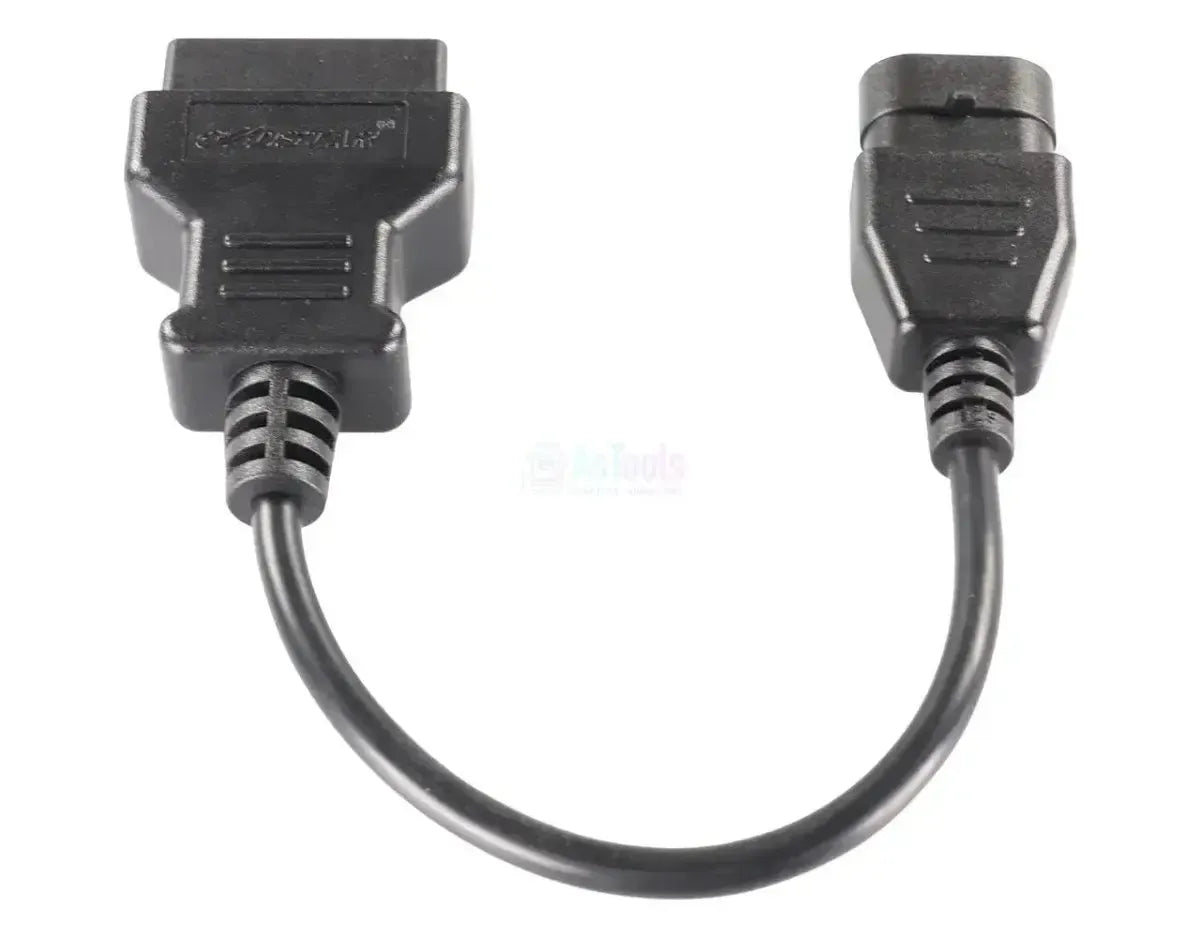

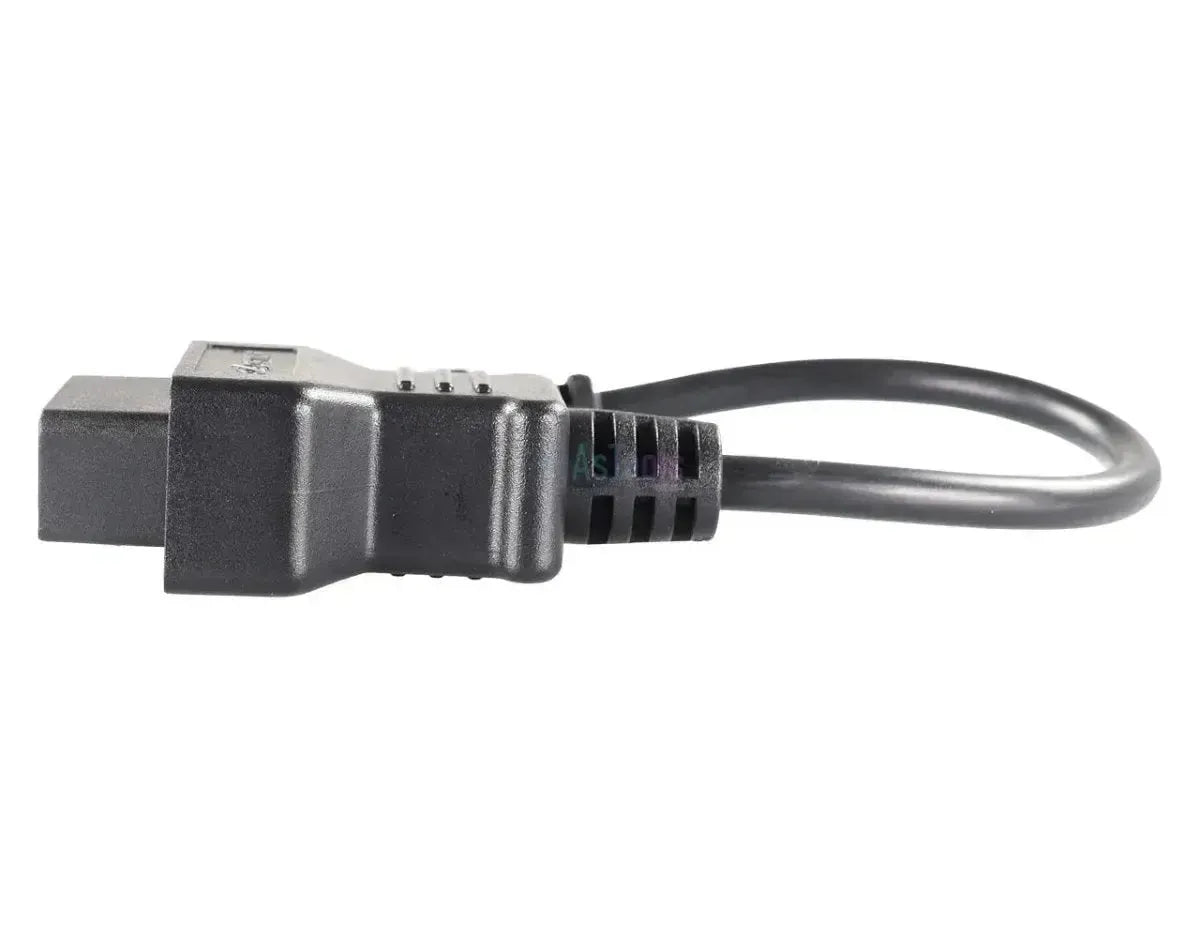

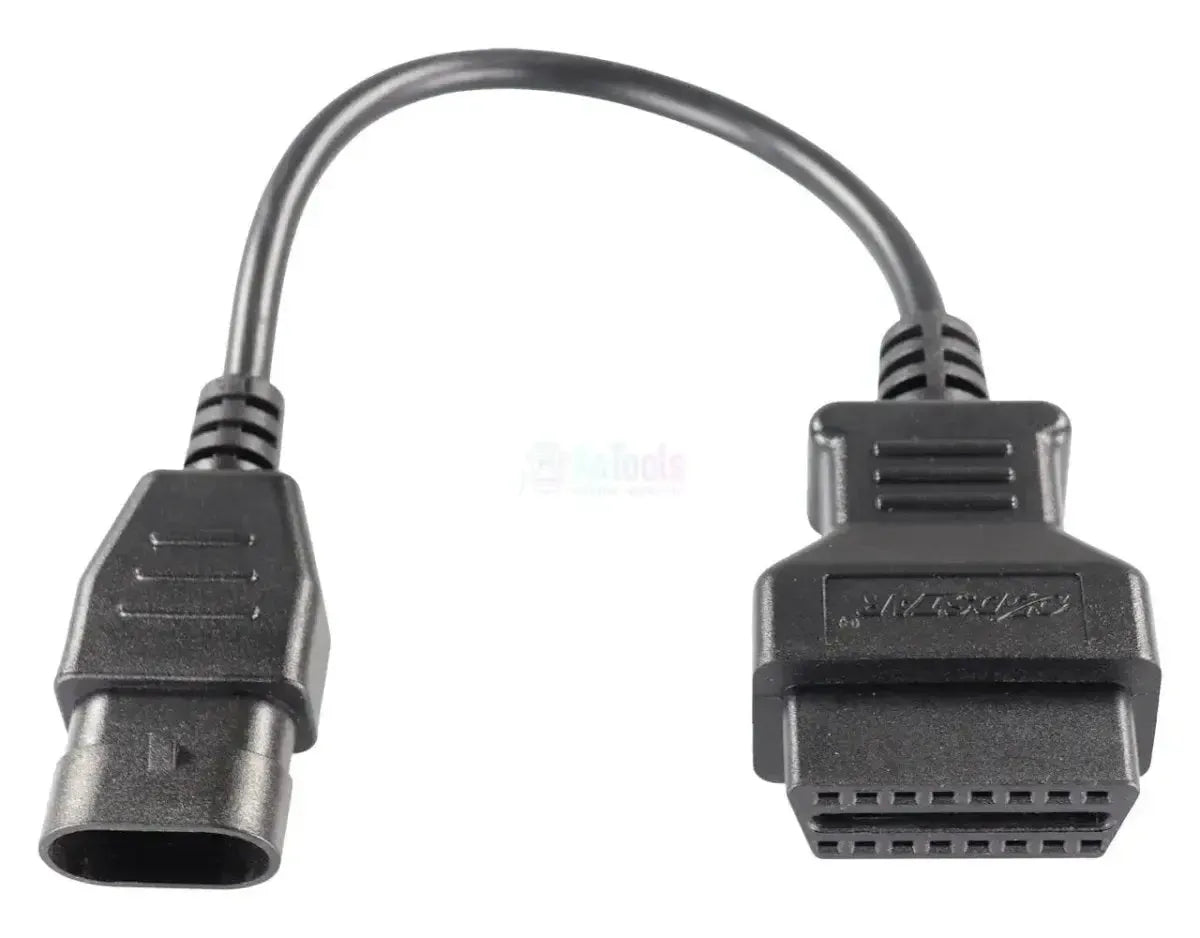

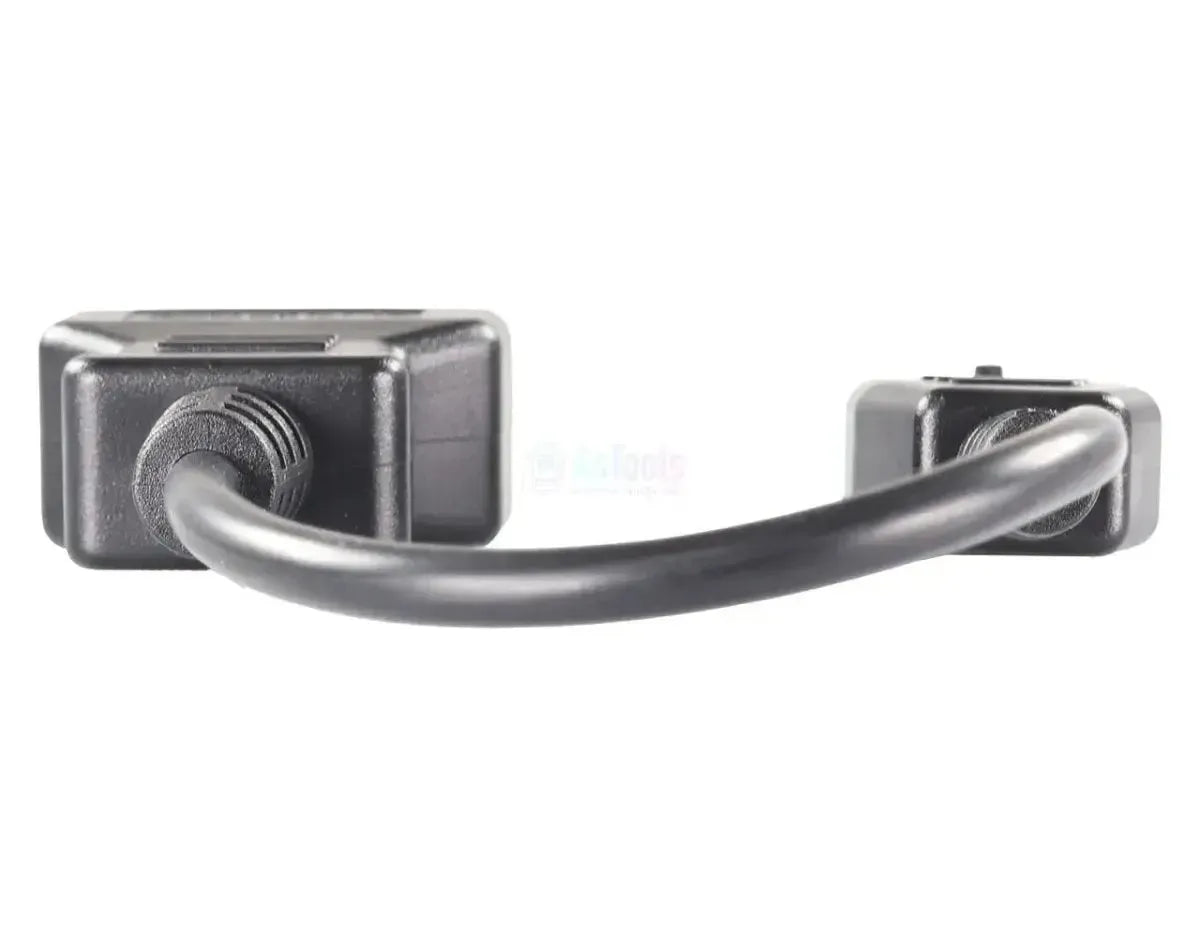

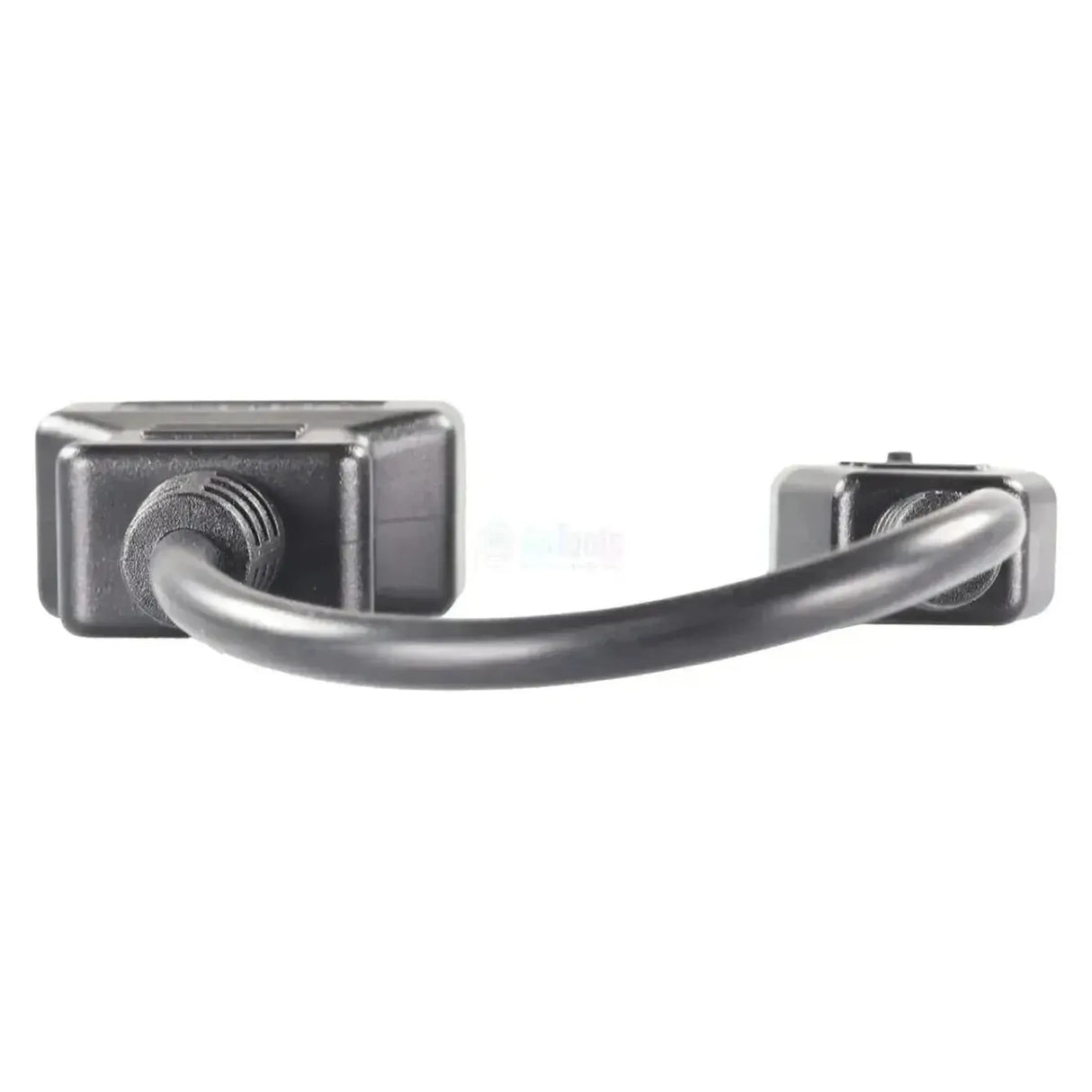

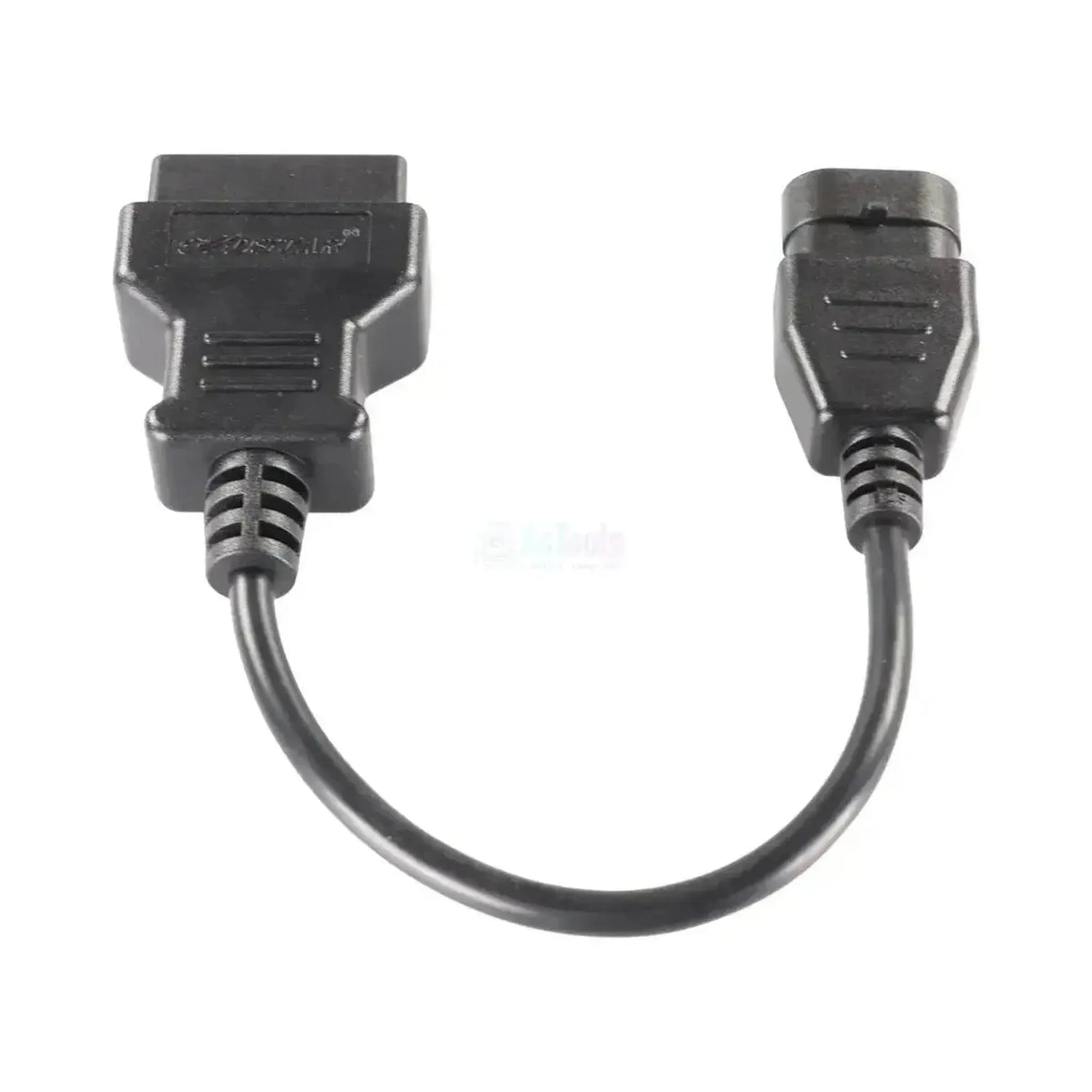

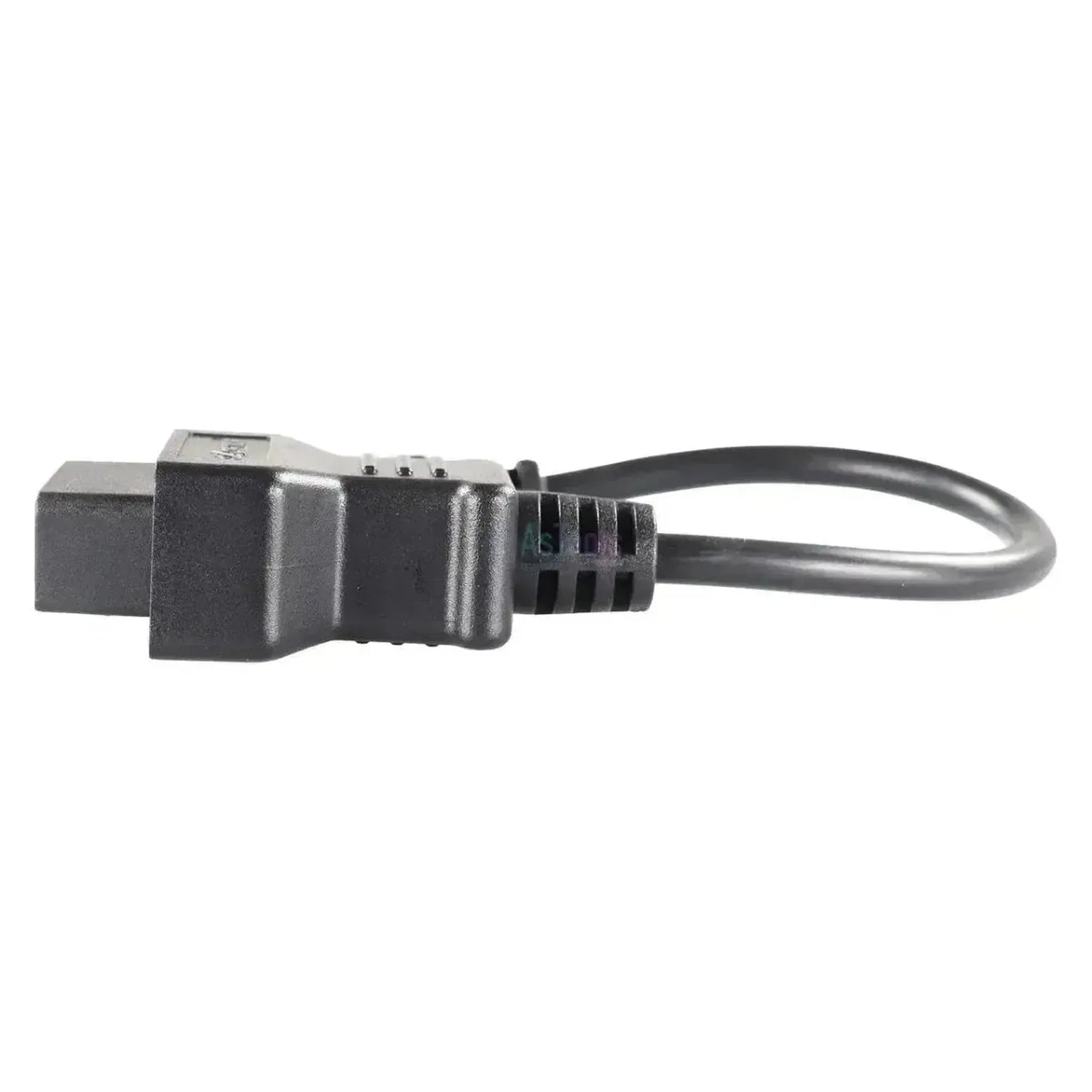

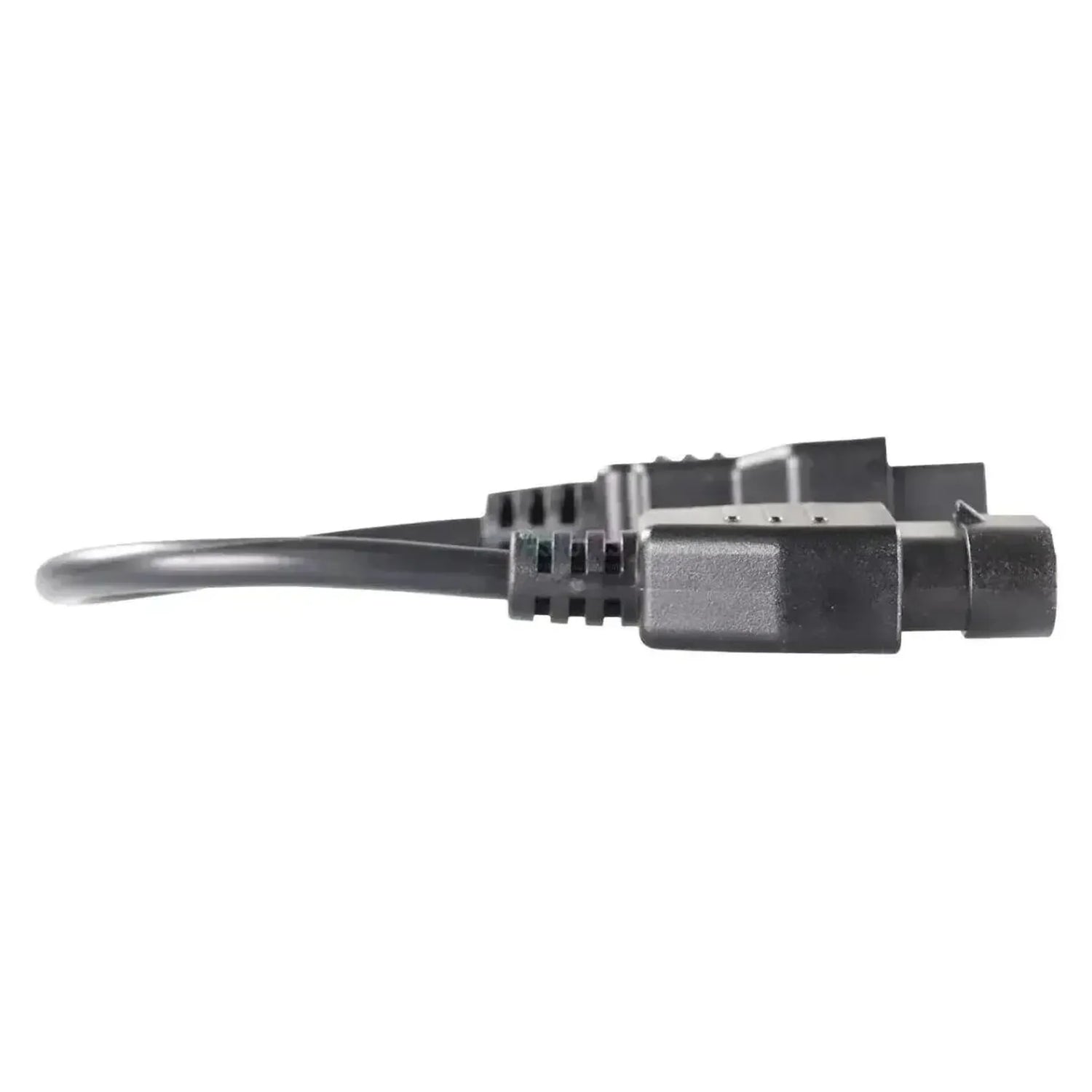

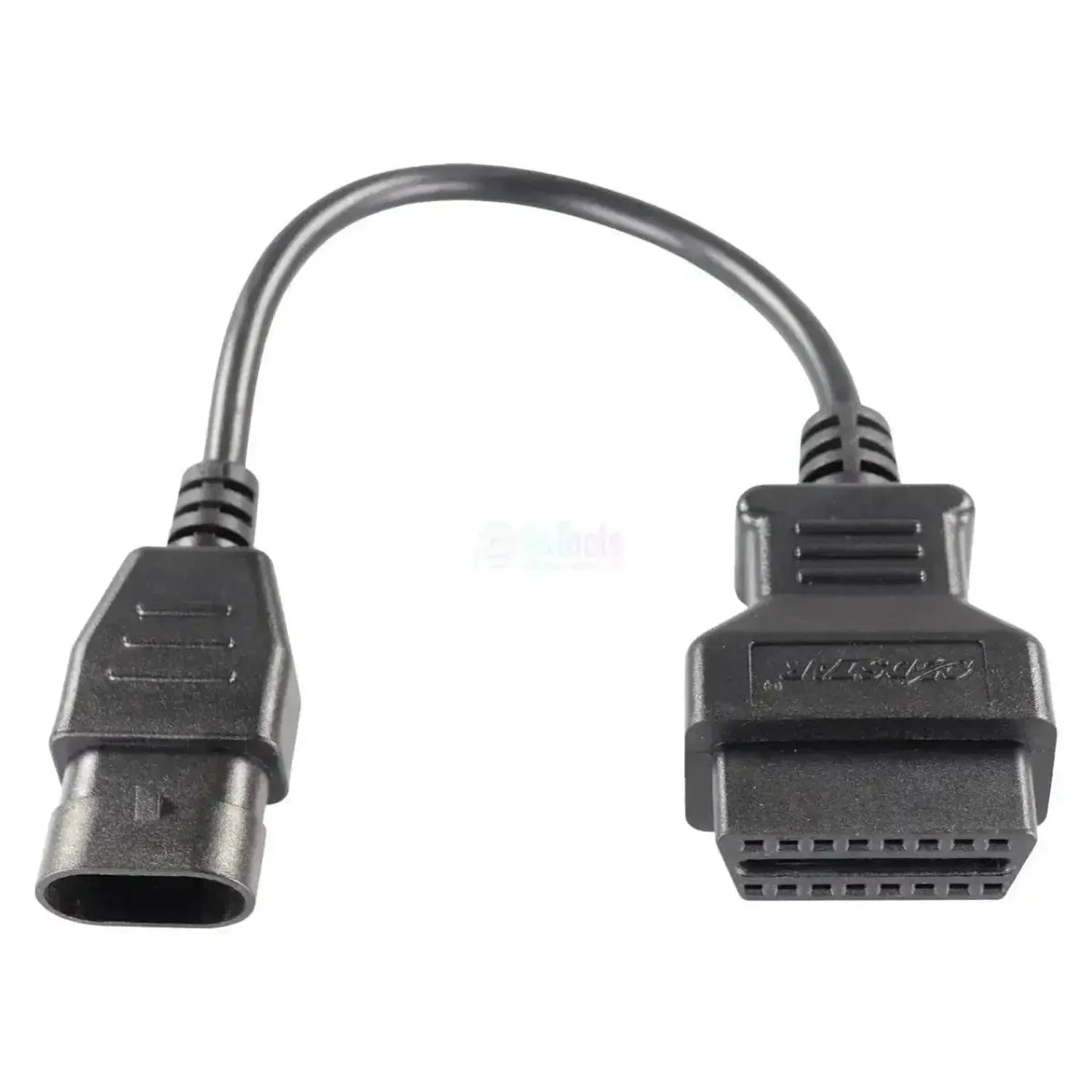

OBDSTAR (M004) | Universal 3-pin OBD – 16-pin OBD2 Adapter Cable | Moped/Motorcycle

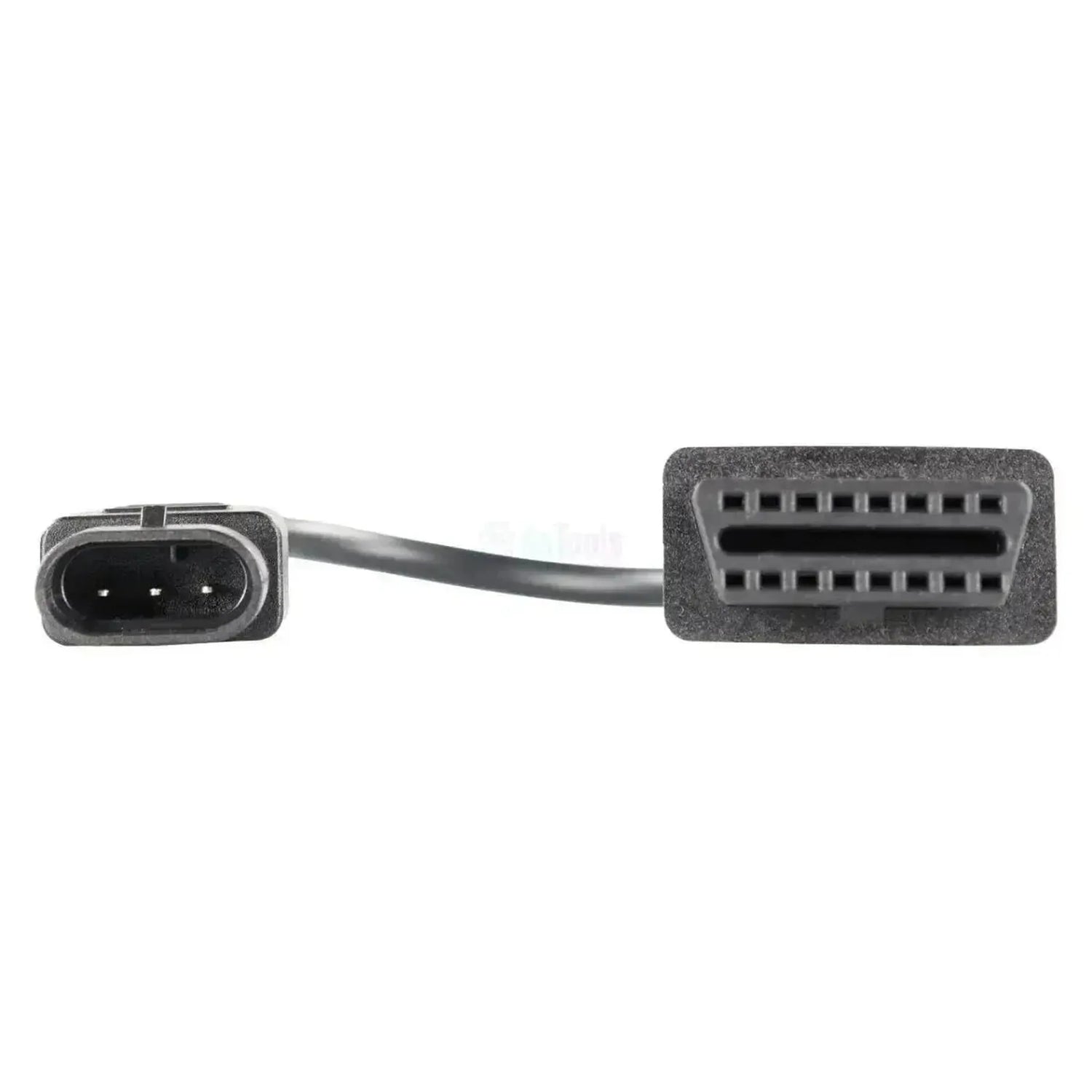

The OBDSTAR (M004) is a adapter cable designed to connect the specific 3-pin diagnostic connector of various motorcycles and mopeds to a standard 16-pin OBD2 diagnostic device. This adapter is necessary to enable communication with the vehicle's Engine Control Unit (ECU) when it is not equipped with a direct OBD2 port. The cable is specifically developed for use with OBDSTAR diagnostic equipment, such as the MS series.

The functionality of the M004 cable is to bridge the physical connection differences, allowing a diagnostic tester access to the vehicle's onboard network. This enables the user to perform diagnostic procedures such as reading and clearing fault codes (DTC's), viewing live data from sensors, and performing specific system tests and service functions, depending on the support provided by the connected diagnostic device and the vehicle.

Application and functionality:

This adapter cable allows a standard OBD2 scanner to be connected to motorcycles using a 3-pin connector for diagnostics.

• Diagnostic connection: Provides a stable and correct pin-to-pin connection between the vehicle and the diagnostic device.
• ECU communication: Facilitates access to the engine management system for reading fault codes and live sensor data.
• Wide compatibility: Suitable for a range of motorcycle brands using this specific 3-pin connection.

Compatible vehicles and applications:

This adapter cable is compatible with a wide range of motorcycles and mopeds from various brands equipped with a 3-pin diagnostic port. Always physically check the connection on your vehicle.

Compatible with models including:

• Aprilia
• Ducati
• Honda
• KTM
• Piaggio
• Vespa
• Yamaha

Important: Before purchasing the product, always check your vehicle's connection. This may vary by model and year.

Package Contents:

• 1x OBDSTAR (M004) | Universal 3-pins OBD – 16-pins OBD2 adapter cable | Moped/Motorcycle

Technical specifications:
