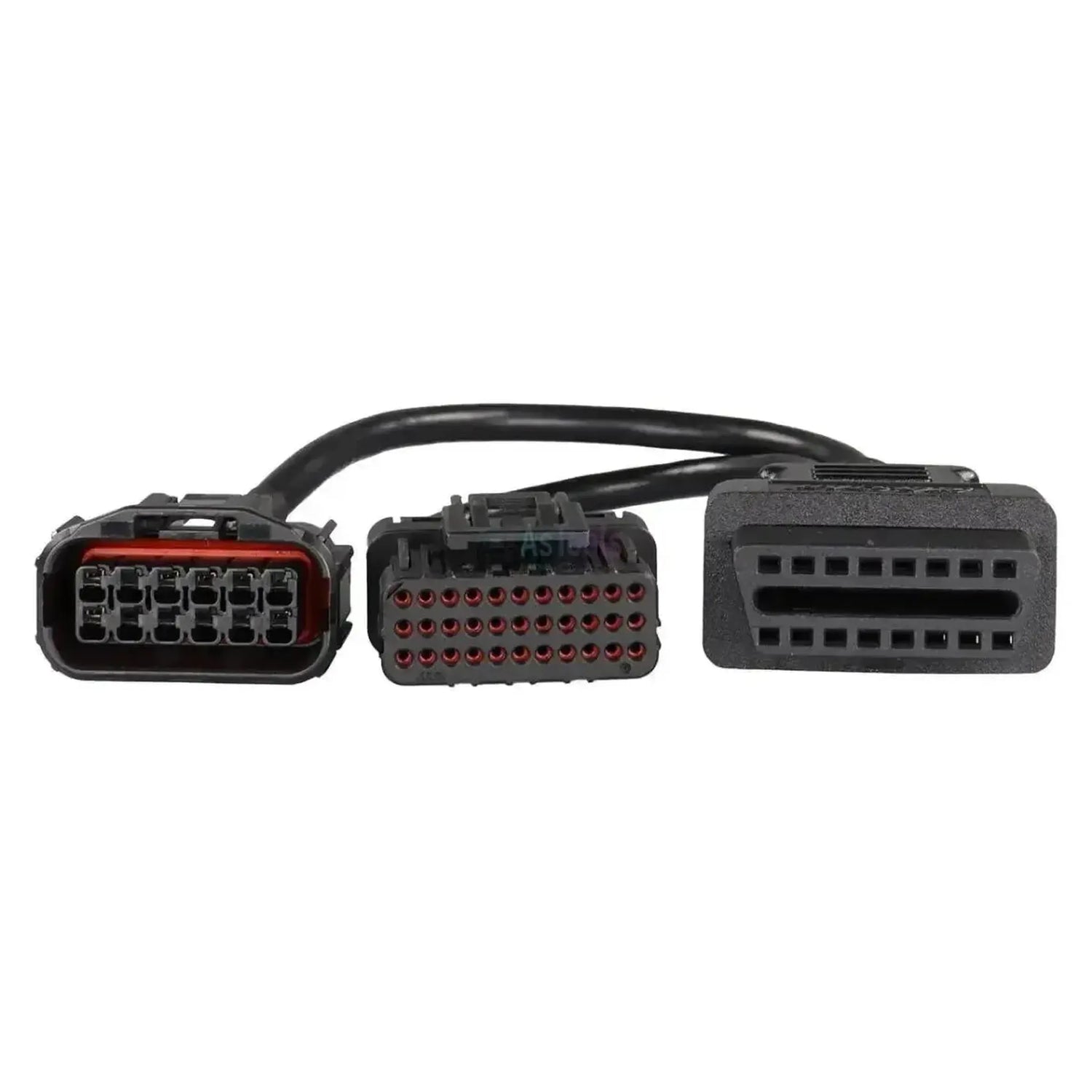

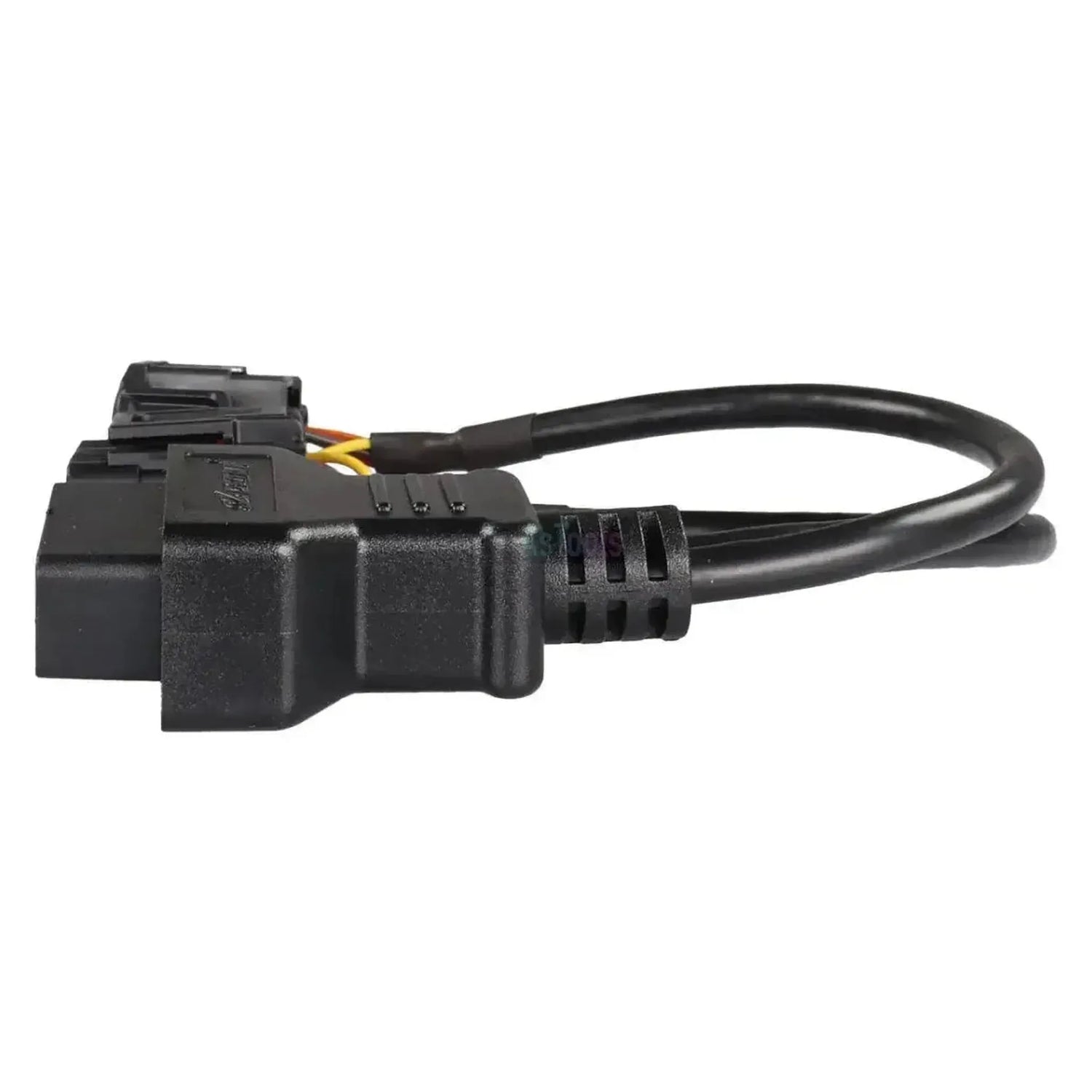

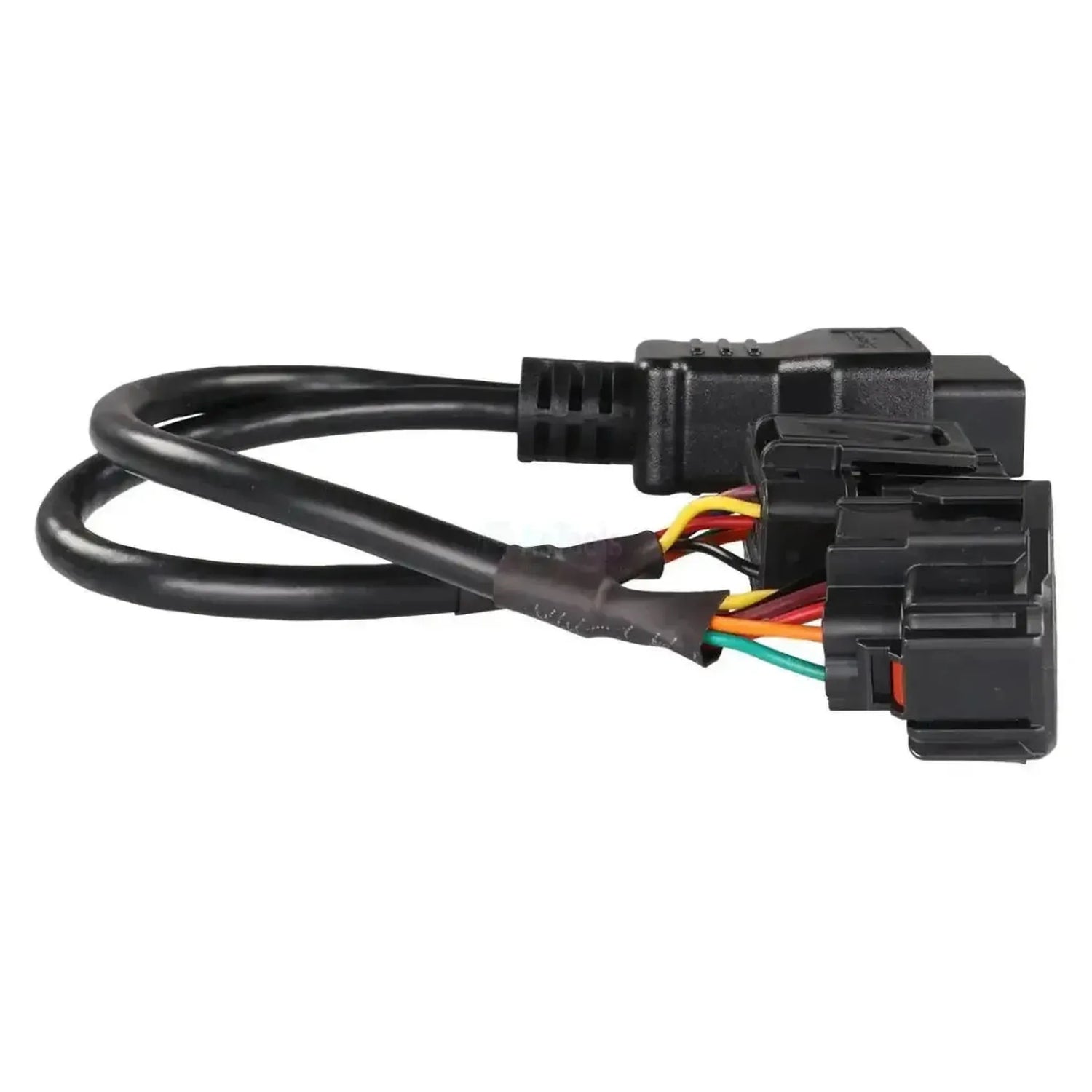

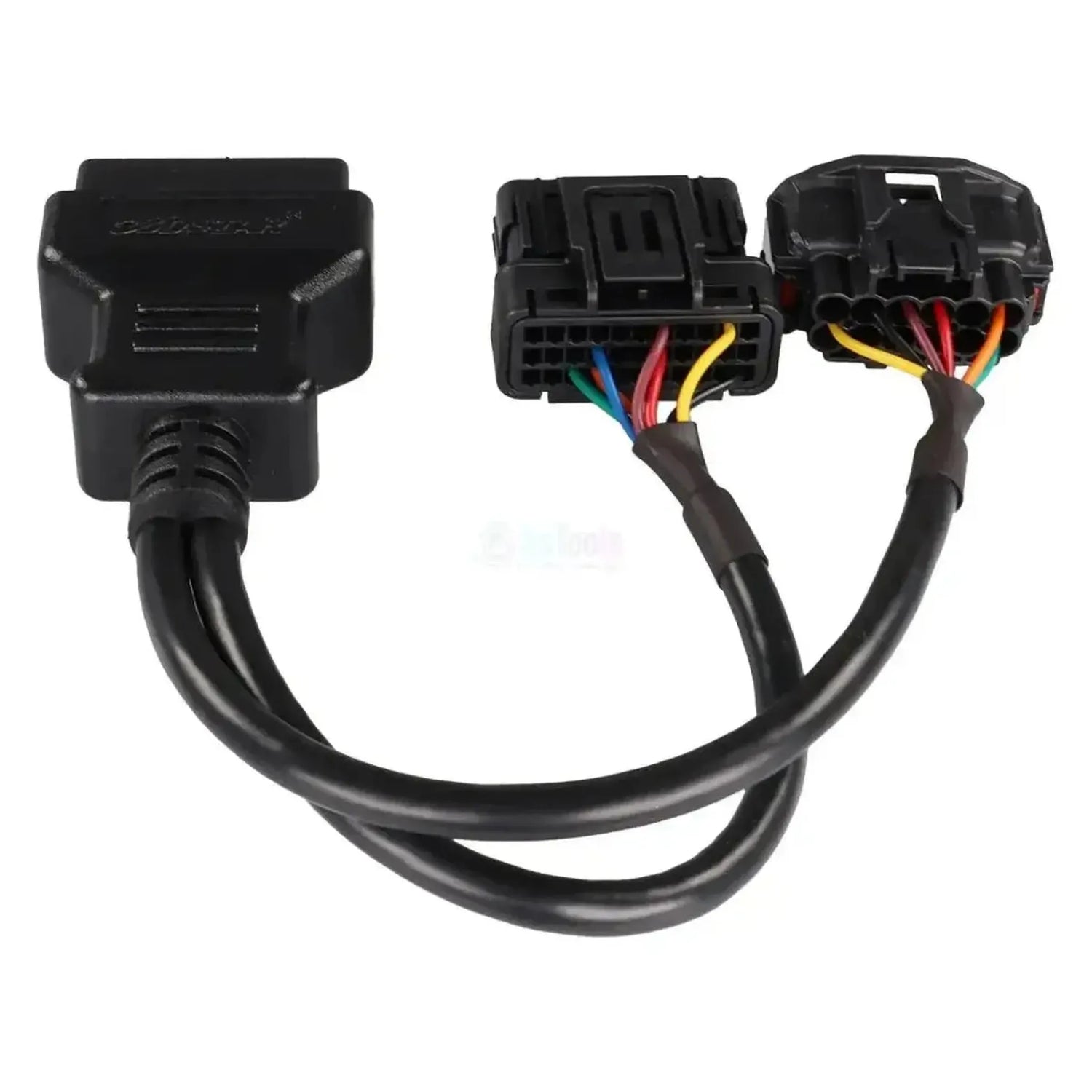

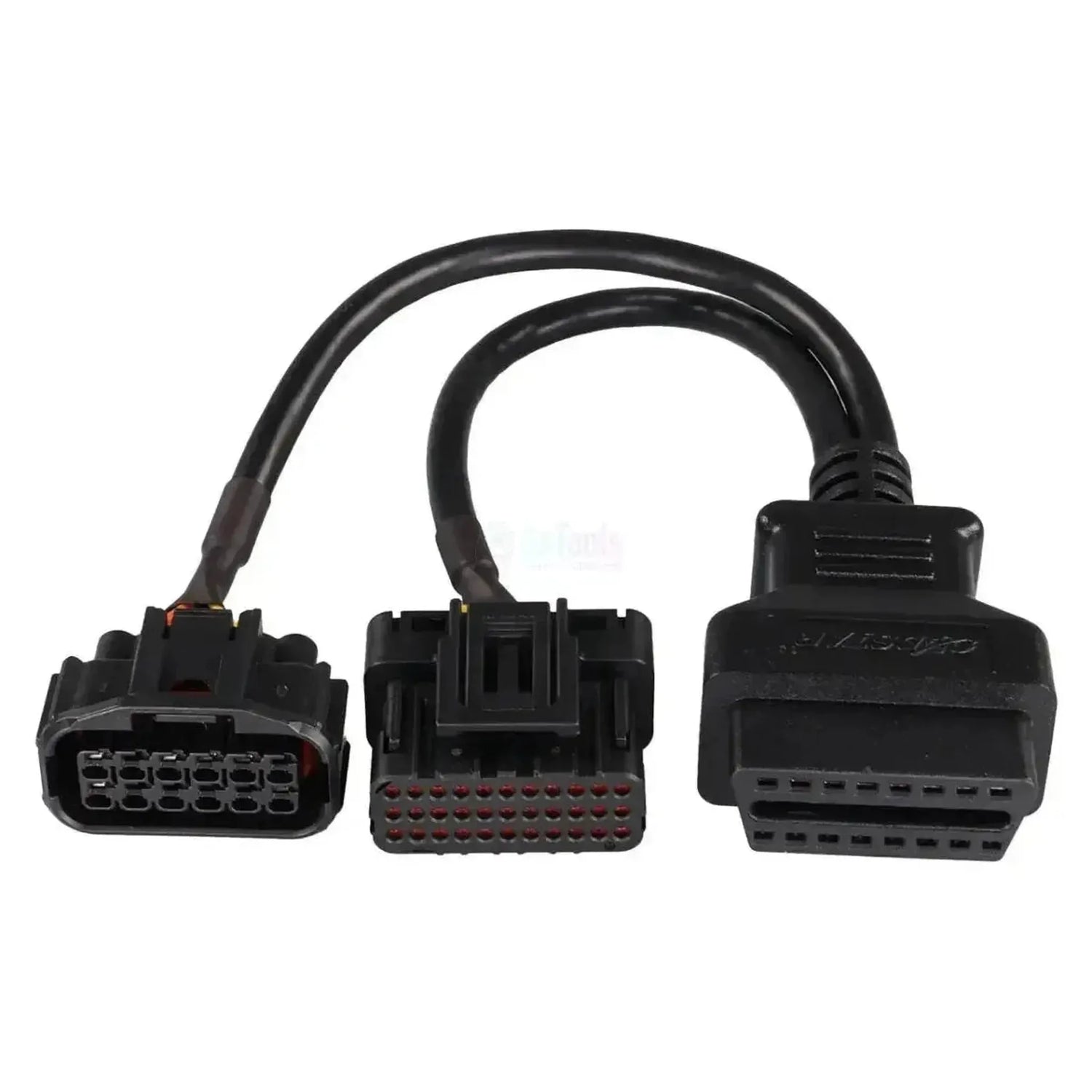

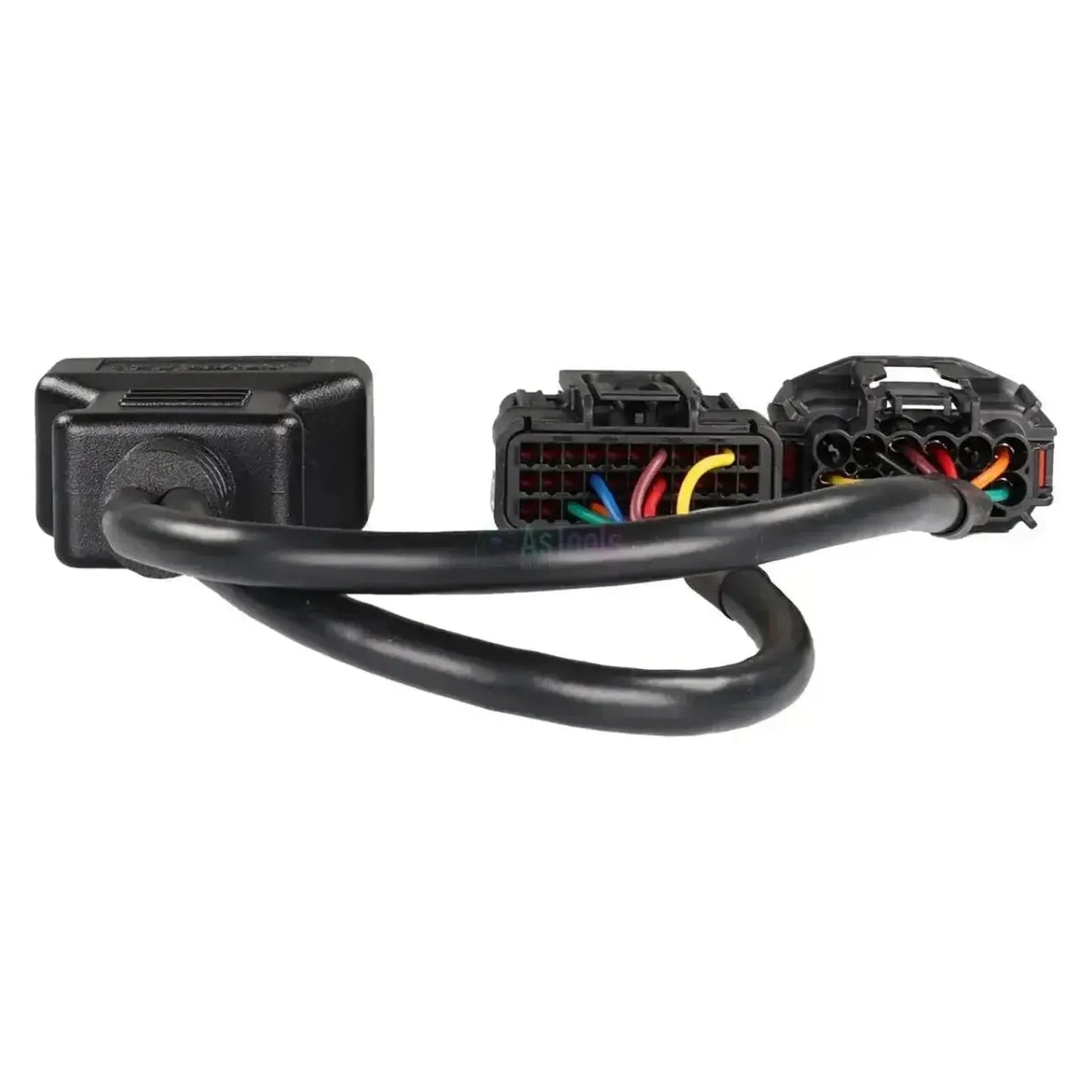

\nThe OBDSTAR M053 is a adapter cable that the Honda-specific 12-pin and 33-pin IMMO connectors convert to a standard 16-pin OBD2 connector (J1962). The cable is designed for use with immobilizer programming on Honda motorcycles and enables communication via the K-line protocol that is used in these vehicles. The adapter cable is exclusively compatible with OBDSTAR diagnostic readers or programmers.\n
\nThe M053 connects the vehicle-side 12+33-pin Honda IMMO connector with the 16-pin OBD2 connector of the OBDSTAR device. Through this connection you can IMMO data are read and key or transponder information is programmed. The cable provides the correct pin signal routing between the two connector types, so the diagnostic device receives the correct signals for key programming and system configuration at the motorcycle level.\n
\nKEY FEATURES\n
IMPORTANT NOTES
Applications and Features
The M053 adapter cable supports the following IMMO-related functions on Honda motorcycles via a compatible OBDSTAR device.
- IMMO key programming: Pairs new keys or transponder units with the motorcycle's immobilizer system via the K-line connection.
- IMMO data reading: Reads existing key information and system status from the motorcycle's IMMO control unit.
- Transponder verification: Validates a key's transponder code against the data stored in the IMMO system.
- Key deletion: Removes previously paired keys or transponder codes from the IMMO system memory.
Compatible Vehicles and Applications
The following Honda motorcycles are confirmed compatible with the M053 adapter cable in combination with OBDSTAR equipment. Consult the OBDSTAR vehicle list for the most current coverage.
Honda:
- CB Series (various models): Motorcycles equipped with Honda 12+33-pin IMMO connector
- CBR Series (various models): Sport bikes with Honda IMMO system and 12+33-pin diagnostic connector
- PCX Series: Scooters and lightweight motorcycles with Honda IMMO 12+33-pin connector
- Forza Series: Maxi-scooters equipped with Honda IMMO system and corresponding 12+33-pin connector
Package Contents
- 1x OBDSTAR (M053) | Honda 12+33-pin IMMO – 16-pin OBD2 Adapter Cable | Motorcycle
Technical Specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Part Number | M053 |
| Product Type | Adapter Cable |
| Vehicle-Side Connector | Honda 12+33-pin IMMO |
| Device-Side Connector | 16-pin OBD2 |
| Vehicle Category | Motorcycle |
| Compatible Brands | Honda |
| Compatible With | OBDSTAR diagnostic readers and programmers |
| Weight | 0.1 kg |
