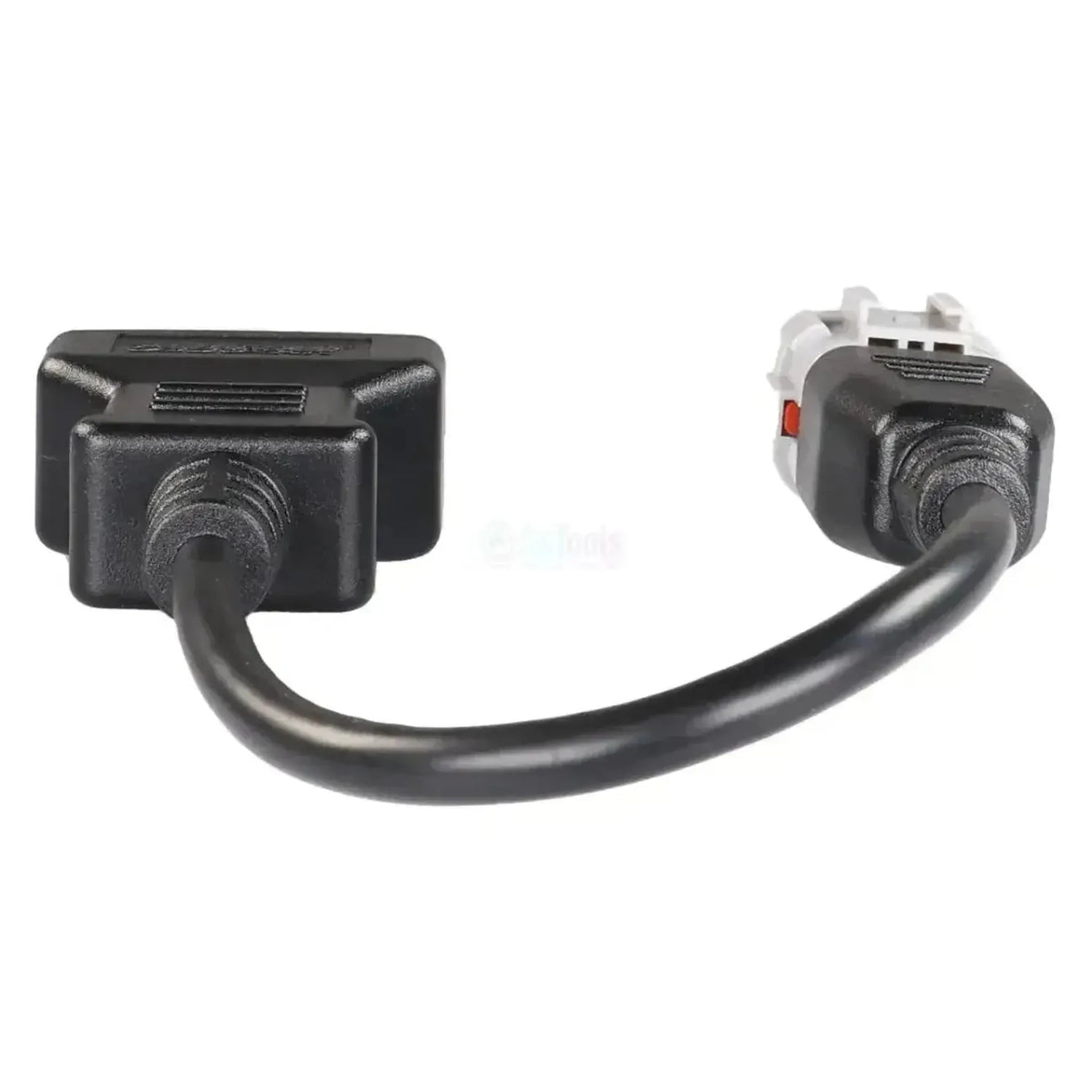

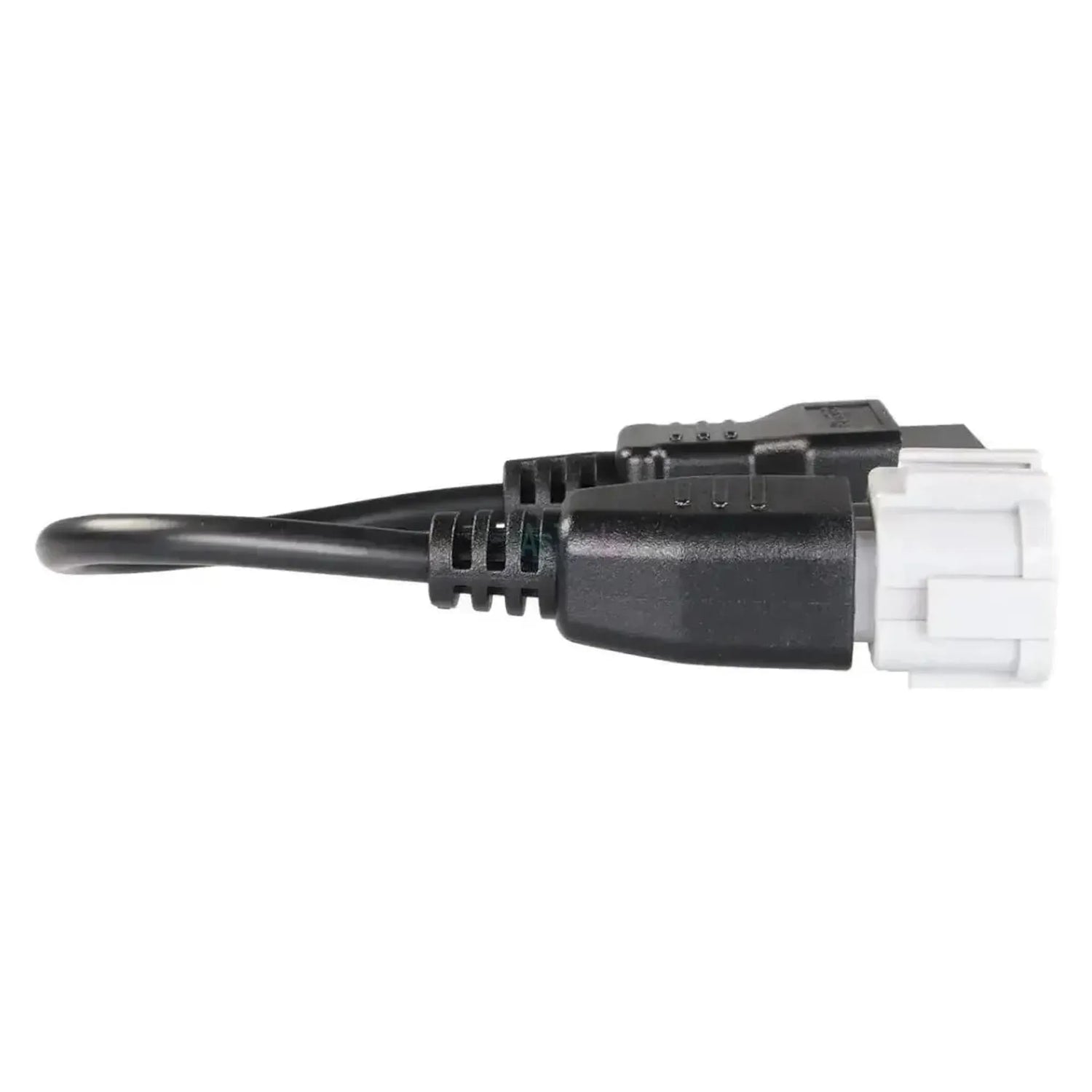

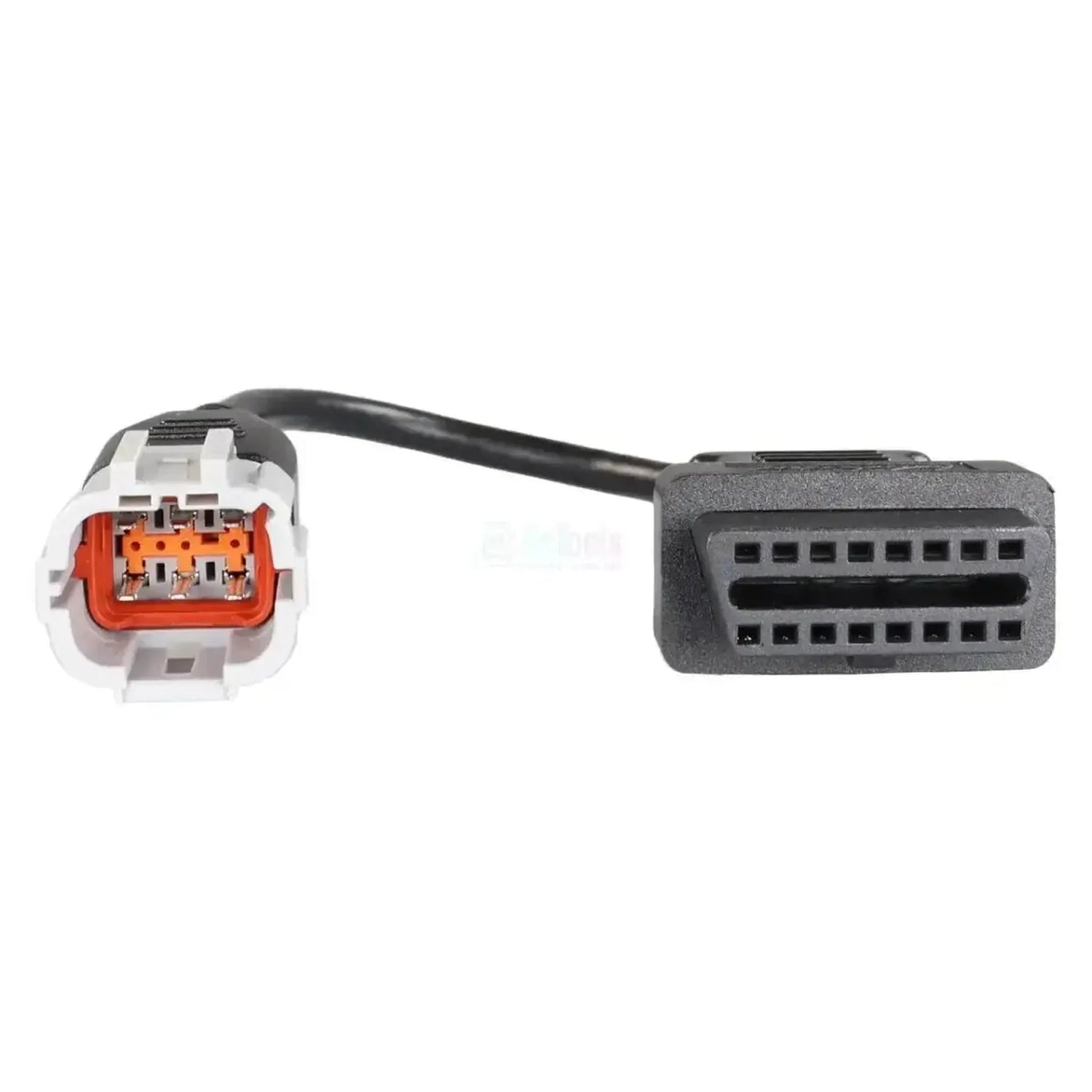

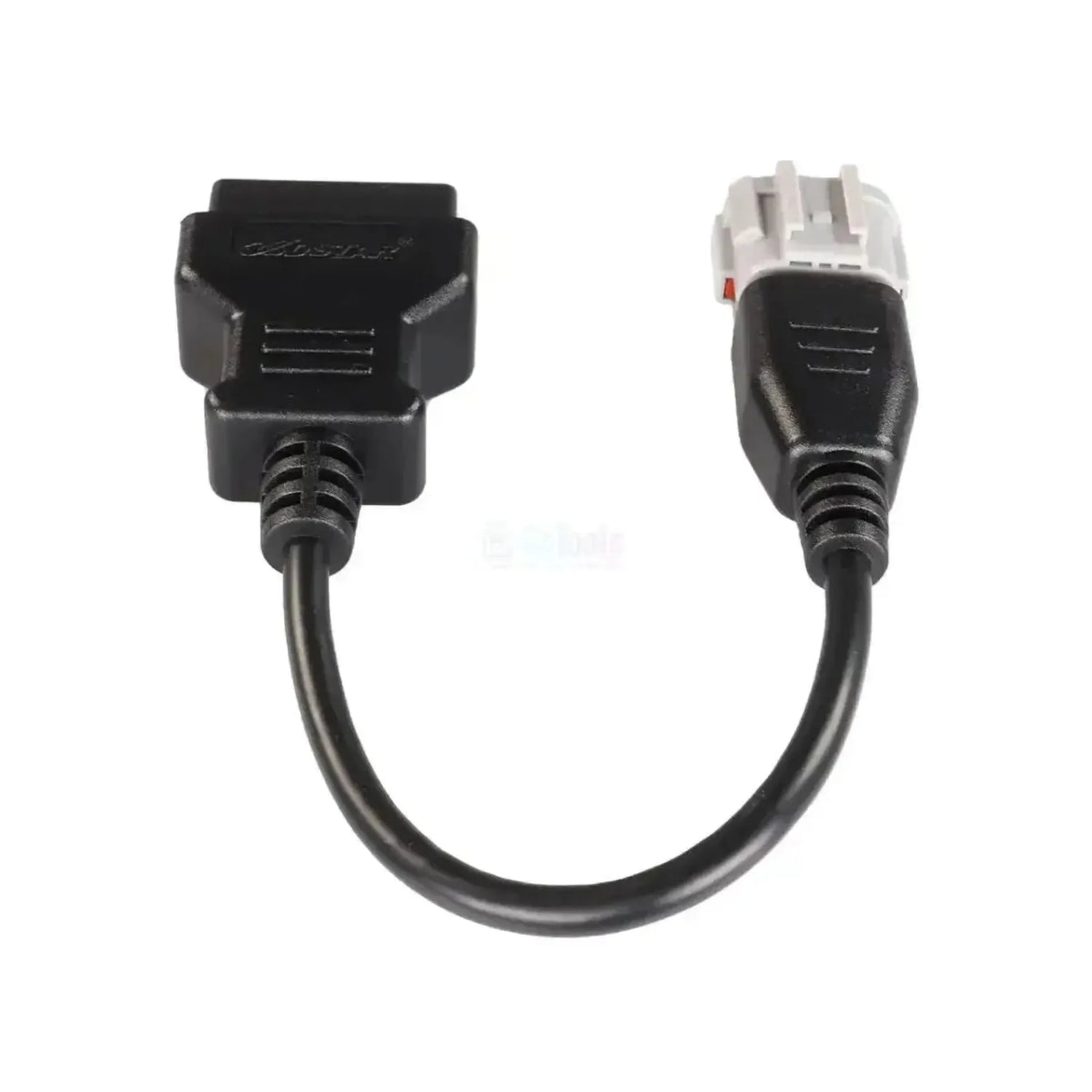

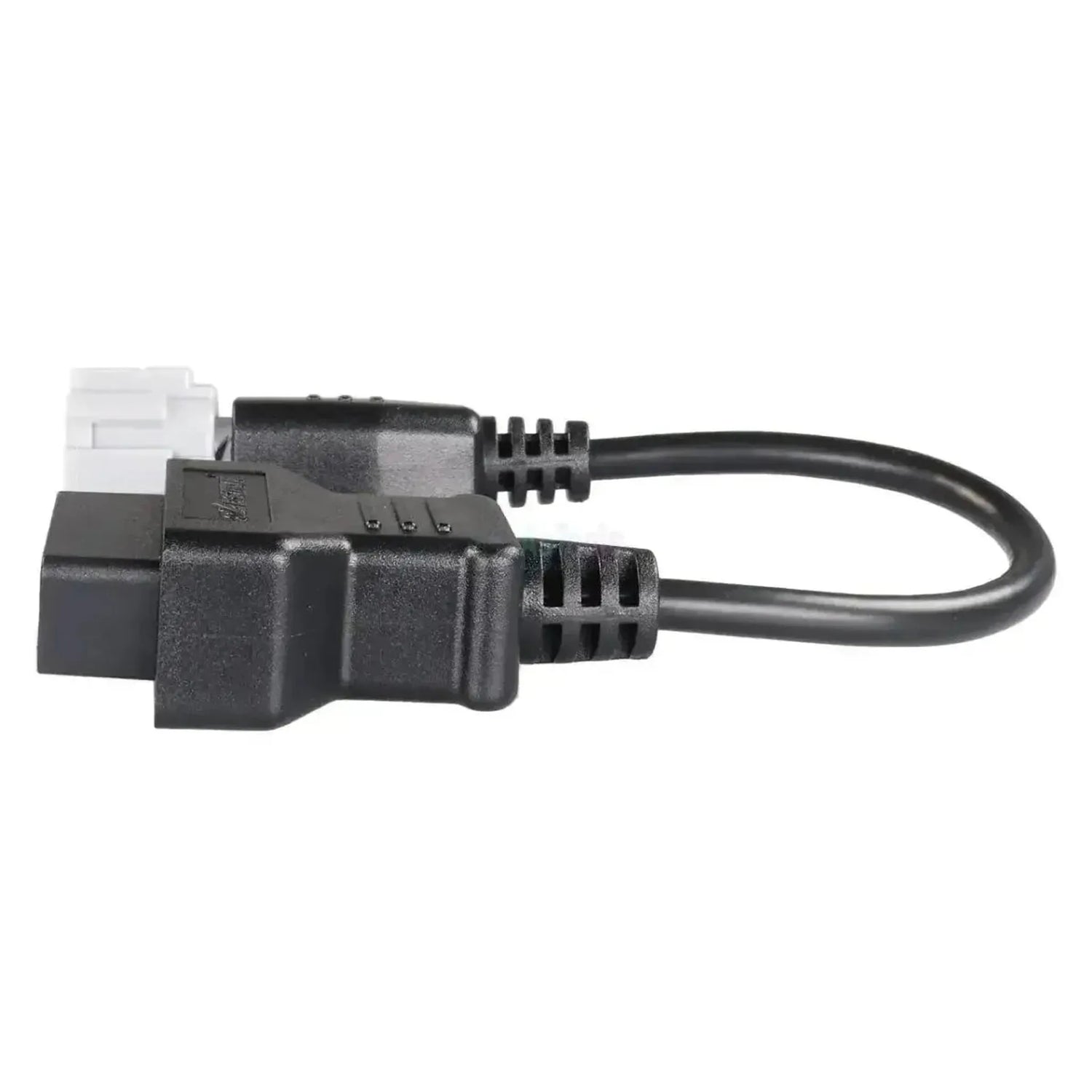

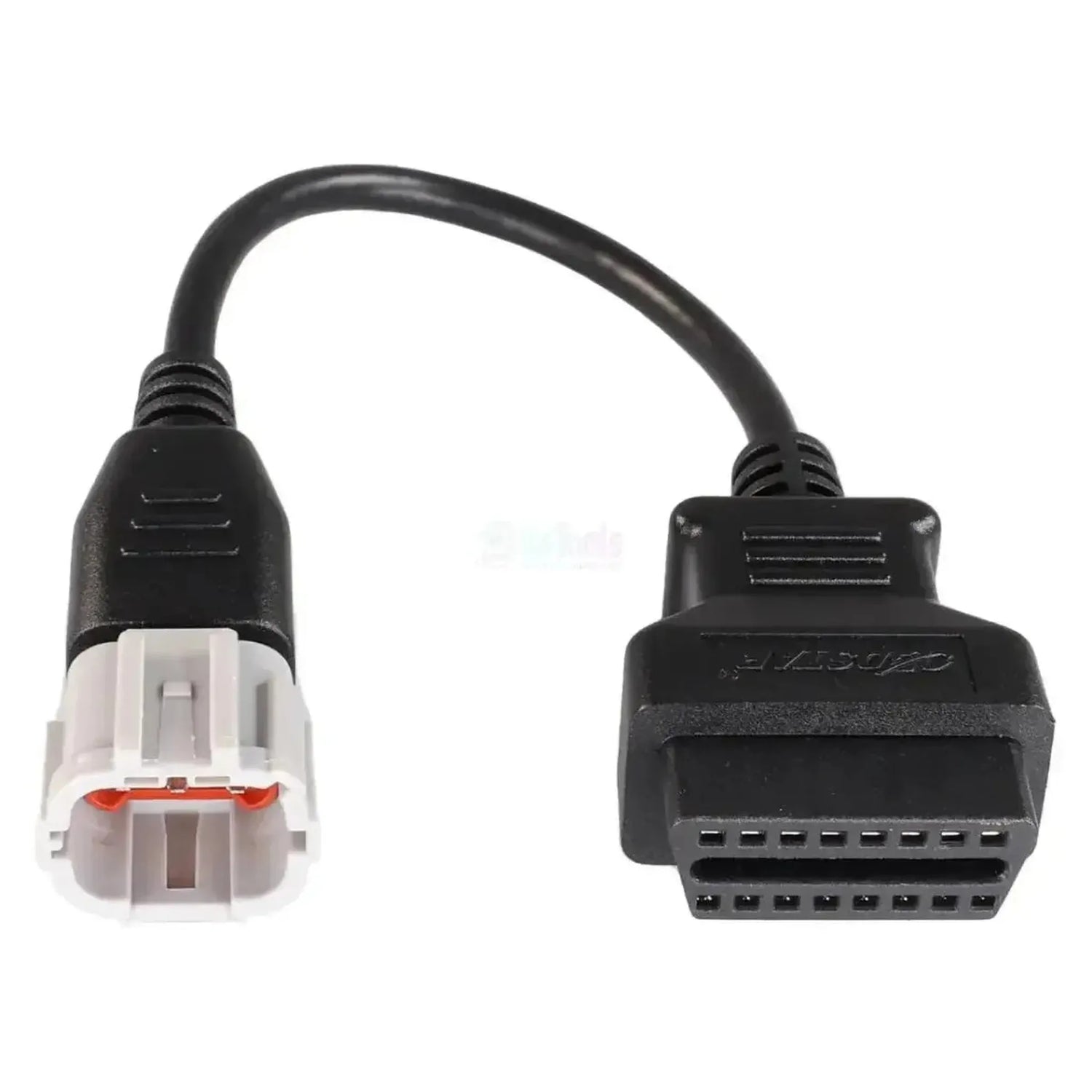

The OBDSTAR M020 Adapter Cable is specifically developed to establish a connection between diagnostic equipment and motorcycles from the brands Aeon and Benelli. This adapter converts the vehicle-specific, rectangular 6-pin diagnostic connector on the motorcycle side to a universal 16-pin OBD2 female port. The cable is essential for reading models equipped with this specific interface, including systems labeled Benelli DSK.
The Adapter Cable facilitates stable signal transmission between the vehicle's electronic control unit (ECU) and the connected diagnostic tester. Thanks to the correct pin assignment, communication protocols such as K-Line or CAN-bus are transmitted flawlessly, depending on the engine management system. The design features a robust housing and strain relief, ensuring durability with frequent use in a workshop environment.
ADVANTAGES
ATTENTION POINTS
Applications and Features
The OBDSTAR M020 Adapter, combined with suitable diagnostic software, enables various technical operations on the supported motorcycles.
- Reading and clearing fault codes: Accessing stored DTCs in the engine ECU and ABS modules.
- Live data display: Real-time monitoring of sensors such as RPM, temperature, and throttle position.
- ECU Identification: Reading hardware and software versions of the control unit.
- Actuator tests: Controlling components such as injectors or fuel pumps (depending on diagnostic scanner).
Compatible vehicles and applications
This Adapter Cable is designed for use with specific models of Aeon and Benelli equipped with the white, rectangular 6-pin diagnostic port. Always check the connector on the vehicle.
Aeon:
- Various models: (Models with 6-pin EFI system)
Benelli:
- BN 251 / 302: (Models with 6-pin connector)
- TNT 135 / 25 / 300 / 600: (Models with Delphi ECU / 6-pin connector)
- Leoncino 500: (Pre-Euro 5 versions)
- TRK 502: (Pre-Euro 5 versions)
- 302R / 302S: (Models with 6-pin connector)
Package Contents
- 1x OBDSTAR (M020) | Aeon/Benelli 6-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle
