The Launch X-431 EV Kit is an expansion set with accessories for diagnosis and maintenance of electric vehicles. The set contains a wide range of EV adapter cables, battery pack test lines, and connection cables for reading and testing battery packs of various brands and models. Additionally, it includes specific connectors for Tesla, an airbag repair connector, and an OBD16 extension cable with DC power supply for extended access to the diagnostic port.

The kit works in combination with a compatible Launch X-431 diagnostic tester and the associated EV software. Via the 8PIN diagnostic connector and the supplied PAD IV adapter cables, connection is made to the vehicle's battery pack, allowing cell voltages, temperature, and the status of the Battery Management System to be read. The included power adapter (12V/4A, 48W) and region-specific power cords (UK, EU, AU, US) make it possible to power battery packs outside the vehicle during testing.

ADVANTAGES

✔ Contains more than 30 battery pack test lines for various EV models and battery packs.

✔ Includes Tesla-12+20 connector and airbag repair connector for brand-specific work.

✔ Supplied with power cords for UK, EU, AU, and US, suitable for international use.

✔ OBD16 extension cable with DC power supply enables diagnosis when the vehicle battery is without voltage.

KEY POINTS

✕ A compatible Launch X-431 diagnostic tester is not included but required for using the kit.

✕ The correct EV software and license on the host device are required for battery pack diagnosis.

✕ Vehicle-specific knowledge required to select the correct battery pack test line per model.

Applications and functionalities

The Launch X-431 EV Kit supports the following applications for electric vehicles:

Battery pack diagnosis: Connect to battery packs via the 8PIN diagnostic connector to read cell voltages, temperature, and BMS data.
Brand-specific connection: Connect to Tesla models via the Tesla-12+20 connector for brand-specific diagnosis.
Airbag system repair: Use the special airbag repair connector for work on the SRS system.
External battery pack power supply: Power disconnected battery packs via the 12V/4A 48W power adapter during bench diagnosis.
OBD16 extension: Access the OBD16 port via the extension cable with integrated DC power supply.
Multi-brand EV diagnosis: Connect to battery packs of various brands via the included test lines (models 100 to 152 and 124 types).

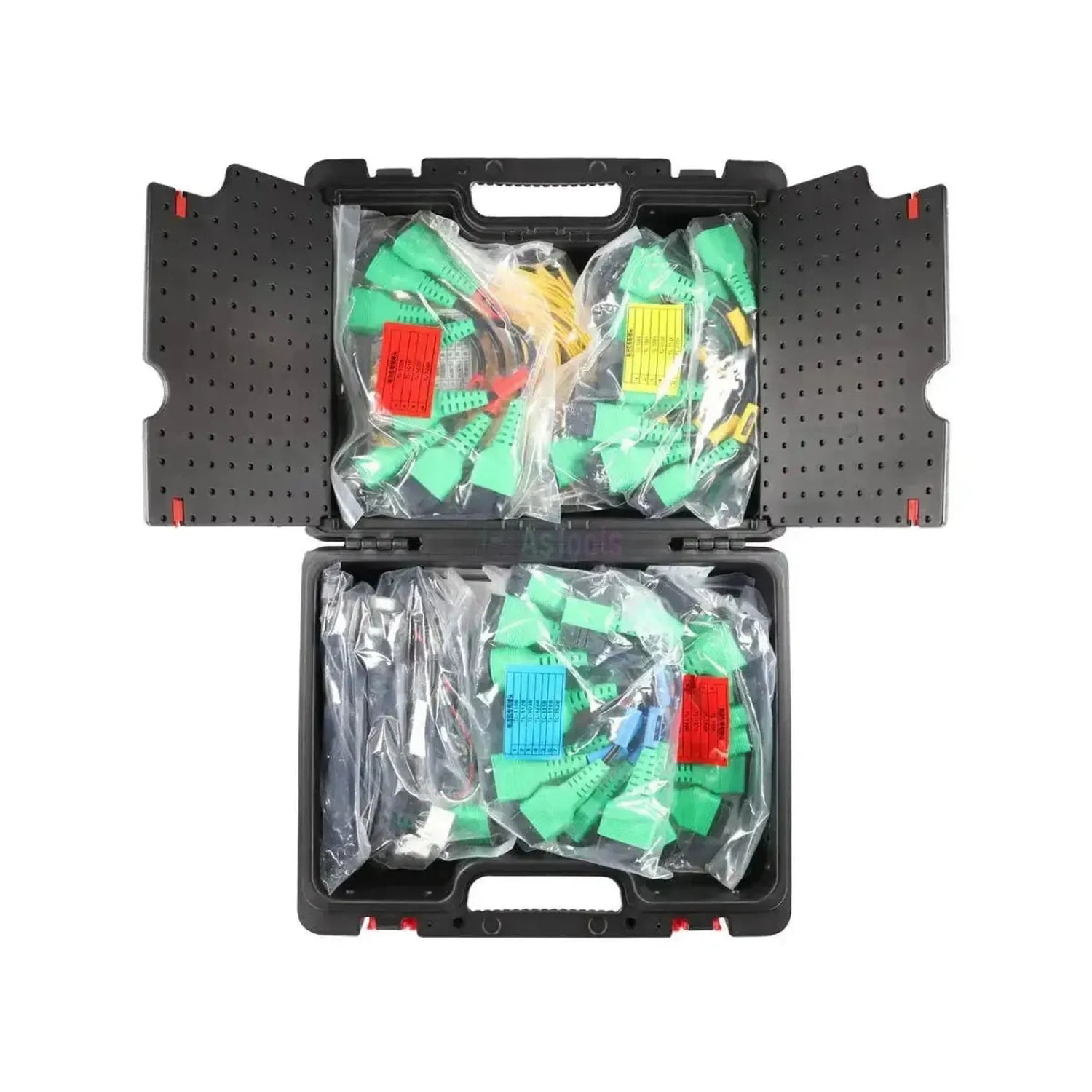

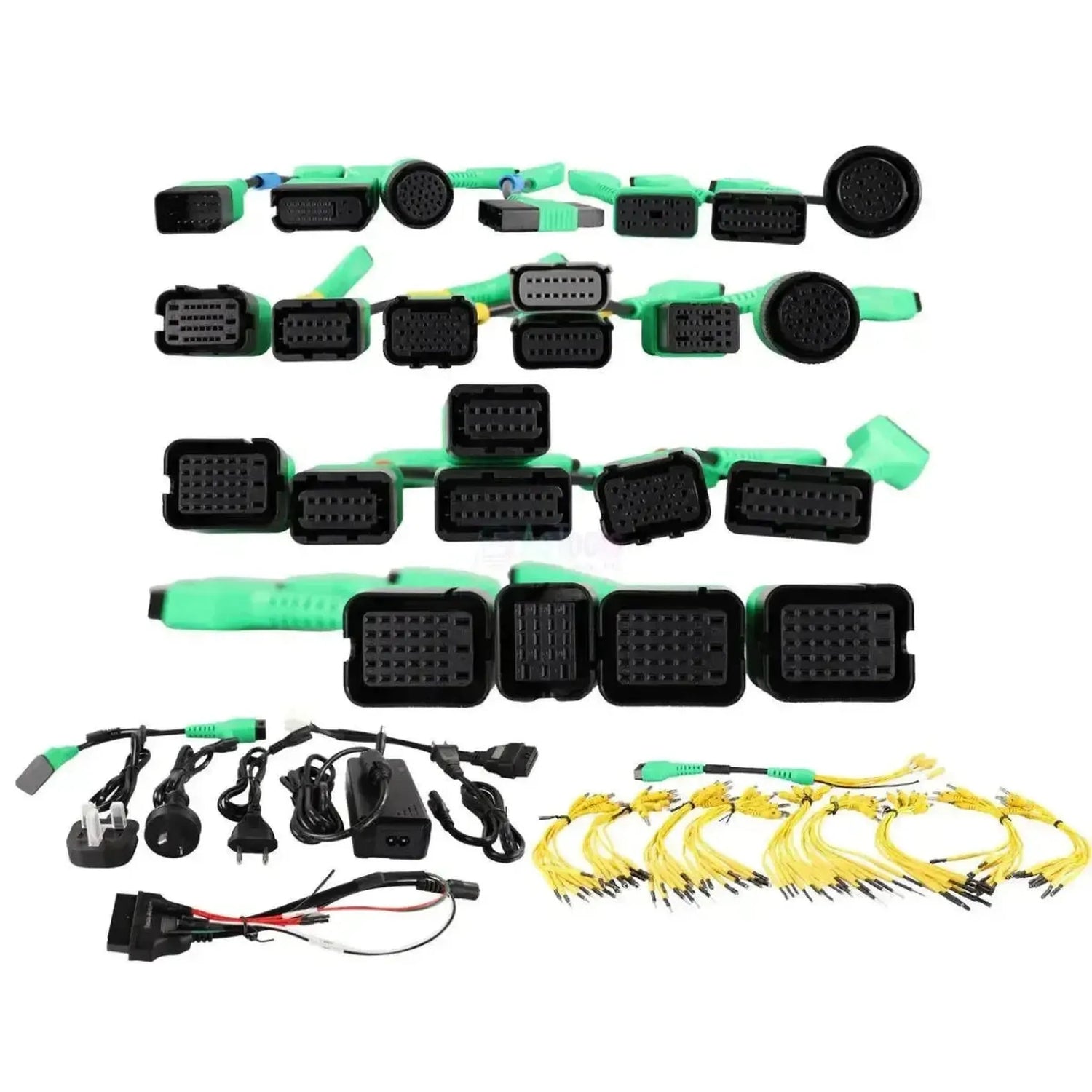

Package Contents

1x Launch X-431 EV Kit | Accessories
1x Tesla-12+20 connector
1x Special connector for Tesla airbag repair
1x PAD VII 220V/1.3A 8-suffix AC cable, British, 1M
1x PAD VII 8-suffix AC cable, Australian standard, 1M
1x PAD VII 220V/1.3A 8-suffix AC cable, European standard, 1M
1x OBD16 male-to-female extension cable for new energy, with DC cable
1x X-431 EV MAX battery pack detection 8PIN diagnostic connector

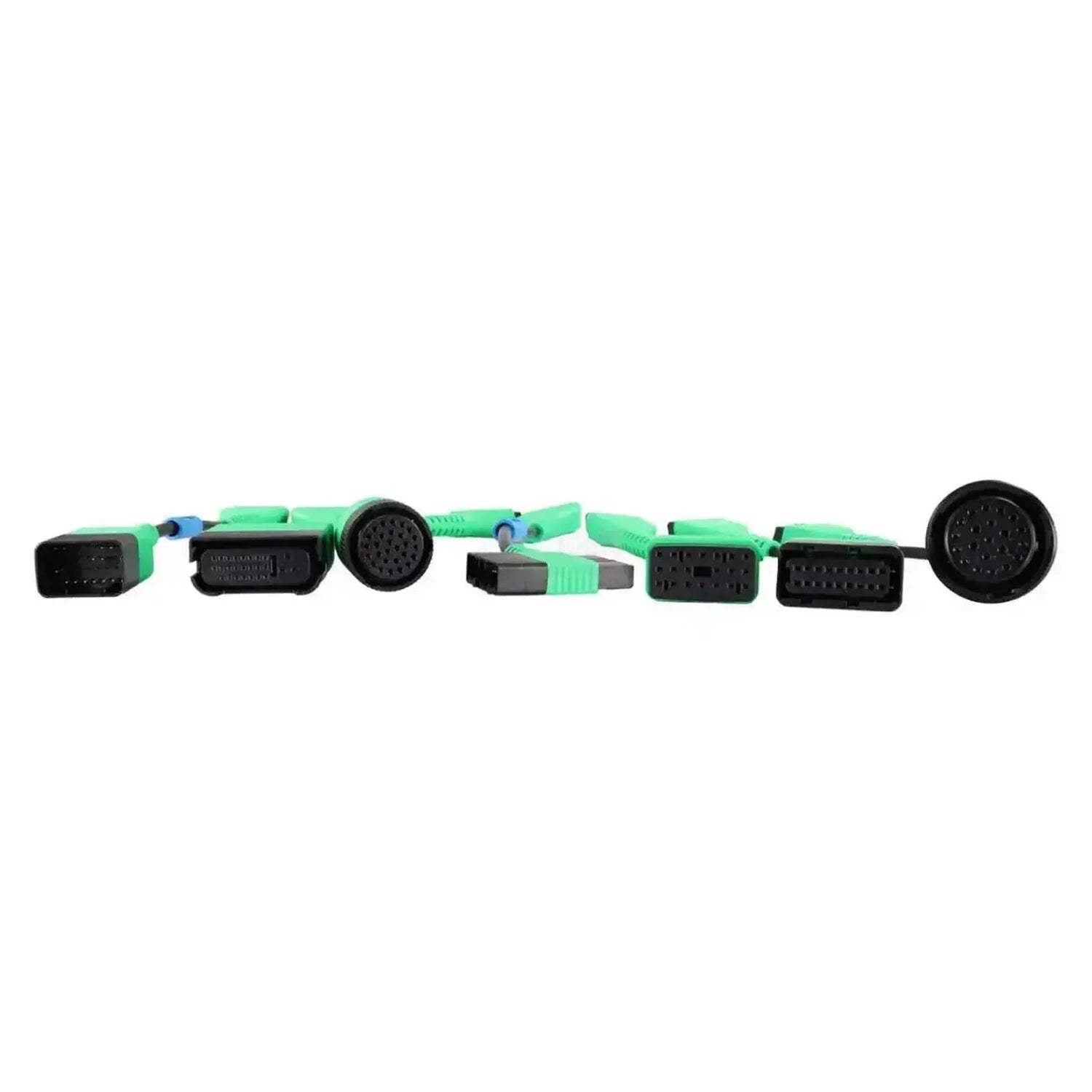

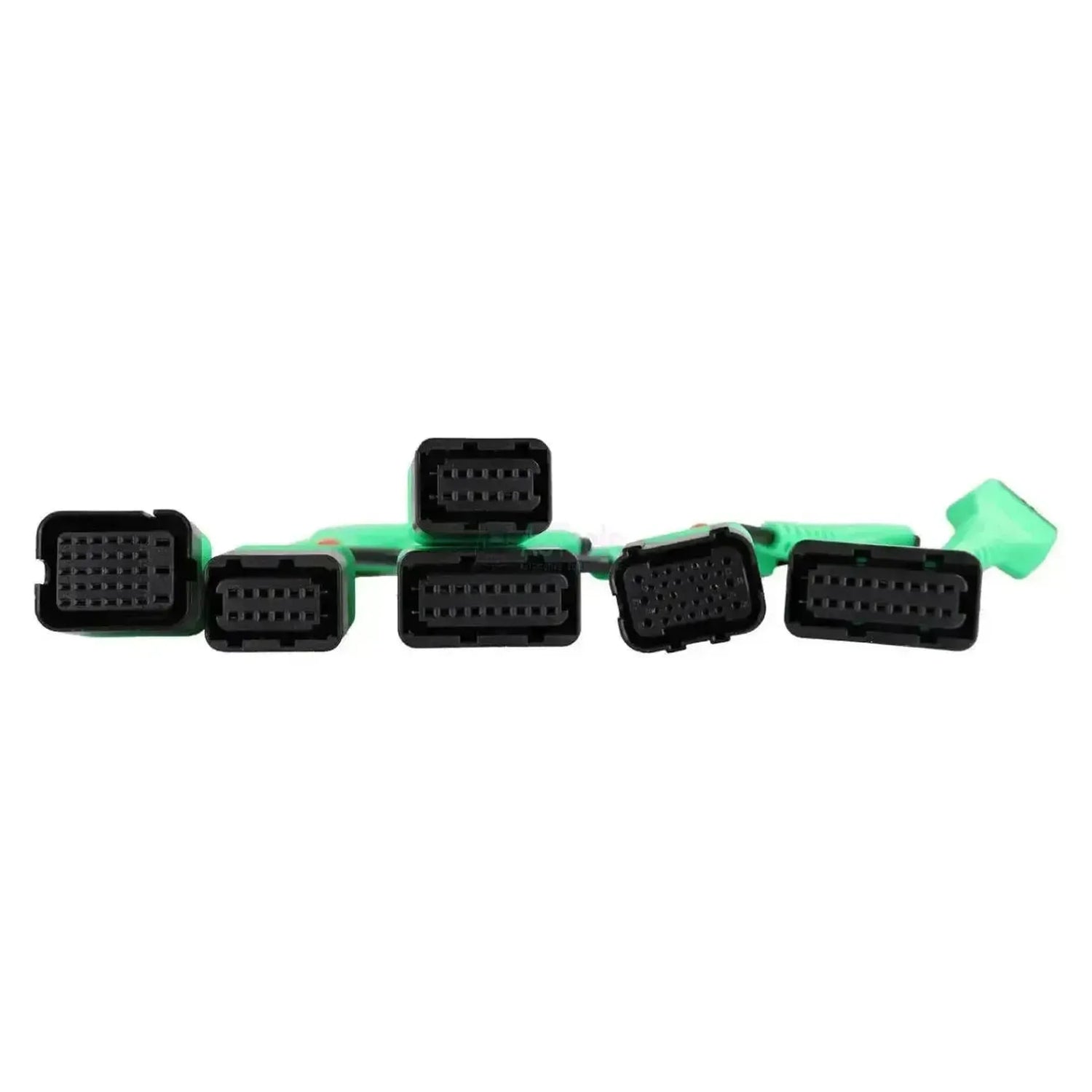

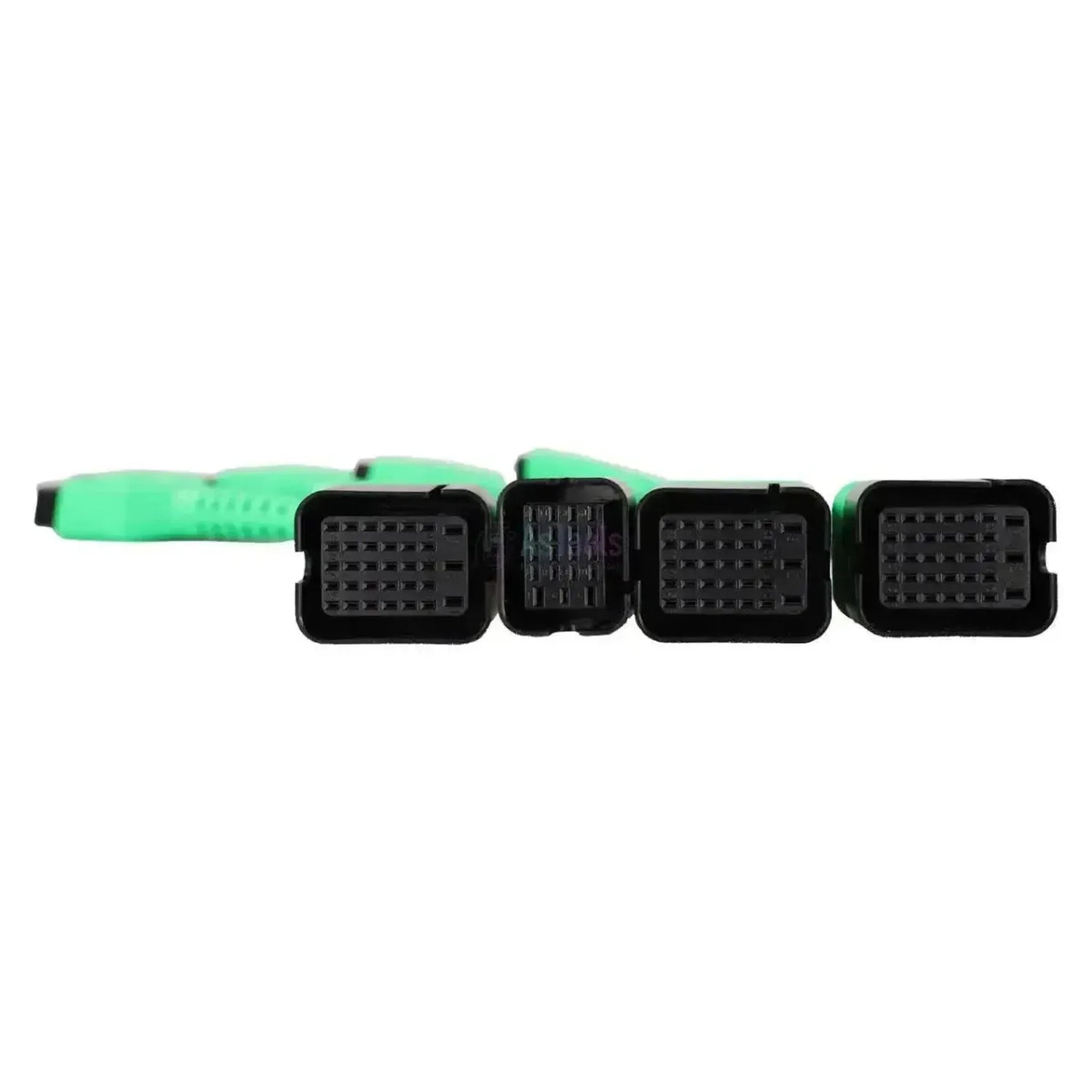

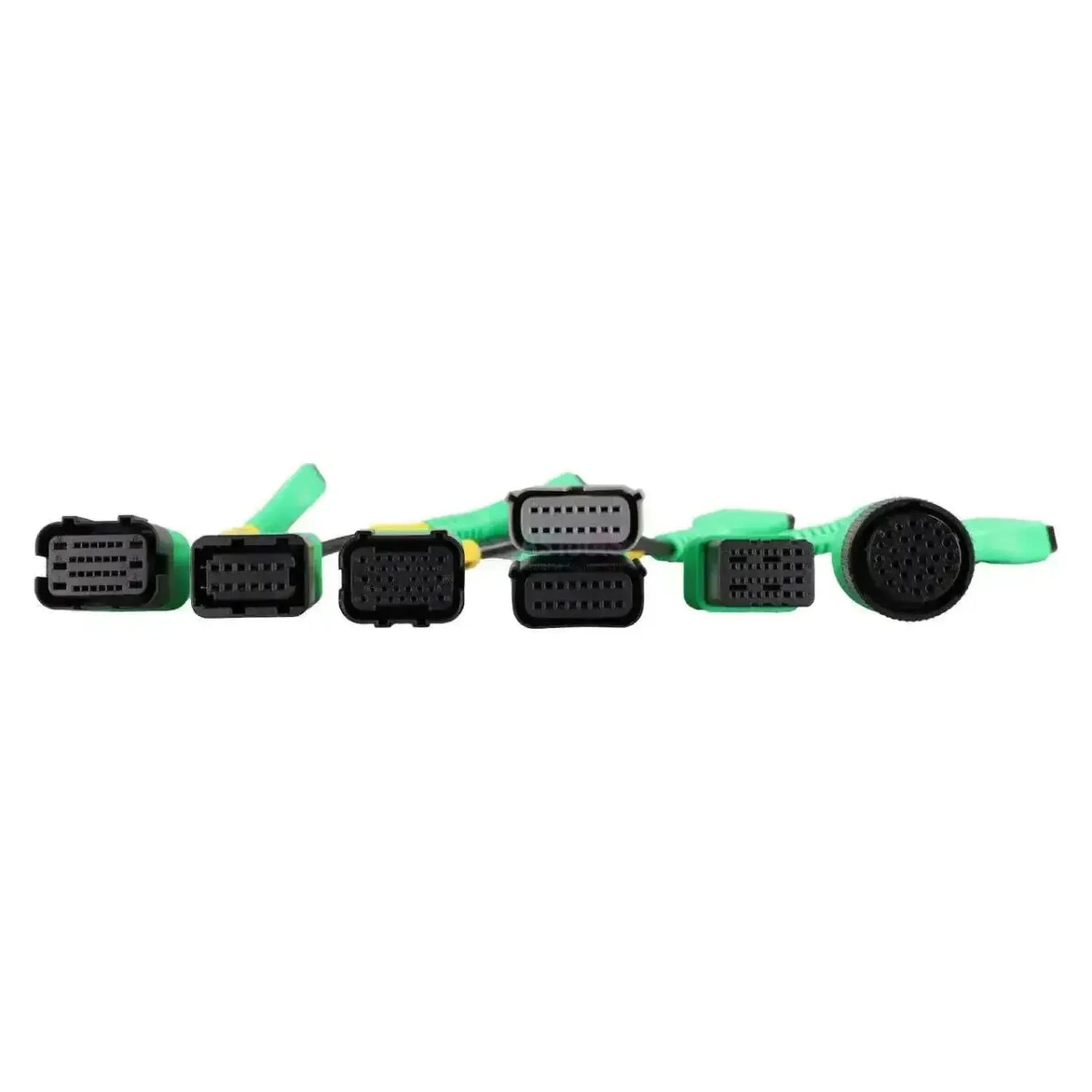

1x X-431 PAD IV electric control adapter cable 1
1x X-431 PAD IV electric control adapter cable 2
1x X-431 PAD IV electric control adapter cable 3
1x X-431 PAD IV electric control adapter cable 6
1x X-431 PAD IV electric control adapter cable 7
1x X-431 PAD IV electric control adapter cable 8
1x X-431 PAD IV electric control adapter cable 10
1x X-431 PAD IV electric control adapter cable 11
1x X-431 PAD IV electric control adapter cable 12

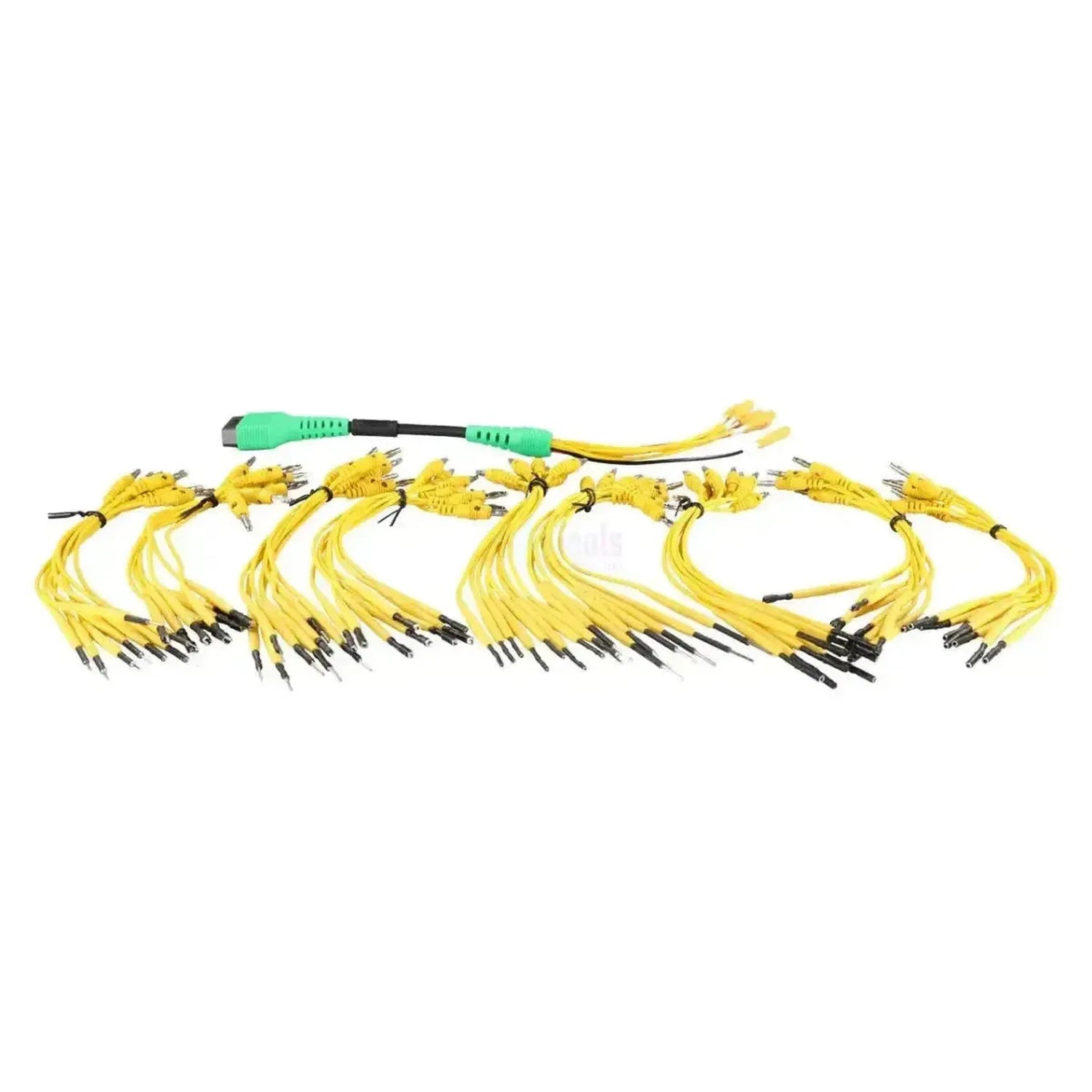

1x Battery pack test line 100 models
1x Battery pack test line 101
1x Battery pack test line 102
1x Battery pack test line 103
1x Battery pack test line 104
1x Battery pack test line 105
1x Battery pack test line 106
1x Battery pack test line 107
1x Battery pack test line 108
1x Battery pack test line 109
1x Battery pack test line 110 models
1x Battery pack test line 112 models
1x Battery pack test line 113
1x Battery pack test line 114
1x Battery pack test line 115 models
1x Battery pack test line 116
1x Battery pack test line 119
1x Battery pack test line 124 types
1x Battery pack test line 126 models
1x Battery pack test line 127 models
1x Battery pack test line 130 models
1x Battery pack test line 152 models

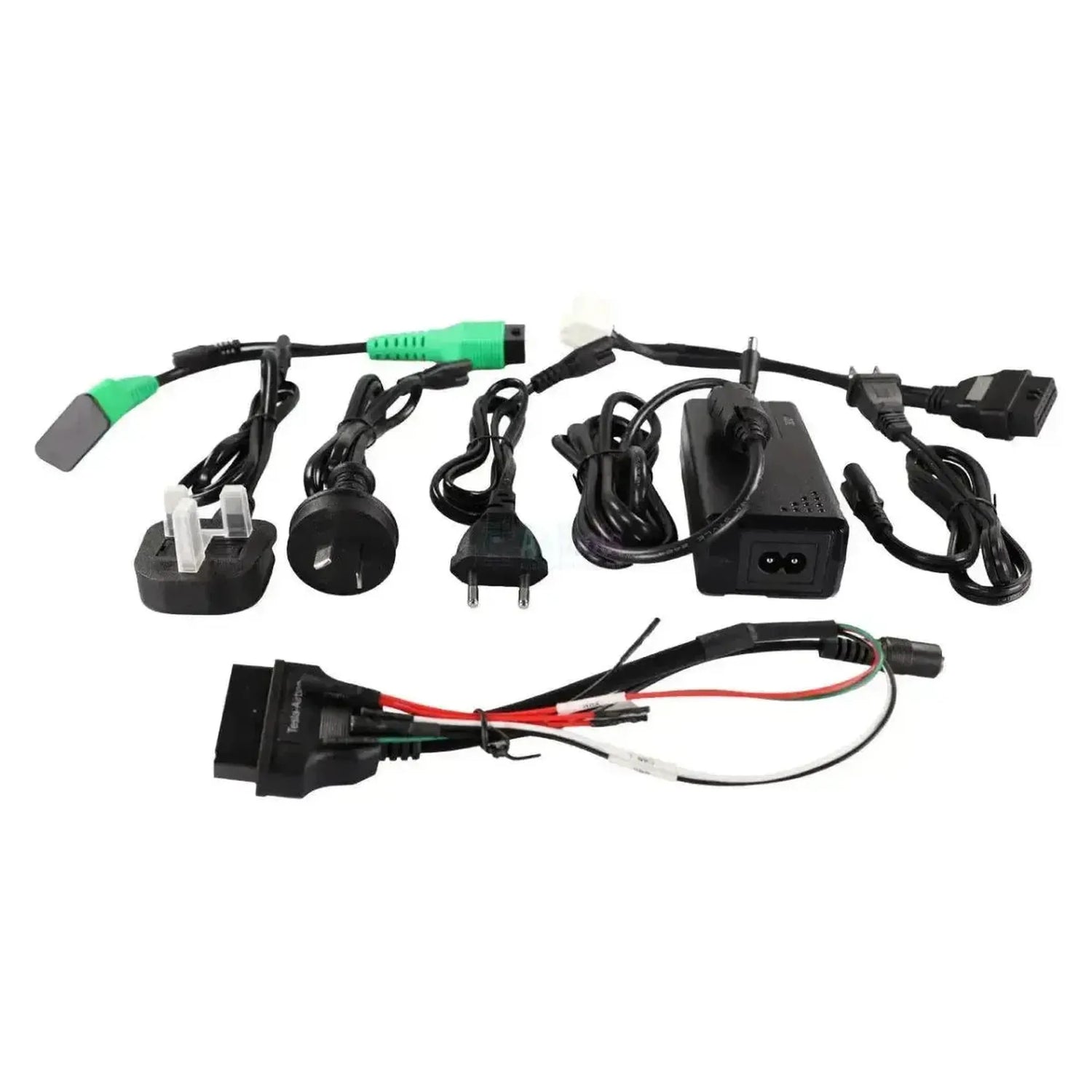

1x Power adapter 12V/4A 48W desktop, 8-suffix DC connector 5.5
1x US standard AC cable, 2M
1x Configuration manual for new energy detection expansion set (overseas)

💡

Good to know: Consult the configuration manual in advance to identify the correct test line per vehicle model. The cables are coded (TL-100R to TL-152B) corresponding to specific battery pack types, preventing incorrect connections.

Technical specifications

Specification	Description
Product brand	Launch
Product model	X-431 EV Kit
Product type	Accessory set for EV diagnosis
Application	Diagnosis and testing of electric vehicle battery packs
Diagnostic connector	8PIN for battery pack detection
Power adapter	12V / 4A / 48W desktop
DC connector	5.5mm, 8-suffix
AC cables	UK, EU, AU (1M) and US (2M)
Number of battery pack test lines	22 pieces
Number of PAD IV adapter cables	9 pieces
Tesla support	12+20 connector and airbag repair connector
OBD extension	OBD16 male-to-female with DC power supply
Compliance	RoHS
