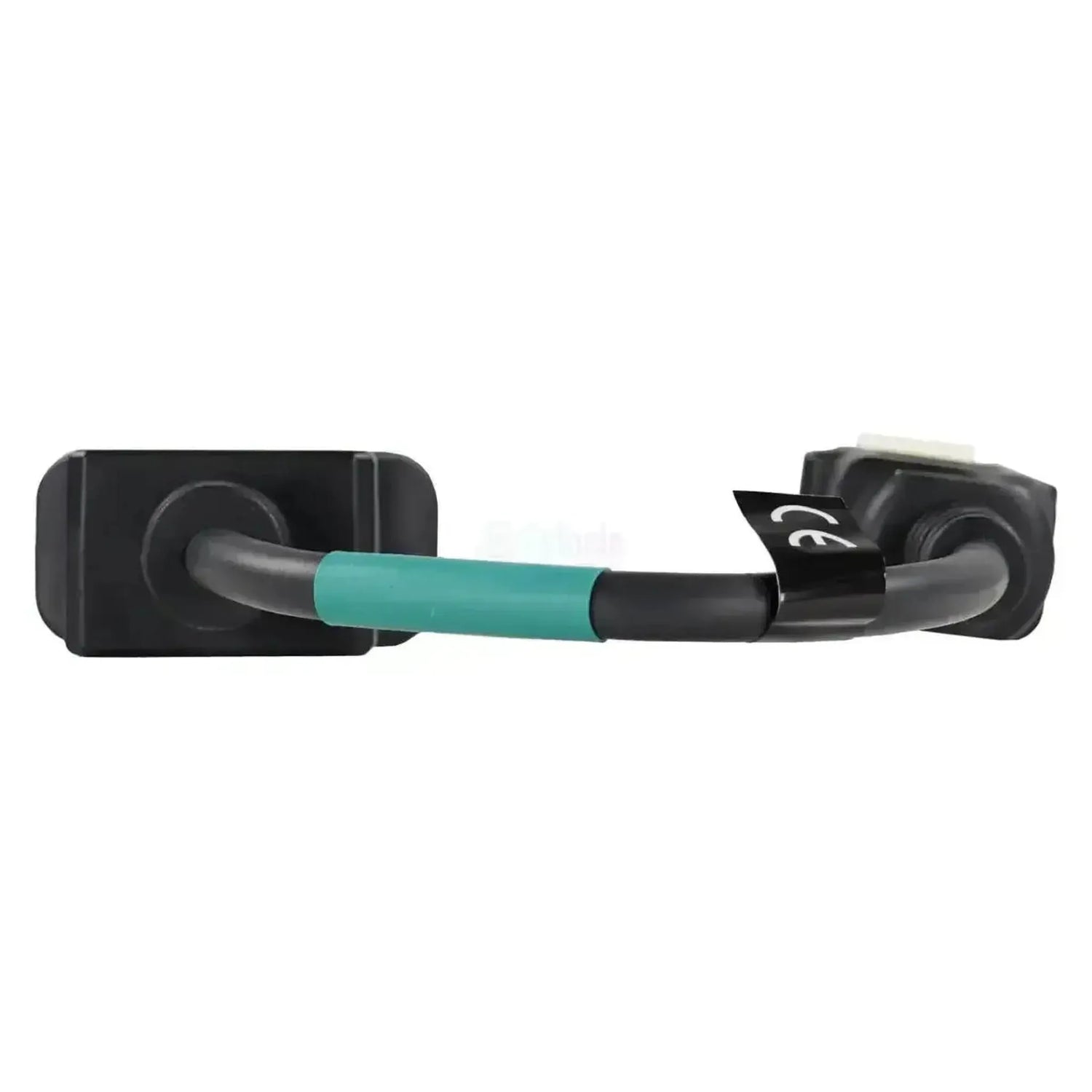

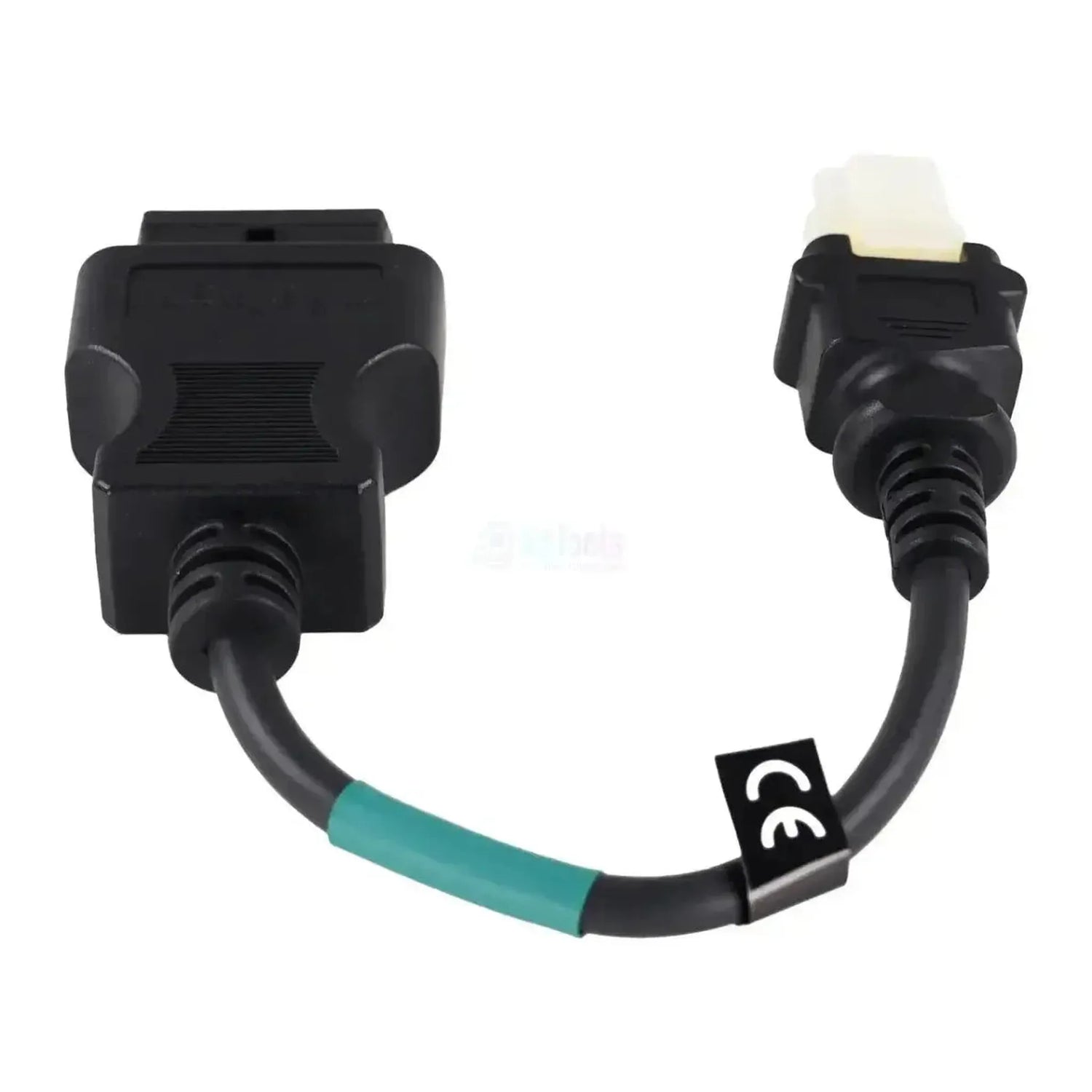

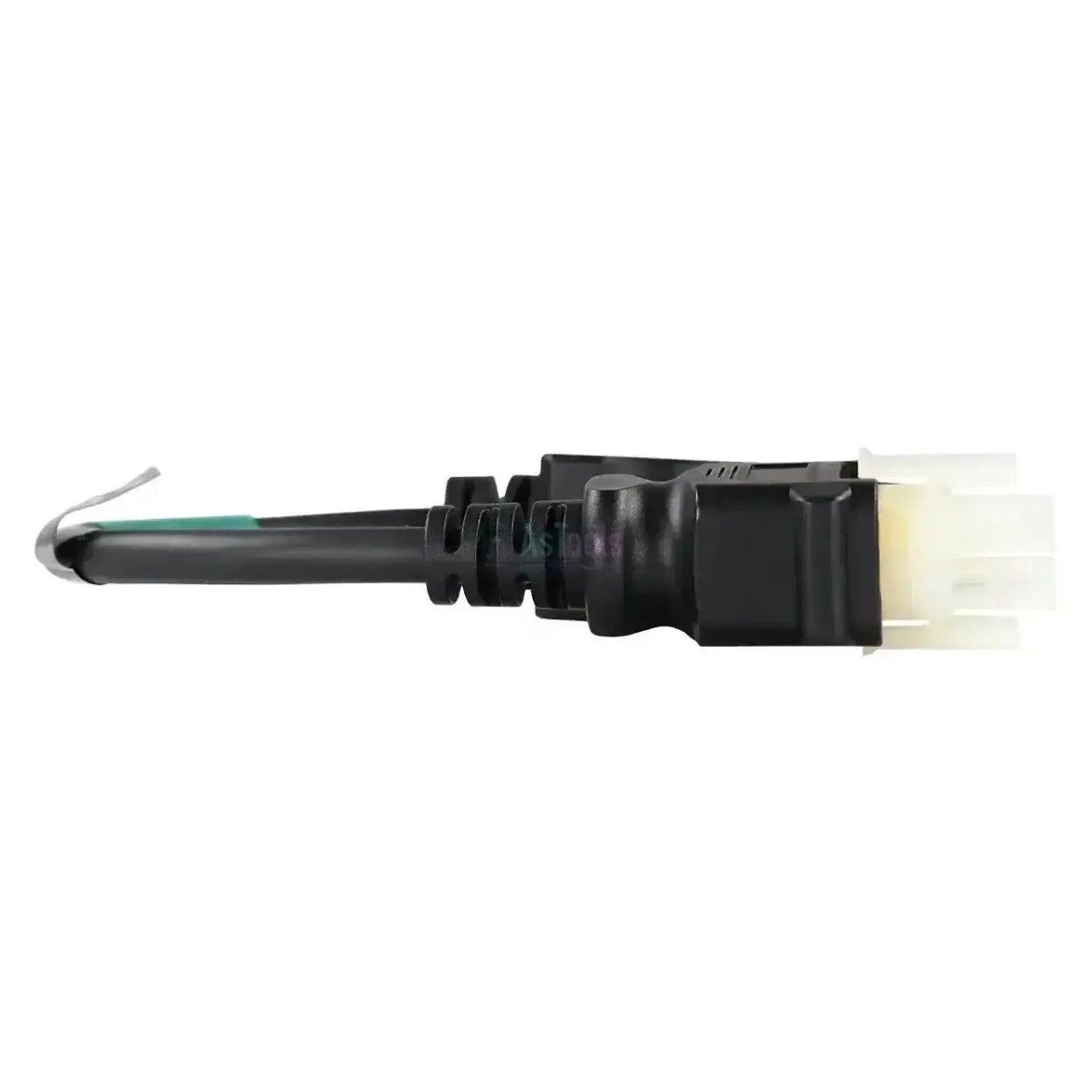

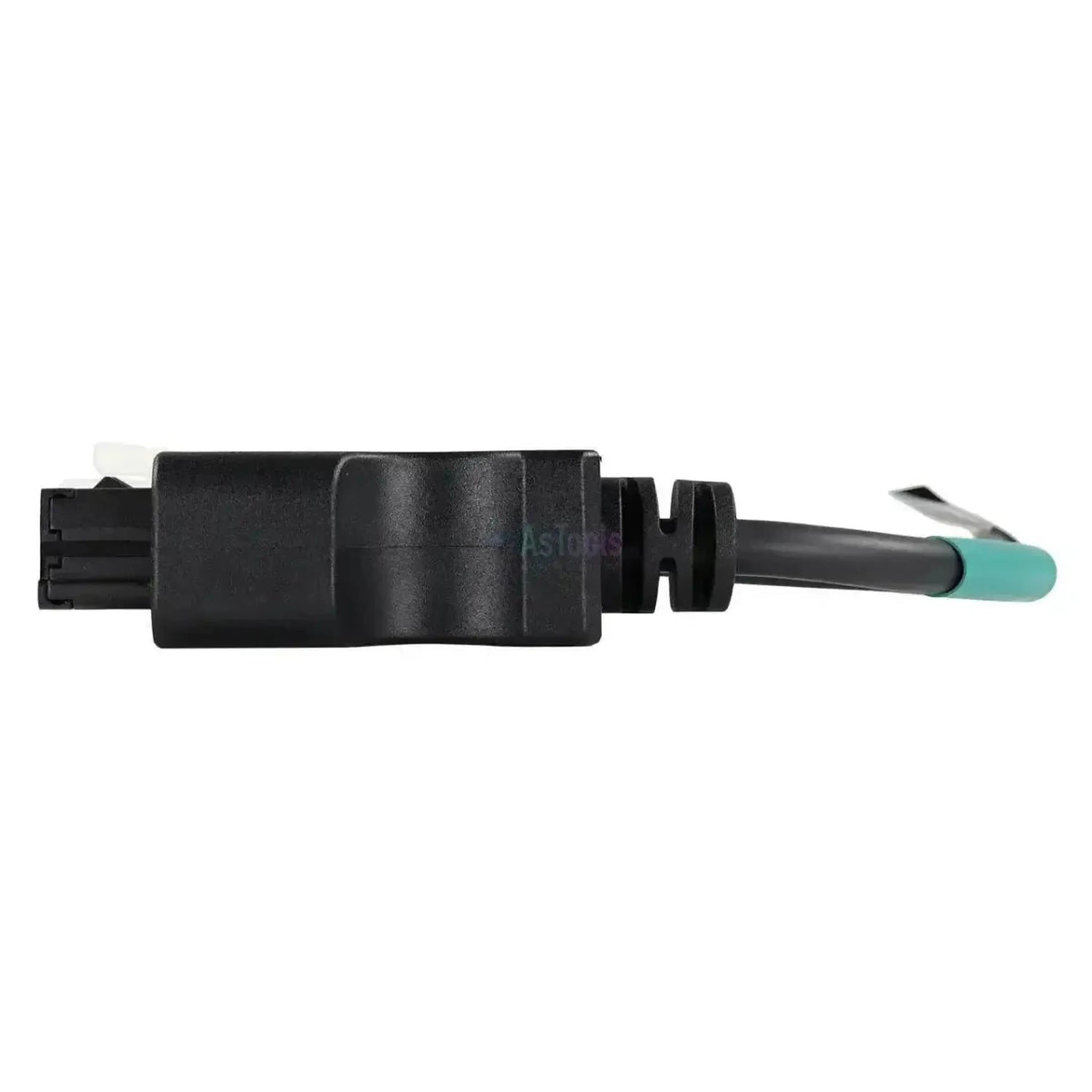

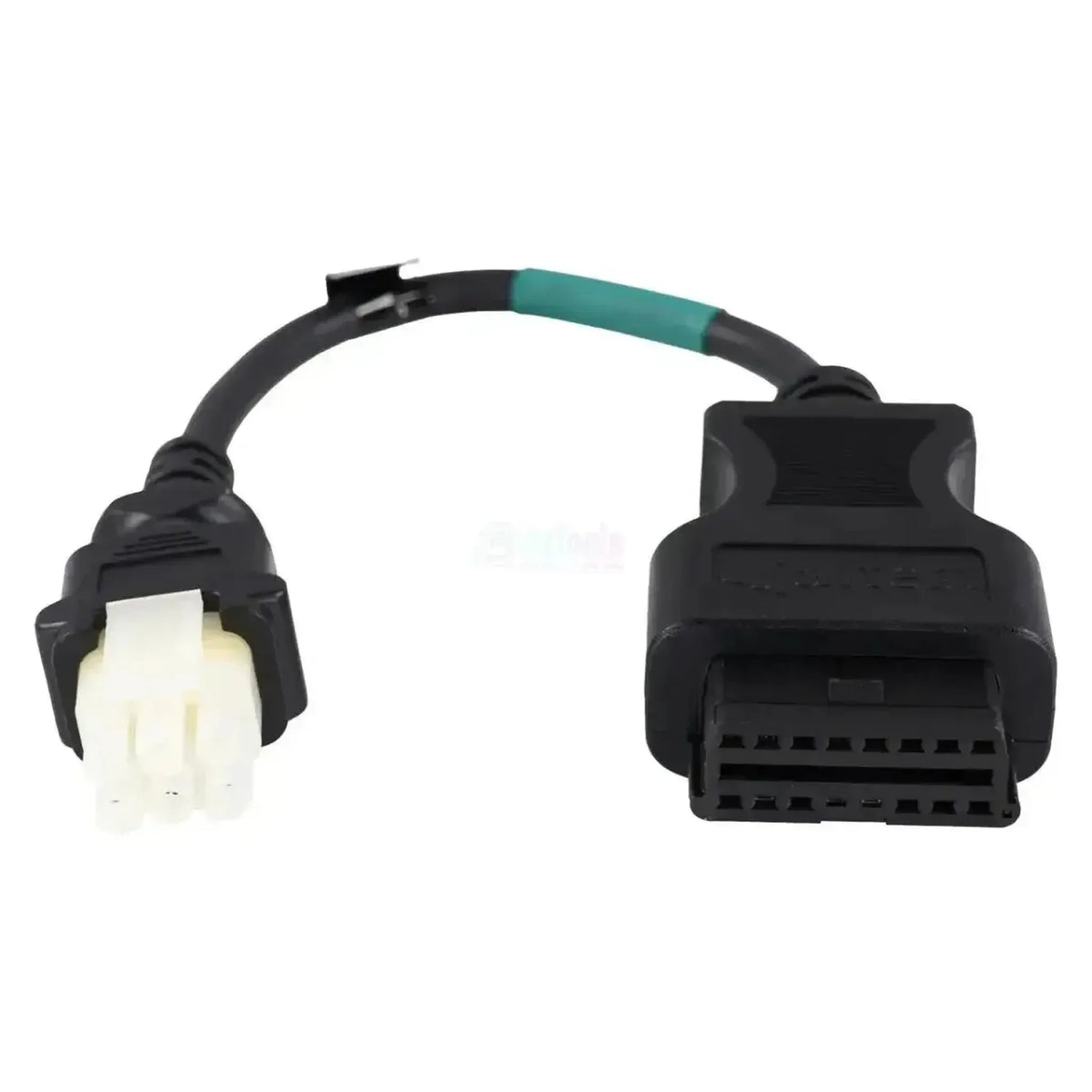

The Jaltest Adapter Cable with article number JDC546A is designed for performing diagnostics on ZF Ergopower transmission systems. This cable forms the connection between the ZF Ergopower 6-pin diagnostic port of the work vehicle and a 16-pin OBD2 port of a compatible diagnostic device, such as the Jaltest Link Interface.
The cable is specifically developed for use with Jaltest OHW (Off-Highway) diagnostic equipment and enables reading fault codes, viewing live data, and performing system calibrations on the supported ZF transmissions. It is a component for the maintenance and repair of heavy equipment, such as wheel loaders, dump trucks, and other construction machines equipped with this type of transmission.
Application and functionality:
This Adapter Cable enables direct communication with the electronic control unit (ECU) of the ZF Ergopower transmission.
- Diagnostic connection: Enables communication between a Jaltest diagnostic device and the control unit of ZF Ergopower transmissions for diagnosis purposes.
- System access: Provides access to functions such as reading and clearing fault codes, monitoring live sensor data, and performing specific tests and calibrations on the transmission.
- Wide compatibility: Suitable for various work vehicles within the agricultural and construction sectors equipped with a ZF Ergopower transmission with a 6-pin diagnostic port.
Compatible vehicles and applications:
This Adapter Cable is not specific to a single vehicle brand but is designed for diagnosing ZF Ergopower transmission systems. These transmissions are used in a wide range of work vehicles and heavy equipment from various manufacturers.
The cable is compatible with models from, among others, the following brands equipped with a ZF Ergopower transmission with a 6-pin connection:
- Case
- Claas
- Doosan
- Fendt
- JCB
- Liebherr
- New Holland
Important: Before purchasing the product, always check your vehicle’s connection. This may vary depending on the model and year of manufacture.
Package Contents:
- 1x Jaltest (JDC546A) | ZF Ergopower 6-pin OBD - 16-pin OBD2 Adapter Cable | Work Vehicle
Technical specifications:
| Specification | Description |
|---|---|
| Product Brand | Jaltest |
| Product Model | JDC546A |

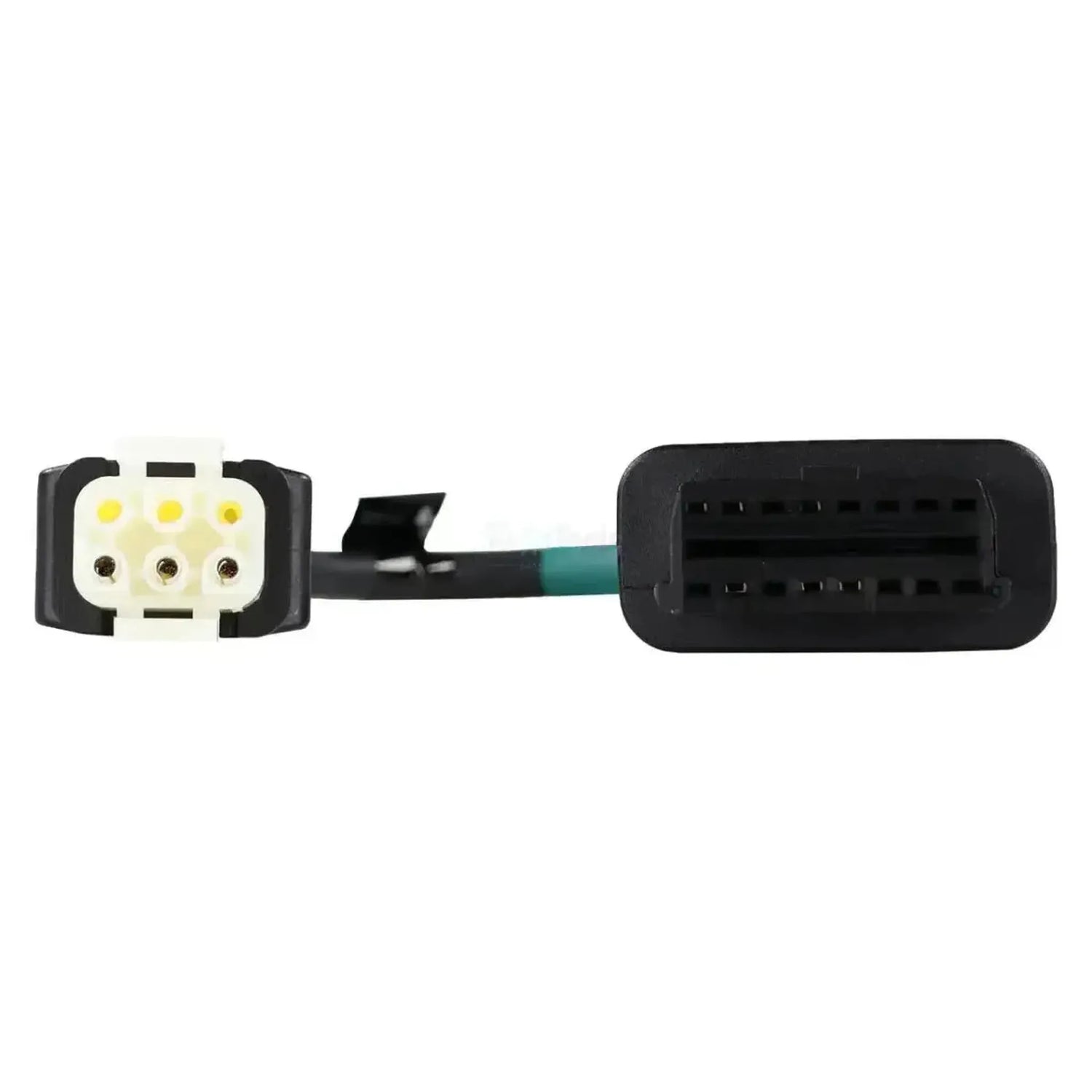

| Vehicle Side Connection | ZF Ergopower 6-pin |
| Adapter Side Connection | 16-pin OBD2 (female) |
